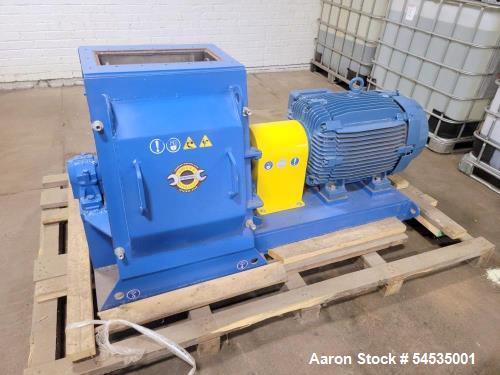

Unused Stedman FC 2215 Full-Circle Air-Swept Hammer Mill – 75 HP Grinding & Size Reduction System
Unused Stedman FC 2215 Full-Circle Air-Swept Hammer Mill 75 HP Grinding & Size Reduction System. 22" diameter x 15" wide rotor housing, 360 degree screen coverage around the rotor to maximize the active escape area for properly sized material, minimizing over-grinding and elevating total production capacity, Built-in turbulence channel at the bottom of the rotor, Features a specialized housing design that provides quick, direct access to remove and replace internal sizing screens, Fully reversible operation. Driven by a 75 hp, 3/60/460V, 3600 rpm motor. Serial # FC1968, Built 2021. Includes low voltage WEG control panel.
| Manufacturer | StedmanStedman |
| Model | FC 2215 Hammer Mill |
| Serial # | FC1968 |
| Category | MillsMills |
| Subcategory | Hammer MillHammer Mill |
Manufacturer
Stedman Machine Company
Description
Available for sale is an unused Stedman Machine Company Full-Circle Air-Swept Hammer Mill, Model FC 2215, designed for efficient fine grinding, particle size reduction, and material processing across a wide range of industrial applications. Manufactured in 2021, this high-performance hammer mill incorporates Stedman's full-circle screen design, maximizing throughput while minimizing over-grinding.
The FC 2215 features a 22-inch diameter x 15-inch wide rotor housing and utilizes 360-degree screen coverage around the rotor, providing a large active escape area for properly sized material. This design improves efficiency, increases production capacity, and reduces unnecessary particle degradation. A built-in turbulence channel at the bottom of the rotor promotes effective air flow and material movement through the grinding chamber.

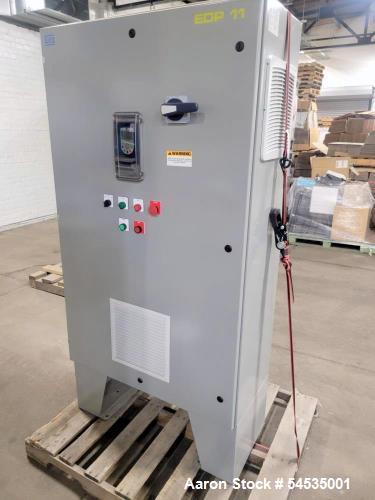

The machine is equipped with a specialized housing design allowing quick and direct access to internal sizing screens for simplified maintenance and reduced downtime. Fully reversible operation helps extend wear life and maximize equipment utilization. The unit is powered by a 75 HP motor and includes a low-voltage WEG control panel.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Stedman Machine Company |
| Model | FC 2215 |
| Equipment Type | Full-Circle Air-Swept Hammer Mill |
| Condition | Unused |
| Rotor Housing Diameter | 22 Inches |
| Rotor Housing Width | 15 Inches |
| Screen Coverage | 360 Degrees |
| Operation | Fully Reversible |
| Motor Size | 75 HP |
| Electrical | 3 Phase / 60 Hz / 460 Volt |
| Motor Speed | 3,600 RPM |

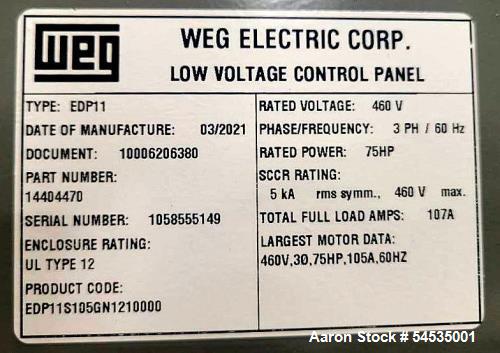

| Control Panel | WEG Low Voltage Control Panel |
| Serial Number | FC1968 |
| Year Built | 2021 |
Key Features
- Full-circle air-swept grinding design
- 360-degree screen coverage
- Maximized active escape area
- Reduced over-grinding
- Increased production efficiency
- Built-in turbulence channel
- Quick-change screen access
- Fully reversible rotor operation
- Heavy-duty industrial construction
- Low-voltage WEG control panel included
Applications
- Mineral processing
- Agricultural products grinding
- Biomass processing
- Chemical processing
- Industrial powders production
- Recycling operations
- Feed ingredient grinding
- Fertilizer processing
- Limestone grinding
- Industrial size reduction
Common Products Processed
- Limestone
- Gypsum
- Agricultural products
- Biomass materials
- Coal
- Fertilizers
- Industrial minerals
- Chemical powders
- Recycled materials
- Various dry bulk solids
Frequently Asked Questions
Q: What is the rotor housing size?
- The hammer mill features a 22-inch diameter x 15-inch wide rotor housing.
Q: What is the advantage of full-circle screen coverage?
- The 360-degree screen design increases active discharge area, improves throughput, and helps reduce over-grinding.
Q: Is the mill reversible?
- Yes, the FC 2215 features fully reversible operation, helping extend hammer and wear component life.
Q: What motor is included?
- The unit is driven by a 75 HP, 460 Volt, 3 Phase, 3,600 RPM motor.
Q: Does the mill include controls?
- Yes, a low-voltage WEG control panel is included.
Q: Can Aaron Equipment assist with shipping and logistics?
- Yes, Aaron Equipment can assist with freight coordination, rigging services, export documentation, transportation planning, and worldwide logistics support.
