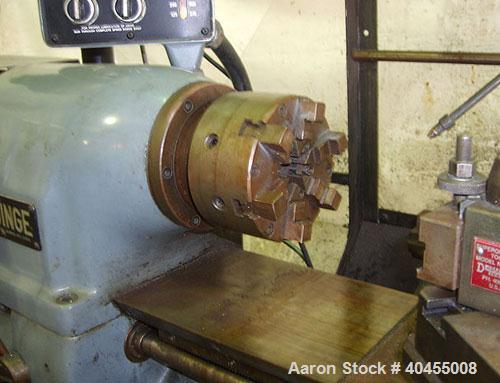

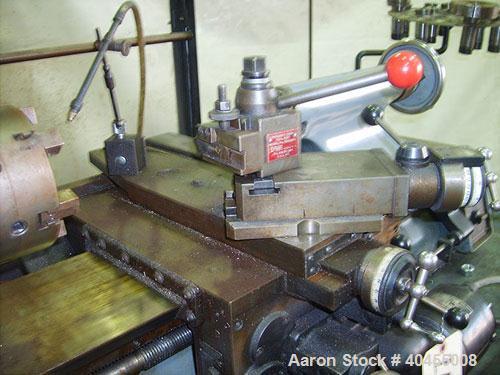

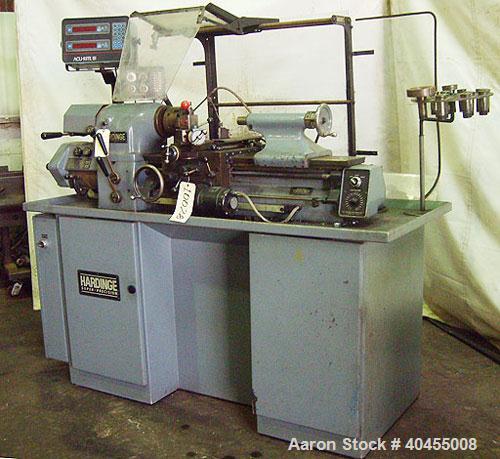

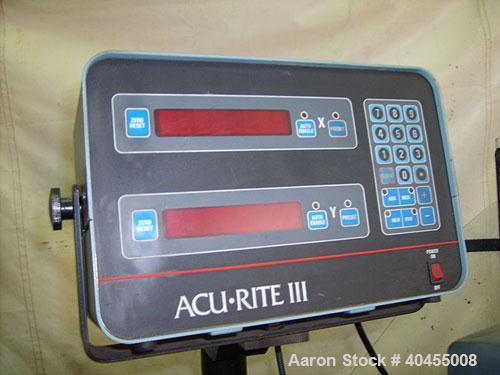

Used Hardinge 9'' x 18'' Precision Tool Room Lathe. Spindle construction Hardinge ball bearing. Spindle nose Hardinge taper. Spindle capacity: With round type 5C collets 1 1/16". With step chucks 1 1/16" to 6". With jaw chucks 5". With expanding collets 3". Variable spindle speeds 125-3000 rpm. Hole through spindle 1 1/4". Swing over bed 11". Swing over carriage 9". Swing over cross slide 6". Distance between centers 18". Compound slide travel 3". Carriage power feed range 5/16 - 7 IPM. Cross slide power feed range 3/16 - 4 IPM. Tailstock spindle diameter 1 3/8". Tailstock spindle taper #2 MT. Inch threading range in gearbox (36) 11-108 TPI. Metric threading range in gearbox (36) 0.275-2.7 mm. Equipped with dual gearbox for precision English or metric thread cutting. Dual reading inch/metric dial for compound and tailstock. Ball bearing quick acting 5C collet closer with a large assortmentof type 5C round collets. Acu-rite III digital readouts. 4" 6-jaw chuck. Self-contained coolant system with transparent chip and coolant shield. Tailstock work light. 1.5 hp, 3/60/208 volt two-speed main drive motor and electrical controls.
Used Hardinge 9'' x 18'' Precision Tool Room Lathe. Spindle construction Hardinge ball bearing. Spindle nose Hardinge taper. Spindle capacity: With round type 5C collets 1 1/16". With step chucks 1 1/16" to 6". With jaw chucks 5". With expanding collets 3". Variable spindle speeds 125-3000 rpm. Hole through spindle 1 1/4". Swing over bed 11". Swing over carriage 9". Swing over cross slide 6". Distance between centers 18". Compound slide travel 3". Carriage power feed range 5/16 - 7 IPM. Cross slide power feed range 3/16 - 4 IPM. Tailstock spindle diameter 1 3/8". Tailstock spindle taper #2 MT. Inch threading range in gearbox (36) 11-108 TPI. Metric threading range in gearbox (36) 0.275-2.7 mm. Equipped with dual gearbox for precision English or metric thread cutting. Dual reading inch/metric dial for compound and tailstock. Ball bearing quick acting 5C collet closer with a large assortmentof type 5C round collets. Acu-rite III digital readouts. 4" 6-jaw chuck. Self-contained coolant system with transparent chip and coolant shield. Tailstock work light. 1.5 hp, 3/60/208 volt two-speed main drive motor and electrical controls.
