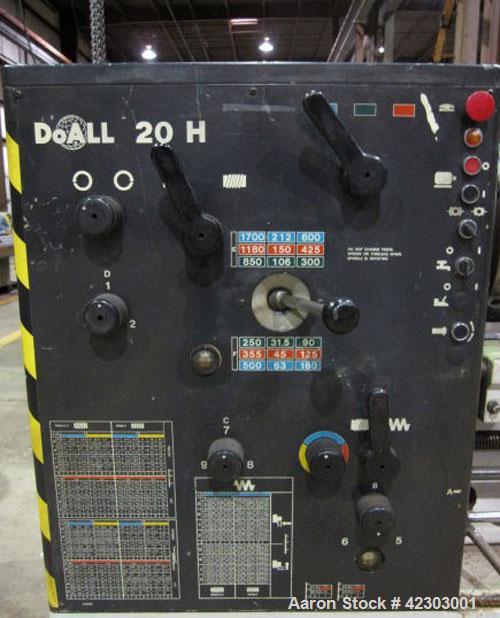

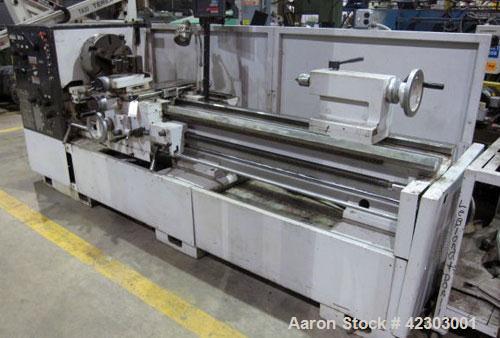

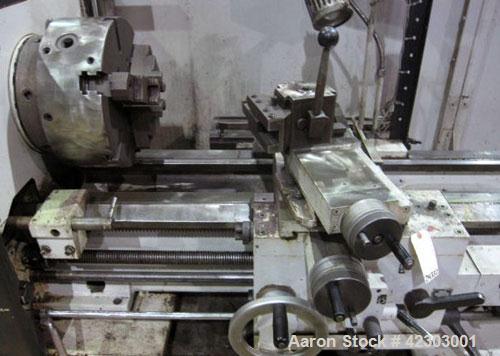

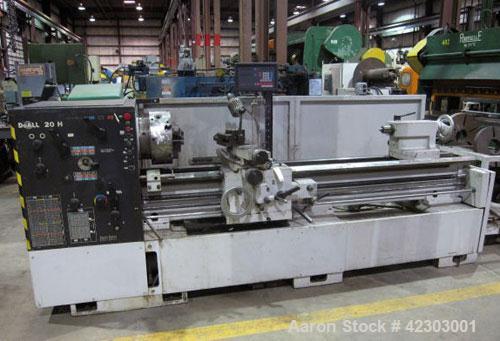

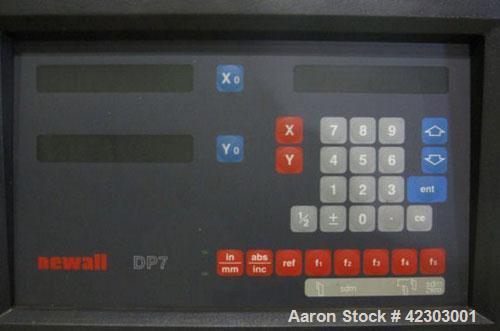

Used DoAll Toolroom Engine Lathe, Model 20H. Swing over bed 20", swing over cross slide 12", distance between centers 80", top slide travel 6", width of bed 15", hole through spindle 4.1", spindle speeds 31.5 to 1700 rpm, Tailstock quill taper, No. 5 Morse, Tailstock quill travel 8", longitudinal feeds .0023 to .129 IPR, threads 1/2 to 42, cross feeds .0009 to .050 IPR. Equipped with: Quick change tool post, 16" diameter 3-jaw chuck, pushbuttons for start - stop, coolant pump and motor with selector switch for off - on, Newall 'DP7' X-Y axis digital readout with inch and metric reading, carriage mounted threading dial, 15 hp 460V 3 ph 60 cycle motor.
Used DoAll Toolroom Engine Lathe, Model 20H. Swing over bed 20", swing over cross slide 12", distance between centers 80", top slide travel 6", width of bed 15", hole through spindle 4.1", spindle speeds 31.5 to 1700 rpm, Tailstock quill taper, No. 5 Morse, Tailstock quill travel 8", longitudinal feeds .0023 to .129 IPR, threads 1/2 to 42, cross feeds .0009 to .050 IPR. Equipped with: Quick change tool post, 16" diameter 3-jaw chuck, pushbuttons for start - stop, coolant pump and motor with selector switch for off - on, Newall 'DP7' X-Y axis digital readout with inch and metric reading, carriage mounted threading dial, 15 hp 460V 3 ph 60 cycle motor.
