Stock #
53040001

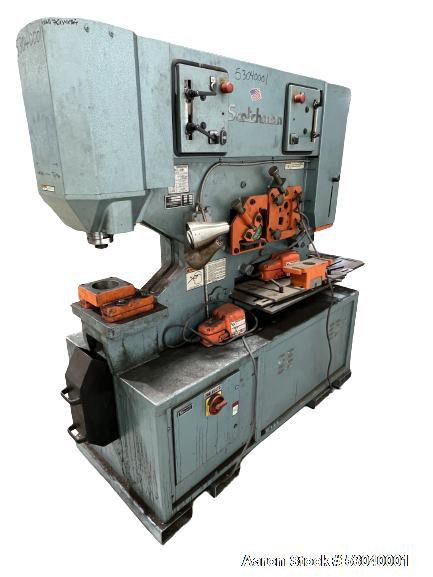

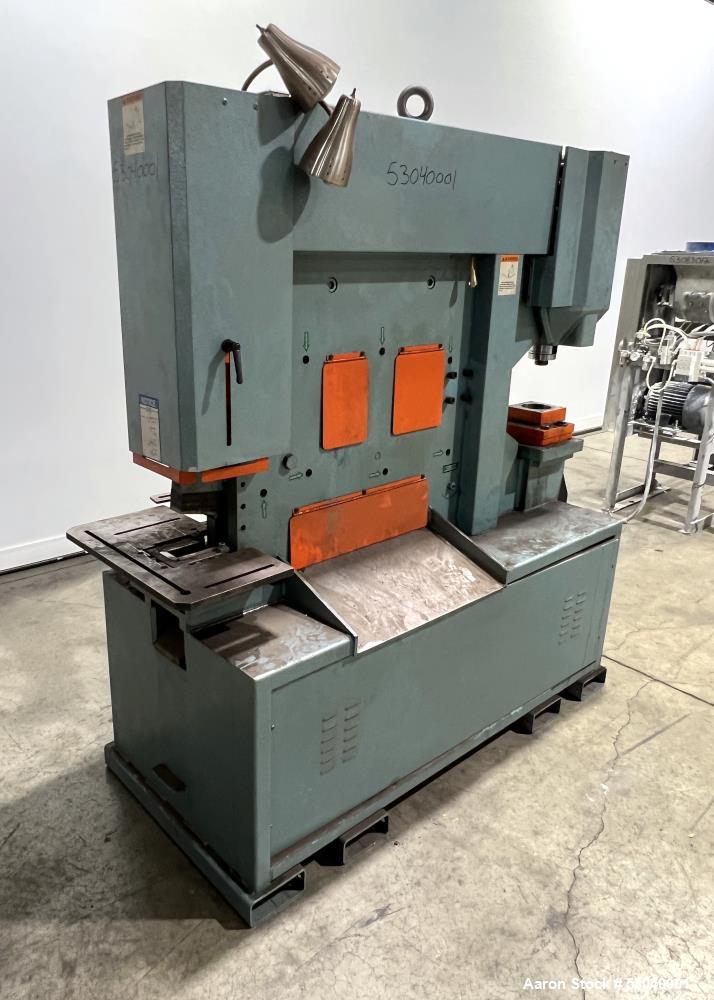

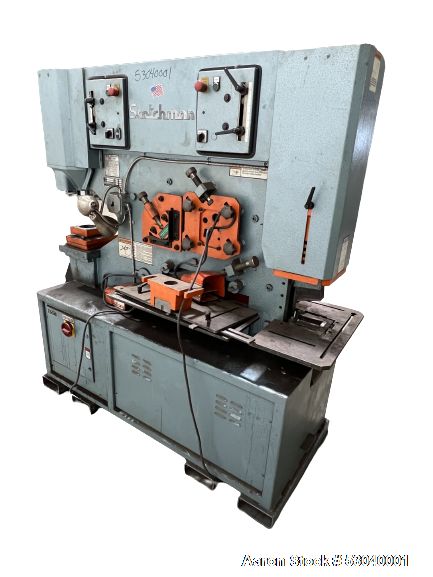

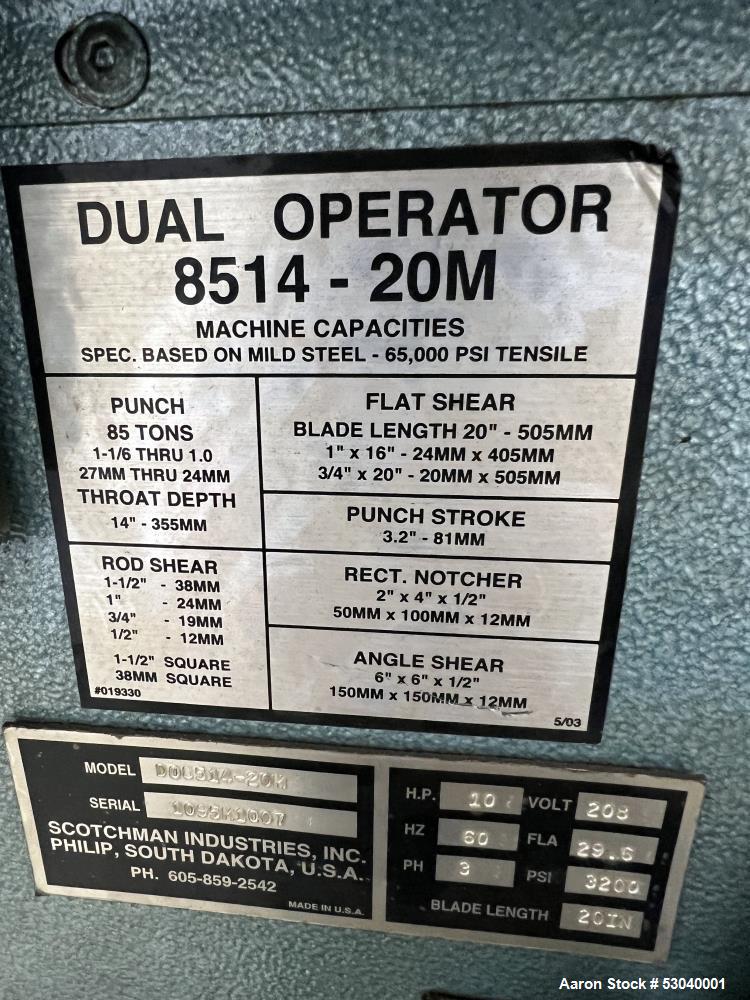

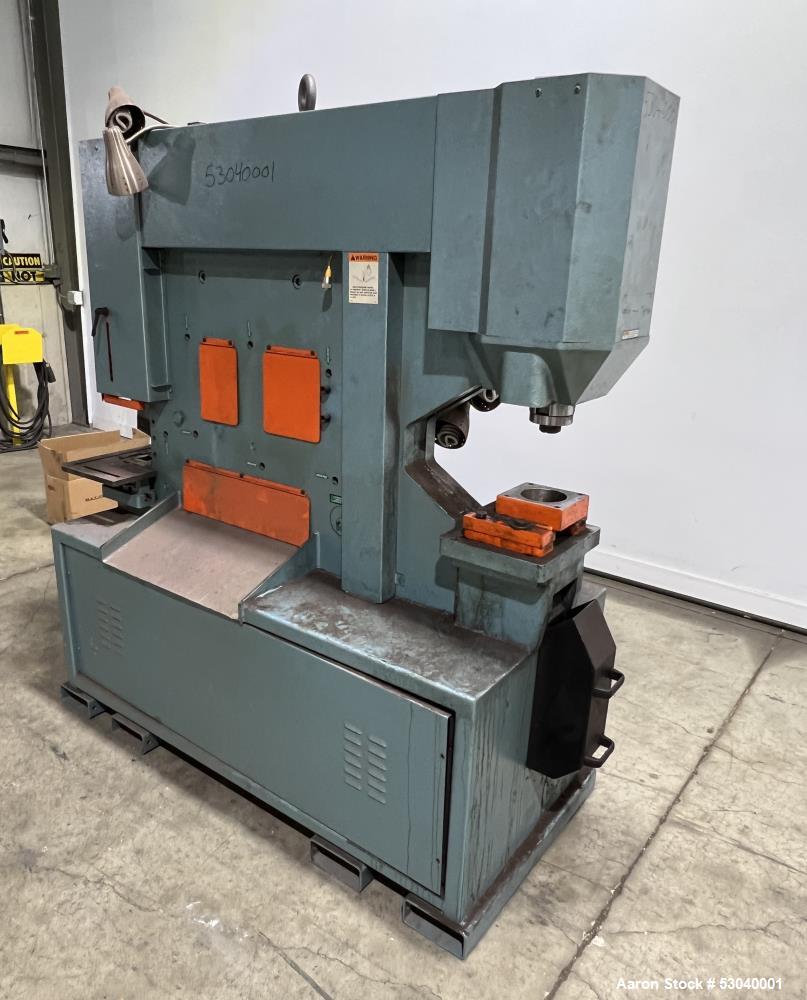

Used Scotchman Iron Worker. Model D08514-20M. 85 Ton. Punching capacity for 1-1/16" thru 1" (27mm thru 24mm), throat depth 14" (355mm). Punch stroke 3.2" (81mm). Special Tooling up to 4" max diameter. Rect. notcher 2" x 4" x 1/2" (50mm x 100mm x 12mm). Angle shear 6" x 6" x 1/2" (150mm x 150mm x 12mm). Has drive 10hp 3/60/208v motor. 20" Long blade. 3200psi air requirements. Light material can do 45 strokes per minute, heavy material 18 strokes per minute. Capacity for Mild steel 65,000 psi tensile. Serial# 1095M1007. 3/60/208 Volt, 29.6 Amp.
Used Equipment Facts About This Machine
Manufacturer Information:

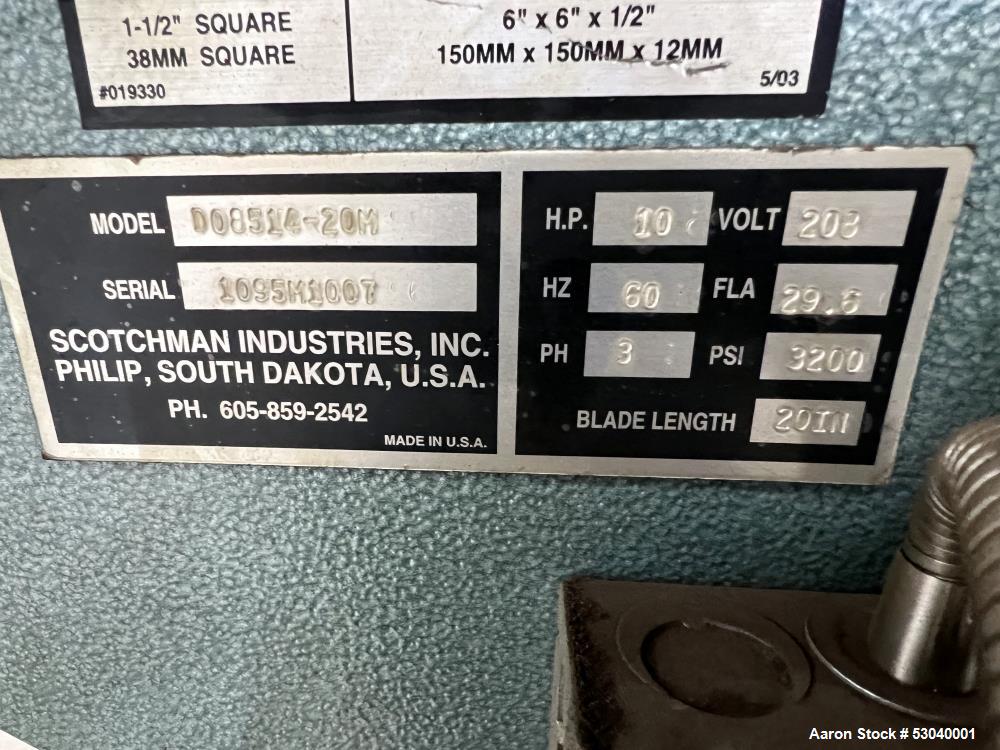

- Brand: Scotchman
- Model: D08514-20M
- Serial Number: 1095M1007
Description:
The Scotchman D08514-20M Ironworker is a high-performance metal fabrication machine, built for precision punching, shearing, and notching of steel and other materials. Designed for heavy-duty industrial applications, this unit offers an 85-ton punching capacity, making it ideal for manufacturing, fabrication shops, and metalworking industries.
Equipped with a 10 HP, 3/60/208V motor, the ironworker provides consistent power to handle light and heavy materials with up to 45 strokes per minute for thin stock and 18 strokes per minute for heavy stock. The unit supports mild steel with a 65,000 PSI tensile strength, making it perfect for high-strength metal processing.
Key Features:
- 85 Ton Punching Capacity
- Punching Range: 1-1/16" through 1" (27mm - 24mm)

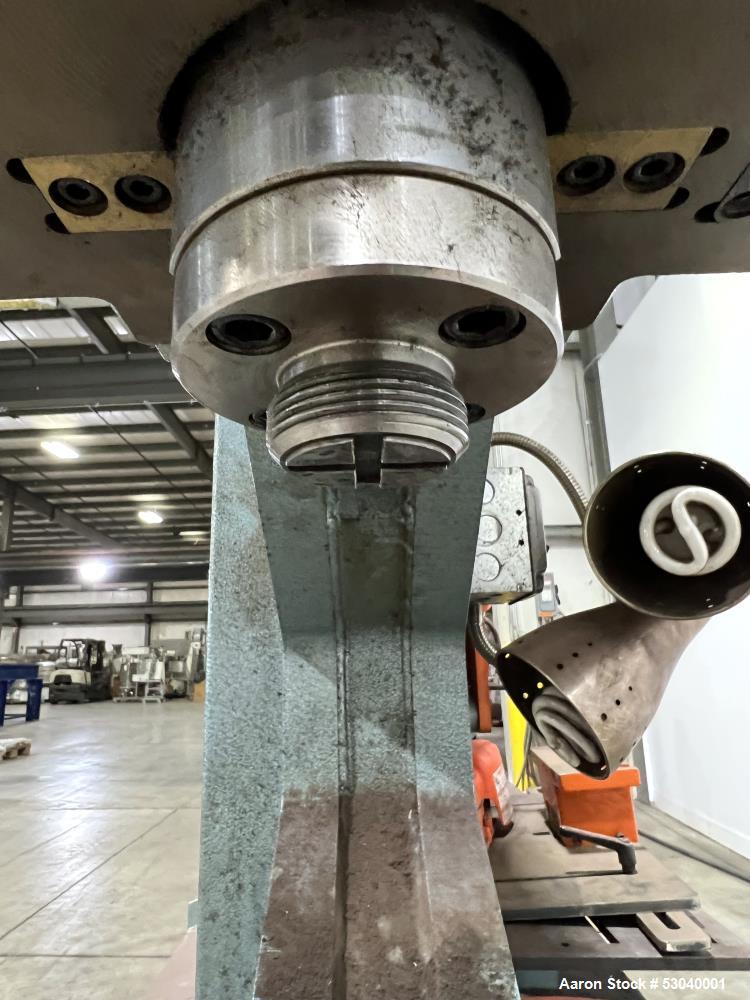

- Throat Depth: 14” (355mm)

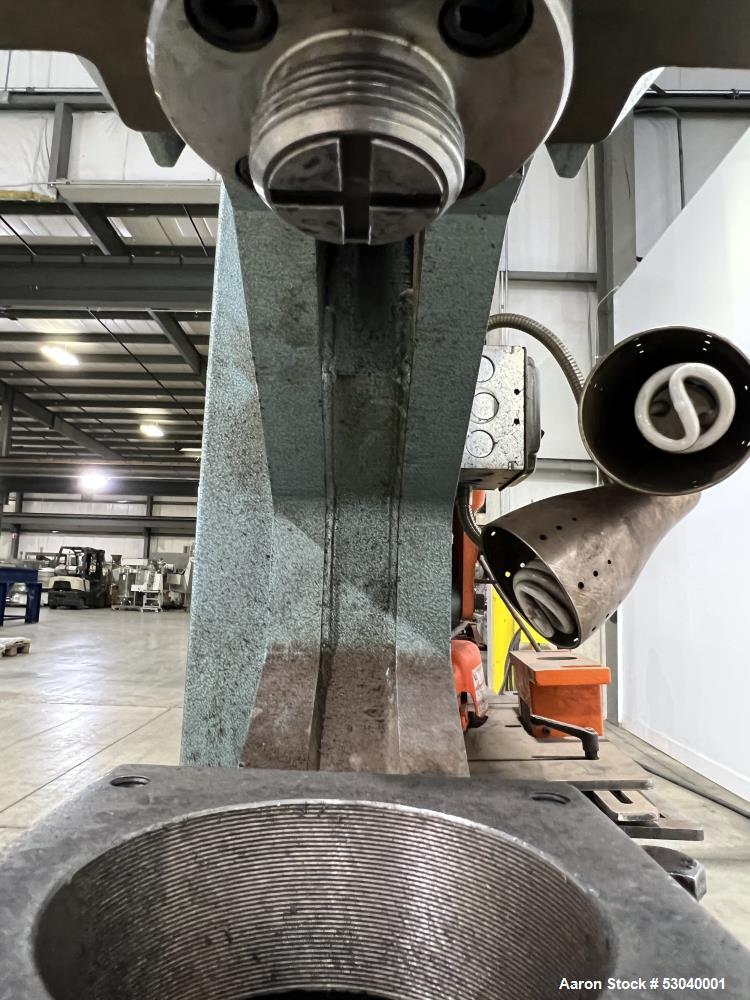

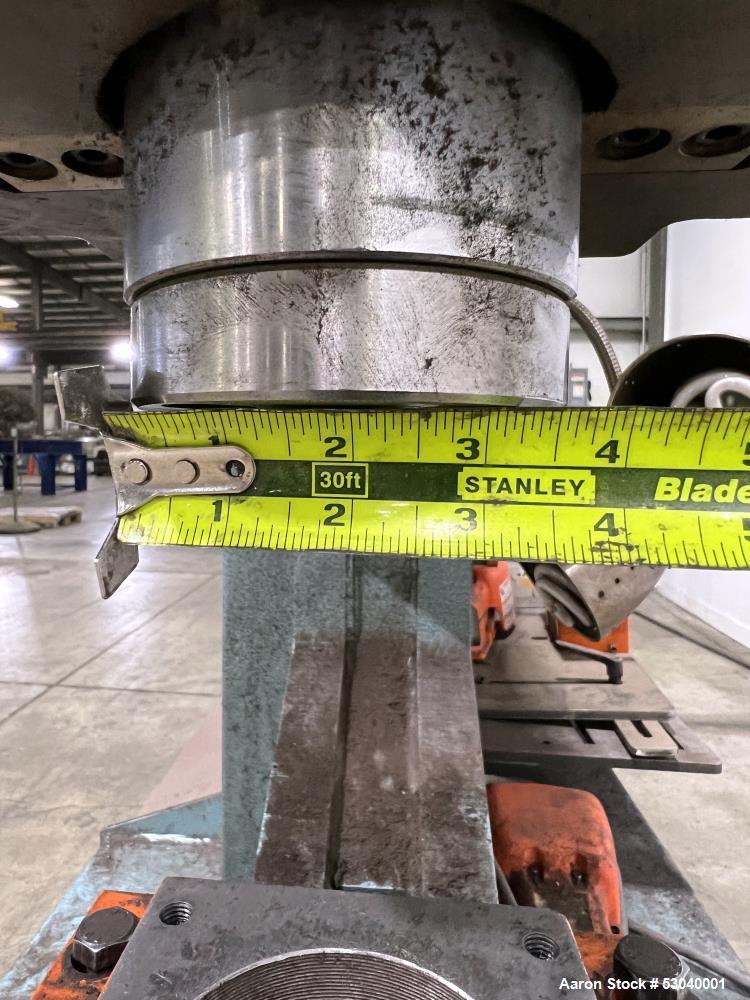

- Punch Stroke: 3.2” (81mm)

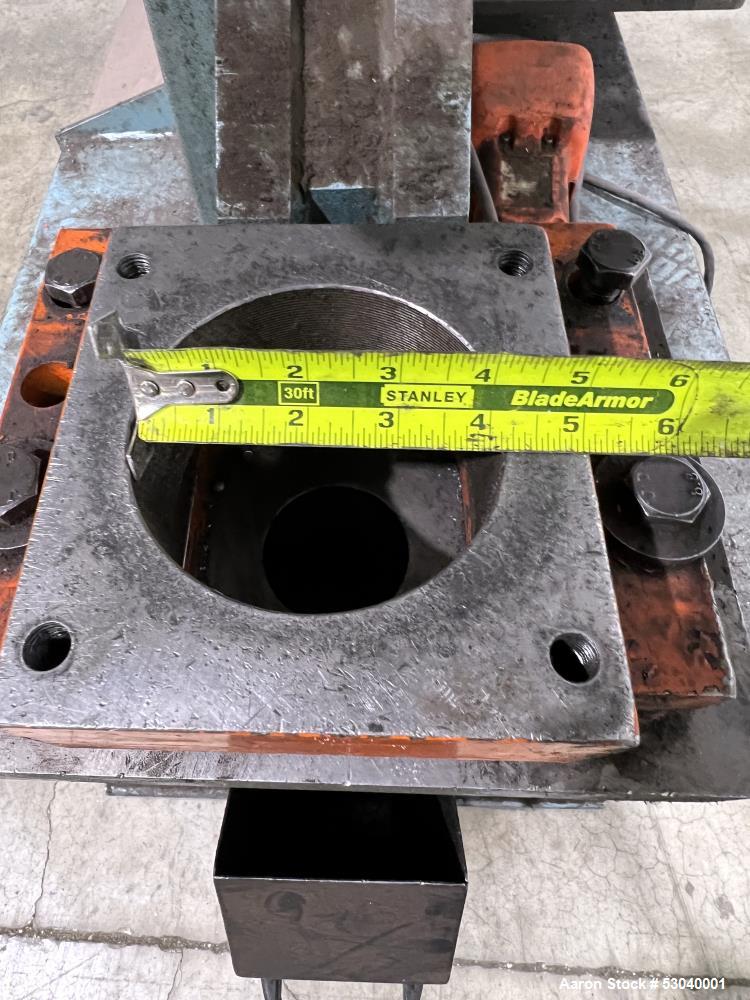

- Special Tooling: Up to 4” Maximum Diameter

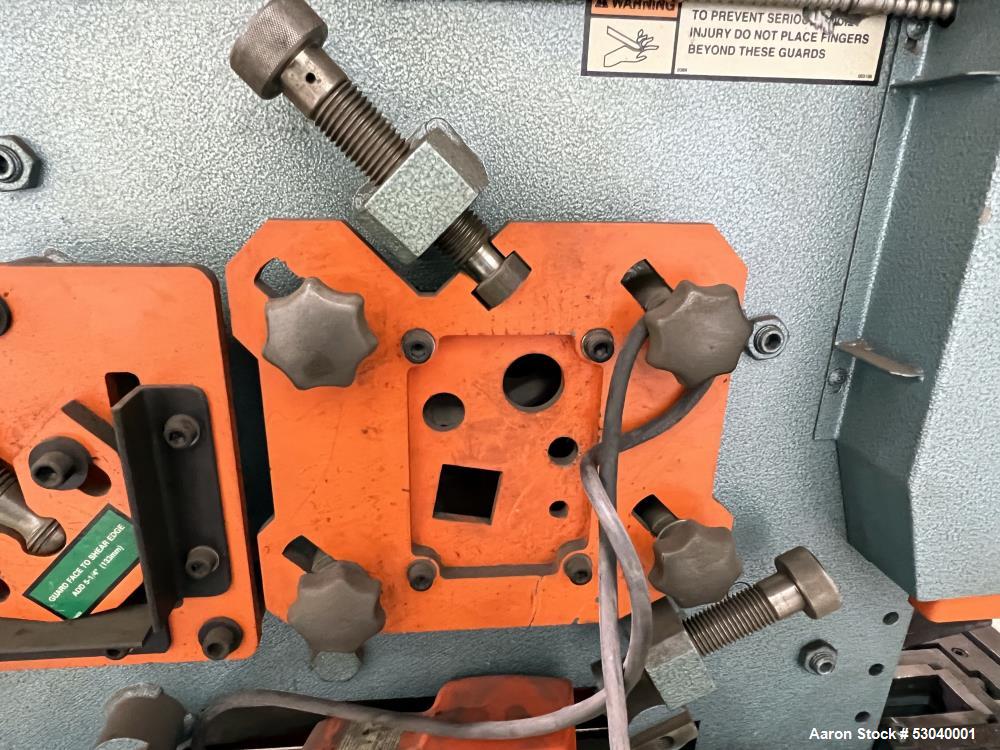

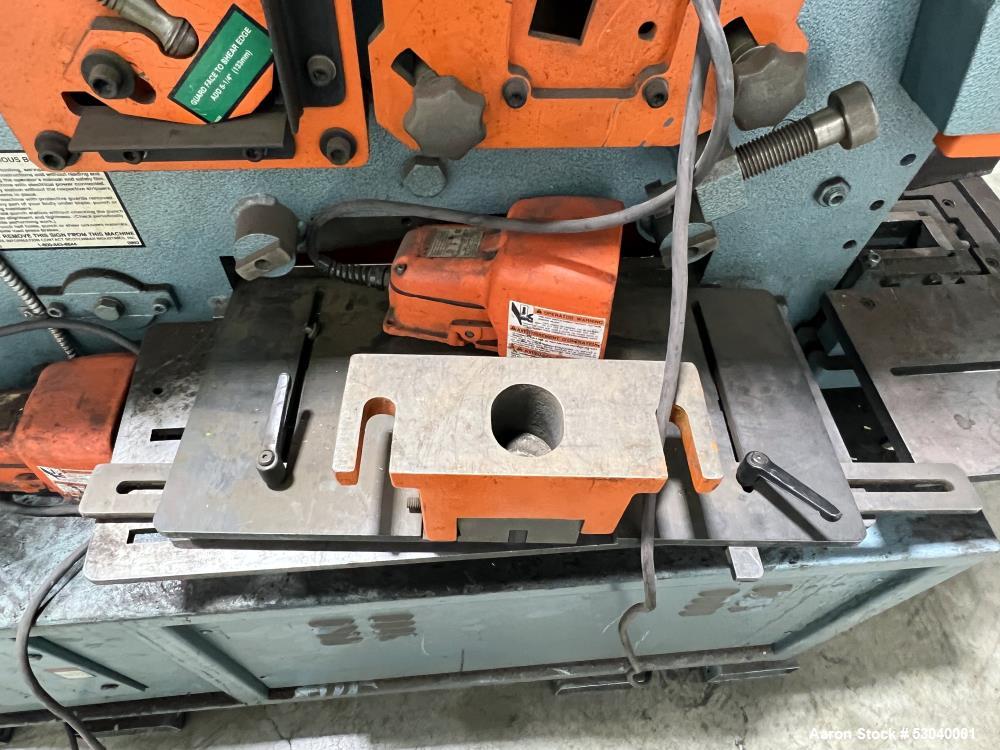

- Rectangular Notcher Capacity: 2" x 4" x 1/2" (50mm x 100mm x 12mm)

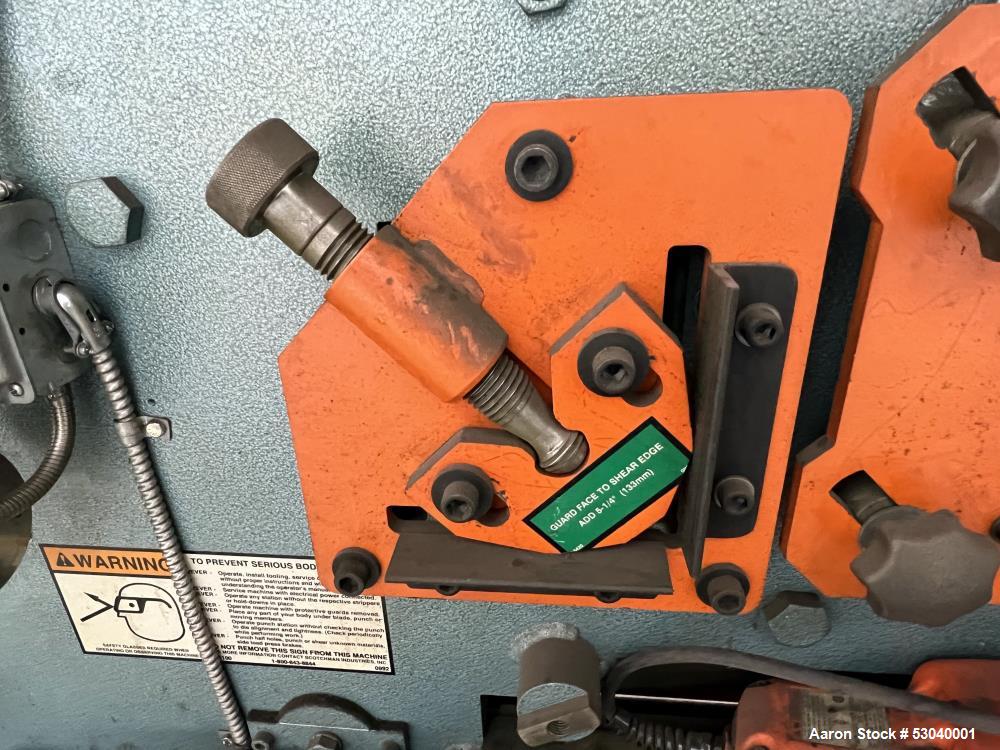

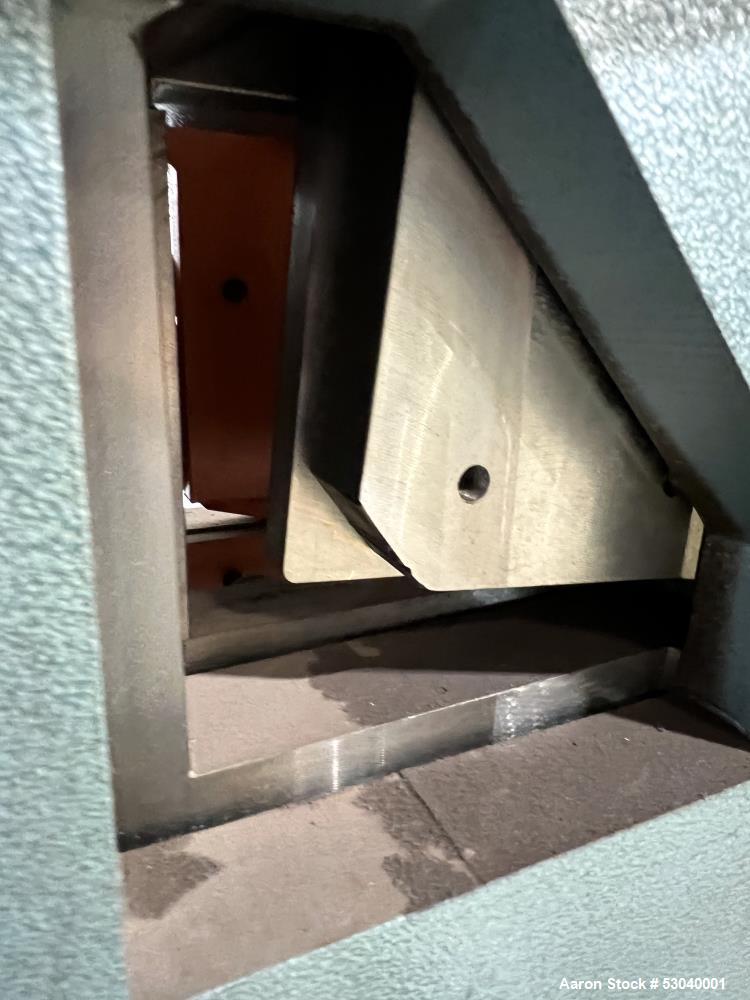

- Angle Shear Capacity: 6” x 6” x 1/2” (150mm x 150mm x 12mm)

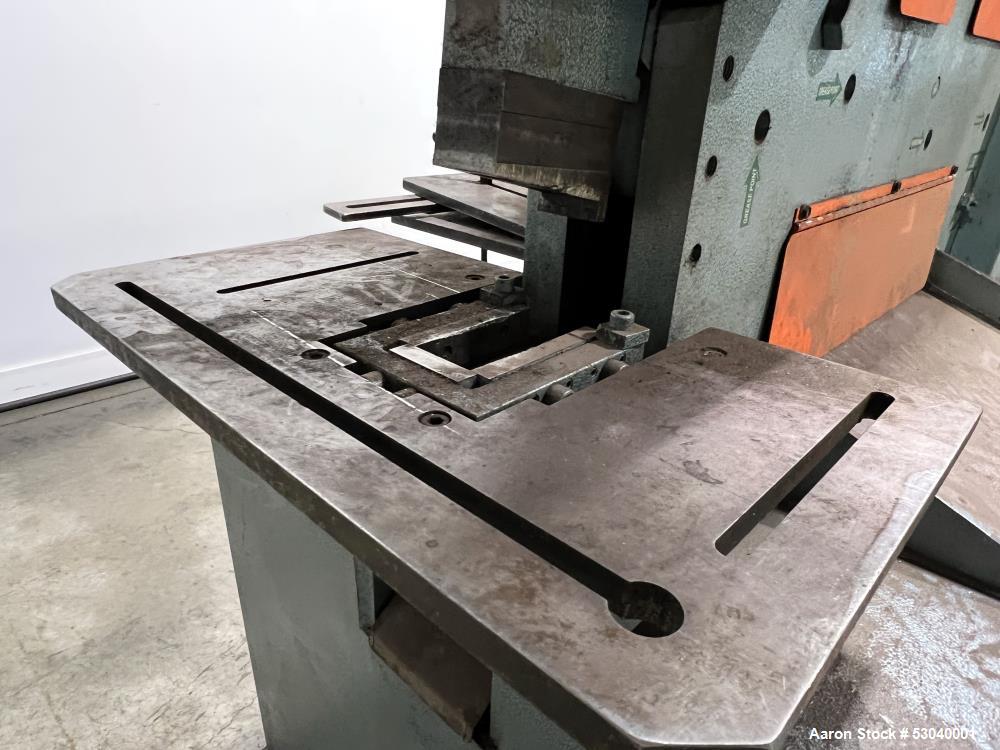

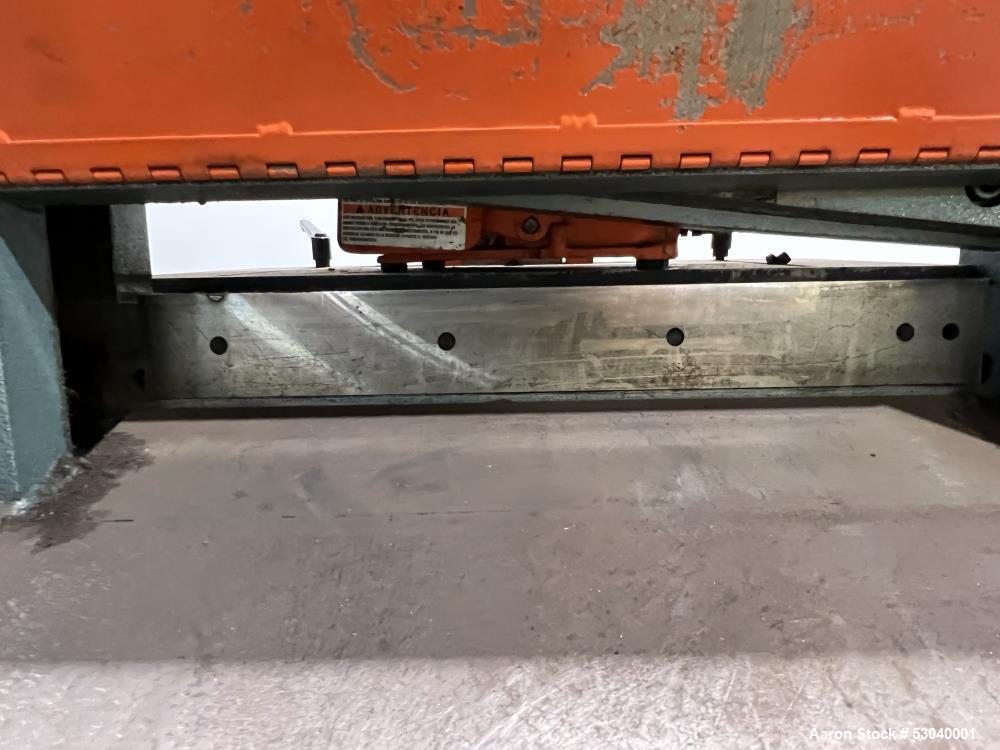

- Shearing Blade Length: 20”
- Operating Pressure: 3200 PSI Air Requirements
- Light Material Strokes Per Minute: 45 SPM
- Heavy Material Strokes Per Minute: 18 SPM
- Material Capacity: Mild Steel, 65,000 PSI Tensile Strength

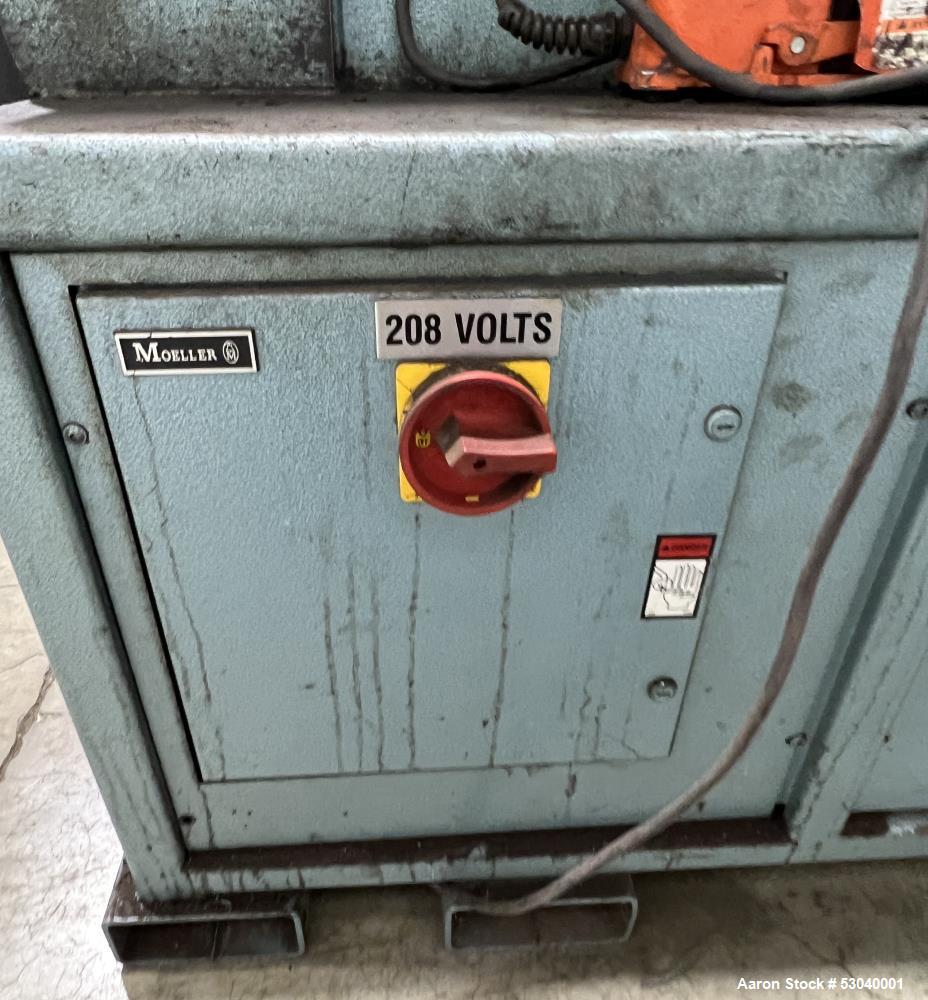

- Motor: 10 HP, 3/60/208V, 29.6 Amp
Specifications:
- Machine Type: Ironworker
- Model: Scotchman D08514-20M
- Punch Capacity: 85 Ton
- Throat Depth: 14”
- Punch Stroke: 3.2”
- Notching Capacity: 2” x 4” x 1/2”
- Angle Shear Capacity: 6” x 6” x 1/2”
- Shearing Blade: 20” Long
- Motor Power: 10 HP, 3/60/208V
- Stroke Rate: 45 SPM (light), 18 SPM (heavy)
- Operating Pressure: 3200 PSI
- Material Strength: Up to 65,000 PSI Mild Steel
- Serial Number: 1095M1007
Applications:
- Metal Fabrication Shops – Custom metal component production
- Manufacturing Plants – High-volume metalworking operations
- Steel & Structural Fabrication – Cutting, shearing, and punching heavy-duty materials
- Machine Shops – Precision metal cutting and forming
- Industrial Metal Processing – Large-scale structural metalworking
What Products Would This Be Used For?
- Structural steel components
- Custom metal brackets and parts
- Sheet metal cutting and punching
- Heavy-duty steel processing
- Precision fabrication of metal plates
