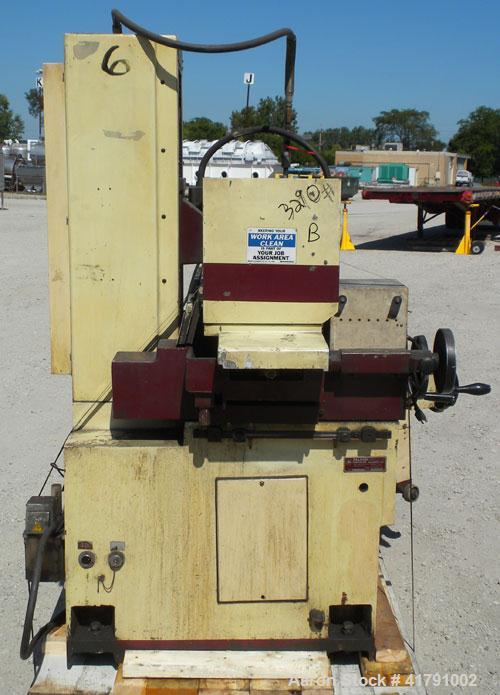

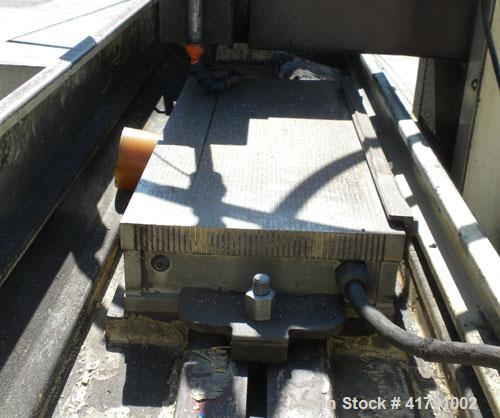

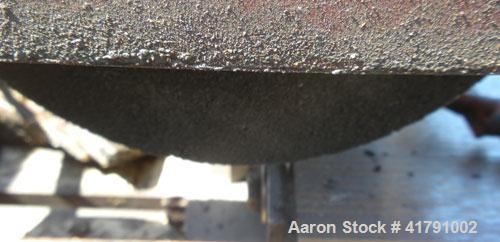

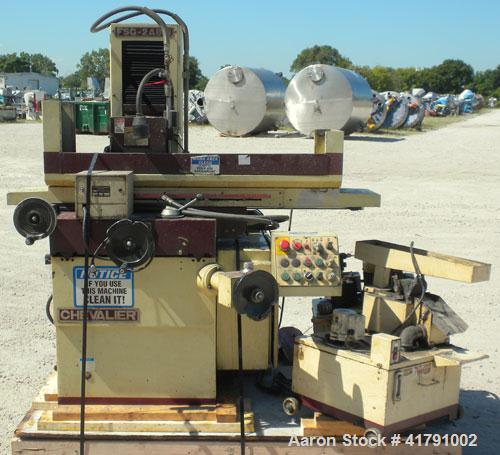

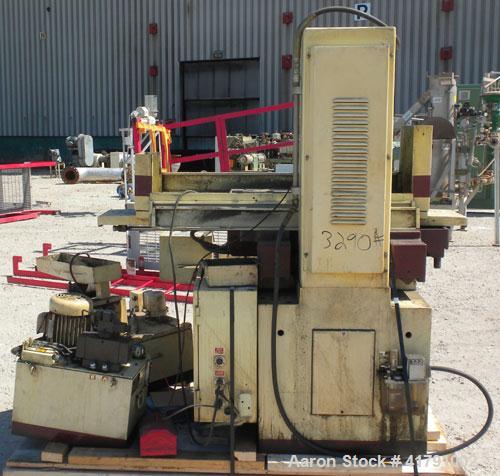

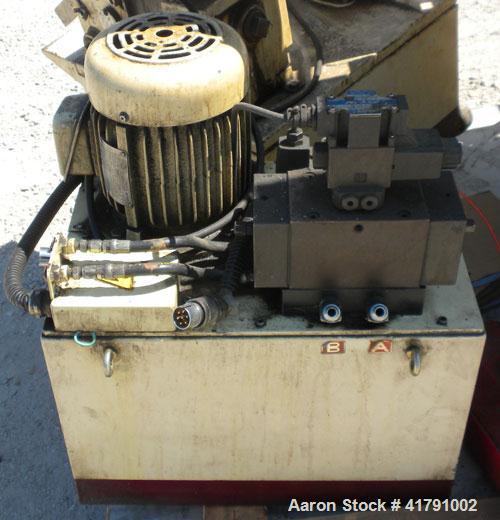

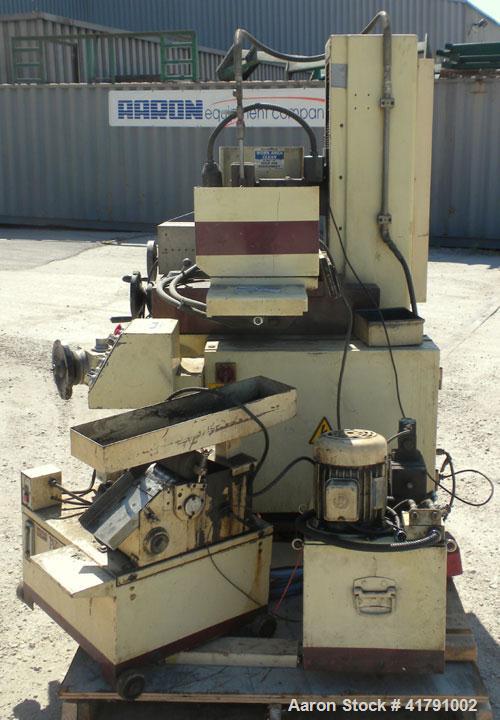

Used Chevalier High Precision Surface Grinder, Model FSG-2A818. Table size 8'' x 18''. Maximum grinding length 18'', width 8''. Maximum distance from table surface to spindle centerline 18''. Standard magnetic chuck size 7-7/8''-17-3/4''. Travel of table, hydraulic 19-3/4'', manual 21'', variable table speed 16-82 feet per minute. Cross transverse travel, rapid travel approximate 48'' per minute, auto increment 0.02-0.24'', maximum auto travel 9'', maximum manual travel 9-1/2'', handwheel per revolution 0.2'', handwheel per graduation 0.001''. Wheelhand vertical infeed, handwheel per revolution 0.1'', handwheel per graduation 0.0005''. Hydraulic drive 1 hp, crossfeed drive 1/2 hp. Standard grinding wheel 8'' diameter x 1/2'' wide x 1 1/4'' bore. Approximate floor space 90'' long x 62'' wide x 68'' high.
