Used Feldmeier Cooker-Cooler Kettle | Model 70N40 | Agitated | 642 Gal Total | 400 Gal Working | 316L/304 SS

🏭 Manufacturer Information

Brand: Feldmeier
Model: 70N40
Type: Cooker-Cooler Kettle
Condition: Used

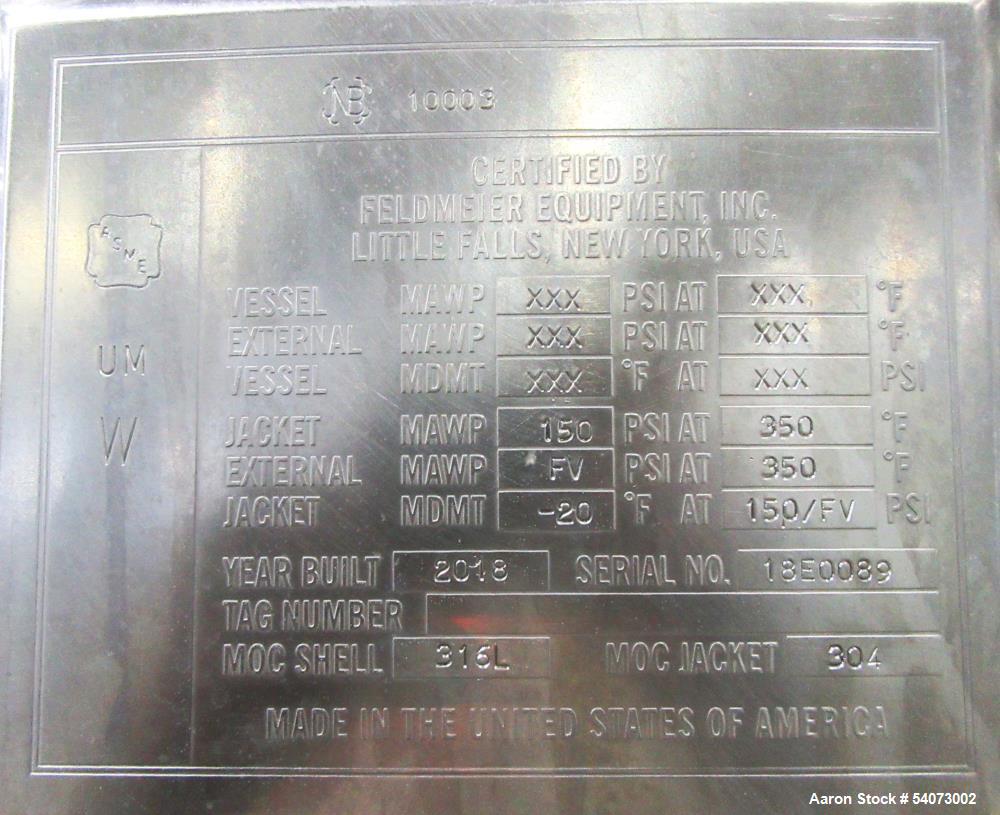

Serial #: 18E0089
National Board #: 10003

📦 Product Description

This Used Feldmeier Model 70N40 Cooker-Cooler Kettle offers premium-quality construction and versatility for heating, cooling, and mixing demanding product formulations. With an approximate total volume of 642 gallons and 400-gallon working capacity, it is manufactured with a 316L stainless steel shell and a 304 stainless steel jacket rated for 150 PSI @ -20°F to 350°F, making it suitable for a range of thermal processing needs.

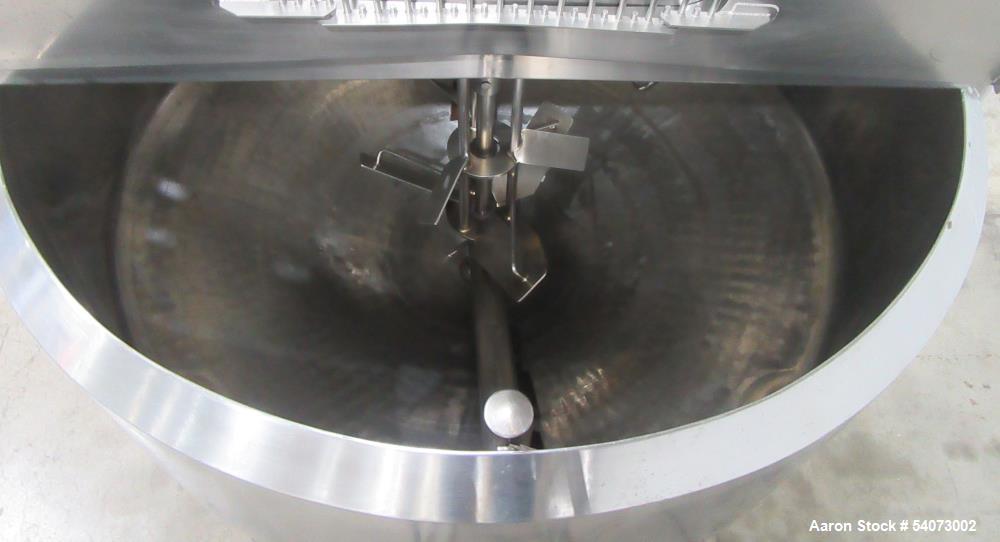

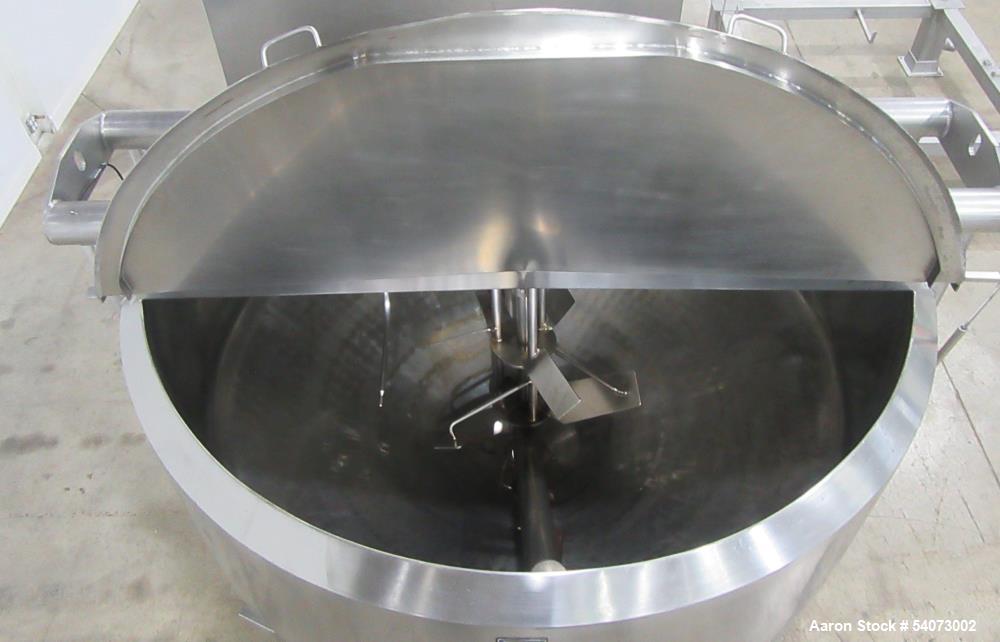

The kettle includes a center agitator and anchor-style sweep agitator with scrapers for consistent product movement and heat transfer. Features include a cone bottom, dished top with (2) semi-circle hinged covers, and a 30" x 20" manway with safety grate. The agitator bridge includes (2) 2" and (1) 1-1/2" threaded openings, and there’s an approx. 4" center bottom outlet. Supported by four stainless steel legs on a frame, it’s ready for integration into sanitary production lines.

⚙️ Technical Specifications

• Model: 70N40

• Total Capacity: Approx. 642 gallons

• Working Capacity: 400 gallons

• Shell Material: 316L Stainless Steel

• Jacket Material: 304 Stainless Steel

• Jacket Rating: 150 PSI @ -20°F to 350°F

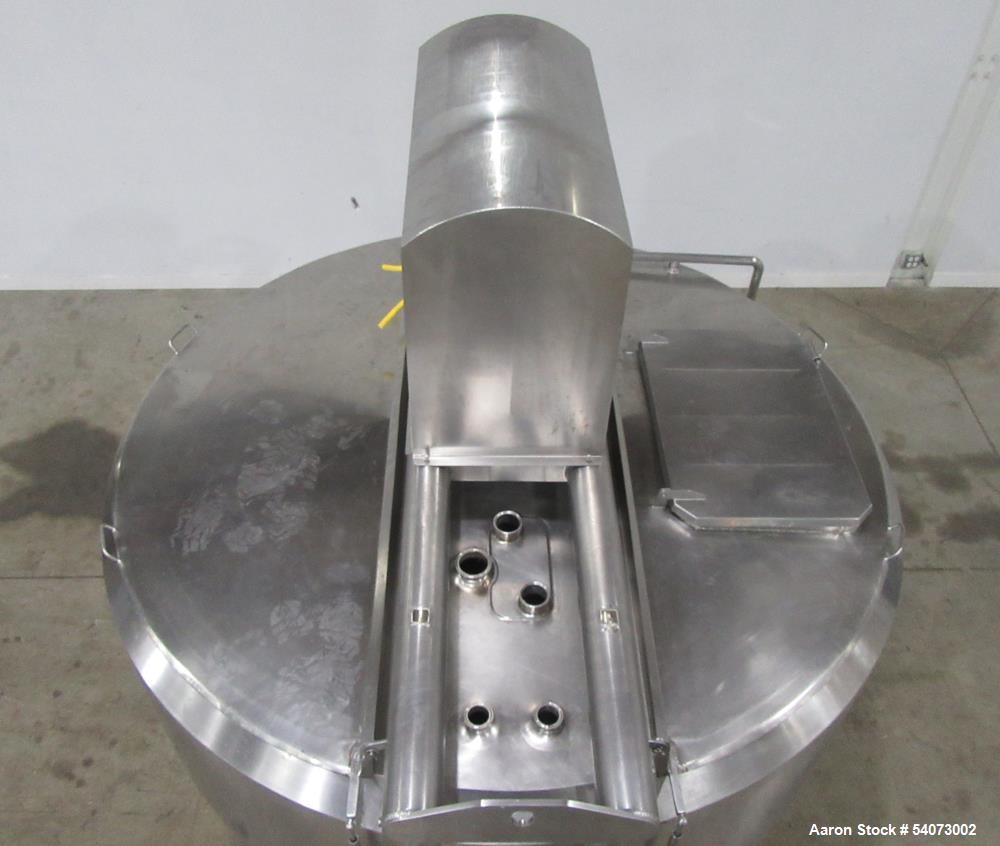

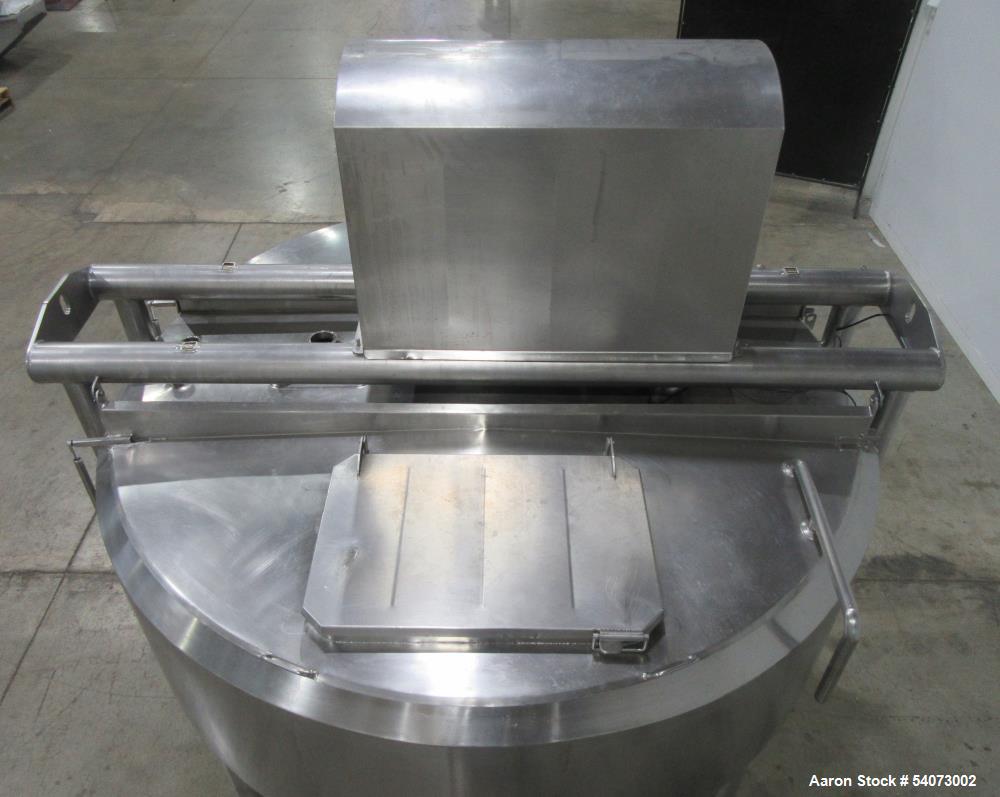

• Top Design: Dished top with (2) semi-circle hinged covers

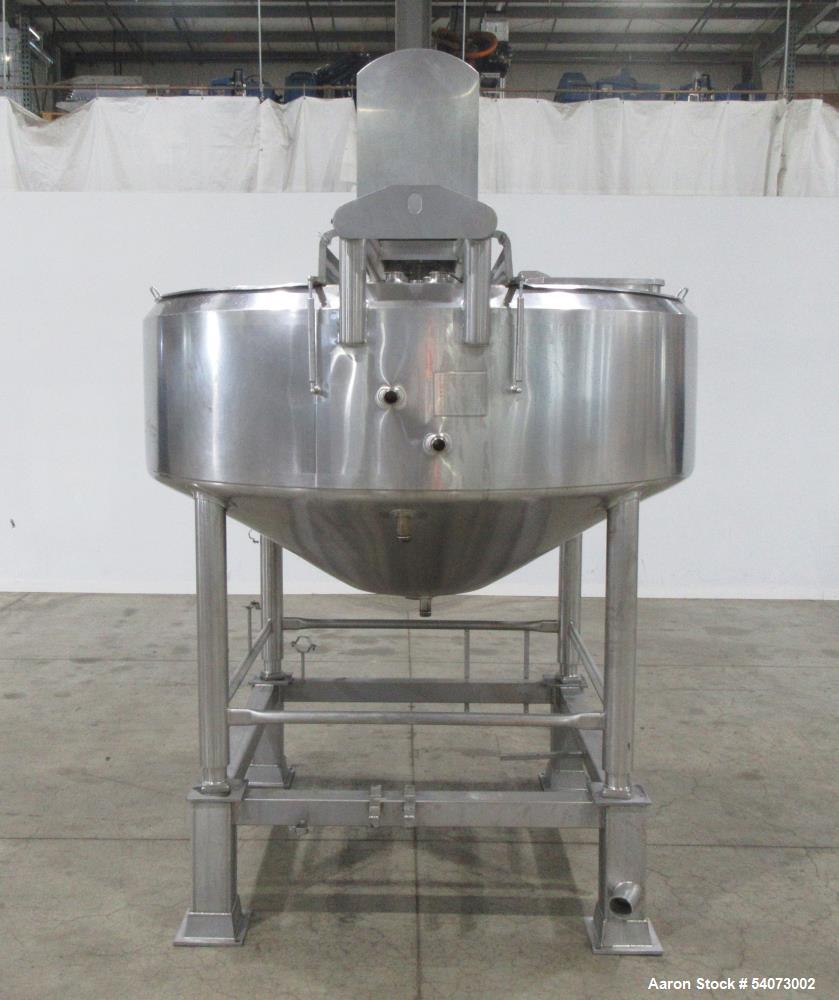

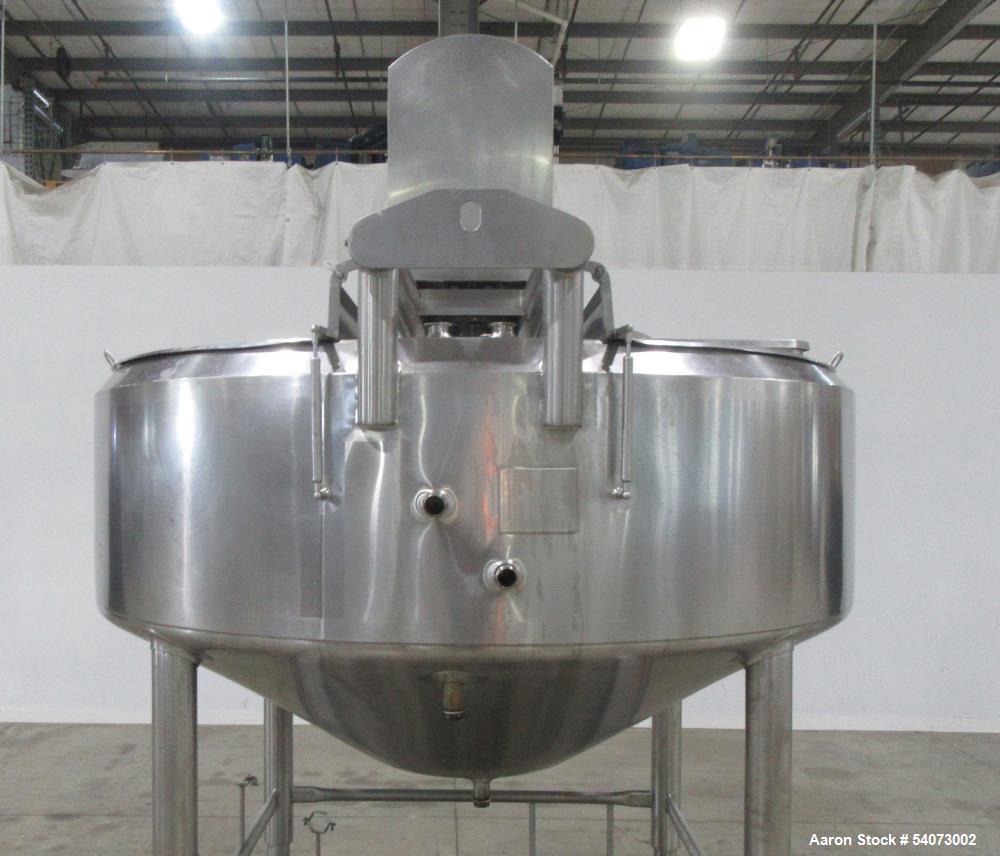

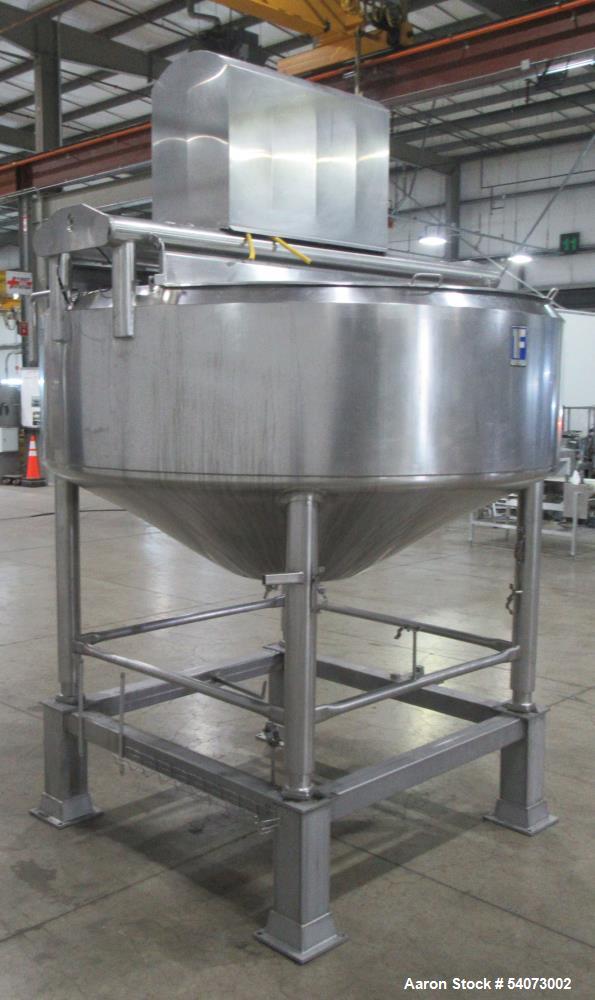

• Bottom Design: Cone bottom

• Dimensions:

  • Diameter: 84"

  • Straight Side Height: 28"

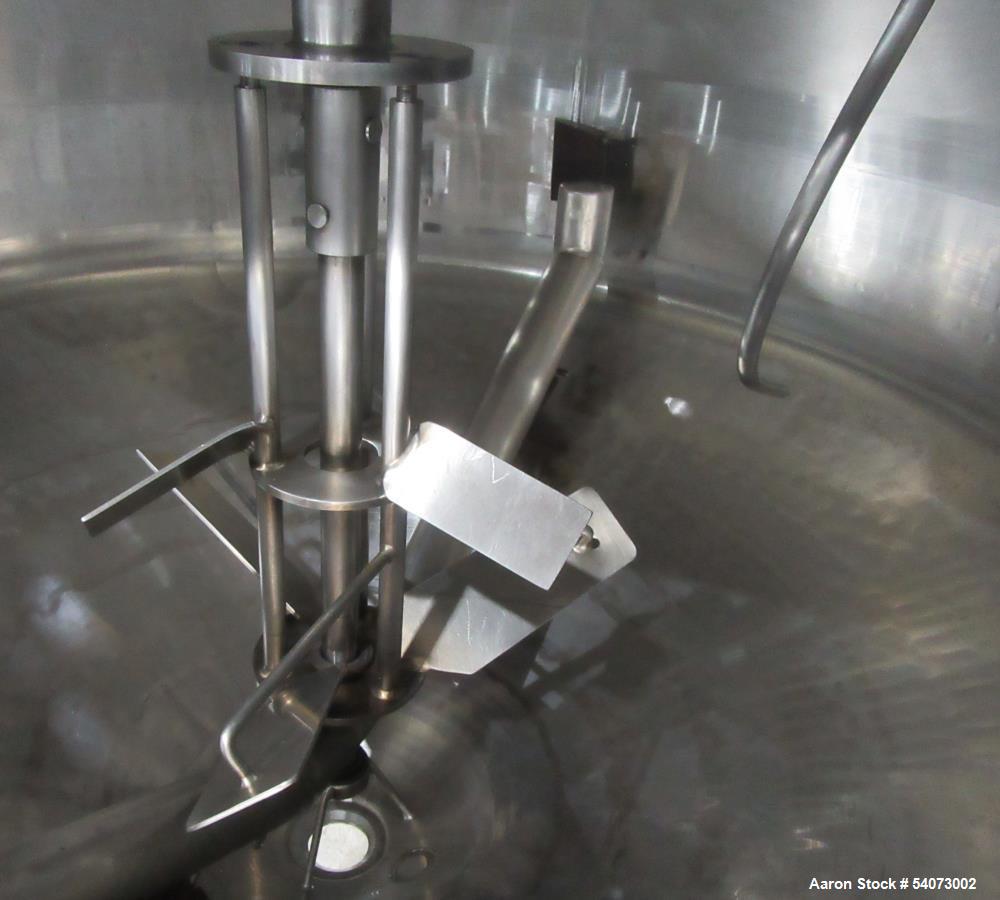

• Agitation:

  • Center agitator

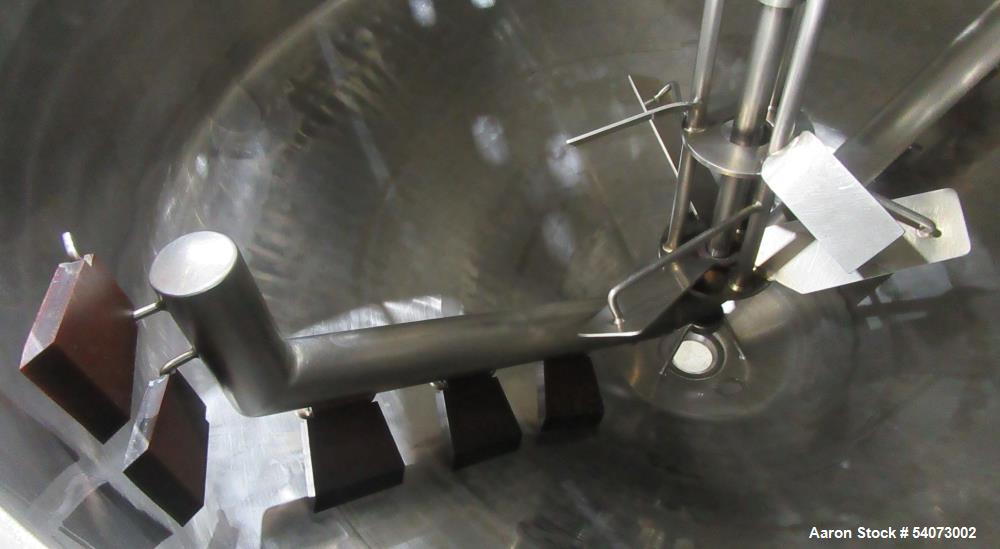

  • Anchor-style sweep agitator with scrapers

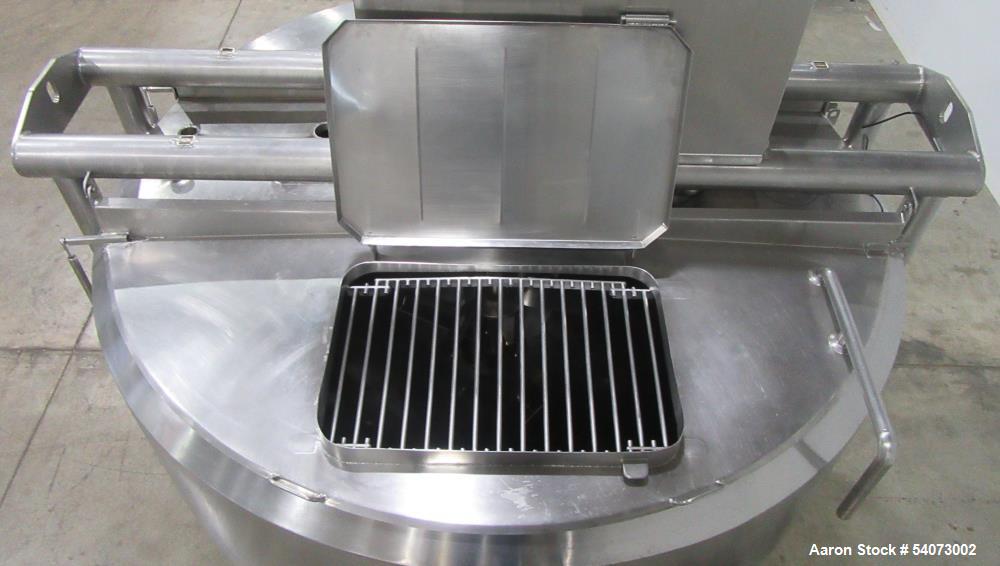

• Manway: 30" x 20", with safety grate

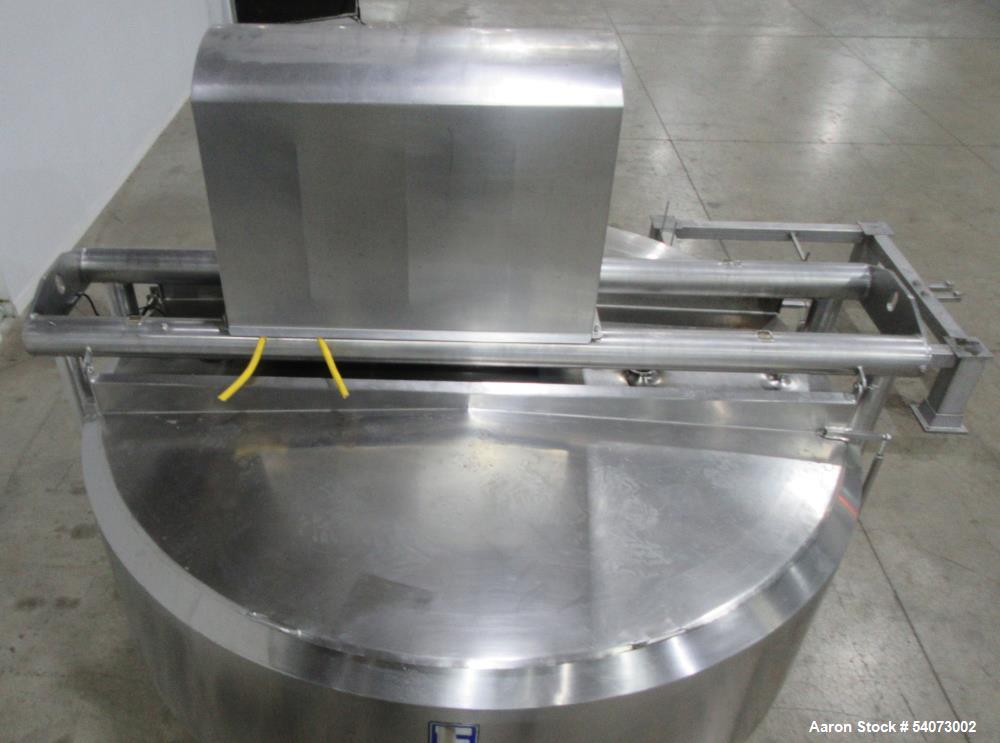

• Agitator Bridge Openings:

  • (2) 2" ports

  • (1) 1-1/2" threaded port

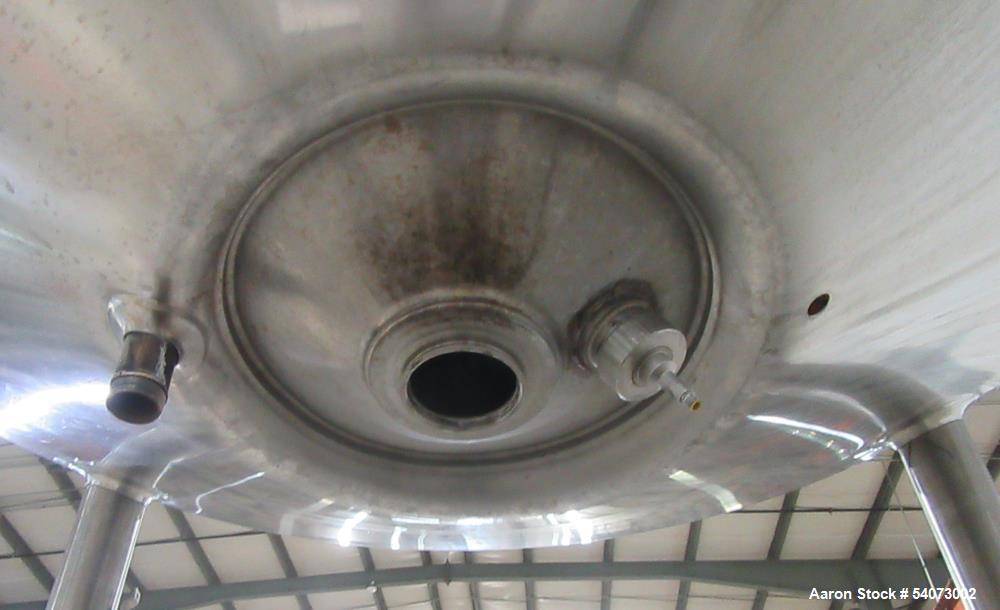

• Discharge: Approx. 4" center bottom outlet

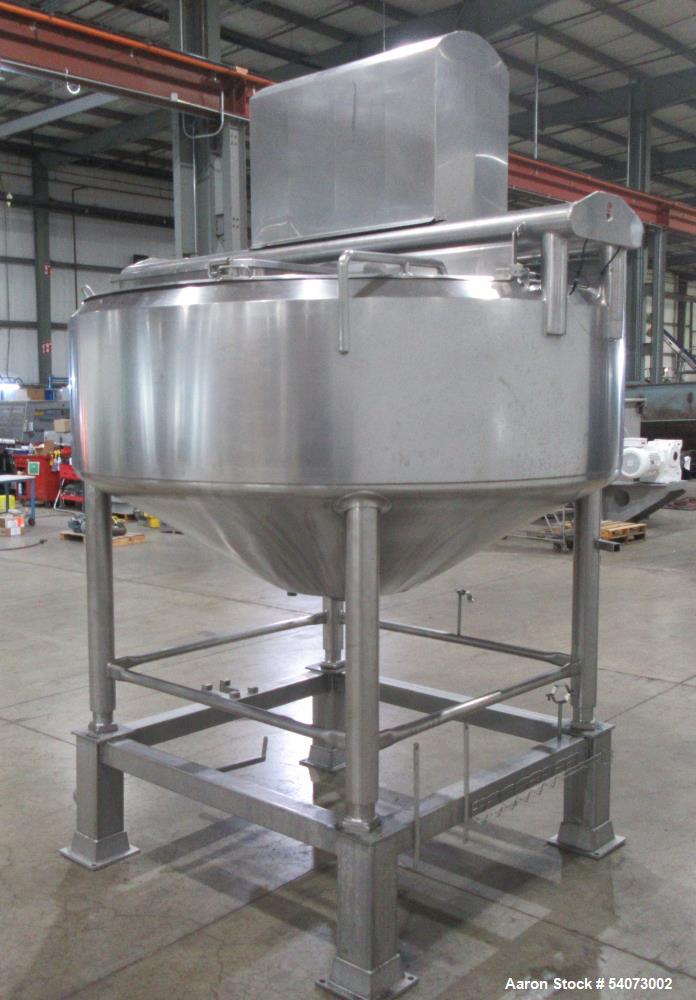

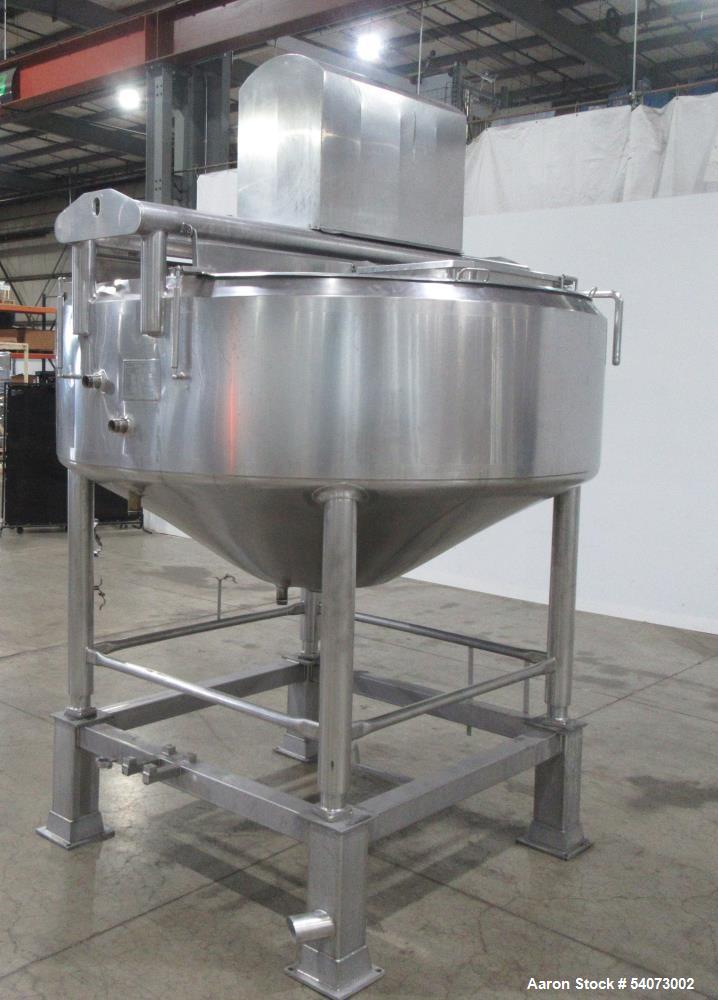

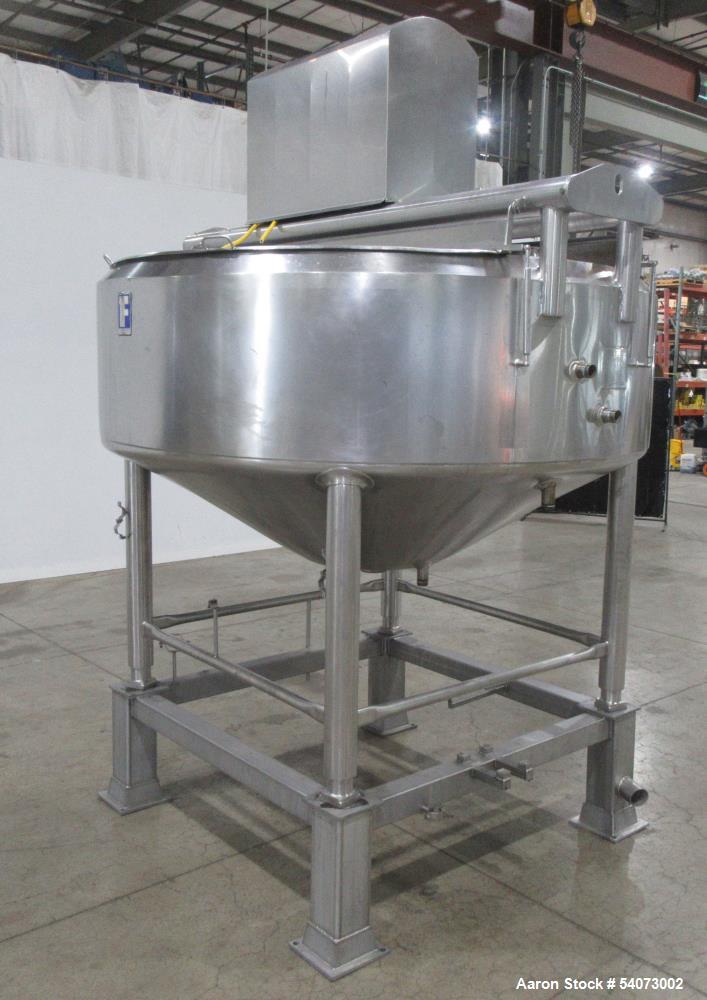

• Mounting: (4) stainless steel legs on frame

🔧 Applications

This Feldmeier cooker-cooler kettle is built for precision temperature control and robust mixing in processes such as:

• Soups, sauces, and gravies

• Dairy-based formulations

• Fruit fillings and purées

• Nutraceuticals and vitamins

• Creams, lotions, and cosmetics

• Pasteurized food products

• Syrups and sugary blends

• Pharmaceutical compounds

• Pet food and animal nutrition

• Confectionery and chocolate

📌 What Products Would This Be Used For?

• Broths and stocks

• Tomato-based sauces

• Cream sauces and gravies

• Yogurt or custards

• Liquid vitamins or extracts

• Jelly and fruit preserves

• Cosmetic gels and pastes

• Sugar syrup blends

• Ointments and emulsions

• Pet nutrition mash
