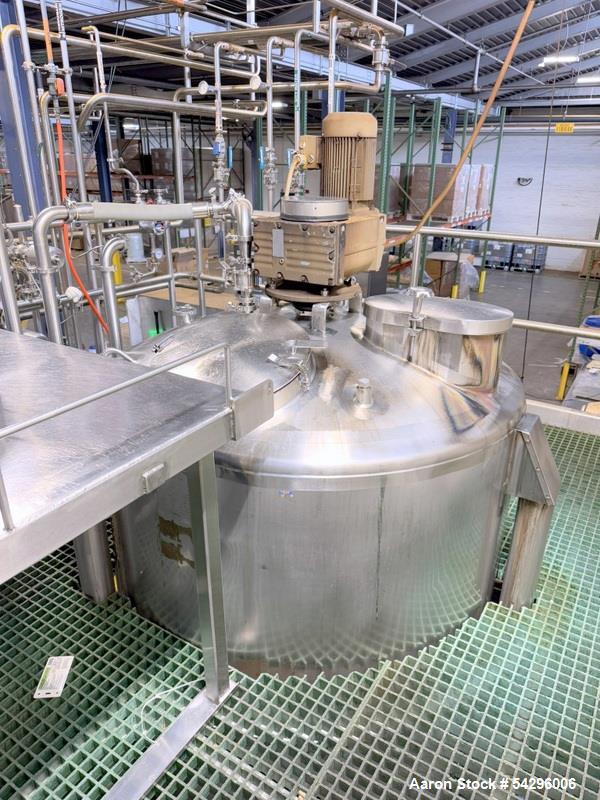

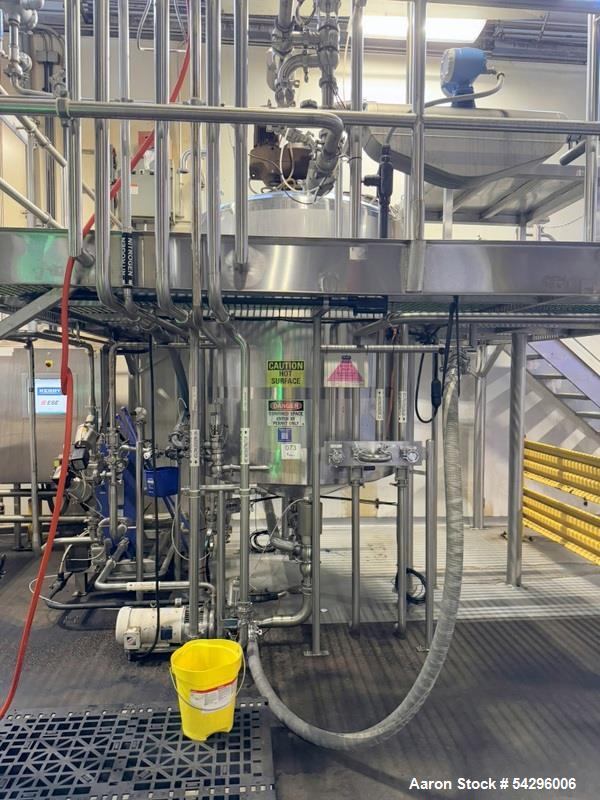

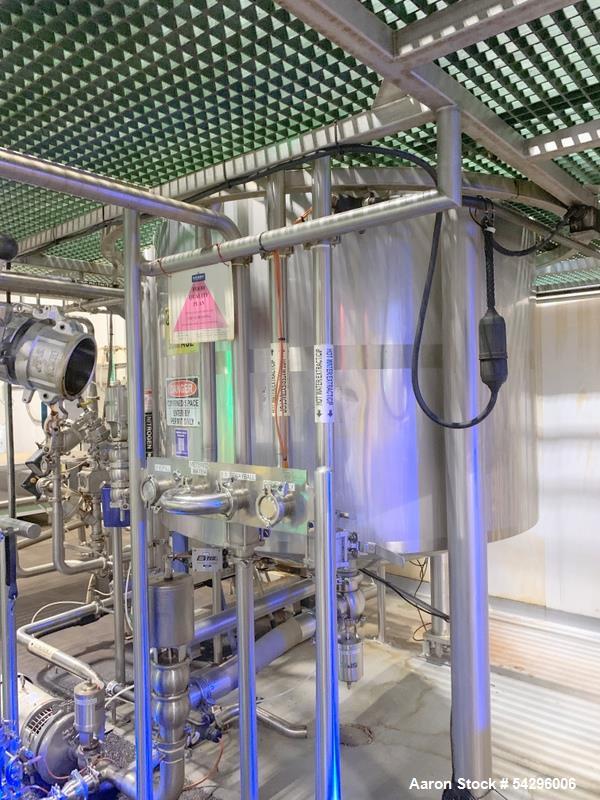

Used Walker 800 Gallon Stainless Steel Jacketed Processor Kettle – Anchor Agitat

Manufacturer: Walker
Model: PZ-CB-SP
Type: Jacketed Processor Kettle / Mixing Vessel
Condition: Used
Year: 1994
Serial Number: 8210

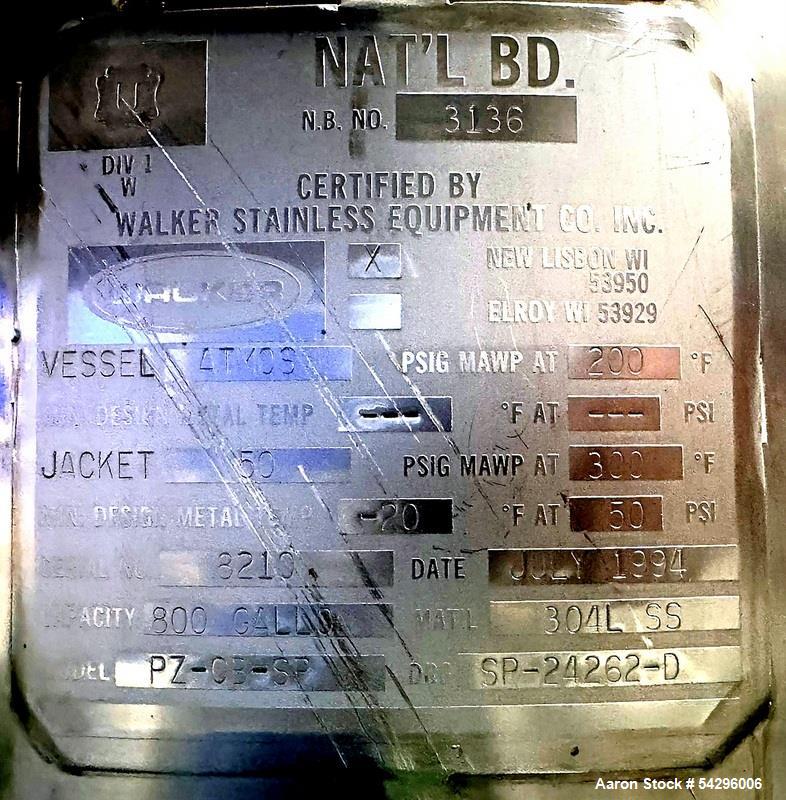

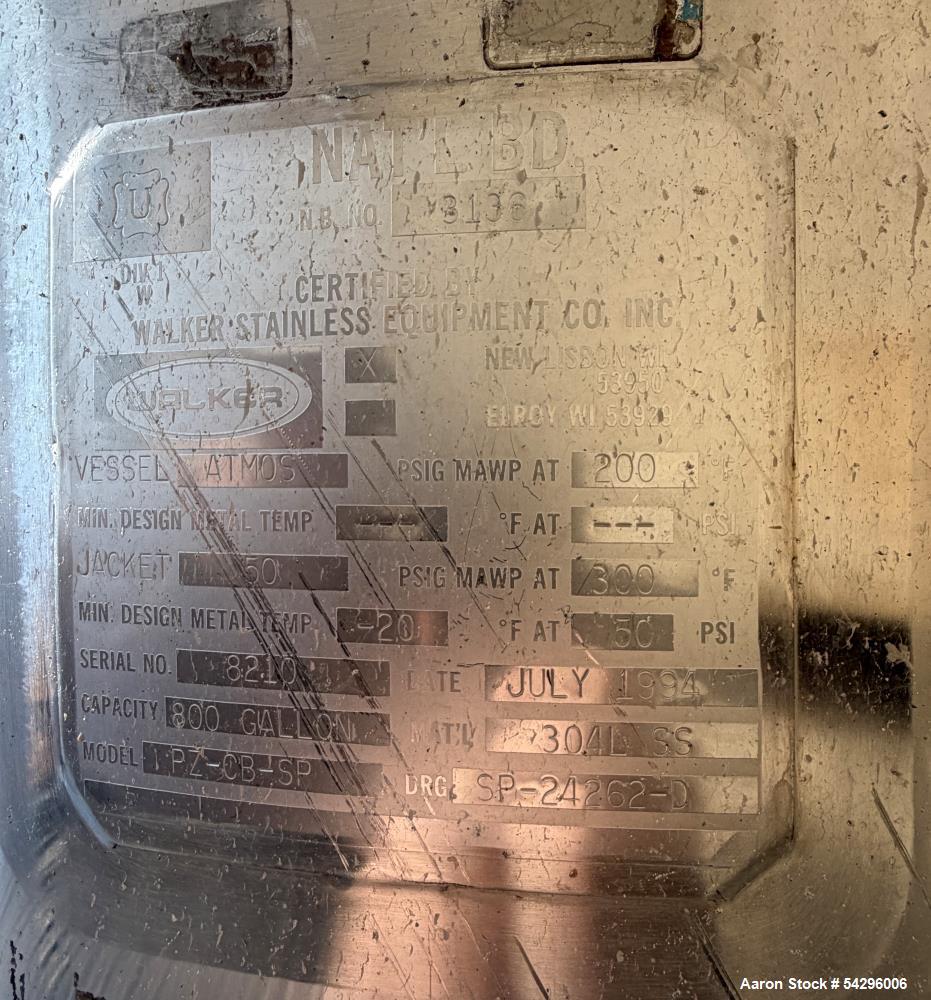

National Board #: 3136

Description

Used Walker 800 Gallon Stainless Steel Processor Kettle, Model PZ-CB-SP, designed for heating, mixing, and processing viscous and temperature-sensitive materials in food, chemical, and pharmaceutical applications.

Constructed from 304L stainless steel, this vertical vessel features a dished top and slight cone bottom, allowing for durability and efficient discharge. The kettle is equipped with a 50 PSI rated jacket, providing reliable heating and cooling capability across a wide temperature range.

The unit includes a top-entering anchor-style scrape agitator, driven by a 5 HP motor with a 97.89:1 gear reducer, ensuring thorough mixing and improved heat transfer by continuously sweeping vessel walls.

With multiple top openings, dual manways, and bottom discharge options, this kettle is highly versatile for batch processing and integration into production systems.

Specifications

• Manufacturer: Walker
• Model: PZ-CB-SP
• Machine Type: Jacketed Processor Kettle
• Capacity: Approx. 800 gallons
• Construction: 304L Stainless Steel
• Orientation: Vertical
• Condition: Used
• Year: 1994

Vessel Ratings

• Internal Rating: Atmospheric
• Temperature Rating: Up to 200°F

Jacket System

• Pressure Rating: 50 PSI
• Temperature Range: -20°F to 300°F

Dimensions

• Diameter: Approx. 60 inches
• Straight Side Height: Approx. 70 inches

Design Features

• Dished top

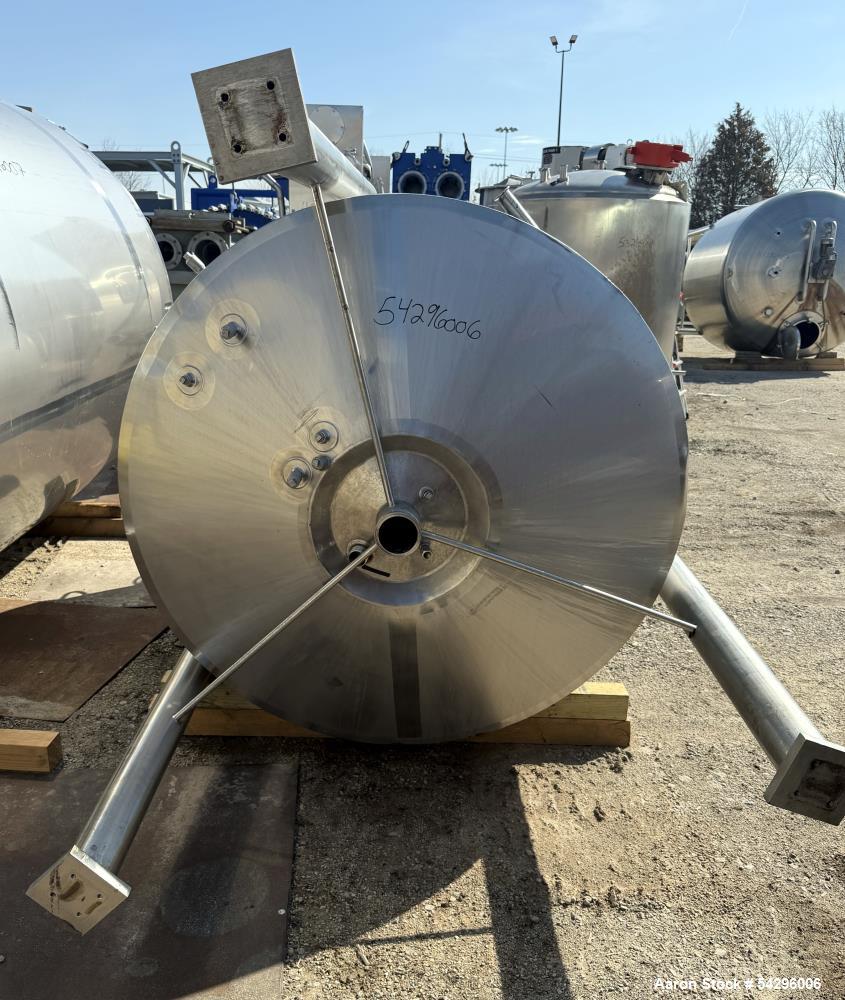

• Slight cone bottom

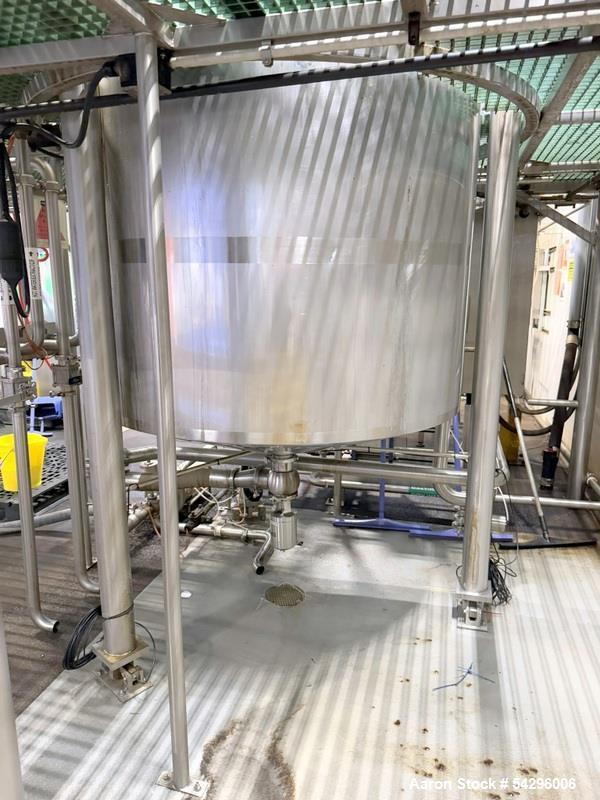

• Mounted on (3) stainless steel legs

Agitation System

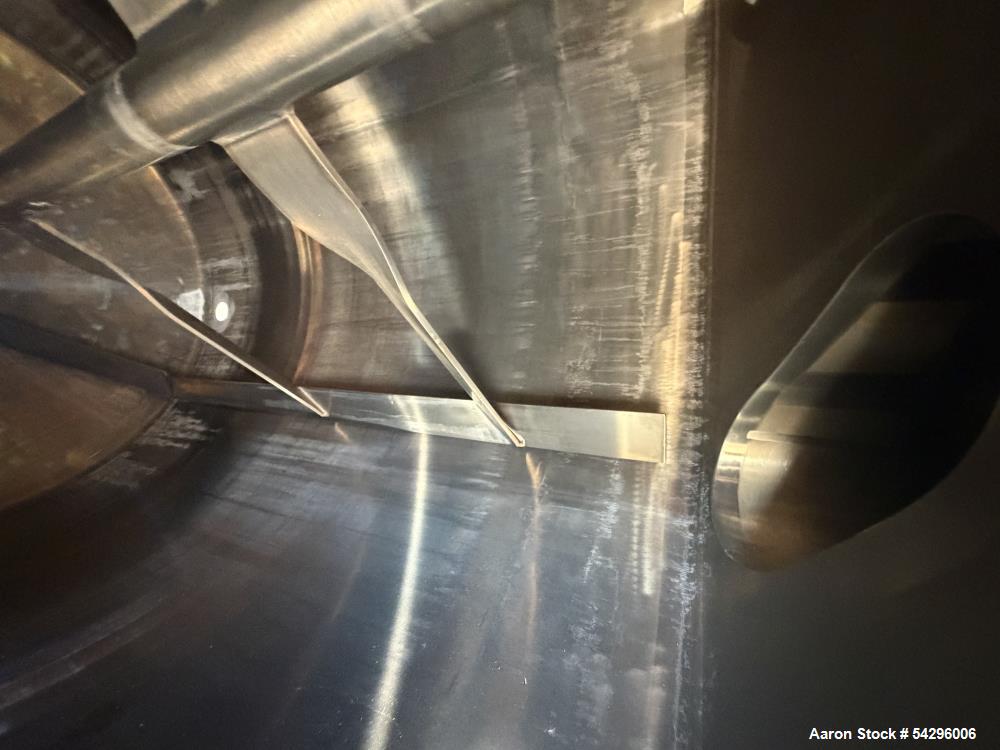

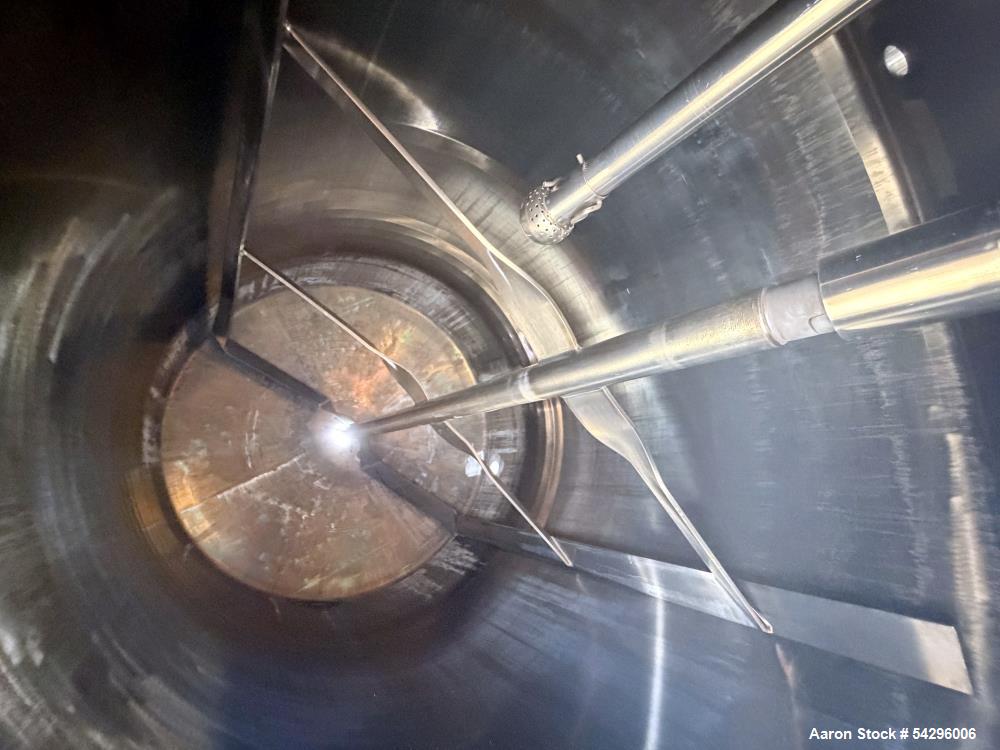

• Top-entering anchor-style scrape agitator
• Designed for viscous materials and wall scraping

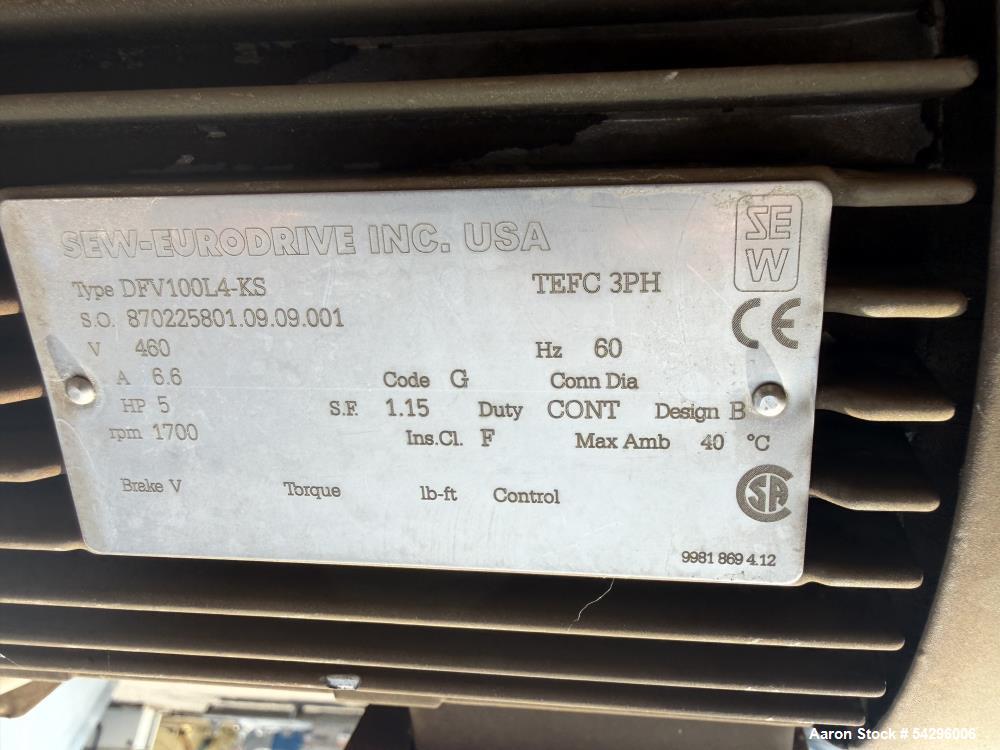

• Motor: 5 HP
• Voltage: 460 V, 3 Phase, 60 Hz
• Motor Speed: 1700 RPM

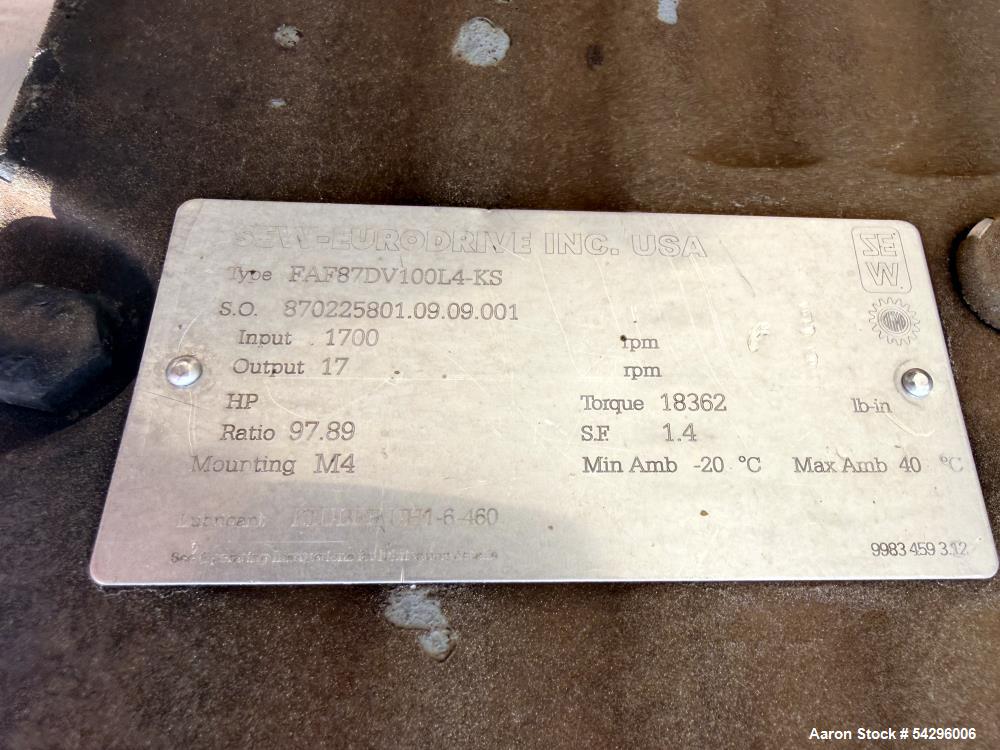

• Reducer Ratio: 97.89:1

Openings & Connections

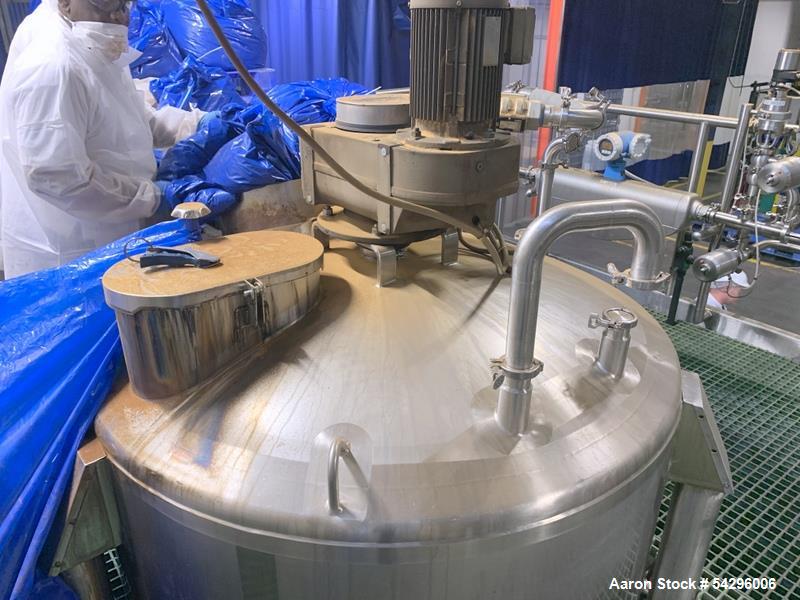

Top:

• 20" manway with cover
• 16" x 12" manway with cover
• 4" agitator opening
• (1) 3" nozzle
• (3) 2" nozzles
• (1) 1-1/2" threaded connection

Side:

• 1-1/2" side bottom outlet

Bottom:

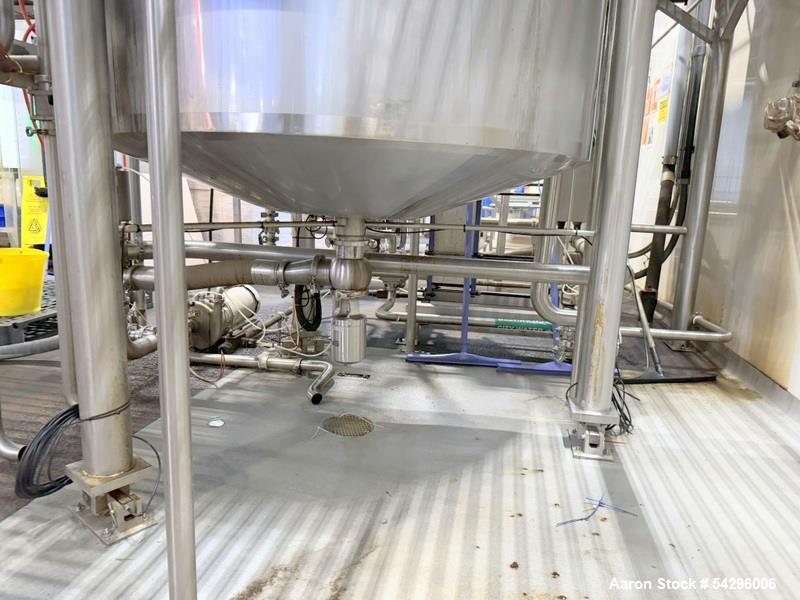

• 4" center bottom outlet
• Approx. 24" discharge height

Applications

• Food processing (sauces, soups, syrups)
• Dairy processing
• Cosmetic and cream production
• Pharmaceutical mixing
• Chemical blending
• Nutraceutical processing
• Heated batch processing
• High-viscosity material mixing
• Industrial liquid processing
• Specialty formulation production

What might this be used for

• Heating and mixing viscous products
• Producing sauces, creams, or pastes
• Maintaining consistent temperature during processing
• Preventing product buildup with scrape agitation
• Blending ingredients uniformly
• Processing food-grade or chemical formulations
• Supporting batch production
• Improving heat transfer efficiency
• Preparing products for packaging
• Handling temperature-sensitive materials

Products this machine would be used for

• Sauces and condiments
• Syrups and sweeteners
• Dairy products
• Creams and lotions
• Cosmetic formulations
• Nutraceutical liquids
• Chemical mixtures
• Adhesives
• Food pastes
• Specialty blends
