Used- Yula U Tube Heat Exchanger, 137 Square Feet, Model WCV-10F-120BS, Horizont

Stock# 49620029

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 49620029

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

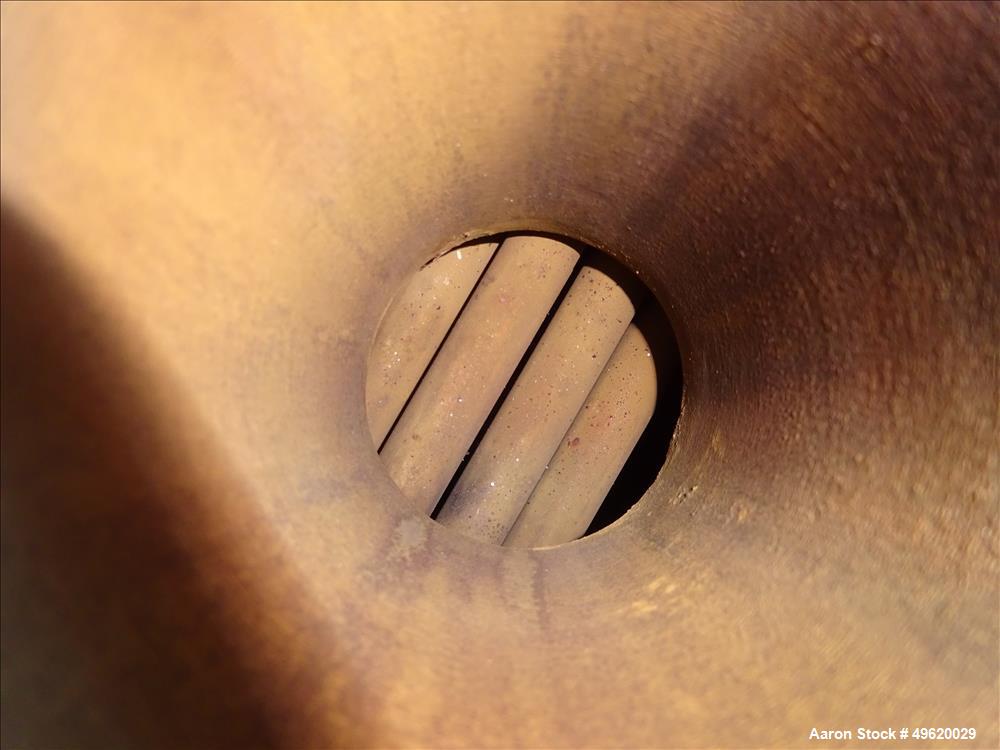

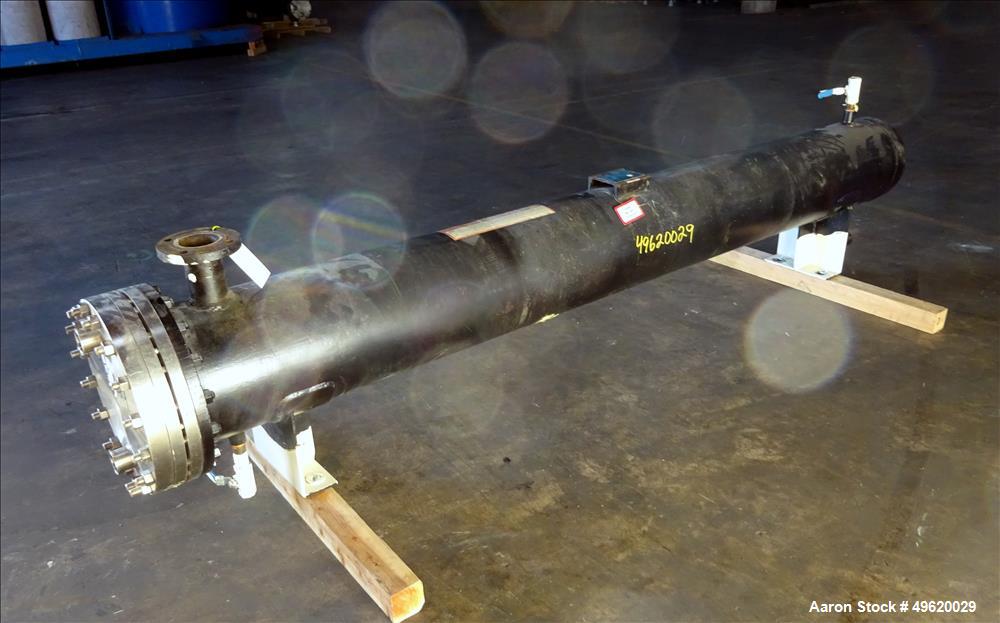

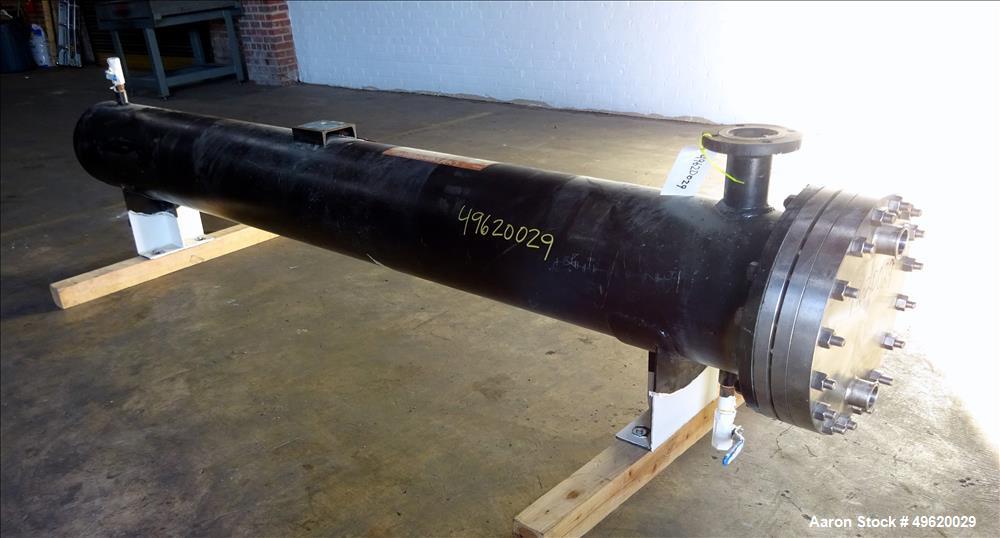

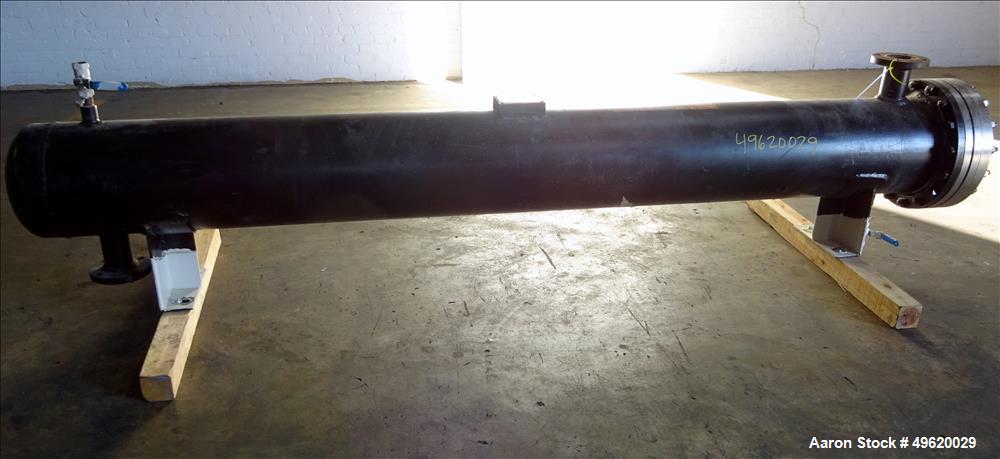

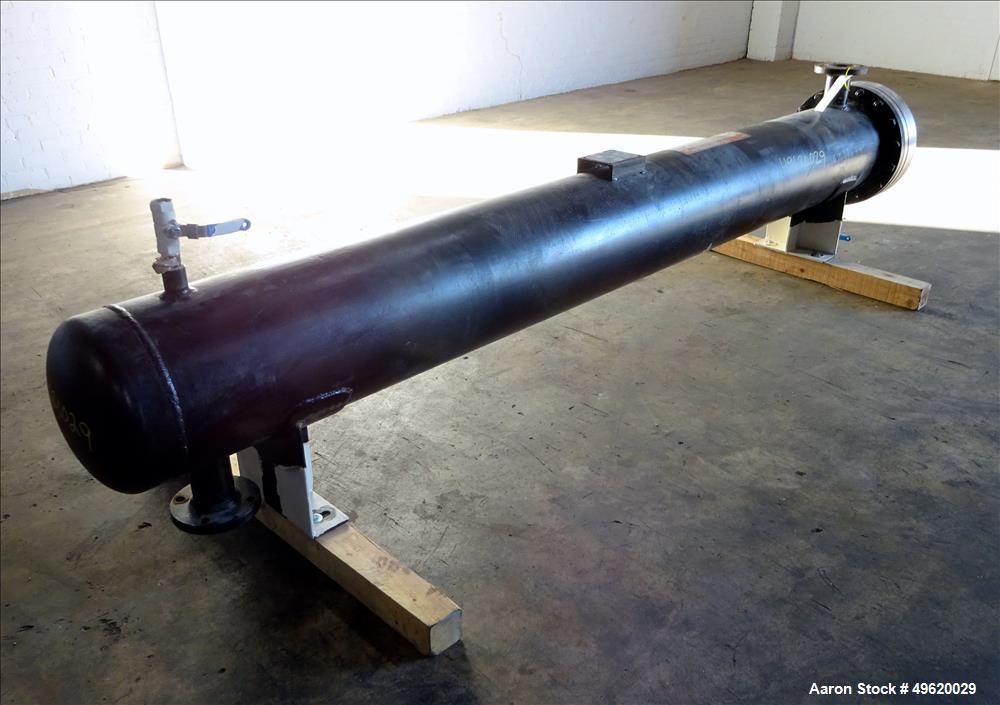

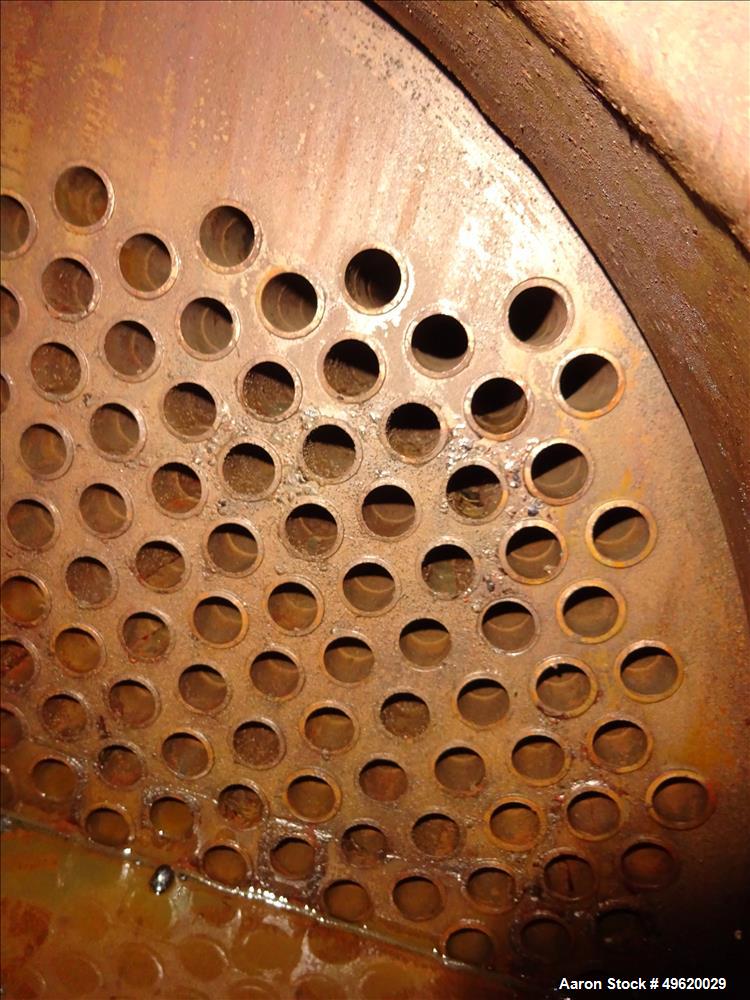

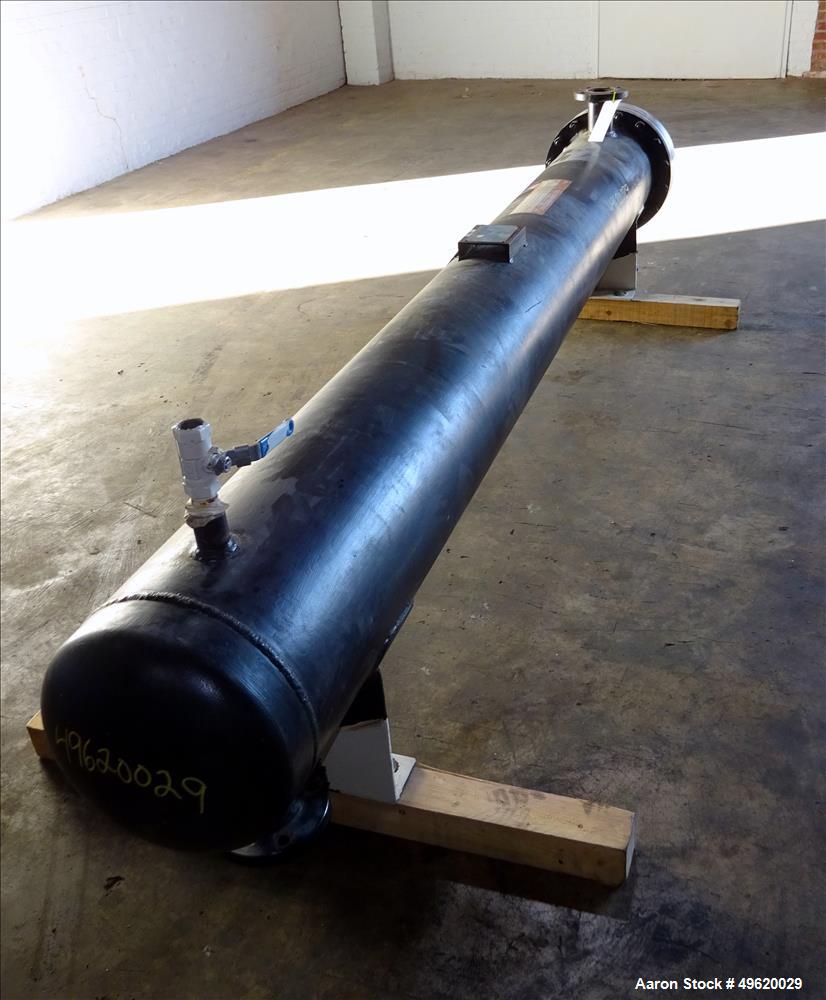

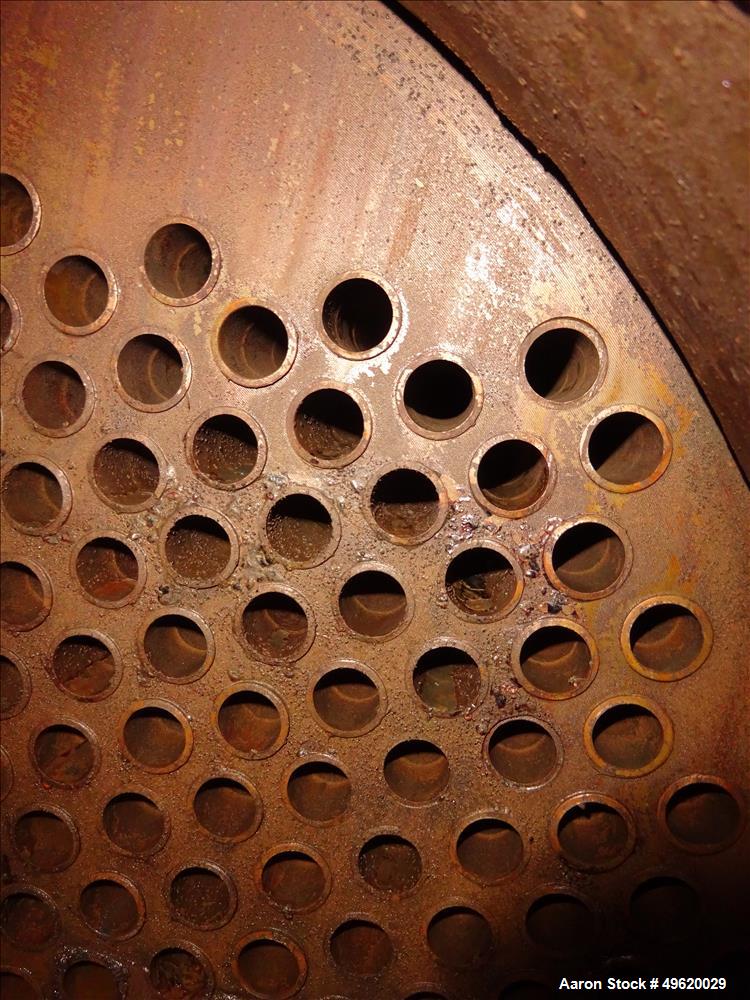

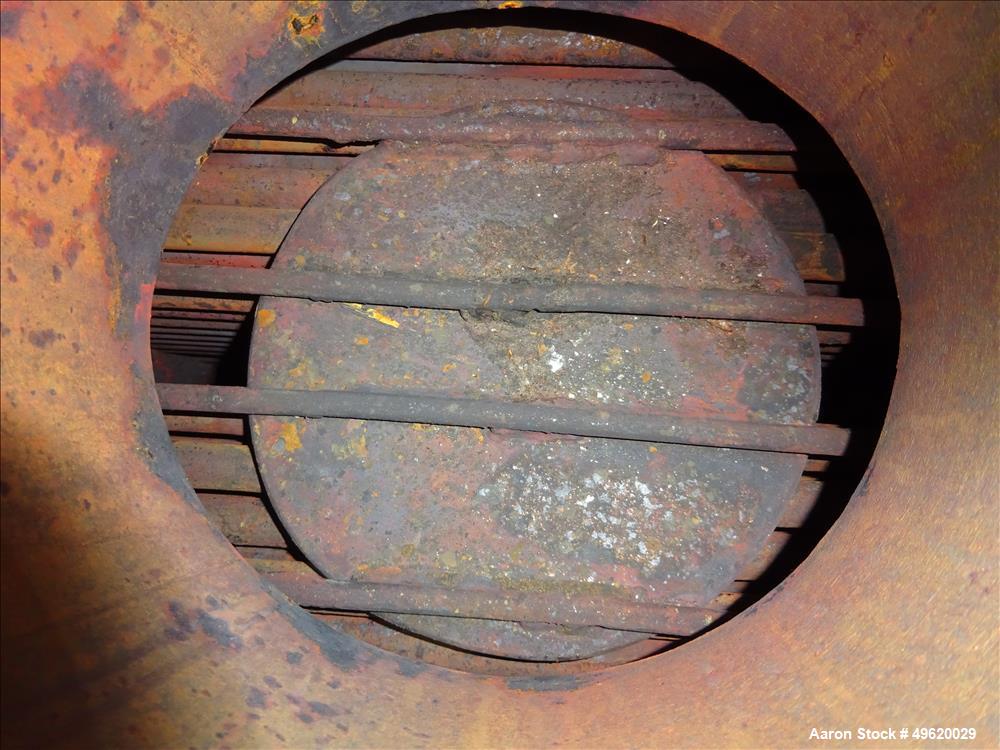

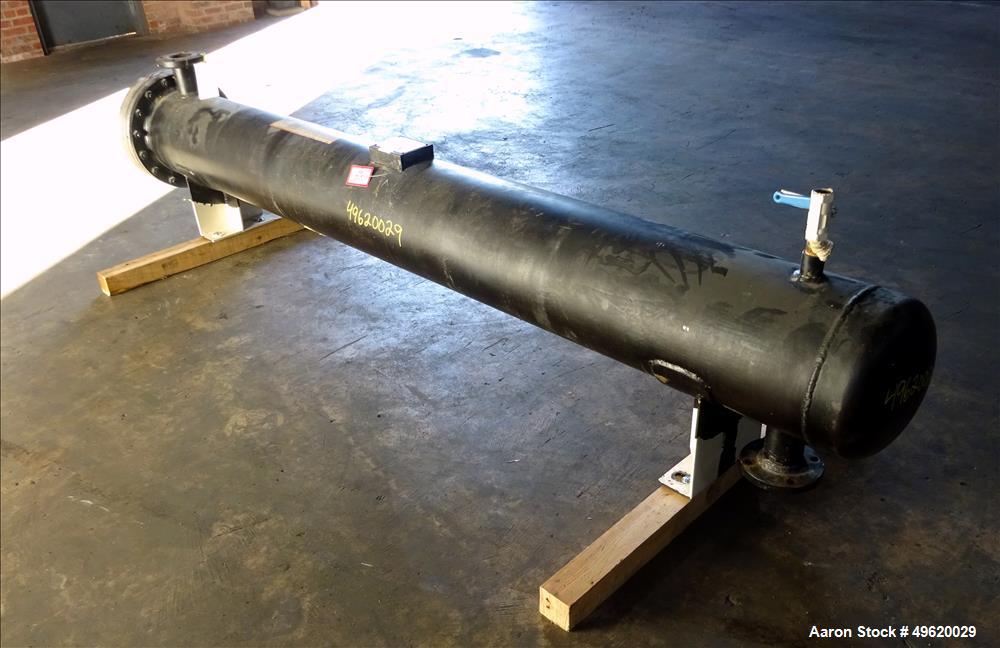

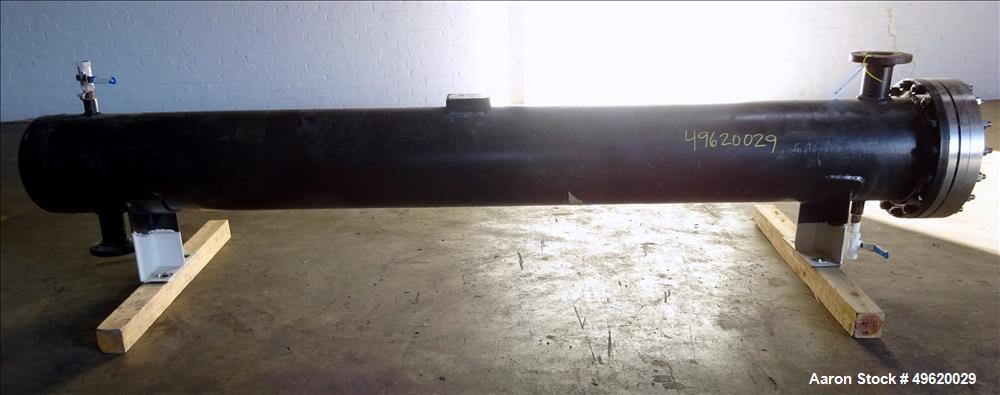

Used- Yula U Tube Heat Exchanger, 137 Square Feet, Model WCV-10F-120BS, Horizontal. Carbon steel shell rated 125 psi at -20 to 300 degrees F. (35) 3/4" Diameter x 120" long 316L stainless steel tubes rated Full Vacuum/150 psi at -20 to 300 degrees F. 316L Stainless steel head, and tube sheet. Openings head (2) 2" tri-clamp, shell (2) 3". Mounted on saddles. Serial# 15025, National Board# 9182, built 1993.

SPECIFICATIONS

Manufacturer	Yula Corp.
Model	WCV-10F-120BS
Serial #	15025
Category	Heat ExchangersHeat Exchangers
Subcategory	Shell & Tube StainlessShell & Tube Stainless
Square Footage	137
Horizontal or Vertical	Horizontal
Shell Material	Carbon Steel
Shell Pressure	125 PSI
Shell Temperature	-20 to 300 degrees F.
Number of Shell Openings	2
Size of Shell Openings	3"
Tube Material	316L Stainless Steel
Tube Pressure	150 psi/FV
Tube Temperature	-20 to 300 degrees F.
Head Material	316L Stainless Steel
Mounted	Saddle Mounted

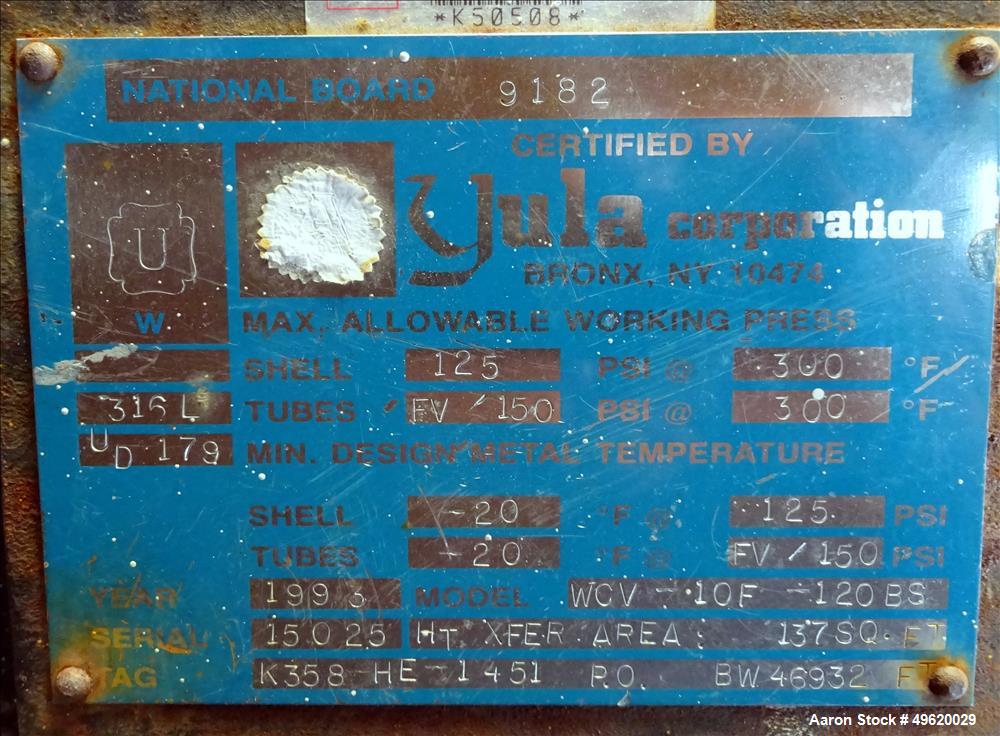

National Board No.	9182
Overal Dimensions	130"L X 48"W X 33"T
Year Built	1993
Tube Length	120"
