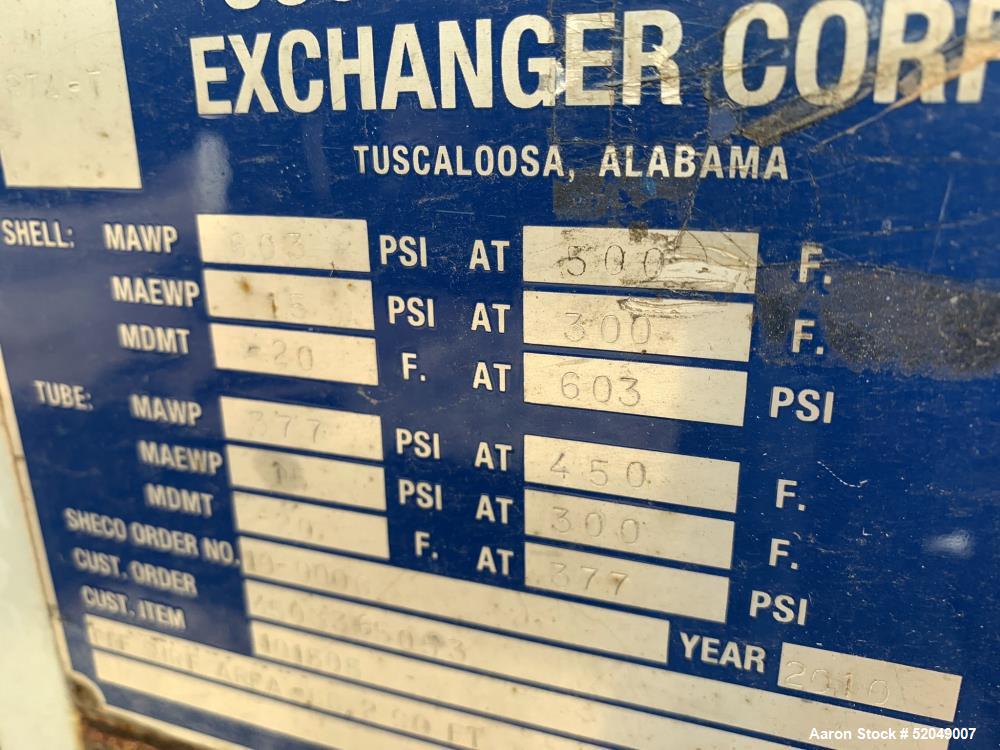

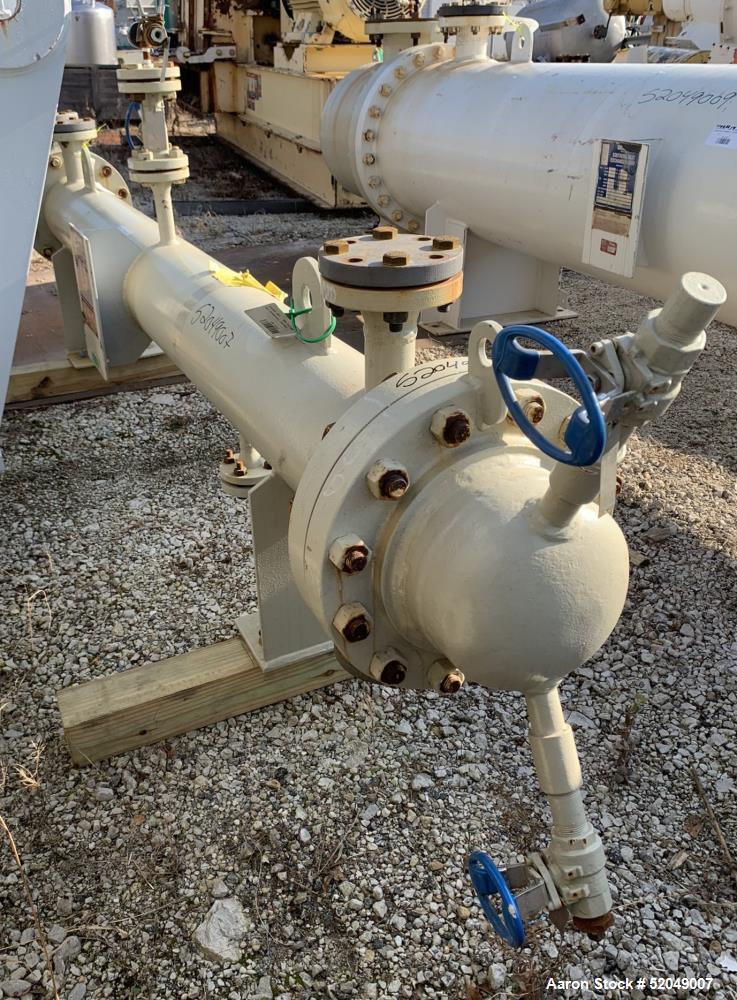

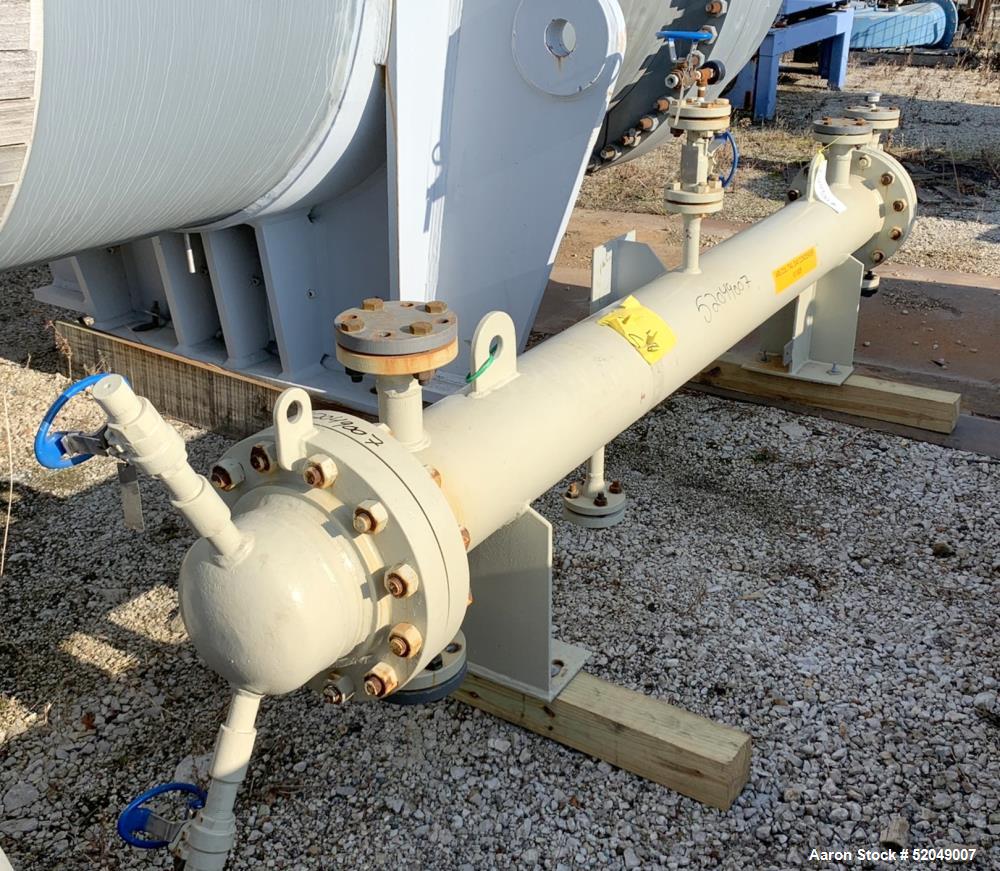

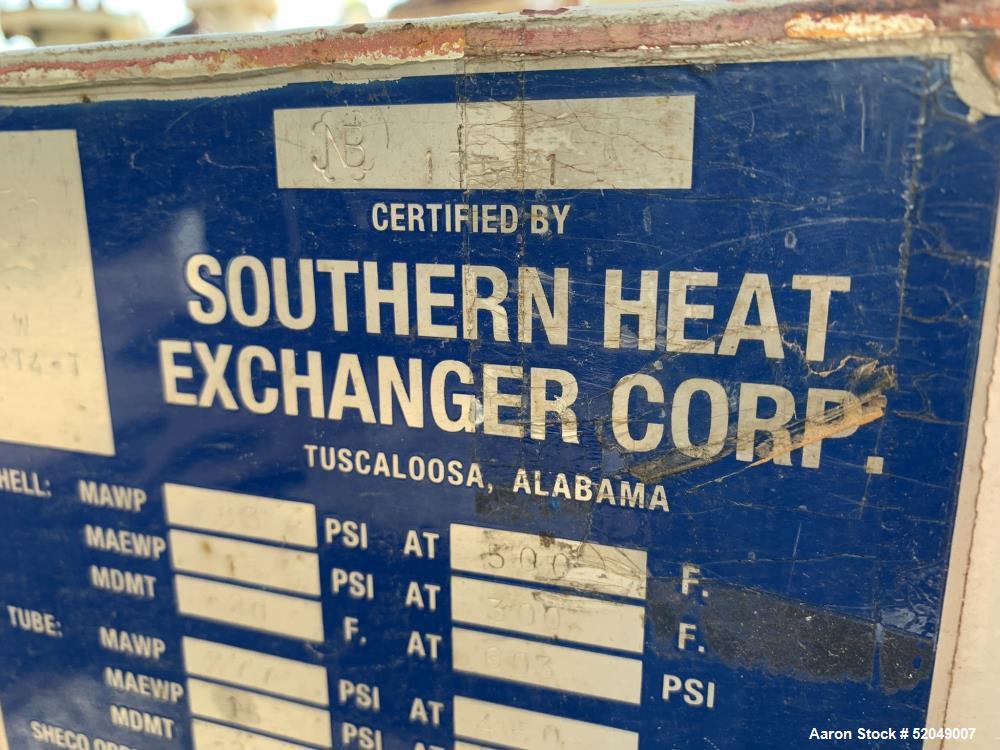

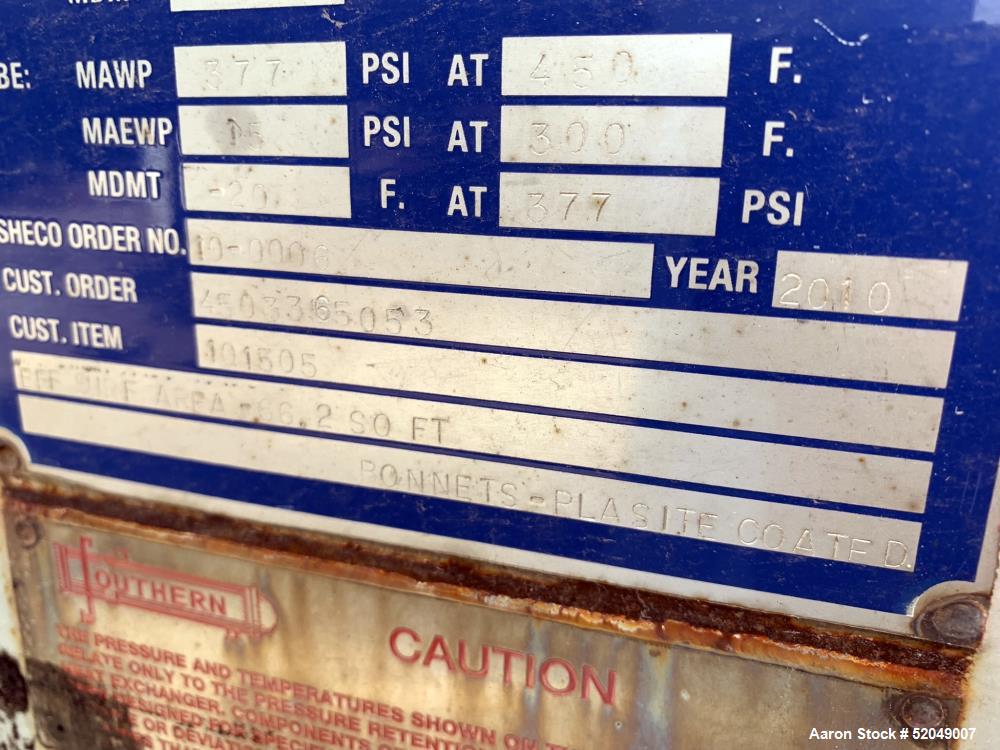

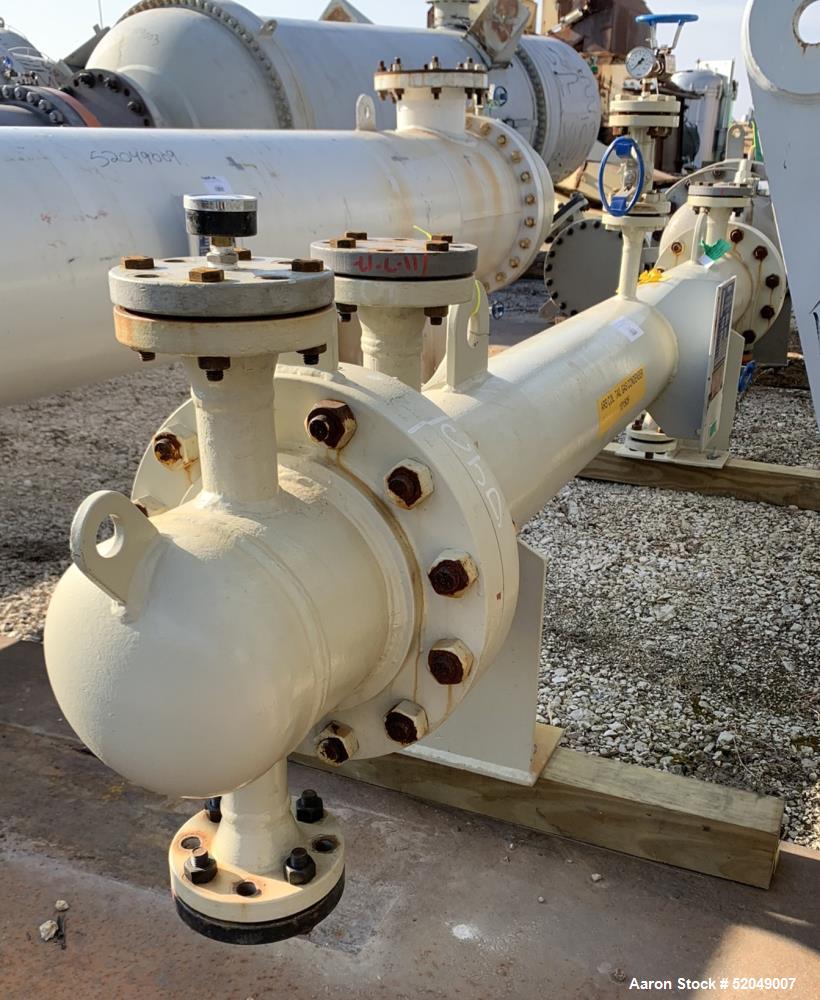

Installed but Unused-Southern Heat Exchanger Shell & Tube Heat Exchanger, 66.2 Square Foot, Horizontal. Carbon steel shell rated 603 psi / full vacuum at -20 to 500 degrees F. (44) Duplex 2205 Stainless steel Alloy 3/4" diameter x 8' x 14 gauge tubes rated 377 psi / full vacuum at -20 to 450 degrees F. Openings: shell side (3) 2", (2) 1", tube side (2) 2", (2) 1". Tubesheet SA-516 clad with SA-240 Alloy 2205. Carbon steel heads. Saddle mounted. Serial# 10-0006, National Board# 13581, Built 2010. Wt. 1,250#.
Installed but Unused-Southern Heat Exchanger Shell & Tube Heat Exchanger, 66.2 Square Foot, Horizontal. Carbon steel shell rated 603 psi / full vacuum at -20 to 500 degrees F. (44) Duplex 2205 Stainless steel Alloy 3/4" diameter x 8' x 14 gauge tubes rated 377 psi / full vacuum at -20 to 450 degrees F. Openings: shell side (3) 2", (2) 1", tube side (2) 2", (2) 1". Tubesheet SA-516 clad with SA-240 Alloy 2205. Carbon steel heads. Saddle mounted. Serial# 10-0006, National Board# 13581, Built 2010. Wt. 1,250#.
