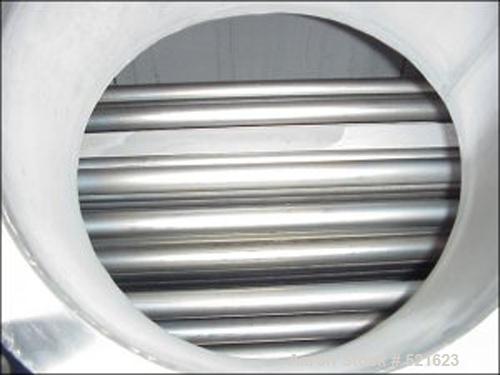

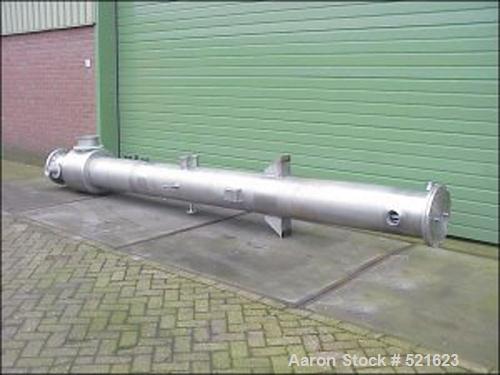

USED: Schmidt/Griesser heat exchanger, No 2616/52010, new 1995. Heating surface 34.5 sq m. Tube material stainless steel, shell material stainless steel, cover material stainless steel. Tube capacity 220 liter, number of tubes 88, tube diameter 25mm, tube length 5000mm, working pressure tubes 6 bar, max temperature 95 deg C. Shell capacity 500 liter, working pressure shell vac/0.7 bar, max temperature 95 deg C. Shell connections 1x diameter 270mm, 2x diameter 80mm, 2x diameter 50mm. Floor space 5.5 x 0.8 m. Total height 0.8m.
USED: Schmidt/Griesser heat exchanger, No 2616/52010, new 1995. Heating surface 34.5 sq m. Tube material stainless steel, shell material stainless steel, cover material stainless steel. Tube capacity 220 liter, number of tubes 88, tube diameter 25mm, tube length 5000mm, working pressure tubes 6 bar, max temperature 95 deg C. Shell capacity 500 liter, working pressure shell vac/0.7 bar, max temperature 95 deg C. Shell connections 1x diameter 270mm, 2x diameter 80mm, 2x diameter 50mm. Floor space 5.5 x 0.8 m. Total height 0.8m.
