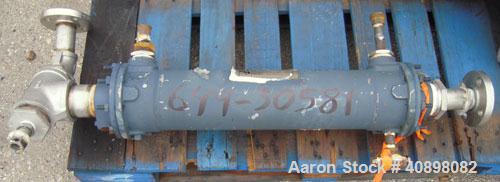

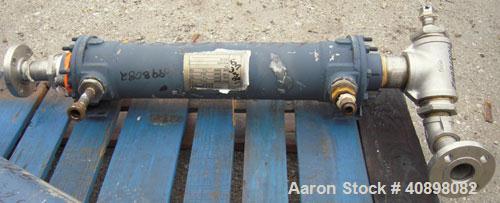

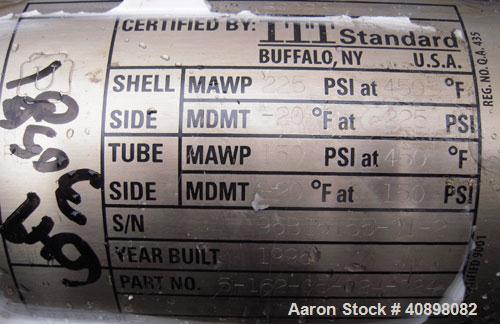

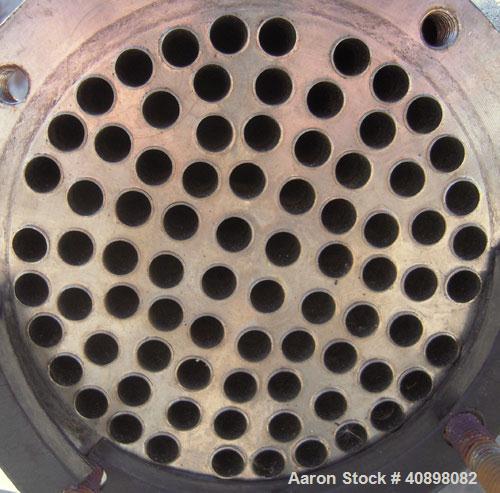

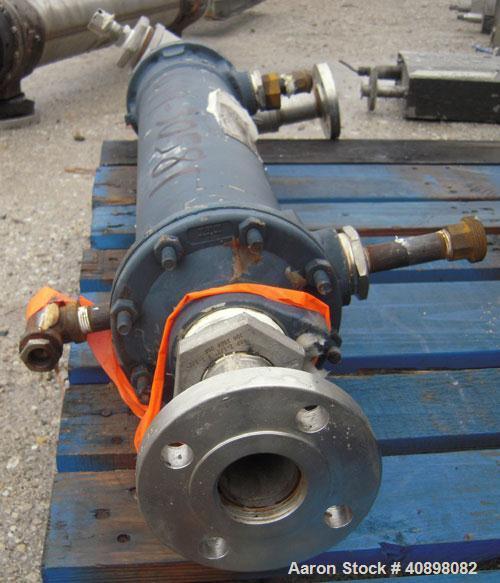

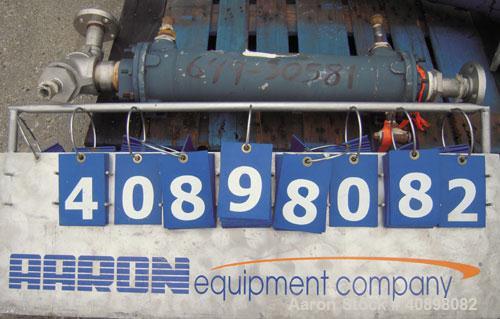

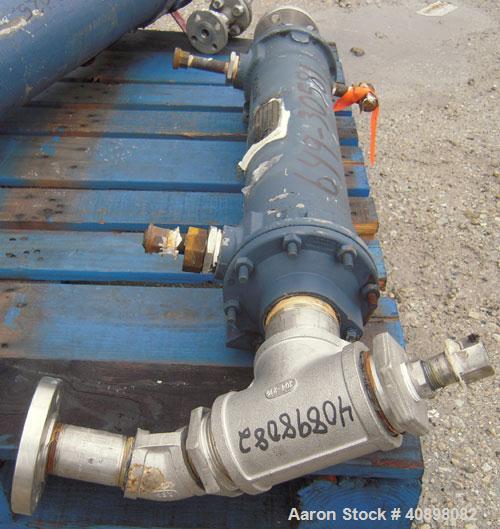

Used ITT Standard Single Pass Shell And Tube Heat Exchanger, 19 square feet, Part# 5-162-05-024-024, Horizontal. 316 stainless steel shell rated 225 psi at 450 deg.f., and –20 deg.f. at 225 psi. (80) 3/8" diameter x 2' long 316 stainless steel tubes rated 150 psi at 450 deg.f., and –20 deg.f. at 150 psi. stainless steel heads, and tubesheet. Openings heads (2) 3’’ NPT, shell (2) 1 1/2" NPT, tubes (2) 2 1/2". Serial # 96B15155-01-2, National Board# 59023, built 1996.
Used ITT Standard Single Pass Shell And Tube Heat Exchanger, 19 square feet, Part# 5-162-05-024-024, Horizontal. 316 stainless steel shell rated 225 psi at 450 deg.f., and –20 deg.f. at 225 psi. (80) 3/8" diameter x 2' long 316 stainless steel tubes rated 150 psi at 450 deg.f., and –20 deg.f. at 150 psi. stainless steel heads, and tubesheet. Openings heads (2) 3’’ NPT, shell (2) 1 1/2" NPT, tubes (2) 2 1/2". Serial # 96B15155-01-2, National Board# 59023, built 1996.
