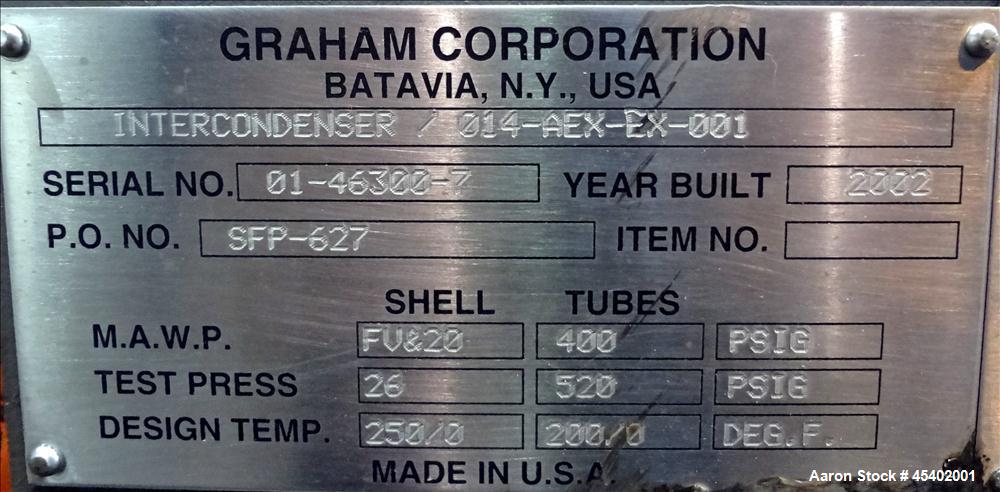

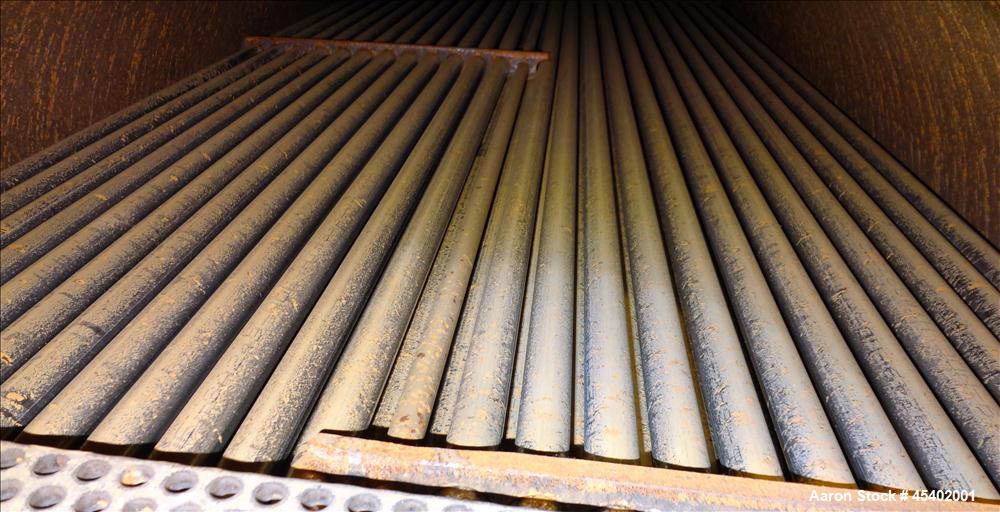

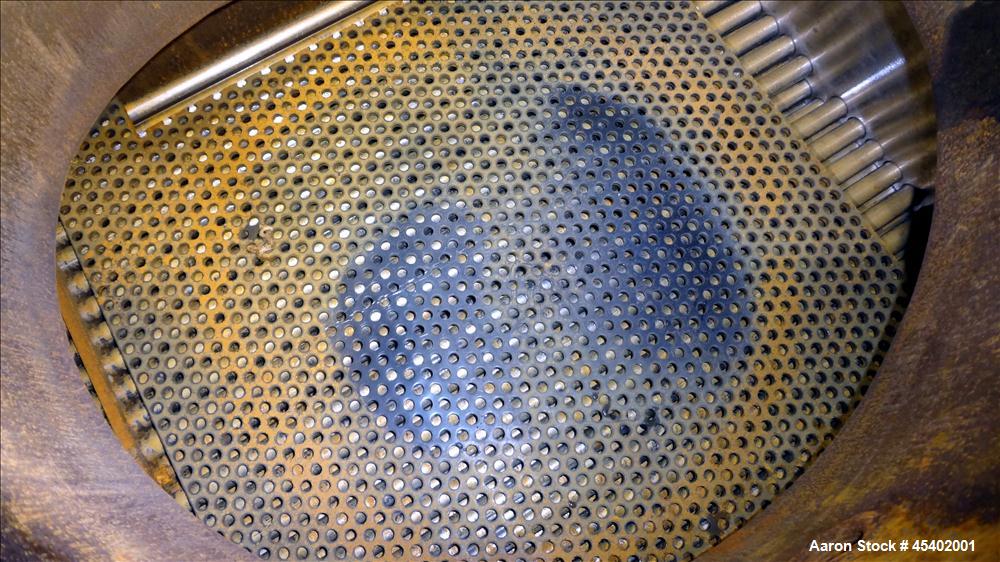

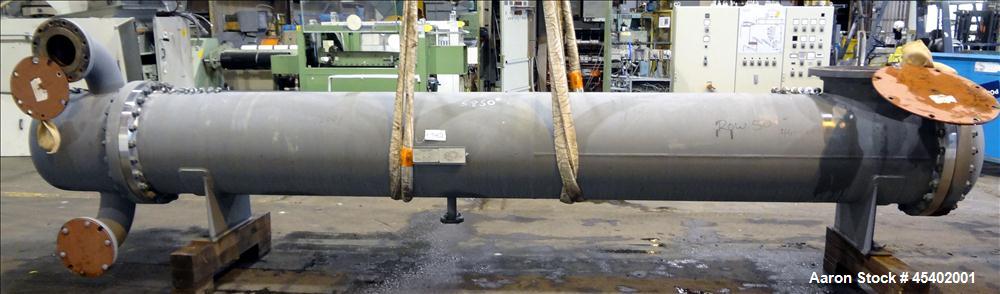

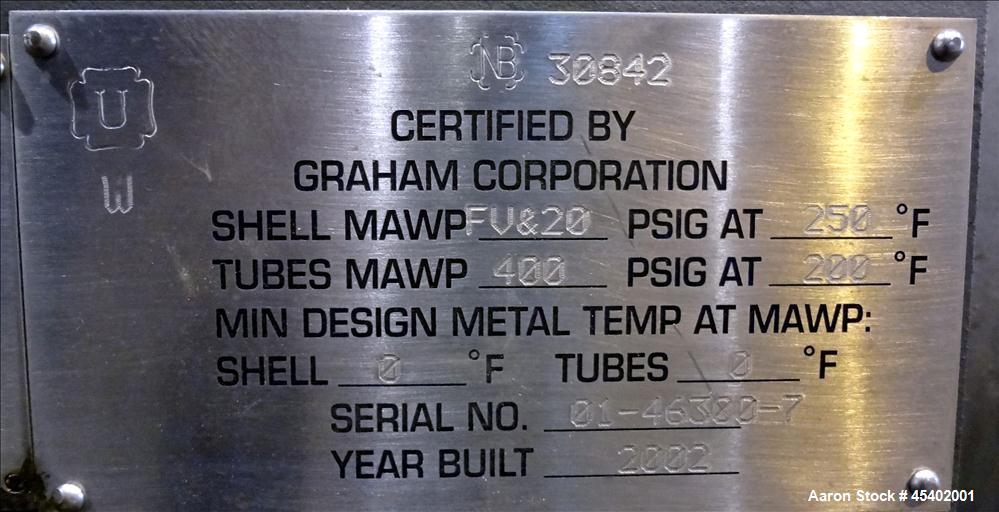

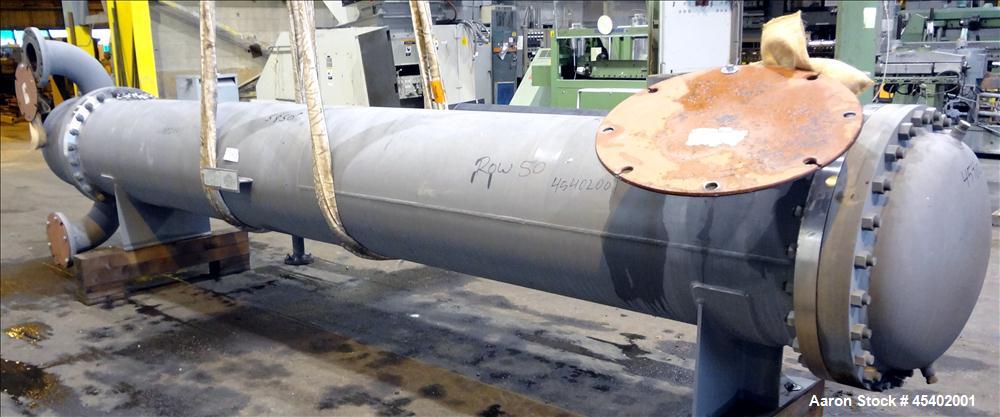

Unused- Graham Corporation Multi-Pass Shell & Tube Heat Exchanger, Approximate 1160 Square Feet, Horizontal. Carbon steel shell rated Full Vacuum & 20 psig at 250 degrees F. (370) 3/4" Diameter x 16 long 304 stainless steel tubes rated 400 psig at 250 degrees F. 304L Stainless steel tube sheet, carbon steel heads. Openings shell 18" vapor outlet, 4" vapor inlet, 2" condensate outlet, openings heads (2) 8". Mounted on (2) saddles. National Board#30842, Serial# 01-46300-7, Built 2002.
Unused- Graham Corporation Multi-Pass Shell & Tube Heat Exchanger, Approximate 1160 Square Feet, Horizontal. Carbon steel shell rated Full Vacuum & 20 psig at 250 degrees F. (370) 3/4" Diameter x 16 long 304 stainless steel tubes rated 400 psig at 250 degrees F. 304L Stainless steel tube sheet, carbon steel heads. Openings shell 18" vapor outlet, 4" vapor inlet, 2" condensate outlet, openings heads (2) 8". Mounted on (2) saddles. National Board#30842, Serial# 01-46300-7, Built 2002.
