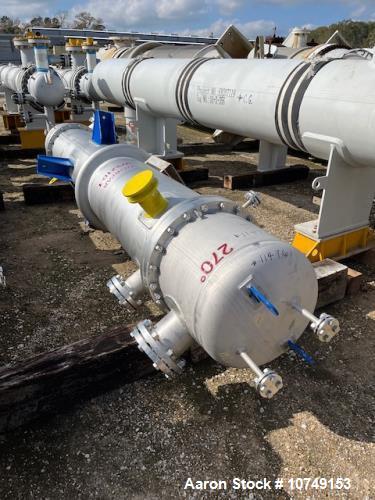

Unused 650 Sq. Ft. Vertical 304SS Shell & Tube Heat Exchanger – 1.8 MMBTU/Hr, NB Code (2021)

Manufacturer Information

• Manufacturer: Wuxi Zhicherg Biochemical Engineering

• Year Built: 2021

• Type: Shell & Tube Heat Exchanger

• Orientation: Vertical (V)

• TEMA Type: BEM

• Code: National Board (NB)

• Condition: Unused – Under Nitrogen Purge

Description

This Unused Vertical Shell & Tube Heat Exchanger provides approximately 650 square feet of heat transfer area and is designed for oil/steam heating applications. Manufactured in 2021, the unit remains under nitrogen purge, preserving internal integrity.

Constructed entirely of 304 stainless steel (shell, tubes, and heads), the exchanger is rated for high-temperature and pressure service. The shell design rating is 147 PSI / Full Vacuum at 428°F, while the tube side is rated 174 PSI / Full Vacuum at 428°F.

The exchanger features:

• 336 tubes, 0.75" diameter

• 10’ tube length

• 0.065" tube wall thickness

• Expansion joint

• BEM TEMA configuration

• Compact 20" shell diameter

• Approximate 14'6" overall length

With a design duty of 1.8 MMBTU/hr, this vertical heat exchanger is ideal for industrial thermal transfer systems requiring reliable and efficient performance.

Specifications

General

• Heat Transfer Area: 650 sq. ft.

• Design Duty: 1.8 MMBTU/hr

• Orientation: Vertical

• TEMA Type: BEM

• Code: National Board (NB)

Construction Materials

• Shell: 304 Stainless Steel

• Tubes: 304 Stainless Steel

• Heads: 304 Stainless Steel

Pressure & Temperature Ratings

• Shell Design Rating:

  • 147 PSI / Full Vacuum

  • 428°F

• Tube Design Rating:

  • 174 PSI / Full Vacuum

  • 428°F

Tube Bundle

• Tube Diameter: 0.75"

• Tube Length: 10'0"

• Tube Wall Thickness: 0.065"

• Number of Tubes: 336

Dimensions

• Shell Diameter: 1'8" (20")

• Overall Length: 14'6"

Additional Features

• Expansion Joint

• Oil / Steam service

• Stored under Nitrogen Purge

Applications

• Oil heating systems

• Steam-to-oil heat transfer

• Chemical processing

• Refinery service

• Industrial thermal systems

What Might This Be Used For

This vertical shell and tube heat exchanger is commonly used for transferring heat between steam and thermal oil systems, particularly in chemical plants, refineries, and industrial heating operations.
