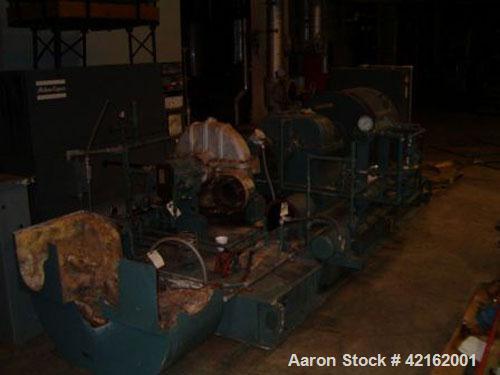

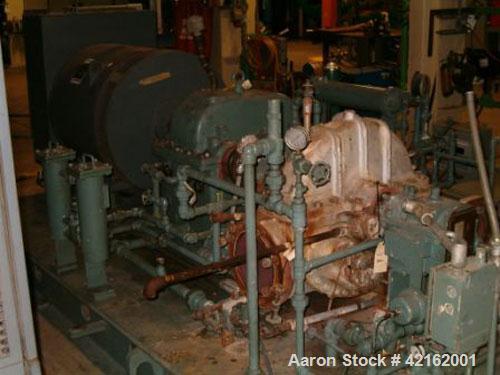

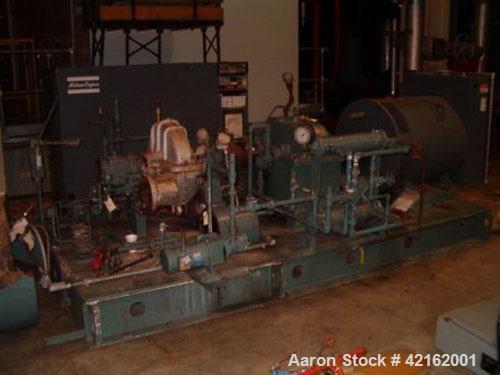

Used Dresser-Rand Steam Turbine Generator Set. Turbodyne 540 kW non-condensing steam turbine with AC generator drive and GE switchgear, manufactured 1984. Turbodyne steam turbine U-23202, frame 501W, rating 540 kW at 5532/1800 rpm, inlet steam 235 psi, exhaust steam 25-75 psi, Woodward 505 electronic turbine control governor. Inlet valve, discharge valve and safety valve are included. Magna One synchronous AC generator, Marathon Electric model 680FdR820566, type FDR, frame 680, rpm 1800, ph 3, hz 60, pf 0.8, amb 40C, ins class H, rise by RES. 105C, field amps 2.0, field volts 70, kW 540, volts 277/480, kva 675, amps 811, regulator #Basler SR8A2B05B3A. General Electric ADK-8 switchgear, supply amps 1600, neutral amps 1600, section amps 1600, 60 hz, 480V, 3 phase, 4 wire, style 2, short circuit current wiring 50.0, RMS sym amps at 508 volts max.
Used Dresser-Rand Steam Turbine Generator Set. Turbodyne 540 kW non-condensing steam turbine with AC generator drive and GE switchgear, manufactured 1984. Turbodyne steam turbine U-23202, frame 501W, rating 540 kW at 5532/1800 rpm, inlet steam 235 psi, exhaust steam 25-75 psi, Woodward 505 electronic turbine control governor. Inlet valve, discharge valve and safety valve are included. Magna One synchronous AC generator, Marathon Electric model 680FdR820566, type FDR, frame 680, rpm 1800, ph 3, hz 60, pf 0.8, amb 40C, ins class H, rise by RES. 105C, field amps 2.0, field volts 70, kW 540, volts 277/480, kva 675, amps 811, regulator #Basler SR8A2B05B3A. General Electric ADK-8 switchgear, supply amps 1600, neutral amps 1600, section amps 1600, 60 hz, 480V, 3 phase, 4 wire, style 2, short circuit current wiring 50.0, RMS sym amps at 508 volts max.
