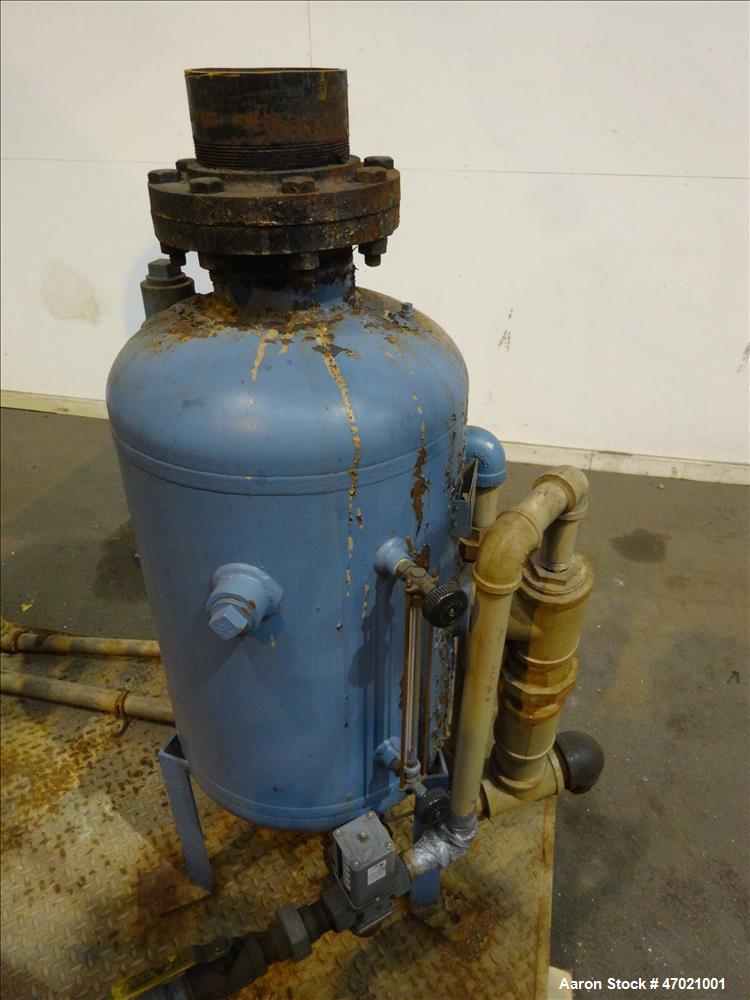

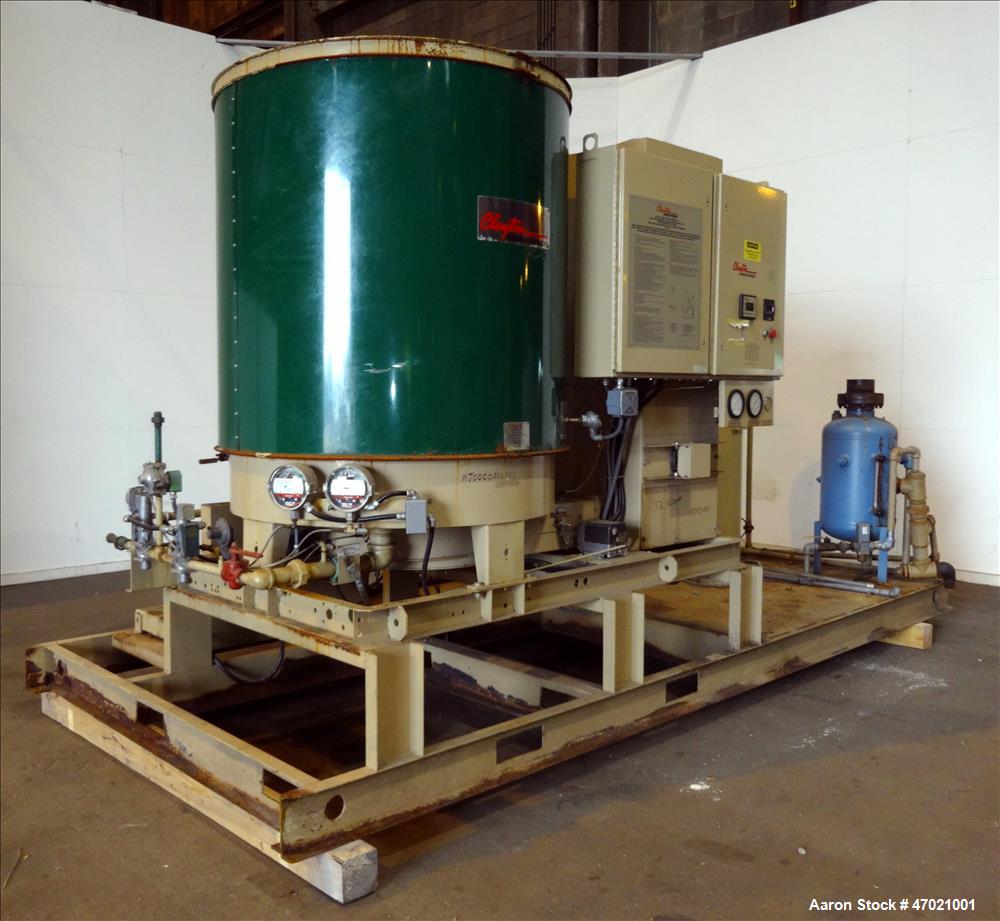

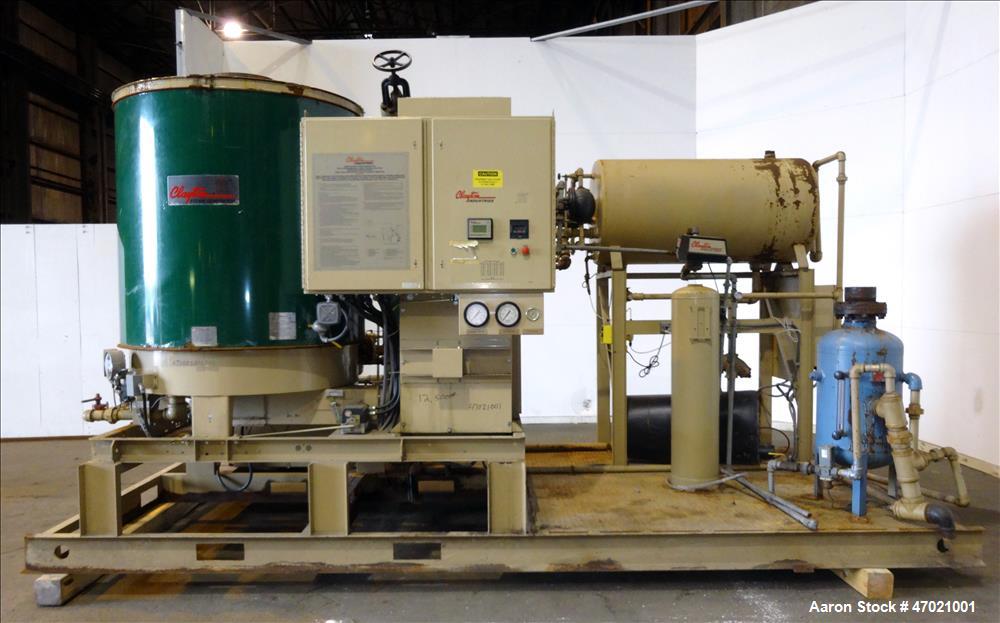

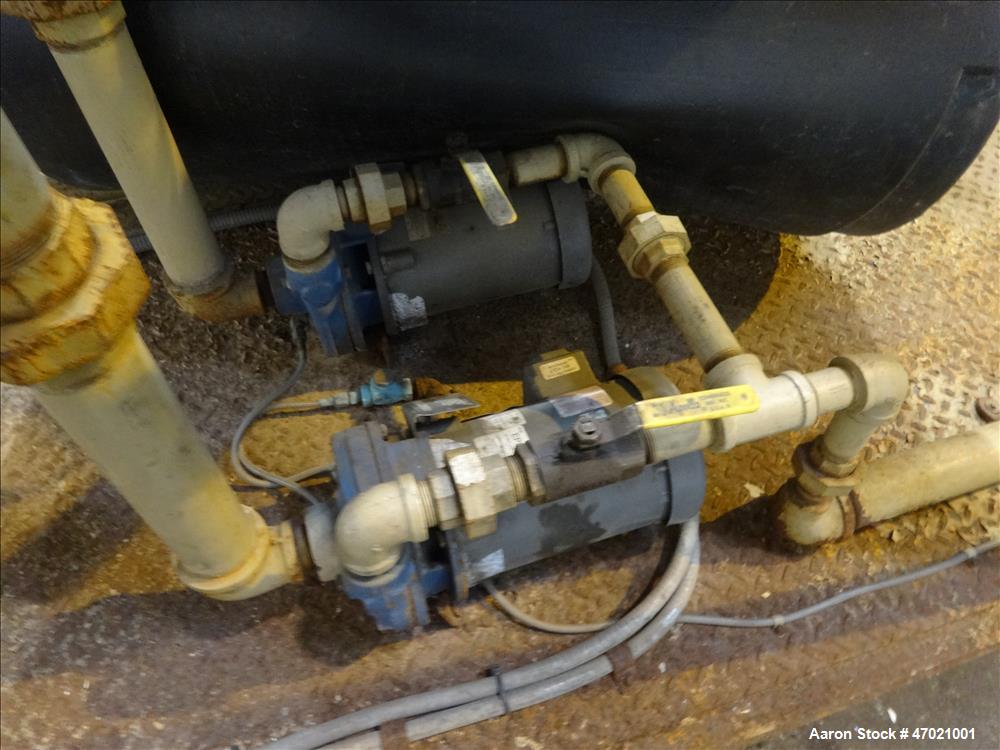

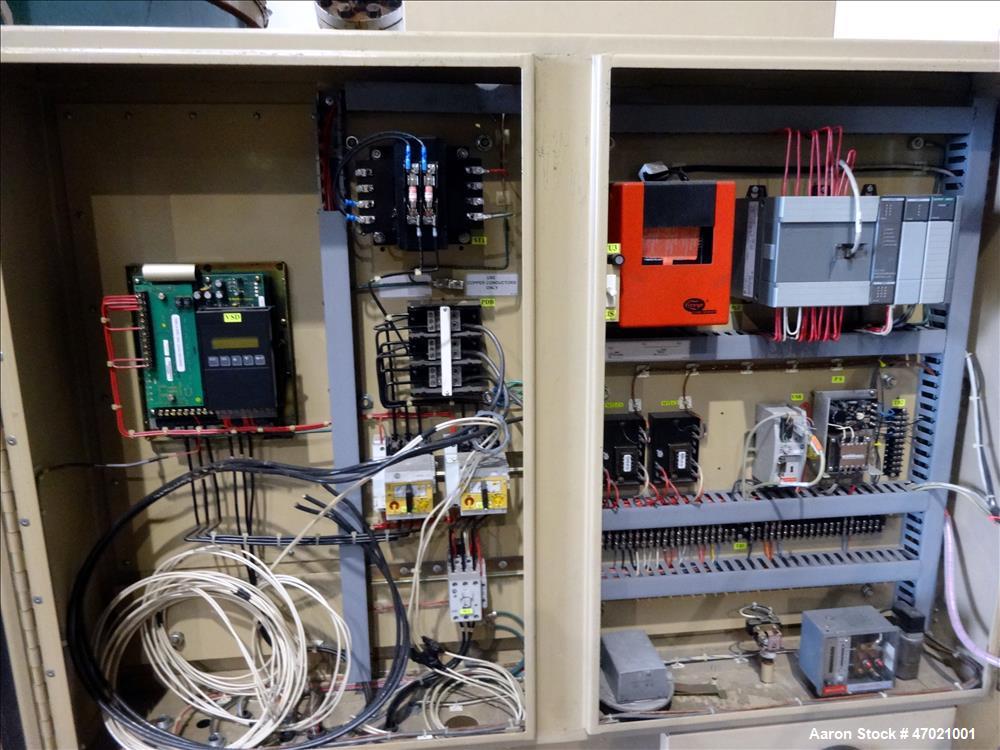

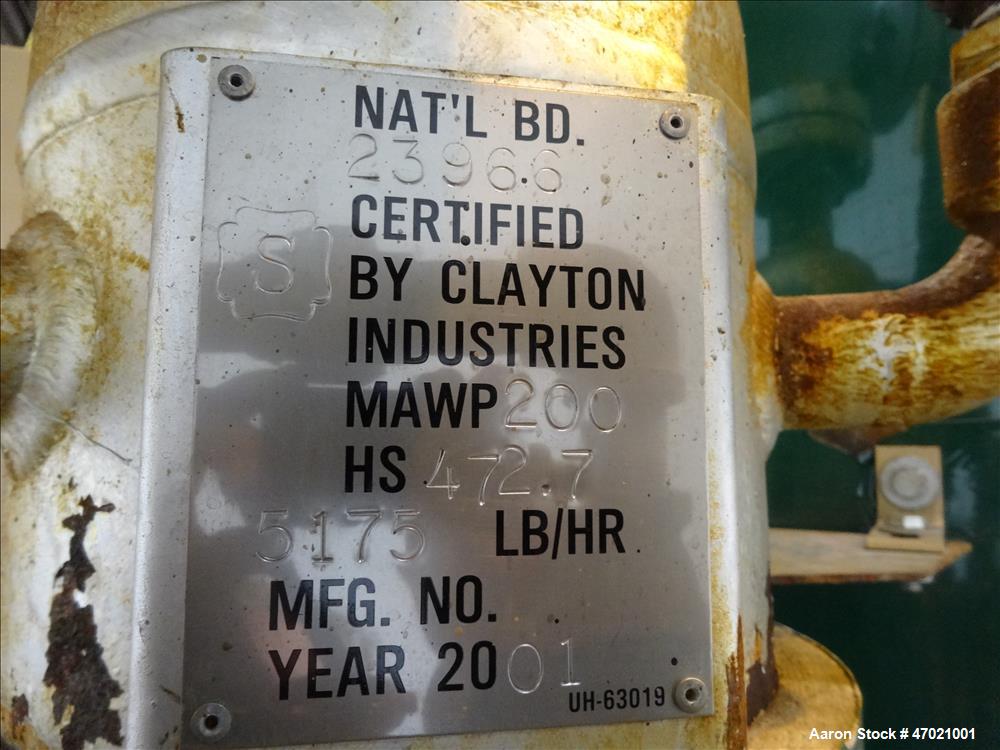

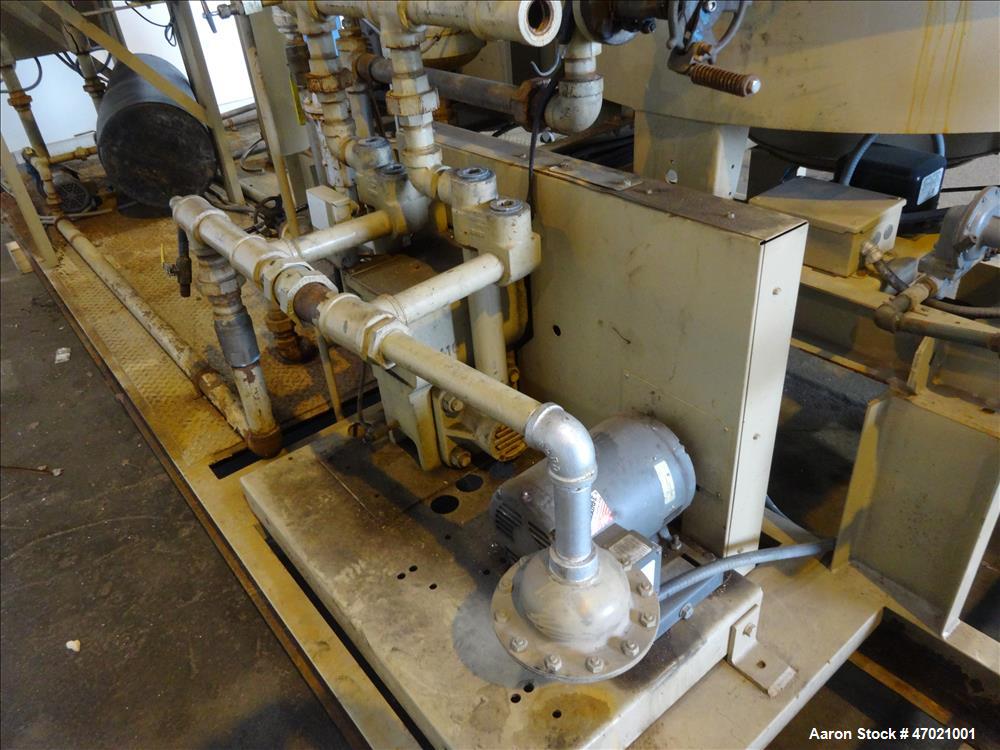

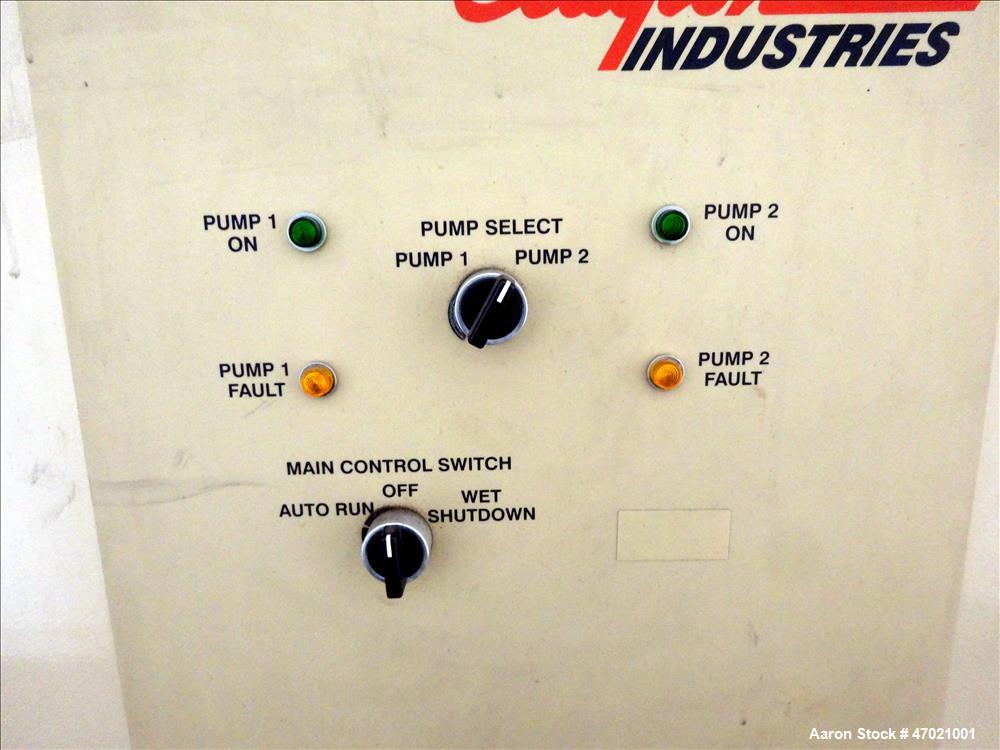

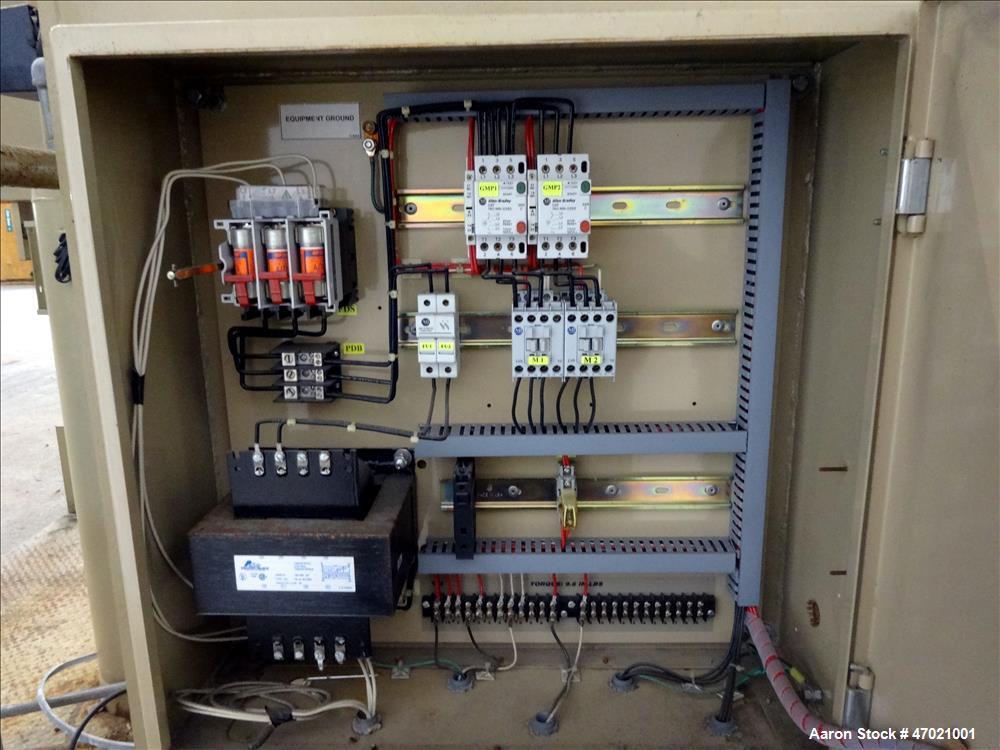

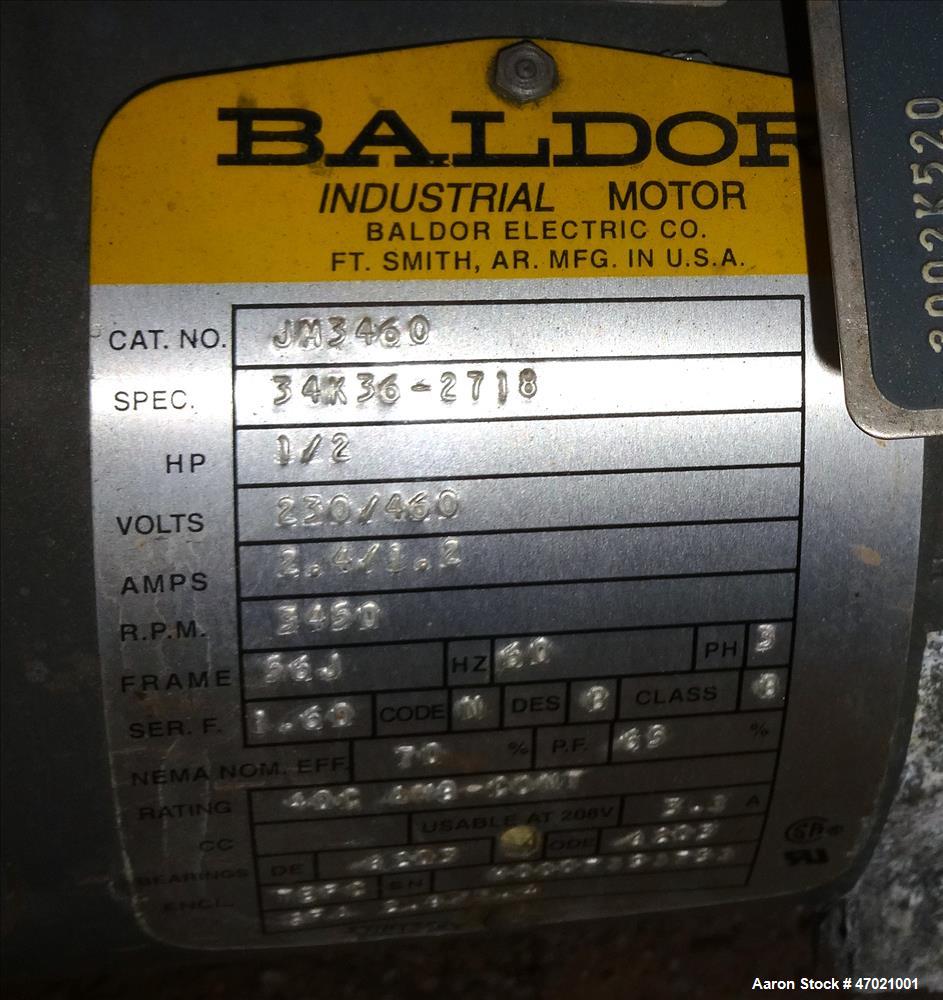

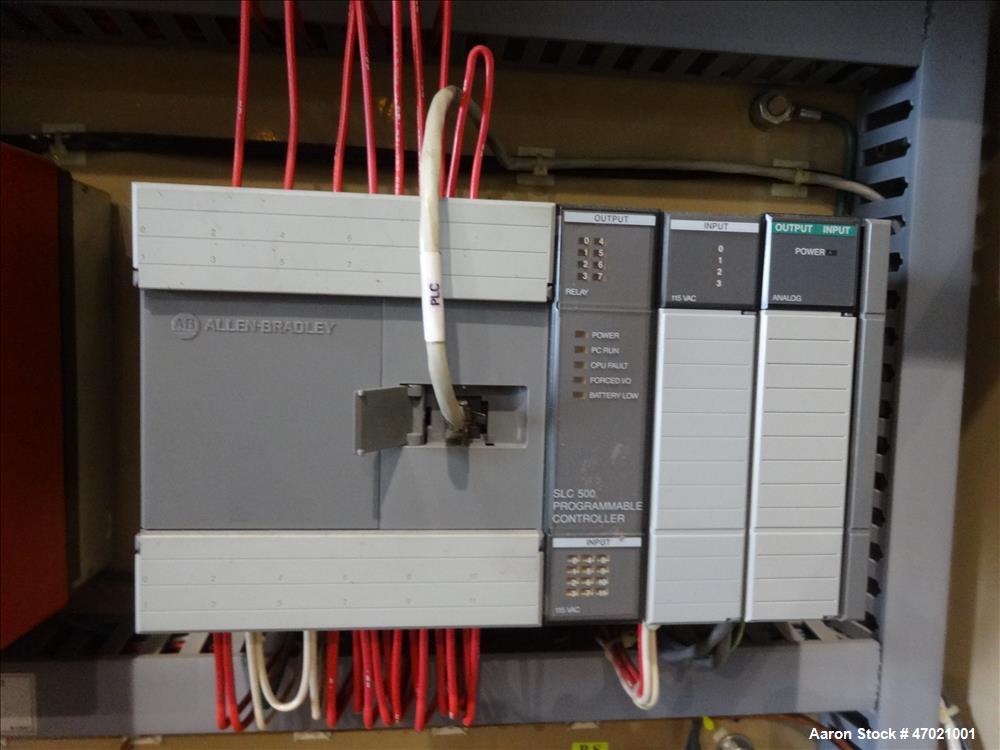

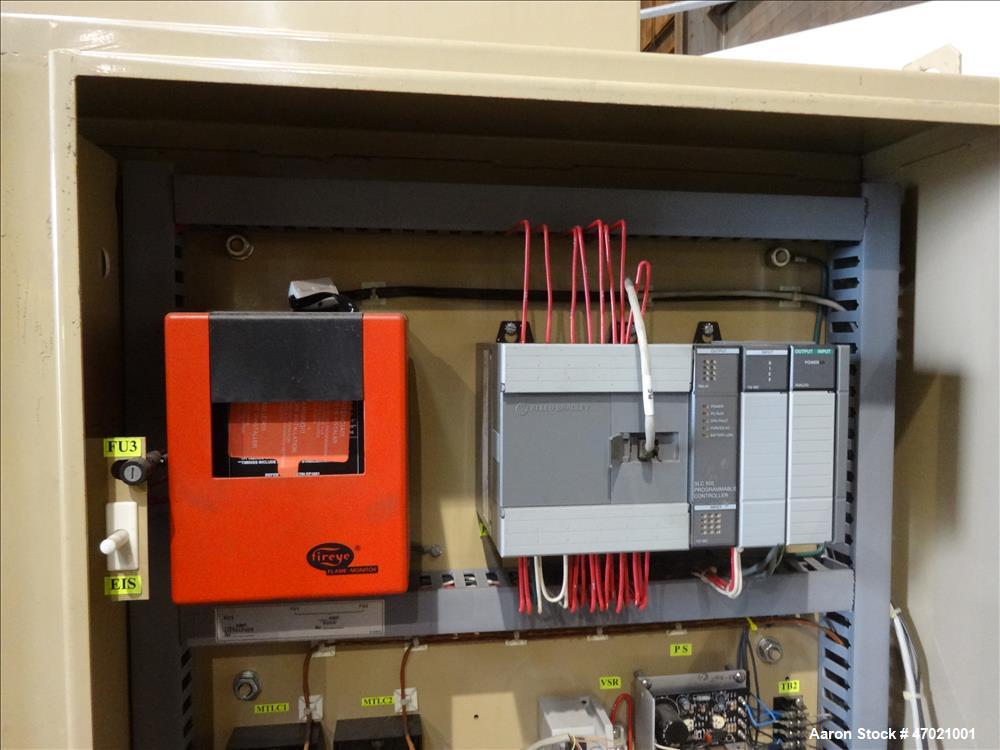

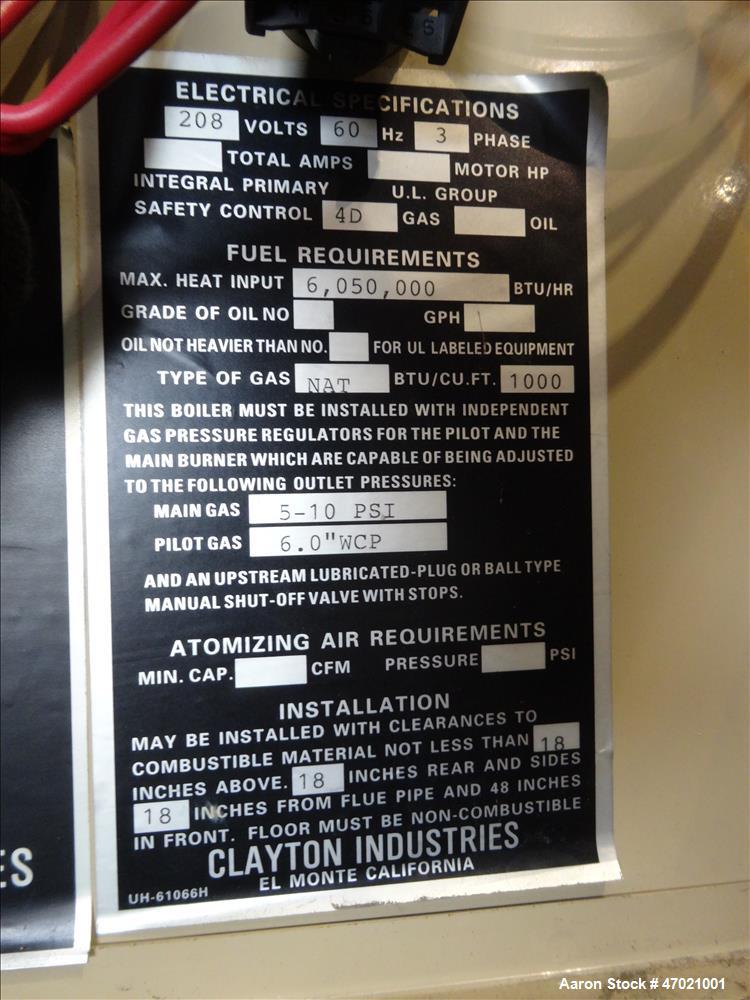

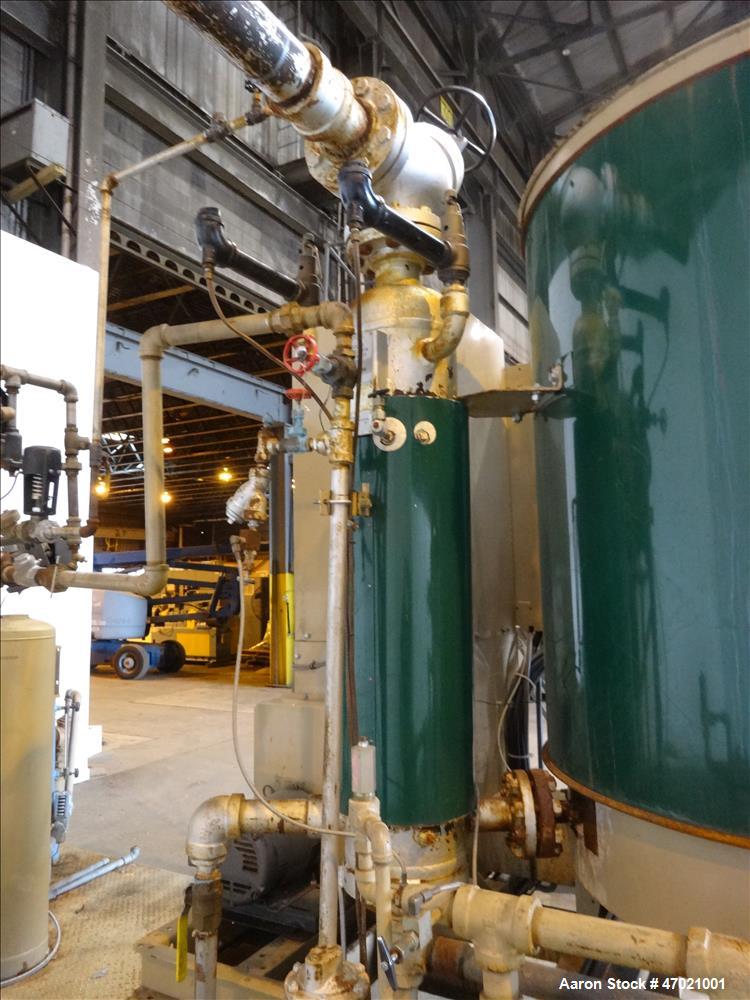

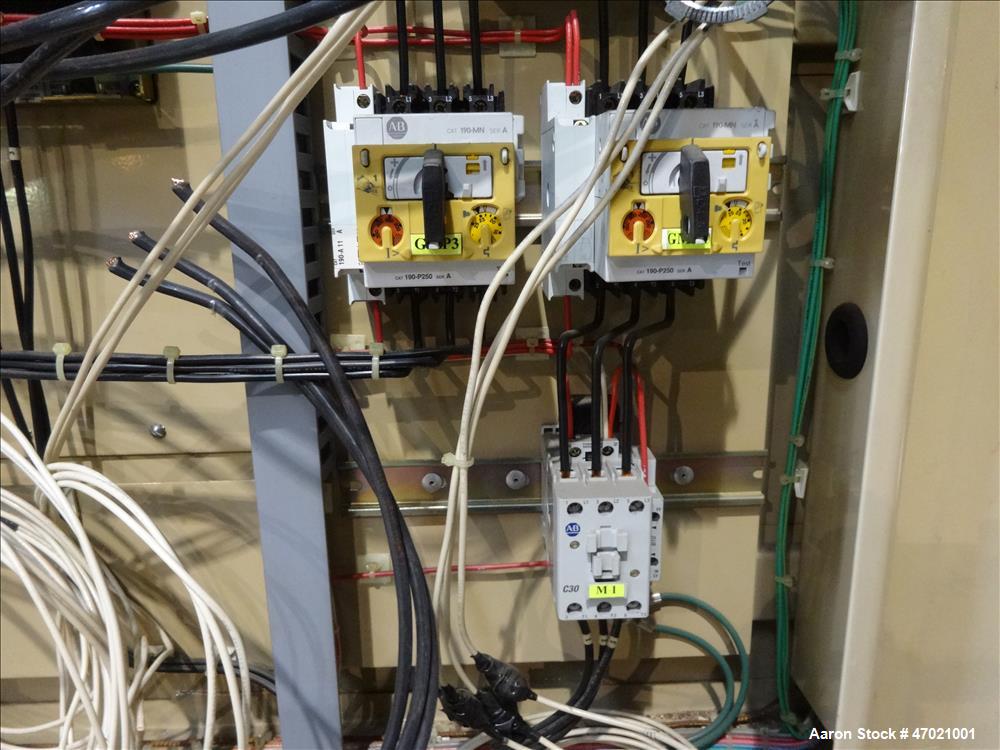

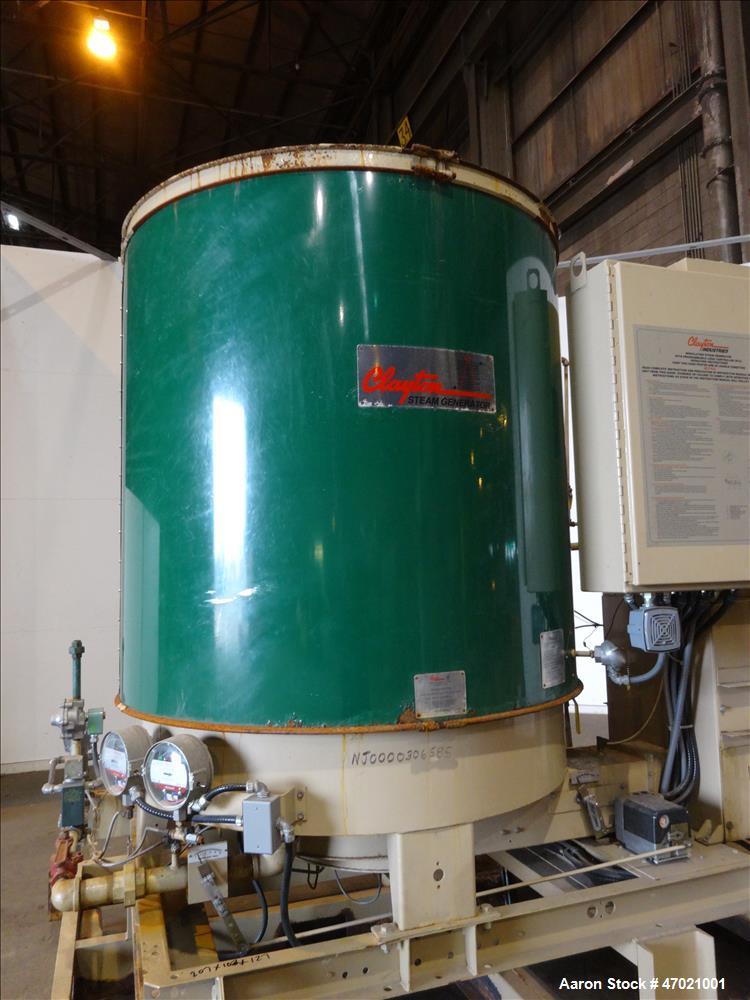

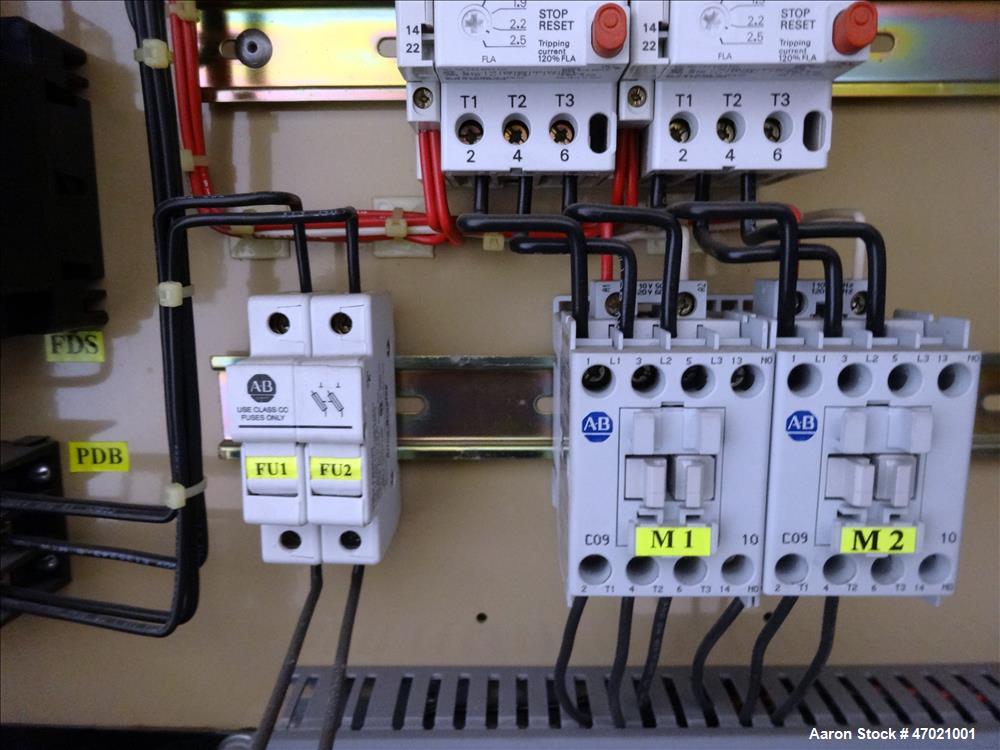

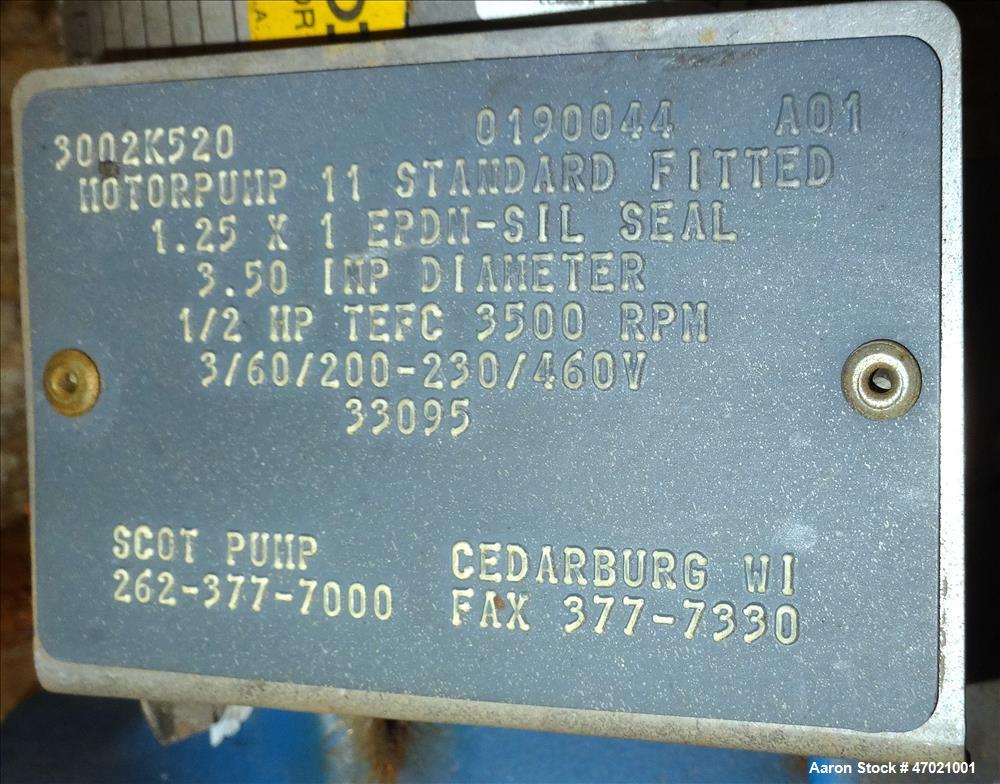

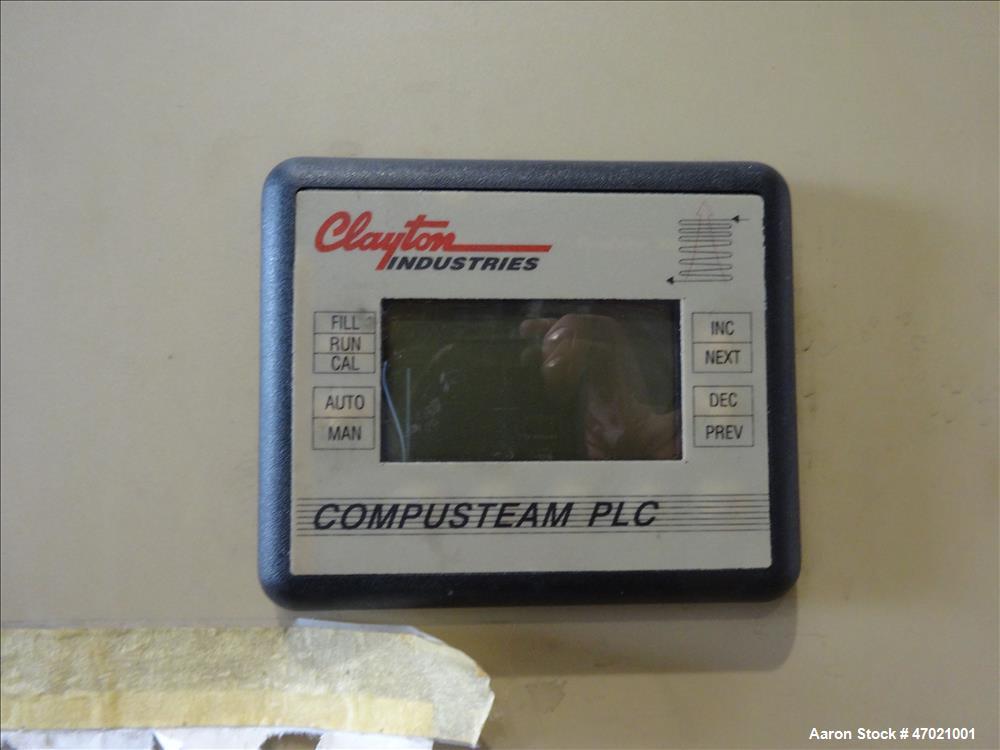

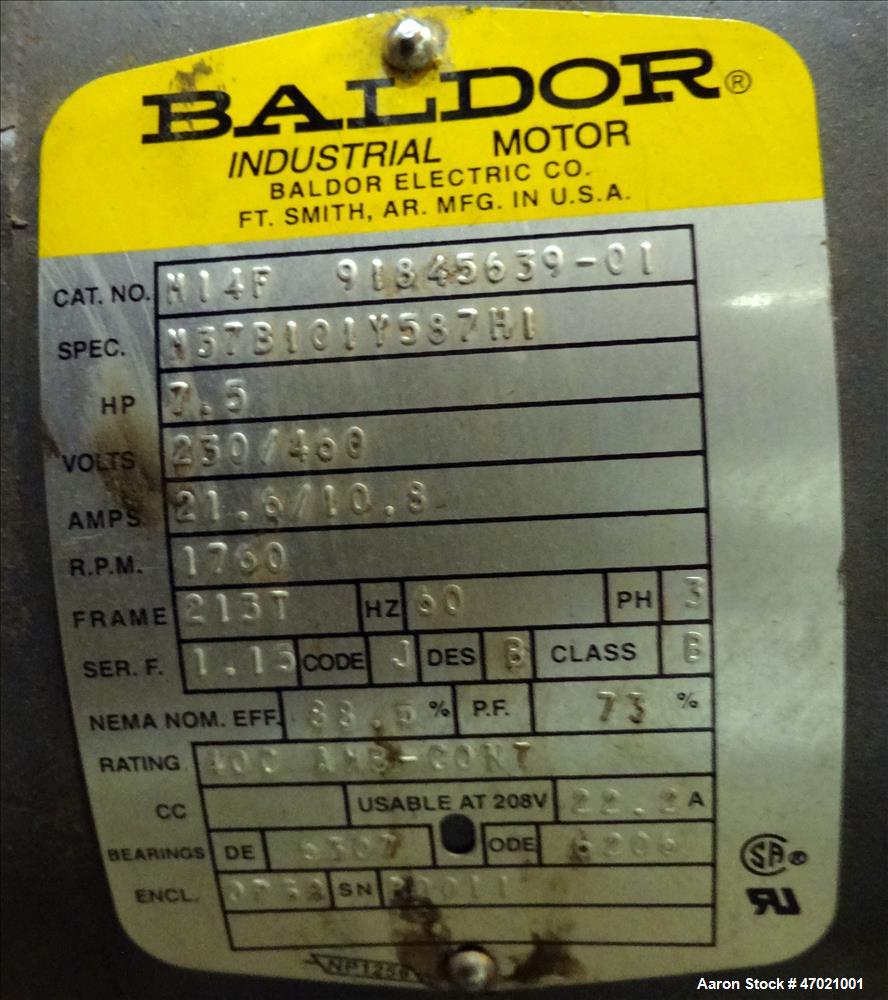

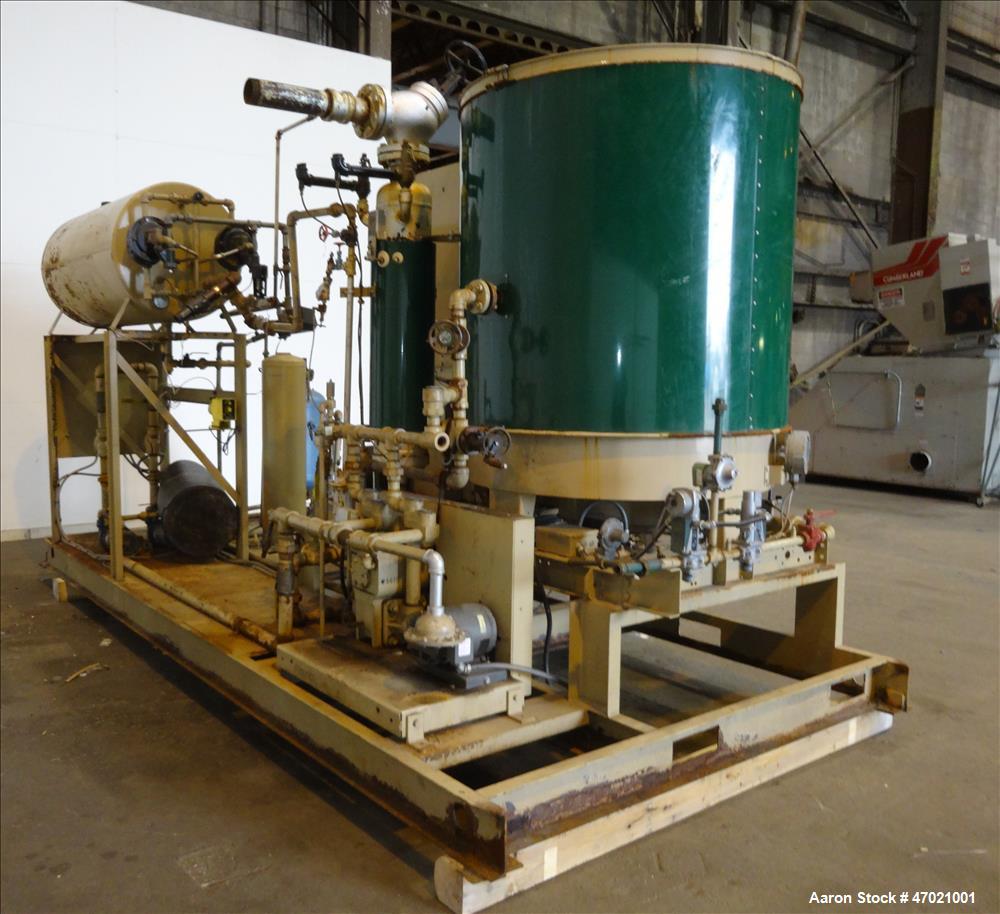

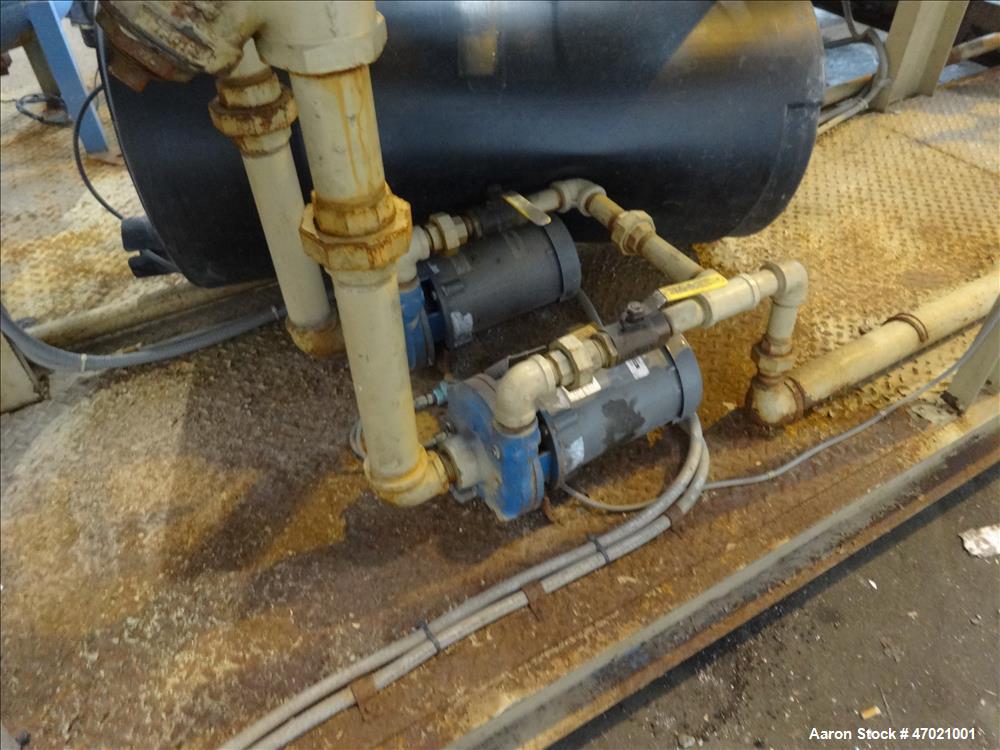

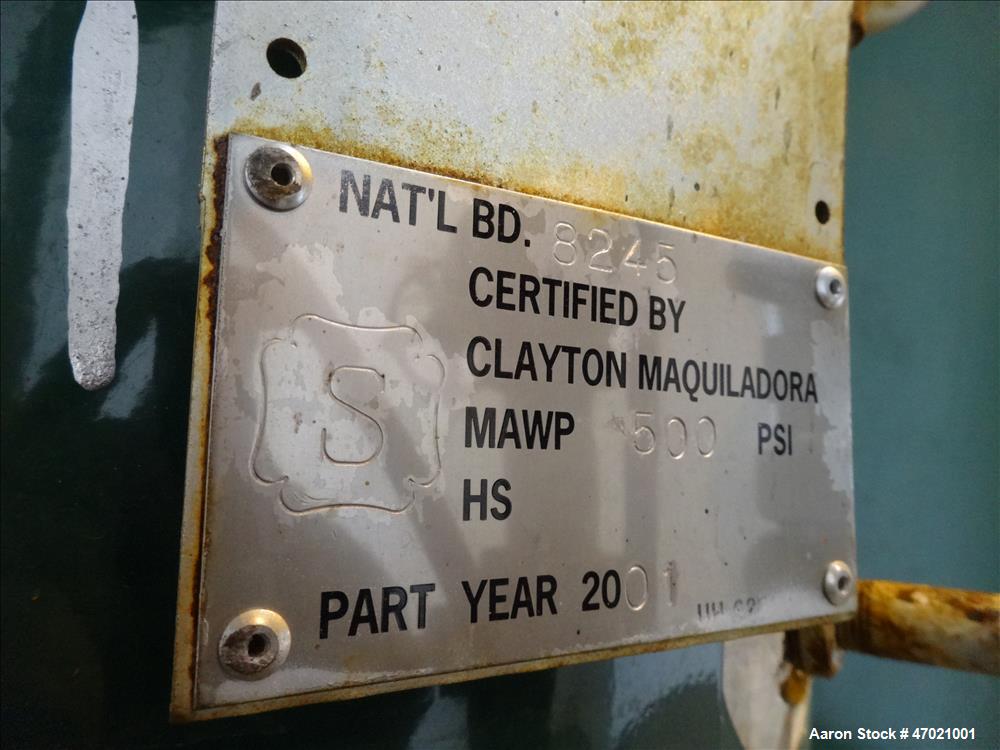

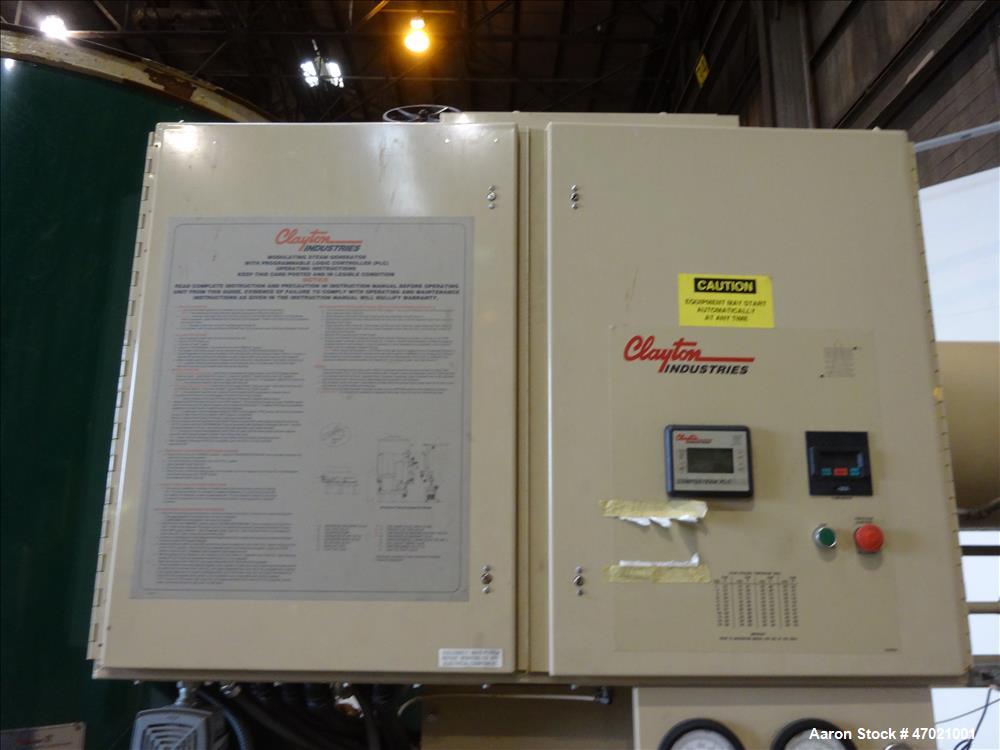

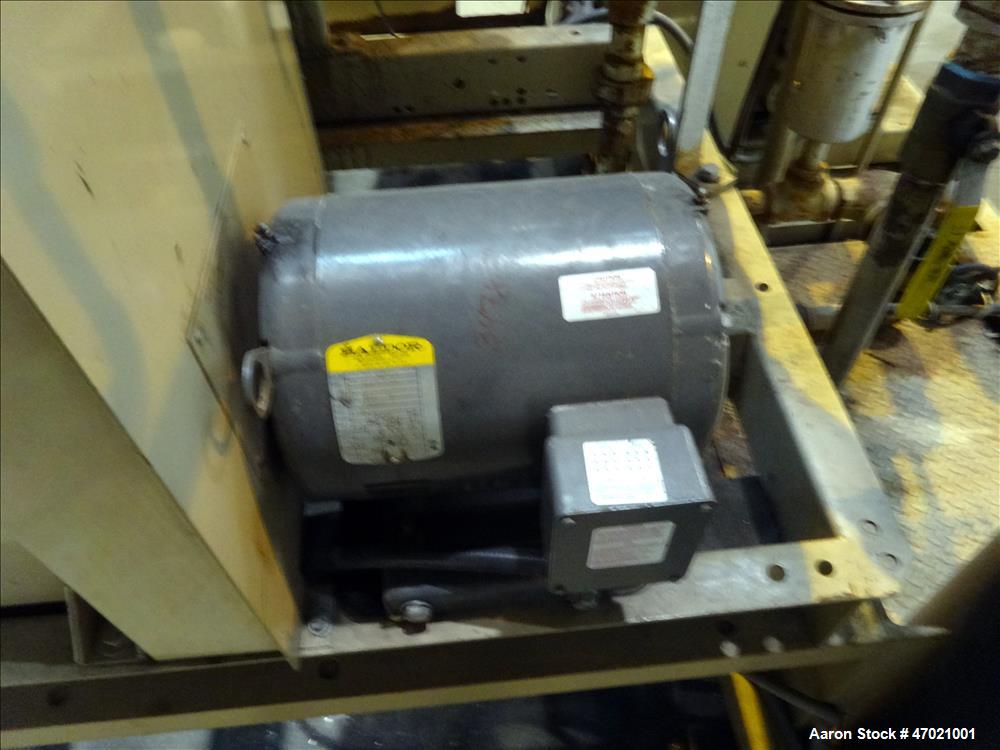

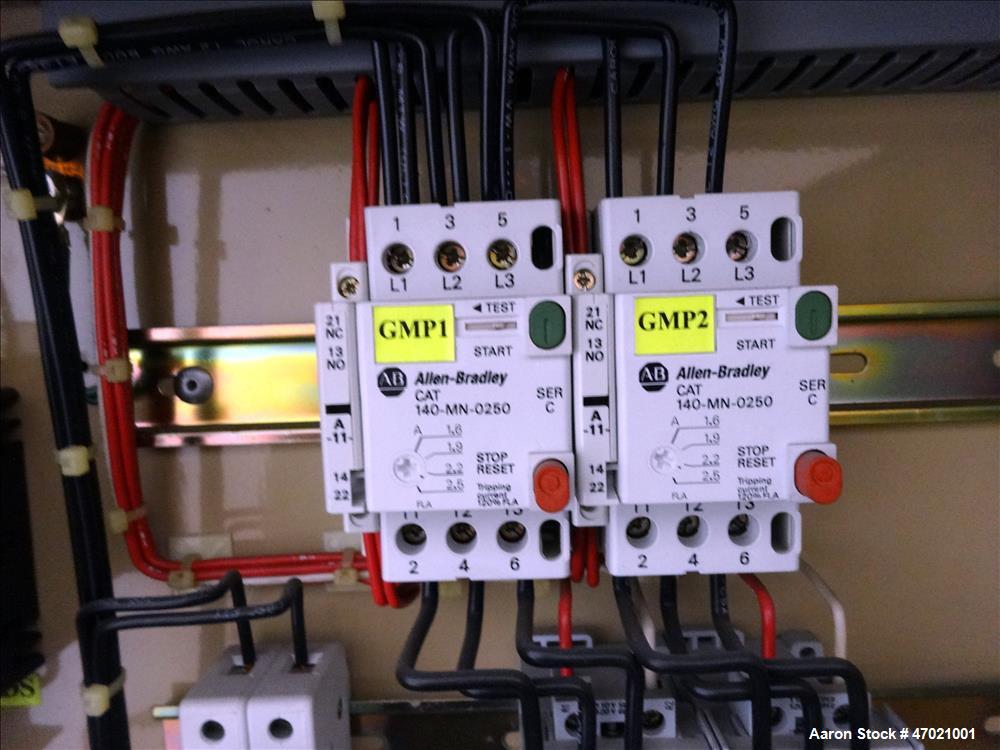

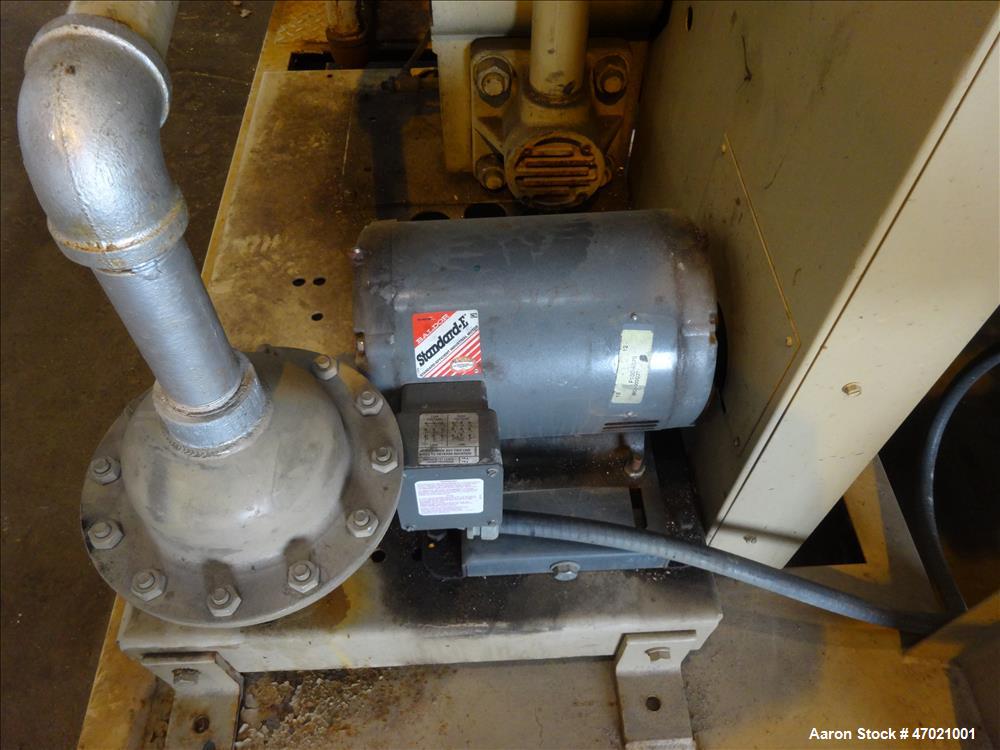

Used Clayton Skid Mounted Steam System. Consisting of Clayton steam generator, model EG-154-1, natural gas, 150HP, 3/60/208 volt. Design pressure rated 15 to 500 psig. Heat input rated 6,050,000 BTU/hour (Gas). Equivalent output 5,175 pounds per hour (from and at 212 degrees F feed water and 0 PSIG steam). Has control panel with Allen Bradley SLC 500 PLC. Stack not included. (1) Blowdown tank, approximate 25 gallon. (1) Clayton Industries water softener. (1) Horizontal hot well, 30" diameter x 60" straight side with (2) Scot centrifugal pumps, driven by a 1/2hp motors. (1) 7-1/2hp blower. Mounted on a carbon steel skid. Serial# 23966.
