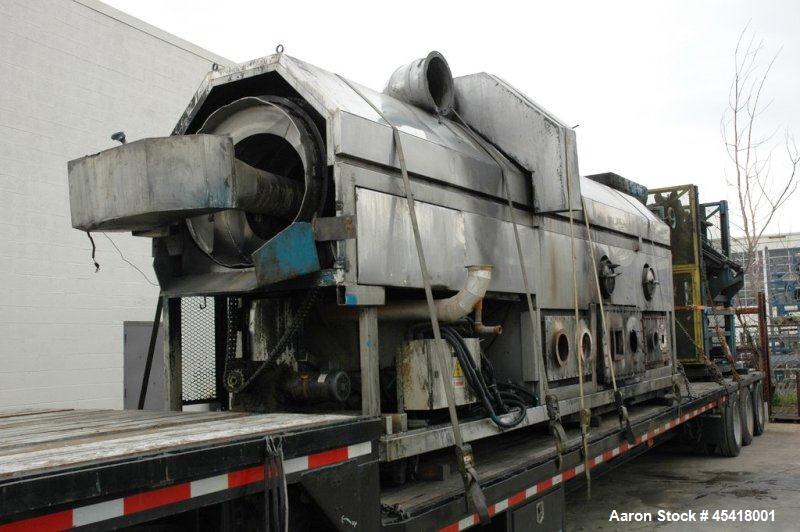

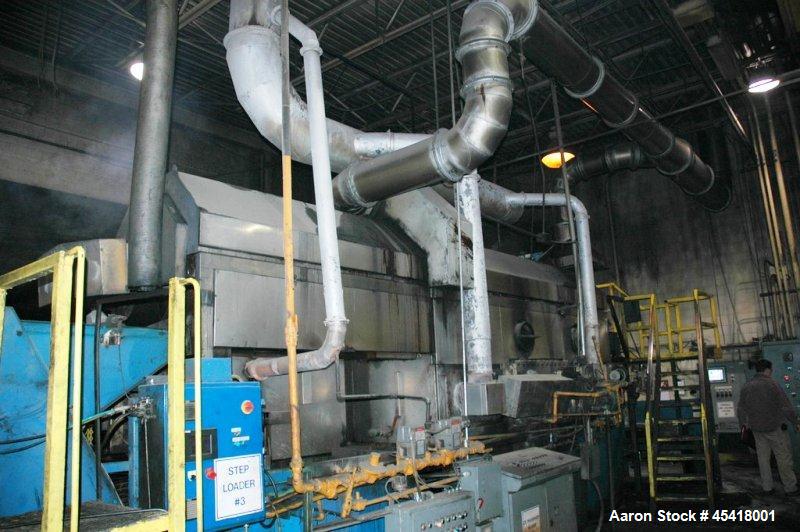

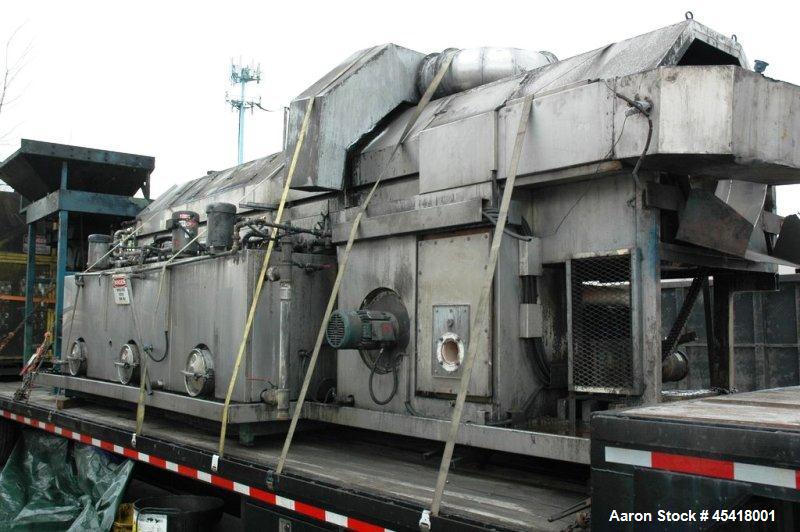

Used Rotary Drum Washer. MEA Model #490 3 stage rotary drum washer designed for continuous de-phosphating of fasteners prior to heat treatment. Unit is fabricated entirely of stainless steel and has a 900 mm drum with 1/4" perforations. Heated degreasing stage tank capacity is 1,500L, heated de-phosphating stage tank capacity is 2,000L and heated rinse stage tank capacity is 1,500L. Heating is done using 20IP, 124IP, and 16IP Eclipse Immerso-Pak burners and immersion tubes. Includes heated dryer blow off section and stainless steel exhaust and ducting. Overall dimensions are 6,970 mm long x 2,500 mm wide x 4,000 mm high. Process capacity is roughly 4,000 lbs/hr depending on material being processed. Electrical requirement is approximatly 50 amps at 230 VAC/3PH/60Hz. Washer was originally used in line" on a 4,000 lb/hour continuous furnace, hardening fastener product. Can either be assembled in-line or as a stand alone system.
Used Rotary Drum Washer. MEA Model #490 3 stage rotary drum washer designed for continuous de-phosphating of fasteners prior to heat treatment. Unit is fabricated entirely of stainless steel and has a 900 mm drum with 1/4" perforations. Heated degreasing stage tank capacity is 1,500L, heated de-phosphating stage tank capacity is 2,000L and heated rinse stage tank capacity is 1,500L. Heating is done using 20IP, 124IP, and 16IP Eclipse Immerso-Pak burners and immersion tubes. Includes heated dryer blow off section and stainless steel exhaust and ducting. Overall dimensions are 6,970 mm long x 2,500 mm wide x 4,000 mm high. Process capacity is roughly 4,000 lbs/hr depending on material being processed. Electrical requirement is approximatly 50 amps at 230 VAC/3PH/60Hz. Washer was originally used in line" on a 4,000 lb/hour continuous furnace, hardening fastener product. Can either be assembled in-line or as a stand alone system.
