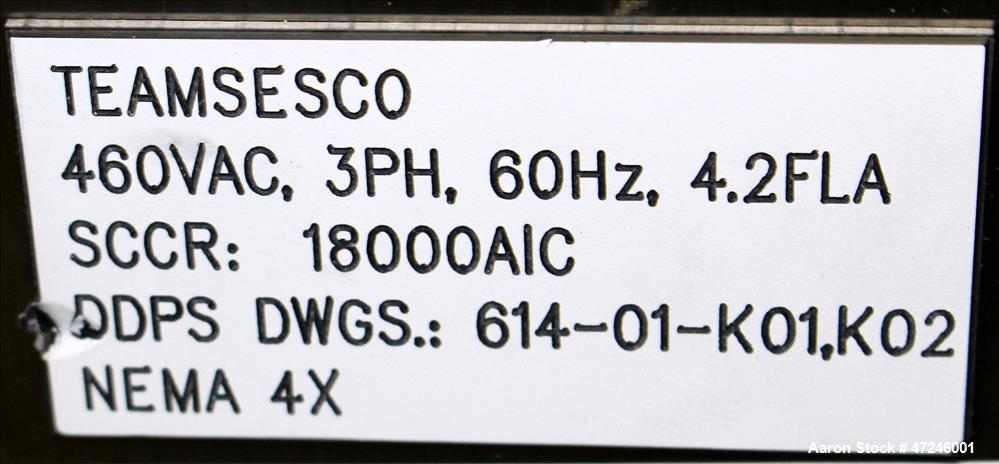

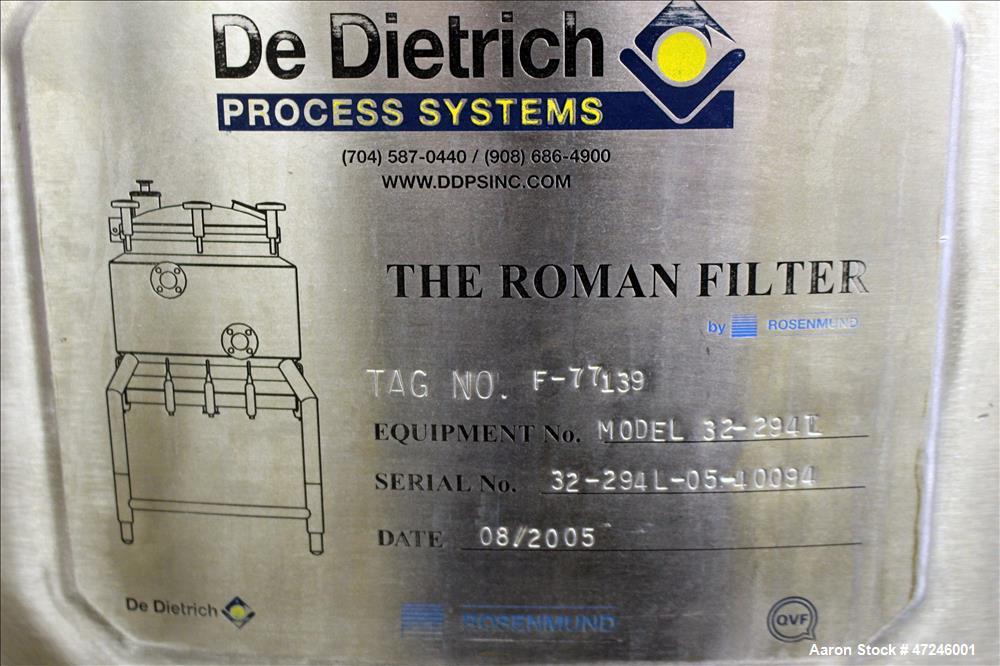

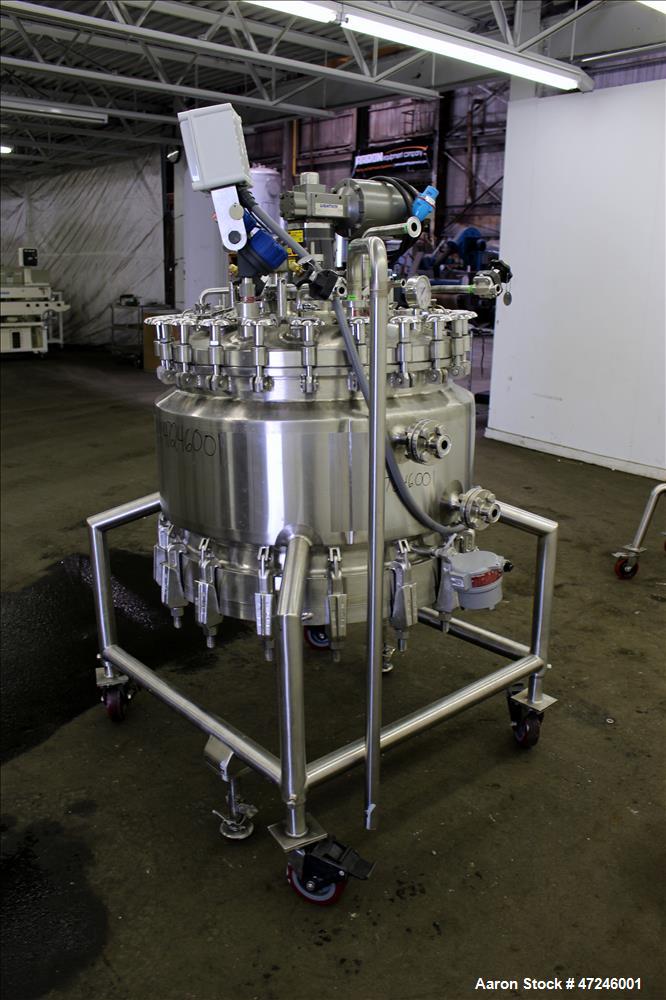

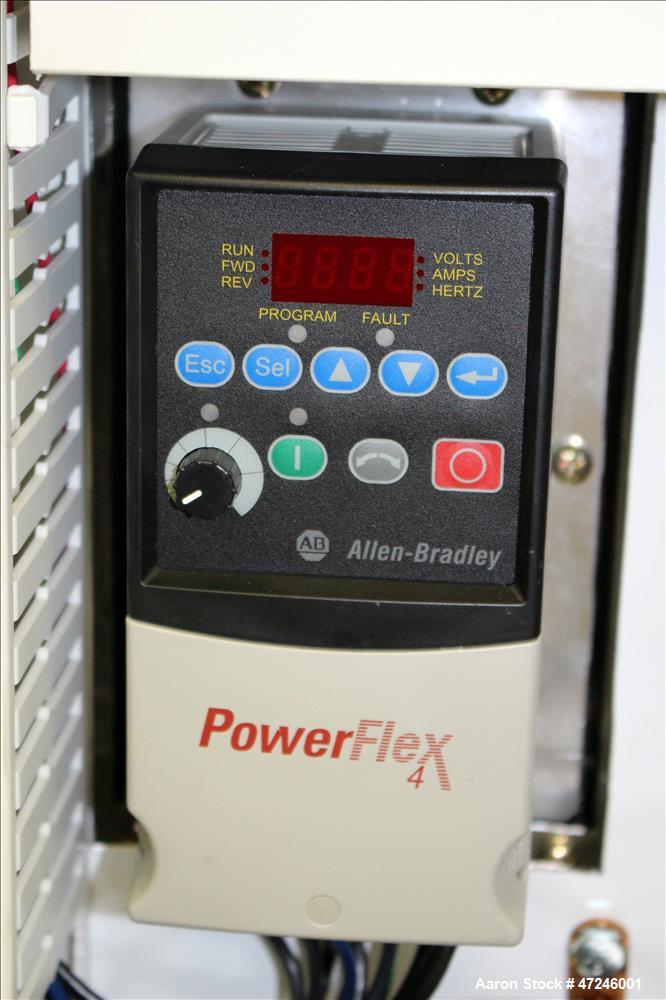

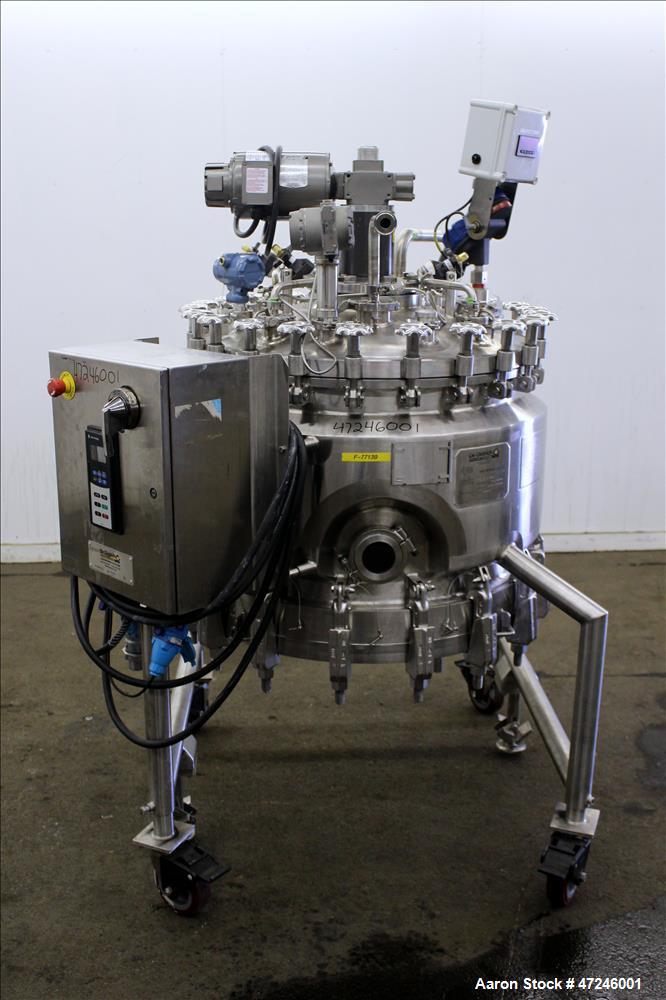

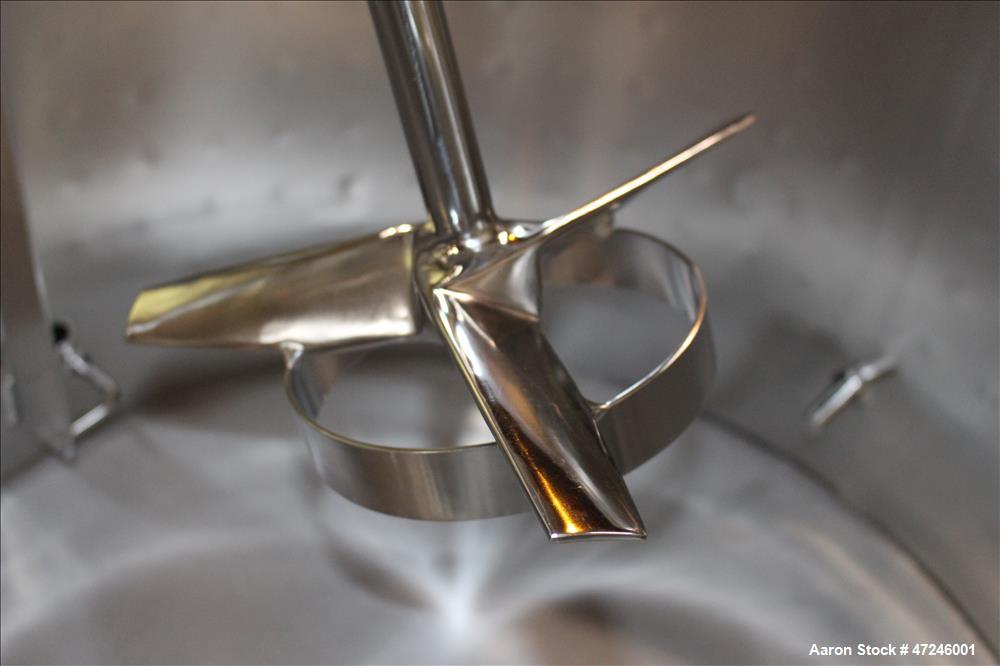

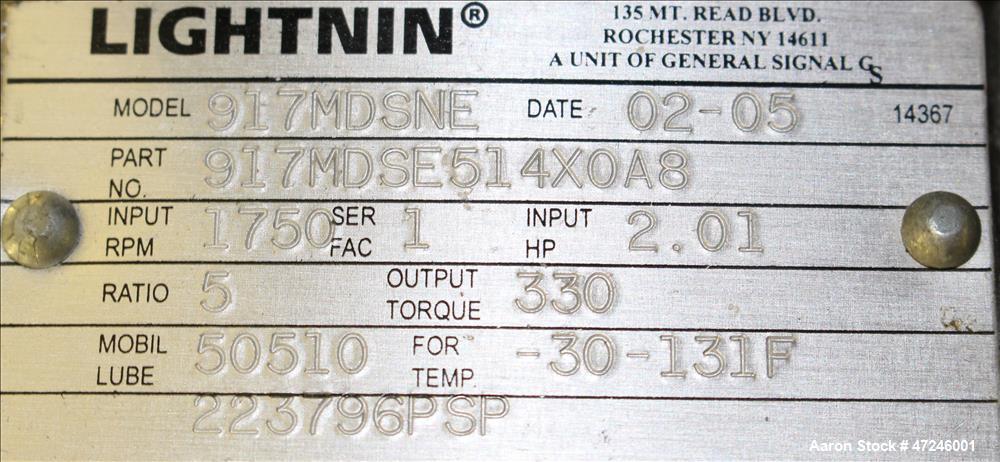

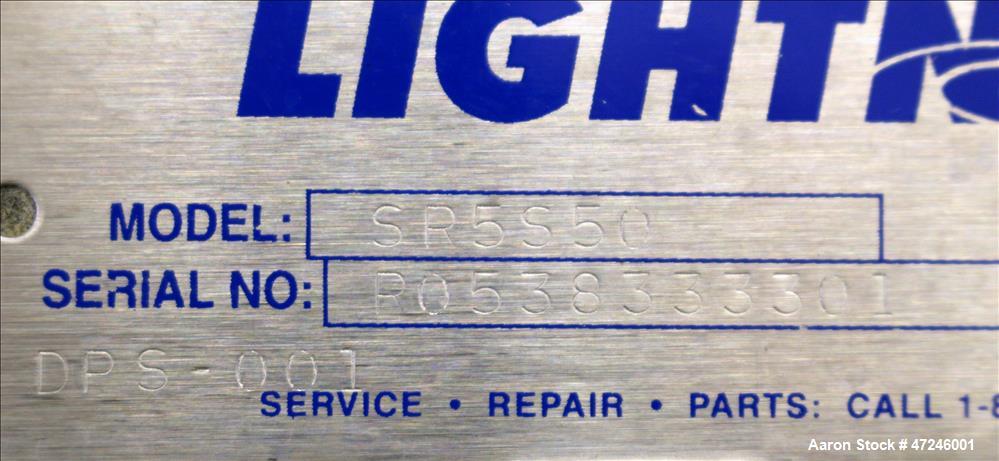

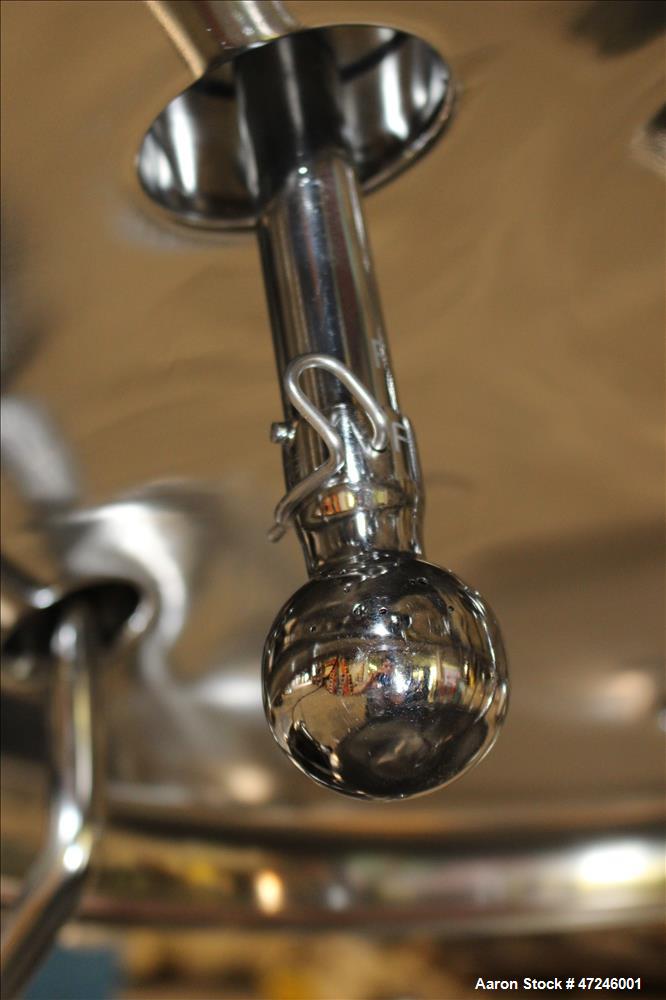

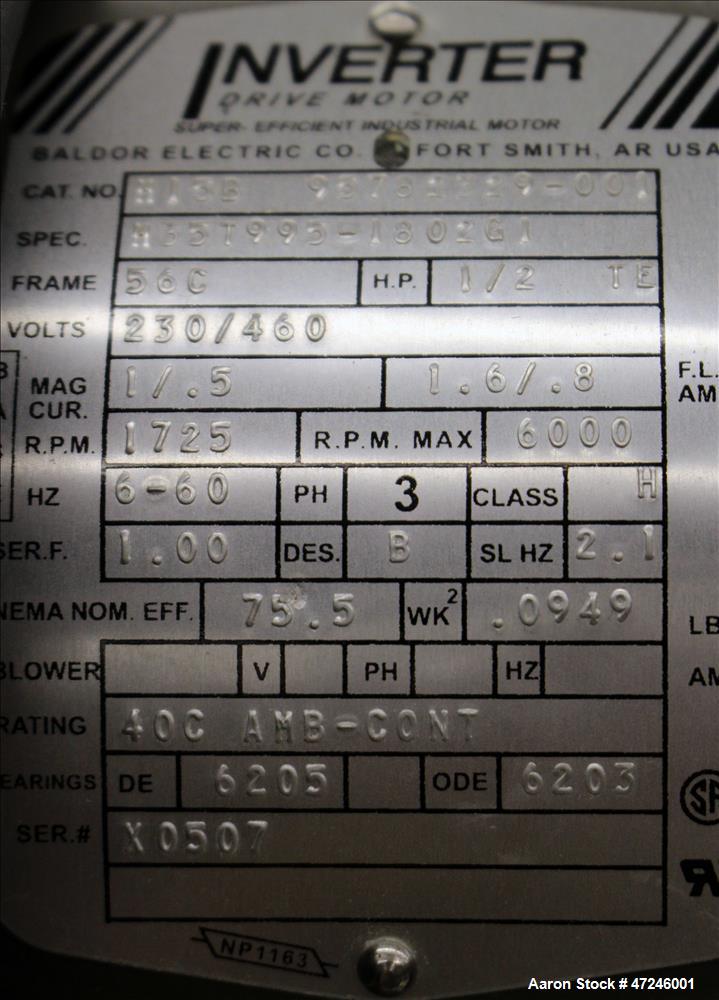

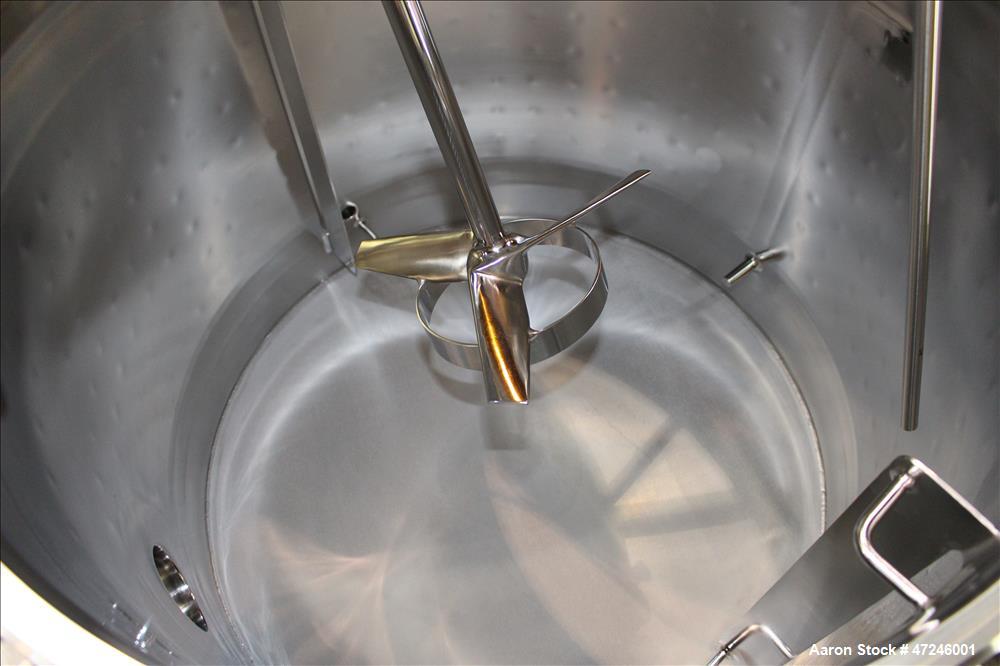

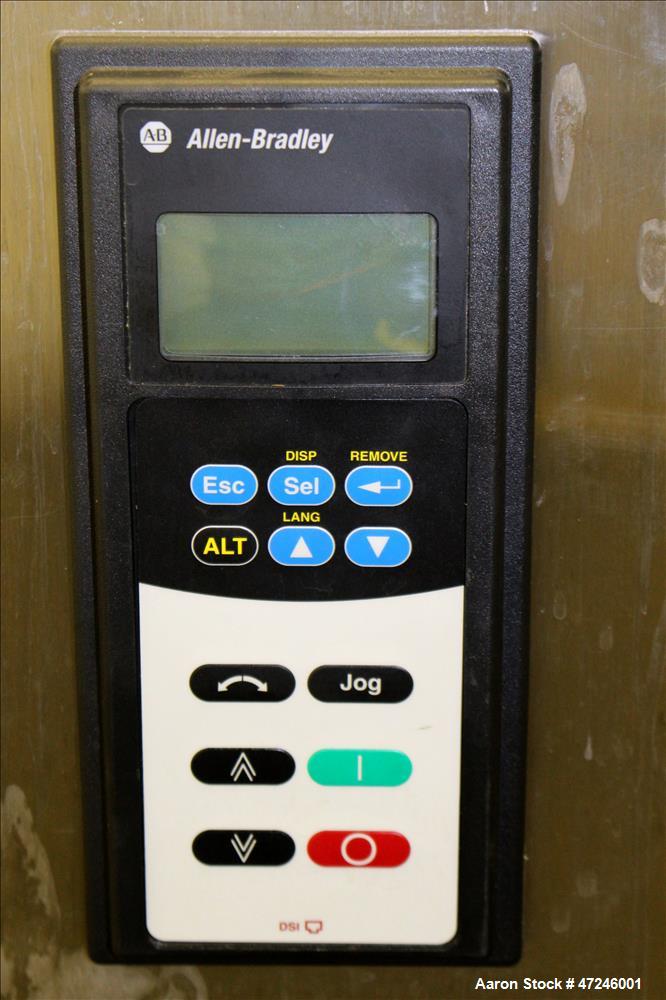

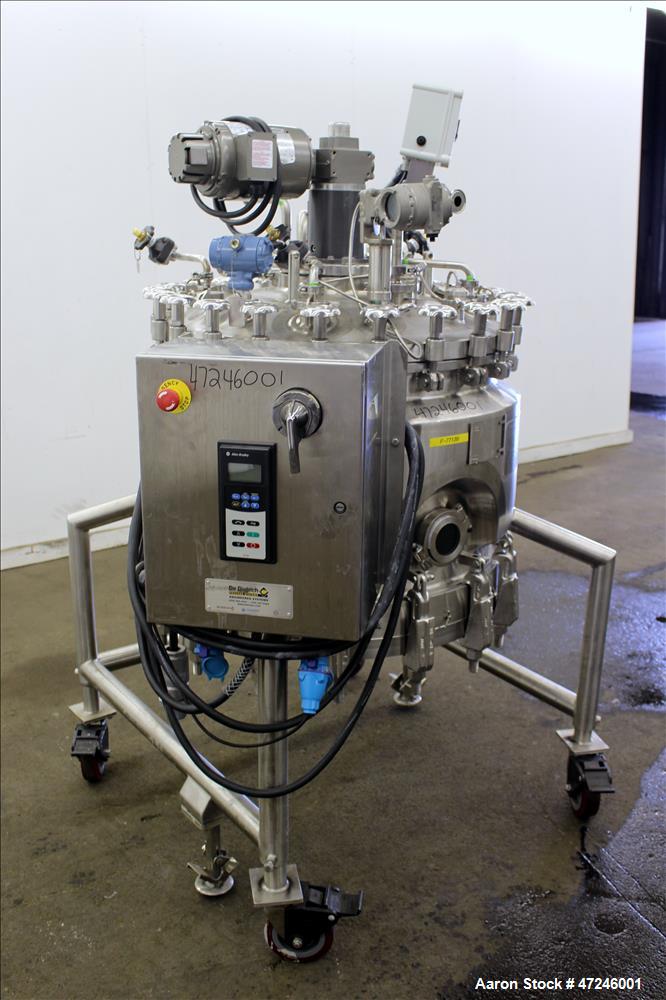

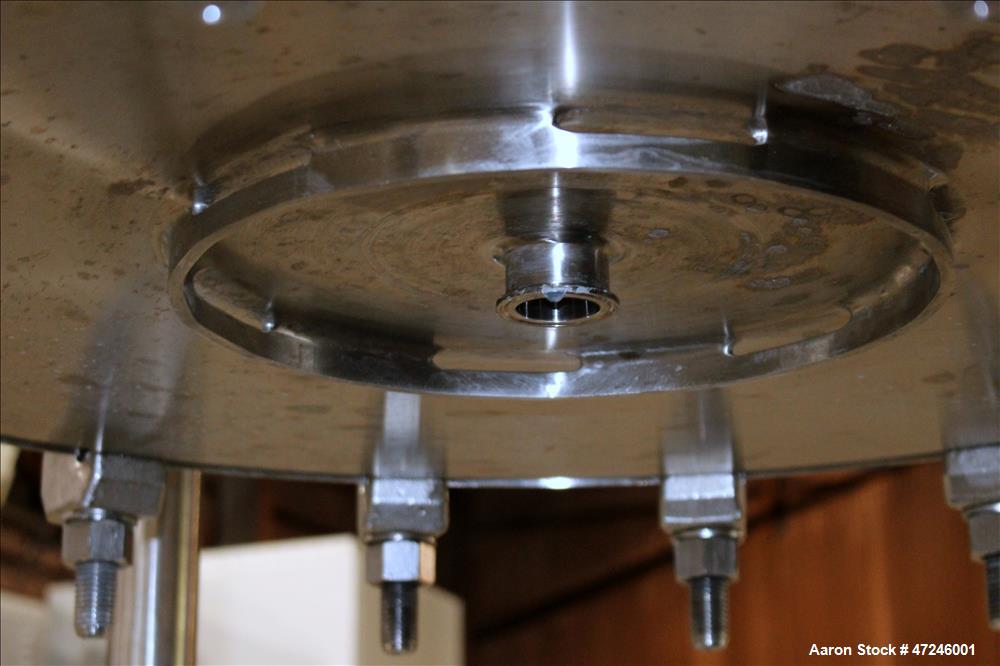

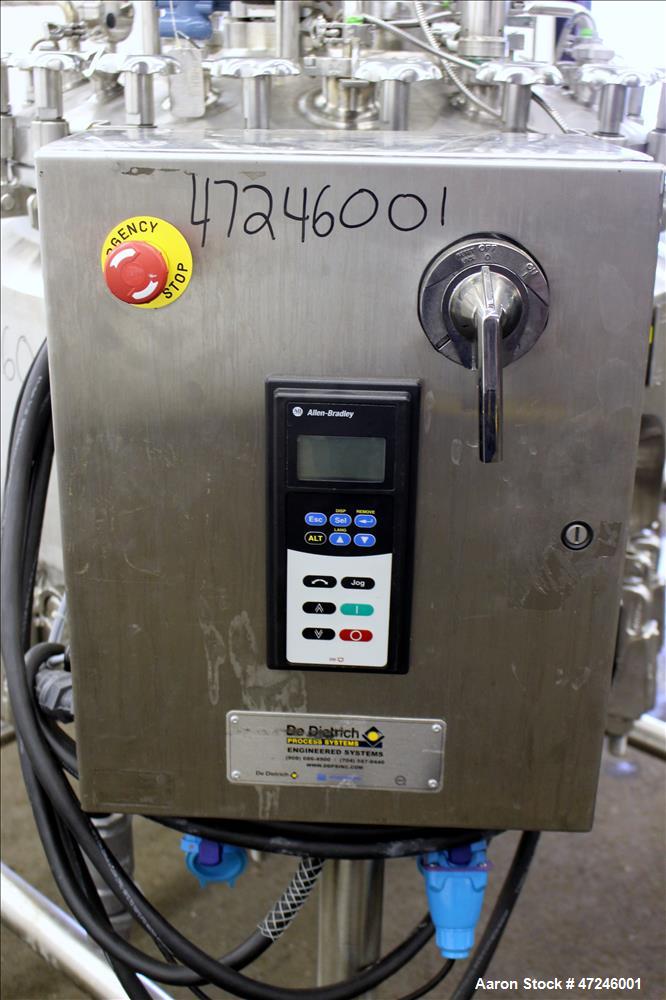

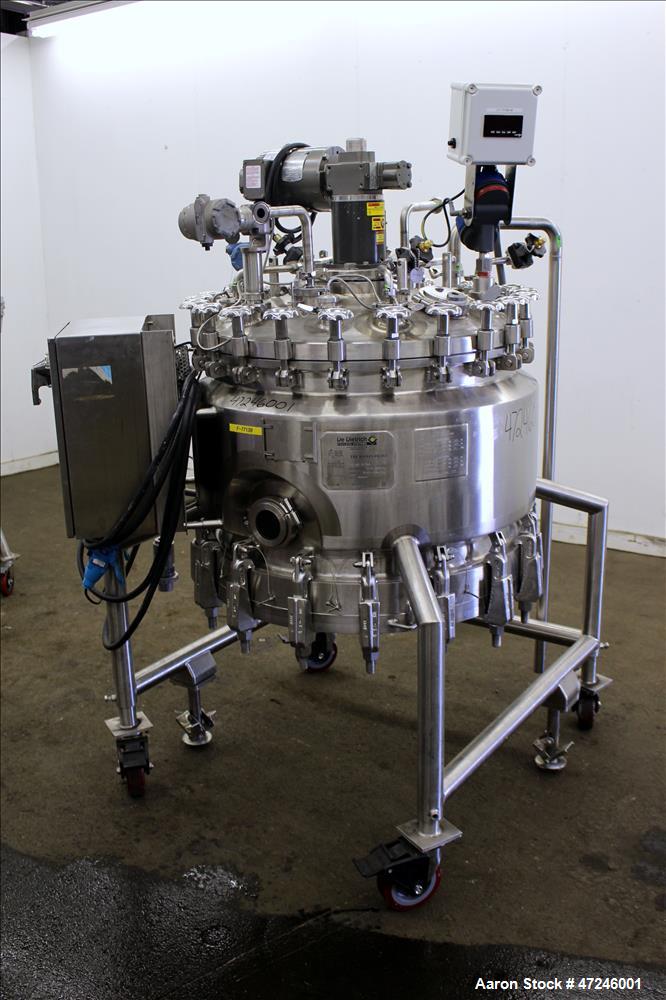

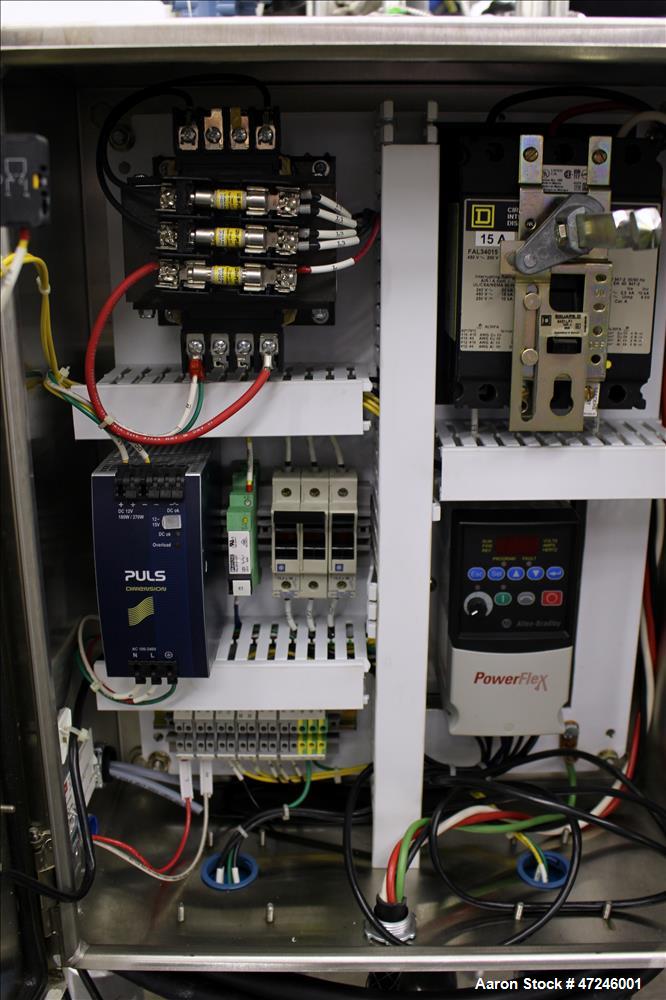

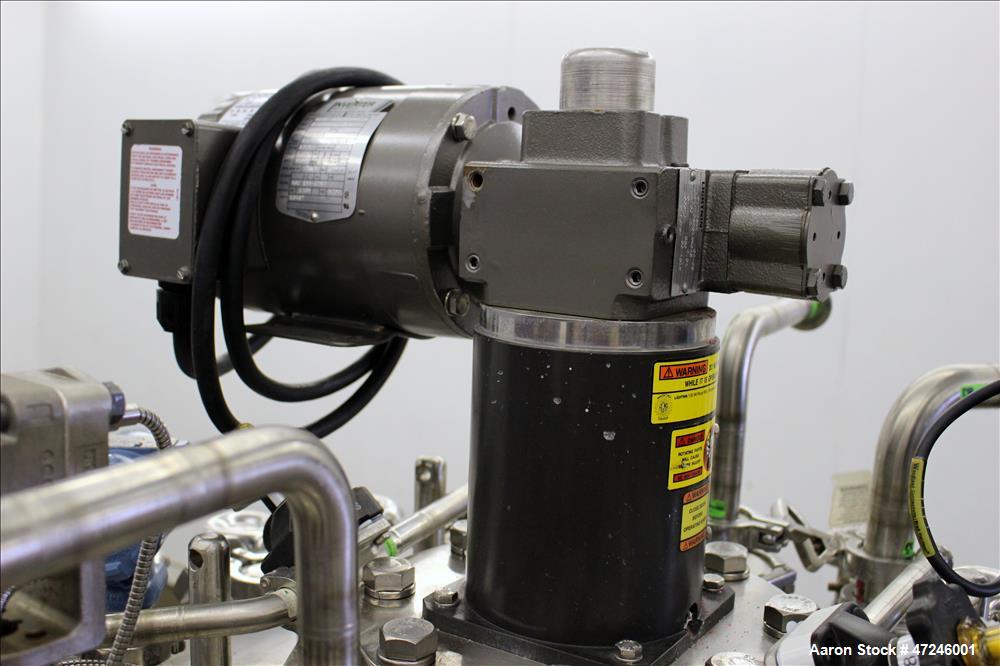

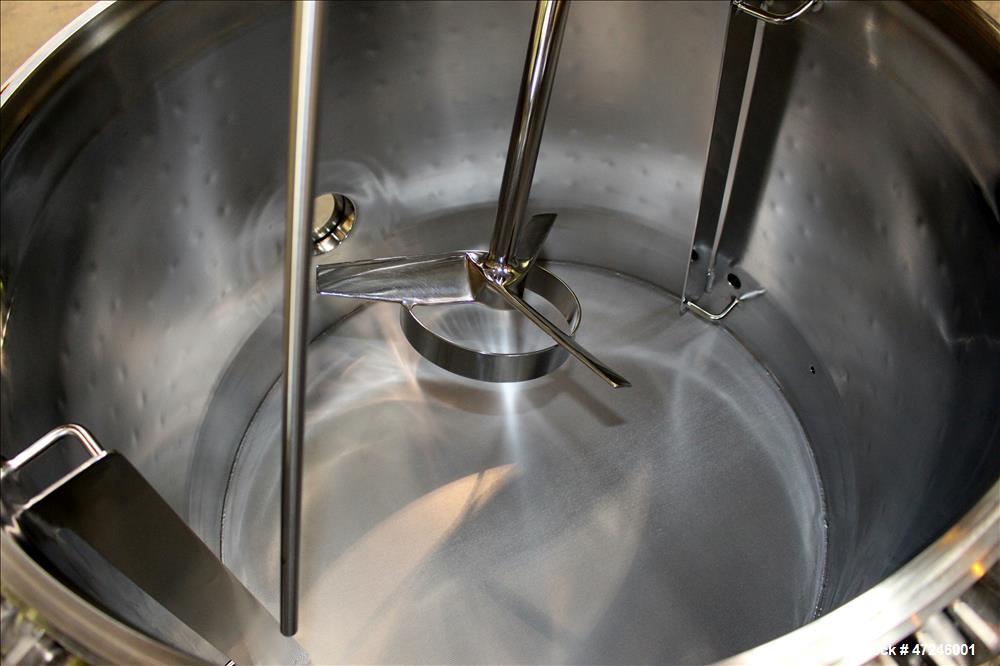

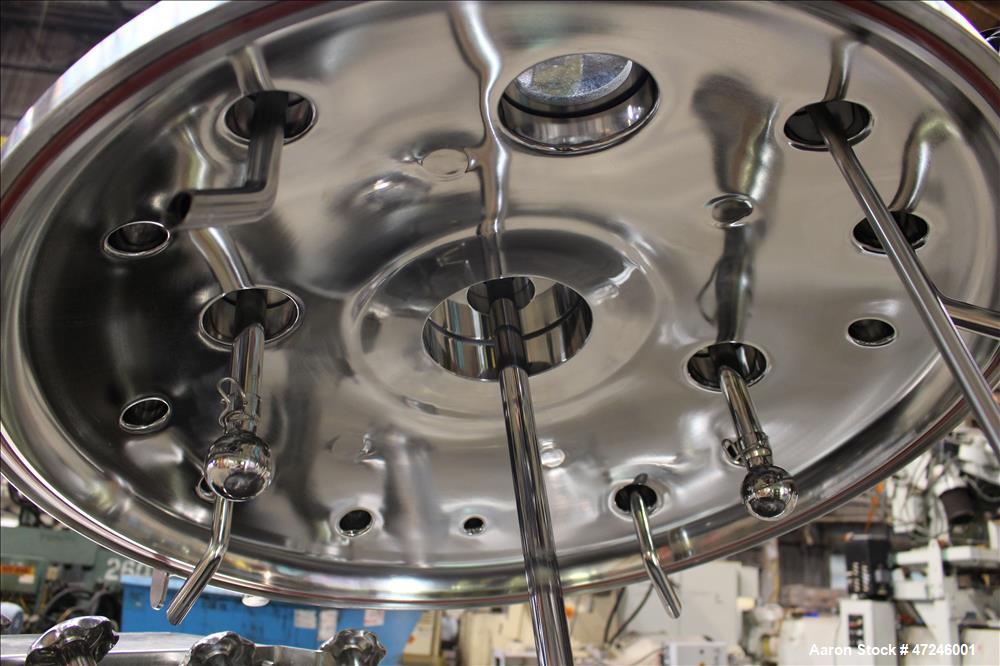

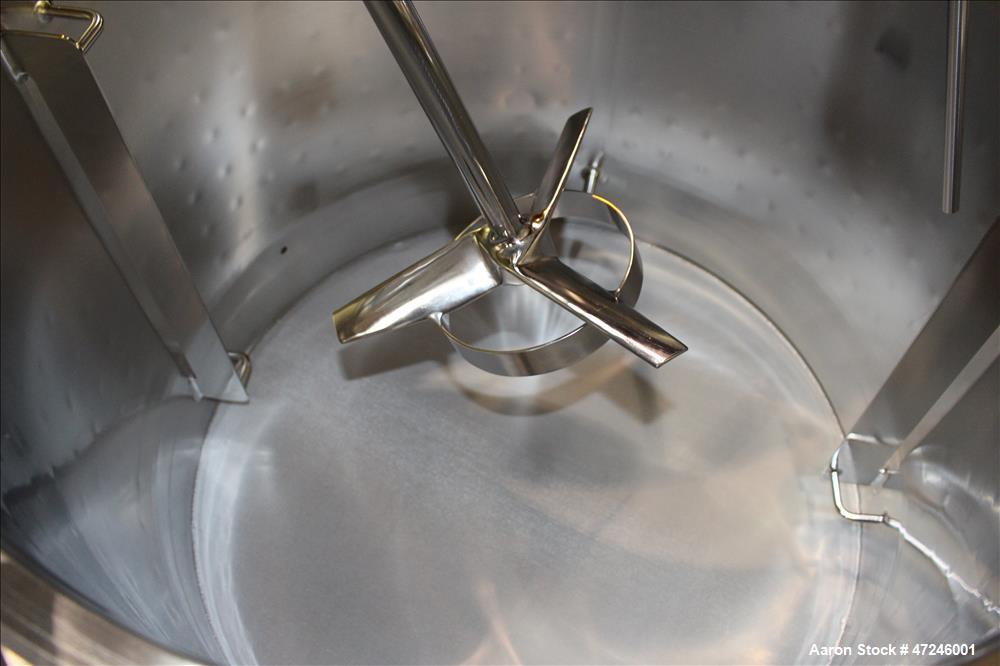

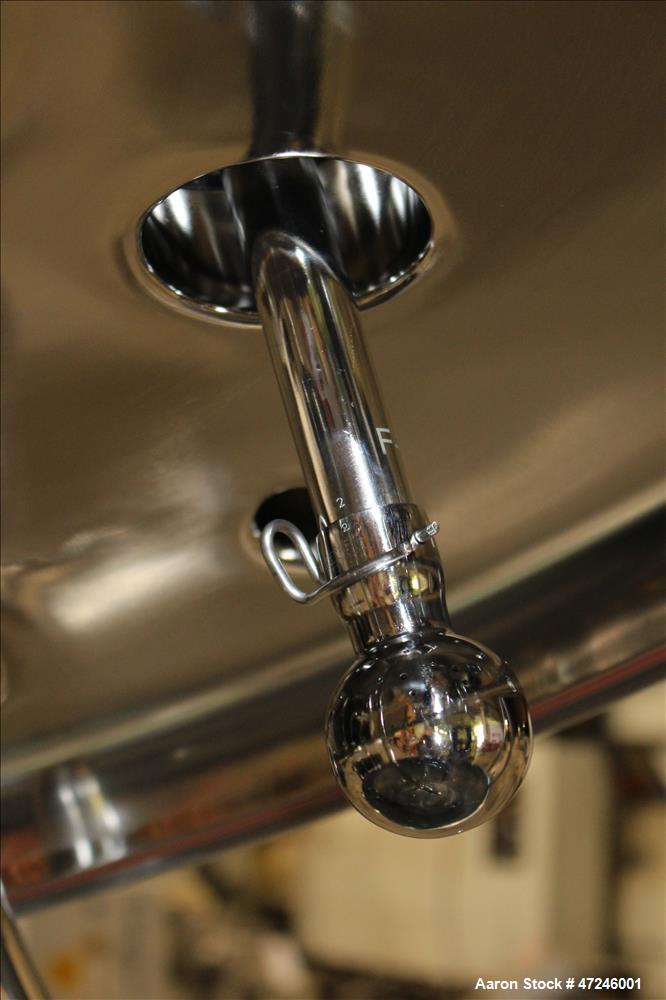

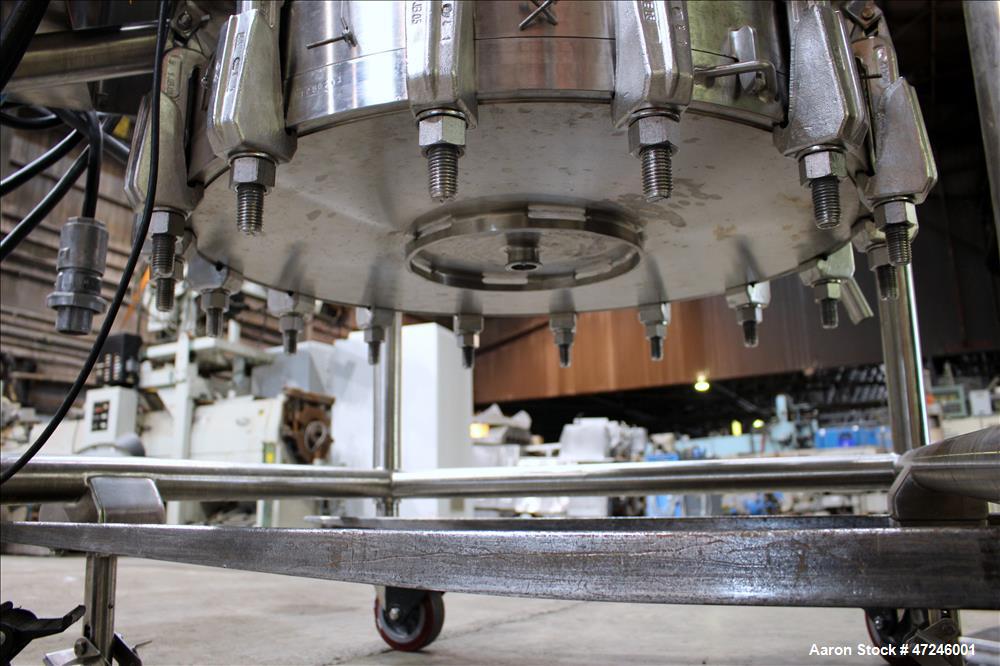

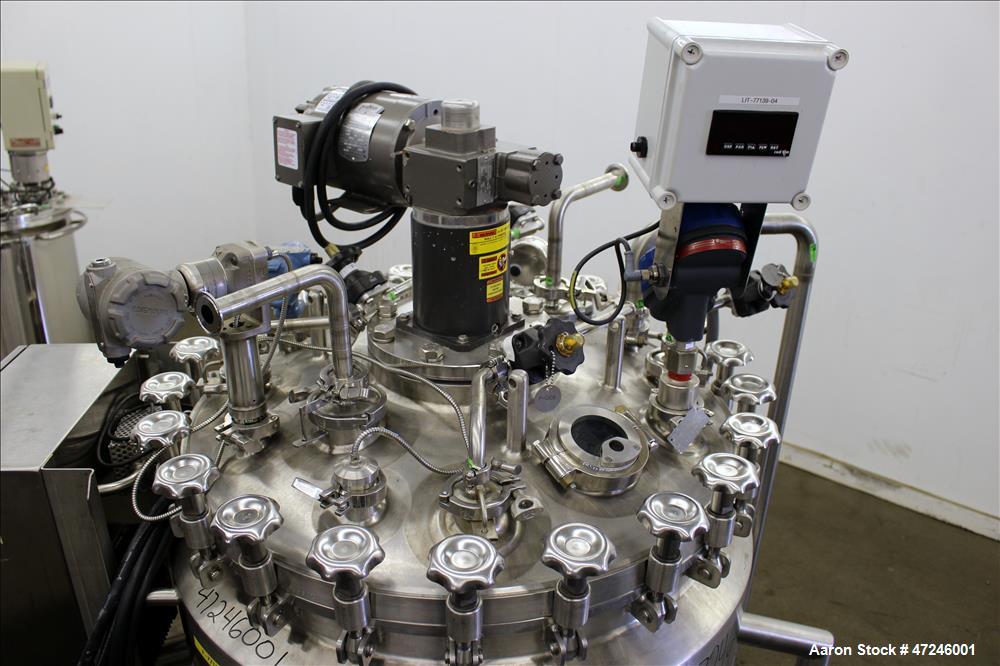

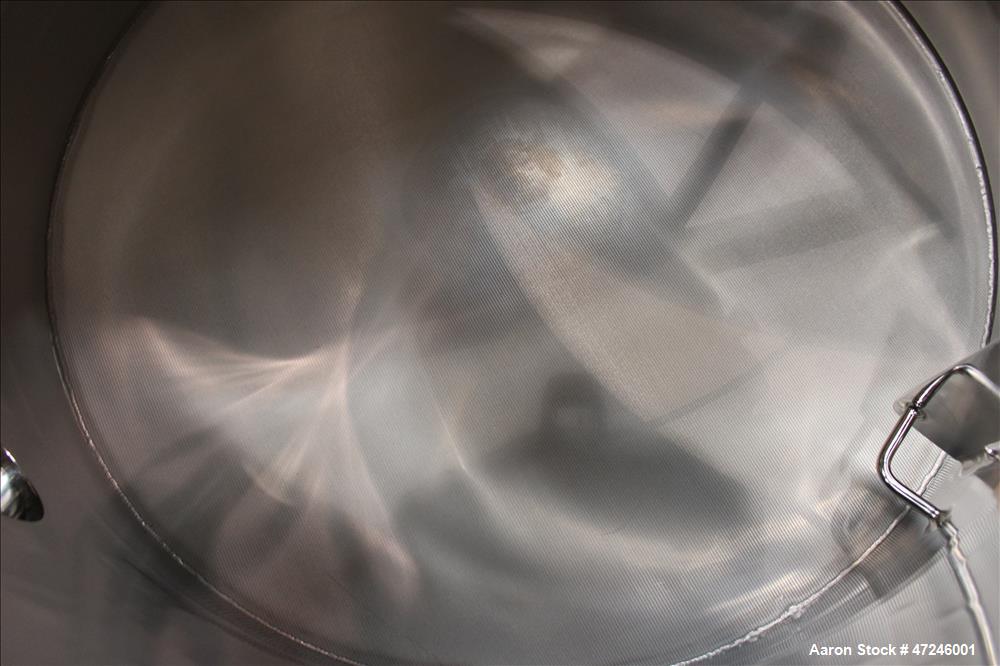

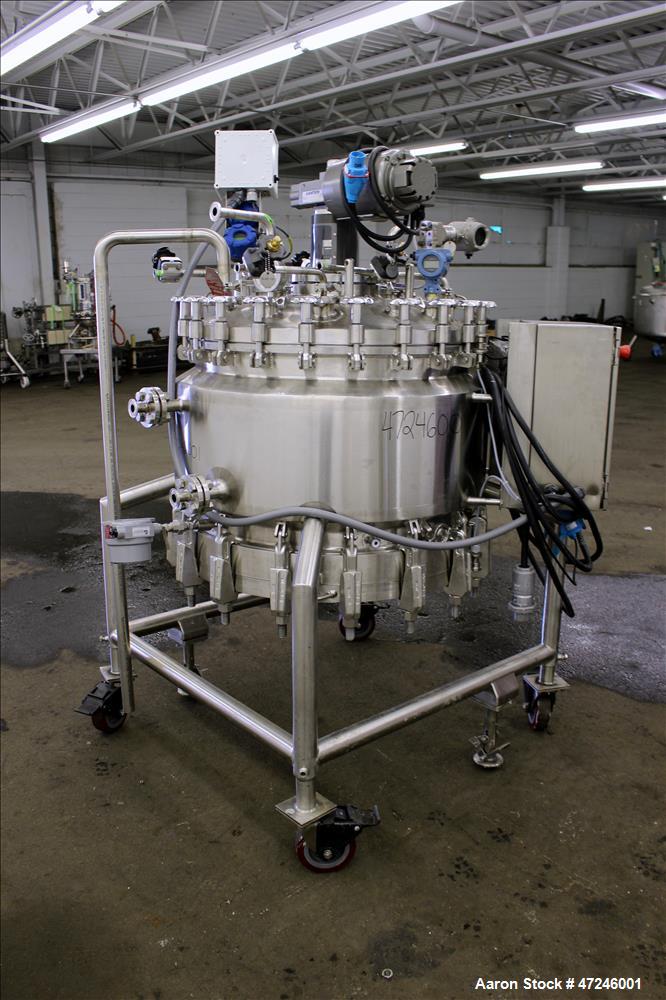

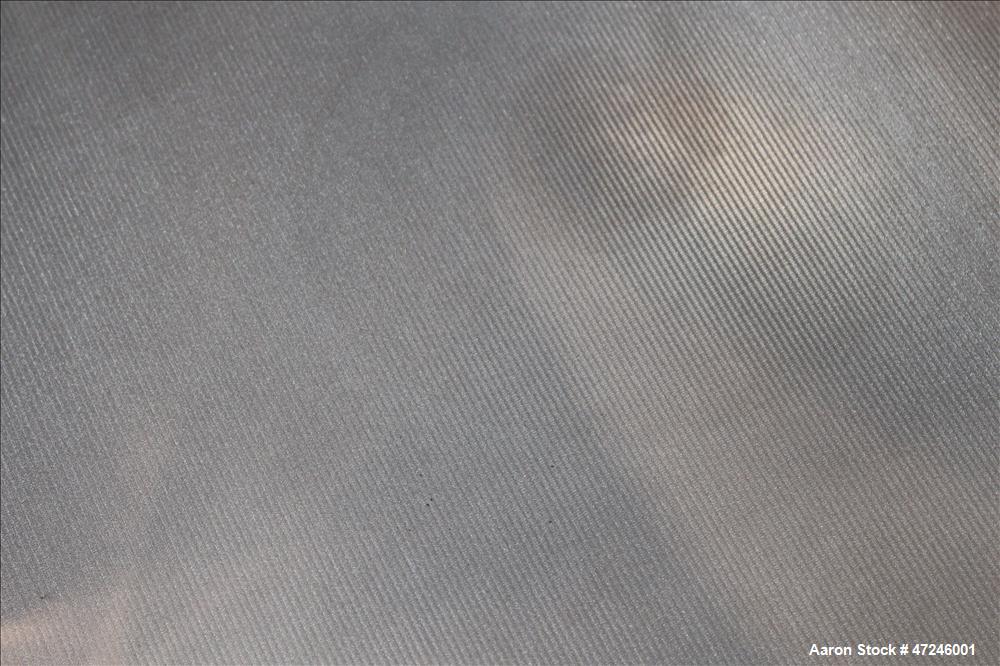

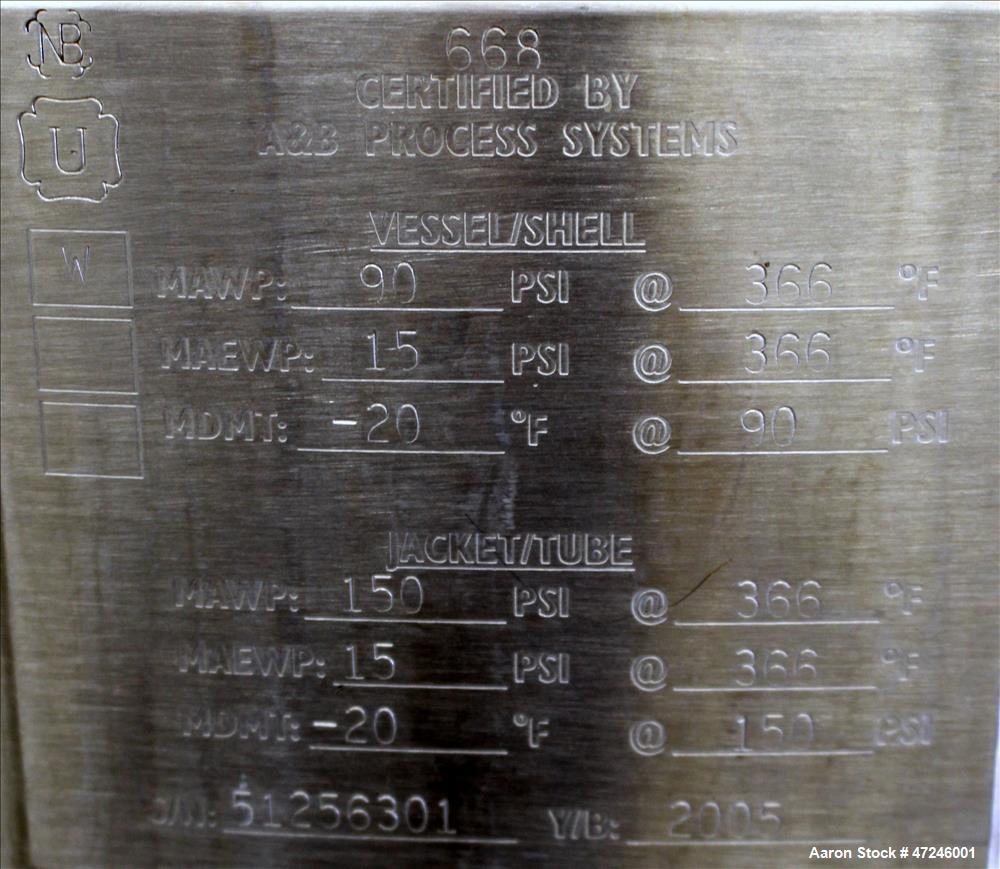

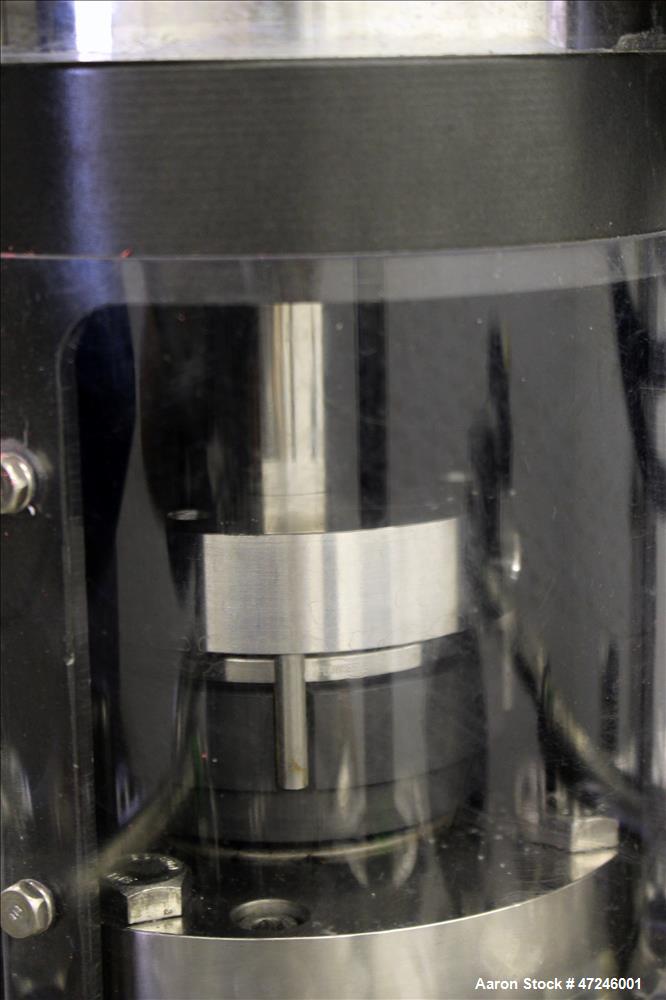

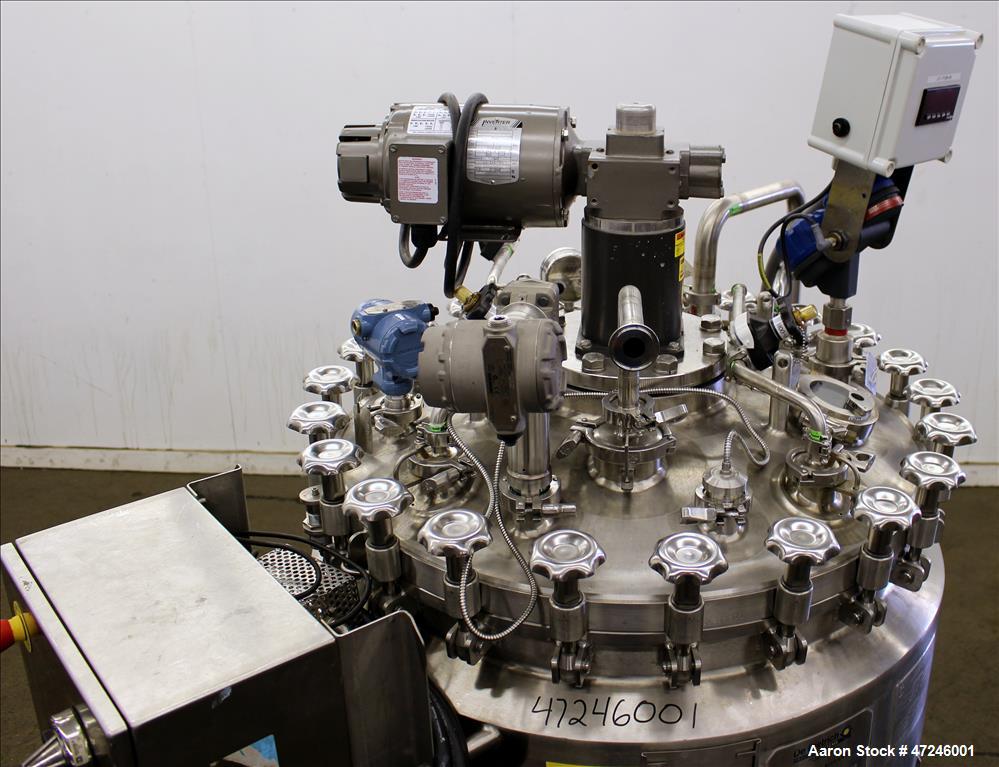

Used De Dietrich Rosenmund Nutsche Filter, Model 32-294L, " The ROMAN Filter" Approximate 0.68 square meters (7.4 square foot) filtration area, 294 Liter (77.6 Gallon), 316L Stainless Steel, Vertical. Approximate 32" diameter x 24" straight side. Removable clamp on dished top head, removable clamp on flat bottom. A&B process certified vessel internal rated 90 psi at -20 to 366 degrees F. 304 Stainless steel dimple jacketed rated 150 psi at -20 to 366 degrees F. Top entering Lightnin agitator Model SR5S50, Serial# R0538333301, 3-blade turbine on 1" diameter x approximate 24" long shaft. Driven by 1/2 hp, 3/60/230/460 volt, 1725 rpm gear motor, ratio 5 to 1. (2) Sidewall baffles. Openings top: (1) 6" for agitator, (1) 4" sight glass, (2) 3" for spray balls, (5) 2", (5) 1-1/2", (1) 1", side: (1) 4" with sight glass, (1) 1-1/2". 1-1/2" Center bottom outlet. Includes control panel with Allen Bradley Powerflex 4. Mounted on (4) stainless steel legs with casters. De Dietrich Serial# 32-294L-05-40094. Vessel Serial# 51256301, National Board # 668, Built 2005.
