Used Nutsche Filters

Stock# 49892003

Used- Sparkler Filter Inc. Plate Filter, Model 14" Nutsche, 316 Stainless Steel. Approximate square feet, cubic feet cake capacity, gallon per hour capacity. 304 Stainless steel jacket rated 14.5 Psi at -20 to 350 degrees F. Internal rated 60 Psi at -20 to 350 degrees F. Chamber approximate 16" diameter x 6" deep. Bolt on dish top cover. Mounted on 3 legs, base with casters. National Board # 2425, Serial # 22740. Built 1990.

Stock# 43921057

Used- GL Filtration Nutsche Filter Dryer, 0.005 Square Meter, Model FD-80. Hastelloy C22 product contact surfaces, 80mm diameter filter plate. Internal rated 6 bar and Full Vacuum at -40/+150 degrees C, jacket rated 6 bar and Full Vacuum at -40/+150 degrees C. Cored agitator rated 6 bar and Full Vacuum at -40/+150 degrees C. 0.12 kw, 460 volt agitator drive, 1 liter slurry capacity, 0.5 liter cake capacity, with PLC controls on stand with Vacuband vacuum pump, model MZ2C Vario, rated 2.5 cubic meter/hour at 9 bar, serial# C0251, new 2008.

Stock# 44847016

Used- DeDietrich Glass Lined Pressure Nutsche Filter, approximately 0.12 square meters, 3009 blue glass. Approximately 16" x 17" deep top section, bottom section approximately 6" straight side, dished bottom. Internal rated 100 psi and full vacuum at -20 to 500 degrees F. Carbon steel jacket rated 90 psi at -20 to 500 degrees F. Sections 1 and 2 clamp together, removable top head with davit arm. Serial #36173, National Board #6946, built 1998.

Stock# 87074

Used- Jaygo Agitated Pressure Filter Dryer, Model APF-100. 316L Stainless steel product contact areas. Approximate (.08) square meter, nominal capacity 100 liters. Vessel 21.15" diameter x 19" deep, internal rated 60 psi at 375 degree F, 304L stainless steel jacket rated 75 psi at 375 degree F. Dished top, dished jacketed bolt-on bottom with 1" outlet, filter screen and 3 legs with casters. Internal wash ring, approximate 20" diameter double bottom agitator blade, driven by a 3 hp, 3/60/230/460 volt, 1755 rpm XP varispeed motor thru a SEW reducer, ratio 50.55:1, approximately 10-60 rpm, 12" upstroke. Openings: top 1/2", 3/4", 1", (2) 4" sight glass, 8" hand hole; side bottom outlet with door. Unit includes 1.5 hp hydraulic power pack, XP control boxes. Unitized on a common frame.

Stock# 11059175

Used- Rosenmund RoLab 0.1 Sq.M. Nutsche Filter Dryer, Agitated. Material is ALLOY 22. Internal and jacket rated 90/FV @ 302 Deg.F (-10 to +150 Deg.C). S/N RFGD 0.1-07-40109. NB # 296. (64.5 Liter). Includes Howorth Glove box Isolator with Minipurge control system. Sanitary Pharmaceutical design. approx. 18" Dia. filter vessel. Unit is rated for Hazardous Locations (class 1 division 2). Unit ONLY Test Run with High Purity Water and then never used due to plant closure.

Stock# 13140004

Used- Rosenmund 0.20 Square Meter Filter. Constructed of T316L stainless steel on all contact parts. 20" diameter x 36" straight side. Shell rated 90 psi at 350 degree F. Jacket T304 stainless steel rated 100 psi at 350 degree F. Shell surface area 13.65 square feet. Shell volume 40.85 gallons. Equipped with hydraulic drive 5 hp power pack to raise and lower agitator assembly. Agitator output speed 5-25 rpm.

Stock# 40037652

Used- Rosenmund Filter Dryer, 316L product contact areas. Approximately .2 square meter. Approximately 20" diameter x 20" straight side, dished missing bottom filter plate. Hydraulic power pack, 5 hp. no outlet, it is a scoop out discharge. Mounted on a frame. Serial #RLP0.2-583-90, built 1990.

Stock# 40374023

Used-APV Pasilac Thermovac Vacuum Reactor/Filter/Dryer. 316L Stainless steel construction. 0.25 m2 filter area. 23.6" x 54.7" (600 x 1390 mm) diameter. Total vessel volume 79.2 gallons (300 liters). Maximum filtrate volume 39 gallons (150 liters). Heating jacket for thermal oil ranging from -4 to 304 deg F (-20 to 150 deg C). Vessel and jacket rated for 87 psi (6 bar). Cone top and fully detachable dished base. Mounted on steel base unit, 10' x 4.9' (3070 x 1500 mm). Approximate height 11.4' (3500 mm).

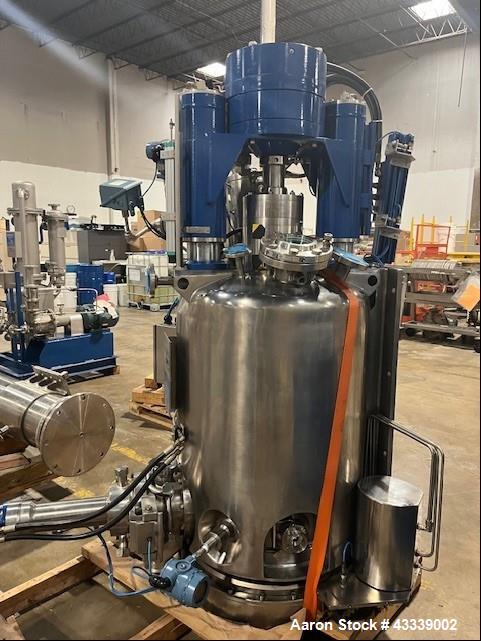

Stock# 43339002

Unused- Rosenmund Guedu RGFD Filter Dryer, 316L Stainless Steel. Approximately 0.25 square meter. Side discharge, two arm S blade Type Heated Agitator,Mechanical Seal and Bellows, Column Mounted, Fabricated in 316L Stainless Steel. Includes PLC Controls, APOVAC 156 Vacuum / Compressor & APOVAC Gas Recircluation System

Stock# 43473333

Used- Rosenmund Filter Dryer, 0.25 Square Meter, Hastelloy C22. Internal rated 50 psi & Full Vacuum at 350 degrees F. 304 Stainless steel jacket rated 90 psi & Full Vacuum at 350 degrees F. Manual discharge, hydraulically operated agitated drive, 3 wing agitator cored with rotary union, mechanical seal with bellows, 7.5hp, 460 volt XP pump, Rosenmund serial# RSD 0.25-788-94, vessel certified by Mueller, serial# 141241, National Board# 23345, built 1994.

Stock# 75949

Used- Seitz-Wega Lab Size Nutsche Filter Dryer, Type EFT 30-40. Constructed of 316Ti (1.4571) Stainless Steel on product contact parts. 0.4 square meter filtration area. Total capacity is 10 gallon (40 liter). Working capacity is 7.9 gallon (30 liter). Hanging type. 12" diameter x 22" straight side (310mm x 365mm) jacketed body, rated for 45 psi (3 bar) and full vacuum (-1) at 284 deg F (140 deg C). Inside rated for 45 psi (3 atu) at 284 degree F (140 degree F) and full vacuum (-1). Complete with agitator and drive. Includes 1 control panel with hydraulic unit. Mounted on a platform. Overall dimensions: 3'9" x 5'2" x 8'1" high (1200mm x 1600mm x 1500mm high).

Stock# 45174001

Used- Precision Stainless Gel Filter Housing, 550 Liter, 316L Stainless Steel. Maximum capacity 3000 pounds. Approximate 63" diameter x 42" overall vessel height, dished removable top, dished bottom. Internal rated 45 psi at -20 to 300 degrees F. (2) Bed plates. (4) 1" Tri-clamp inlets, (4) bottom 1" Tri-clamp outlets. Serial# 5614-2, National Board# 4004, built 1992.

Stock# 40898016

Used- Cogeim 4 Square Meter Agitated Nutsche Filter Dryer, Model FPP 400 FF/D, 316L stainless steel construction, 6600 liter capacity, rated 3.45 bar (50 psi) and full vacuum at -29/+180 C internal, 1/2 pipe jacket rated 6.2 bar (90 psi) at -29/+180 C, side discharge with plug valve, packing gland, approximately 50 hp XP agitator drive, hydraulic agitator lift with pump, Syltherm heating system with (2) ITT heat exchangers and 5 hp pump with controls, serial #644, National Board #34. New 1991.

Stock# 42108001

Used- Rosenmund Paddle Discharge Filter Dryer, 6 square meter, 316L stainless steel. Approximately 110" diameter x 51" straight side, dish bolt on top, flat bottom. Internal rated for FV/50 psi at 20 to 370 degree F, 304L stainless steel 1/2 pipe coil jacket rated 150 psi at 370 degree F. Telescoping rake style agitator, 25 hp, 3/60/460 volt, 1770 rpm motor, center discharge. Serial #RPD6-589-91, built 1991. Certified by Gaston County, Serial #F80753-890-1, National Board #22236. Mounts on side lugs.

Stock# 40024010

Used- Rosenmund Paddle Discharge Dryer, 6 square meter, Hastelloy C276. Approximately 110" diameter x 51" straight side, dish bolt on top, flat bottom. Internal rated for 50/fv at 370 degrees F, 316L stainless steel 1/2 pipe coil jacket rated 150 psi at 370 degrees F. Rake style agitator, approximately 25 hp motor, center discharge. Serial #RPD6-537-90. Certified by Gaston County, Serial #F80588-589-1, National Board #20884. Built 1990.
