Stock #
43339002

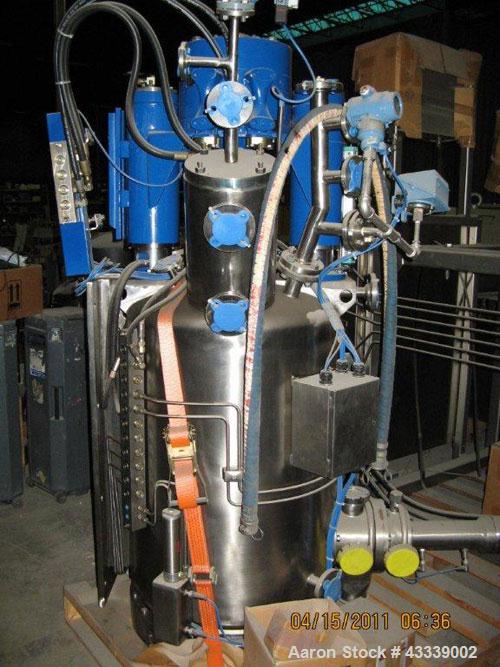

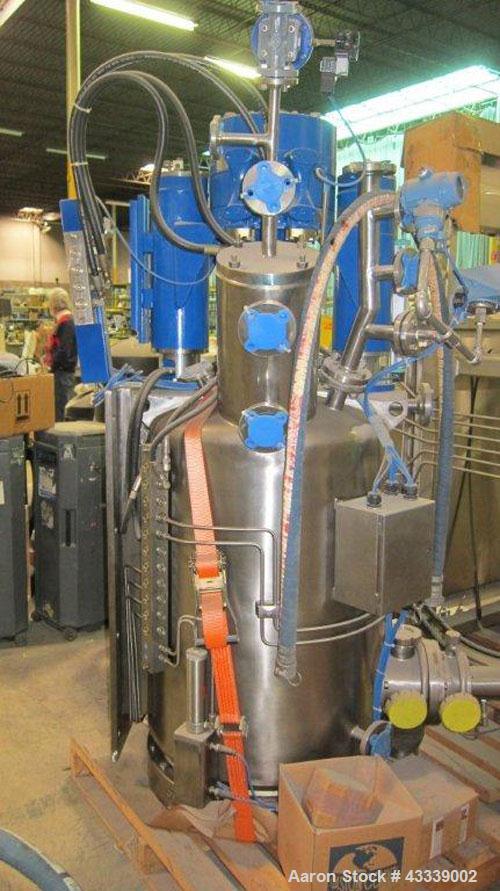

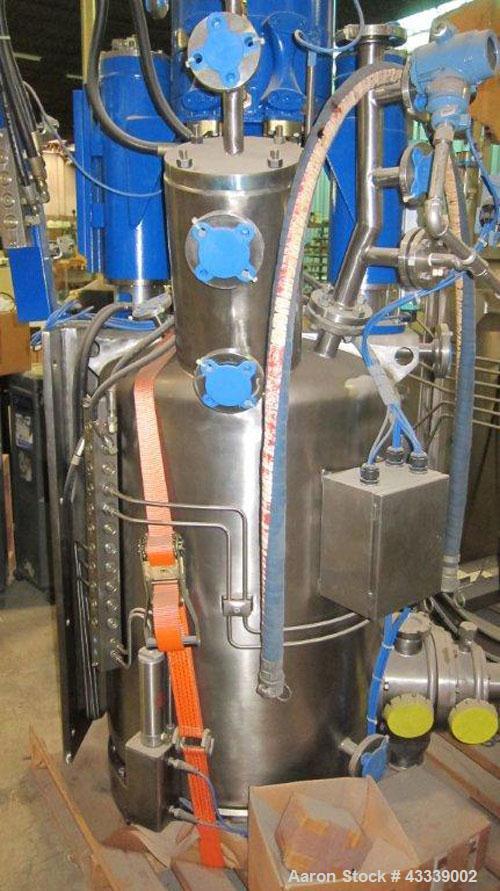

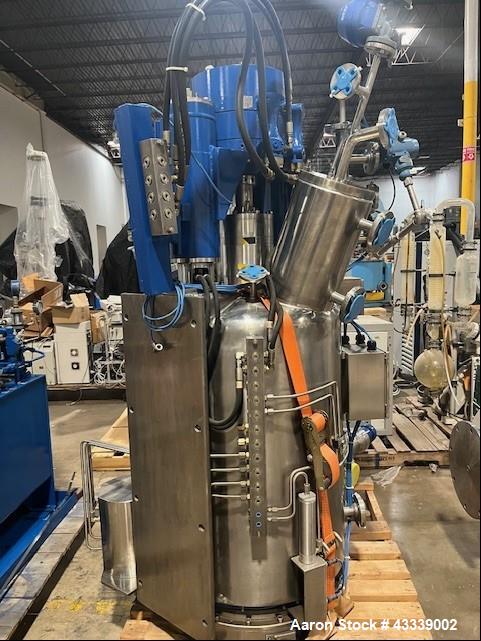

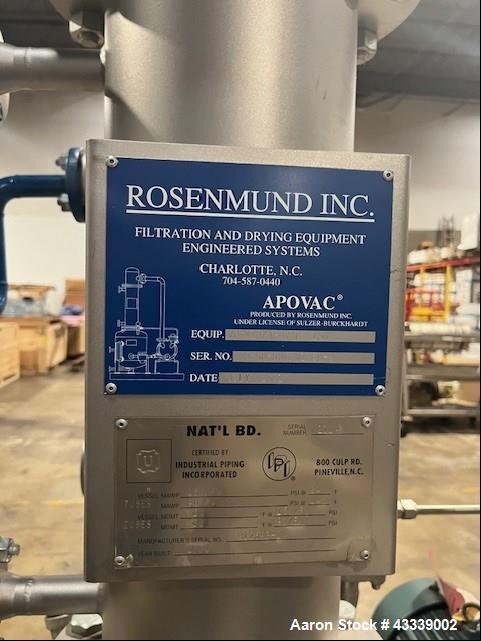

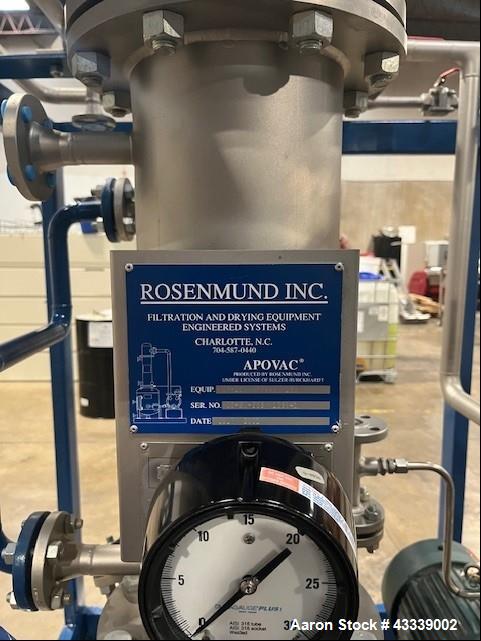

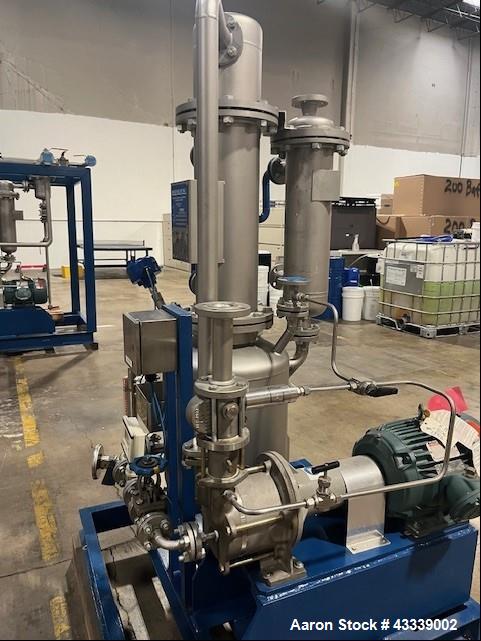

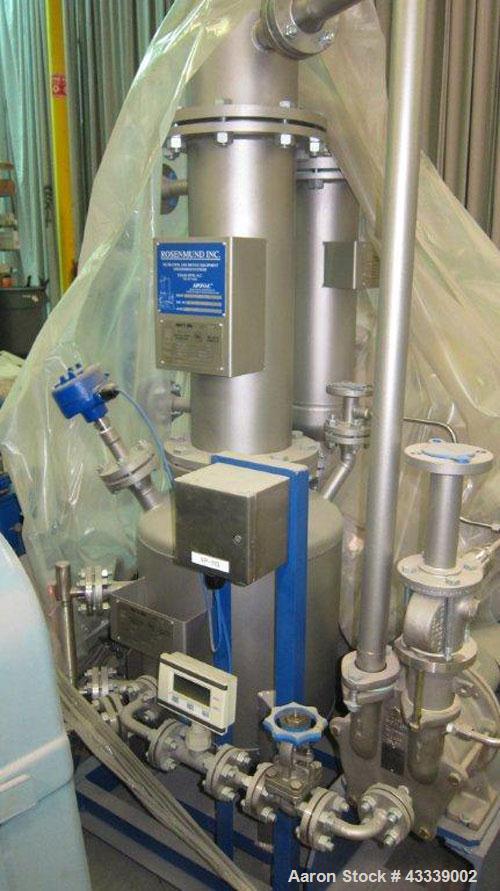

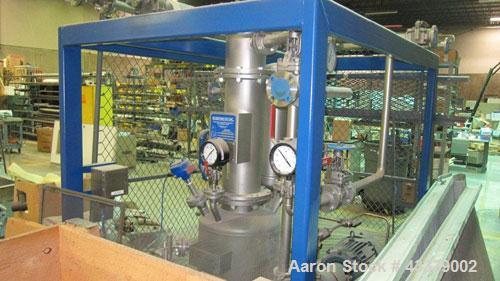

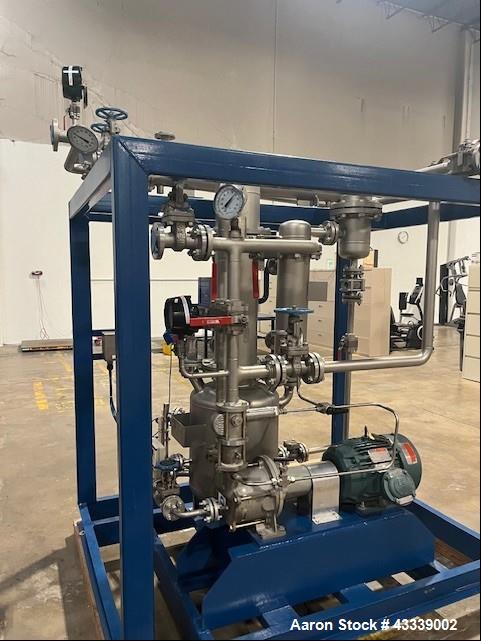

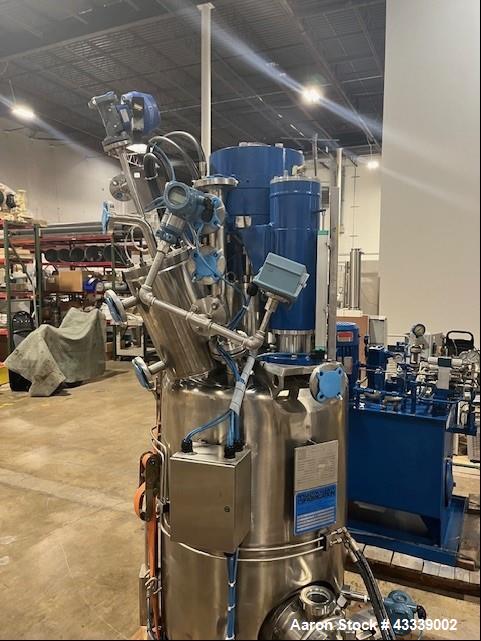

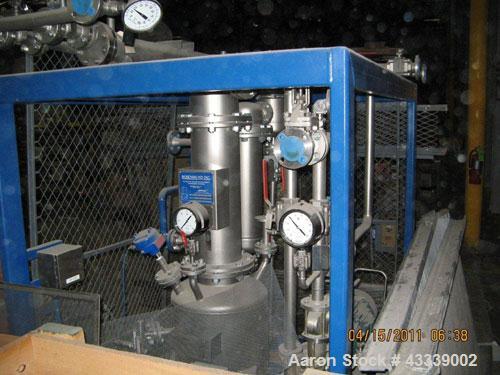

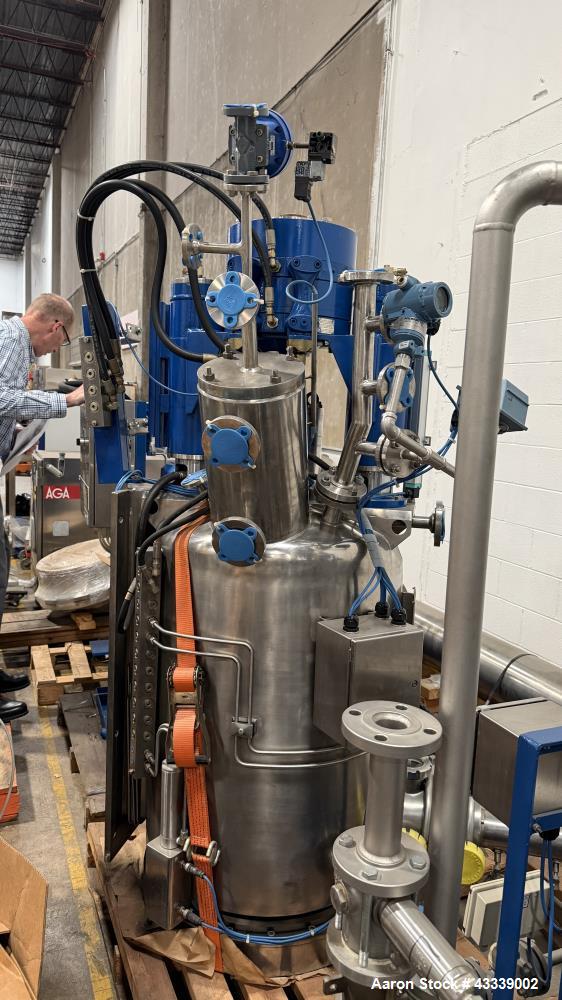

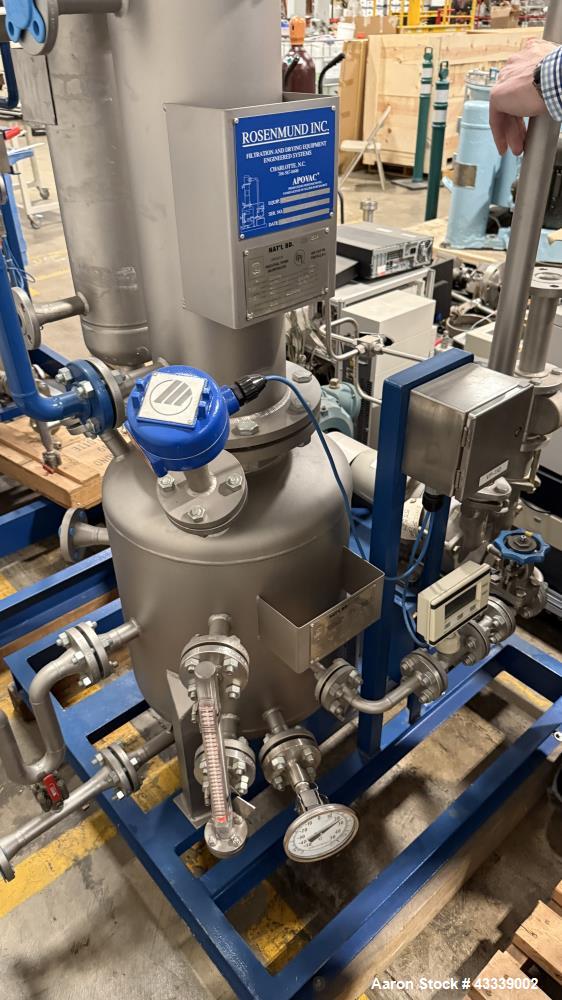

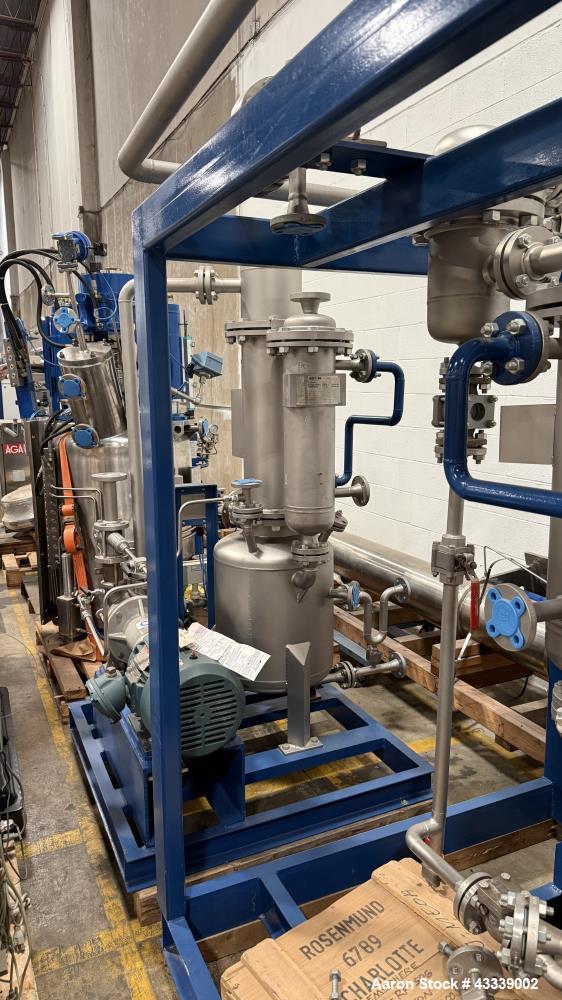

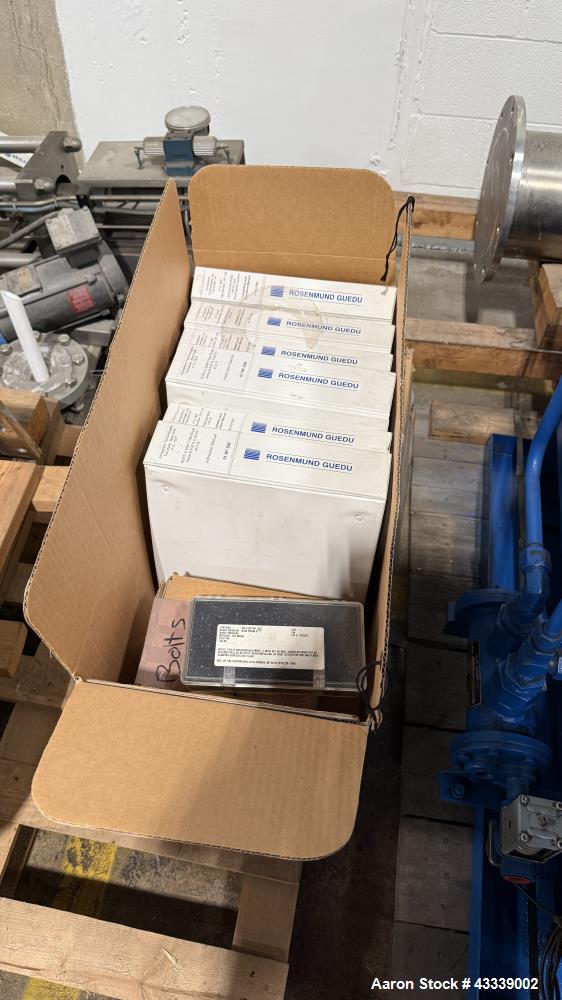

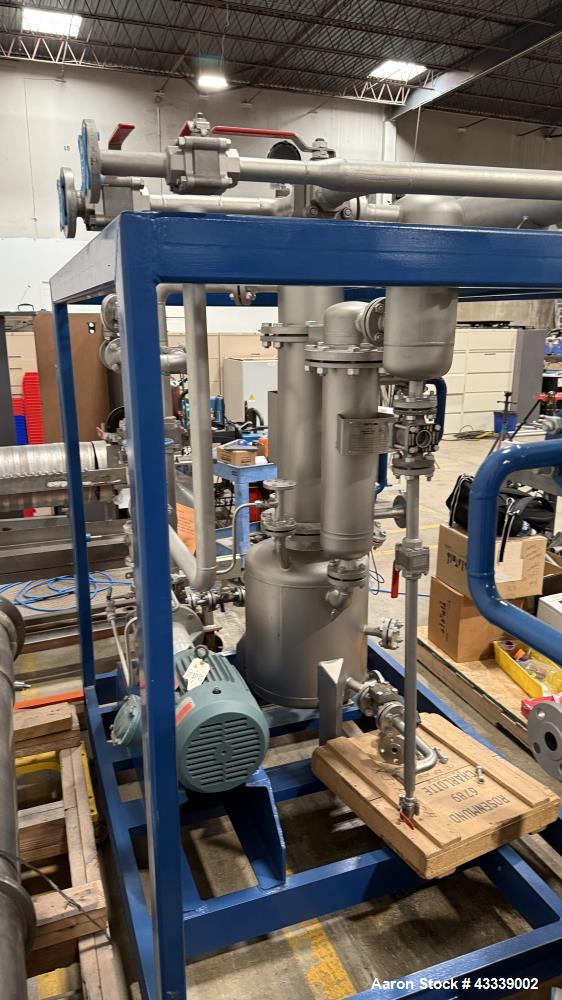

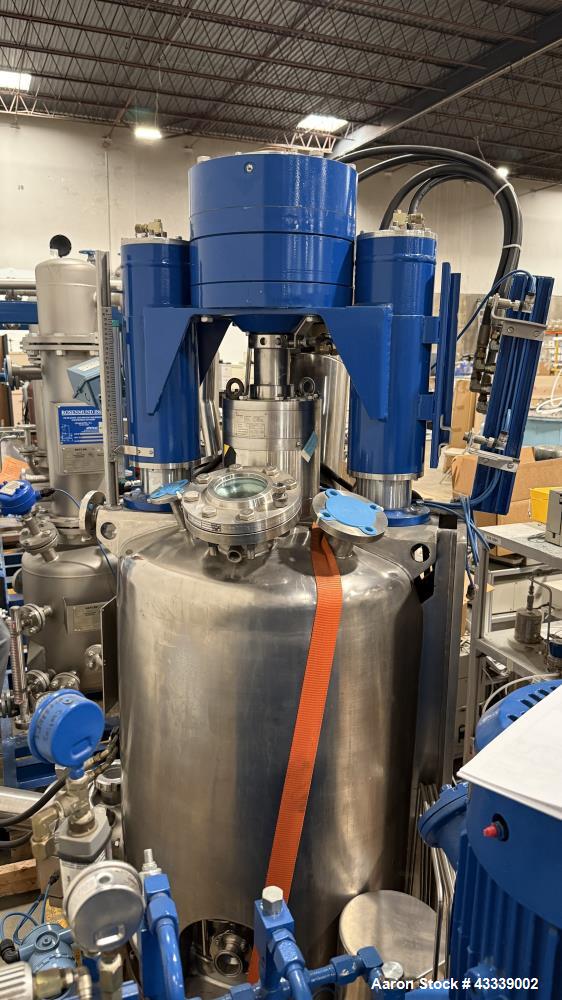

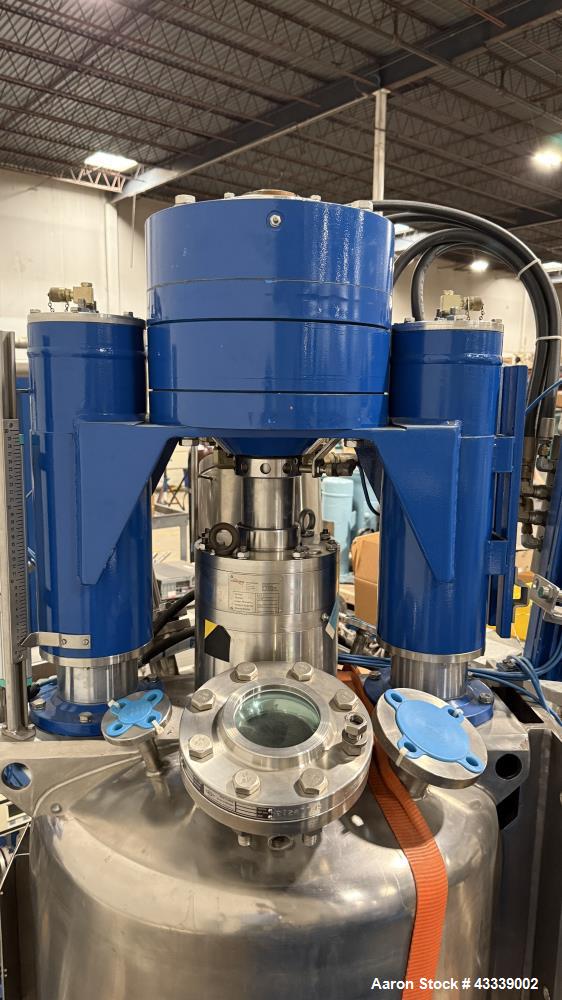

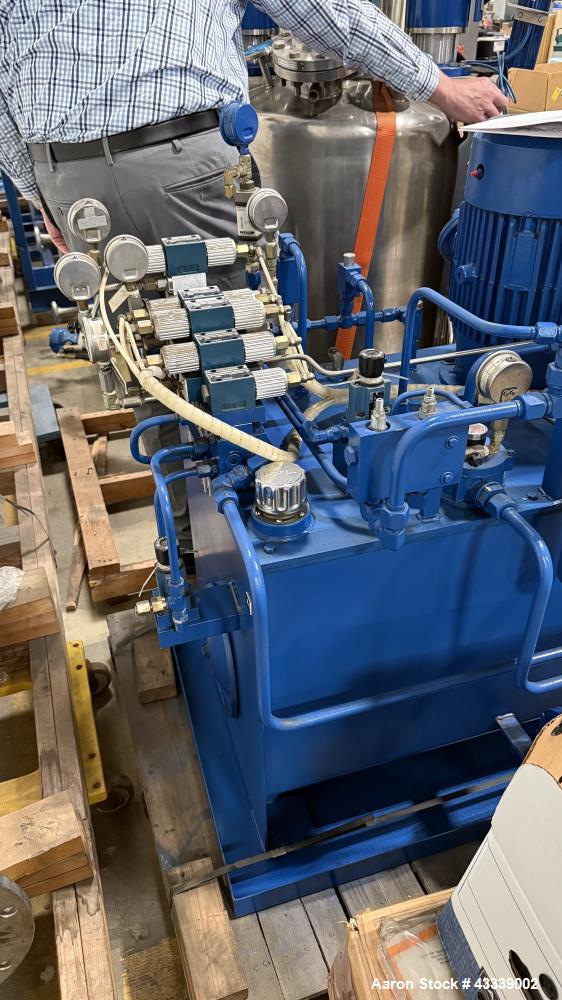

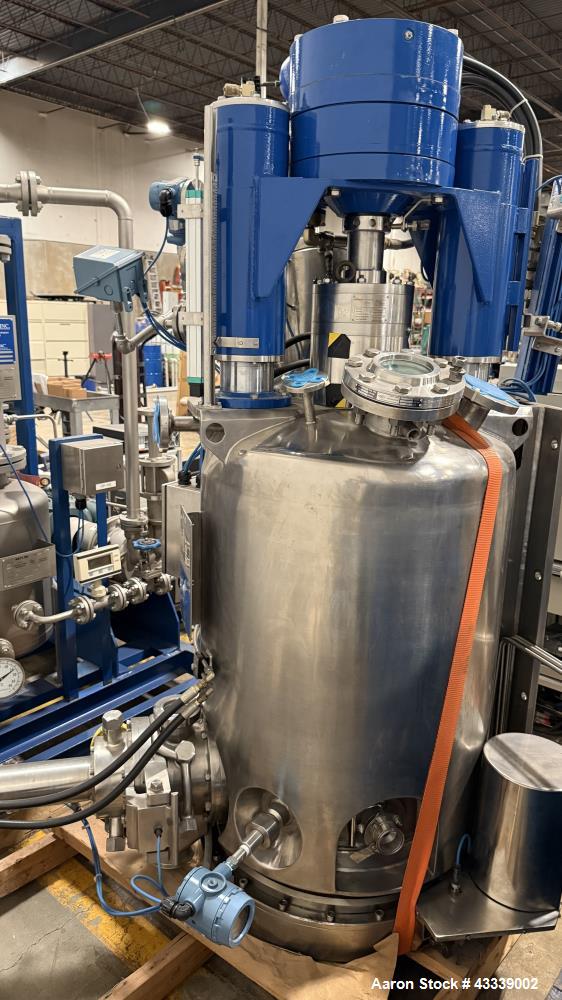

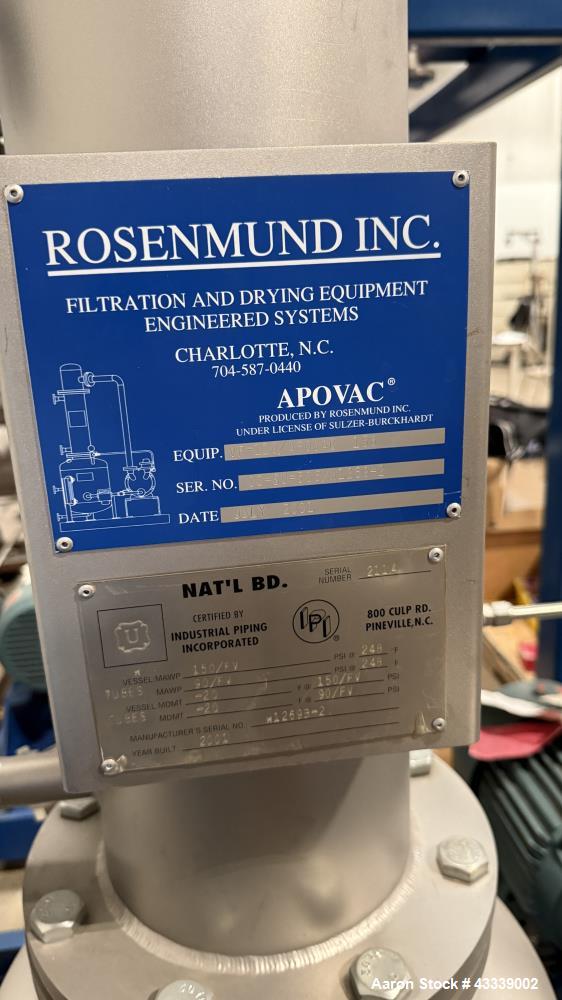

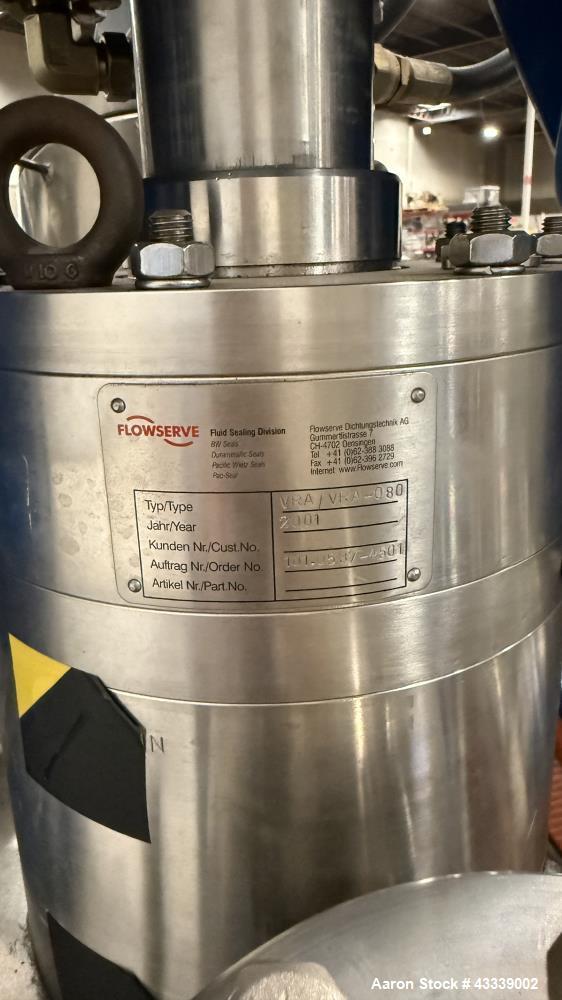

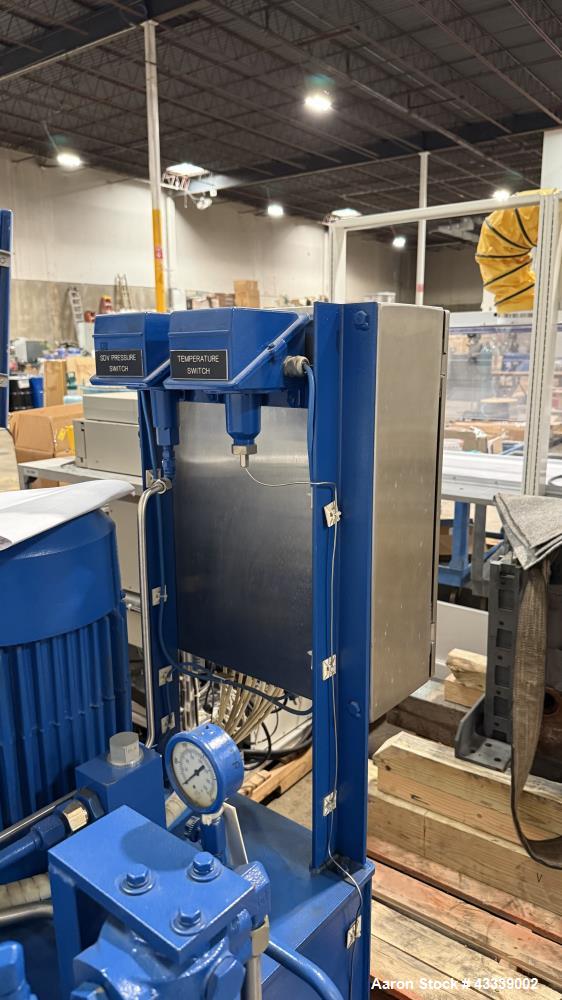

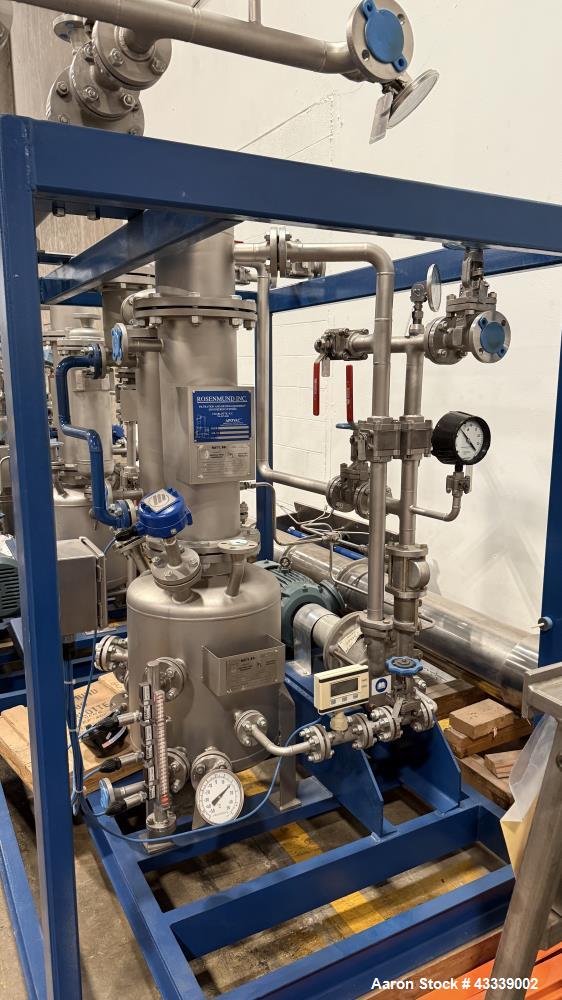

Unused- Rosenmund Guedu RGFD Filter Dryer fabricated of 316L stainless steel with approximately 0.25 m2 filtration area. This premium OEM agitated filter dryer was never installed or placed into service. Features include a side solids discharge and column-mounted, two-arm S-blade heated agitator with mechanical seal and bellows for filtration, cake washing, mixing, and vacuum drying in a single enclosed vessel. Includes an APOVAC explosion-proof gas recirculation system and an additional APOVAC unit originally supplied for a tray dryer. Mechanical components are present; however, controls were never built, and the purchaser will need to design and implement a control system. Engineering drawings are available. Ideal for pilot plant, process development, scale-up, and small-batch production of pharmaceutical APIs, fine chemicals, specialty chemicals, biotechnology products, and other high-value materials requiring contained filtration and drying. Built in 2001.
Used Equipment Facts About This Machine
Manufacturer Information:
- Manufacturer: Rosenmund Guedu
- Model: RGFD
- Condition: Unused
Description:
The Rosenmund Guedu RGFD Filter Dryer is a high-efficiency filtration and drying system designed for chemical, pharmaceutical, and industrial applications requiring precise solid-liquid separation and drying. Constructed from 316L stainless steel, this filter dryer ensures high corrosion resistance and durability.

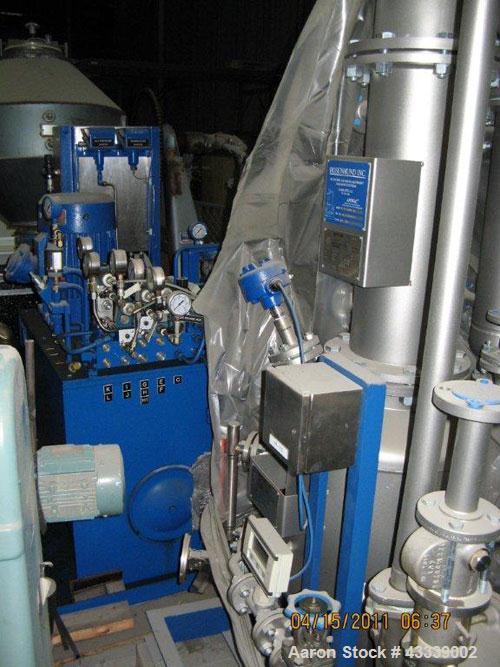

This unit features a 0.25 square meter filtration area, a side discharge, and a two-arm S-blade type heated agitator for improved product uniformity. It is equipped with a mechanical seal and bellows, and is column mounted for stability. Additionally, the system includes PLC controls, an APOVAC 156 vacuum/compressor, and an APOVAC gas recirculation system for optimized performance and energy efficiency.
Specifications:
- Model: RGFD
- Material: 316L Stainless Steel
- Filtration Area: Approx. 0.25 m²

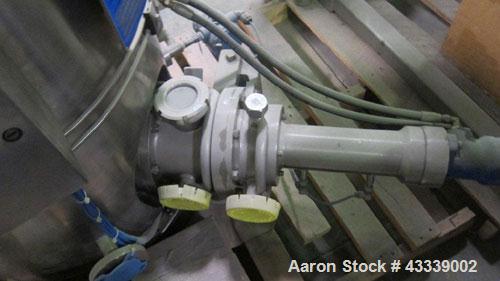

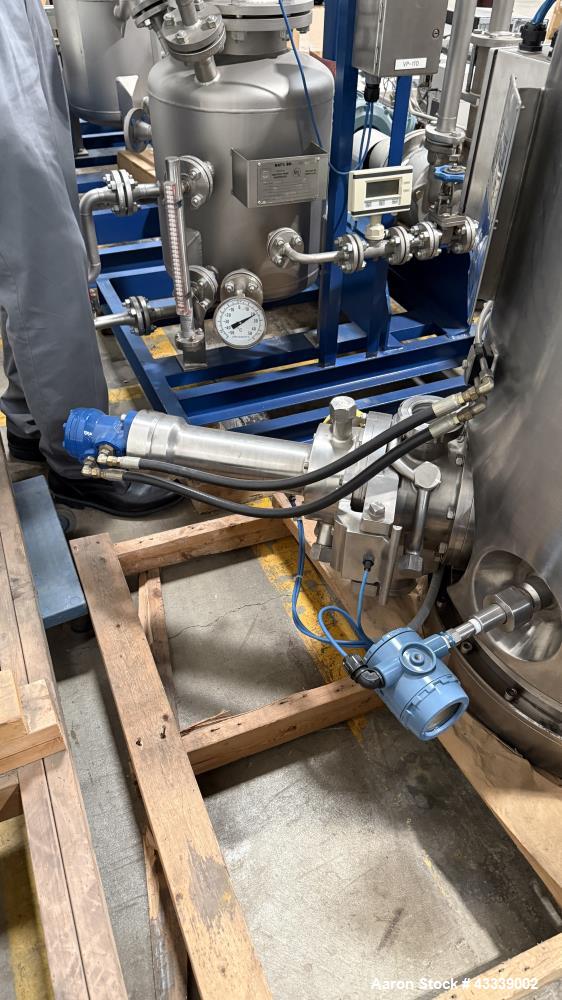

- Discharge Type: Side Discharge
- Agitator Type: Two-Arm S-Blade Heated Agitator
- Sealing Mechanism: Mechanical Seal and Bellows
- Mounting: Column Mounted
- Control System: PLC Controls

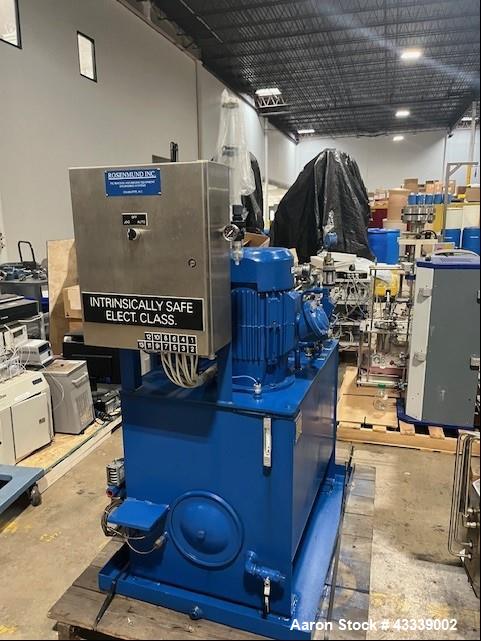

- Vacuum/Compressor System: APOVAC 156

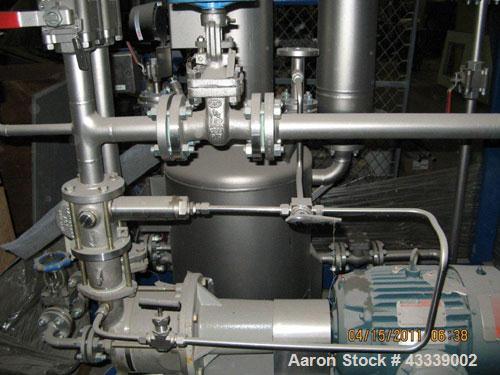

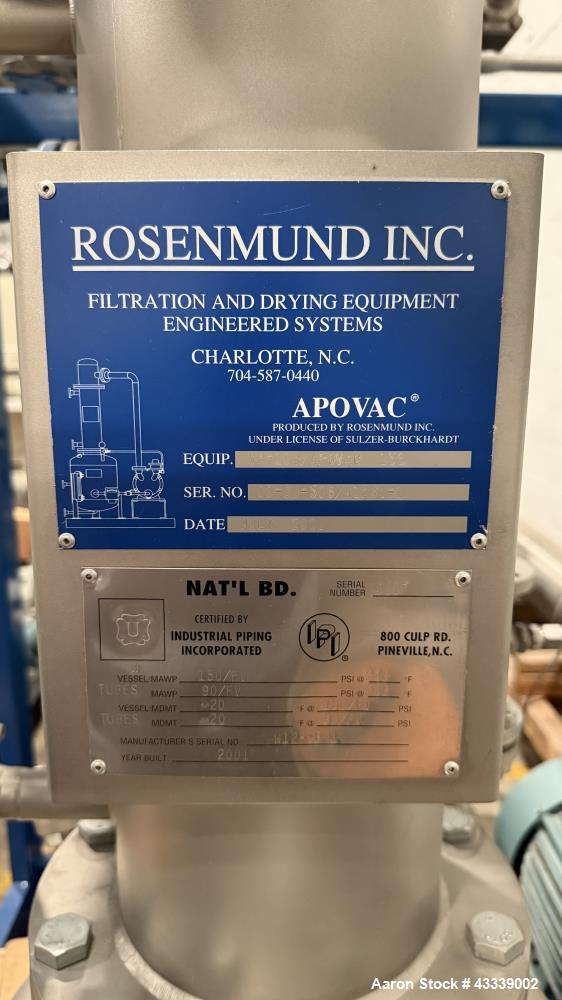

- Gas Recirculation System: APOVAC
- Condition: Unused
Applications:
The Rosenmund Guedu RGFD Filter Dryer is ideal for:
- Pharmaceutical Manufacturing
- Chemical Processing
- Fine Chemical Production
- API (Active Pharmaceutical Ingredient) Drying
- Industrial Solid-Liquid Separation
- Specialty Materials Drying
What Products Would This Be Used For?
- Active pharmaceutical ingredients (APIs)
- Fine chemicals and specialty chemicals
- Powdered and crystalline substances
- Filtration and drying of chemical compounds
- Solvent-based material separation
