Used Belmer Winkle Press Dewatering Belt Press VPK 2S | High-Capacity Sludge Dewatering System

Manufacturer Information

• Manufacturer: Belmer / Winkle Press

• Model: VPK 2S

• Type: Dewatering Belt Press

• Condition: Used

• Year: 2022

• Previous Application: Wastewater Treatment (WWT)

• Construction: Stainless Steel Frame

• Manufacturer Overview: Belmer (WinklePress) is a globally recognized manufacturer of sludge dewatering and solid–liquid separation equipment, known for robust construction, efficient water removal, and long service life in municipal and industrial wastewater applications.

Description

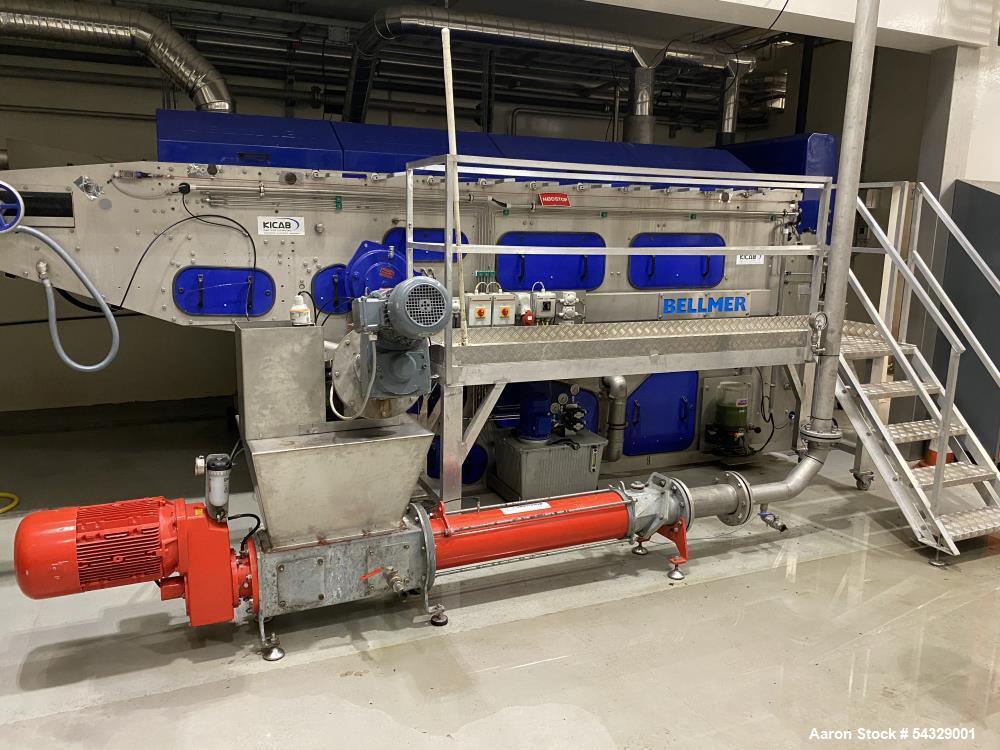

The Used Belmer Winkle Press VPK 2S Dewatering Belt Press is a high-performance sludge dewatering system designed for continuous, reliable operation in wastewater treatment facilities. Built in 2022, this unit features a 1,500 mm (4’8”) wide belt and a total belt length of 15,500 mm (50’4”), providing excellent throughput and dewatering efficiency.

Constructed with a stainless steel frame and equipped with a hydraulically controlled belt tracking device, the VPK 2S ensures stable operation and reduced maintenance. The system includes a sludge pump, polymer station, control panel, and multiple variable-speed drives, making it a near turnkey dewatering solution. This unit was previously used in a WWT application and remains suitable for municipal and industrial sludge processing.

Specifications

• Model: VPK 2S

• Belt Working Width: 1,500 mm (4’8”)

• Belt Length: 15,500 mm (50’4”)

• Belt Speed: 2.61 m/min (8’5” per minute)

• Spray Nozzles: 2 x 21

• Water Pressure: 6 bar (90 PSI)

• Driving Rolls:

  • Quantity: 18

  • Diameter: 188 mm (7.33”)

• Frame Construction: Stainless Steel

• Belt Tracking: Hydraulically controlled tracking device

Drives & Power

• Feeder Belt Drive:

  • 4 kW / 6 HP

  • 400V

• Main Press Belt Drive:

  • 1.7 kW / 2.3 HP

  • 460V

  • Variable speed control

Included Equipment

• (1) Sludge Pump

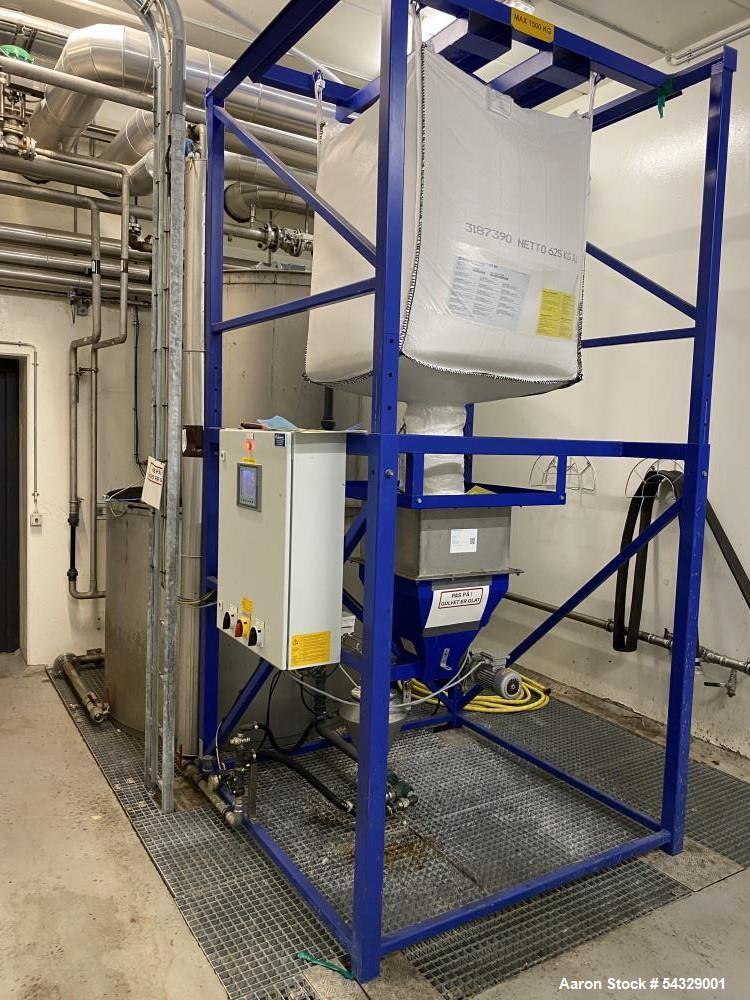

• (1) Polymer Station

• (1) Control Panel

Dimensions & Weight

• Overall Dimensions:

  • Length: 5,600 mm (18’2”)

  • Width (Transport): 2,534 mm (8’23”)

  • Height: 2,250 mm (7’3”)

• Weight (Empty): 9.5 tonnes

• Operating Weight: 10.5 tonnes

Applications

• Municipal wastewater treatment plants

• Industrial wastewater processing

• Sludge dewatering operations

• Water recycling facilities

• Food and beverage wastewater

• Chemical and industrial effluent treatment

• Pulp and paper wastewater treatment

• Mining and mineral processing

• Environmental remediation

• Contract dewatering services
