Used Horizontal Belt Extractors

Below is Aaron's inventory of unused and used horizontal belt extractors. If you are looking to sell your used horizontal belt extractor submit a request online or contact Erik Eichert at 630-238-7480.

9 Horizontal Belt Extractors

Enter to Search

Used- Voran Belt Press Filter

Stock# 43172008

Used- Voran Belt Press Filter with pneumatic belt tensioner, type ESP 1200. Capacity up to 6600 lbs//hr. (3000 kg/hr.). Material of construction is 304 (1.4301) stainless steel. Belt width 46.8" (1200 mm) x 338.05" (9950 mm) strip length. Automatic belt control. Product contact time 2-11 minute. Juice yield up to 75%. High press more info...

Used- Voran Belt Press, Type ESP 650

Stock# 51568001

Used- Voran Belt Press, Type ESP 650. Material of construction is 304 (1.4301) stainless steel. Capacity up to 2200 lbs./hr. (1500 kg/hr). Juice contact time 1 minute. Juice yield up to 75%. Water consumption for belt cleaning 0.79 gallon (3 liter/min). Belt speed 35.1"-70.2" (900-18000 mm) per minute by a 0.55 HP / 0.37 KW-400 more info...

Used- Ashbrook Bellmer WinklePress Dewatering Belt Press

Stock# 50078001

Used- Ashbrook Bellmer WinklePress Dewatering Belt Press, Model # 4, Size 1.0 Meter. Belt measures 4' wide x 15' long, carbon steel frame. Unit features hydraulically controlled belt tracking device. Includes 1.5 kW / 2 hp, 460V powerpack feeder belt drive. 1.7 kW / 2.3 hp, 460V main press belt drive with variable speed control.

Used- Komline Sanderson Kompress Belt Filter Press

Stock# 50337004

Used- Komline Sanderson Kompress Belt Filter Press, Model G-GRSL-1 Series III. Komline Sanderson EC Job # S-3922. Active Width: 1.0 meters. Filter Belt Width: 1.2 meters (47"). Filtration Areas: Gravity Zone: 52 square feet. Wedge Zone: 22 square feet. Pressure/Shear Zone: 69 square feet. Dimensions: Length: 21'10". Width: 7'6". more info...

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximatel

Stock# 50832002

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximately 1.7 Meter Belt. Galvanized Frame.

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt

Stock# 50832003

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximately 1.7 Meter Belt. Galvanized Frame.

Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press

Stock# 50856001

Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press, Type AWP, Size 3. actual belt width approximately 47" (1.2 meter). Typical hydraulic capacity of municipal sludge at 3-6% feed concentration 154-200 gallons per minute. Carbon steel frame. Includes a hydraulic power pack.

Used- Ashbrook-Simon-Hartley Gravity Belt Thickener

Stock# 50832001

Used- Ashbrook-Simon-Hartley Gravity Belt Thickener. Size 3, Model Aquabelt. 2 Meter Belt. Galvanized Frame.

Used- Hoesch Filter DS Series SS Horizontal Plate Type Automatic Pressure Filter

Stock# 46074001

Used- Hoesch Larox DS Series Horizontal Plate Type Automatic Pressure Filter, Type DS2400-20. Plate format 1200mm x 2400mm, 4.7 Square meter filter surface area (160 m3 total), (20) Polypropylene chambers, 50mm depth, filling volume 2.1 cubic meters, maximum operating & filtering pressure 16 bar, maximum hydraulic pressure 420/2 more info...

Used- Voran Belt Press Filter

Used- Voran Belt Press Filter

Stock# 43172008

Used- Voran Belt Press Filter with pneumatic belt tensioner, type ESP 1200. Capacity up to 6600 lbs//hr. (3000 kg/hr.). Material of construction is 304 (1.4301) stainless steel. Belt width 46.8" (1200 mm) x 338.05" (9950 mm) strip length. Automatic belt control. Product contact time 2-11 minute. Juice yield up to 75%. High pressure bottom water injection system to clean the belt. Water consumption for belt cleaning 1.58 gallon (6 liter/min). Belt speed 19.5"-136.5" (500-3500 mm) per minute by a 3.3 HP/2.2 KW-400 volt/50cucle/3Ph motor. Safety devices. Control panel. On 6 legs. 97" (2990 mm) long x 68" (2090 mm) width x 55" (1690 mm) high. Weight 2.5 tonnes. Previous used in a food supplements and ingredients application from fungal chitosan and chitin-glucan. New year 2007.

Meter: SqFt: Mfr: Model: ESP 1200
VIEW ITEM ADD TO CART

Used- Voran Belt Press, Type ESP 650

Used- Voran Belt Press, Type ESP 650

Stock# 51568001

Used- Voran Belt Press, Type ESP 650. Material of construction is 304 (1.4301) stainless steel. Capacity up to 2200 lbs./hr. (1500 kg/hr). Juice contact time 1 minute. Juice yield up to 75%. Water consumption for belt cleaning 0.79 gallon (3 liter/min). Belt speed 35.1"-70.2" (900-18000 mm) per minute by a 0.55 HP / 0.37 KW-400 volt / 50 cucle / 3Ph motor. On 4 legs. 83" (2540 mm) long x 47" (1460 mm) width x 47" (1460 mm) high. Weight 2332 lbs. (1060 kgs). Previous used in a fruit juice application. New 2012.

Meter: SqFt: Mfr: Voran Model: ESP 650
VIEW ITEM ADD TO CART

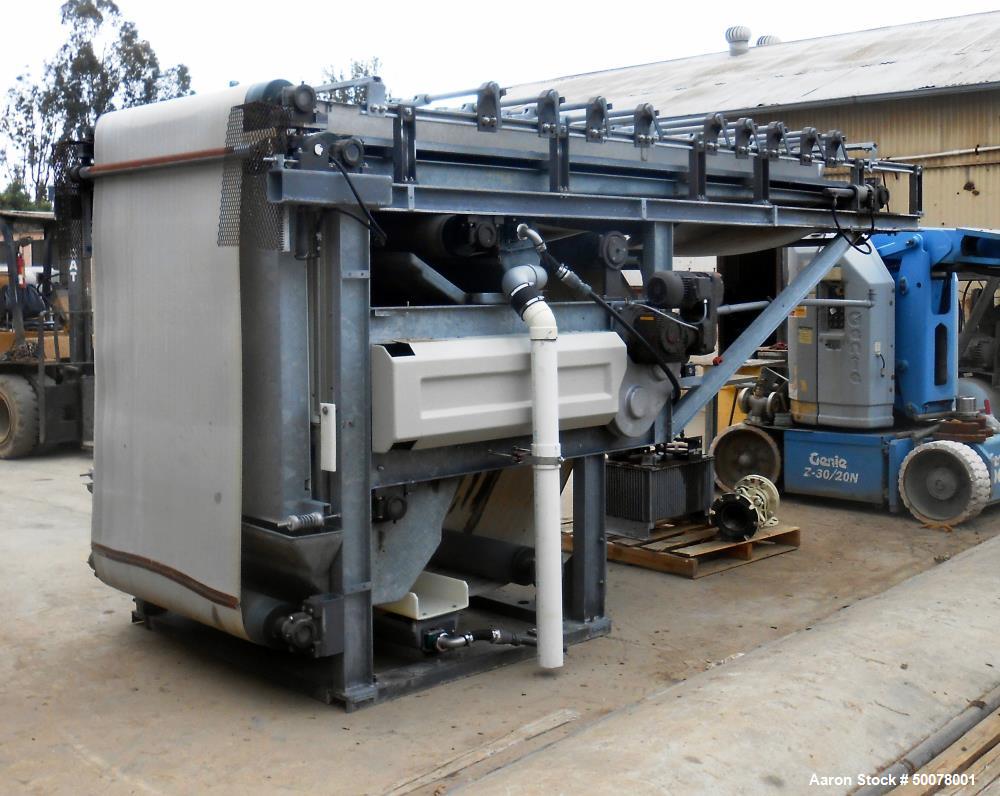

Used- Ashbrook Bellmer WinklePress Dewatering Belt Press

Used- Ashbrook Bellmer WinklePress Dewatering Belt Press

Stock# 50078001

Used- Ashbrook Bellmer WinklePress Dewatering Belt Press, Model # 4, Size 1.0 Meter. Belt measures 4' wide x 15' long, carbon steel frame. Unit features hydraulically controlled belt tracking device. Includes 1.5 kW / 2 hp, 460V powerpack feeder belt drive. 1.7 kW / 2.3 hp, 460V main press belt drive with variable speed control.

Meter: 1 SqFt: 60 Mfr: Ashbrook Model: 4
VIEW ITEM ADD TO CART

Used- Komline Sanderson Kompress Belt Filter Press

Used- Komline Sanderson Kompress Belt Filter Press

Stock# 50337004

Used- Komline Sanderson Kompress Belt Filter Press, Model G-GRSL-1 Series III. Komline Sanderson EC Job # S-3922. Active Width: 1.0 meters. Filter Belt Width: 1.2 meters (47"). Filtration Areas: Gravity Zone: 52 square feet. Wedge Zone: 22 square feet. Pressure/Shear Zone: 69 square feet. Dimensions: Length: 21'10". Width: 7'6". Height: 8'10". Dry Weight: 16,000 pounds. Service Requirements: Washwater: 66 gpm at 85 psi. Electrical: See Control Panel. Specifications Hydraulic: 2 gpm at 900 psi. Material of Construction, main frame: Hot dipped galvanized carbon steel. Fasteners: 316 stainless steel. Inlet Distributor, Leveling Dam, Filtrate Collection pans: 316 stainless steel. Number of Pressure Drums: Eight (8). Filter Belts: Komline Sanderson Model KS-4086, monofilament polyester, modified satin, 391 cfm; 42.2 oz/square yard with 316 L stainless steel clipper seam with polyurethane reinforcement. Drives: Gravity Belt Drive Assembly. Motor: 2 HP Eurodrive motor, 1800 rpm, 3/60/460 TEFC severe duty Reducer: Eurodrive, Model KA 87 AGMA Class II, 85.65:1.0 ratio; 8.4 HP input rating; 18,000 inch-lbs output rating. Gravity Belt Speed: 5-50 fpm. Pressure Belt Drive Assembly: Motor: 2 HP Eurodrive motor, 1800 rpm, 3/60/460 TEFC severe duty Reducer: Eurodrive, Model KA 87 R57, AGMA Class II, 236:1.0 ratio; 2.0 HP input rating; 23,900 inch-lbs output rating. Gravity Belt Speed: 2-20 fpm. Dewatering Drums and Rollers.

Meter: 1.2 SqFt: 52 Mfr: Komline Sanderson Model:
VIEW ITEM ADD TO CART

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximatel

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt.  Approximatel

Stock# 50832002

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximately 1.7 Meter Belt. Galvanized Frame.

Meter: 1.7 SqFt: Mfr: Ashbrook Model: aquabelt
VIEW ITEM ADD TO CART

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt

Stock# 50832003

Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximately 1.7 Meter Belt. Galvanized Frame.

Meter: 1.7 SqFt: Mfr: Ashbrook Model: aquabelt
VIEW ITEM ADD TO CART

Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press

Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press

Stock# 50856001

Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press, Type AWP, Size 3. actual belt width approximately 47" (1.2 meter). Typical hydraulic capacity of municipal sludge at 3-6% feed concentration 154-200 gallons per minute. Carbon steel frame. Includes a hydraulic power pack.

Meter: 2.2 SqFt: Mfr: Ashbrook Model: AWP
VIEW ITEM ADD TO CART

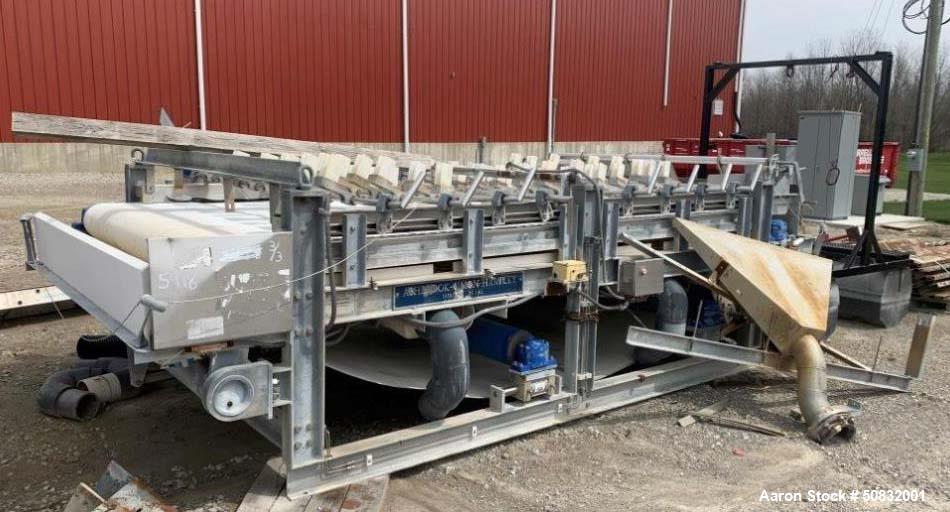

Used- Ashbrook-Simon-Hartley Gravity Belt Thickener

Used- Ashbrook-Simon-Hartley Gravity Belt Thickener

Stock# 50832001

Used- Ashbrook-Simon-Hartley Gravity Belt Thickener. Size 3, Model Aquabelt. 2 Meter Belt. Galvanized Frame.

Meter: 3.3 SqFt: Mfr: Ashbrook Model: Aquabelt
VIEW ITEM ADD TO CART

Used- Hoesch Filter DS Series SS Horizontal Plate Type Automatic Pressure Filter

Used- Hoesch Filter DS Series SS Horizontal Plate Type Automatic Pressure Filter

Stock# 46074001

Used- Hoesch Larox DS Series Horizontal Plate Type Automatic Pressure Filter, Type DS2400-20. Plate format 1200mm x 2400mm, 4.7 Square meter filter surface area (160 m3 total), (20) Polypropylene chambers, 50mm depth, filling volume 2.1 cubic meters, maximum operating & filtering pressure 16 bar, maximum hydraulic pressure 420/250 bar. Filter belt material 2636 PP, 1260mm wide x 94-130 meter, pneumatic belt tensioning 2-6 bar, electric roller actuator. Food grade quality standard design, totally enclosed 316 stainless steel housing, double sided filtration in all chambers. Unit OAD assembled approximate 188" long x 145" wide x 262" tall, assembled weight 80,000#. Includes a GL hydraulic power pack, 50hp, 3/60/208-230/460 volt, 1770 rpm, (2) 1.26m x 139.75m filter belts, (1) spare frame, (10) polypropylene chambers, (1) spare cylinder, miscellaneous rollers, motors, and blades. Serial# 42005, order# 65-5206, built 2001. Unit currently disassembled.

Meter: 4.7 SqFt: 50,359 Mfr: Hoechst Model: DS2400-20
VIEW ITEM ADD TO CART
  • Used- Voran Belt Press Filter

    Used- Voran Belt Press Filter with pneumatic belt tensioner, type ESP 1200. Capacity up to 6600 lbs//hr. (3000 kg/hr.). Material of construction is 304 (1.4301) stainless steel. Belt width 46.8" (1200 mm) x 338.05" (9950 mm) strip length. Automatic belt control. Product contact time 2-11 minute. Juice yield up to 75%. High pressure bottom water injection system to clean the belt. Water consumption for belt cleaning 1.58 gallon (6 liter/min). Belt speed 19.5"-136.5" (500-3500 mm) per minute by a 3.3 HP/2.2 KW-400 volt/50cucle/3Ph motor. Safety devices. Control panel. On 6 legs. 97" (2990 mm) long x 68" (2090 mm) width x 55" (1690 mm) high. Weight 2.5 tonnes. Previous used in a food supplements and ingredients application from fungal chitosan and chitin-glucan. New year 2007.

    VIEW ITEM
  • Used- Voran Belt Press, Type ESP 650

    Used- Voran Belt Press, Type ESP 650. Material of construction is 304 (1.4301) stainless steel. Capacity up to 2200 lbs./hr. (1500 kg/hr). Juice contact time 1 minute. Juice yield up to 75%. Water consumption for belt cleaning 0.79 gallon (3 liter/min). Belt speed 35.1"-70.2" (900-18000 mm) per minute by a 0.55 HP / 0.37 KW-400 volt / 50 cucle / 3Ph motor. On 4 legs. 83" (2540 mm) long x 47" (1460 mm) width x 47" (1460 mm) high. Weight 2332 lbs. (1060 kgs). Previous used in a fruit juice application. New 2012.

    VIEW ITEM
  • Used- Ashbrook Bellmer WinklePress Dewatering Belt Press

    Used- Ashbrook Bellmer WinklePress Dewatering Belt Press, Model # 4, Size 1.0 Meter. Belt measures 4' wide x 15' long, carbon steel frame. Unit features hydraulically controlled belt tracking device. Includes 1.5 kW / 2 hp, 460V powerpack feeder belt drive. 1.7 kW / 2.3 hp, 460V main press belt drive with variable speed control.

    VIEW ITEM
  • Used- Komline Sanderson Kompress Belt Filter Press

    Used- Komline Sanderson Kompress Belt Filter Press, Model G-GRSL-1 Series III. Komline Sanderson EC Job # S-3922. Active Width: 1.0 meters. Filter Belt Width: 1.2 meters (47"). Filtration Areas: Gravity Zone: 52 square feet. Wedge Zone: 22 square feet. Pressure/Shear Zone: 69 square feet. Dimensions: Length: 21'10". Width: 7'6". Height: 8'10". Dry Weight: 16,000 pounds. Service Requirements: Washwater: 66 gpm at 85 psi. Electrical: See Control Panel. Specifications Hydraulic: 2 gpm at 900 psi. Material of Construction, main frame: Hot dipped galvanized carbon steel. Fasteners: 316 stainless steel. Inlet Distributor, Leveling Dam, Filtrate Collection pans: 316 stainless steel. Number of Pressure Drums: Eight (8). Filter Belts: Komline Sanderson Model KS-4086, monofilament polyester, modified satin, 391 cfm; 42.2 oz/square yard with 316 L stainless steel clipper seam with polyurethane reinforcement. Drives: Gravity Belt Drive Assembly. Motor: 2 HP Eurodrive motor, 1800 rpm, 3/60/460 TEFC severe duty Reducer: Eurodrive, Model KA 87 AGMA Class II, 85.65:1.0 ratio; 8.4 HP input rating; 18,000 inch-lbs output rating. Gravity Belt Speed: 5-50 fpm. Pressure Belt Drive Assembly: Motor: 2 HP Eurodrive motor, 1800 rpm, 3/60/460 TEFC severe duty Reducer: Eurodrive, Model KA 87 R57, AGMA Class II, 236:1.0 ratio; 2.0 HP input rating; 23,900 inch-lbs output rating. Gravity Belt Speed: 2-20 fpm. Dewatering Drums and Rollers.

    VIEW ITEM
  • Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximatel

    Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximately 1.7 Meter Belt. Galvanized Frame.

    VIEW ITEM
  • Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt

    Used- Ashbrook Corporation Gravity Belt Thickener, Model Aquabelt. Approximately 1.7 Meter Belt. Galvanized Frame.

    VIEW ITEM
  • Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press

    Used- Ashbrook Simon-Hartley Winklepress Belt Filter Press, Type AWP, Size 3. actual belt width approximately 47" (1.2 meter). Typical hydraulic capacity of municipal sludge at 3-6% feed concentration 154-200 gallons per minute. Carbon steel frame. Includes a hydraulic power pack.

    VIEW ITEM
  • Used- Ashbrook-Simon-Hartley Gravity Belt Thickener

    Used- Ashbrook-Simon-Hartley Gravity Belt Thickener. Size 3, Model Aquabelt. 2 Meter Belt. Galvanized Frame.

    VIEW ITEM
  • Used- Hoesch Filter DS Series SS Horizontal Plate Type Automatic Pressure Filter

    Used- Hoesch Larox DS Series Horizontal Plate Type Automatic Pressure Filter, Type DS2400-20. Plate format 1200mm x 2400mm, 4.7 Square meter filter surface area (160 m3 total), (20) Polypropylene chambers, 50mm depth, filling volume 2.1 cubic meters, maximum operating & filtering pressure 16 bar, maximum hydraulic pressure 420/250 bar. Filter belt material 2636 PP, 1260mm wide x 94-130 meter, pneumatic belt tensioning 2-6 bar, electric roller actuator. Food grade quality standard design, totally enclosed 316 stainless steel housing, double sided filtration in all chambers. Unit OAD assembled approximate 188" long x 145" wide x 262" tall, assembled weight 80,000#. Includes a GL hydraulic power pack, 50hp, 3/60/208-230/460 volt, 1770 rpm, (2) 1.26m x 139.75m filter belts, (1) spare frame, (10) polypropylene chambers, (1) spare cylinder, miscellaneous rollers, motors, and blades. Serial# 42005, order# 65-5206, built 2001. Unit currently disassembled.

    VIEW ITEM
