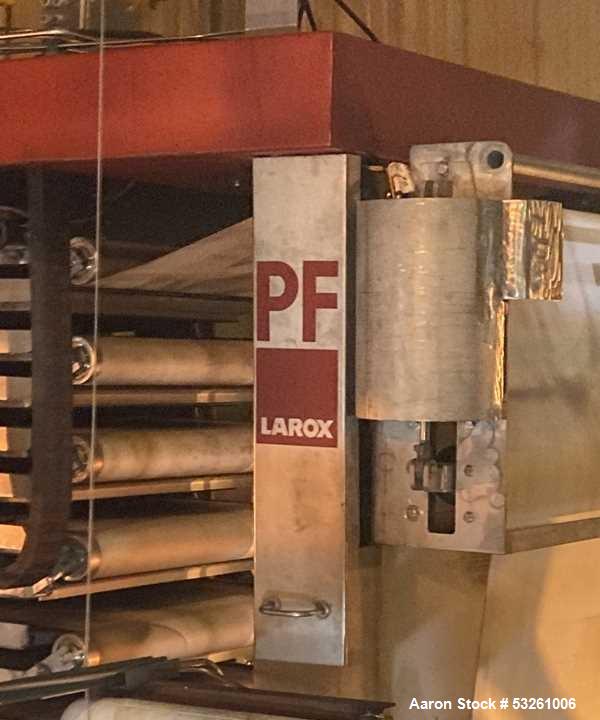

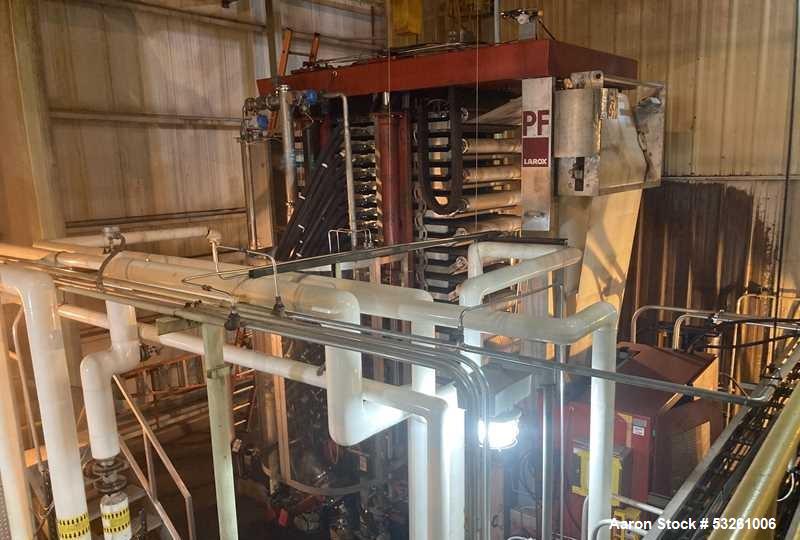

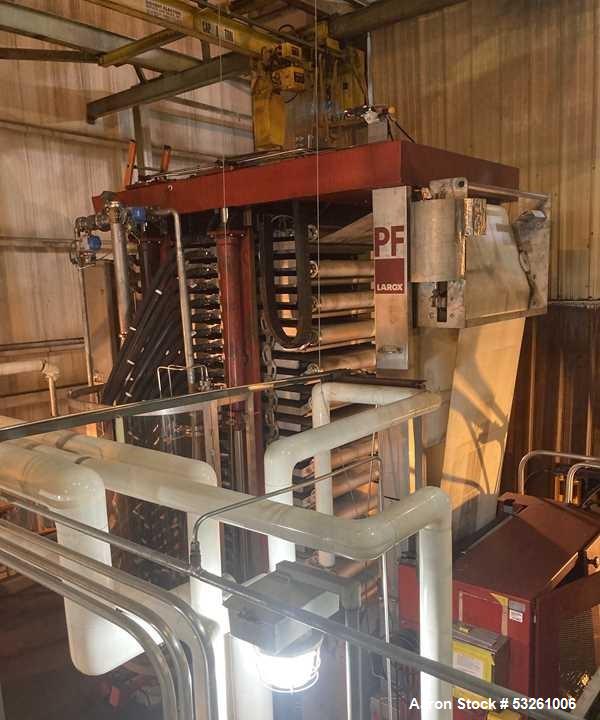

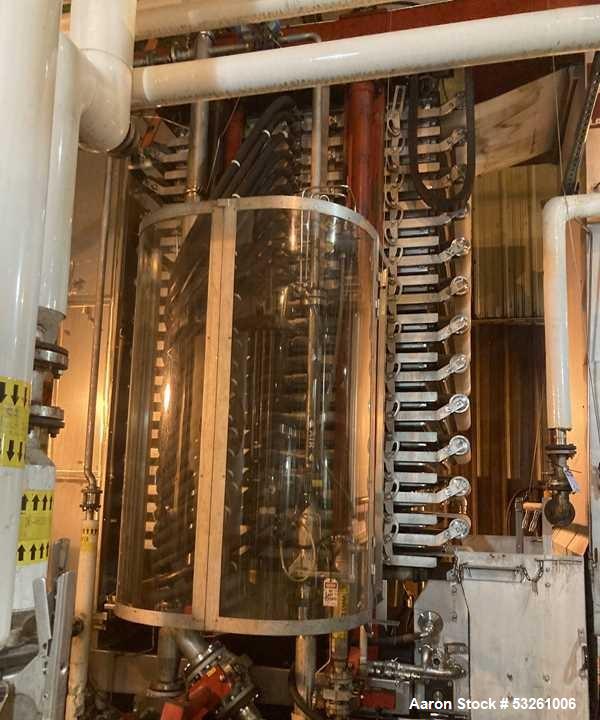

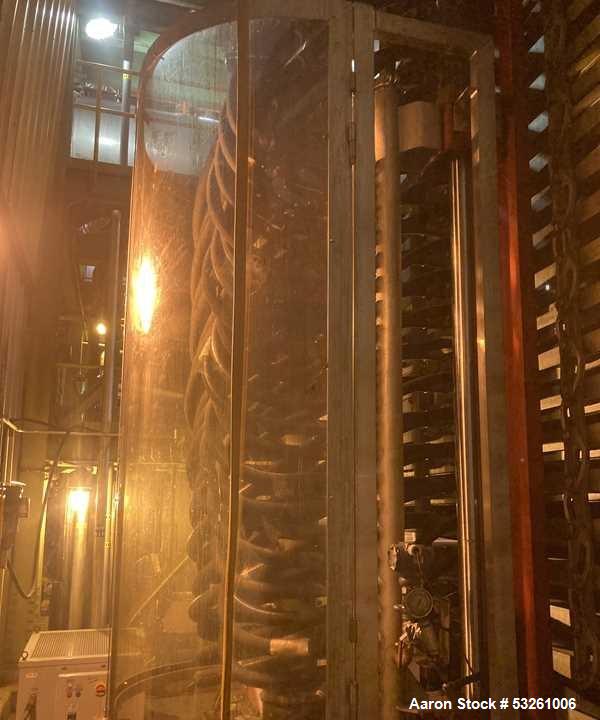

Used Larox PF 38 A2 Double-Sided Pressure Filter System – 37.8 Sq. Meter Filtration Area – Rebuilt & Unused Since Reconditioning

Manufacturer Information

Larox, now part of Metso Outotec, is recognized globally for advanced industrial filtration technologies serving mining, chemical processing, hydrometallurgy, food, pharmaceutical, and wastewater industries. The Larox PF series pressure filters are designed for high-capacity solid-liquid separation with fully automated operation and exceptional cake washing and dewatering performance.

Description

Available for immediate sale is a Used Larox PF 38 A2 Double-Sided Pressure Filter System featuring 37.8 square meters of filtration area. This fully automated filtration system was professionally rebuilt and reconditioned in 2022 and has remained unused since the refurbishment was completed.

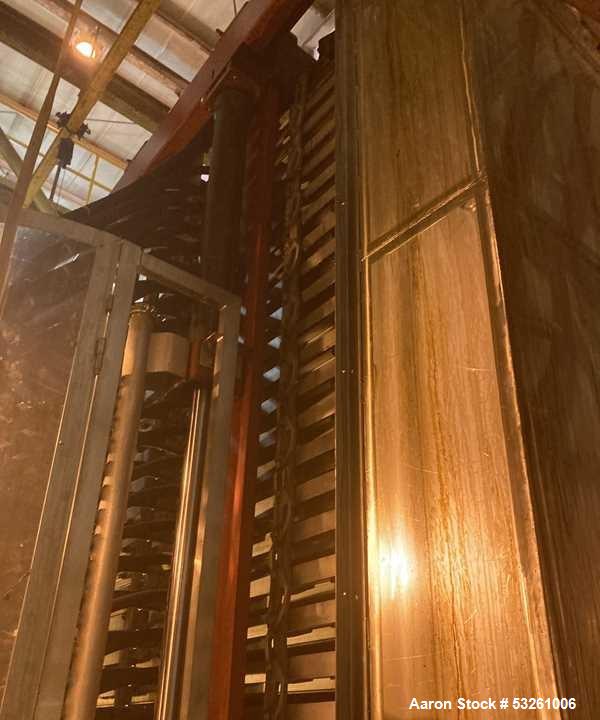

The Larox PF-DS (Double-Sided) filtration process operates as a fully automated batch filtration system. During operation, filtration chambers are filled with slurry and filtration begins simultaneously from both sides of each chamber. Filter cake forms on both the upper and lower surfaces of the filtration chamber, maximizing filtration efficiency and throughput.

The extensive 2022 rebuild included a complete replacement of the plate pack, new feed and discharge hoses, replacement of the cloth tracking system, and installation of a new PLC control system. Over $800,000 was invested in refurbishment, resulting in a machine that is essentially ready for immediate operation.

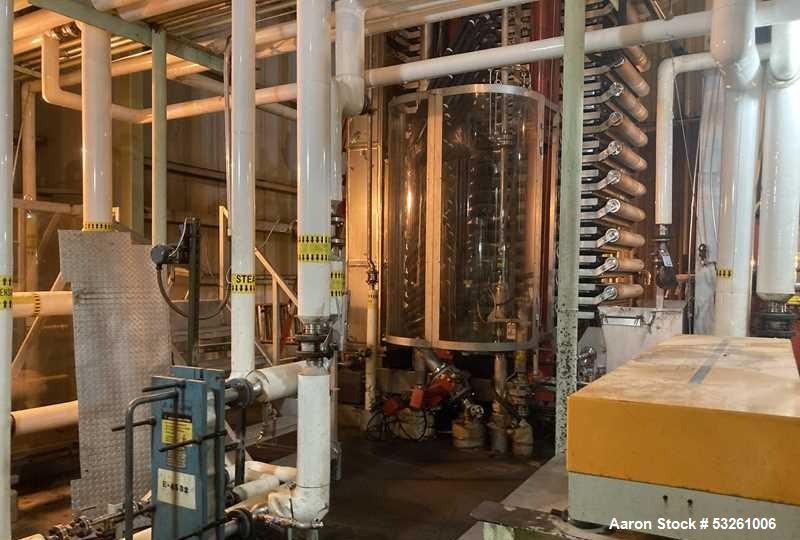

The package includes hydraulic systems, pressing water pump, control panel with remote controller, Alfa Laval stainless steel heat exchanger, pumps, piping, and a large inventory of spare parts.

Specifications

• Manufacturer: Larox
• Model: PF 38 A2
• Filter Type: Double-Sided Pressure Filter (PF-DS)
• Filtration Area: 37.8 sq. meters
• Plate Size: 900 mm x 1750 mm
• Operating Mode: Fully Automated Batch Filtration

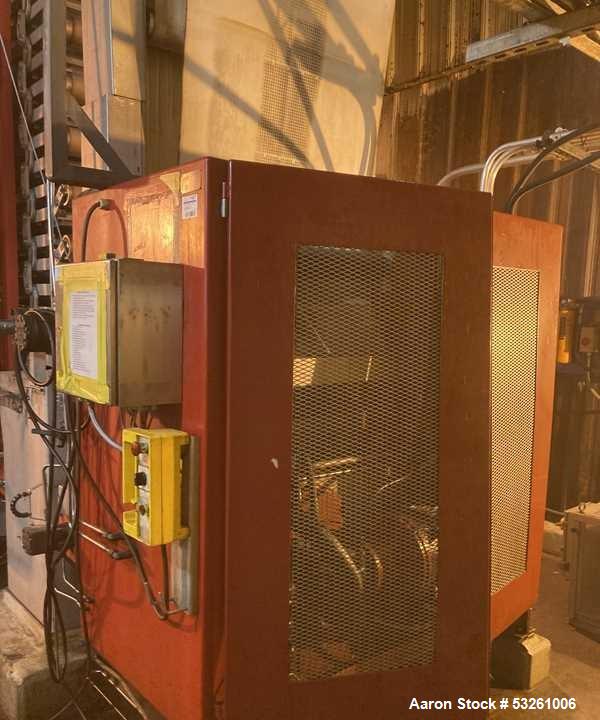

• Hydraulic Unit Motor: 18.5 KW
• Hydraulic Unit Voltage: 380V / 3 Phase / 50 Hz
• Pressing Water Pump: 15.0 KW
• Pressing Water Pump Voltage: 380V / 3 Phase / 50 Hz
• Control System: PLC with Remote Controller
• Heat Exchanger: Alfa Laval Stainless Steel Plate & Frame
• Includes Pumps: Yes
• Includes Interconnecting Piping: Yes
• Condition: Reconditioned in 2022
• Operating Status: Unused Since Rebuild
• Spare Parts: Large inventory available

Major Reconditioning Performed

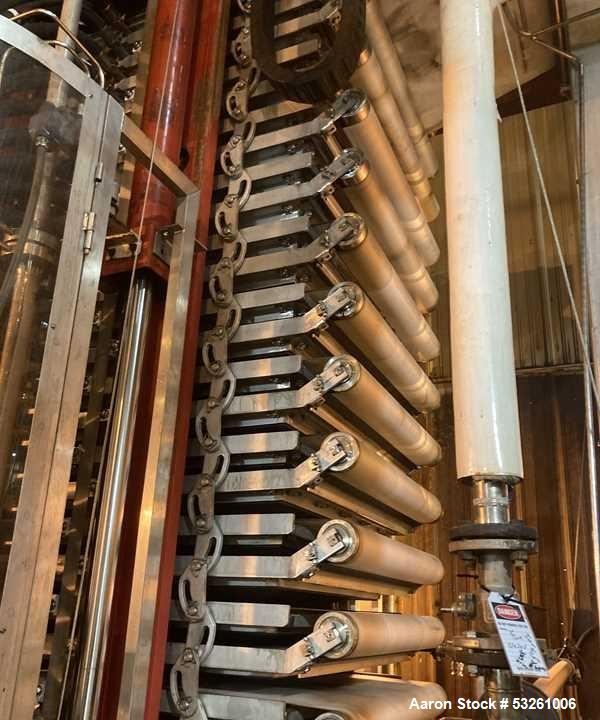

• Complete plate pack replacement
• Approximate value: $560,000
• All feed and discharge hoses replaced
• New clamps installed
• Approximate value: $50,000
• New cloth tracking device installed
• PLC control system replaced
• Approximate value: $200,000
• Total refurbishment investment exceeded $800,000

Applications

• Mining concentrates filtration
• Hydrometallurgical processing
• Chemical processing
• Fine chemical production
• Pigment manufacturing
• Industrial minerals processing
• Battery materials processing
• Metal recovery operations
• Wastewater sludge dewatering
• Industrial solid-liquid separation

Products This Equipment May Be Used For

• Copper concentrates
• Nickel concentrates
• Zinc concentrates
• Lithium compounds
• Battery precursor materials
• Metal hydroxides
• Industrial minerals
• Chemical intermediates
• Pigments and fillers
• Industrial slurries and precipitates

Frequently Asked Questions

What makes the Larox PF-DS filtration system unique?

The PF-DS utilizes double-sided filtration, allowing cake formation on both sides of the filtration chamber for improved throughput and filtration efficiency.

Has the equipment been used since refurbishment?

No. The machine has remained unused since the complete 2022 reconditioning project.

What major components were replaced during the rebuild?

The plate pack, feed and discharge hoses, cloth tracking device, and PLC control system were all replaced.

Is the control system included?

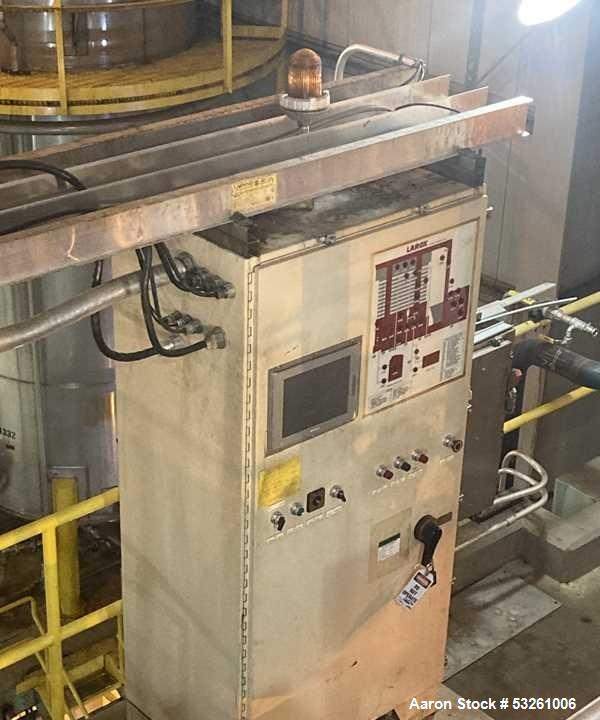

Yes. The package includes the PLC control panel and remote controller.

Are spare parts available?

Yes. A substantial inventory of spare parts is available with the system.

Can Aaron Equipment assist with shipping and logistics?

Yes. Aaron Equipment can provide dismantling coordination, rigging assistance, transportation planning, export services, and worldwide logistics support.
