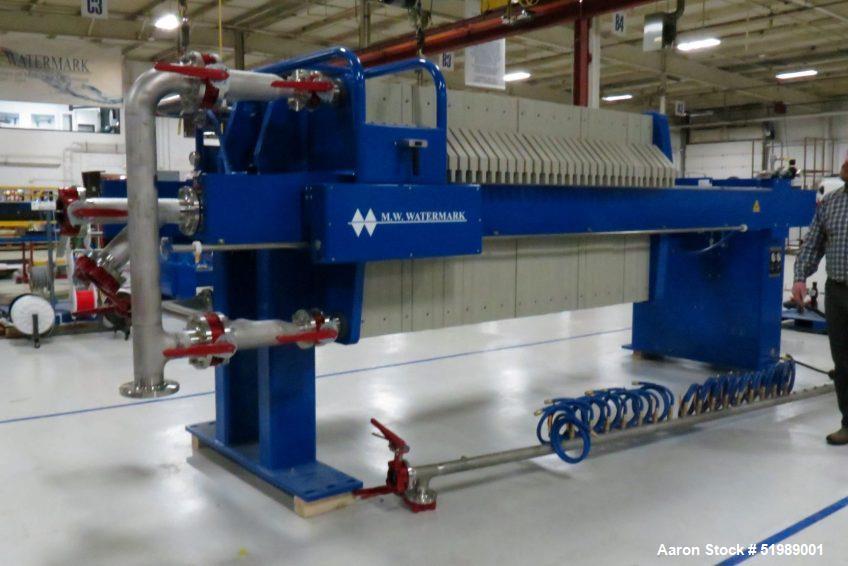

Unused- M.W. Watermark Filter Press; Model FP1200M32L-34/42-42/52AXX Basis of Design - Application: Hemp/solvent (methanol) separation - Temperature: Between 45F and 110F - Installation Location: Indoors - Power Supply: None, compressed air only. - Feed Pressure: Up to 100 psi - Squeeze Pressure: Up to 100 psi Equipment Description - Plate size: 1200 x 1200 mm plates. - Cake Thickness: 32 mm chambers (pre-squeeze) - Press Capacity: 41.7 cu. ft. expandable to 51.6 cu. ft. - Filtration Area: 884 sq. ft. expandable to 1,092 sq. ft. Chamber Quantity: 34 expandable to 42 - Overall Dimensions: 227?L x 72?W x 81?H (approx.) with 26? under-plate clearance. A" dimension = 91? - Empty Weight: 15,830 pounds - Hydraulics: Air-operated hydraulics, automatic closure, enclosed in the leg of the filter press. - Filter Plates: Polypropylene, gasketed (EPDM) mixed-pack, diaphragm squeeze plates; center feed, four-corner discharge. Plates are ported for thorough cake washing. - Filter Cloths: Installed polypropylene mono/multi-filament. - Filter Press Frame: Sidebar design, ASTM A36 carbon steel construction with 304SS side rail caps. - Coating: Blasted to SSPC-SP6. UV-resistant aliphatic acrylic polyurethane. Color: RAL-5017 Traffic Blue Features Included - Manifold Design: Air Blow/ Even Fill/ Dual Air Blow/ Cake Wash/ Core Blow & Flush Fully assembled with valves to provide even chamber filling and air blowdown. Includes air regulator, Semi-Automatic plate shifter, includes a diaphragm pump, squeeze skid, cake hopper- Manifold Material: 304 Stainless Steel / EPDM, Schedule 10 - Coating: Blasted to SSPC-SP6. UV-resistant aliphatic acrylic polyurethane. Color: RAL-5017 Traffic Blue - Expandable Capacity: Allows for future expansion of the filter press plate stack to 52 ft3 without revision to foundation or hydraulics. - Diaphragm Squeeze Manifold: 304SS squeeze manifold with individual hoses for connection to diaphragm filter plates.
Unused- M.W. Watermark Filter Press; Model FP1200M32L-34/42-42/52AXX Basis of Design - Application: Hemp/solvent (methanol) separation - Temperature: Between 45F and 110F - Installation Location: Indoors - Power Supply: None, compressed air only. - Feed Pressure: Up to 100 psi - Squeeze Pressure: Up to 100 psi Equipment Description - Plate size: 1200 x 1200 mm plates. - Cake Thickness: 32 mm chambers (pre-squeeze) - Press Capacity: 41.7 cu. ft. expandable to 51.6 cu. ft. - Filtration Area: 884 sq. ft. expandable to 1,092 sq. ft. Chamber Quantity: 34 expandable to 42 - Overall Dimensions: 227?L x 72?W x 81?H (approx.) with 26? under-plate clearance. A" dimension = 91? - Empty Weight: 15,830 pounds - Hydraulics: Air-operated hydraulics, automatic closure, enclosed in the leg of the filter press. - Filter Plates: Polypropylene, gasketed (EPDM) mixed-pack, diaphragm squeeze plates; center feed, four-corner discharge. Plates are ported for thorough cake washing. - Filter Cloths: Installed polypropylene mono/multi-filament. - Filter Press Frame: Sidebar design, ASTM A36 carbon steel construction with 304SS side rail caps. - Coating: Blasted to SSPC-SP6. UV-resistant aliphatic acrylic polyurethane. Color: RAL-5017 Traffic Blue Features Included - Manifold Design: Air Blow/ Even Fill/ Dual Air Blow/ Cake Wash/ Core Blow & Flush Fully assembled with valves to provide even chamber filling and air blowdown. Includes air regulator, Semi-Automatic plate shifter, includes a diaphragm pump, squeeze skid, cake hopper- Manifold Material: 304 Stainless Steel / EPDM, Schedule 10 - Coating: Blasted to SSPC-SP6. UV-resistant aliphatic acrylic polyurethane. Color: RAL-5017 Traffic Blue - Expandable Capacity: Allows for future expansion of the filter press plate stack to 52 ft3 without revision to foundation or hydraulics. - Diaphragm Squeeze Manifold: 304SS squeeze manifold with individual hoses for connection to diaphragm filter plates.
