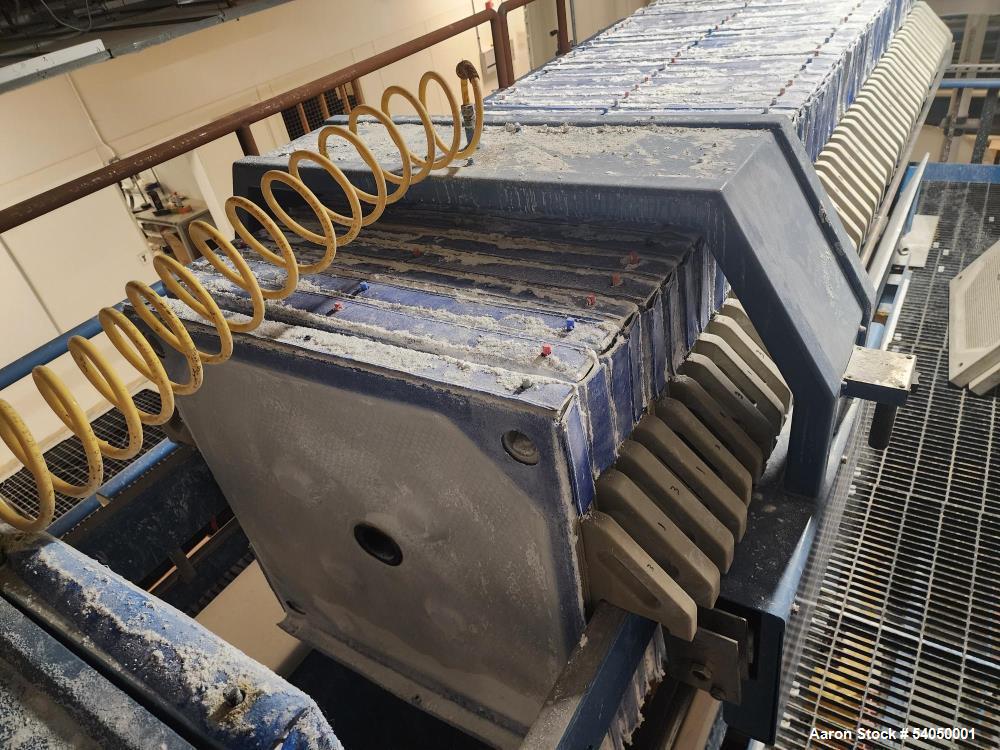

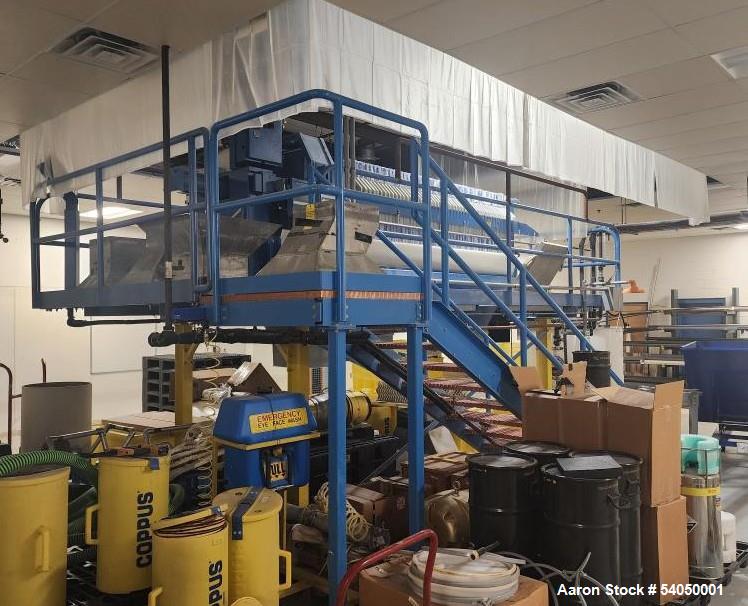

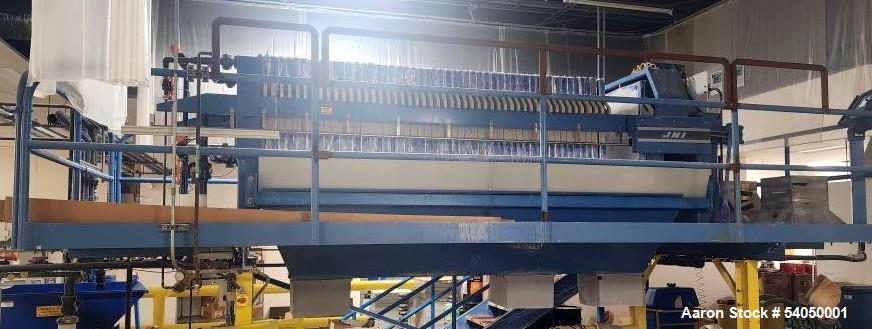

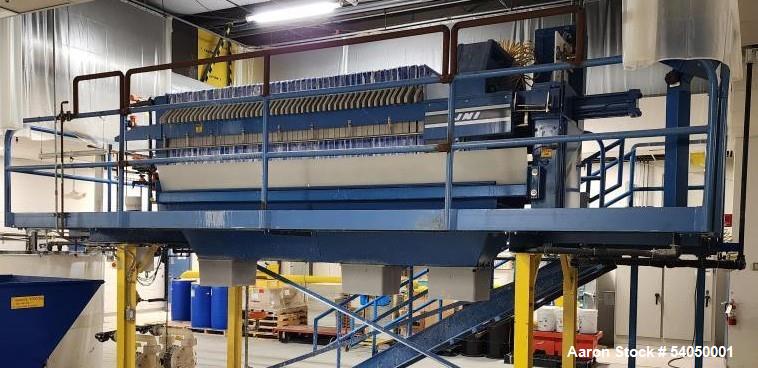

Used JWI 800N32-49-25SYLS Filter Press – 49 Chamber, 528 Sq. Ft., 800mm Plates (2017)

Manufacturer Information

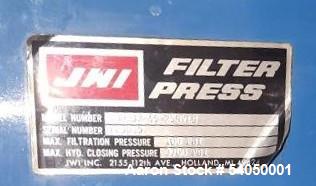

• Manufacturer: JWI

• Model: 800N32-49-25SYLS

• Plate Size: 800 mm Square Plates

• Serial Number: F05045

• Year Built: 2017

• Condition: Used

Description

This Used JWI Model 800N32-49-25SYLS Filter Press is a high-capacity dewatering system designed for solid-liquid separation in industrial, chemical, and wastewater treatment applications.

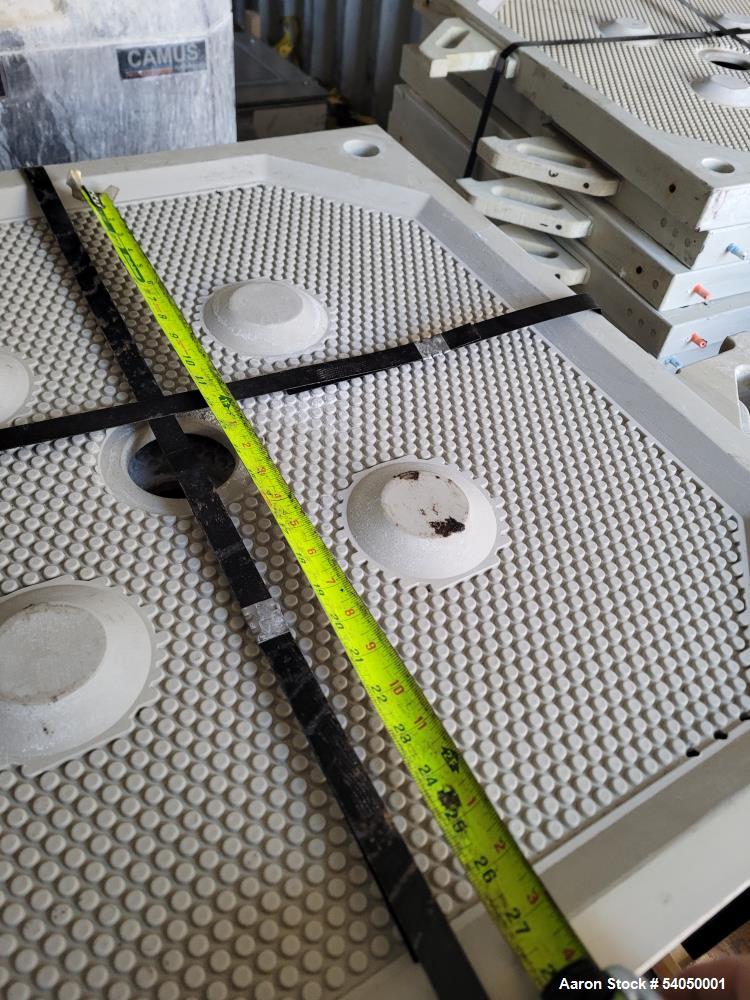

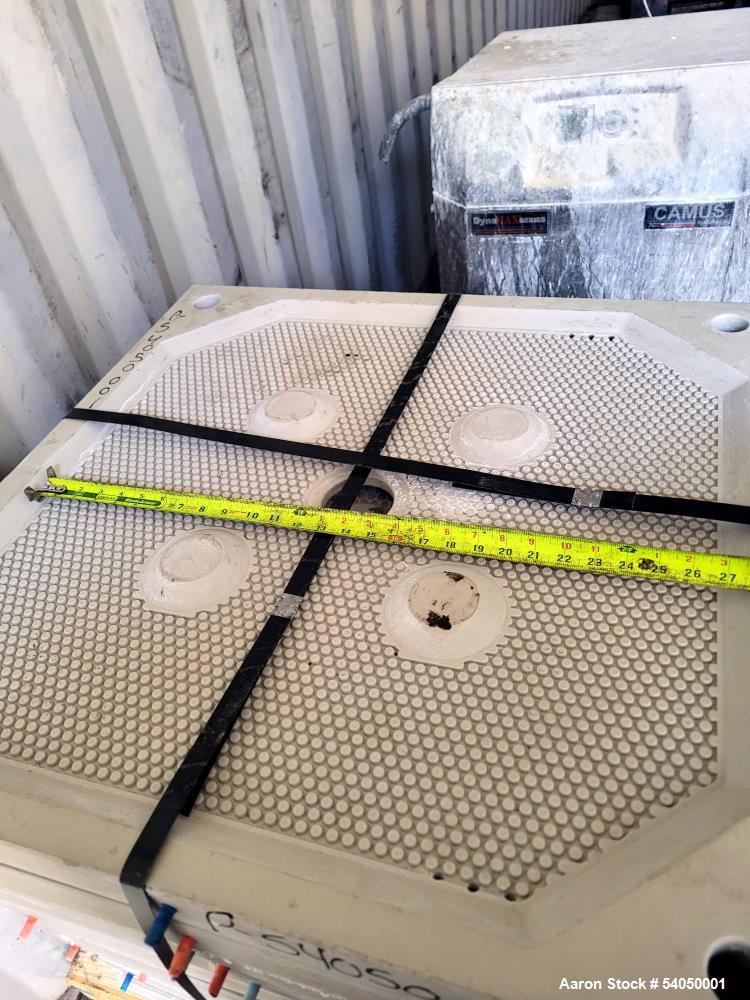

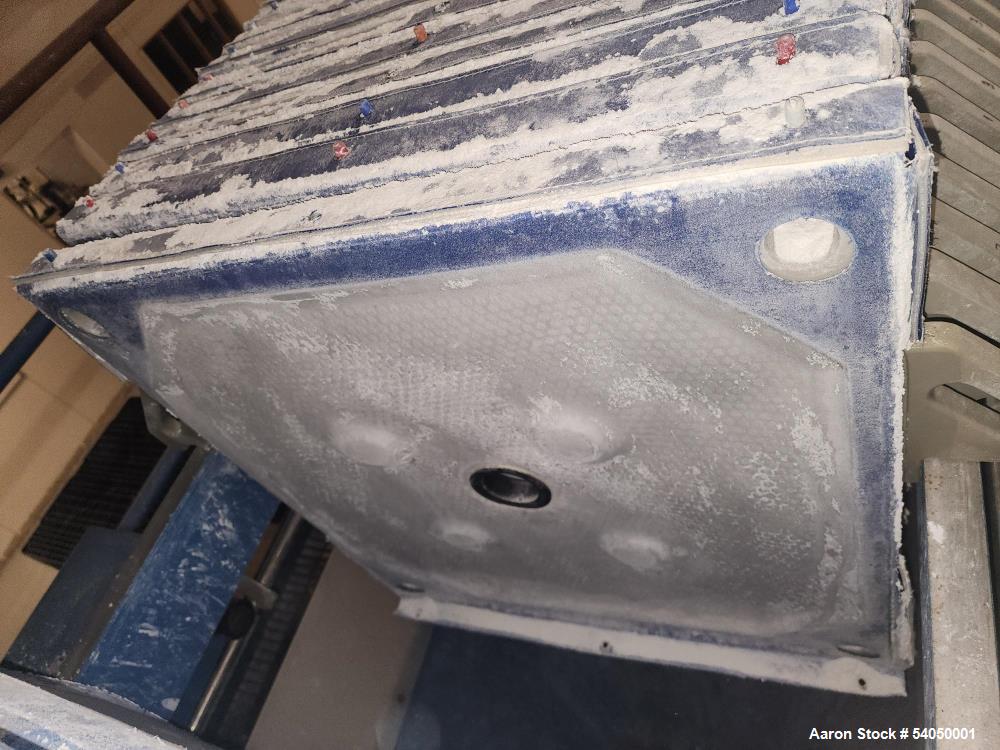

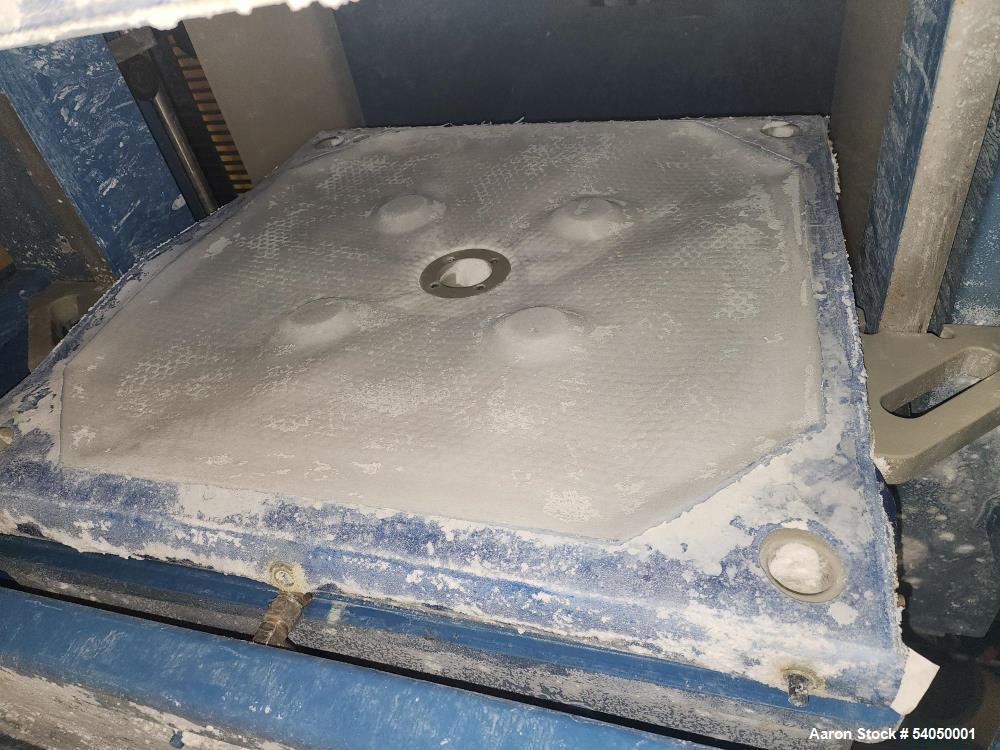

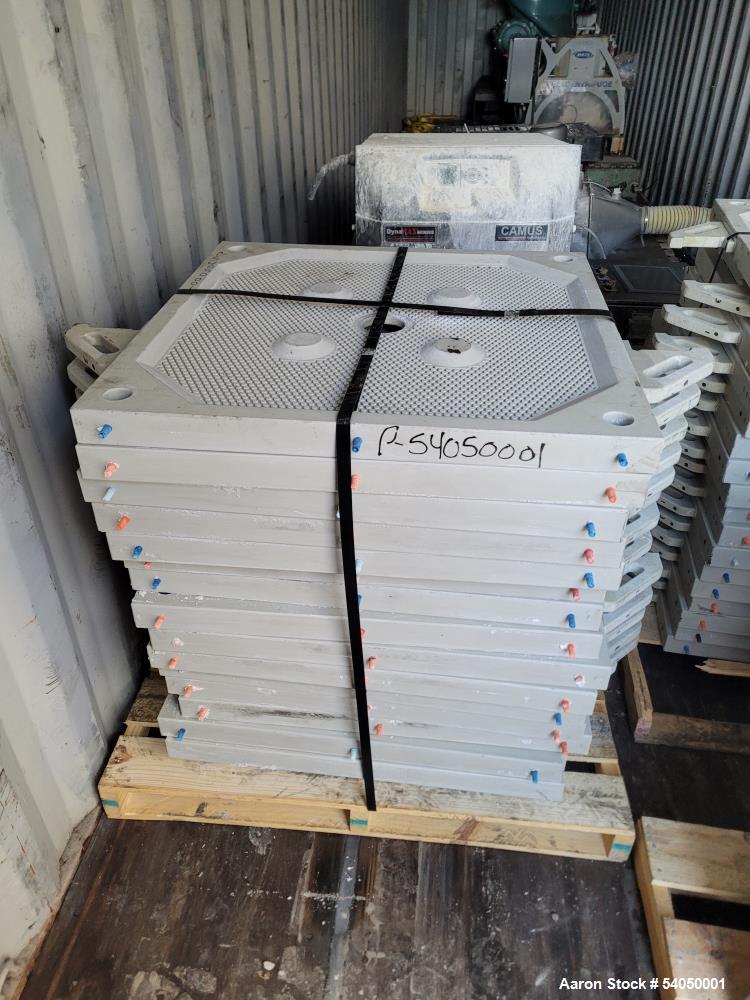

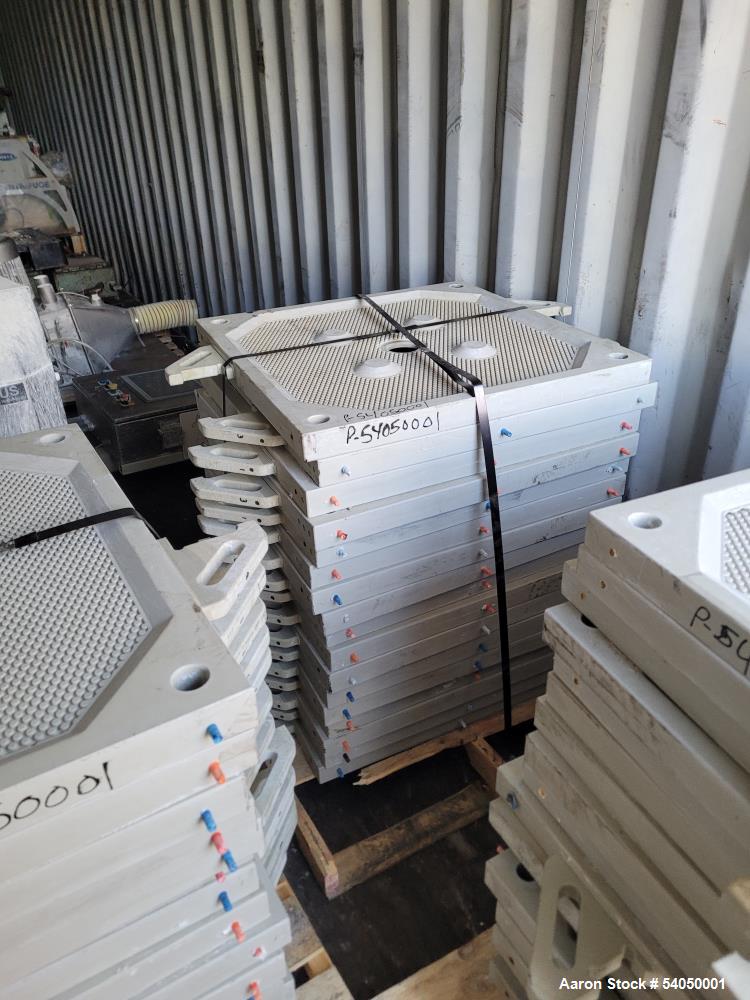

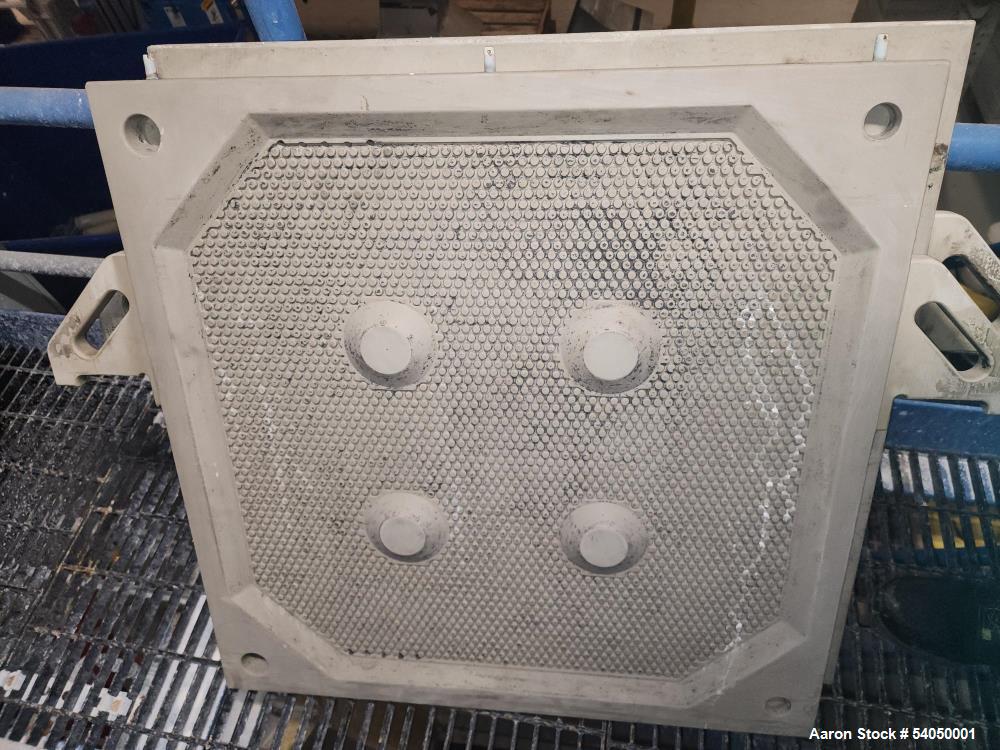

The press includes approximately (49) polypropylene 800 mm square plates fitted with Gore-Tex filter cloth, delivering a total filter area of approximately 528 sq. ft. (49 m²) and a total chamber volume of approximately 25 cubic feet (0.707 m³) across 49 chambers (0.5 ft³ per chamber).

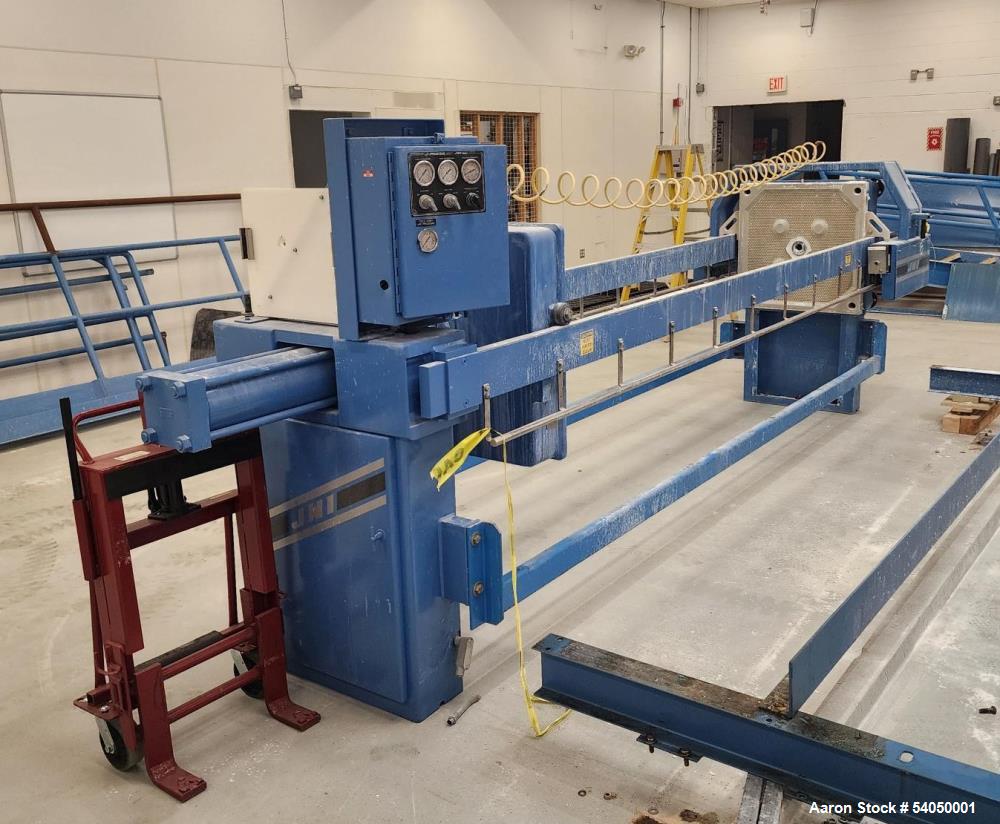

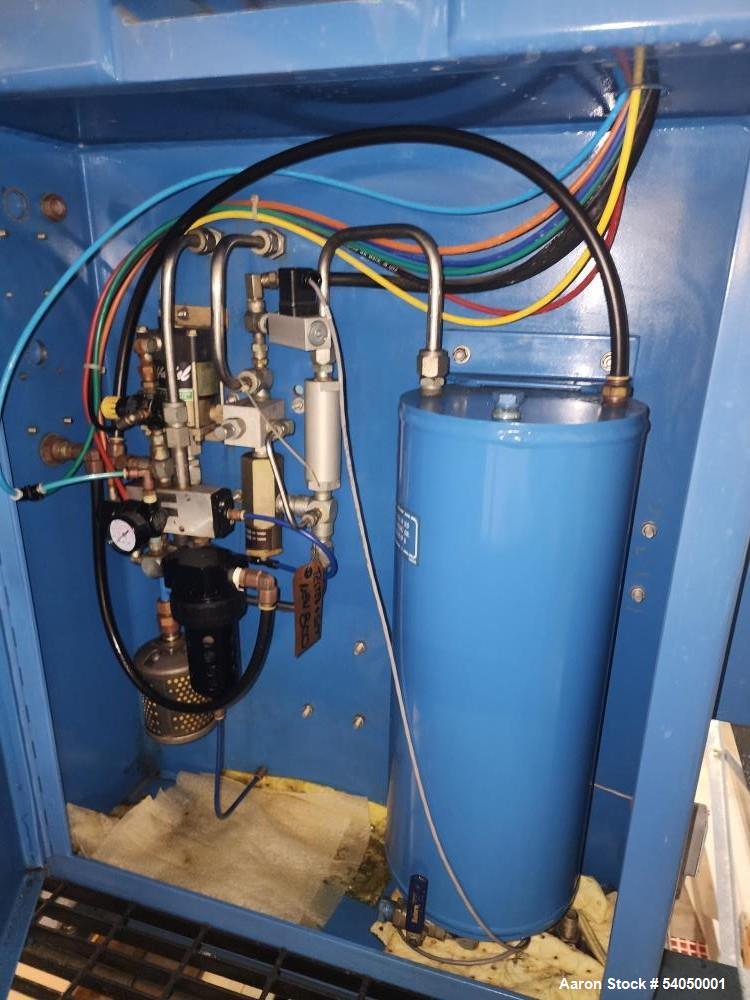

The system utilizes an air-powered hydraulic pump requiring up to 80 SCFM at 100 PSI, driving a 6" bore x 24" stroke hydraulic cylinder with a maximum hydraulic closing pressure of 4,100 PSI (283 bar). The hydraulic system includes a 4.5-gallon reservoir using Rykon All Weather Type-46 hydraulic oil.

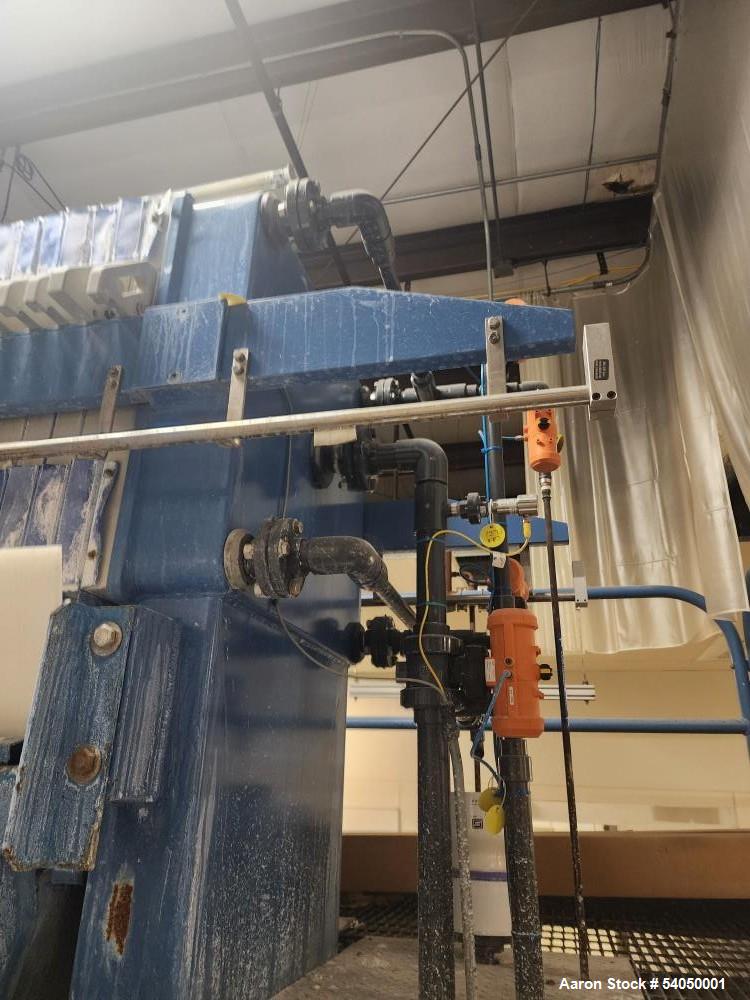

Designed with an air blow manifold style and precoating capability, the press enhances cake dryness and filtration efficiency. Feed pump pressure is rated at 100 PSI.

Optional features included with this system:

• Auto pump control system

• Semi-auto shifter

• Drum disposal system

• Bombay doors

With overall dimensions of approximately 218.63" L x 53.29" W, this unit is suitable for medium to large-scale filtration operations.

Specifications

• Model: 800N32-49-25SYLS

• Plate Size: 800 mm square

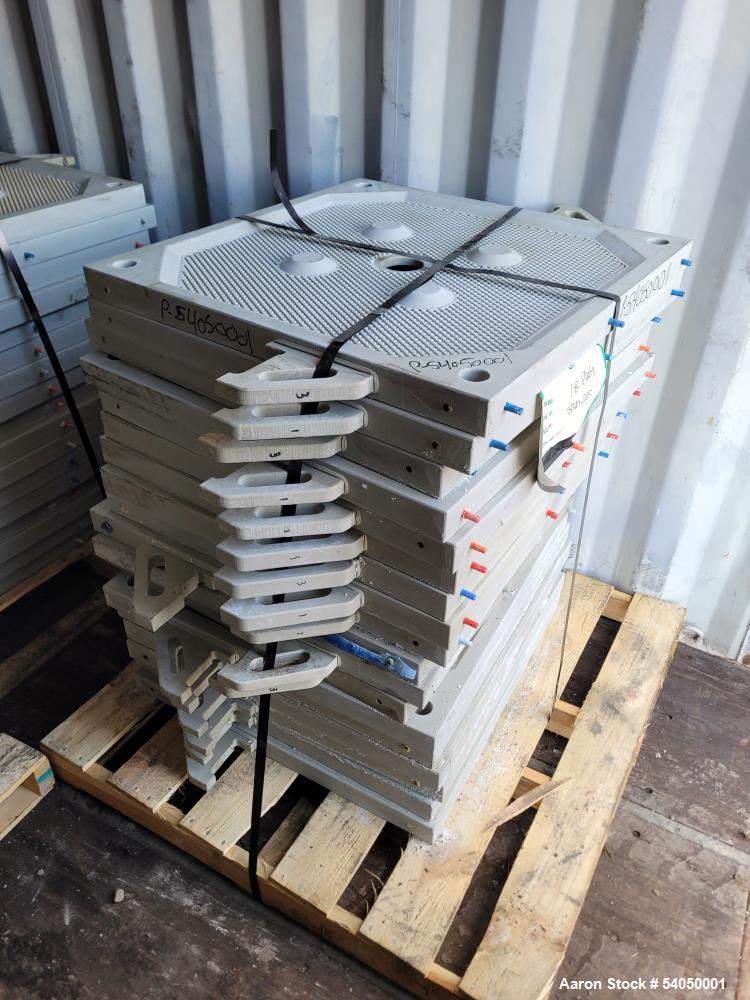

• Plates: Approx. (49) polypropylene plates

• Filter Cloth: Gore-Tex

• Total Filter Area: Approx. 528 sq. ft. (49 m²)

• Total Chamber Volume: Approx. 25 ft³ (0.707 m³)

• Chamber Volume: 0.5 ft³ per chamber

• Overall Dimensions:

  • 218.63" L

  • 53.29" W

• Hydraulic System:

  • Air-powered pump

  • Max air supply: 80 SCFM @ 100 PSI

  • Hydraulic cylinder: 6" bore x 24" stroke

  • Max closing pressure: 4,100 PSI (283 bar)

  • Reservoir: 4.5 gallons (17 L)

  • Oil: Rykon All Weather Type-46

• Feed Pump Pressure: 100 PSI

• Manifold Style: Air blow with precoating capability

• Year: 2017

Applications

• Wastewater treatment

• Chemical processing

• Mining and mineral processing

• Sludge dewatering

• Food processing filtration

What Might This Be Used For

This filter press is typically used for separating solids from liquids by pressure filtration, producing dry filter cake and clarified filtrate in industrial and municipal processes.
