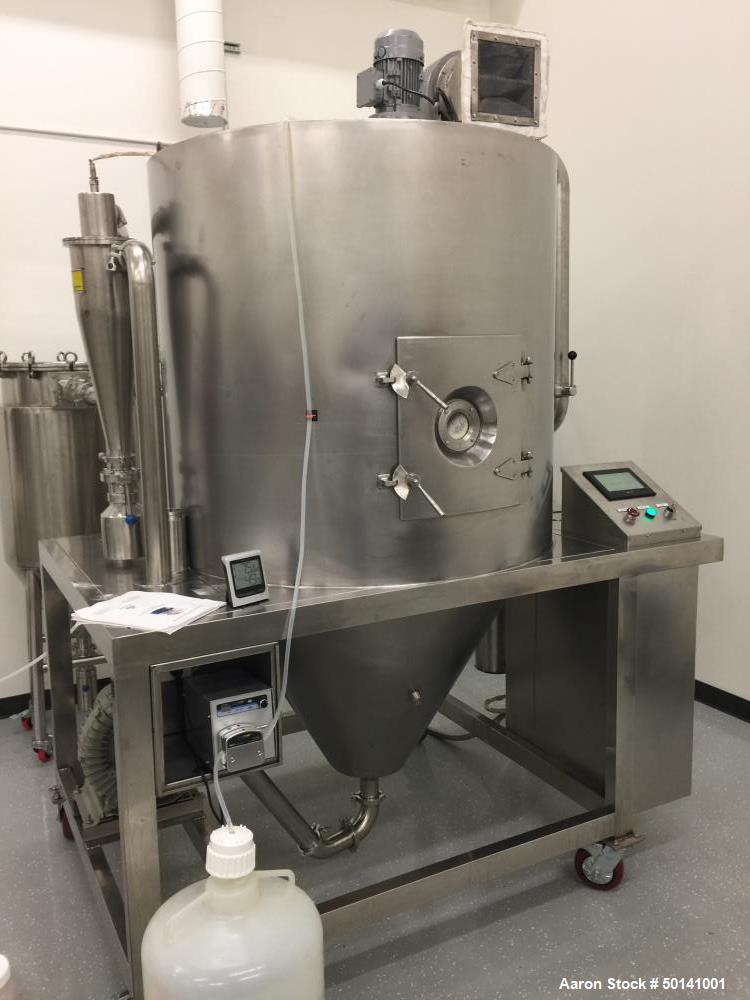

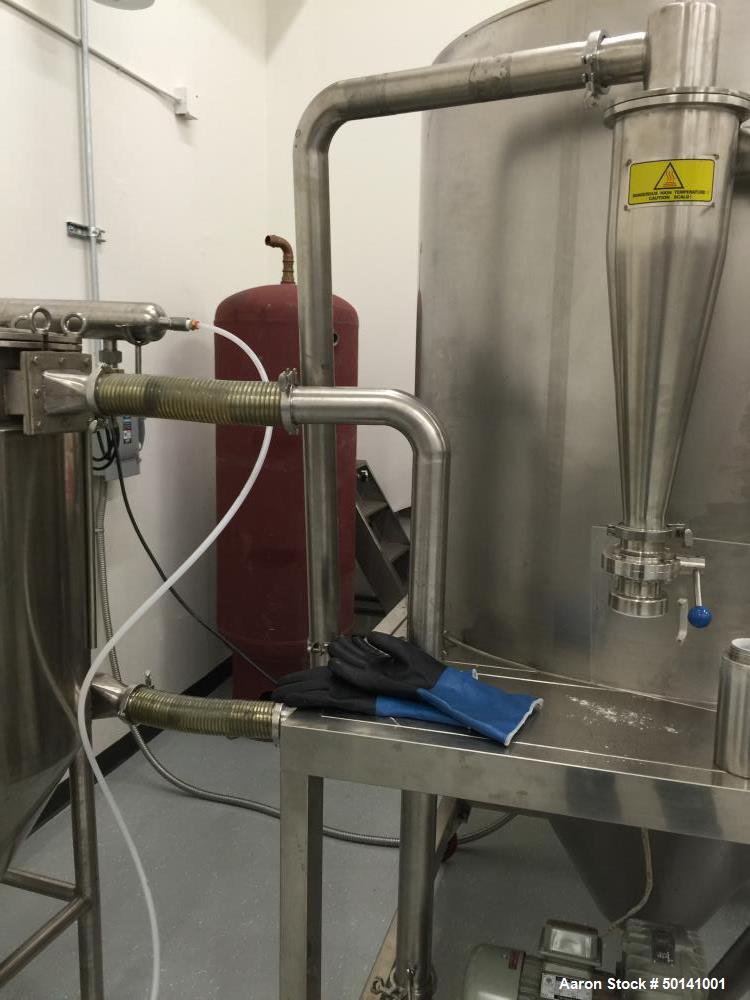

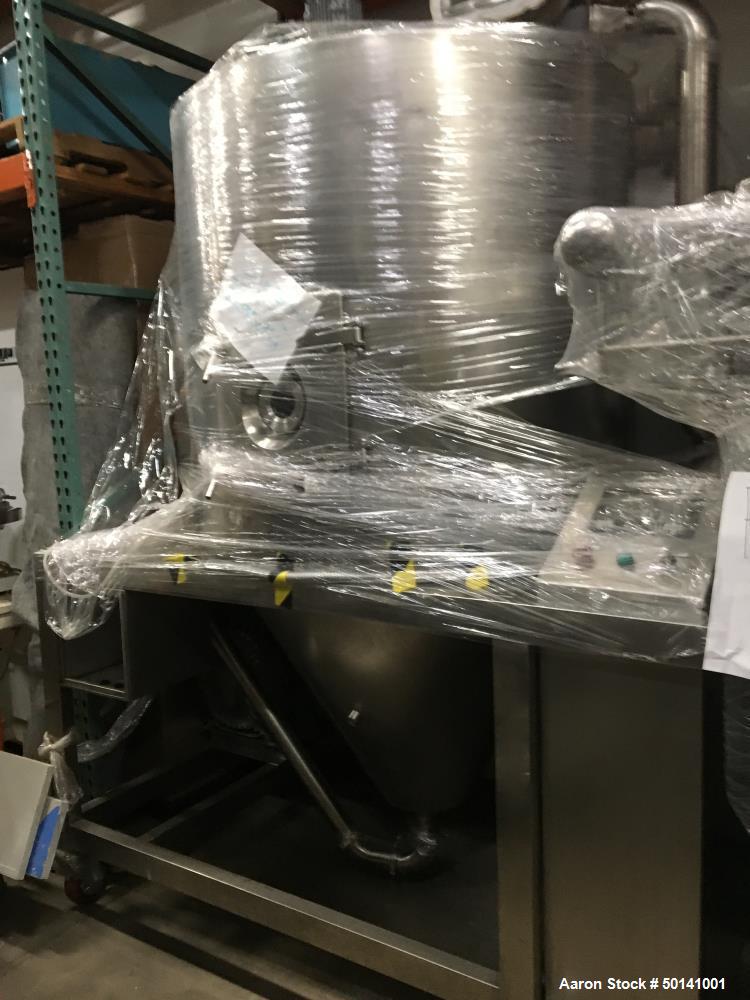

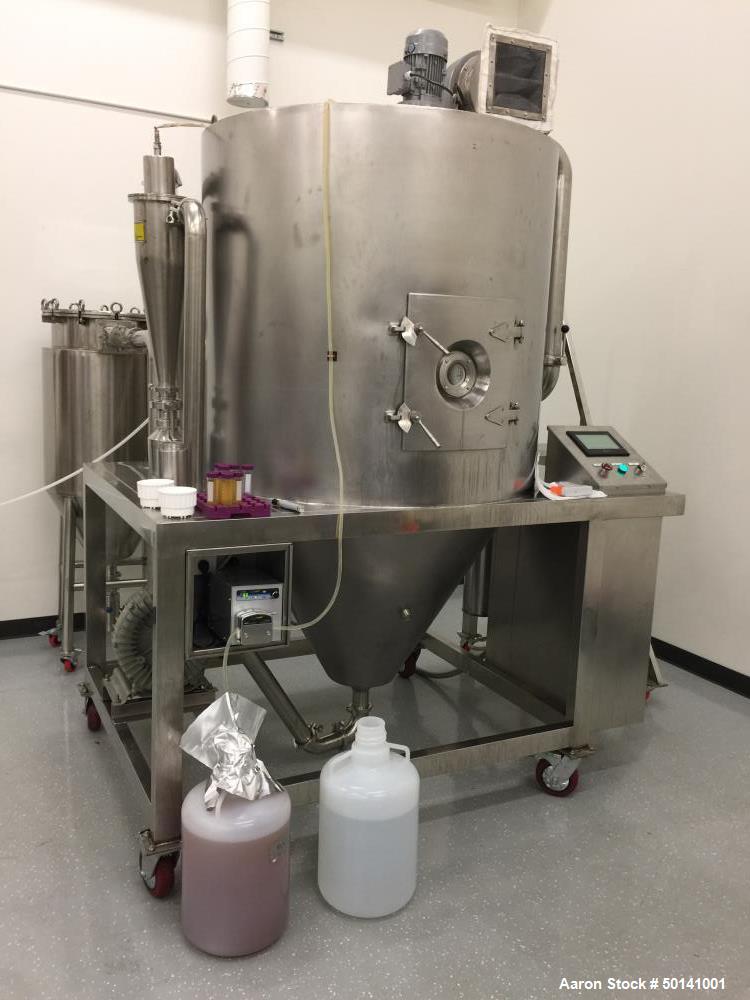

Used COL-IN-TECH Pilot Scale Spray Dryer, Model CIT-PSD-P5, 316 Stainless Steel. Inlet Gas Temperature: 0-320 degree C. Outlet Gas Temperature: 90-120 degree C. Evaporation Rate per hour: 5.0L at 300 degree C 3.5L at 250 C2.5L at 200 degree C 1.2L at 150 degree C. Feeding Pump: Constant flow peristaltic pump 550W. Electric Heating Watts: 12000 watts. Air Blower: 150m3/h, 1500W, Pressure 1020Pa. Compressed Air: 0.6MPa, 0.6m3/min. Jet Nozzle: Two-fluid nozzle D2.0mm. Rotary Disc Atomizer: 24K RPM, 250watts, D50mm Disc. Explosion-Proof: NOT, No Use for Explosive Solvents. Tower Size: Diameter 120cm, Height 100cm, Angle 55 degree. Power Type: Three phase 230V, 60Hz, 65Amp including surge, four wires (3 hot, 1 ground). Weight: 1200 kg/2500 pounds.
Used COL-IN-TECH Pilot Scale Spray Dryer, Model CIT-PSD-P5, 316 Stainless Steel. Inlet Gas Temperature: 0-320 degree C. Outlet Gas Temperature: 90-120 degree C. Evaporation Rate per hour: 5.0L at 300 degree C 3.5L at 250 C2.5L at 200 degree C 1.2L at 150 degree C. Feeding Pump: Constant flow peristaltic pump 550W. Electric Heating Watts: 12000 watts. Air Blower: 150m3/h, 1500W, Pressure 1020Pa. Compressed Air: 0.6MPa, 0.6m3/min. Jet Nozzle: Two-fluid nozzle D2.0mm. Rotary Disc Atomizer: 24K RPM, 250watts, D50mm Disc. Explosion-Proof: NOT, No Use for Explosive Solvents. Tower Size: Diameter 120cm, Height 100cm, Angle 55 degree. Power Type: Three phase 230V, 60Hz, 65Amp including surge, four wires (3 hot, 1 ground). Weight: 1200 kg/2500 pounds.
