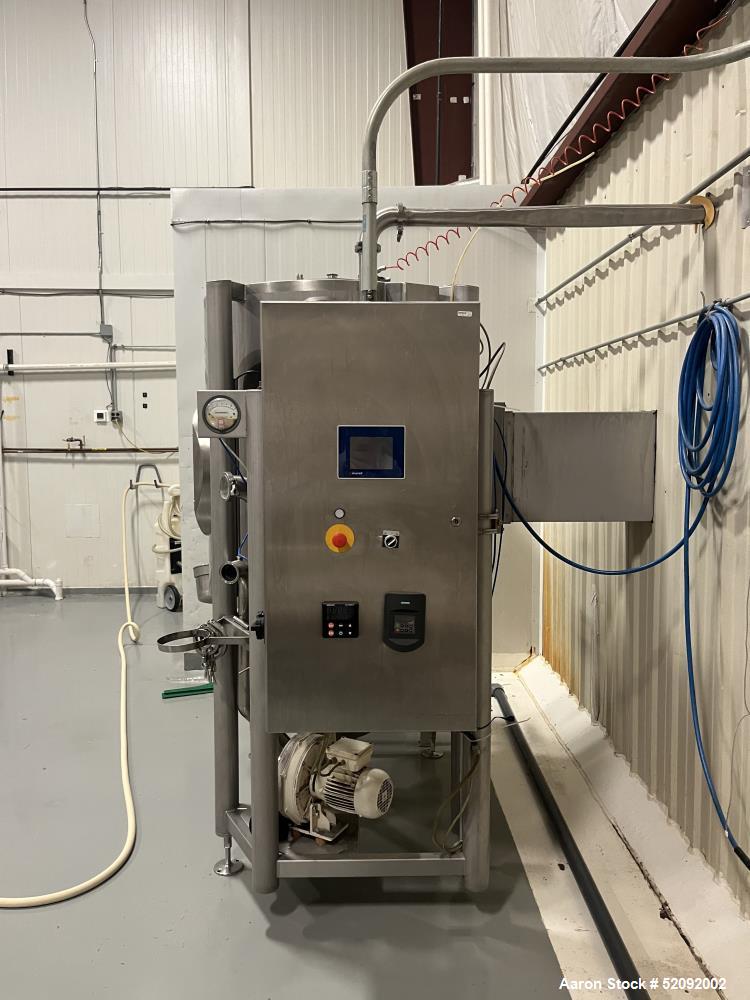

Used Anhydro SPX MicraSpray 150 Spray Dryer – R&D, 16 kg/h Water Evaporation Capacity
Used Anhydro SPX MicraSpray 150 Small Scale Spray Dryer designed for R&D applications. With two-fluid nozzle atomizer, drying chamber, cyclone, exhaust system, and a PLC-controlled panel with data logging. Maximum inlet air temperature of 350C and a water evaporation capacity of approximately 16 kg/h at an outlet temperature of 70C. It operates with a nominal drying air rate of 150 kg/h and features a 900 mm drying chamber diameter. The standard power supply is 3/50/400volt, with a 3 kW suction fan and a 15 kW air heater. Constructed with AISI 316L for product-contacting parts and AISI 304 for external surfaces. The unit requires a floor space of 2.5 m x 1.35 m, a height of 2.5 m, and a recommended free height of 3.2 m. The net weight is approximately 900 kg. Heating system is not included and must be added at additional cost. Ask an Aaron representative for costs for new heater from OEM.
| Manufacturer | AnhydroAnhydro |
| Model | MS-150 |
| Category | Dryers - Drying EquipmentDryers - Drying Equipment |
| Subcategory | Spray DryerSpray Dryer |
| Material of Construction | 316L Stainless Steel |
| Water Evaporation Rate Inlet | 16kg/hr |
| Water Evaporation Temp Inlet | 350 C |
| Water Evaporation Rate Outlet | 150kg/hr |
| Water Evaporation Temp Outlet | 70 C |
| Diameter | 35.4 |

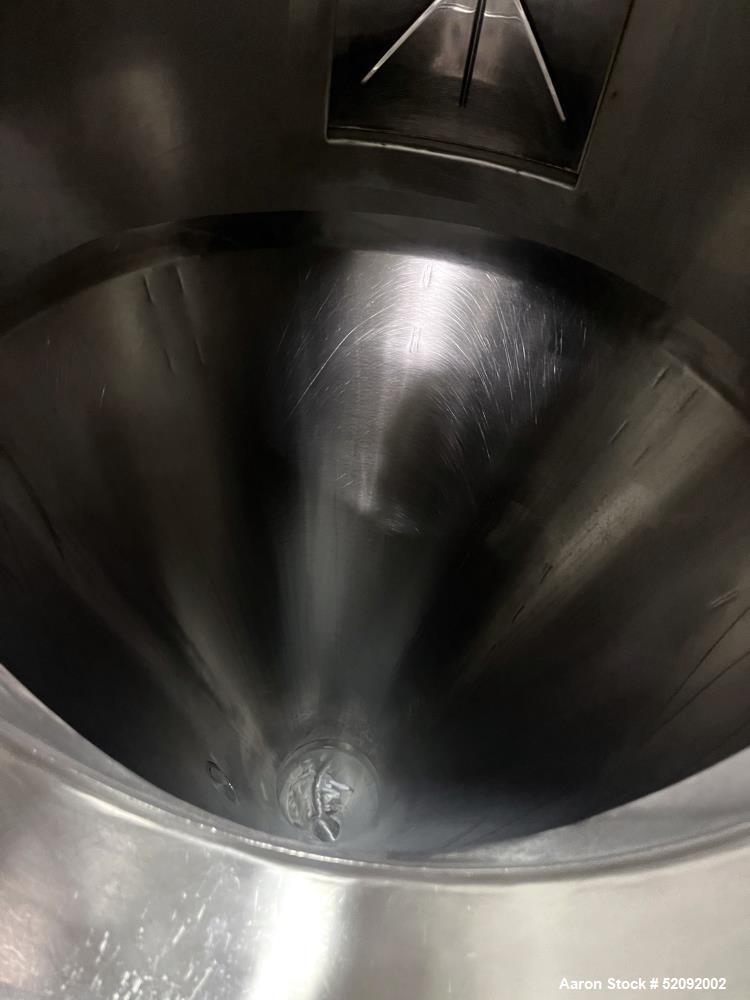

| Bottom | Coned Bottom |

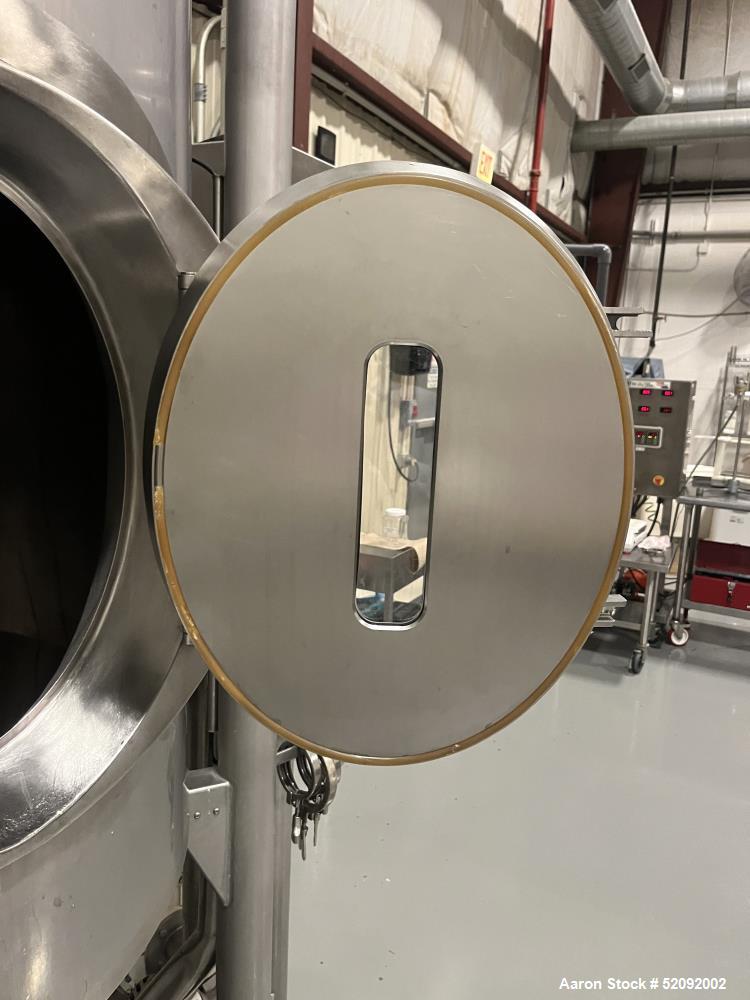

| Side Access Door | Yes |
| Mounted | Frame Mounted |
Description
The Used Anhydro SPX MicraSpray 150 Small Scale Spray Dryer is a high-performance system designed specifically for research and development applications. It features a two-fluid nozzle atomizer for efficient atomization and a PLC-controlled panel with data logging capabilities for precise control and monitoring. This system is ideal for small-scale production or laboratory testing, offering a maximum inlet air temperature of 350°C and a water evaporation capacity of approximately 16 kg/h at an outlet temperature of 70°C.

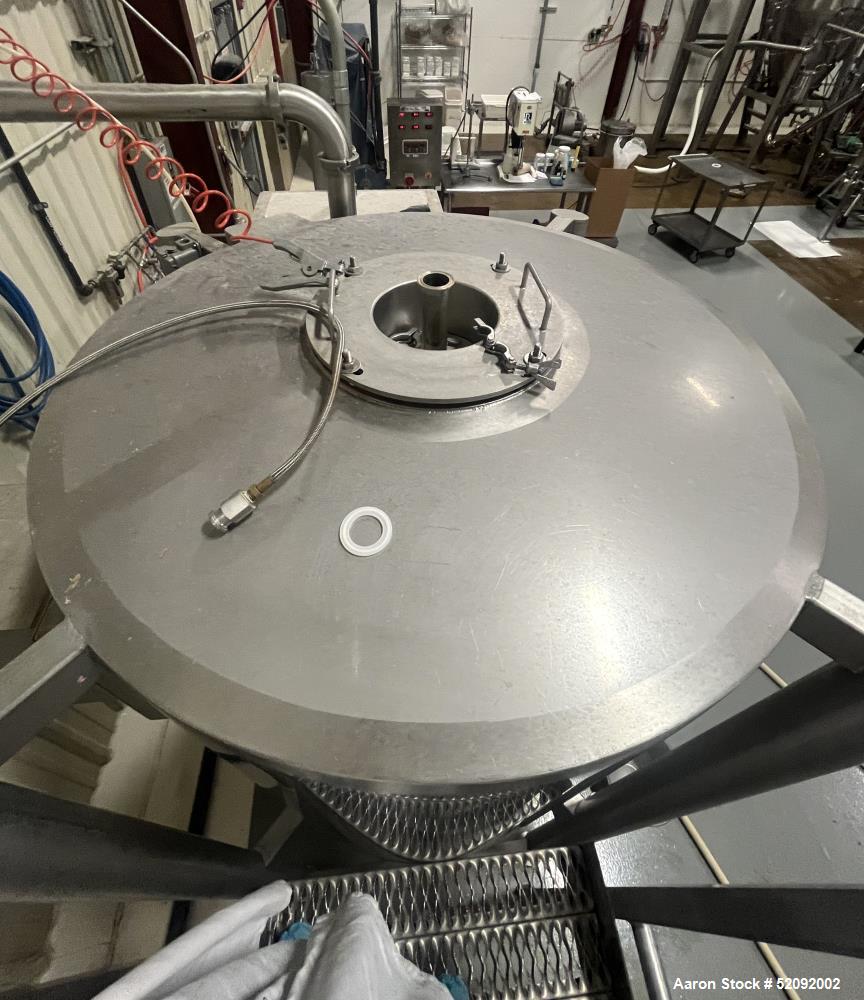

The drying chamber has a diameter of 900 mm and is constructed with AISI 316L stainless steel for all product-contact areas, ensuring durability and product safety. External surfaces are made of AISI 304 stainless steel. The unit includes a drying chamber, cyclone, exhaust system, and a suction fan for airflow management.
With a compact footprint of 2.5 m x 1.35 m and a height of 2.5 m, this spray dryer is well-suited for laboratory environments and small production spaces. The unit operates on a 3x400 V, 50 Hz power supply, with a 15 kW air heater and a 3 kW suction fan.
Specifications
- Model: MicraSpray 150
- Maximum Inlet Air Temperature: 350°C
- Water Evaporation Capacity: 16 kg/h at 70°C outlet temperature
- Nominal Drying Air Rate: 150 kg/h
- Drying Chamber Diameter: 900 mm
- Construction:
- Product-Contact Areas: AISI 316L Stainless Steel
- External Surfaces: AISI 304 Stainless Steel
- Power Supply: 3x400 V, 50 Hz
- Air Heater Power: 15 kW
- Suction Fan Power: 3 kW
- Dimensions: 2.5 m (L) x 1.35 m (W) x 2.5 m (H)
- Recommended Free Height: 3.2 m
- Net Weight: Approximately 900 kg
Applications
This small-scale spray dryer is ideal for:
- Research and development (R&D)
- Laboratory-scale production
- Pharmaceutical ingredient drying
- Food and beverage powder processing
- Chemical and specialty material drying
What Products Would This Be Used For?
- Dairy products and proteins
- Research & Development
- Plant-based extracts
- Pharmaceuticals and nutraceuticals
- Food flavorings and additives
- Chemical powders and catalysts
- Used Anhydro MicraSpray 150 spray dryer
- R&D small-scale spray dryer
- Laboratory spray dryer system
- Anhydro SPX spray dryer for sale
- Industrial spray dryer with 16 kg/h evaporation capacity
- Small-scale spray dryer
- Anhydro SPX spray dryer
- Laboratory spray drying system
- 316L stainless steel spray dryer
- R&D spray dryer for pharmaceuticals
- Anhydro MicraSpray 150 spray dryer for research applications
- Small-scale spray dryer with PLC control
- Laboratory spray dryer with two-fluid nozzle atomizer
- 316L stainless steel spray dryer for pharmaceuticals
- Compact R&D spray dryer system
- Anhydro MicraSpray 150 for food powder processing
- Compact spray dryer for R&D and laboratory use
- Used spray dryer with two-fluid nozzle atomizer
- 16 kg/h water evaporation spray dryer
- Pharmaceutical-grade small-scale spray dryer
- Used Anhydro SPX MicraSpray 150 small-scale spray dryer for R&D
- Laboratory spray dryer with 16 kg/h water evaporation capacity
- Compact spray dryer with two-fluid nozzle and PLC control
- 316L stainless steel spray dryer for food and pharmaceutical powders
- Anhydro MicraSpray 150 spray dryer for chemical and specialty material drying
- Used Anhydro MicraSpray 150 spray dryer for research and development
- Stainless steel spray dryer for chemical and specialty material drying
- Compact R&D spray dryer with PLC control and data logging
- Laboratory-scale spray dryer with two-fluid nozzle and 350°C max temperature
- Anhydro SPX MicraSpray 150 spray dryer for food, pharma, and chemical applications
"Dealing with Aaron is an easy and enjoyable process"
"Aaron Equipment is always my first call for used process equipment. Their inventory and customer service has ensured successful project results every time. Thanks y’all!"
"I have purchased all different types of equipment from Aaron Equipment over the last 10 years and have always been 100% happy with not only the equipment but with their customer service!"
"Working with Aaron Equipment Company was as easy as it gets."
"It is a pleasure to work with AEK and I would recommend them as an equipment supplier."
"The partnership we enjoy with Aaron has helped our business to be what it is today – thank you guys!”
"I will definitely use Aaron Equipment in the future."
"Aaron’s customer service indicates that they want long term partnerships and that is something we especially appreciate."
"I really value shopping for used equipment from Aaron Equipment Company because the information they present is accurate, their prices fair and their customer service is the best…Highly recommend."
"This is my first time using Aaron Equipment to purchase equipment. They were easy to work with and things were done quickly and efficiently. I will be a repeat customer when the need arises. This is a trustworthy company that delivers what they advertise."
"I have purchased multiple pieces of equipment through Aaron equipment over the past 15 years. The staff has been very knowledgeable on every request & have spent countless hours ensuring that the equipment I was purchasing met my expectations."
"I have been doing business with Aaron equipment for many years. This year I had the need for some used equipment in a new business Venture. I got in touch with Ryan Davies. I could not be happier with the response and honesty exhibited by him. Dealing with them was a pleasure and everything was as represented. Fair an Honest is how I would describe them."
“Aaron Equipment was very easy to get into contact with and get a price on a un-used chiller they were selling. The process was seamless and very easy on our end and we had the equipment much faster than going out for bid on it to multiple vendors and we able to come in under budget on the project.”
"Aaron Equipment is always my first call for used process equipment. Their inventory and customer service has ensured successful project results every time. Thanks y’all!"
"I have purchased all different types of equipment from Aaron Equipment over the last 10 years and have always been 100% happy with not only the equipment but with their customer service!"
"Working with Aaron Equipment Company was as easy as it gets."
"It is a pleasure to work with AEK and I would recommend them as an equipment supplier."
"The partnership we enjoy with Aaron has helped our business to be what it is today – thank you guys!”
"I will definitely use Aaron Equipment in the future."
"Aaron’s customer service indicates that they want long term partnerships and that is something we especially appreciate."
"I really value shopping for used equipment from Aaron Equipment Company because the information they present is accurate, their prices fair and their customer service is the best…Highly recommend."
Used Anhydro SPX MicraSpray 150 Small Scale Spray Dryer designed for R&D applications. With two-fluid nozzle atomizer, drying chamber, cyclone, exhaust system, and a PLC-controlled panel with data logging. Maximum inlet air temperature of 350C and a water evaporation capacity of approximately 16 kg/h at an outlet temperature of 70C. It operates with a nominal drying air rate of 150 kg/h and features a 900 mm drying chamber diameter. The standard power supply is 3/50/400volt, with a 3 kW suction fan and a 15 kW air heater. Constructed with AISI 316L for product-contacting parts and AISI 304 for external surfaces. The unit requires a floor space of 2.5 m x 1.35 m, a height of 2.5 m, and a recommended free height of 3.2 m. The net weight is approximately 900 kg. Heating system is not included and must be added at additional cost. Ask an Aaron representative for costs for new heater from OEM.
Description
The Used Anhydro SPX MicraSpray 150 Small Scale Spray Dryer is a high-performance system designed specifically for research and development applications. It features a two-fluid nozzle atomizer for efficient atomization and a PLC-controlled panel with data logging capabilities for precise control and monitoring. This system is ideal for small-scale production or laboratory testing, offering a maximum inlet air temperature of 350°C and a water evaporation capacity of approximately 16 kg/h at an outlet temperature of 70°C.
The drying chamber has a diameter of 900 mm and is constructed with AISI 316L stainless steel for all product-contact areas, ensuring durability and product safety. External surfaces are made of AISI 304 stainless steel. The unit includes a drying chamber, cyclone, exhaust system, and a suction fan for airflow management.
With a compact footprint of 2.5 m x 1.35 m and a height of 2.5 m, this spray dryer is well-suited for laboratory environments and small production spaces. The unit operates on a 3x400 V, 50 Hz power supply, with a 15 kW air heater and a 3 kW suction fan.
Specifications
- Model: MicraSpray 150
- Maximum Inlet Air Temperature: 350°C
- Water Evaporation Capacity: 16 kg/h at 70°C outlet temperature
- Nominal Drying Air Rate: 150 kg/h
- Drying Chamber Diameter: 900 mm
- Construction:
- Product-Contact Areas: AISI 316L Stainless Steel
- External Surfaces: AISI 304 Stainless Steel
- Power Supply: 3x400 V, 50 Hz
- Air Heater Power: 15 kW
- Suction Fan Power: 3 kW
- Dimensions: 2.5 m (L) x 1.35 m (W) x 2.5 m (H)
- Recommended Free Height: 3.2 m
- Net Weight: Approximately 900 kg
Applications
This small-scale spray dryer is ideal for:
- Research and development (R&D)
- Laboratory-scale production
- Pharmaceutical ingredient drying
- Food and beverage powder processing
- Chemical and specialty material drying
What Products Would This Be Used For?
- Dairy products and proteins
- Research & Development
- Plant-based extracts
- Pharmaceuticals and nutraceuticals
- Food flavorings and additives
- Chemical powders and catalysts
| Manufacturer | Anhydro |
| Model | MS-150 |
| Category | Dryers - Drying Equipment |
| Subcategory | Spray Dryer |
| Material of Construction | 316L Stainless Steel |
| Water Evaporation Rate Inlet | 16kg/hr |
| Water Evaporation Temp Inlet | 350 C |
| Water Evaporation Rate Outlet | 150kg/hr |
| Water Evaporation Temp Outlet | 70 C |
| Diameter | 35.4 |
| Bottom | Coned Bottom |
| Side Access Door | Yes |
| Mounted | Frame Mounted |
