Unused Wisconsin SWH-6126.5-G8 Heavy Duty Walk-In Oven – 800°F, 11,500 CFM, Watlow F4T, 2024

DOWNLOAD ALL PHOTOS FOR THIS ITEM WITHOUT AARON WATERMARK

SELL US YOURS

Stock # 53764003

Unused Wisconsin SWH-6126.5-G8 Heavy Duty Walk-In Oven 800F, 11,500 CFM, Watlow F4T, 2024, Model SWH-6126.5-G8. Temperature Rating: Maximum 800 degrees F, Normal 700 degrees F, Minimum 290 degrees F above ambient. Temperature Uniformity: +/- 10 degrees F at 700 degrees F. Chamber Dimensions: 6'0" wide x 12'0" long x 6'6" high. Overall (approximate): 10'6" wide x 13'6" long x 11'8" high. Body Construction: Tongue & groove panel assemblies featuring our patented high efficiency panel seams, 6" of 6# density, industrial board type insulation with a 1,200 degrees F service temperature rating; removable 20 gauge 304 stainless steel interior; 20 gauge carbon steel exterior; 12 gauge base and roof trim. Oven Doors: Bi-parting horizontal swing at one (1) end only. Oven Floor: Reinforced insulated floor (2" thick) with 12 gauge wheel guides, and 1/8" of flat gasket under the wheel guides tracks to be 3" wide and centered 30" with the entrance ends. Recirculation: 11,500 CFM @ 15 HP with stainless steel wheel and shaft; belt driven. Exhaust: 1,900 CFM @ 1 HP; with motorized dampers on both the fresh air inlet and exhaust outlet. Heating Equipment: Industrial air heat burner rated at 800,000 BTU per hour. Hang Rails: Stainless steel load bar supports spaced every 18" each to support 25 lbs. Watlow F4T recorder/controller and a Honeywell 4200 paper recorder, 4.3" color touch screen; graphical trending; USB port for downloading data. Utility Requirements: 208 volt, 3 phase, 60 hertz, 1,000 BTU per cubic foot at a constant pressure of 2-5 PSIG. New in March, 2024.

SPECIFICATIONS

Model	SWH-6126.5-G8
Category	Dryers - Drying EquipmentDryers - Drying Equipment
Subcategory	OvenOven

Used Equipment Facts About This Machine

🏭 Manufacturer

Wisconsin Oven Corporation
Wisconsin Oven is a leading manufacturer of industrial ovens and heat processing equipment, renowned for delivering rugged, high-performance walk-in and batch ovens for aerospace, automotive, metal finishing, and composites industries.

📝 Description

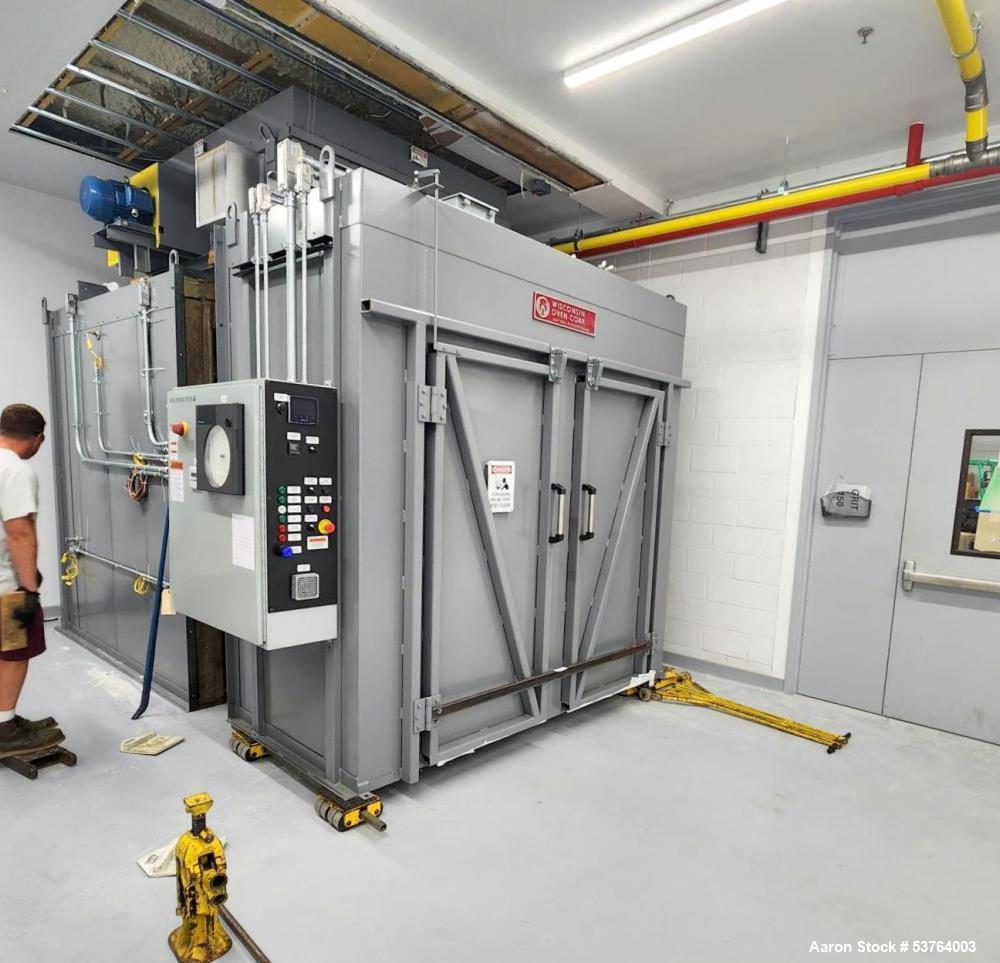

This unused Wisconsin Oven Model SWH-6126.5-G8, part of the SWH Series Heavy Duty Walk-In Ovens, was manufactured in March 2024 and is designed for high-temperature industrial processes. Rated for a maximum of 800°F, this oven offers excellent temperature uniformity of ±10°F at 700°F and is equipped with top-tier thermal efficiency features.

The interior chamber dimensions measure 6' W x 12' L x 6'6" H, enclosed in a rugged, tongue-and-groove panel system with 6 inches of high-density, 1,200°F-rated insulation. The oven features a 304 stainless steel removable interior, carbon steel exterior, and a heavy-duty 12-gauge base and roof trim.

The oven includes:

Reinforced insulated floor with wheel guides for cart entry

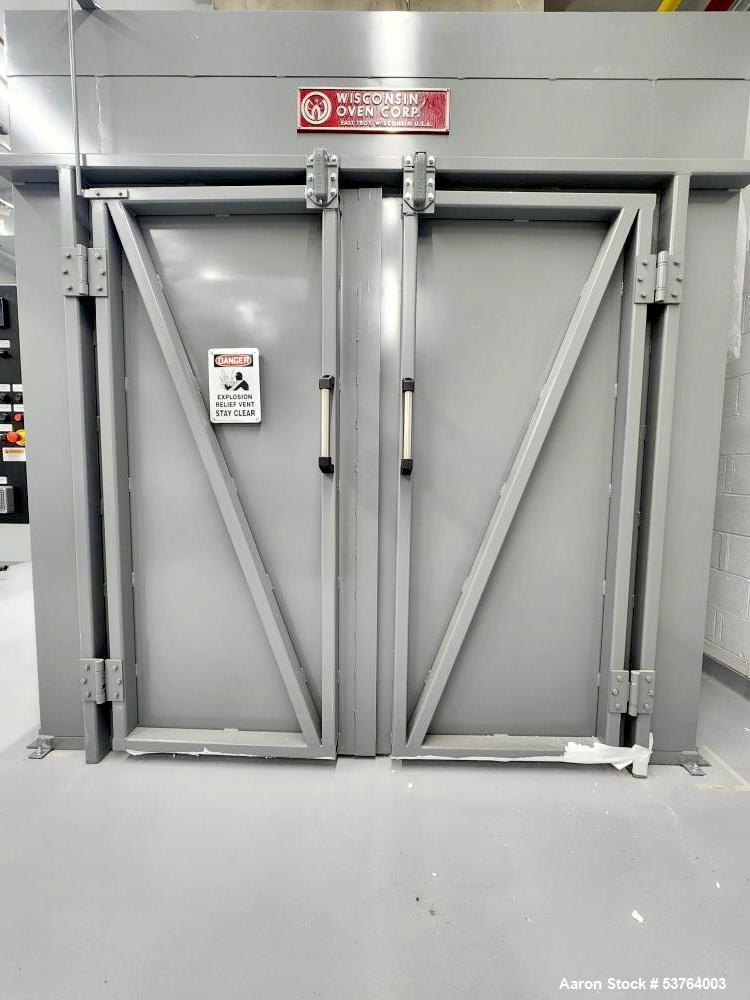

Bi-parting horizontal swing doors at one end
Recirculation blower at 11,500 CFM with a 15 HP motor
Exhaust blower at 1,900 CFM with motorized dampers

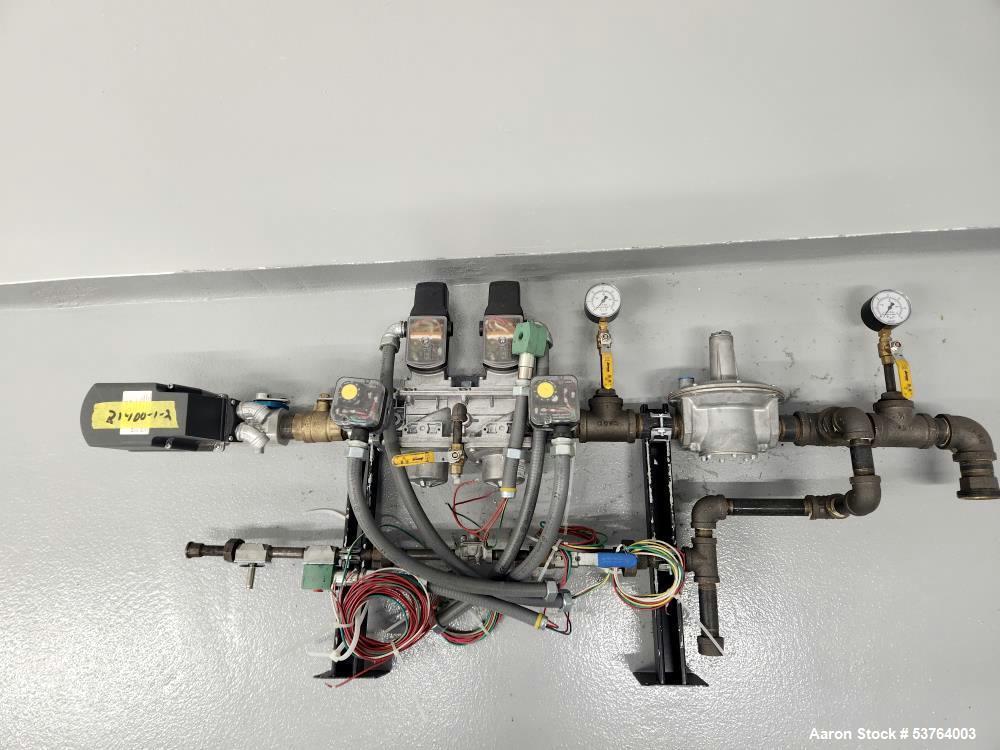

800,000 BTU/hr industrial air heat burner
Stainless steel hang rail supports rated for 25 lbs each, spaced 18" apart
Watlow F4T recorder/controller and Honeywell 4200 paper recorder for process data acquisition and control

This unit is ideal for applications requiring robust airflow, high temperature uniformity, and reliable process control.

⚙️ Specifications

Model: SWH-6126.5-G8
Series: SWH Heavy Duty Walk-In Oven
Year: 2024 (unused)
Temperature Rating:
- Max: 800°F
- Normal: 700°F
- Min: 290°F above ambient
Uniformity: ±10°F at 700°F
Chamber Dimensions: 6’0” W x 12’0” L x 6’6” H
Overall Dimensions: Approx. 10’6” W x 13’6” L x 11’8” H
Construction:
- 6" thick, 6# density industrial board insulation
- 20-gauge 304 stainless steel interior (removable)
- 20-gauge carbon steel exterior
- 12-gauge base and roof trim
Doors: Bi-parting horizontal swing, one end
Floor:
- Reinforced 2" insulated
- 12-gauge wheel guides, 3" wide, centered 30"
- 1/8" gasket under guides
Recirculation:
- 11,500 CFM @ 15 HP
- Stainless steel wheel and shaft
- Belt-driven
Exhaust:
- 1,900 CFM @ 1 HP
- Motorized dampers on fresh air and exhaust
Heat Source: 800,000 BTU/hr industrial air heat burner
Hang Rails: Stainless steel load bars, spaced every 18", 25 lbs capacity
Controls:

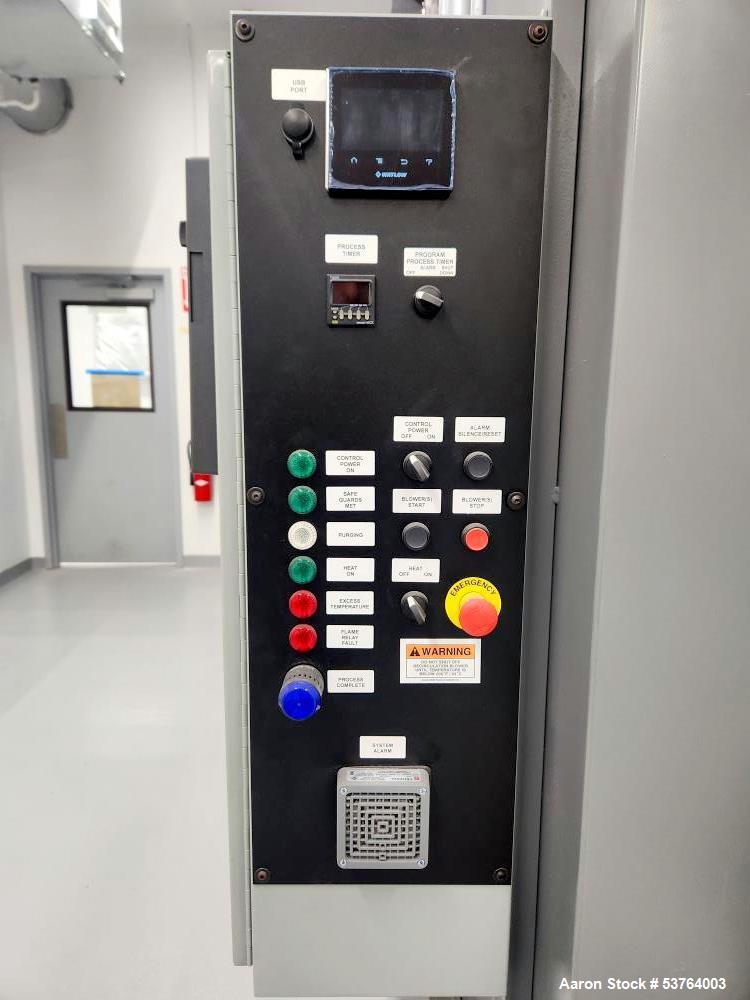

- Watlow F4T controller with 4.3” color touch screen

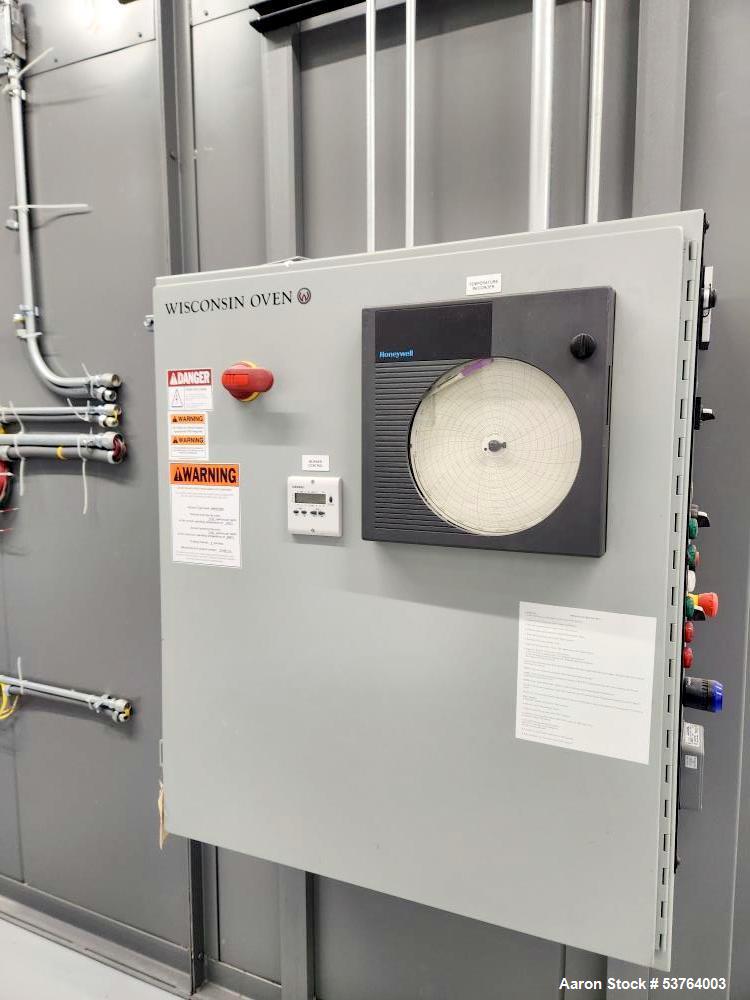

- Honeywell 4200 paper recorder
- USB data port, graphical trending
Utilities:
- 208V, 3-phase, 60 Hz
- Fuel requirement: 1,000 BTU/cu. ft. @ 2–5 PSIG

🧩 Applications

Perfect for:

Heat treating of metal components
Aerospace composites curing
Powder coating and paint baking
Plastics annealing
Curing adhesives, sealants, and resins
Post-weld heat treating
Stress relieving of machined parts
Preheating molds or dies
Industrial drying and outgassing
Thermal testing and burn-in

🔧 What Might This Be Used For?

Batch heat treating for metal and aerospace parts
Controlled high-temp drying of industrial products
Curing composite laminates, adhesives, or coatings
Automotive exhaust or structural testing
Pre-production thermal simulation or R&D test environments
Industrial bake-out in cleanroom or manufacturing settings
Supporting inline processes that need standalone high-temperature control
Expanding throughput for contract coating/curing operations
High-uniformity heating in thermal-sensitive manufacturing
Replacement or upgrade for aging convection ovens
