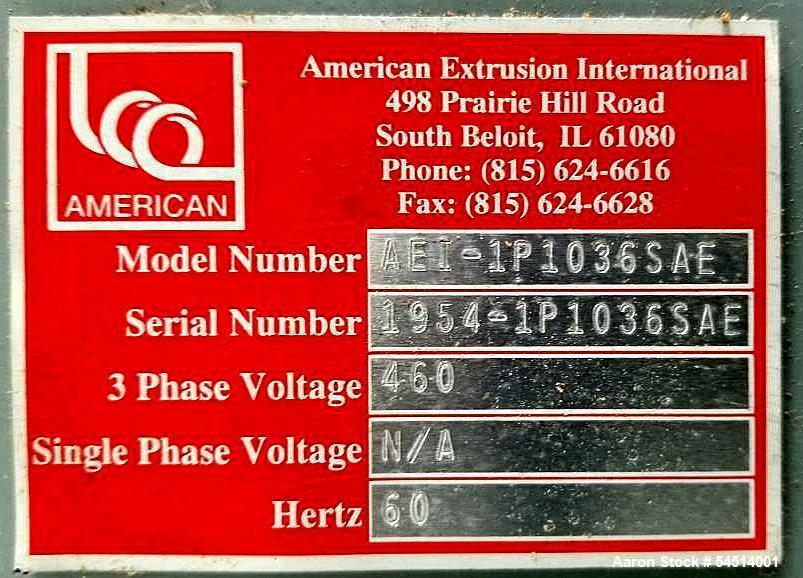

Manufacturer Information

Manufacturer: American Extrusion International (AEI)
Model: 1P1036SAE
Equipment Type: One-Pass Continuous Oven Dryer
Serial Number: 1954-1P1036SAE
Year Built: 2014
Construction: Stainless Steel
Condition: Used
Previous Application: Snack Food Drying

Description

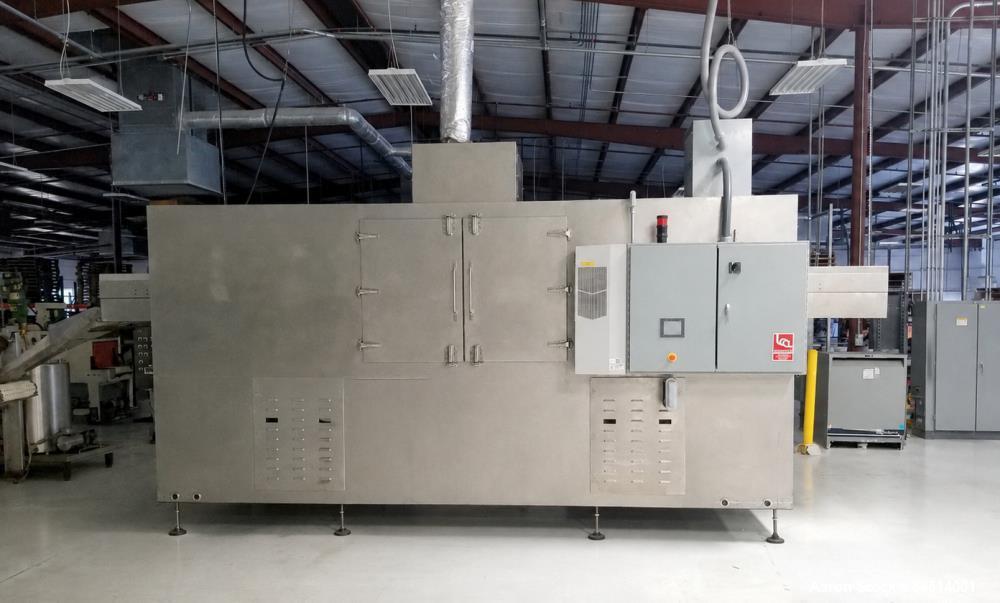

Available for sale is a used American Extrusion International Model 1P1036SAE One-Pass Oven Dryer, designed for continuous drying operations with production capacities of up to 1,000 pounds per hour, depending on product characteristics, moisture content, and process requirements.

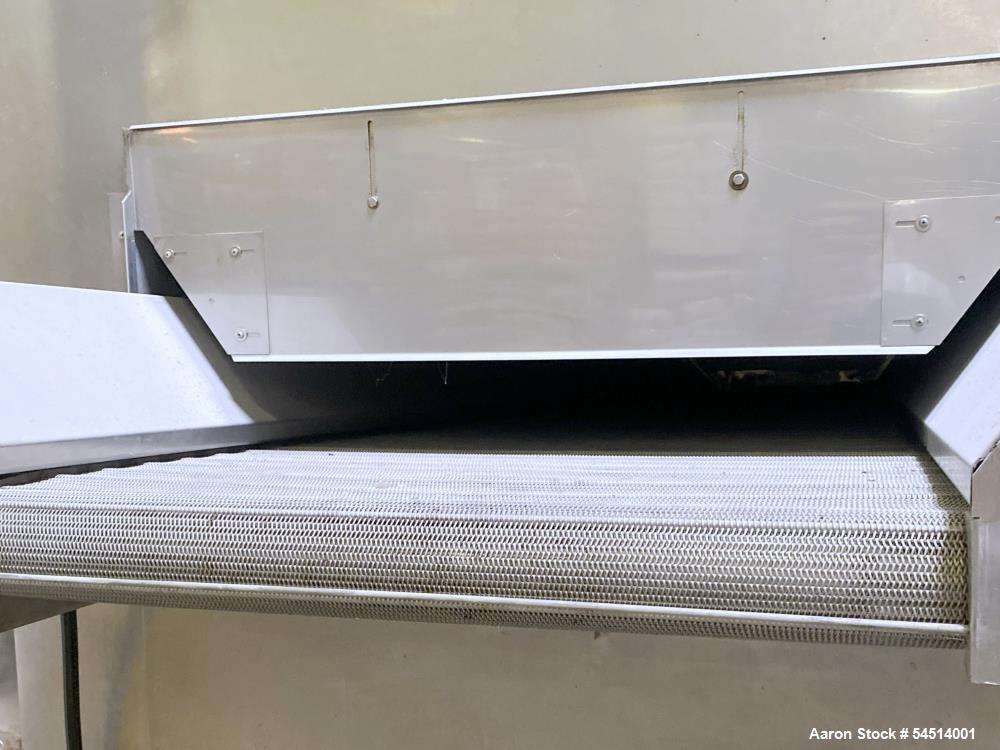

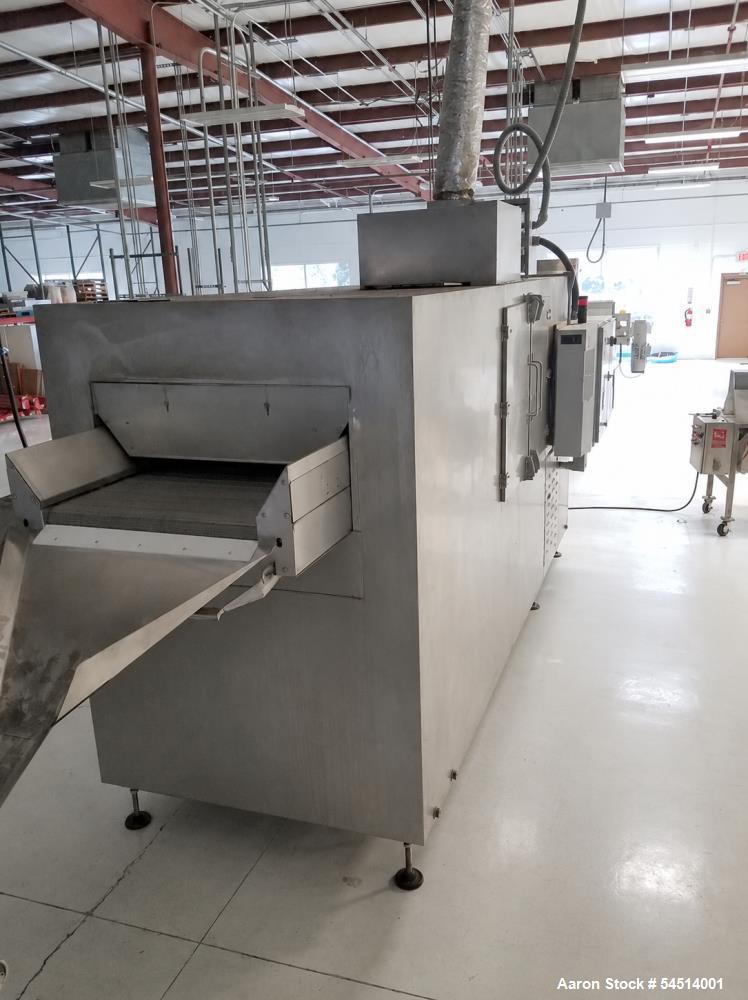

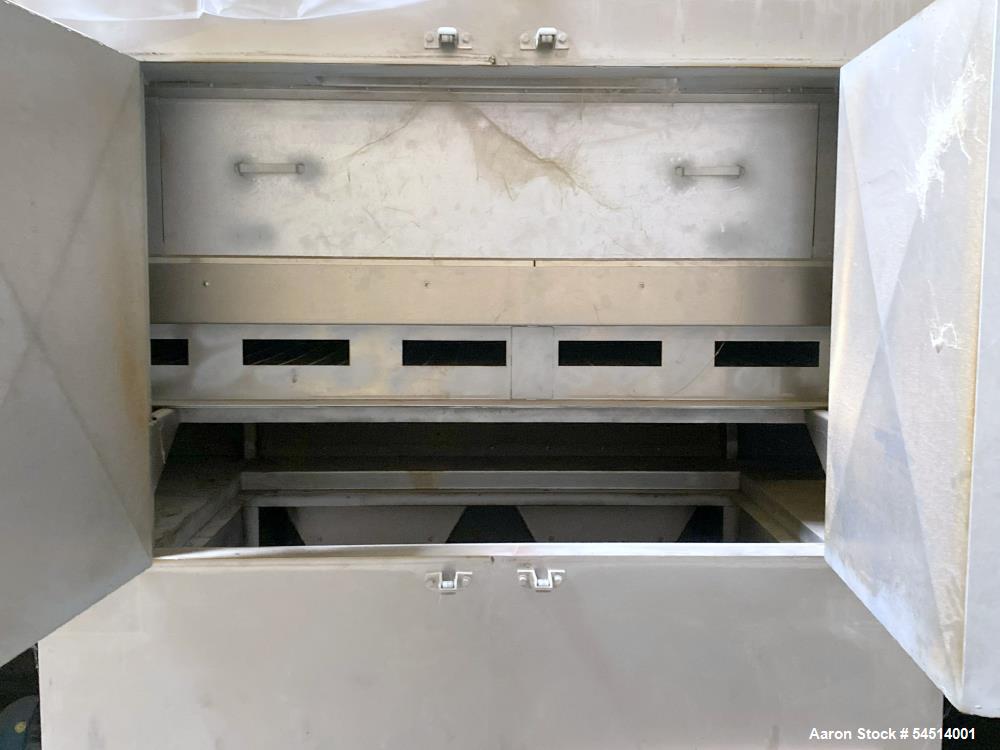

This stainless steel dryer features a single-pass conveyorized drying design, providing consistent product exposure to controlled heated air while maintaining efficient moisture removal. The system operates at approximately 350°F (±50°F) and offers an adjustable product residence time from 1.5 to 8 minutes, allowing flexibility across a variety of food, agricultural, ingredient, and specialty product drying applications.

The dryer is equipped with a Pentair N360846G050 air conditioning and environmental control system, touchscreen HMI controls, leveling feet, and integrated process monitoring capabilities. Previously utilized in a snack food manufacturing operation, this unit is suitable for expanding production capacity or replacing existing drying equipment.

Specifications

General Information

• Manufacturer: American Extrusion International (AEI)
• Model: 1P1036SAE
• Serial Number: 1954-1P1036SAE
• Year Built: 2014
• Equipment Type: One-Pass Continuous Oven Dryer
• Construction: Stainless Steel
• Previous Application: Snack Food Drying
• Condition: Used

Production Capacity

• Throughput: Up to 1,000 Pounds Per Hour
• Capacity Dependent on Product Characteristics
• Continuous Operation Design

Drying System

• Dryer Type: Single-Pass Conveyor Dryer

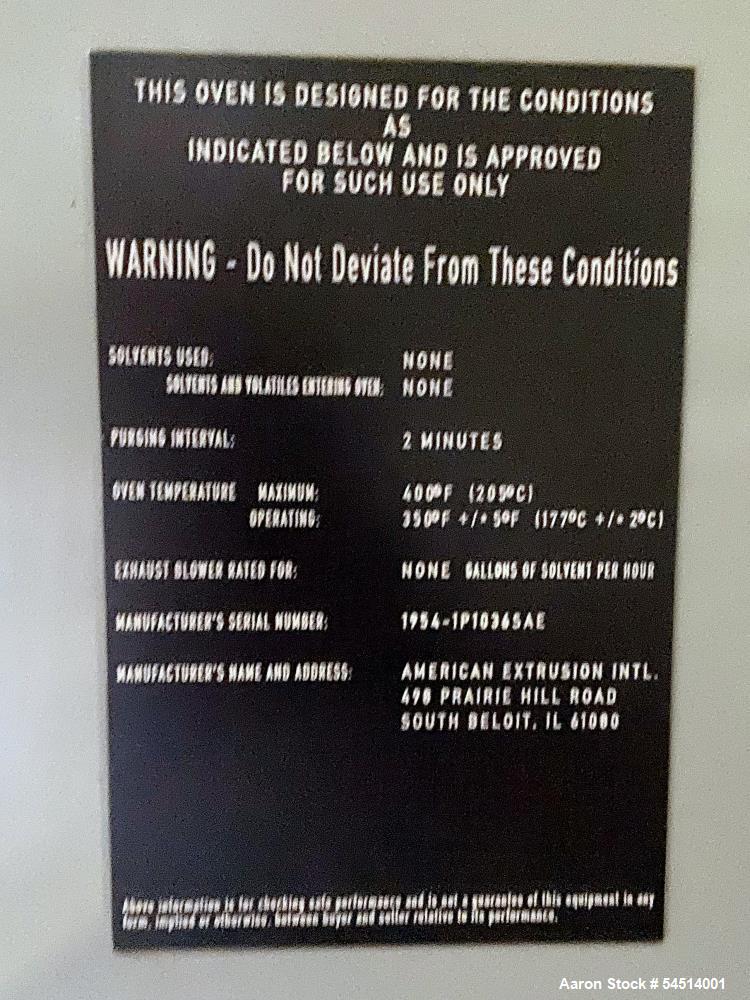

• Operating Temperature: Approximately 350°F
• Temperature Variation: ±50°F
• Adjustable Product Residence Time:
  • Minimum: 1.5 Minutes
  • Maximum: 8 Minutes

Environmental Control System

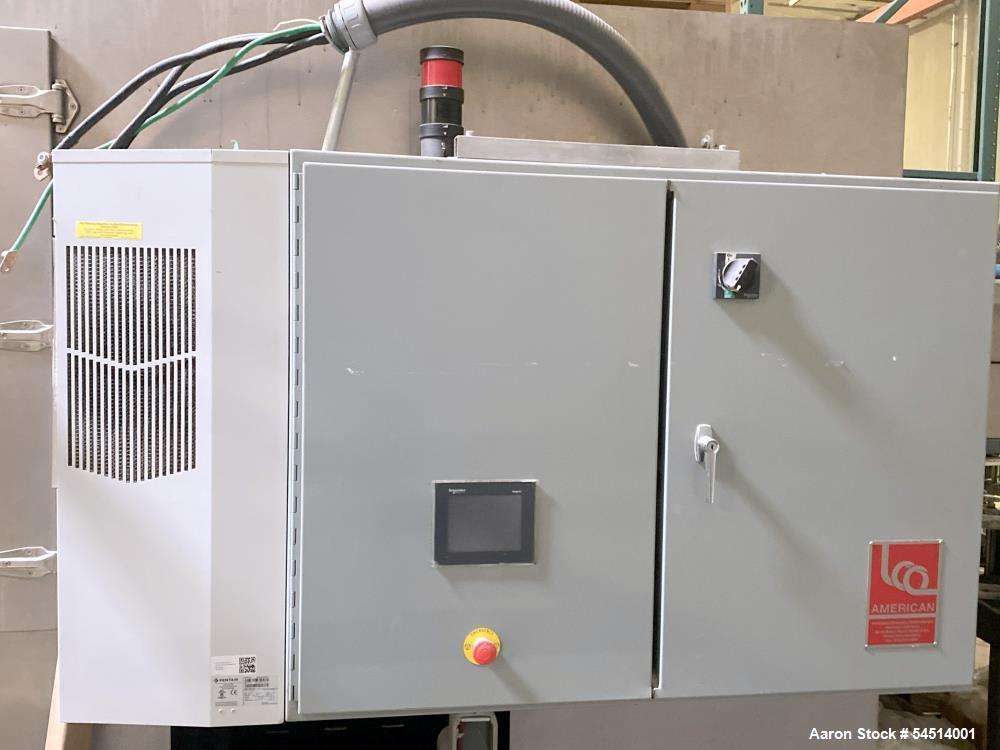

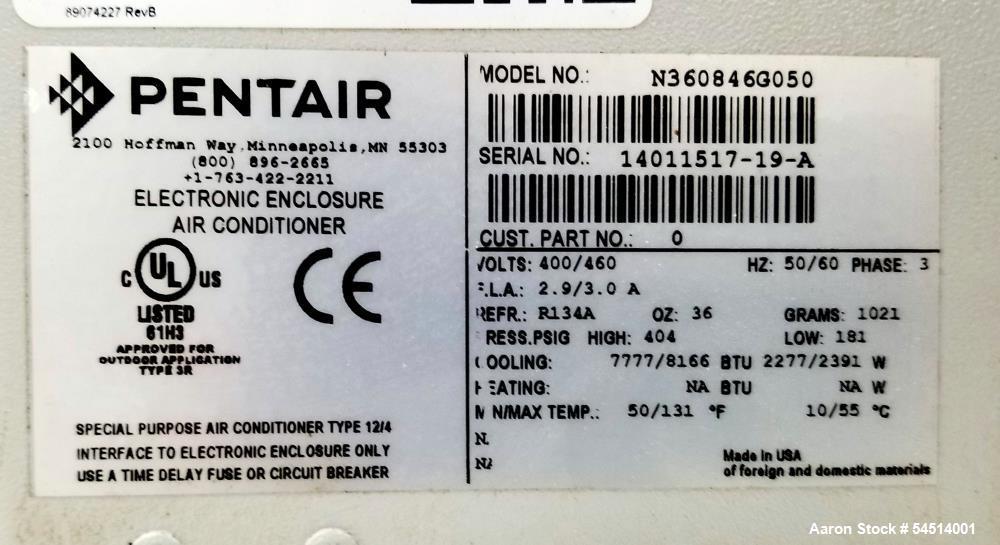

Pentair Air Conditioning Unit

• Manufacturer: Pentair
• Model: N360846G050

Cooling Capacity

• 7,777 BTU/Hour
• 8,166 BTU/Hour

Operating Temperature Range

• Minimum Ambient Temperature: 50°F
• Maximum Ambient Temperature: 131°F

Refrigeration System

• Refrigerant: R134A
• Maximum High Side Pressure: 404 PSIG
• Maximum Low Side Pressure: 181 PSIG

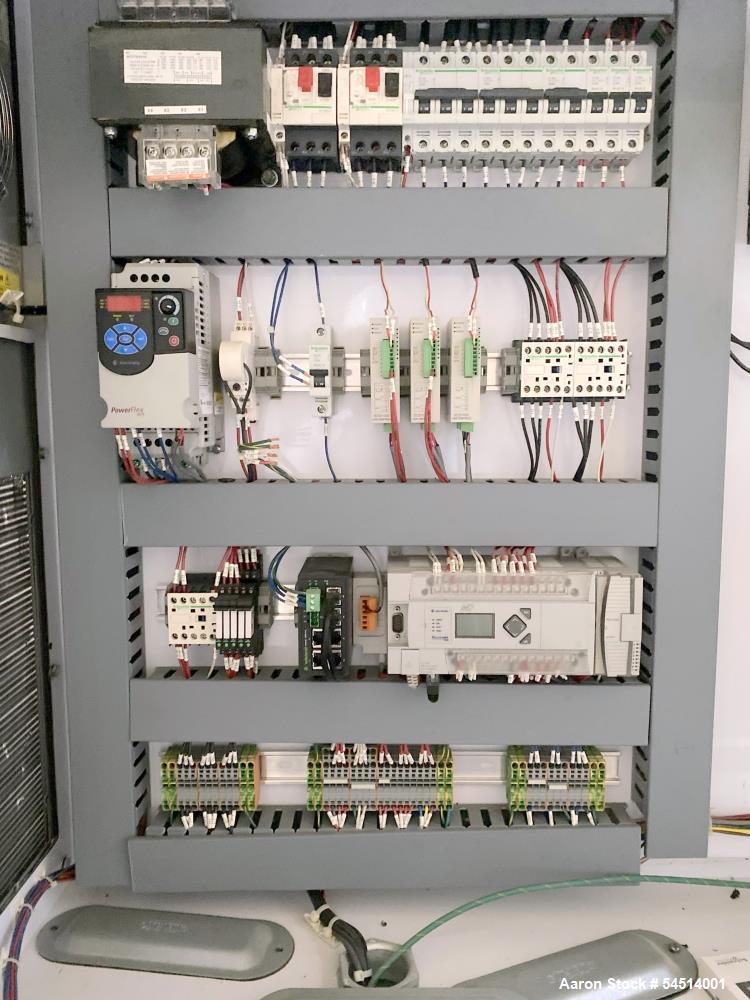

Controls

• Touchscreen HMI Interface
• Process Monitoring System
• Operator-Friendly Controls
• Production Parameter Adjustment
• System Diagnostics and Monitoring

Electrical Requirements

• Voltage: 460 Volt
• Phase: 3 Phase
• Frequency: 60 Hertz

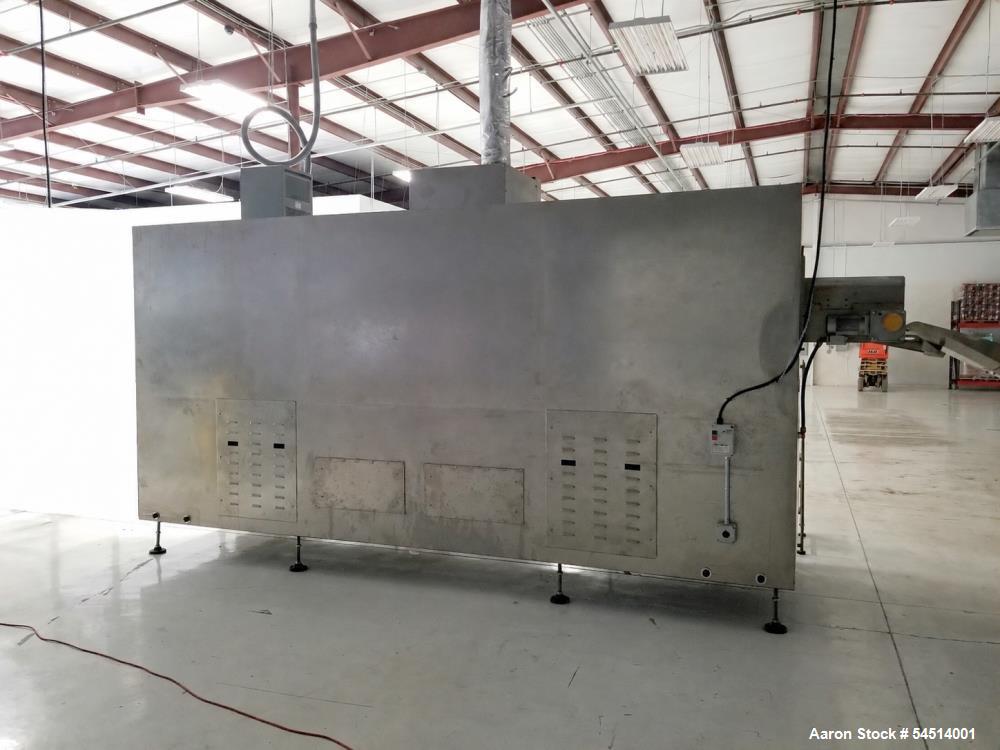

Physical Specifications

Approximate Dimensions

• Length: 250 Inches
• Width: 82 Inches
• Height: 94 Inches

Approximate Weight

• 6,000 Pounds

Installation Features

• Leveling Feet
• Industrial Floor Mount Design

Applications

• Snack food drying
• Extruded snack processing
• Pet food drying
• Breakfast cereal production
• Grain product drying
• Ingredient processing
• Protein product drying
• Food ingredient dehydration
• Specialty food manufacturing
• Agricultural product drying
• Nutritional product processing
• Continuous thermal processing

Products This Equipment Would Be Used For

• Extruded snacks
• Corn snacks
• Puff snacks
• Breakfast cereals
• Pet food products
• Protein snacks
• Nutritional ingredients
• Grain-based products
• Specialty food products
• Baked snack products
• Food ingredients
• Dehydrated products

Frequently Asked Questions

• What is the maximum production capacity of this dryer?
  The dryer is designed for production rates up to 1,000 pounds per hour, depending on product characteristics and moisture content.
• What type of dryer is this?
  This is a continuous one-pass oven dryer designed for conveyorized product drying applications.
• What temperature does the dryer operate at?
  The system operates at approximately 350°F with a variation of ±50°F.
• Can the product residence time be adjusted?
  Yes, residence time is adjustable from approximately 1.5 to 8 minutes.
• What was the previous application of this dryer?
  The unit was previously utilized in a snack food drying operation.
• Is the dryer constructed from stainless steel?
  Yes, the system features stainless steel construction for durability and sanitary processing.
• Does the dryer include process controls?
  Yes, the dryer is equipped with a touchscreen HMI for process monitoring and operational control.
• What air conditioning system is installed?
  The unit includes a Pentair Model N360846G050 environmental control system utilizing R134A refrigerant.
• What electrical service is required?
  The dryer operates on 460 Volt, 3 Phase, 60 Hertz power.
• What industries commonly use continuous oven dryers?
  Food processing, snack food manufacturing, pet food production, agricultural processing, ingredient manufacturing, and specialty product processing industries commonly utilize continuous dryers.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, dismantling, rigging, loading, transportation, export preparation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used drying equipment?
  Yes, Aaron Equipment actively purchases and sells used dryers, ovens, thermal processing systems, food processing equipment, extrusion systems, and complete manufacturing facilities worldwide.
