Unused Wisconsin Oven SWH Series Heavy-Duty Walk-In Oven – Model SWH-6126.5-G8
Unused- Wisconsin Oven SWH Series Heavy Duty Walk-In Natural Gas Oven, Model SWH-6126.5-G8. Temperature Rating: Maximum 800 degrees F, Normal 700 degrees F, Minimum 290 degrees F above ambient. Temperature Uniformity: +/- 10 degrees F at 700 degrees F. Chamber Dimensions: 6'0" wide x 12'0" long x 6'6" high. Overall (approximate): 10'6" wide x 13'6" long x 11'8" high. Body Construction: Tongue & groove panel assemblies featuring our patented high efficiency panel seams, 6" of 6# density, industrial board type insulation with a 1,200 degrees F service temperature rating; removable 20 gauge 304 stainless steel interior; 20 gauge carbon steel exterior; 12 gauge base and roof trim. Oven Doors: Bi-parting horizontal swing at one (1) end only. Oven Floor: Reinforced insulated floor (2" thick) with 12 gauge wheel guides, and 1/8" of flat gasket under the wheel guides tracks to be 3" wide and centered 30" with the entrance ends. Recirculation: 11,500 CFM @ 15 HP with stainless steel wheel and shaft; belt driven. Exhaust: 1,900 CFM @ 1 HP; with motorized dampers on both the fresh air inlet and exhaust outlet. Heating Equipment: Industrial air heat burner rated at 800,000 BTU per hour. Hang Rails: Stainless steel load bar supports spaced every 18" each to support 25 lbs. Watlow F4T recorder/controller and a Honeywell 4200 paper recorder, 4.3" color touch screen; graphical trending; USB port for downloading data. Utility Requirements: 208 volt, 3 phase, 60 hertz, 1,000 BTU per cubic foot at a constant pressure of 2-5 PSIG. New in March, 2024.
Manufacturer Information:
- Brand: Wisconsin Oven
- Model: SWH-6126.5-G8
- Type: Heavy-Duty Walk-In Industrial Oven
- Year: March 2024
- Temperature Rating:
- Maximum: 800°F
- Normal: 700°F
- Minimum: 290°F above ambient
- Temperature Uniformity: ±10°F at 700°F
- Heating Capacity: 800,000 BTU/hr
Description:

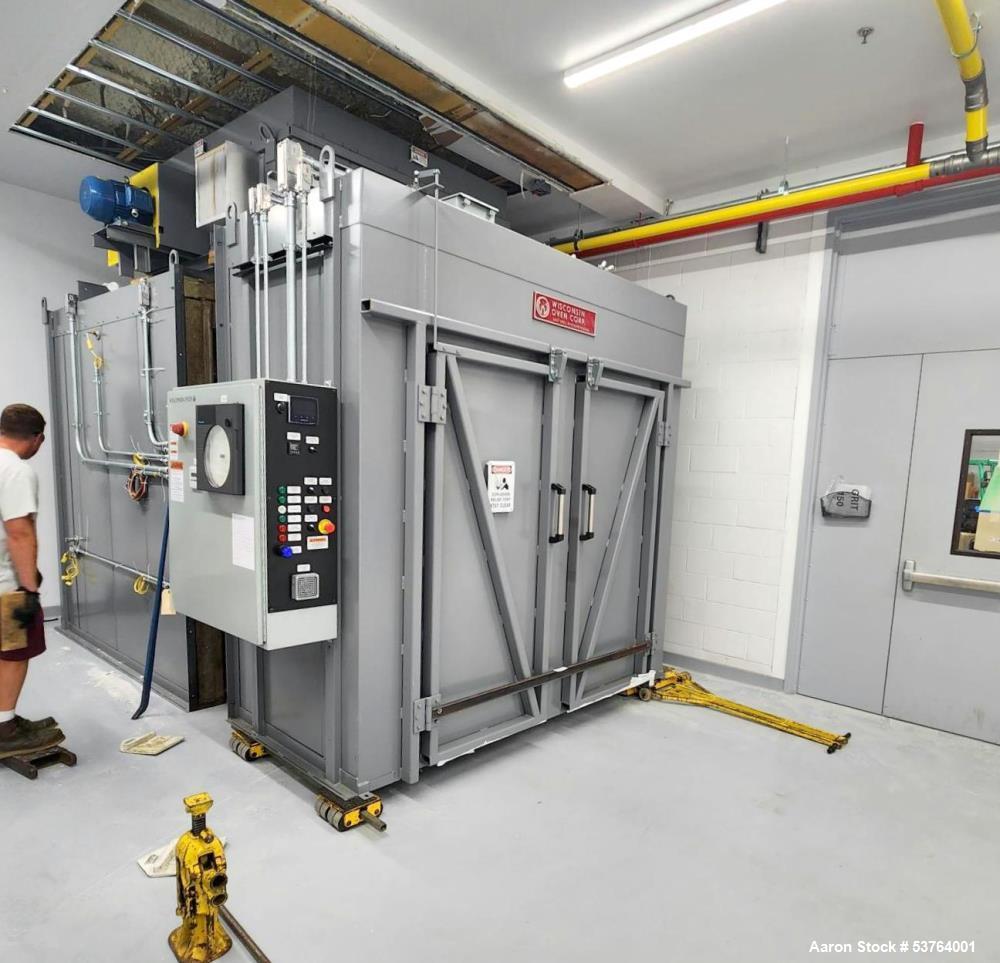

The Unused Wisconsin Oven SWH Series Heavy-Duty Walk-In Oven, Model SWH-6126.5-G8, is a high-performance industrial oven designed for precise heating applications. Built with rugged construction and high-efficiency insulation, this walk-in oven provides uniform temperature distribution with ±10°F accuracy at 700°F, ensuring consistent heat treatment for various industrial processes.
Equipped with an industrial air heat burner rated at 800,000 BTU/hr, a high-capacity recirculation system (11,500 CFM at 15 HP), and motorized dampers for precise airflow control, this oven is designed for efficient operation and reliability. The unit features advanced process controls, including a Watlow F4T recorder/controller and a Honeywell 4200 paper recorder, providing real-time monitoring, graphical trending, and data recording via USB.
With a stainless steel interior, carbon steel exterior, and reinforced insulated floor, this oven is built for durability and heavy-duty industrial applications.
Specifications:

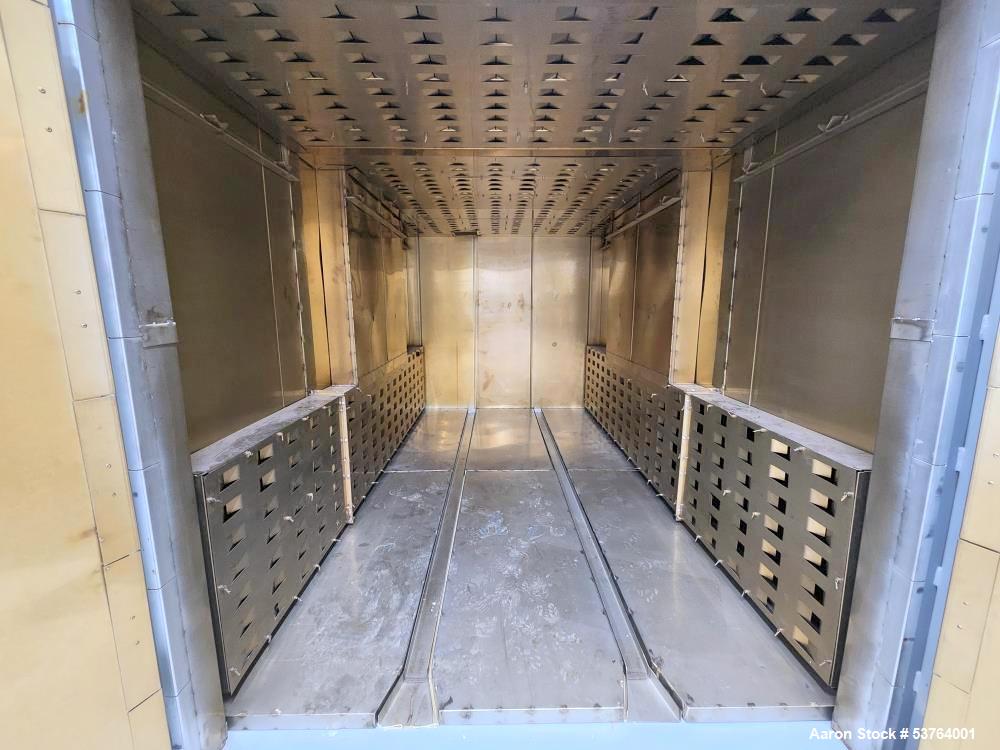

- Interior Chamber Dimensions: 6'0" W x 12'0" L x 6'6" H
- Overall Dimensions: 10'6" W x 13'6" L x 11'8" H
- Body Construction:
- Tongue & groove panel assemblies with patented high-efficiency panel seams
- 6” industrial board insulation (1,200°F rating)
- 20-gauge 304 stainless steel interior
- 20-gauge carbon steel exterior
- 12-gauge base and roof trim

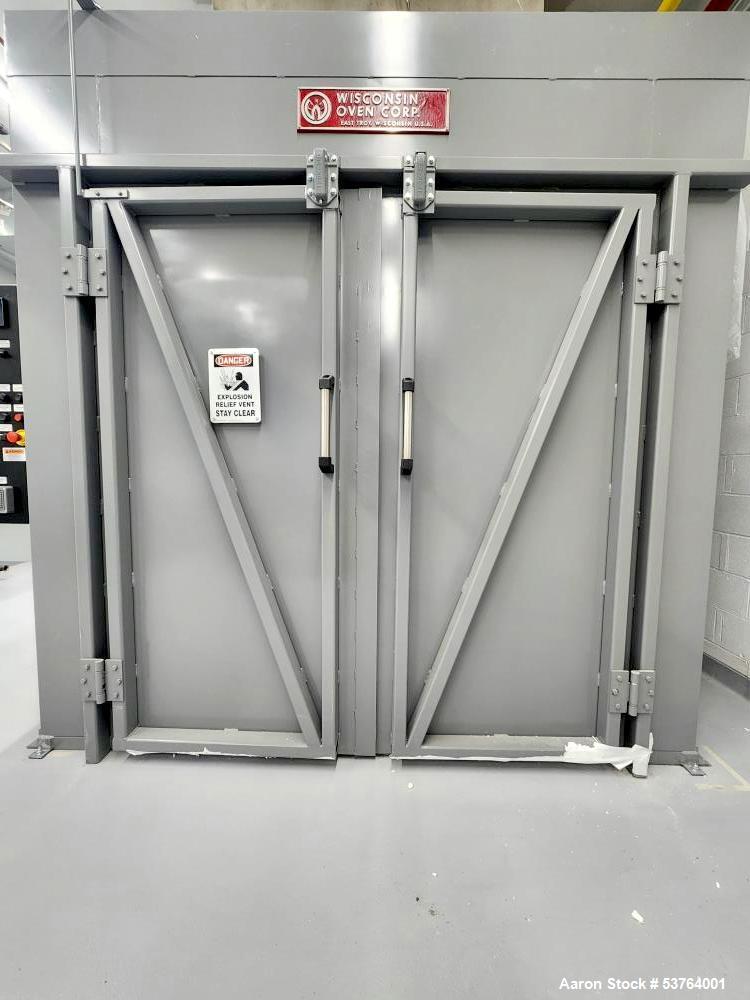

- Oven Doors: Bi-parting horizontal swing door (one end only)
- Floor:
- Reinforced 2” thick insulated floor
- 12-gauge wheel guides with 1/8” flat gasket under the tracks
- 3” wide tracks, centered at 30” with entrance ends
- Recirculation System:
- 11,500 CFM @ 15 HP with stainless steel wheel & shaft
- Belt-driven for enhanced efficiency
- Exhaust System:
- 1,900 CFM @ 1 HP
- Motorized dampers on both fresh air inlet and exhaust outlet

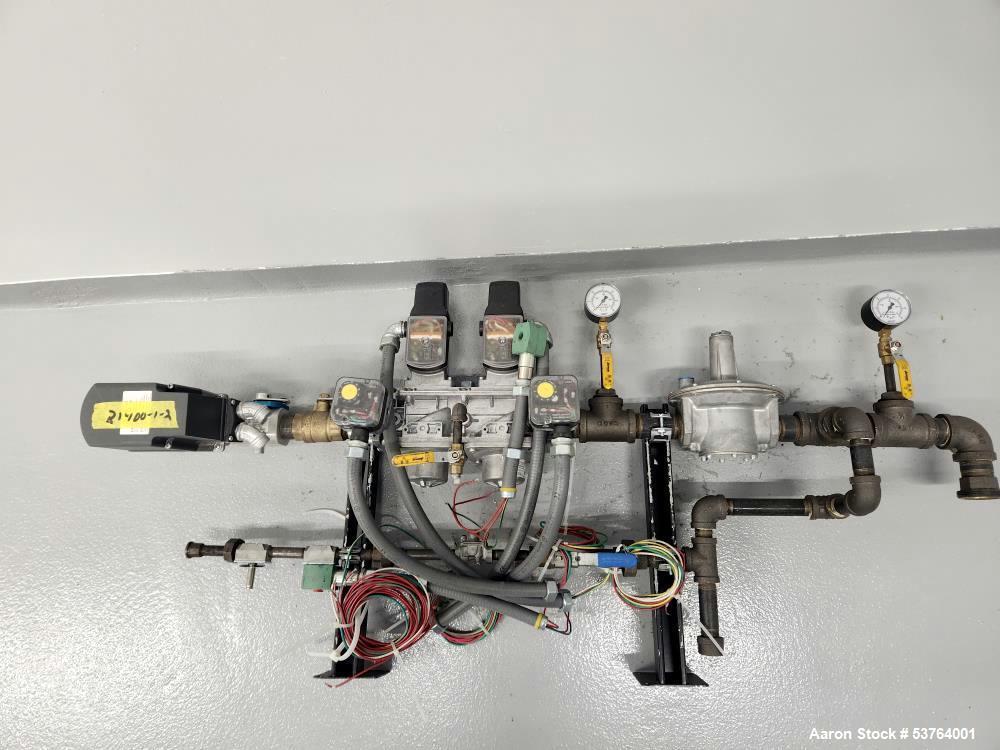

- Heating System: Industrial air heat burner, 800,000 BTU/hr

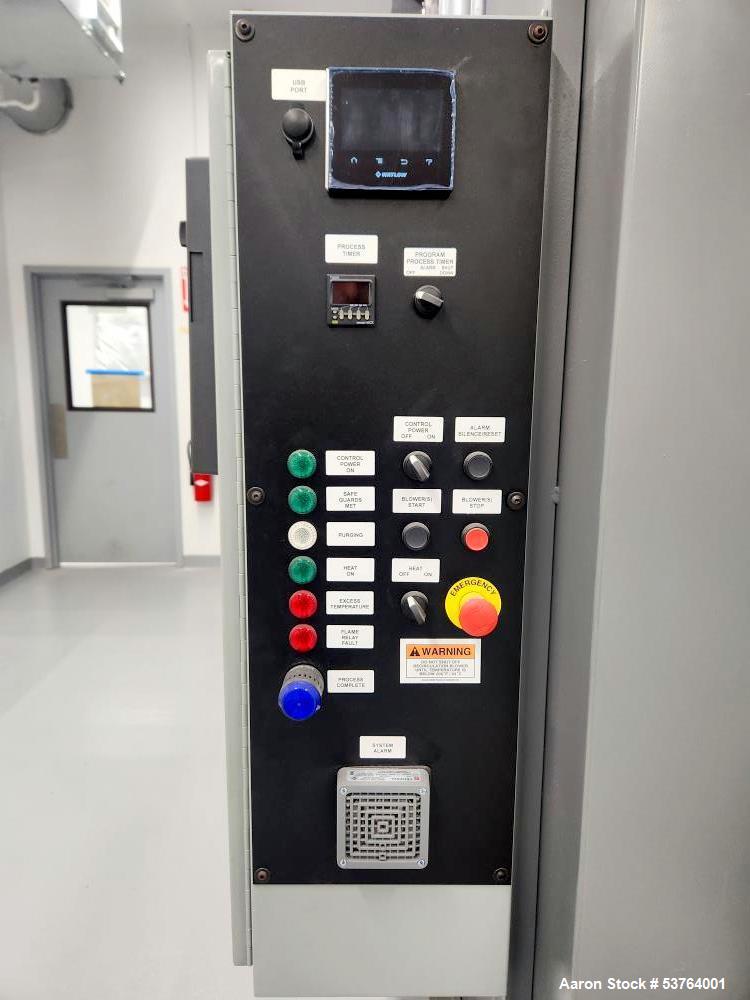

- Control System:
- Watlow F4T Recorder/Controller – 4.3” Color Touchscreen
- Graphical trending & data logging
- USB port for downloading data

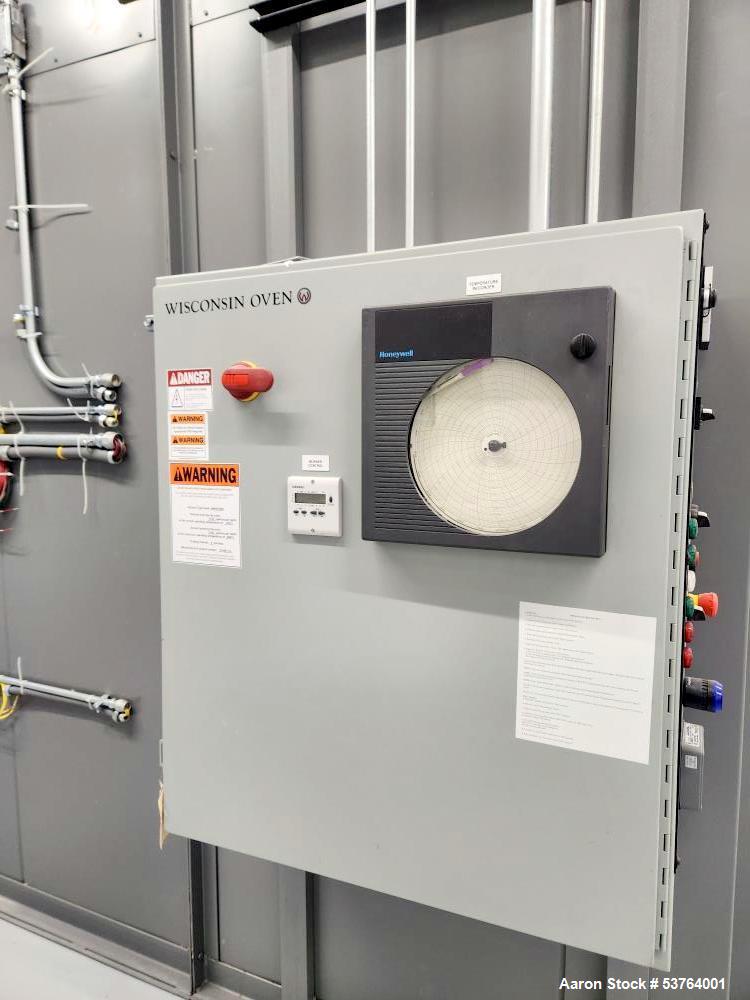

- Honeywell 4200 Paper Recorder
- Hang Rails: Stainless steel load bar supports every 18”, each supporting 25 lbs
- Utility Requirements:
- 208V, 3 Phase, 60 Hz
- 1,000 BTU per cubic foot at constant pressure of 2-5 PSIG
Applications:
The Wisconsin Oven SWH-6126.5-G8 Walk-In Oven is ideal for:
- Heat Treating & Metal Processing – Stress relieving, annealing, preheating
- Composite Curing – Aerospace, automotive, industrial applications
- Powder Coating & Finishing – Curing coatings on metal and composite materials
- Drying & Dehydration – Removing moisture from industrial components
- Plastics & Rubber Processing – Post-molding heat treatment
- Electronics & Semiconductor Manufacturing – Thermal testing & component drying
Alumina Products, Aluminum, Coating, Coating Products, Curing, Heat Treating, Oven
- Aerospace & Automotive Components – Composite curing & stress relieving
- Metal Parts & Fabrications – Heat treating & tempering
- Industrial Coatings – Powder coating & curing
- Electronics & Electrical Components – Drying & testing applications
- Plastic & Rubber Products – Thermal treatment for durability
- Unused Wisconsin Oven SWH-6126.5-G8 for sale
- Heavy-duty walk-in industrial oven
- 800°F high-temperature heat-treating oven
- Industrial walk-in oven with precision temperature control
- Aerospace & automotive composite curing oven
- Large-capacity industrial powder coating oven
- 800,000 BTU/hr high-performance heating oven
- Walk-in oven with advanced process control system
- Unused Wisconsin Oven SWH-6126.5-G8 industrial walk-in oven for sale
- High-temperature walk-in oven with 800,000 BTU/hr burner
- Aerospace and composite curing oven with uniform heat distribution
- 700°F rated heavy-duty industrial oven with recirculation system
- Walk-in powder coating oven with Watlow F4T control system
- Large industrial oven with stainless steel interior and digital recorder
- High-capacity heat treatment oven for manufacturing and metal processing
