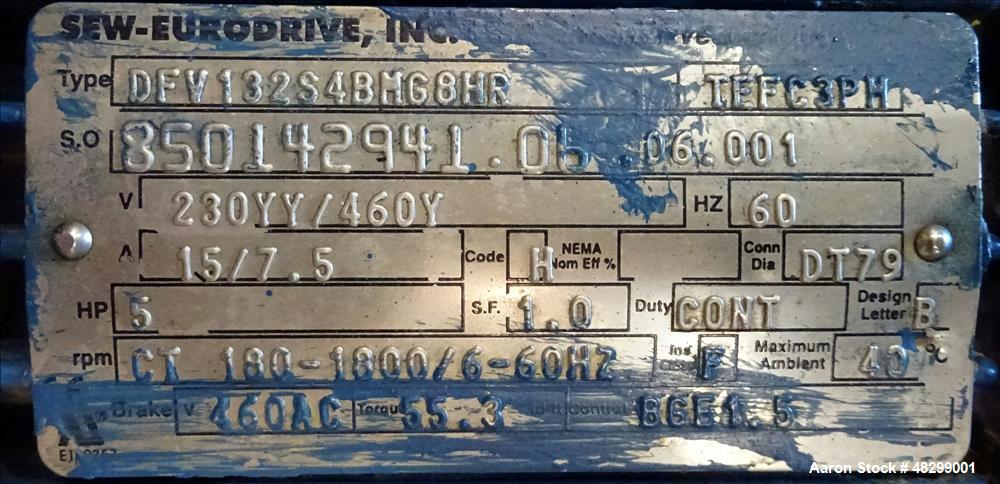

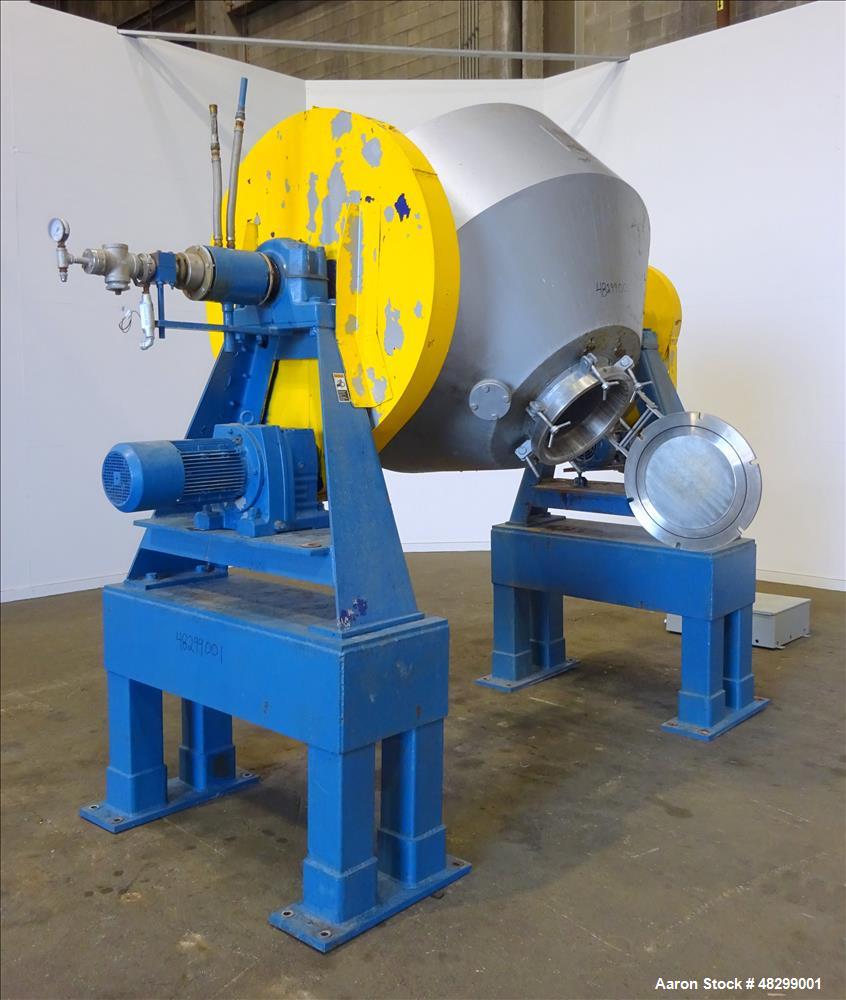

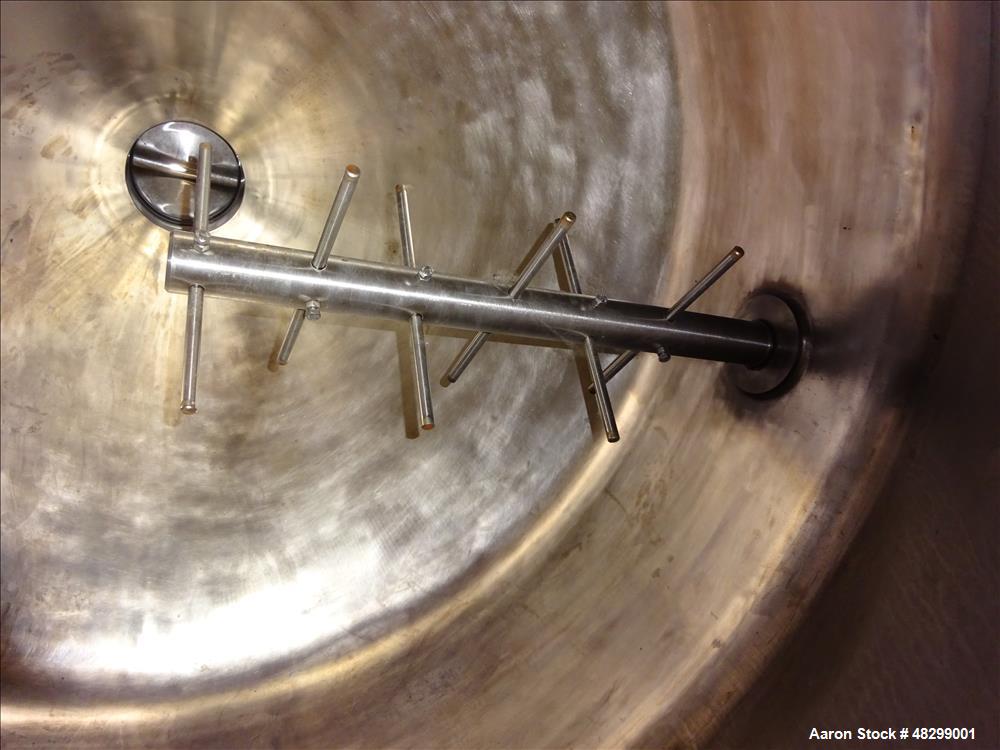

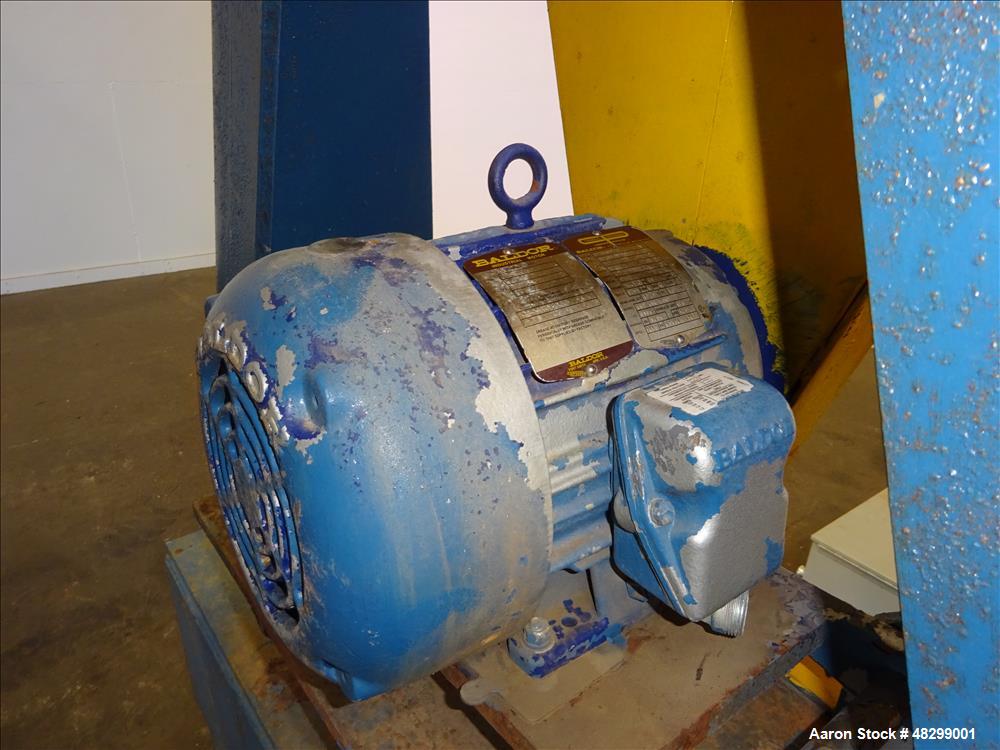

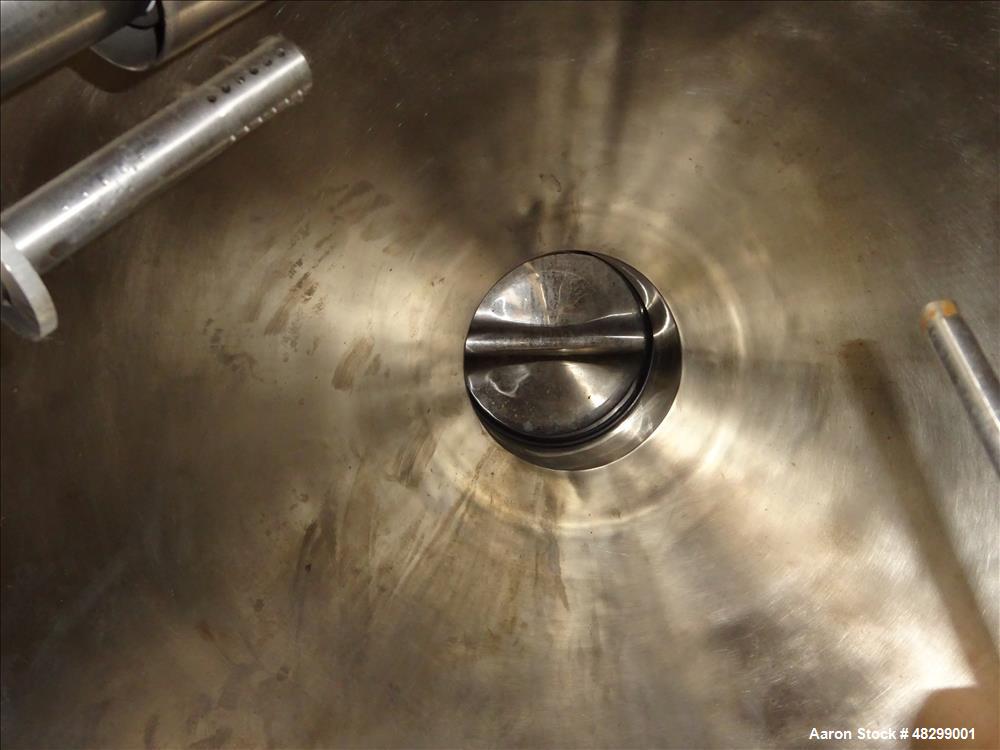

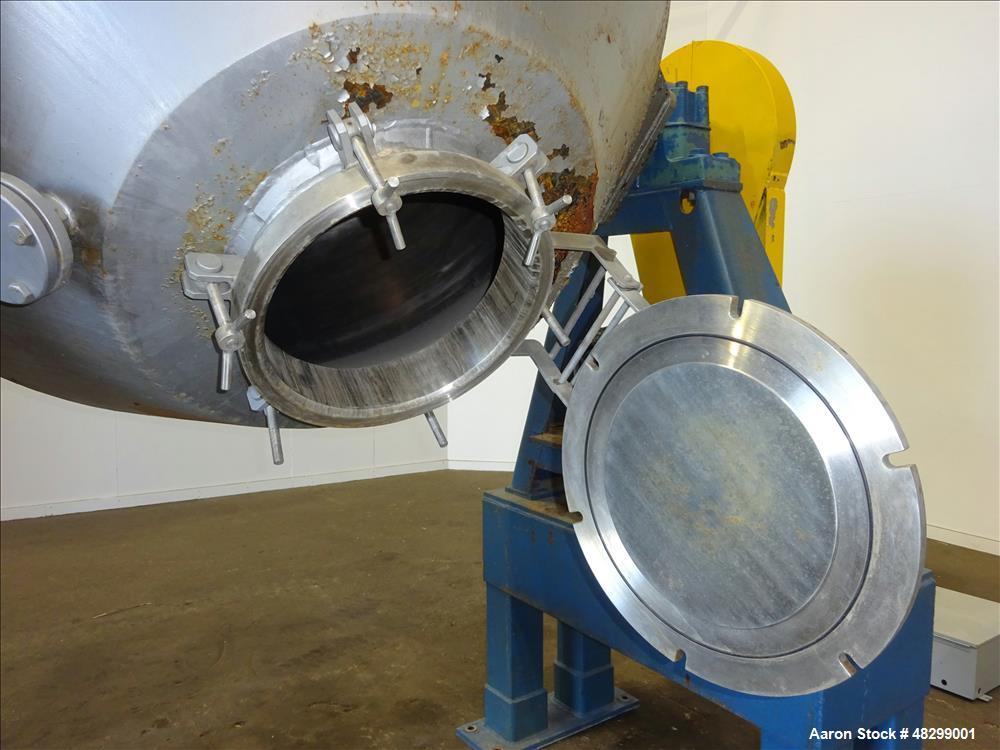

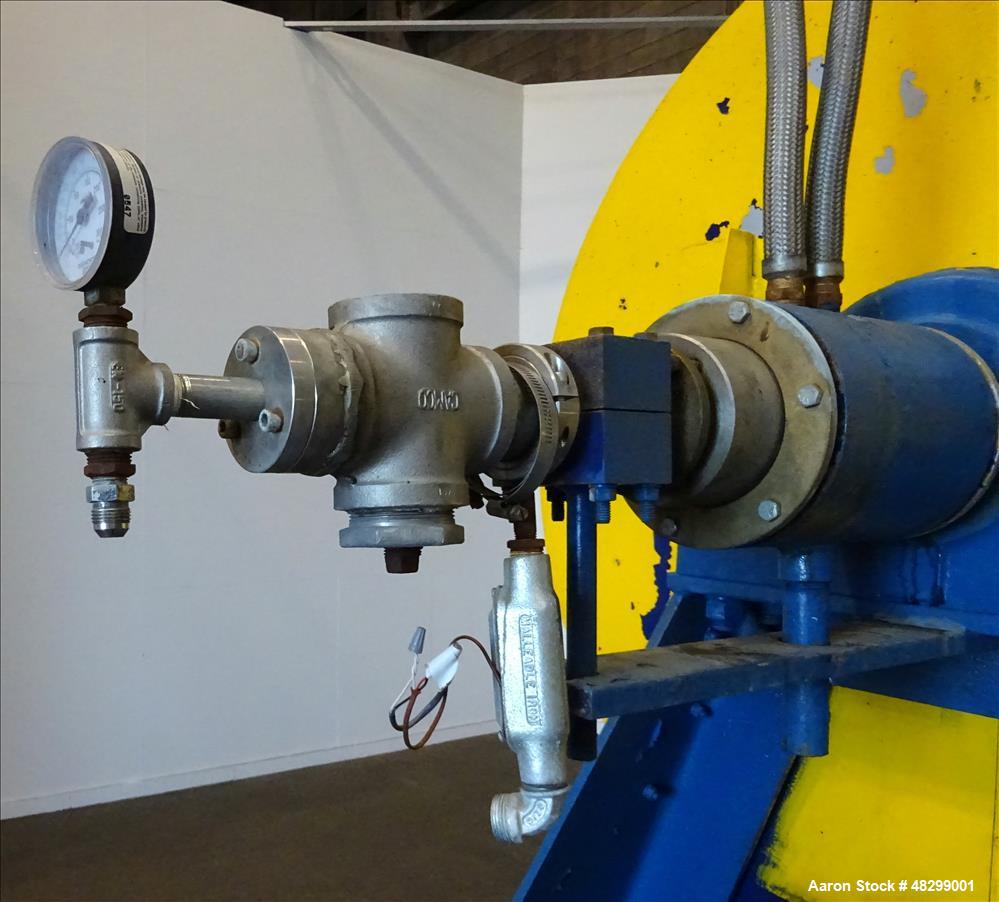

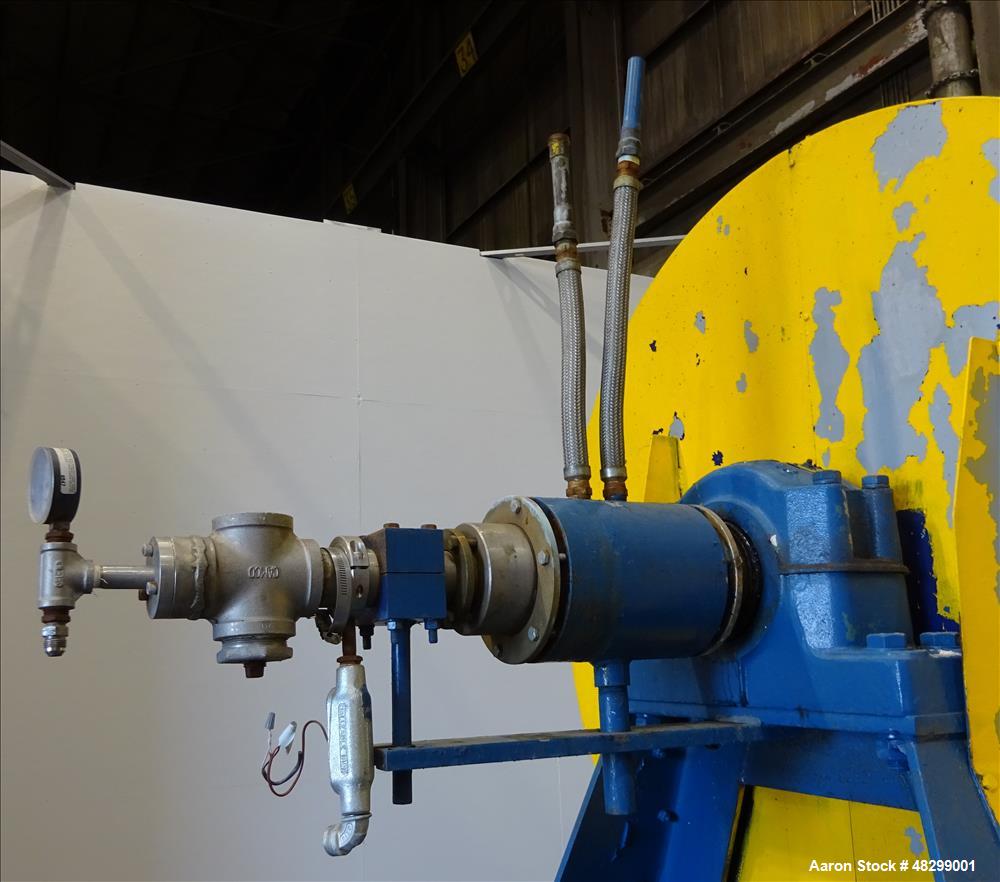

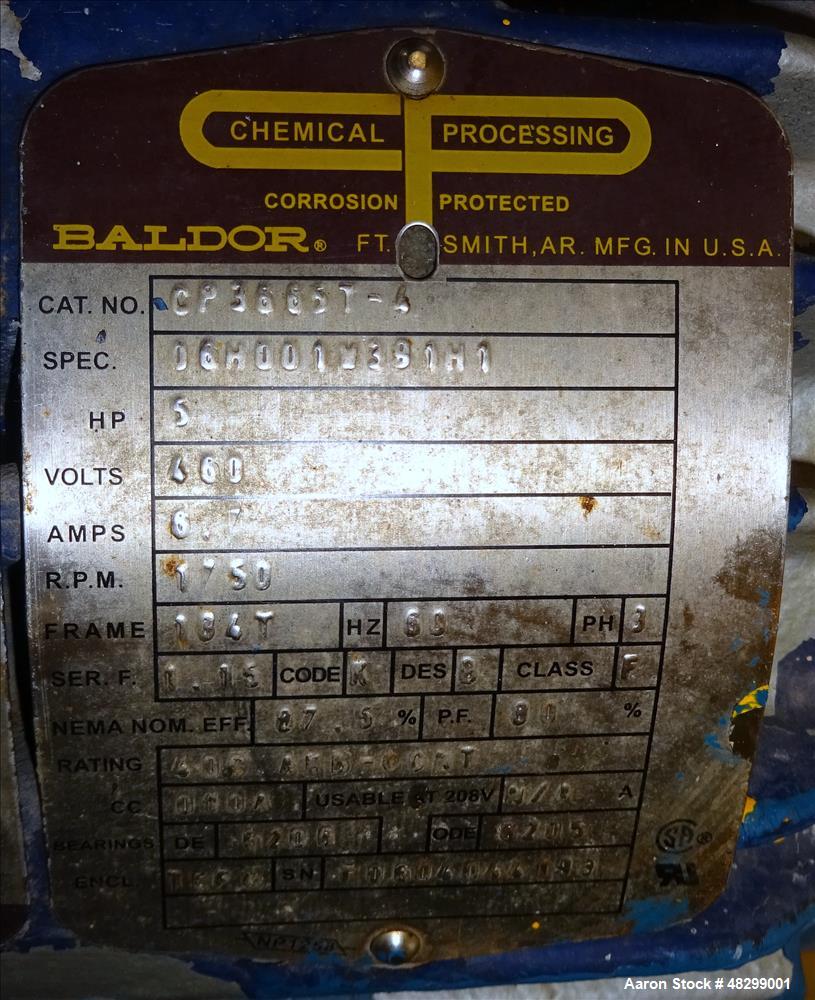

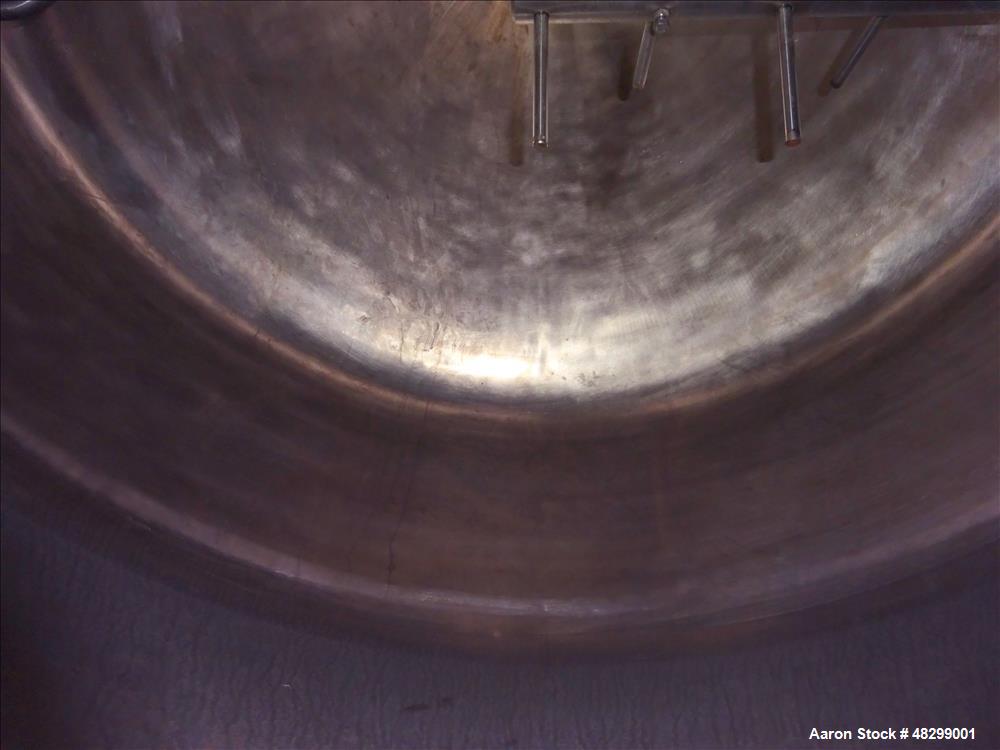

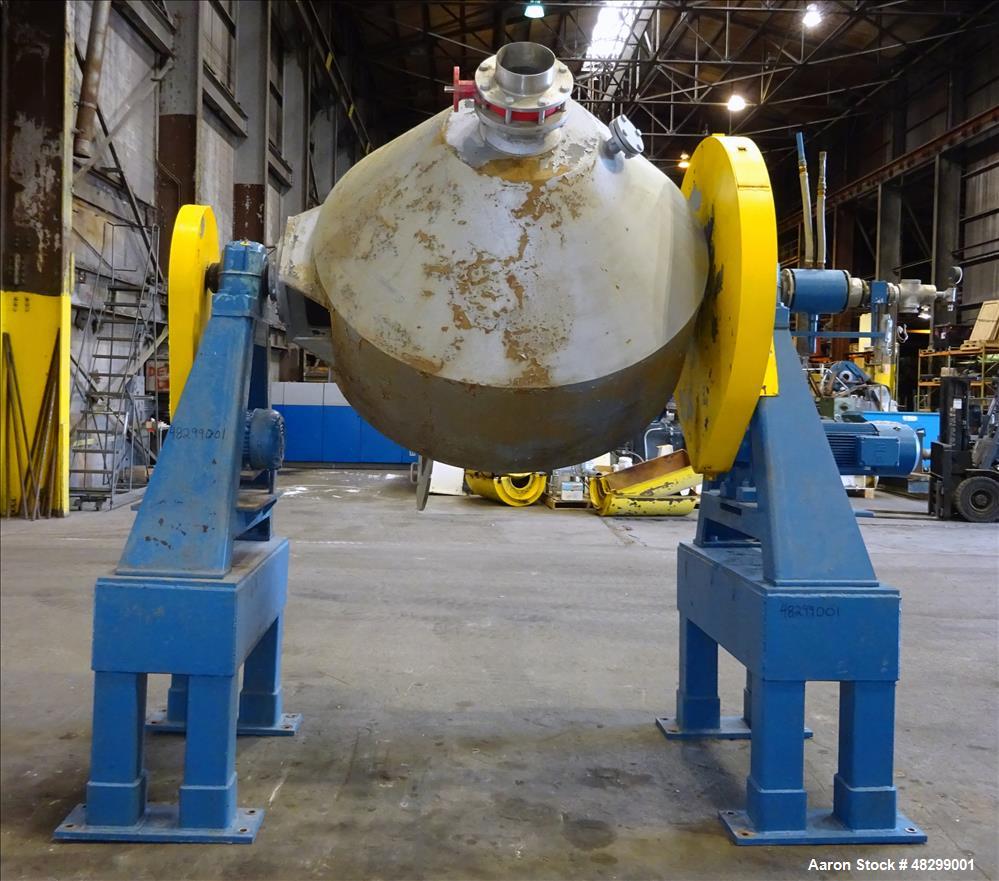

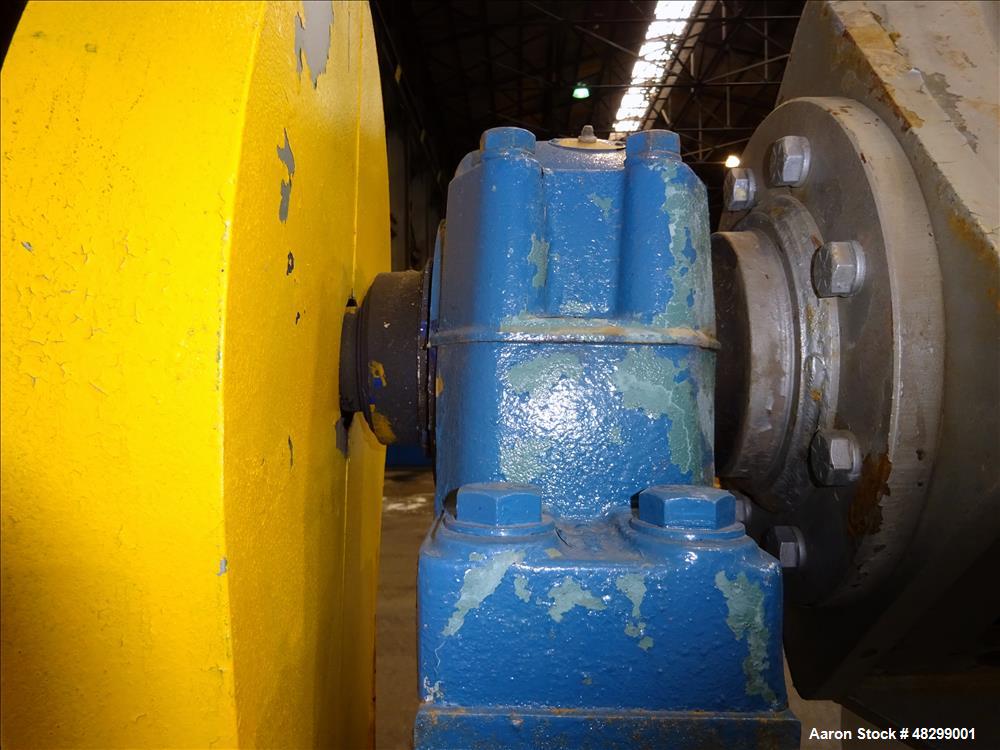

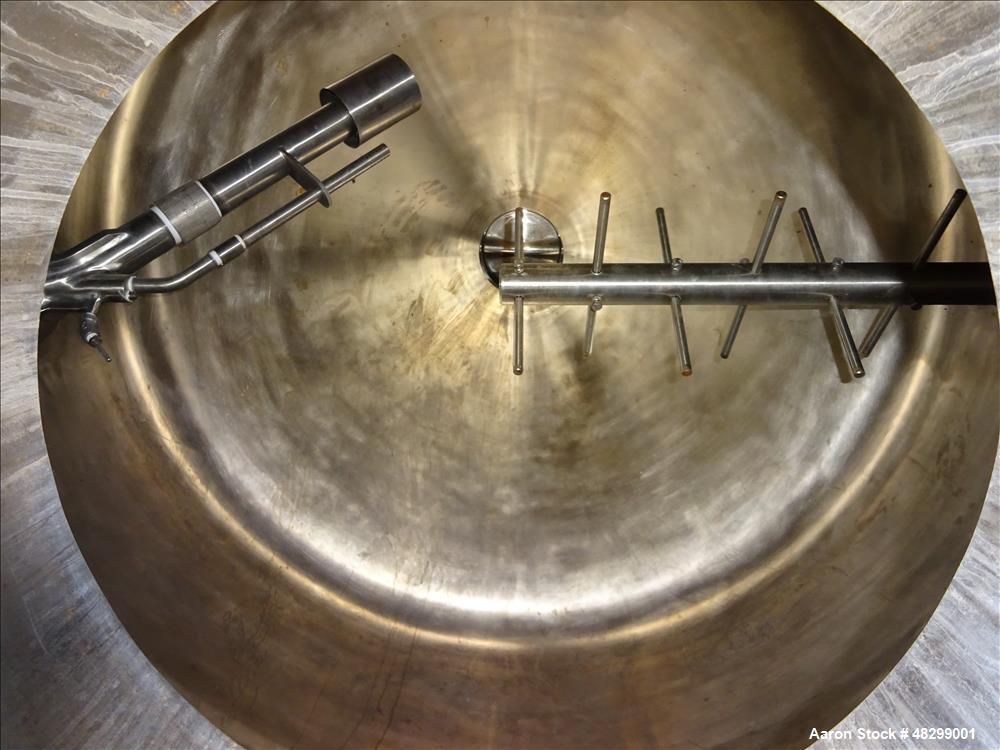

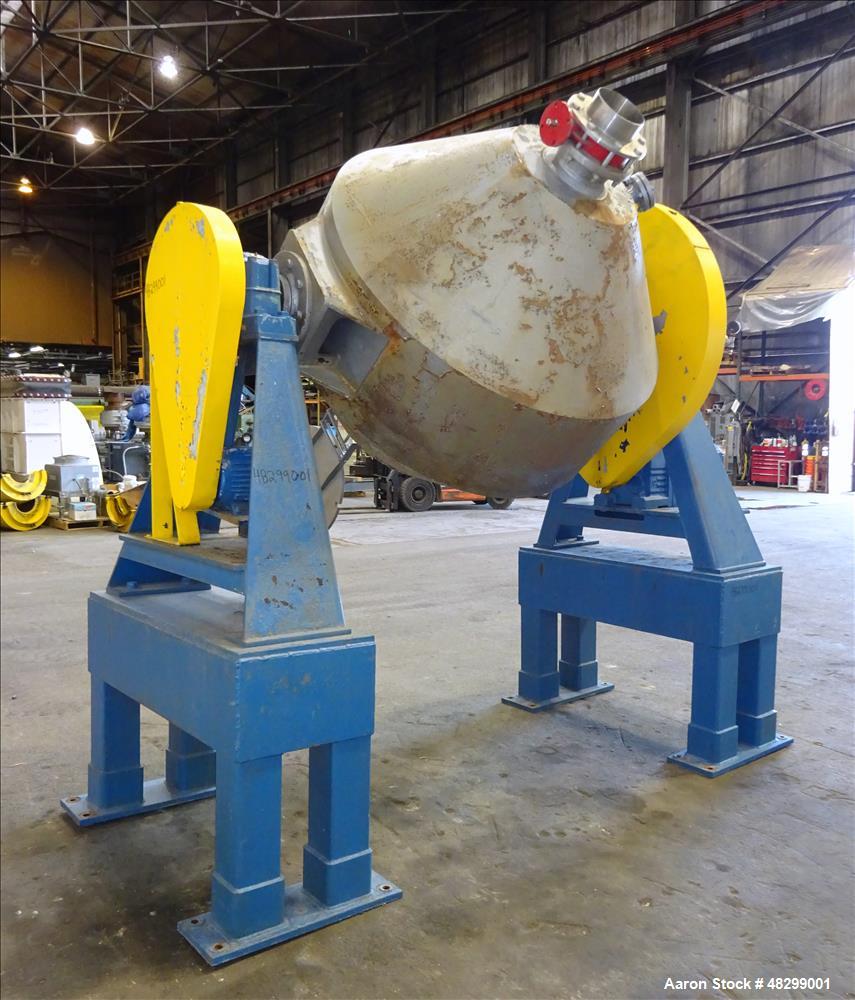

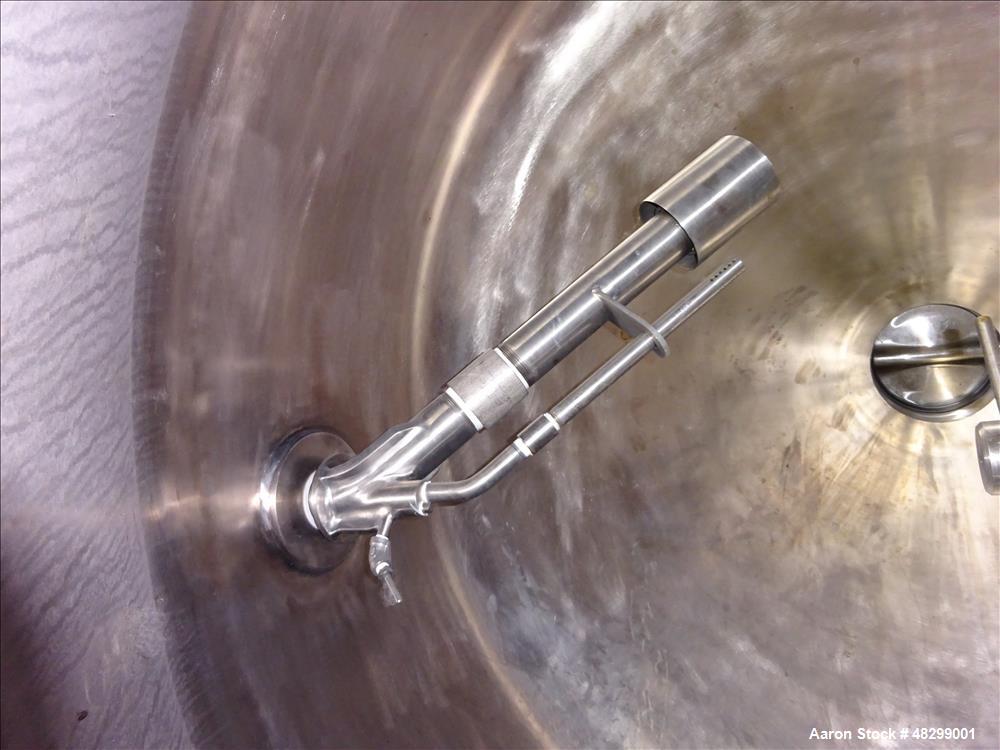

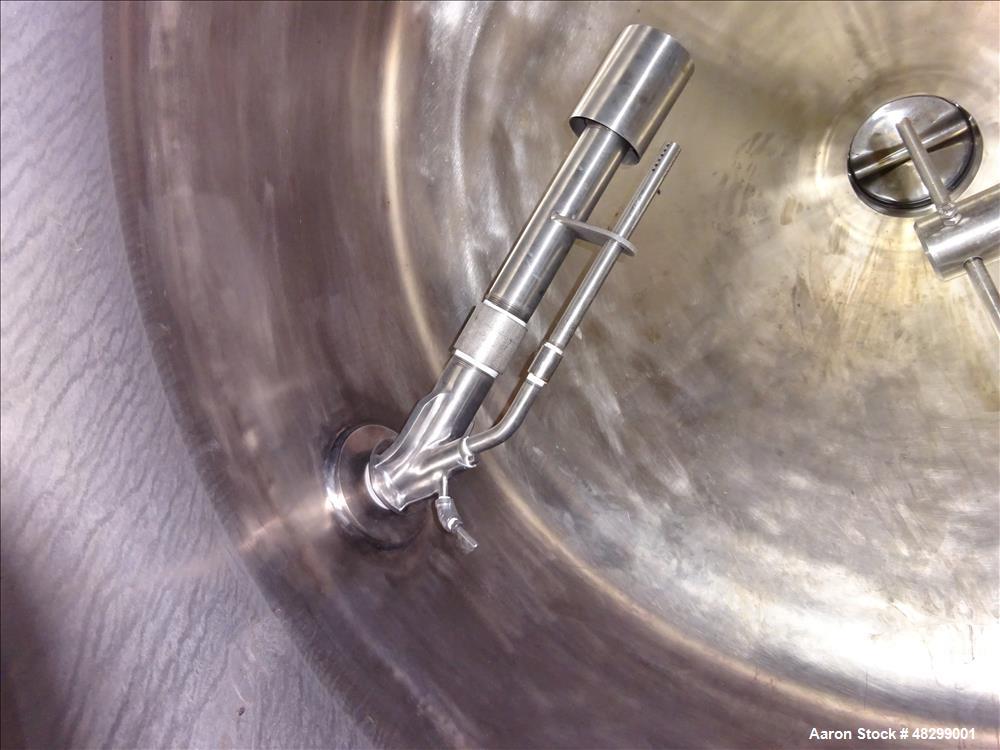

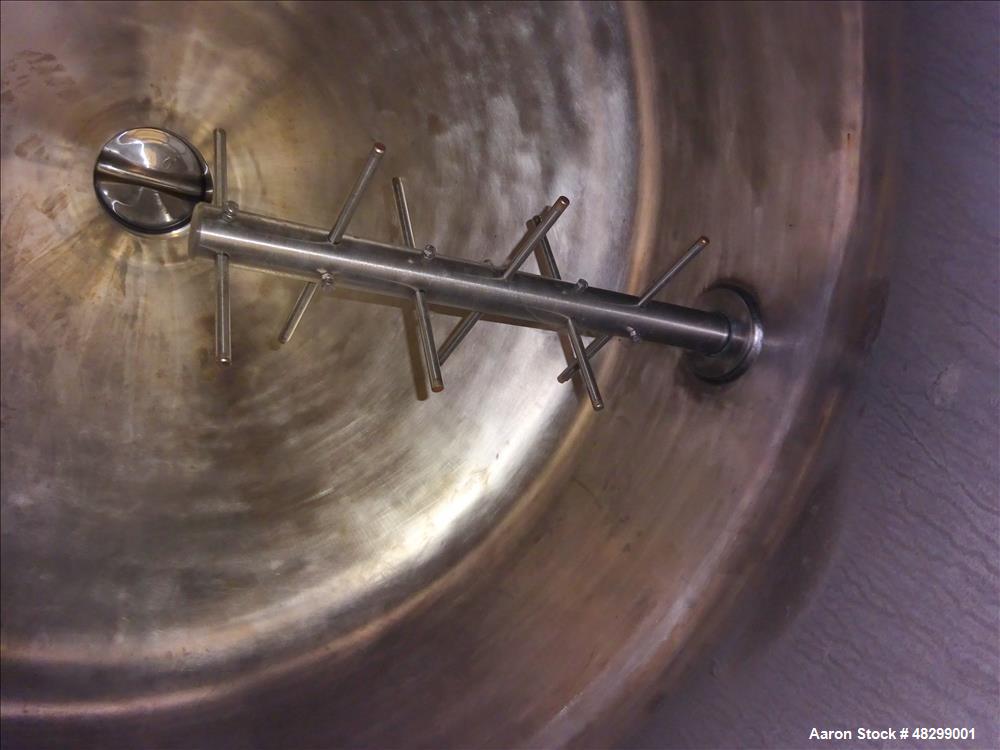

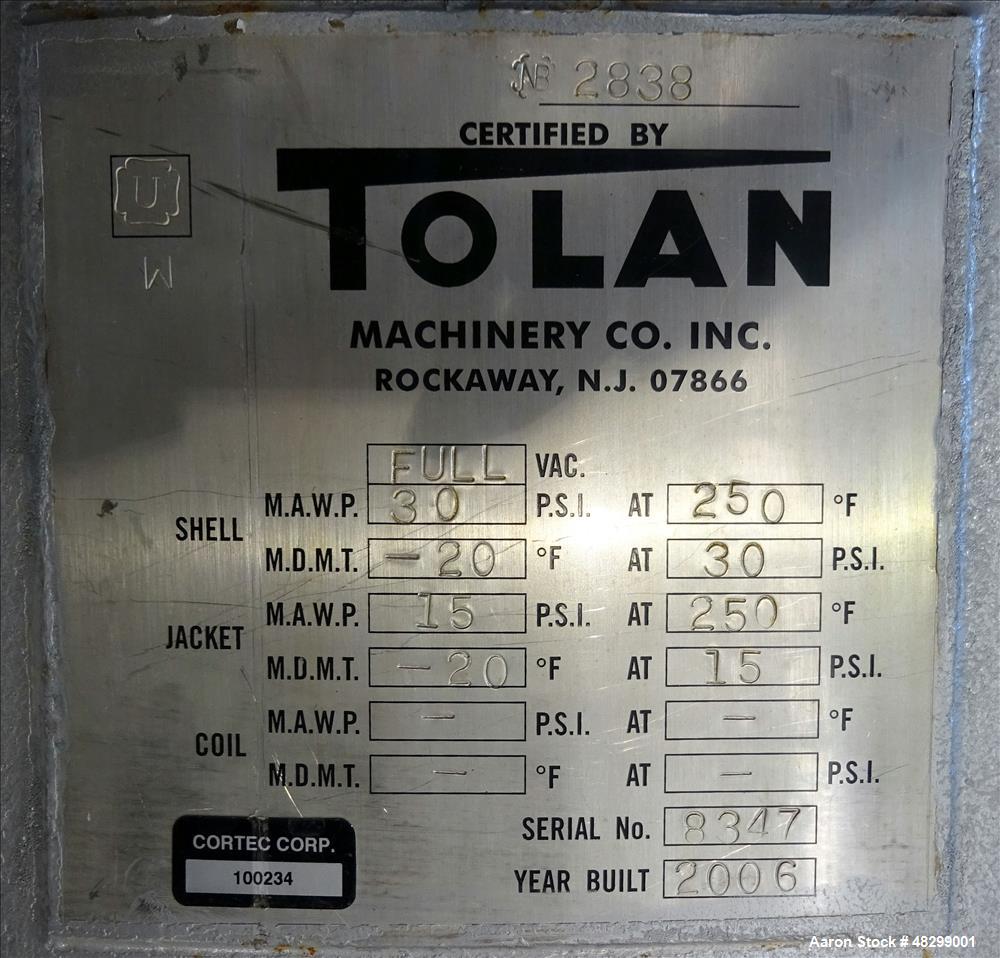

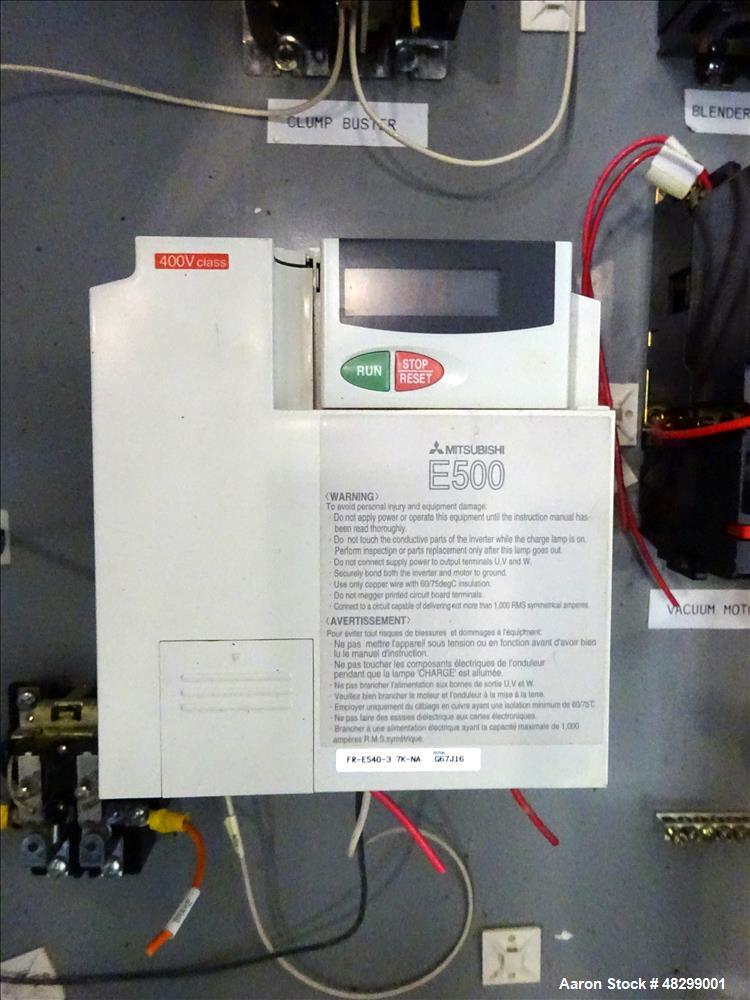

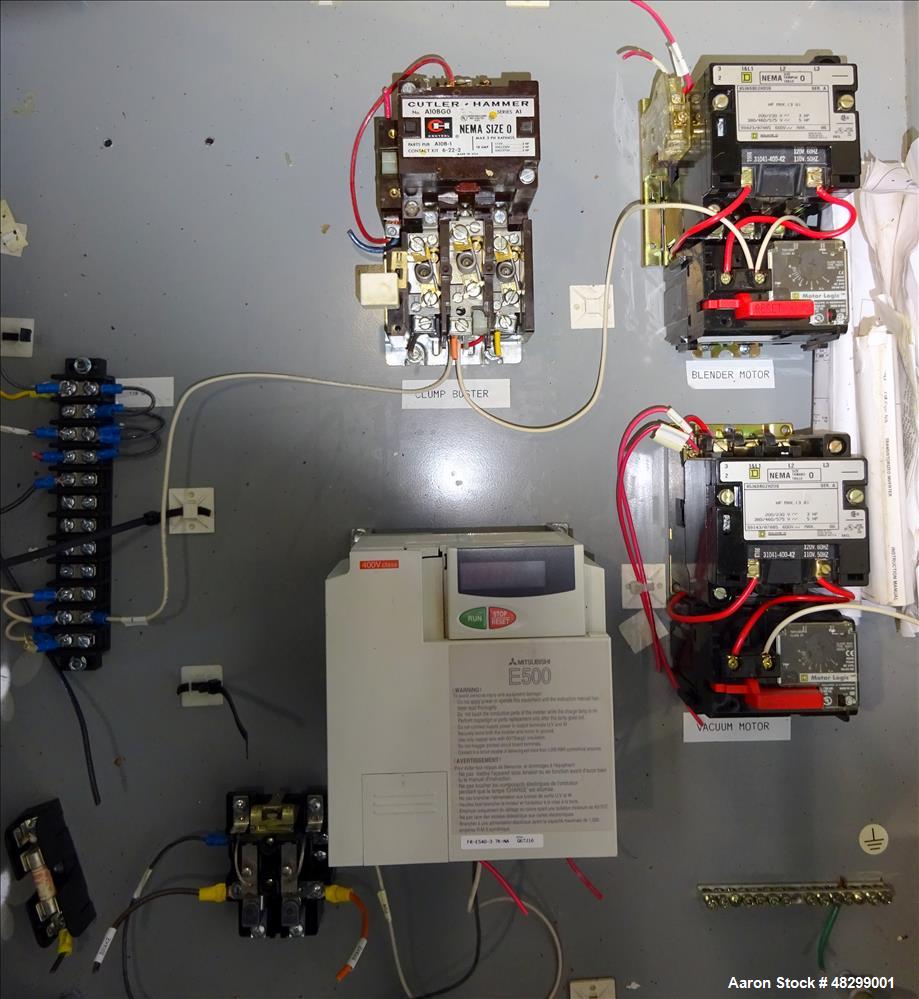

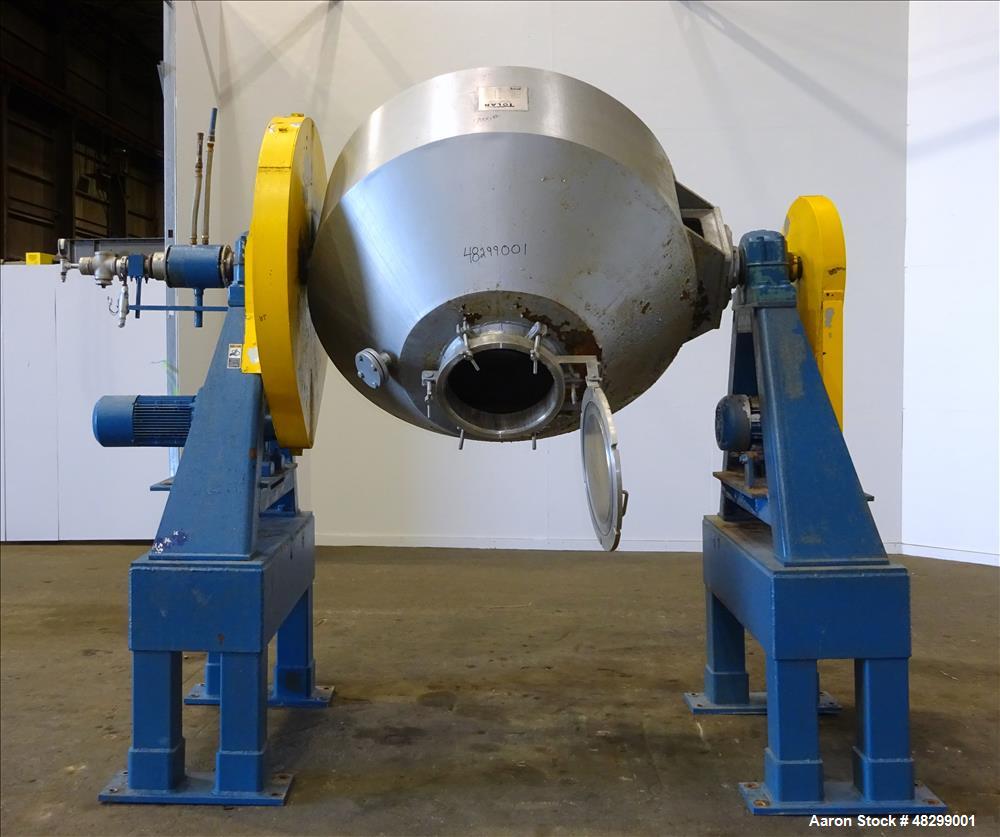

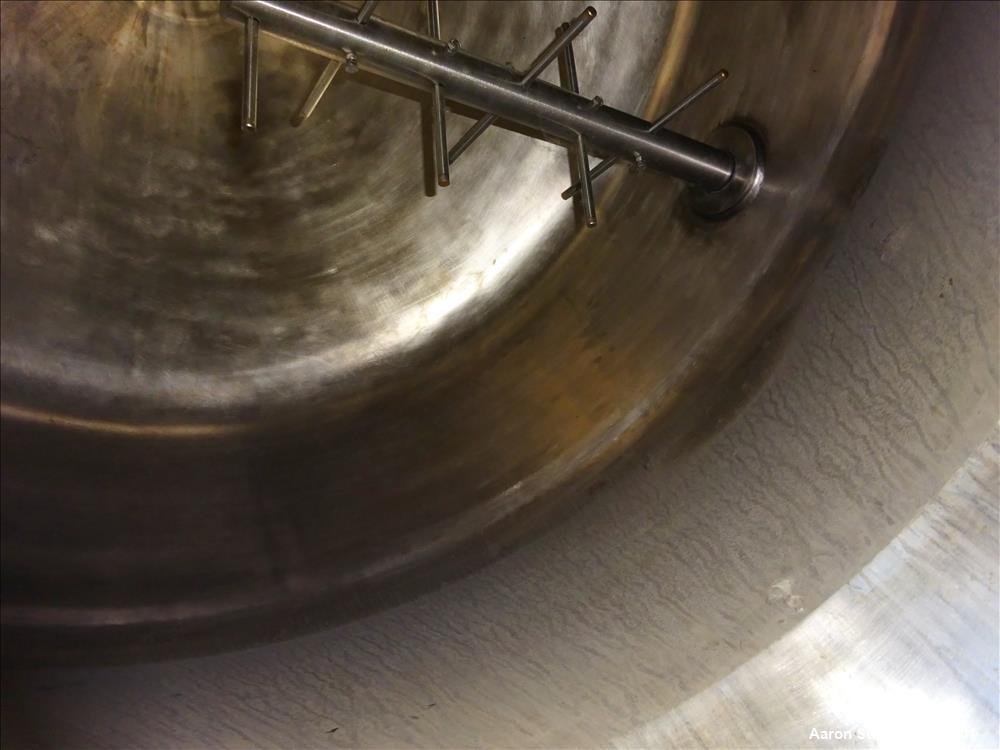

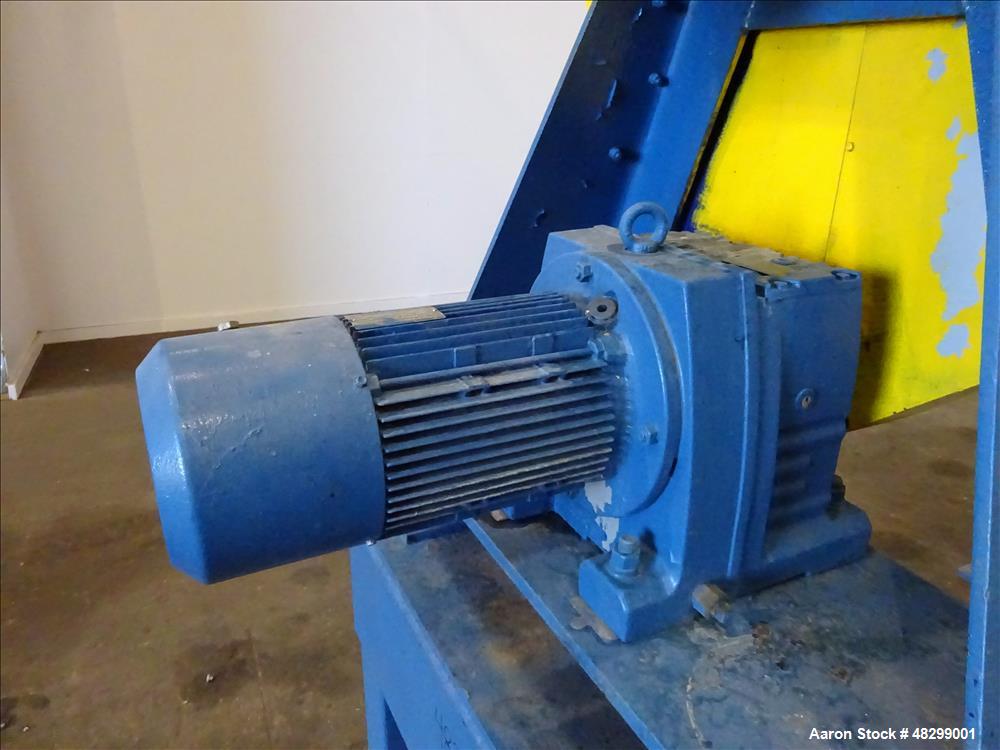

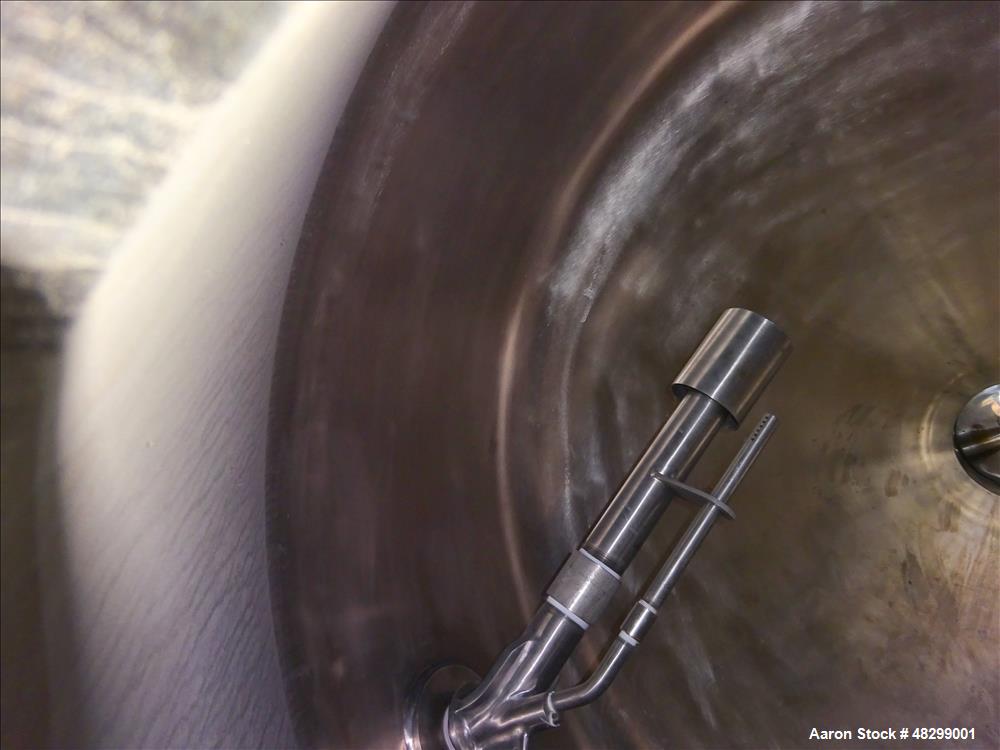

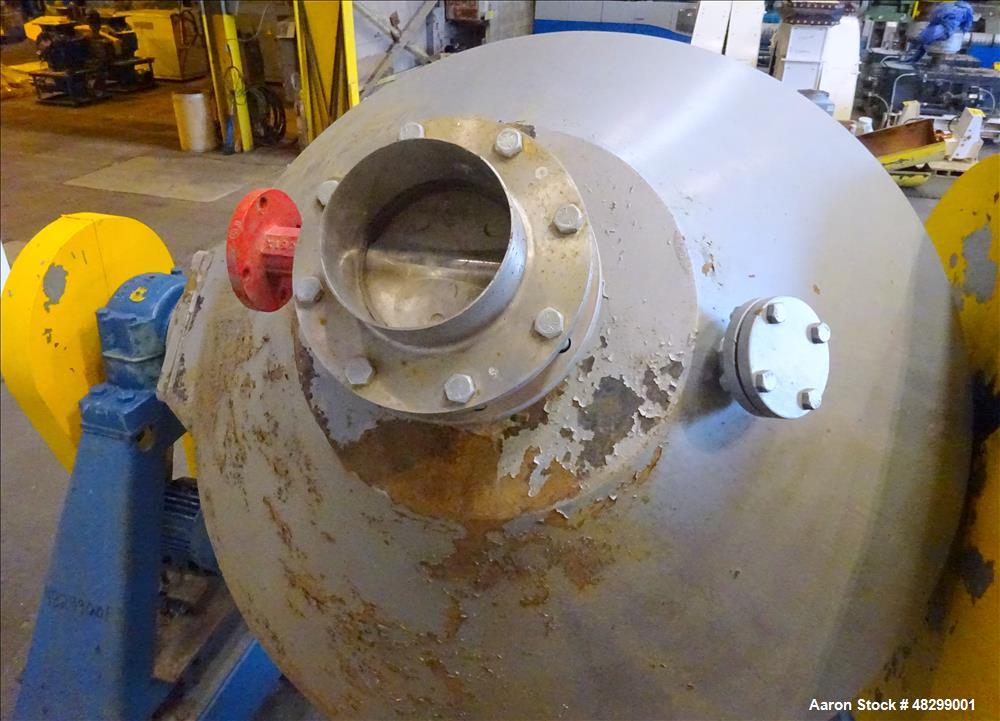

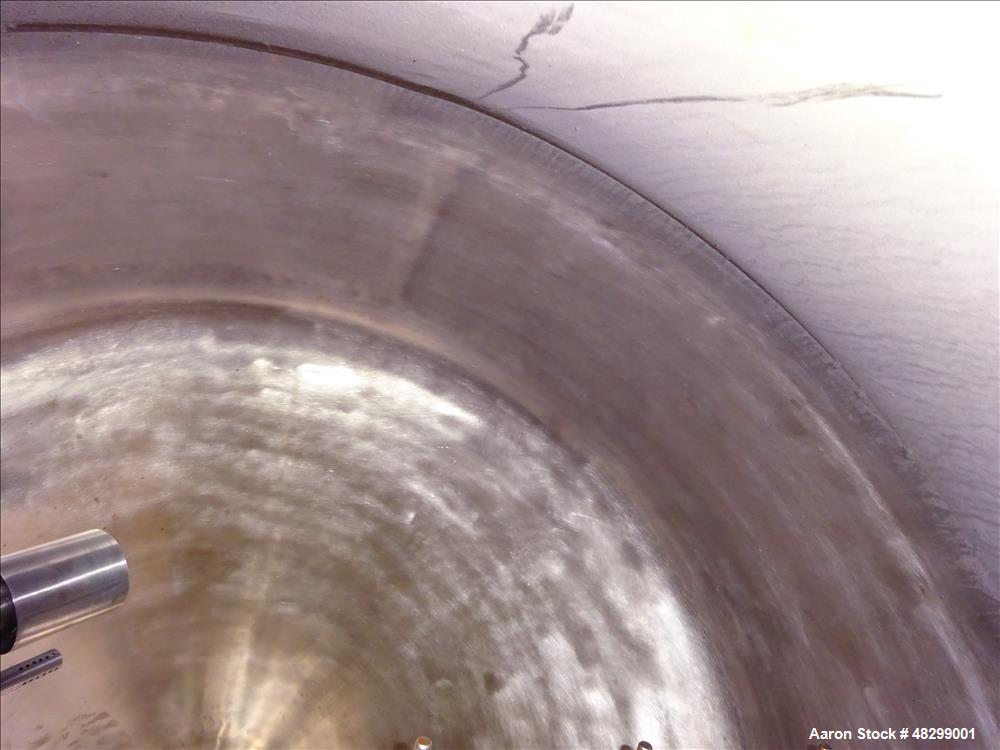

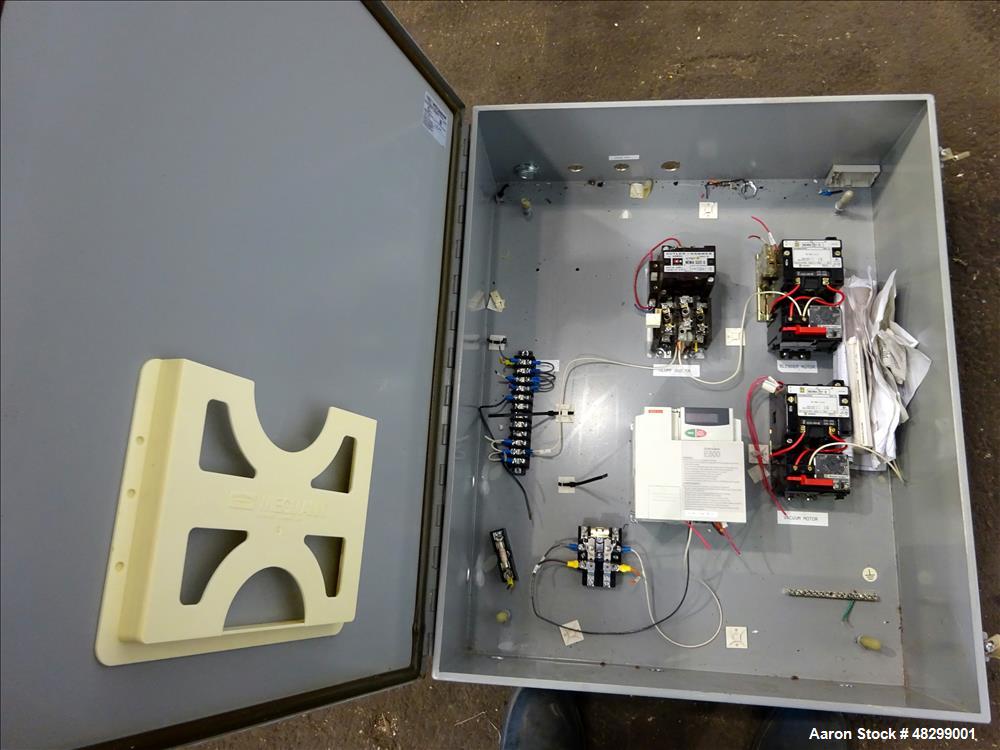

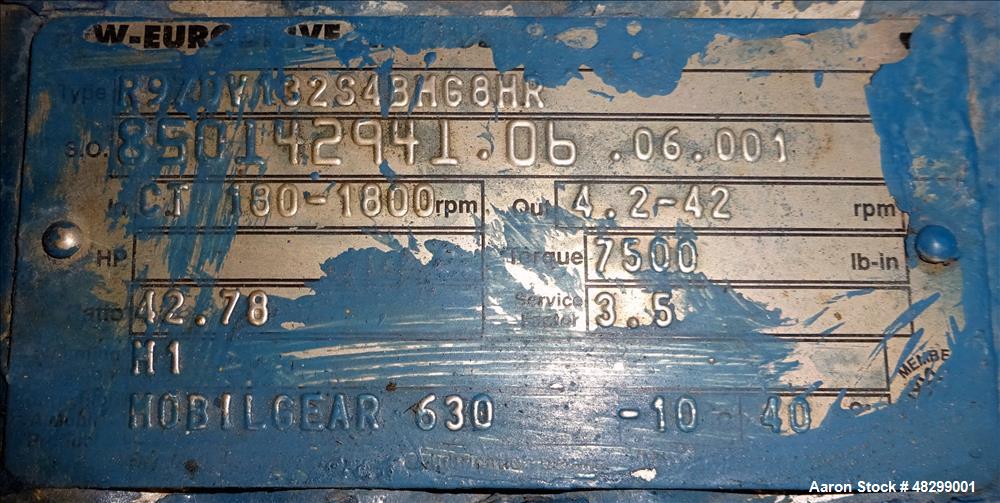

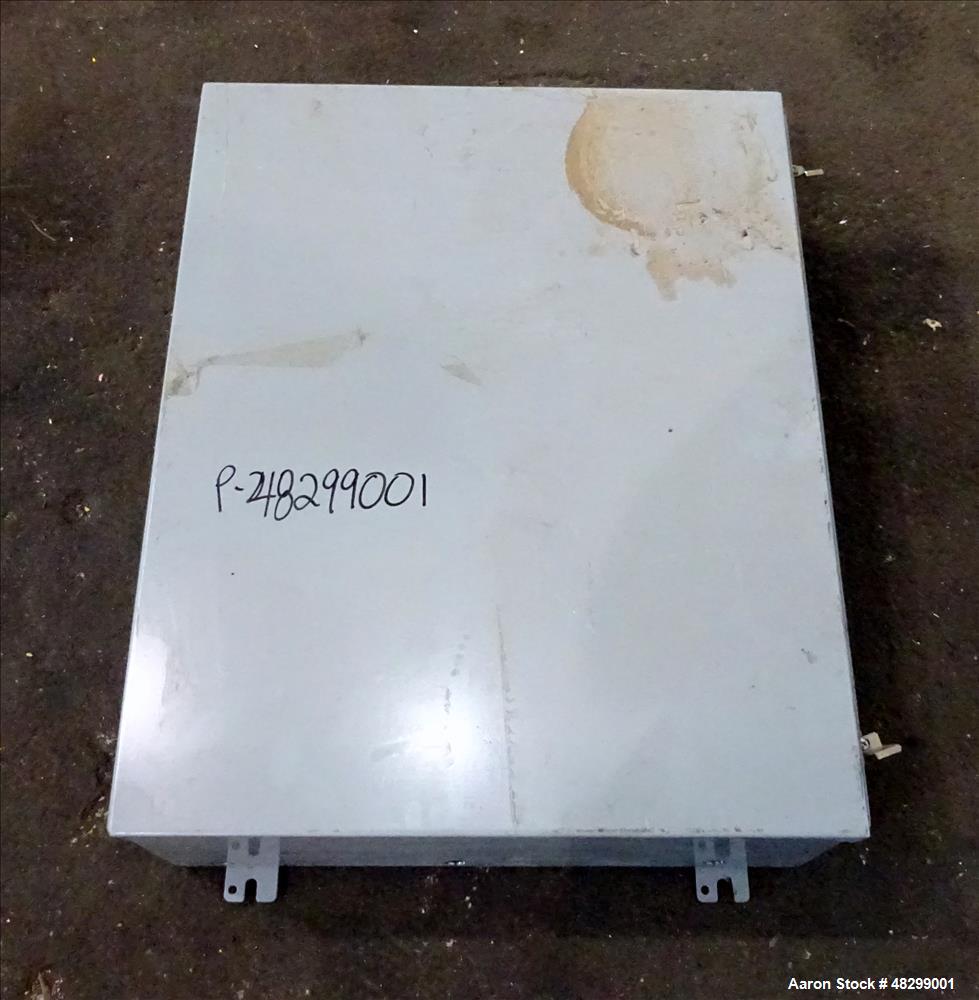

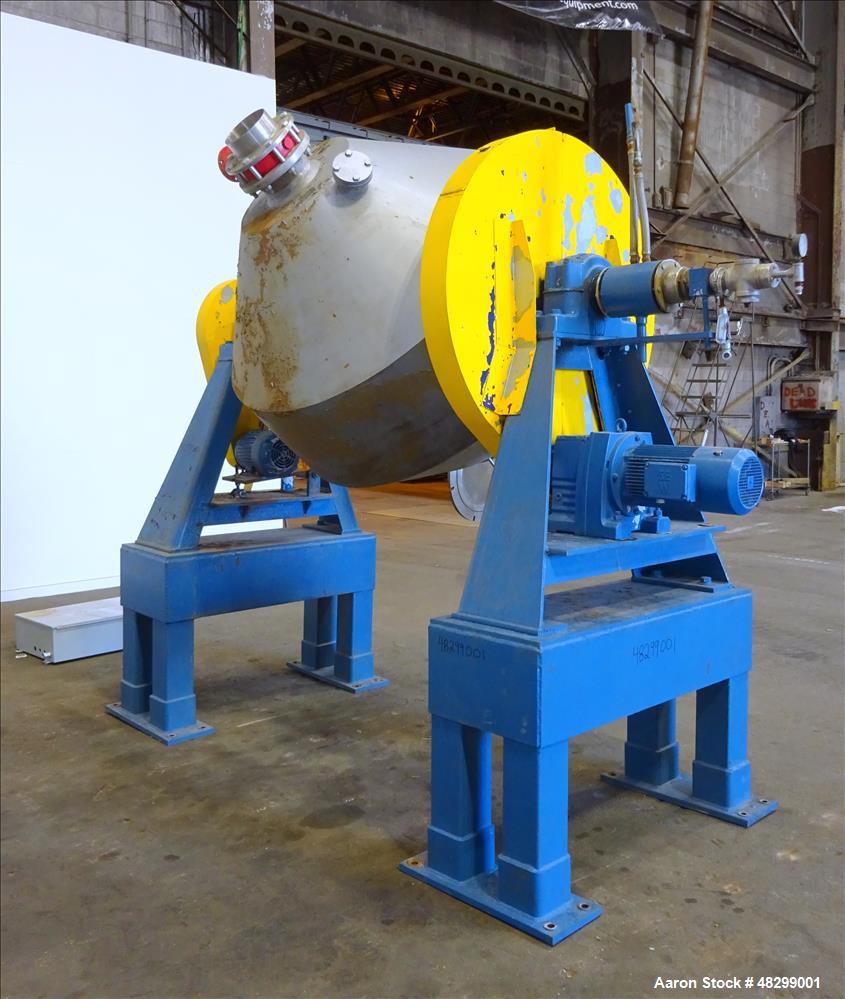

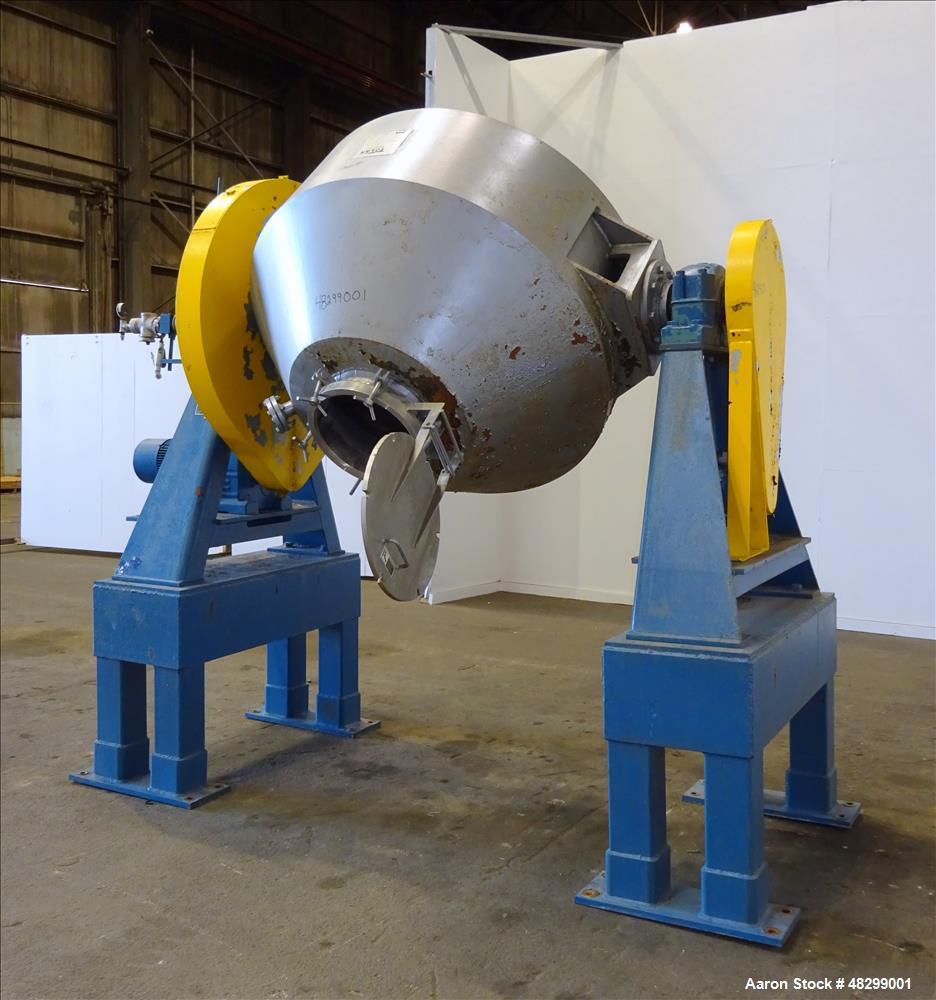

Used Paul O. Abbe Rota-Cone Dryer, Model RCVD54, 304 Stainless Steel. 45 Cubic feet total capacity, 30 cubic feet working capacity. 54" Diameter shell rated 30 psi/Full Vacuum at -20 to 250 Degrees F. Carbon steel jacket 15 psi at -20 to 250 Degrees F. Insulated. Shell driven by a 5hp, 3/60/208-230/460 volt gear motor, 42.78 to 1 ratio. Side Entering Pin type agitator bar, driven by a 5hp, 3/60/460 volt, 1750 rpm, approximate 2" diameter x 27" long shaft with (12) 1/2" diameter x 4-3/4" long pins. Side entering vacuum tube. 16" Manway with hinged cover, 8" outlet with butterfly valve. Mounted on a painted carbon steel stands. Includes control panel. POA Serial# 065457RCVD. National board certified by Tolan # 2838, Serial# 8347, built 2006.
Used Paul O. Abbe Rota-Cone Dryer, Model RCVD54, 304 Stainless Steel. 45 Cubic feet total capacity, 30 cubic feet working capacity. 54" Diameter shell rated 30 psi/Full Vacuum at -20 to 250 Degrees F. Carbon steel jacket 15 psi at -20 to 250 Degrees F. Insulated. Shell driven by a 5hp, 3/60/208-230/460 volt gear motor, 42.78 to 1 ratio. Side Entering Pin type agitator bar, driven by a 5hp, 3/60/460 volt, 1750 rpm, approximate 2" diameter x 27" long shaft with (12) 1/2" diameter x 4-3/4" long pins. Side entering vacuum tube. 16" Manway with hinged cover, 8" outlet with butterfly valve. Mounted on a painted carbon steel stands. Includes control panel. POA Serial# 065457RCVD. National board certified by Tolan # 2838, Serial# 8347, built 2006.
