Unused Paul O. Abbe Model RCVD 1.1 Sanitary Rota-Cone Vacuum Dryer – 1.7 Cu. Ft.

DOWNLOAD ALL PHOTOS FOR THIS ITEM WITHOUT AARON WATERMARK

SELL US YOURS

Stock # 53128001

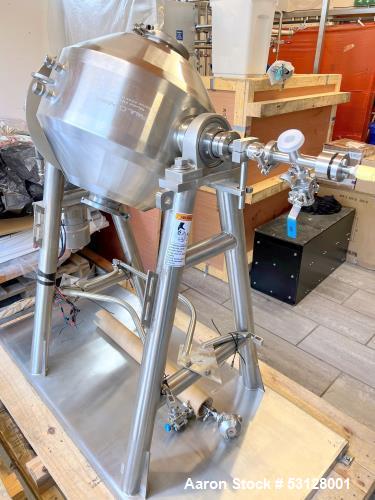

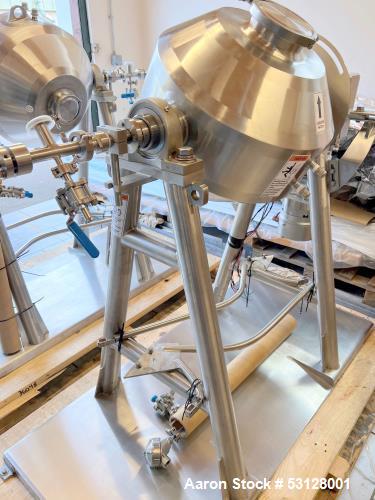

Unused- Paul O. Abbe (Certified by DCI Inc.) Model RCVD 1.1 Sanitary Rota-Cone Vacuum Dryer. Working capacity. 1.7 Cubic Foot, Total Capacity (12 Gallon). Type 316L Stainless Steel Construction. 18" Inside Diameter Shell that is Electropolished. Sanitary 6" Inlet with Gasketed Cover and 3" Sanitary Outlet, No Valve. Internal Rated 35 PSI/Full Vacuum @ 300 Degrees F. MDMT is -20 Degrees F @ 35 PSI/Full Vacuum. Type 304 Stainless Steel Jacket rated 45 PSI/Full Vacuum @ 300 Degrees F. MDMT is -20 Degrees F @ 45 PSI/Full Vacuum. Jacket Volume is 2-gallon capacity. Vessel is Insulated with 1" Chloride Free Insulation with 316L SS Shroud. National Board, ASME & U Stamped. Includes Stainless Steel Hp TEFC Motor, 400 Volt, 3/50. CE Certified. Hollow Bore Gear Motor. Approx. 8 RPM Output Speed, mounted through Aluminum Frame Gear Reducer at 188.5/1 Ratio. 304 Stainless Steel Tubular Legs and Base. Includes Internal Sanitary Vacuum Line, Gas Purge and RTD Probe. Stainless Steel Rotary Unions. Includes Brake Motor with Inverter, and Positioning Disc. Does Not Include Control Panel. Drawings and Manual are available. Serial Number JS7845A, Built in 2020. Built for a Pharmaceutical Company in the UK and it was NEVER USED. Still in storage in the UK. Ready for Shipment.

SPECIFICATIONS

Manufacturer	Paul O AbbePaul O Abbe
Model	RCVD-1.1
Serial #	JS7845A
Category	Dryers - Drying EquipmentDryers - Drying Equipment
Subcategory	Double Cone - V Rotary VacuumDouble Cone - V Rotary Vacuum
Material of Construction	316L Stainless Steel
Capacity	1.7 cu/ft
Internal Rated	Pressure
Vacuum Rated	45
Pressure Rated	35
Internal Temperature	-20 to 300 F
Opening Cover	Yes
Year Built	2020

Used Equipment Facts About This Machine

Manufacturer Information:

Manufacturer: Paul O. Abbe (Certified by DCI Inc.)

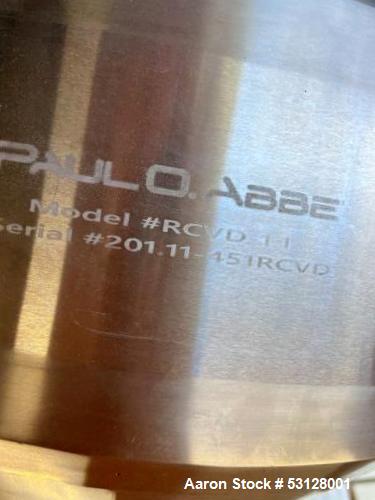

Model: RCVD 1.1
Condition: Unused (Never Used, Still in Storage)
Year Built: 2020

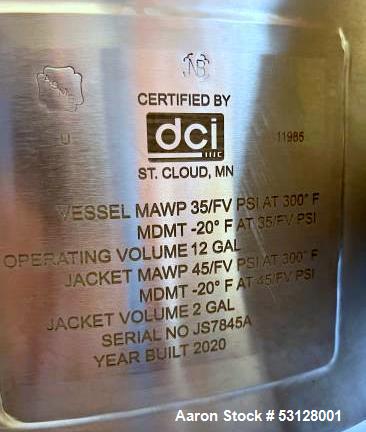

Certifications: National Board, ASME & U Stamped, CE Certified

Manufacturing Data:

Vacuum Dryer:

Type: Sanitary Rota-Cone Vacuum Dryer
Working Capacity: 1.7 Cubic Foot
Total Capacity: 12 Gallons
Material: 316L Stainless Steel Construction
Interior Surface Finish: Electropolished
Internal Pressure Rating: 35 PSI / Full Vacuum @ 300°F
Minimum Design Metal Temperature (MDMT): -20°F @ 35 PSI / Full Vacuum
Inlet & Outlet:
- Sanitary 6" Inlet with Gasketed Cover
- 3" Sanitary Outlet (No Valve)

Jacketed System:

Material: 304 Stainless Steel
Jacket Pressure Rating: 45 PSI / Full Vacuum @ 300°F
Jacket MDMT: -20°F @ 45 PSI / Full Vacuum
Jacket Volume: 2 Gallons
Insulation: 1" Chloride-Free Insulation
Exterior Finish: 316L Stainless Steel Shroud

Drive System & Components:

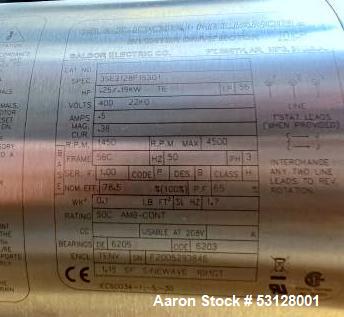

Motor: Stainless Steel TEFC Motor
Power: 400V, 3-Phase, 50 Hz

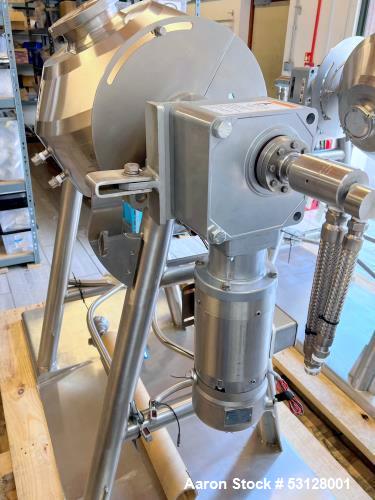

Hollow Bore Gear Motor
Gear Reducer Ratio: 188.5:1
Output Speed: Approx. 8 RPM
Mounting: Aluminum Frame Gear Reducer
Brake Motor with Inverter & Positioning Disc

Structural Features:

304 Stainless Steel Tubular Legs & Base

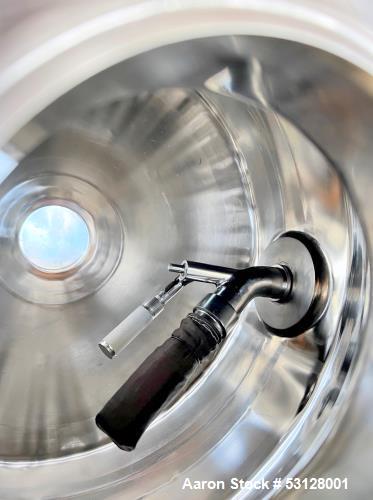

Internal Sanitary Vacuum Line, Gas Purge & RTD Probe
Stainless Steel Rotary Unions
Control Panel: Not Included
Documentation: Drawings & Manual Available
Serial Number: JS7845A
Storage Location: UK (Ready for Shipment)

Description:

The Unused Paul O. Abbe Model RCVD 1.1 Sanitary Rota-Cone Vacuum Dryer is a high-efficiency drying system designed for pharmaceutical, chemical, and food processing applications. Constructed with 316L stainless steel, this vacuum dryer is built for hygienic and sanitary processing, featuring an electropolished interior for easy cleaning and minimal contamination risk.

With a 1.7 cubic foot working capacity (12 gallons total), the unit is equipped with a 304 stainless steel jacket rated at 45 PSI/full vacuum @ 300°F, ensuring efficient heat transfer for low-temperature drying applications. The hollow bore gear motor with an 8 RPM output speed and aluminum frame gear reducer (188.5:1 ratio) provides smooth, reliable rotation for uniform drying.

Built for a pharmaceutical company in the UK, this unit was never put into operation and remains in storage, ready for shipment. It includes sanitary vacuum lines, gas purge capabilities, an RTD probe, and stainless steel rotary unions, making it a premium choice for high-purity drying applications.

Specifications:

Vacuum Dryer System:

Model: RCVD 1.1
Type: Rota-Cone Vacuum Dryer
Working Capacity: 1.7 Cu. Ft. (12 Gal. Total Capacity)
Construction: 316L Stainless Steel
Interior Surface: Electropolished
Internal Pressure Rating: 35 PSI / Full Vacuum @ 300°F
Jacket Material: 304 Stainless Steel
Jacket Rating: 45 PSI / Full Vacuum @ 300°F
Jacket Volume: 2 Gallons
Exterior Insulation: 1" Chloride-Free Insulation with 316L SS Shroud

Motor & Drive System:

Motor Type: Stainless Steel TEFC Motor
Voltage: 400V, 3-Phase, 50 Hz
Gear Reducer Ratio: 188.5:1
Output Speed: 8 RPM
Brake Motor with Inverter & Positioning Disc

Additional Features:

Sanitary 6" Inlet with Gasketed Cover
3" Sanitary Outlet (No Valve)
Internal Vacuum Line, Gas Purge, and RTD Probe
Stainless Steel Rotary Unions
304 Stainless Steel Tubular Legs & Base
Control Panel Not Included
Drawings & Manual Available
Location: Stored in the UK, Ready for Shipment

Applications:

Pharmaceutical & API drying
Chemical processing & powder drying
Food & nutraceutical ingredient drying
Biotechnology material drying
Fine chemical production
High-purity drying applications
Low-temperature vacuum drying processes
R&D and pilot-scale production

What Products Would This Be Used For?

Active Pharmaceutical Ingredients (APIs)
Fine chemicals & specialty powders
Nutraceuticals & dietary supplements
Biotech compounds & excipients
Herbal extracts & botanical powders
Solvent-sensitive and heat-sensitive materials
High-purity organic and inorganic chemicals

Common Keywords for this Used Machine Type

Pharmaceutical, Pharmaceutical & Biotech, Pharmaceutical Industries, Pharmaceutical Products, Pharmaceuticals

PRODUCT DETAILS

Unused Paul O. Abbe Rota-Cone Vacuum Dryer for sale
316L stainless steel sanitary vacuum dryer
Industrial rotary vacuum dryer
Pharmaceutical-grade vacuum drying equipment
Paul O. Abbe RCVD 1.1 vacuum dryer
High-efficiency cone vacuum dryer
ASME U-stamped vacuum drying system
Used pharmaceutical vacuum dryer
Unused Paul O. Abbe Model RCVD 1.1 vacuum dryer for sale
Buy an industrial stainless steel vacuum dryer for pharmaceuticals
Best vacuum drying system for chemical and food processing
Sanitary Rota-Cone vacuum dryer with jacketed stainless steel construction
Pharmaceutical vacuum drying machine for APIs and fine chemicals
High-purity drying system for nutraceutical and food applications
Rotary cone vacuum dryer for heat-sensitive materials
Industrial vacuum drying system for specialty powders
Electropolished 316L stainless steel vacuum dryer with sanitary design
ASME-certified vacuum drying system with full vacuum capabilities
Precision temperature-controlled vacuum dryer with RTD monitoring
Industrial cone vacuum dryer with gas purge and positioning disc
