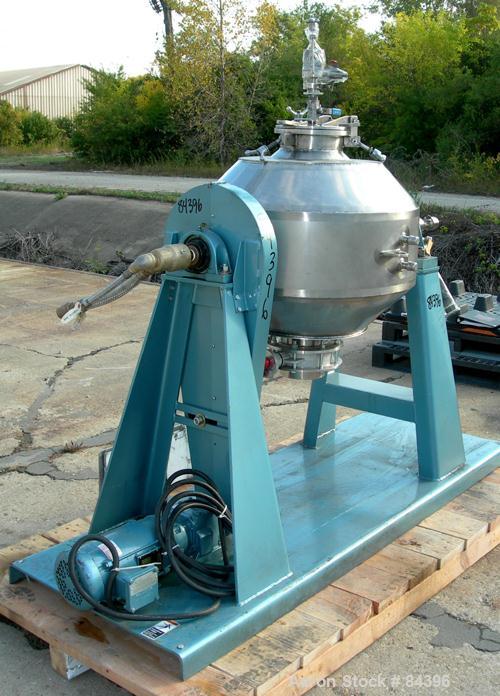

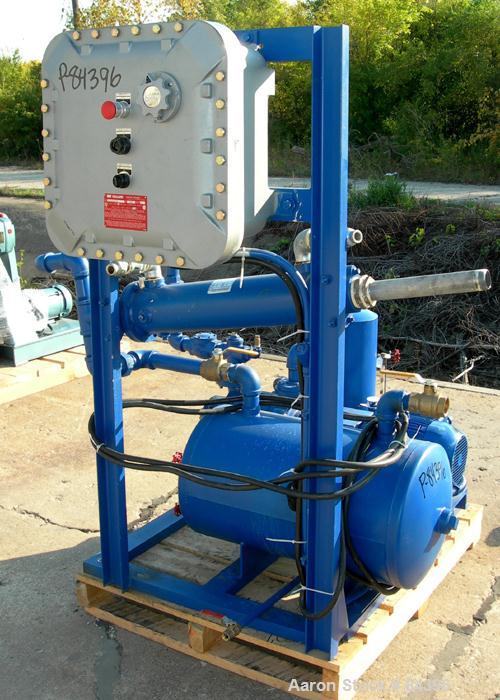

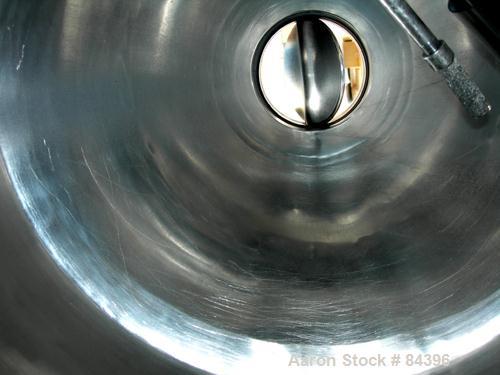

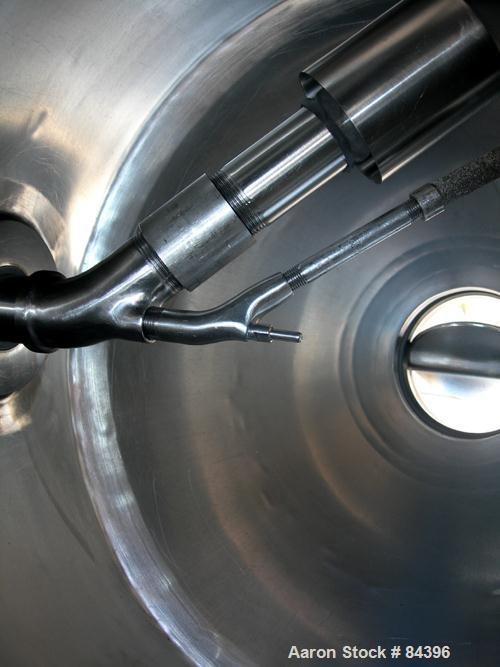

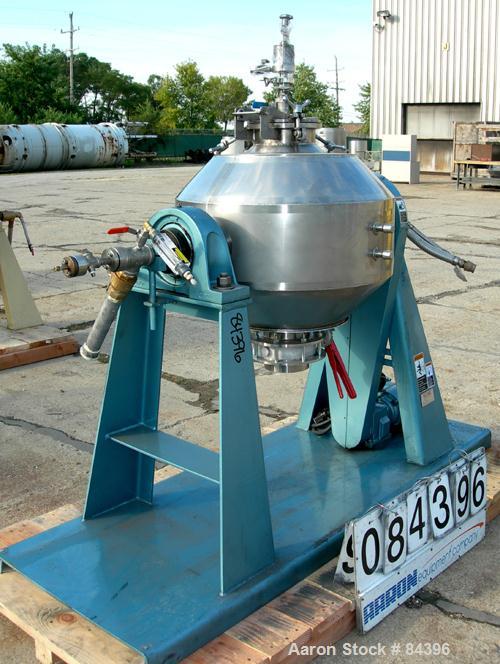

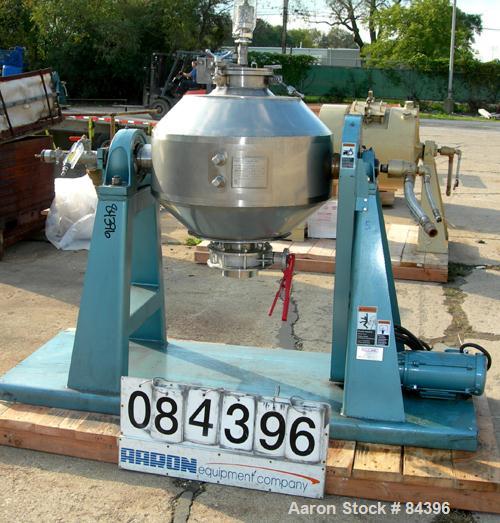

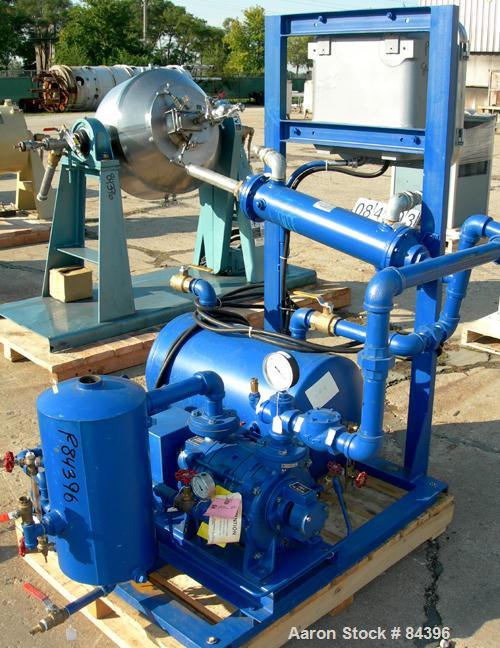

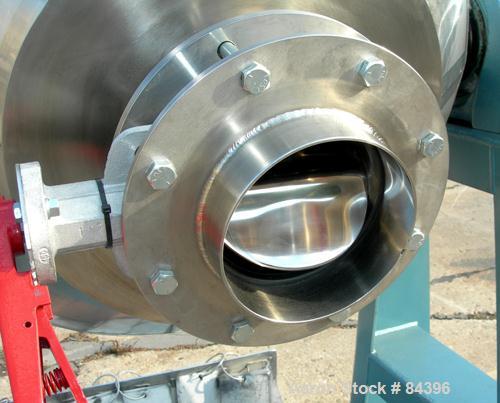

USED: Paul O Abbe Rota-Cone vacuum dryer, model RCVD-24. 2.6 cu ft working, 3.9 cu ft total capacity based on 65% total volume. 304 stainless steel. Twin 45 deg cones rated for full vacuum. Internal continuous, ground smooth to 180 grit. Jacket is free flowing with baffles. 11.9 sq ft surface area rated 14.7 psig @ 250 deg F. 2" jacket connections. Jacket enclosed in a carbon steel sheet metal shroud welded watertight. Top: 8" diameter hinged cover. Solids sampling device, 6" diameter discharge butterfly valve, thermowell, nitrogen purge. Driven by 1 hp inverter duty 3/60/230/460 volt, variable speed 2 to 15 rpm. Support stands, 18" discharge clearance. Includes 2 stage liquid ring vacuum pump system. Cast iron, 5 hp, rated 40 acfm @ 26" HgV, with end vacuum of 28.8 HgV, 60 deg F water sealed basis. Carbon steel shell, copper tube condenser, carbon steel receiver and Nema 12 controls. Built 2005.
USED: Paul O Abbe Rota-Cone vacuum dryer, model RCVD-24. 2.6 cu ft working, 3.9 cu ft total capacity based on 65% total volume. 304 stainless steel. Twin 45 deg cones rated for full vacuum. Internal continuous, ground smooth to 180 grit. Jacket is free flowing with baffles. 11.9 sq ft surface area rated 14.7 psig @ 250 deg F. 2" jacket connections. Jacket enclosed in a carbon steel sheet metal shroud welded watertight. Top: 8" diameter hinged cover. Solids sampling device, 6" diameter discharge butterfly valve, thermowell, nitrogen purge. Driven by 1 hp inverter duty 3/60/230/460 volt, variable speed 2 to 15 rpm. Support stands, 18" discharge clearance. Includes 2 stage liquid ring vacuum pump system. Cast iron, 5 hp, rated 40 acfm @ 26" HgV, with end vacuum of 28.8 HgV, 60 deg F water sealed basis. Carbon steel shell, copper tube condenser, carbon steel receiver and Nema 12 controls. Built 2005.
