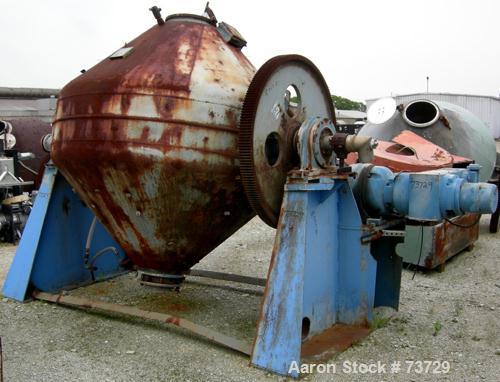

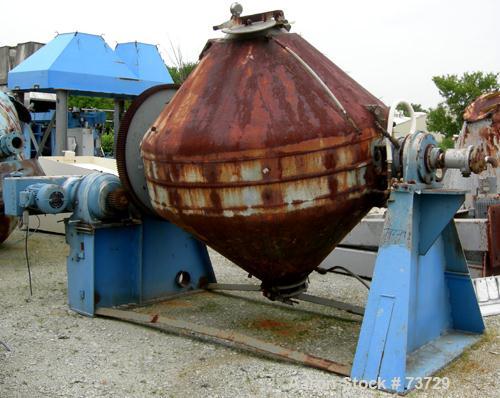

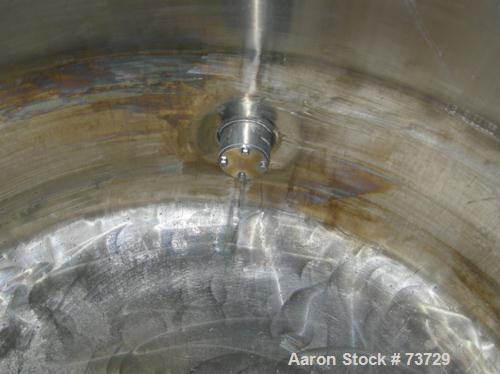

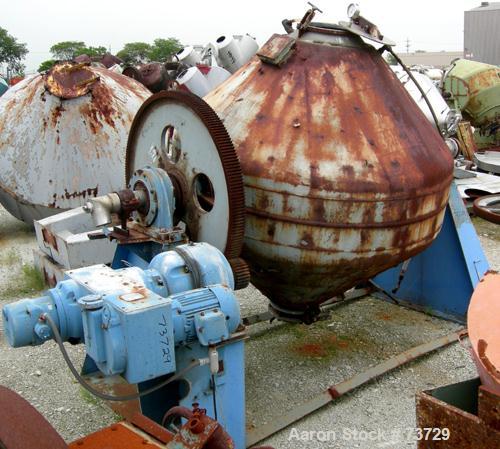

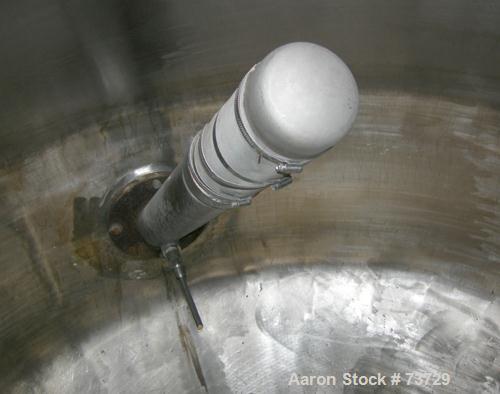

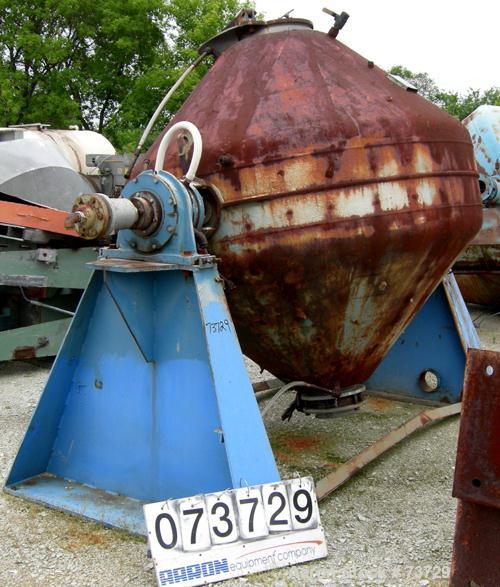

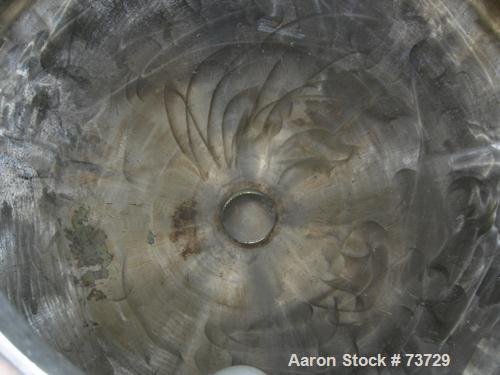

Used Patterson Process Equipment Double Cone Vacuum Dryer, 110 Cubic Feet Working Capacity (157 total), Type B, 304 Stainless Steel. 84" diameter x 18" straight side x 48" cones. Internal rated FV at 300 degrees F. Carbon steel jacket rated 25 psi at 300 degrees F. 16" diameter top inlet with cover. 10" center bottom outlet with hand operated butterfly valve. Driven by a 10 hp Allispede gear motor, ratio 47.1:1. Min/max rpm 10.6/84.9, XP, Class 1 Group D. Includes brake. Mounted on carbon steel stands.
Used Patterson Process Equipment Double Cone Vacuum Dryer, 110 Cubic Feet Working Capacity (157 total), Type B, 304 Stainless Steel. 84" diameter x 18" straight side x 48" cones. Internal rated FV at 300 degrees F. Carbon steel jacket rated 25 psi at 300 degrees F. 16" diameter top inlet with cover. 10" center bottom outlet with hand operated butterfly valve. Driven by a 10 hp Allispede gear motor, ratio 47.1:1. Min/max rpm 10.6/84.9, XP, Class 1 Group D. Includes brake. Mounted on carbon steel stands.
