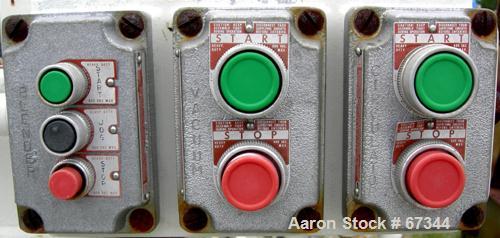

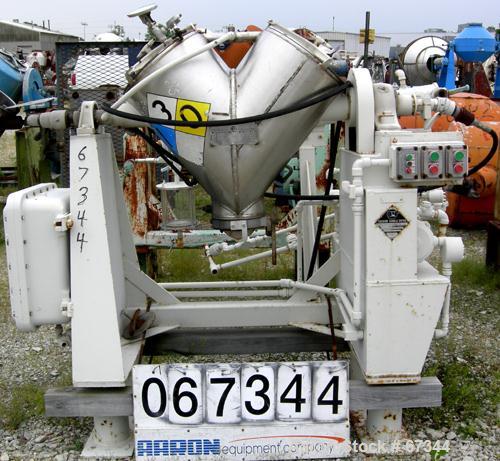

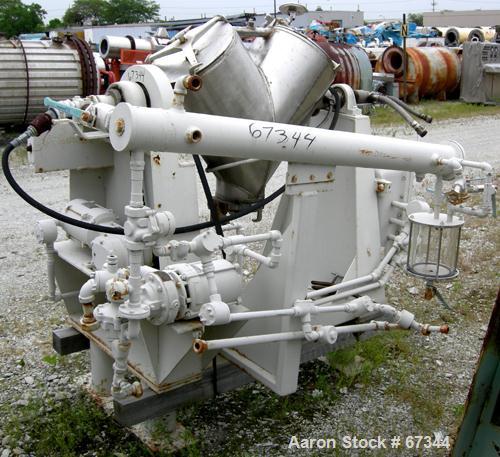

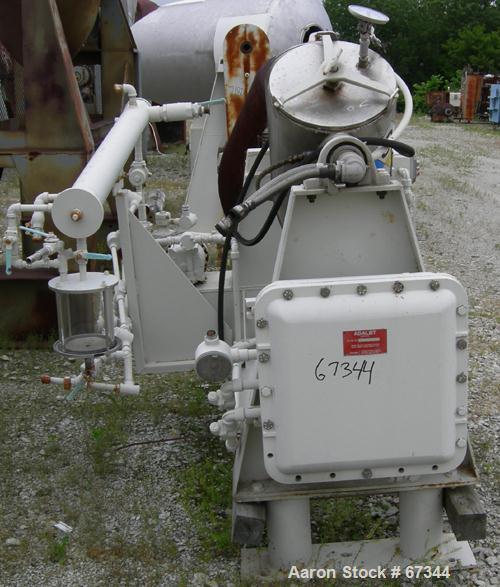

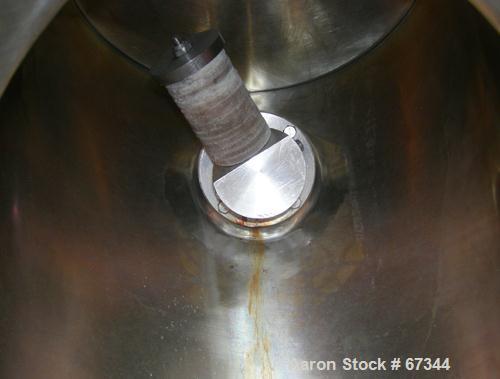

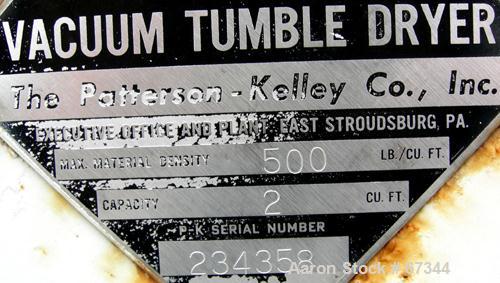

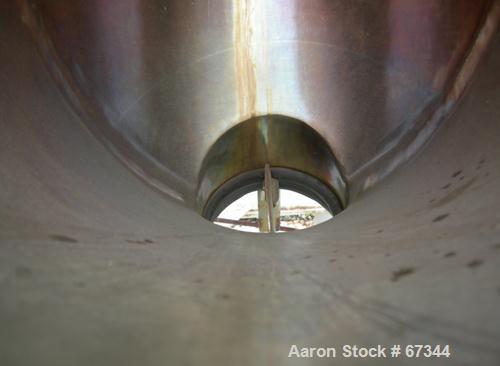

USED: Patterson Kelly twin shell vacuum tumble dryer, 2 cubic foot capacity, 304 stainless steel. Max material density 500 lb/cubic foot. Jacketed, rated 30 psi at 250 deg F. (2) 14" diameter top charge ports with bolt down covers, 6" center bottom outlet with a hand operated butterfly valve. Chain driven by a 3/4 hp, 230/460 volt, 1725 rpm motor thru a Reliance gear reducer, ratio 124:1, output rpm 14. Unit includes a Nash vacuum pump size MP10, 1-1/2" inlet/outlet, 3450 rpm, approximate 1 hp motor, heat exchanger, XP controls. Unit stand mounted.
USED: Patterson Kelly twin shell vacuum tumble dryer, 2 cubic foot capacity, 304 stainless steel. Max material density 500 lb/cubic foot. Jacketed, rated 30 psi at 250 deg F. (2) 14" diameter top charge ports with bolt down covers, 6" center bottom outlet with a hand operated butterfly valve. Chain driven by a 3/4 hp, 230/460 volt, 1725 rpm motor thru a Reliance gear reducer, ratio 124:1, output rpm 14. Unit includes a Nash vacuum pump size MP10, 1-1/2" inlet/outlet, 3450 rpm, approximate 1 hp motor, heat exchanger, XP controls. Unit stand mounted.
