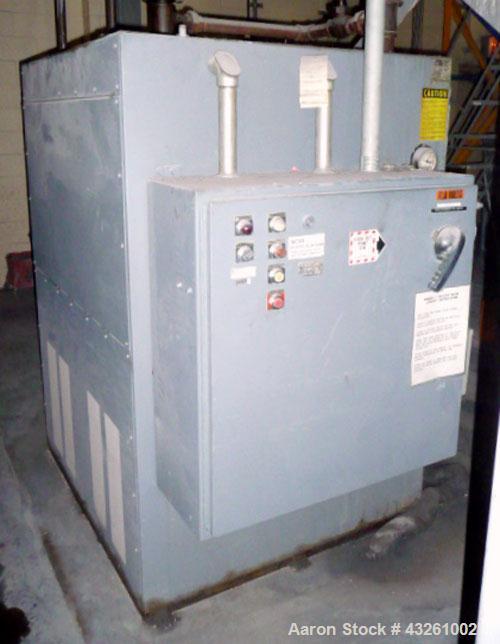

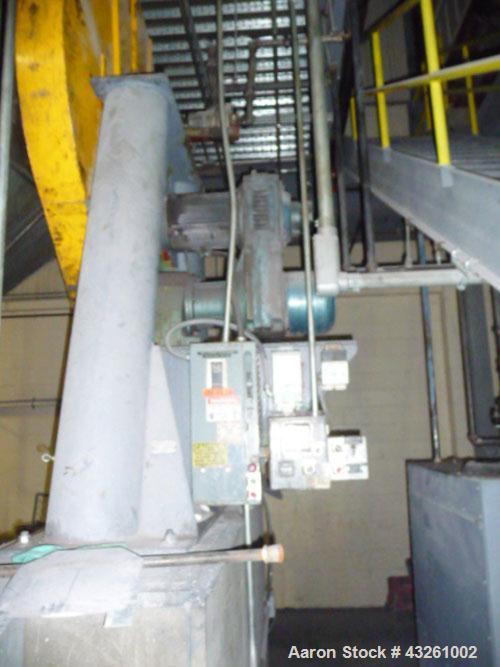

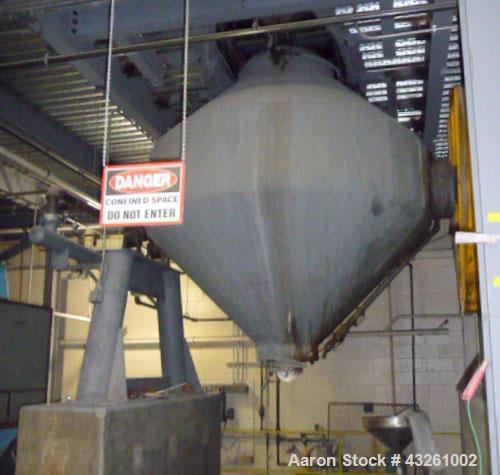

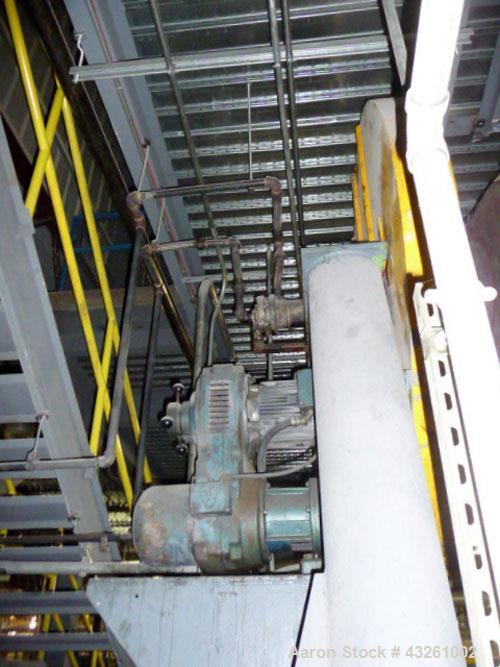

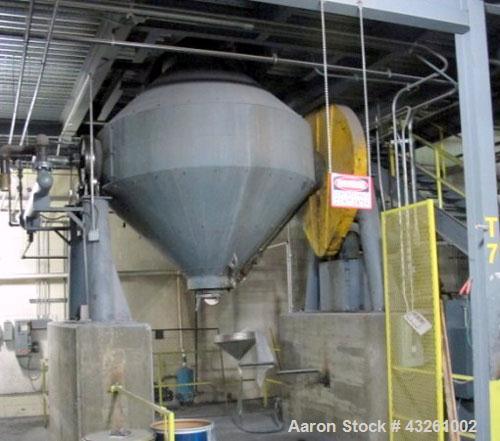

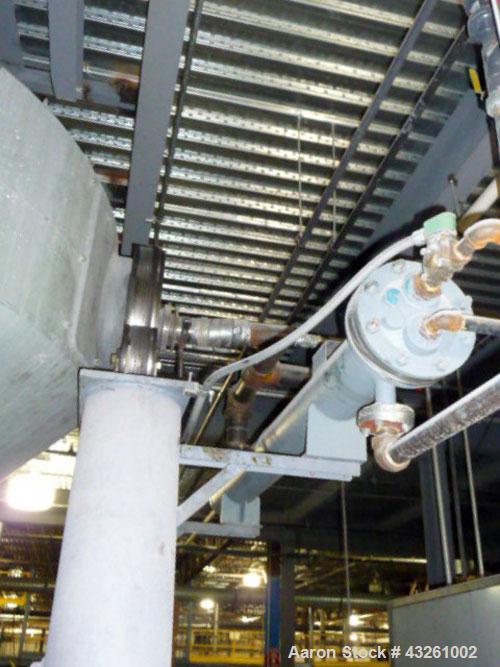

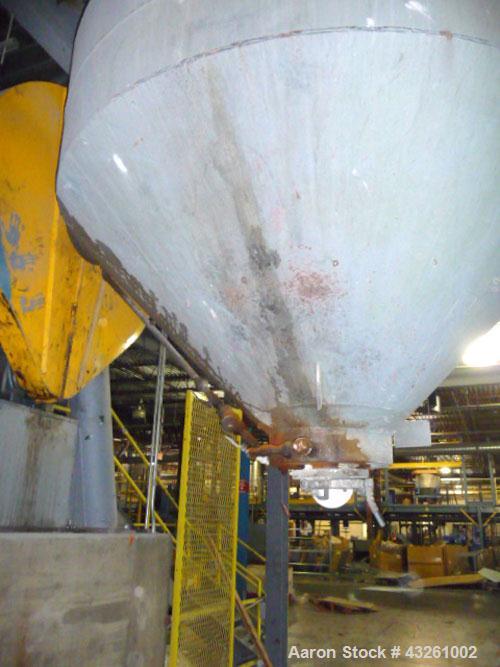

Used Patterson-Kelley Double Cone Vacuum Dryer, 175 Cubic Feet Working Capacity (269.5 Total), 316 Stainless Steel. Rated 50 pounds a cubic foot. Internal rated 45 psi or F.V. at 300 degrees F, carbon steel jacket rated 50 psi at 300 degrees F. Shell- 9/16", Head- 5/8". Driven by a 15 hp gear head US varidrive, 220/440 volt, gear reduction 31.1 to 1, approximate turning speed 1.75 to 7 rpm. Serial#153925. Includes a 10 hp Kinney model KLRC-125 compound oil seal rotary piston vacuum pump, with a Jet-Vac 6-72 Type BEU 6-5/8" x 72" Condenser, Sterlco model 6017 200KW hot oil heater, 150 gpm at 50 psi. Currently mounted on a concrete base. Maximum height required 151’’, maximum swing from bearing center line 61’’, centerline height from floor to bearing 90’’. 18’’ Access opening, discharge valve size 14".
Used Patterson-Kelley Double Cone Vacuum Dryer, 175 Cubic Feet Working Capacity (269.5 Total), 316 Stainless Steel. Rated 50 pounds a cubic foot. Internal rated 45 psi or F.V. at 300 degrees F, carbon steel jacket rated 50 psi at 300 degrees F. Shell- 9/16", Head- 5/8". Driven by a 15 hp gear head US varidrive, 220/440 volt, gear reduction 31.1 to 1, approximate turning speed 1.75 to 7 rpm. Serial#153925. Includes a 10 hp Kinney model KLRC-125 compound oil seal rotary piston vacuum pump, with a Jet-Vac 6-72 Type BEU 6-5/8" x 72" Condenser, Sterlco model 6017 200KW hot oil heater, 150 gpm at 50 psi. Currently mounted on a concrete base. Maximum height required 151’’, maximum swing from bearing center line 61’’, centerline height from floor to bearing 90’’. 18’’ Access opening, discharge valve size 14".
