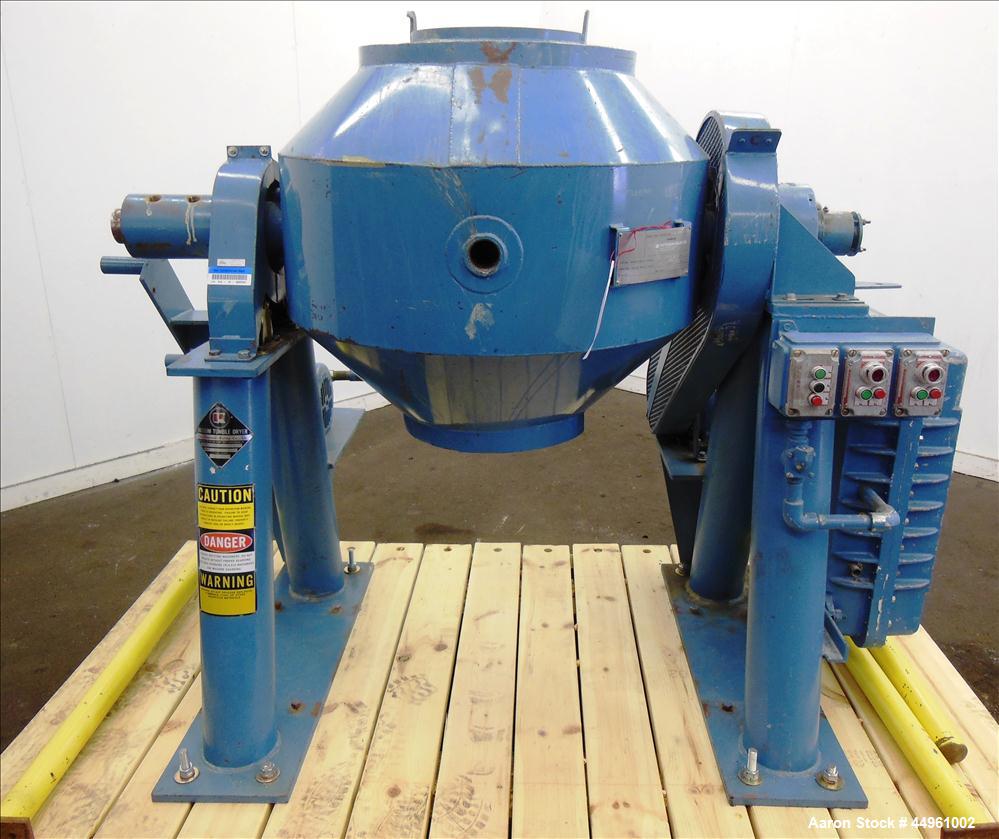

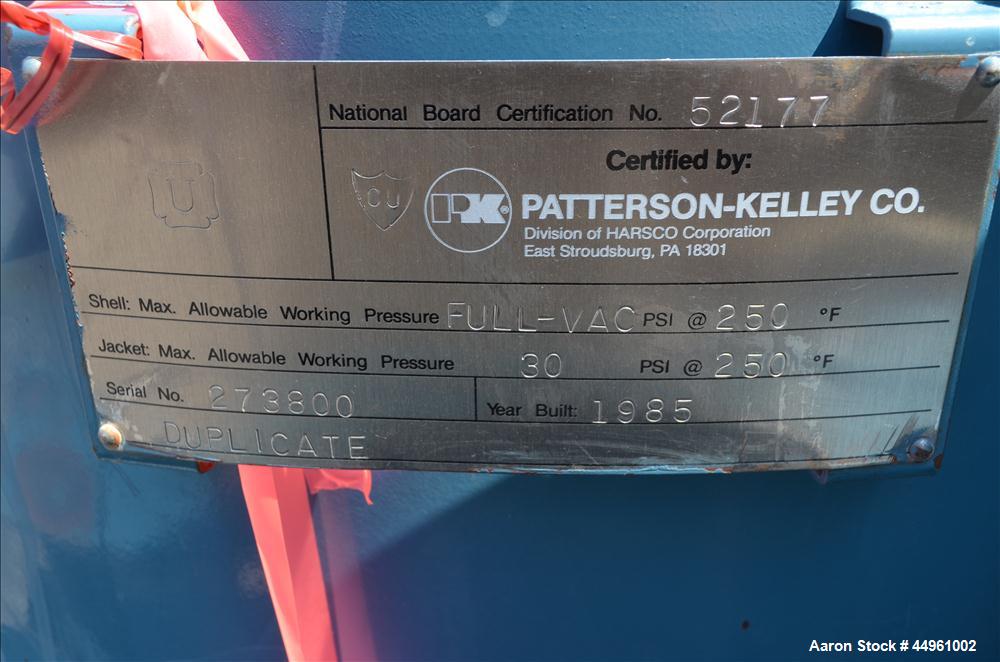

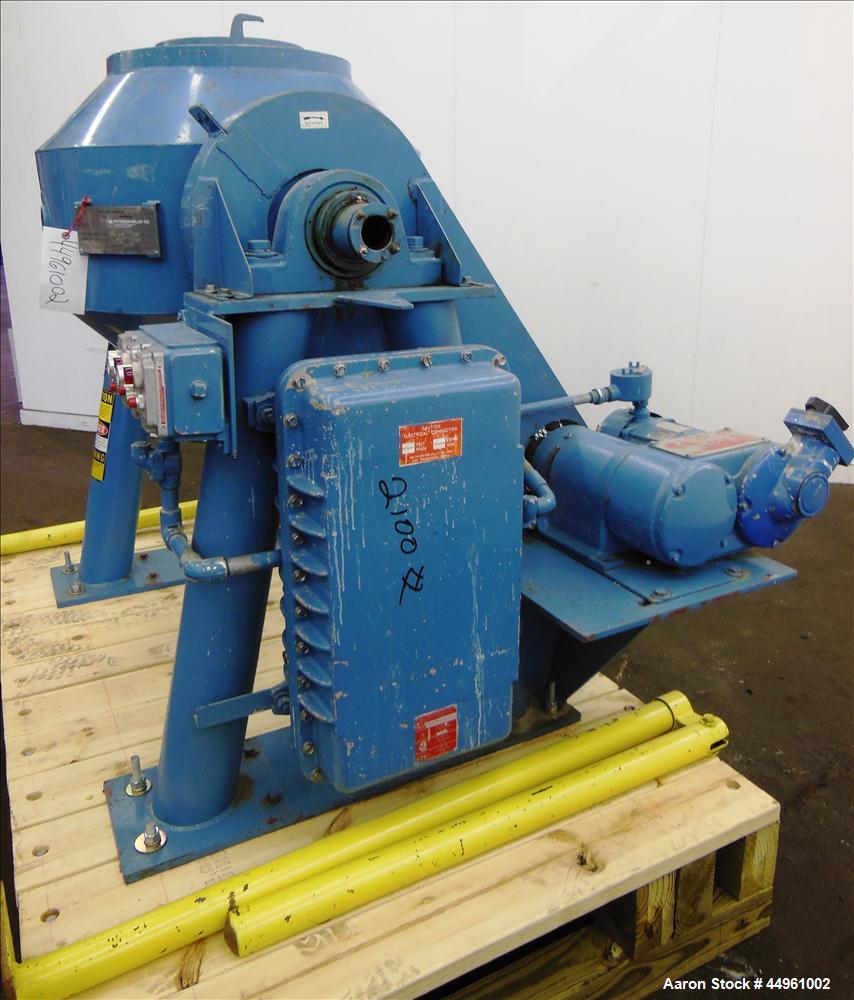

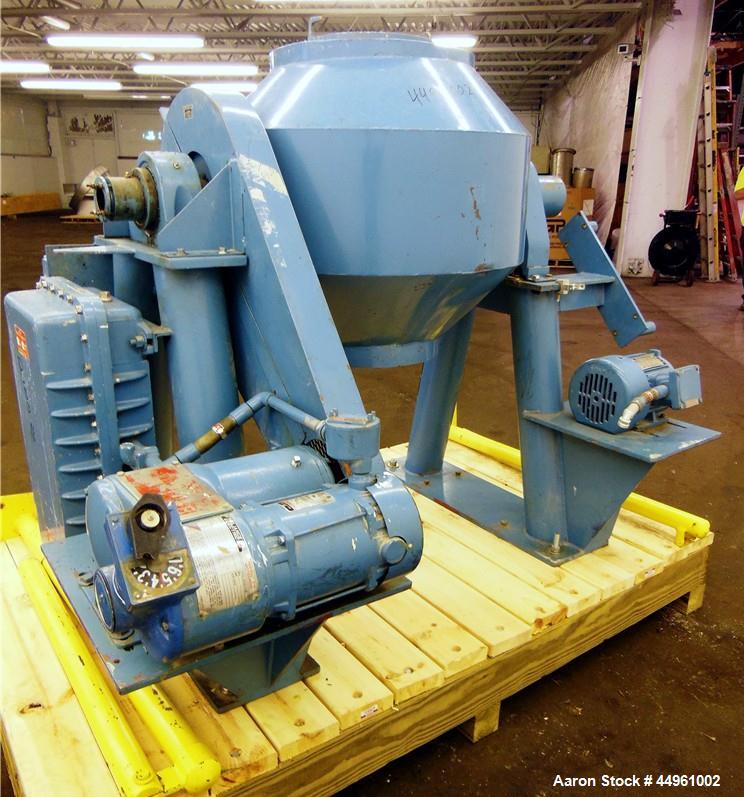

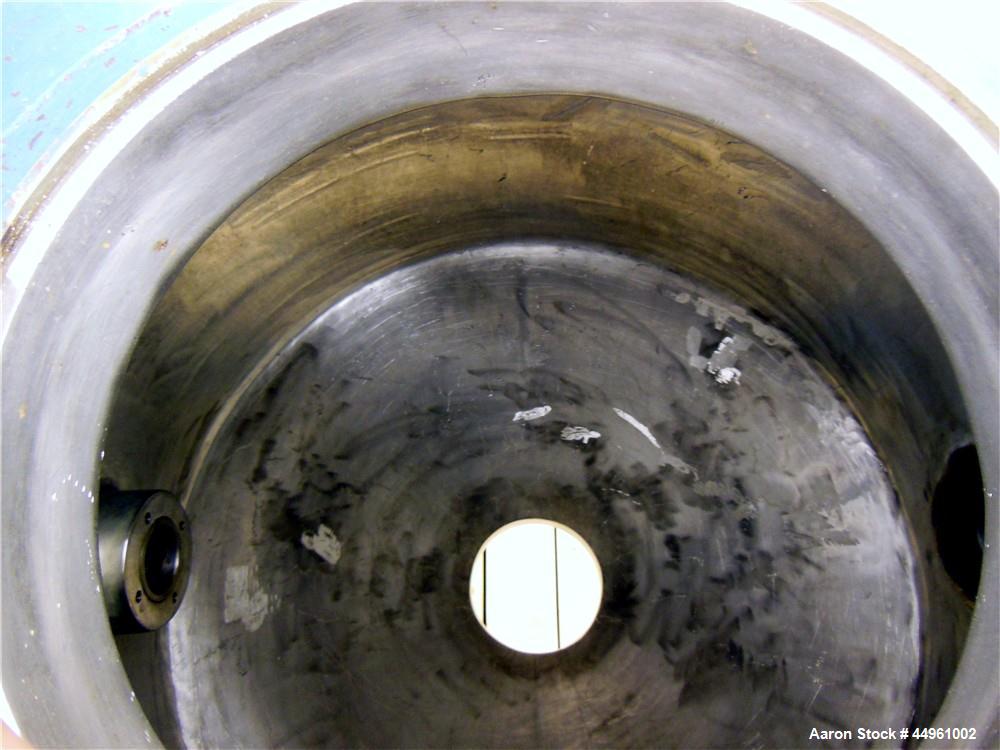

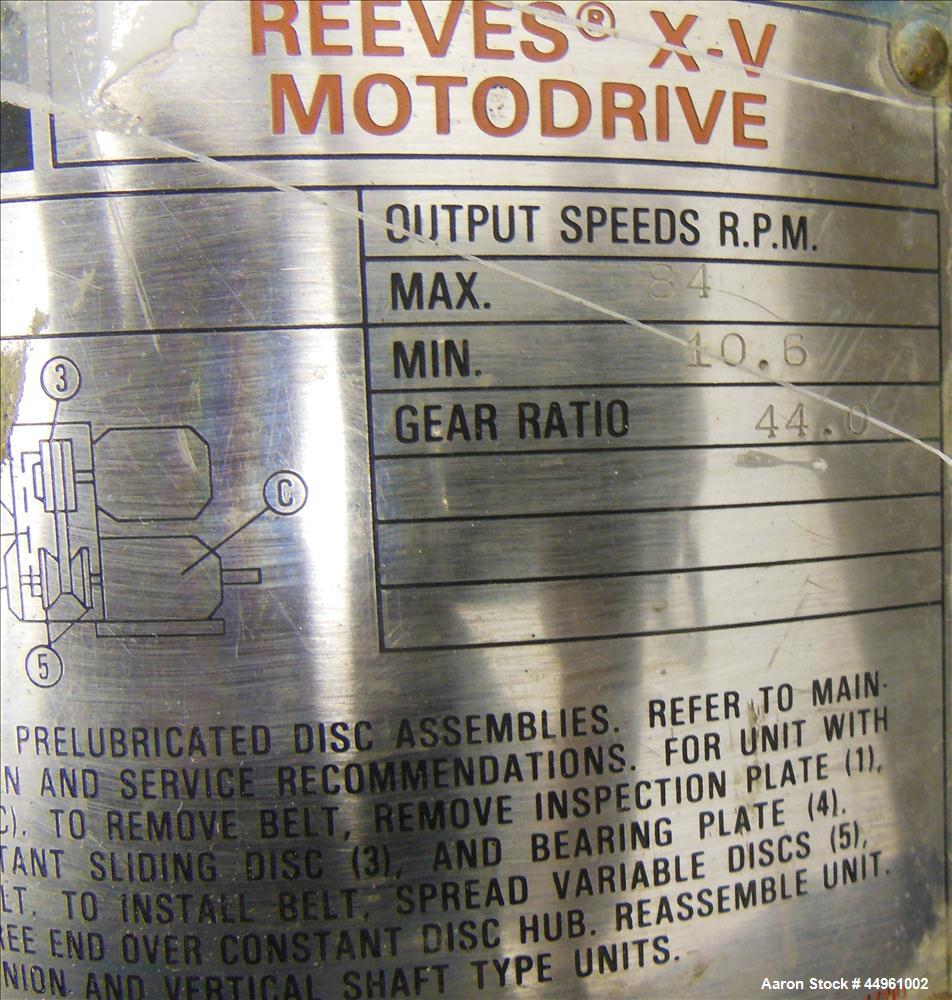

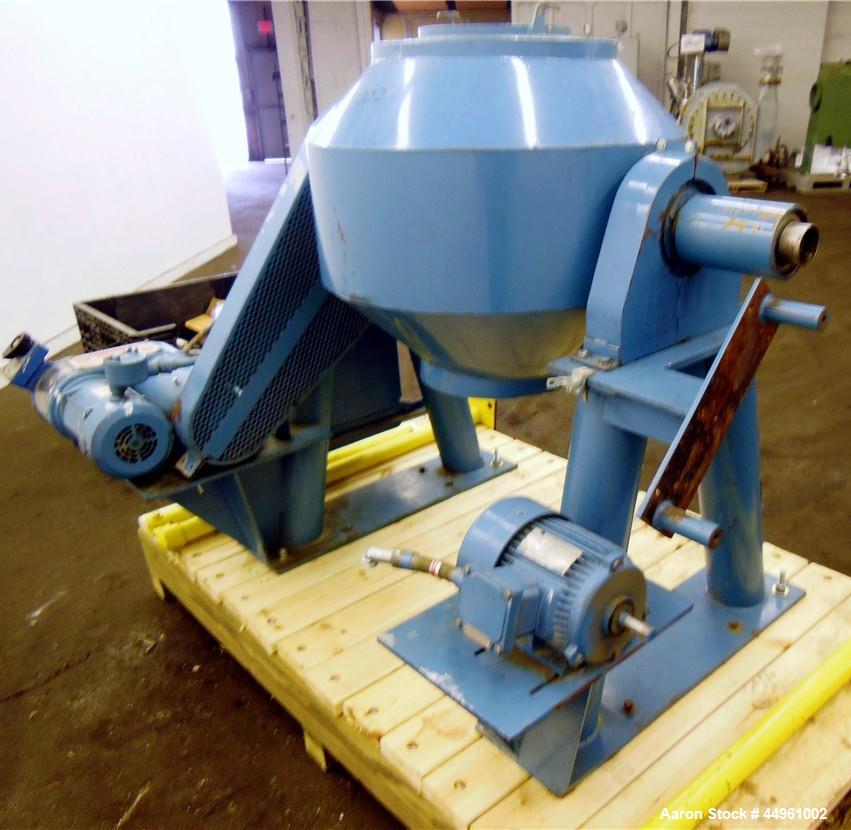

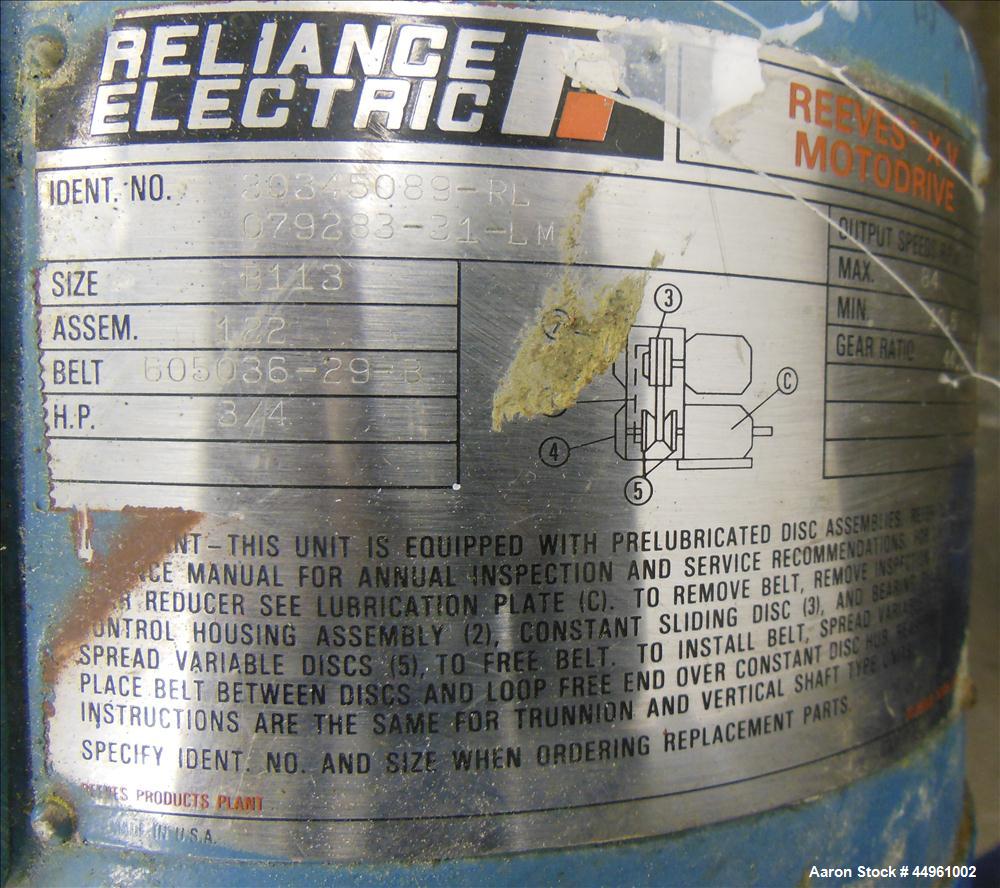

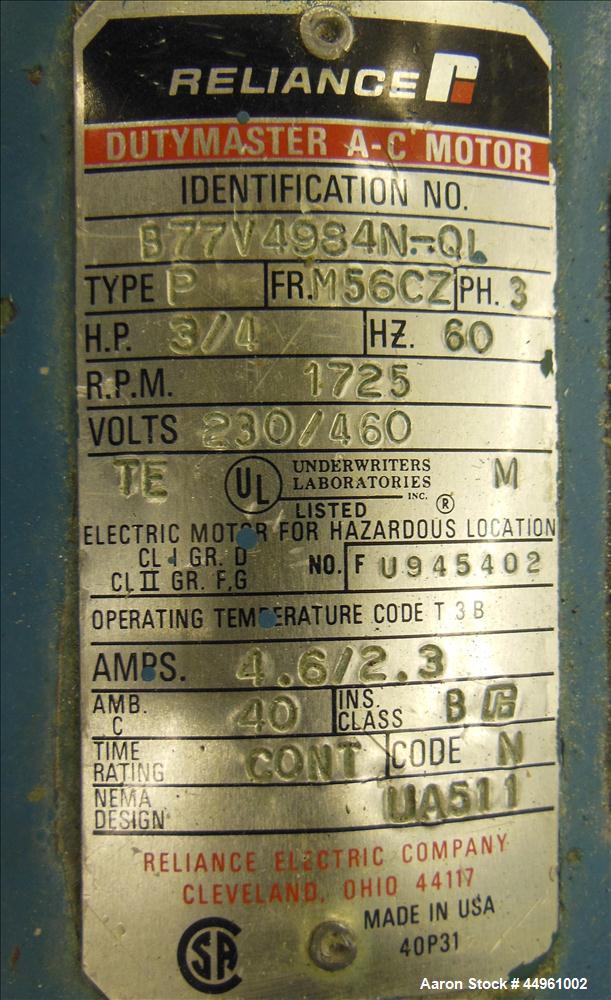

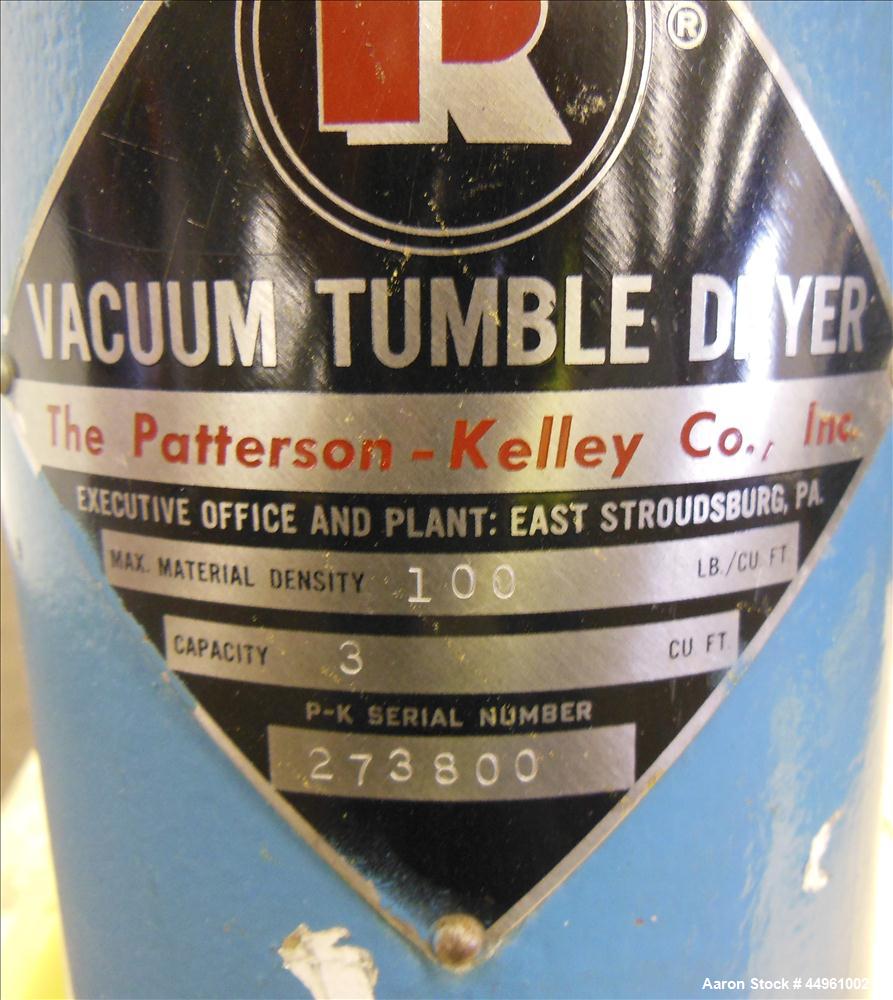

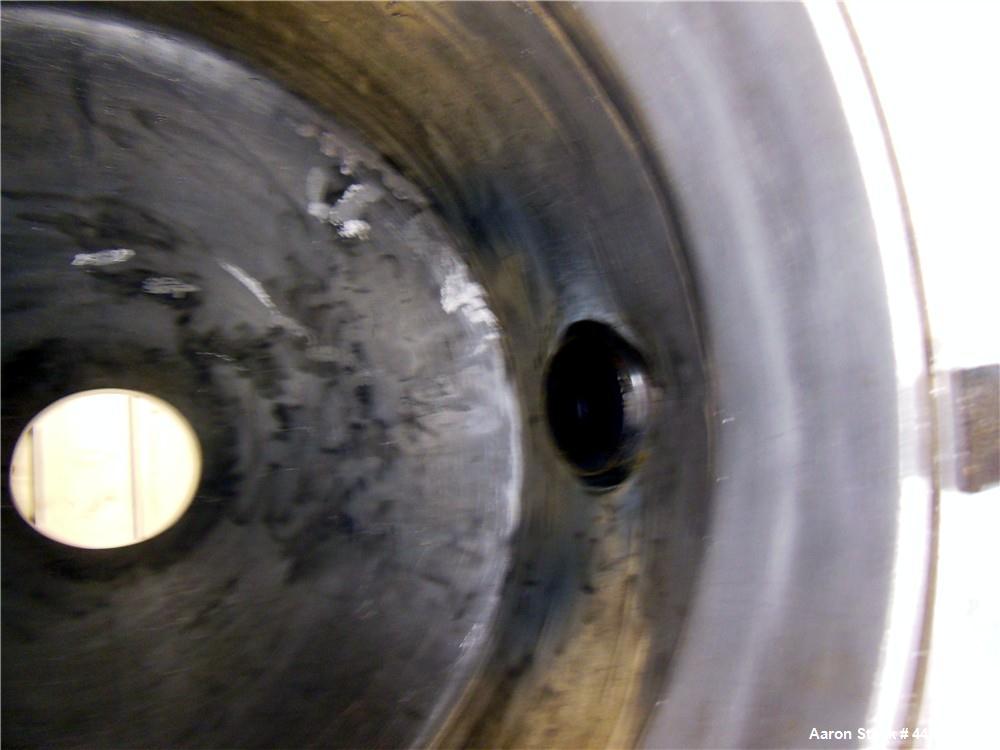

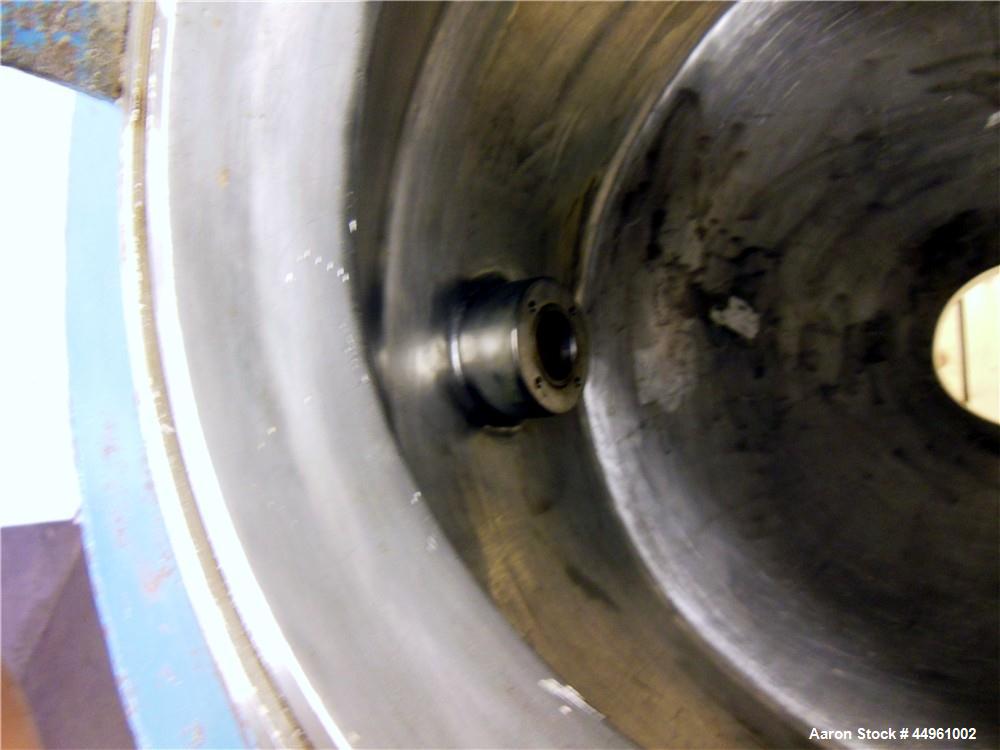

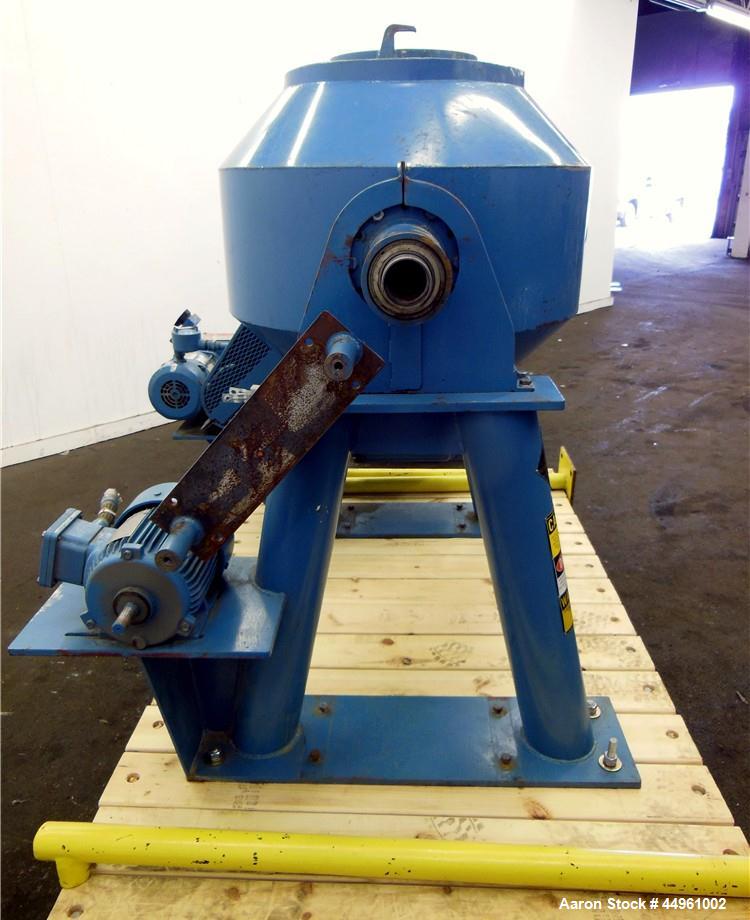

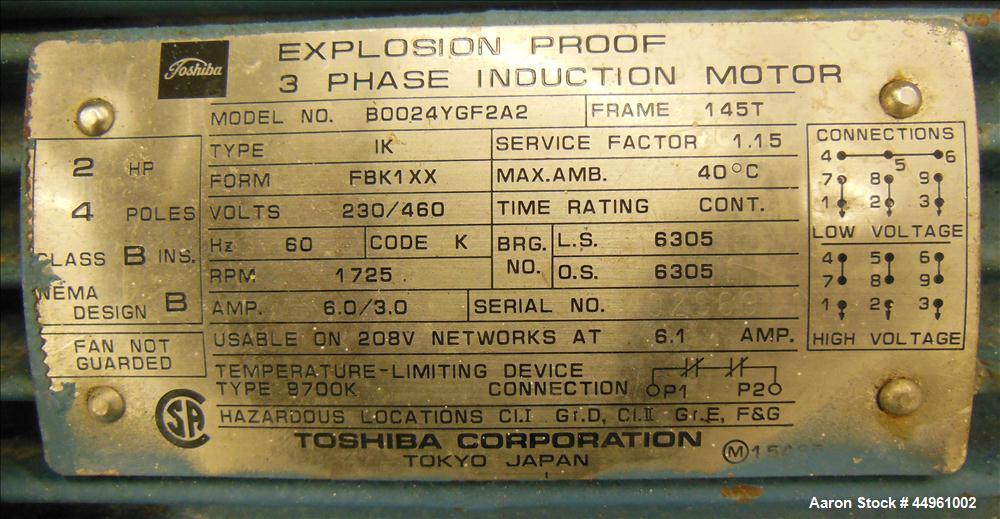

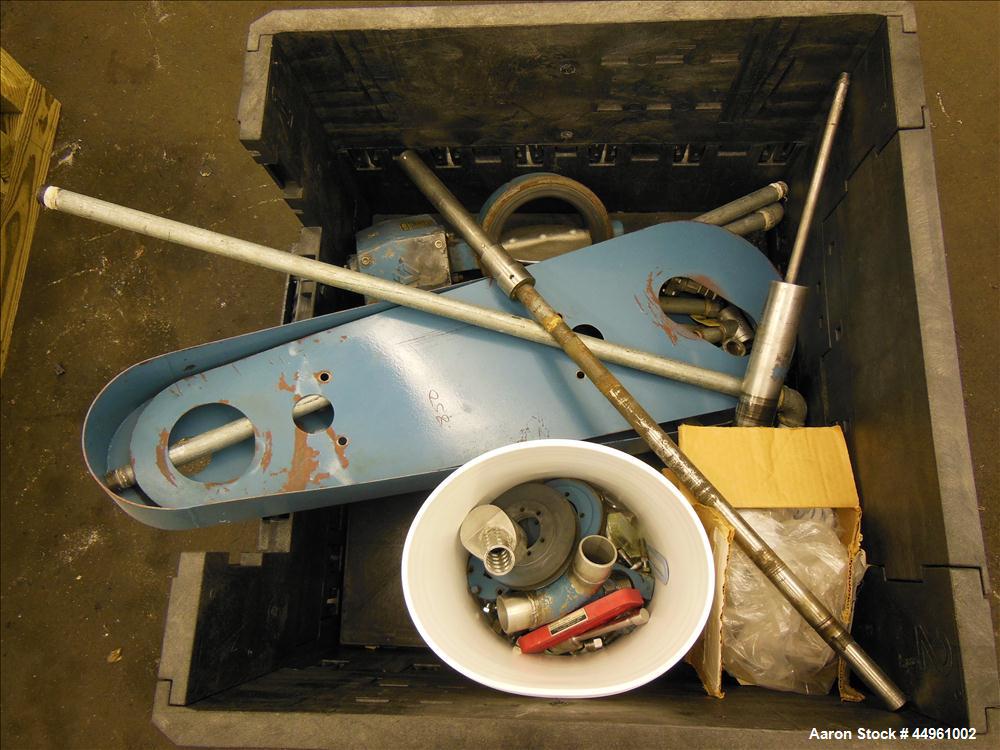

Used Patterson-Kelley Double Cone Vacuum Tumble Dryer, 3 Cubic Feet, 304 Stainless Steel. Maximum material density 100 pounds a cubic foot. Approximate 25" diameter x 12" staright side x 10", and 12" cones. Internal rated, Full Vacuum at 250 degrees F, carbon steel jacket rated 30 psi at 250 degrees F. 11" Diameter top charge port with a quick release cover, 6" center bottom outlet with a manually operated butterfly valve. Shell driven by a 3/4hp, 3/60/230/460 volt, 1725 rpm XP Reeves variable speed motor, ratio 44 to 1, 10.6 to 84 rpm output. Intensifier bar, no blades, driven by a 2hp, 3/60/230/460 volt, 1725 rpm XP motor. Unit mounted on a carbon steel frame with 19-1/2" tall leg extensions. Serial# 273800, National Board# 52177, built 1985.
Used Patterson-Kelley Double Cone Vacuum Tumble Dryer, 3 Cubic Feet, 304 Stainless Steel. Maximum material density 100 pounds a cubic foot. Approximate 25" diameter x 12" staright side x 10", and 12" cones. Internal rated, Full Vacuum at 250 degrees F, carbon steel jacket rated 30 psi at 250 degrees F. 11" Diameter top charge port with a quick release cover, 6" center bottom outlet with a manually operated butterfly valve. Shell driven by a 3/4hp, 3/60/230/460 volt, 1725 rpm XP Reeves variable speed motor, ratio 44 to 1, 10.6 to 84 rpm output. Intensifier bar, no blades, driven by a 2hp, 3/60/230/460 volt, 1725 rpm XP motor. Unit mounted on a carbon steel frame with 19-1/2" tall leg extensions. Serial# 273800, National Board# 52177, built 1985.
