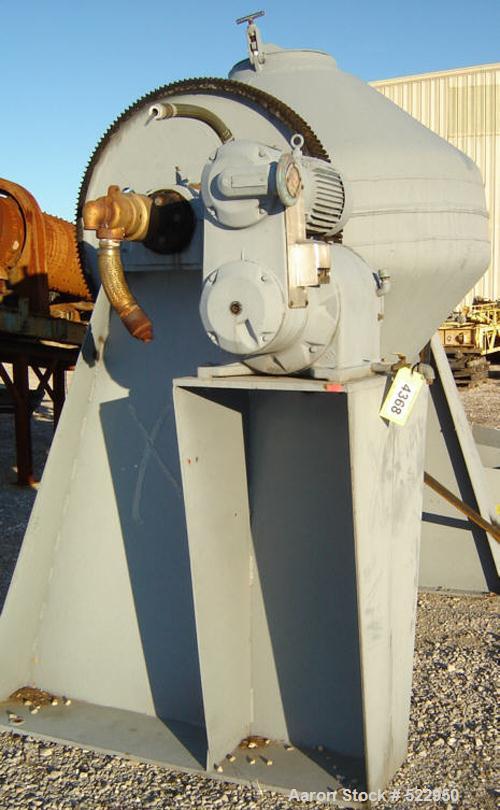

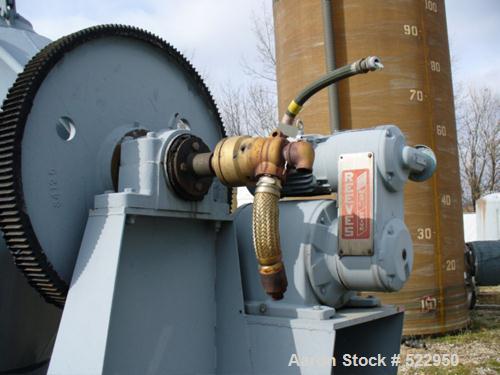

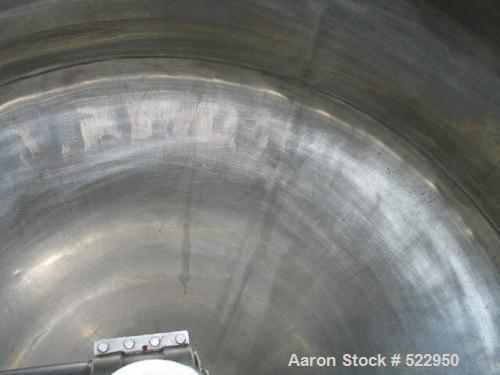

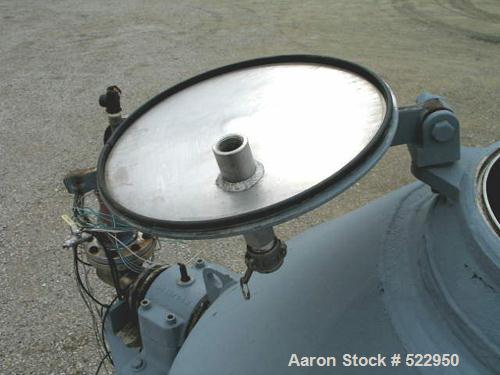

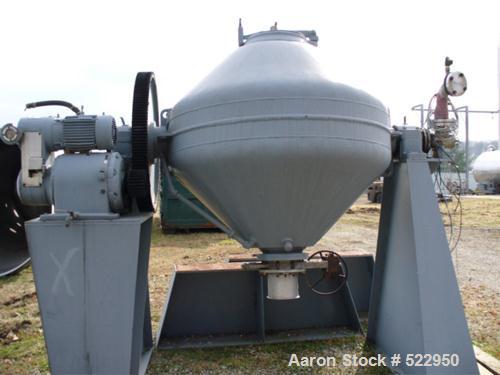

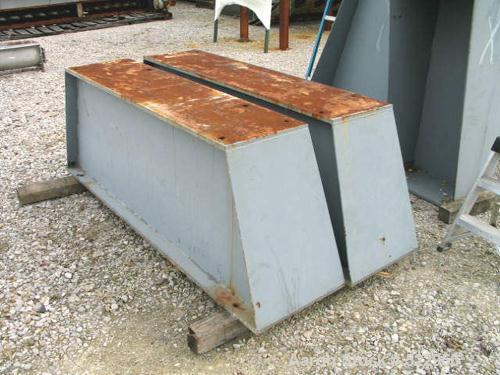

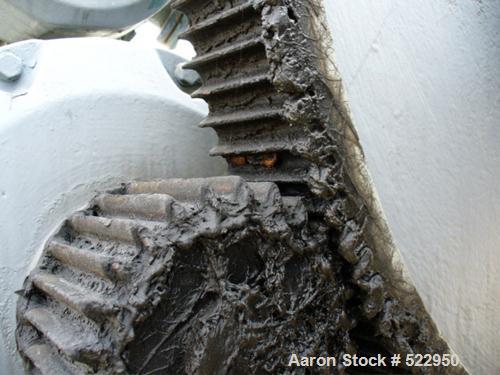

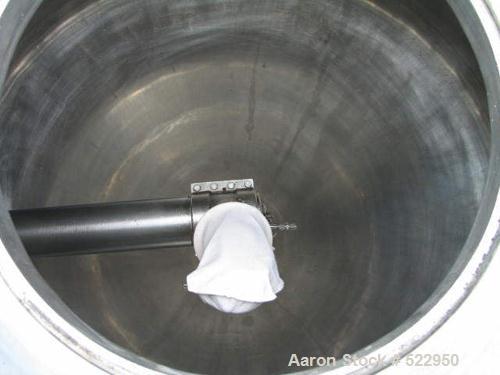

USED: Patterson Industries double cone vacuum dryer. Built in 1969.Stainless steel contact parts. Shell has a jacket rated for vacuum at300 deg F and 15 psig at 300 deg F. Top head thickness is 5/16",jacket thickness is 1/4". Unit has stainless steel 8" manual butterflyvalve on bottom with plain end stub outlet. Drive is 5 hp Relianceelectric Reeves MAS51, size 243, max output speed 68 rpm, min outputspeed 13.6 rpm. Gear ratio 38.4:1. Complete with Johnson rotary joint.Dryer appears to be in good condition. Stainless steel interior reported to be excellent. Vacuum line is 4", 150 lb, 316L stainlesssteel. Unit comes complete with two separate 30" tall pedestals.Overall height not counting loose pedestals is 105". Charging port is16" diameter. Motor appears to be explosion proof, as is, has anexplosion proof electrical fitting. Dryer length is approximately 10'long x 5' wide.
USED: Patterson Industries double cone vacuum dryer. Built in 1969.Stainless steel contact parts. Shell has a jacket rated for vacuum at300 deg F and 15 psig at 300 deg F. Top head thickness is 5/16",jacket thickness is 1/4". Unit has stainless steel 8" manual butterflyvalve on bottom with plain end stub outlet. Drive is 5 hp Relianceelectric Reeves MAS51, size 243, max output speed 68 rpm, min outputspeed 13.6 rpm. Gear ratio 38.4:1. Complete with Johnson rotary joint.Dryer appears to be in good condition. Stainless steel interior reported to be excellent. Vacuum line is 4", 150 lb, 316L stainlesssteel. Unit comes complete with two separate 30" tall pedestals.Overall height not counting loose pedestals is 105". Charging port is16" diameter. Motor appears to be explosion proof, as is, has anexplosion proof electrical fitting. Dryer length is approximately 10'long x 5' wide.
