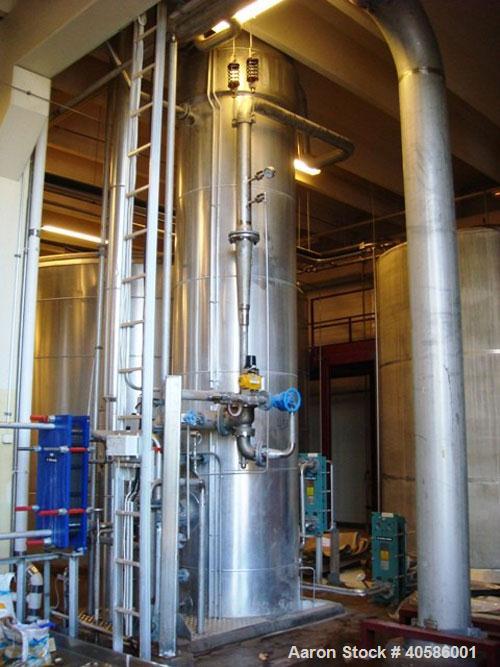

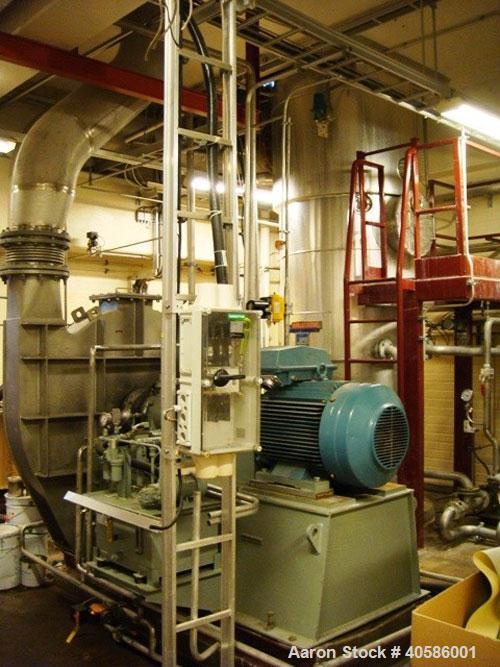

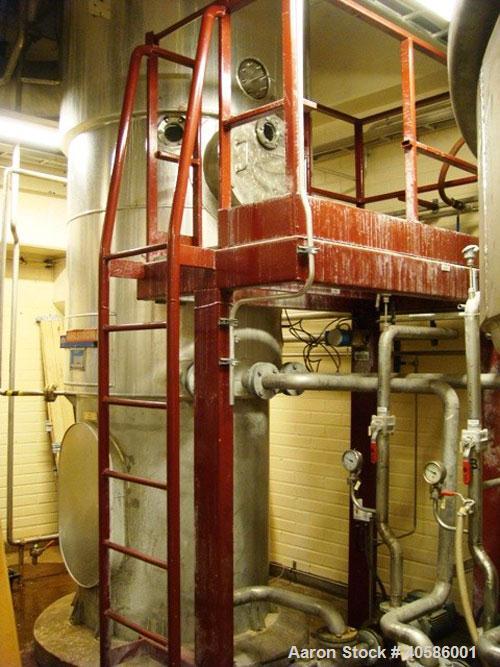

Used Falling Film Evaporation Plant engineered by Ahlstrom Heat Engineering. Designed to evaporate 4000 liters of liquid out of 2.5-5% dry matter solution and concentrate it up to 50% solution with quantity of 200 kg dry bases. Steam consumption 50 kg/h, 3 bar. Evaporation is made in 14.5 meter high falling film type evaporation tower and in 0.3 bar (ABS) pressure and under 100 deg C temperature with two separate evaporation circuits. The plant has the following main components: (1) Ahlstrom evaporation tower, height 14.5m, diameter 1100mm, design pressure 0.1/-1.0 bar. Materials: evaporation tubes Titanium, 350 pcs, 38mm diameter. Other product touching parts AISI 316 or AISI 304 with Titanium cover, nr: 458. (2) Piller steam fan type 2557 KKXGA 80280, volume 5.12 m3/sec, pressure rise 8.98 kPa, electric motor 75 kW. Equipped with bearing lubrication system, vibration control and steam sealing. (3) 3 pcs Fristam product circulation pumps, 20 m3/h, 2 bar, 4 kW/2860 rpm, nr: 457. (4) 3 pcs Alfa-Laval plate heat exchangers, plate materials AISI 316, nr: 461, 460 and 465. (5) Steam ejector Korting Hannover DN 100/150/150.
Used Falling Film Evaporation Plant engineered by Ahlstrom Heat Engineering. Designed to evaporate 4000 liters of liquid out of 2.5-5% dry matter solution and concentrate it up to 50% solution with quantity of 200 kg dry bases. Steam consumption 50 kg/h, 3 bar. Evaporation is made in 14.5 meter high falling film type evaporation tower and in 0.3 bar (ABS) pressure and under 100 deg C temperature with two separate evaporation circuits. The plant has the following main components: (1) Ahlstrom evaporation tower, height 14.5m, diameter 1100mm, design pressure 0.1/-1.0 bar. Materials: evaporation tubes Titanium, 350 pcs, 38mm diameter. Other product touching parts AISI 316 or AISI 304 with Titanium cover, nr: 458. (2) Piller steam fan type 2557 KKXGA 80280, volume 5.12 m3/sec, pressure rise 8.98 kPa, electric motor 75 kW. Equipped with bearing lubrication system, vibration control and steam sealing. (3) 3 pcs Fristam product circulation pumps, 20 m3/h, 2 bar, 4 kW/2860 rpm, nr: 457. (4) 3 pcs Alfa-Laval plate heat exchangers, plate materials AISI 316, nr: 461, 460 and 465. (5) Steam ejector Korting Hannover DN 100/150/150.
