Unused- Car Tire Recycling Line

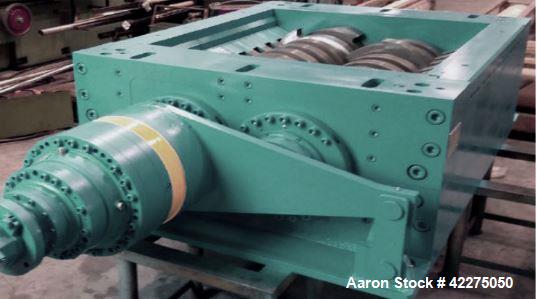

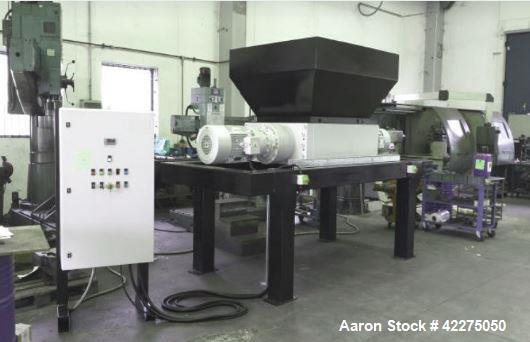

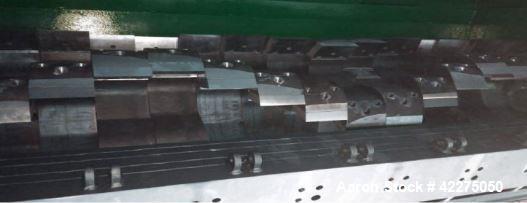

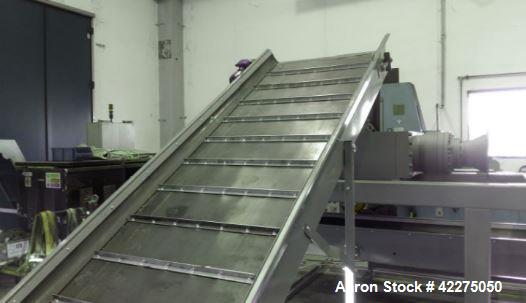

Unused- Car Tire Recycling Line. With an average throughput 3-4 tons/hour granulate/4-5 mm diameter. Consisting of: (1) Inspection anti-magnetic structure conveyor belts, with 1.17" (30 mm) drag paddles. Driven by 1,1 to 1,5 kw variable speed motor through PLC setting, up to 40 m/second, (1) Magnet Separator with multi-layer vulcanized canvas, permanent electro-magnetic, attraction force 220 pounds (100 kgs). (1) Dual shaft primary shredder, 42" x 36" (1300 x1100 mm). 2 x 42" (1300 mm) long shafts with a speed of 10/15 rpm.17 knives 2.9" (75 mm) thick, 1 hook hydraulic motor with axial pistons 2x75 kw planetary gearboxes hydraulic pack with cooling system approximate weight 14 tonnes, (1) Extraction belt loading belt, (1) Dual shaft primary shredder, 42" x 36" (1250 x900 mm). 2 x 4" (1250 mm) long shafts with a speed of 17/21 rpm.17 knives 1.6" (40 mm) thick, 1 hook hydraulic motor with axial pistons 2x37 kw planetary gearboxes hydraulic pack with cooling system approximate weight 4.2 tonnes, (1) Extraction belt with metal separator, (1) Single shaft shredder 1700 mm. Shearing surface 55" x 325" (1700 mm x 1000 mm), 120 x knives 0.78" (20 mm) thick. Rotor diameter 16" (500 mm). Rotor speed 110 rpm via a gearbox by a 75-kw motor max rotor speed, belt transmission. 0.78" (20 mm). diameter grid. Approximate weight 7 tonnes. (1) Vibrating table/belt conveyer includes magnet separator, (1) Granulator 600 mm diameter x 1700 mm straight side. 2 x bed knives, 5 x rotor knives. Maximum rotor speed 700 rpm by a 90-kw belt driven motor includes grid holes screen diameter 5 mm. Approximate weight 3.5 tonnes. (1) Granulate vacuum system, (1) Big bag loading station. Includes Electrical control cabinets and additional infrastructure.
