Used Applied Extracts Supercritical CO2 Extractor – Model AE 2 x 25L

Manufacturer Information

• Manufacturer: Applied Extracts

• Model: AE 2 x 25L

• Category: Supercritical CO2 Extraction System

• Year Built: 2019

Description

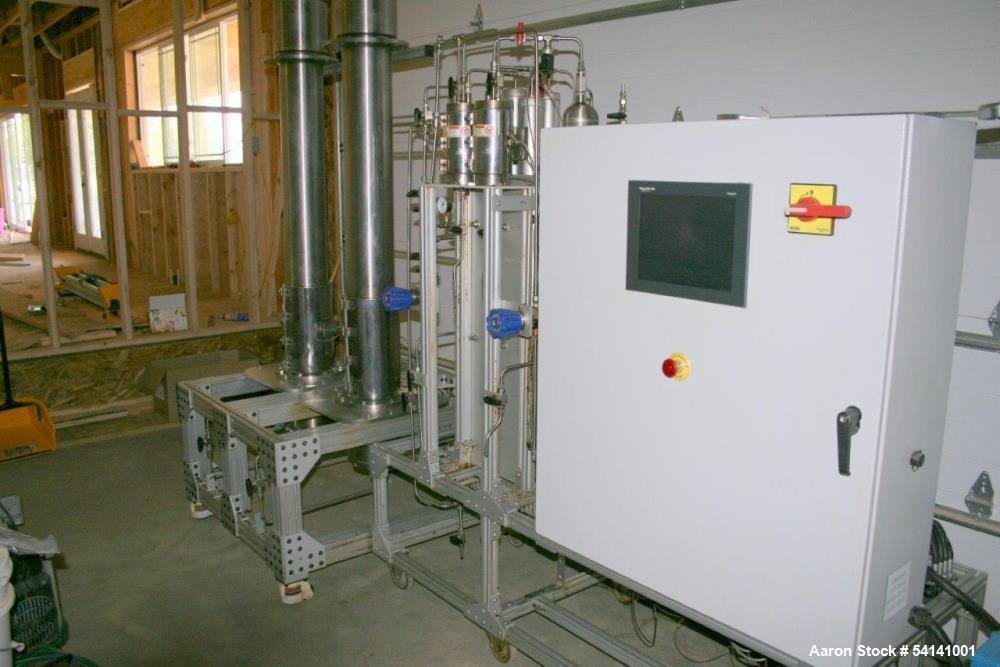

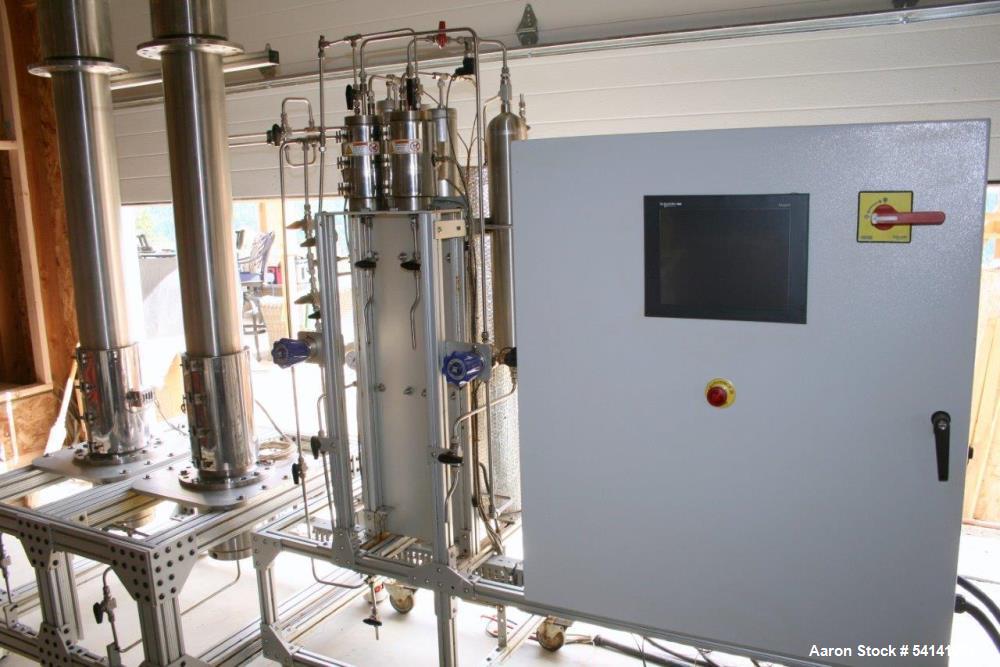

The Applied Extracts AE 2 x 25L Supercritical CO2 Extractor is a high-performance, dual-vessel extraction system designed for efficient botanical and specialty material extraction. Built in 2019, this system delivers throughput up to 250 lbs/day (material and process dependent), offering both flexibility and efficiency in large-scale extraction operations.

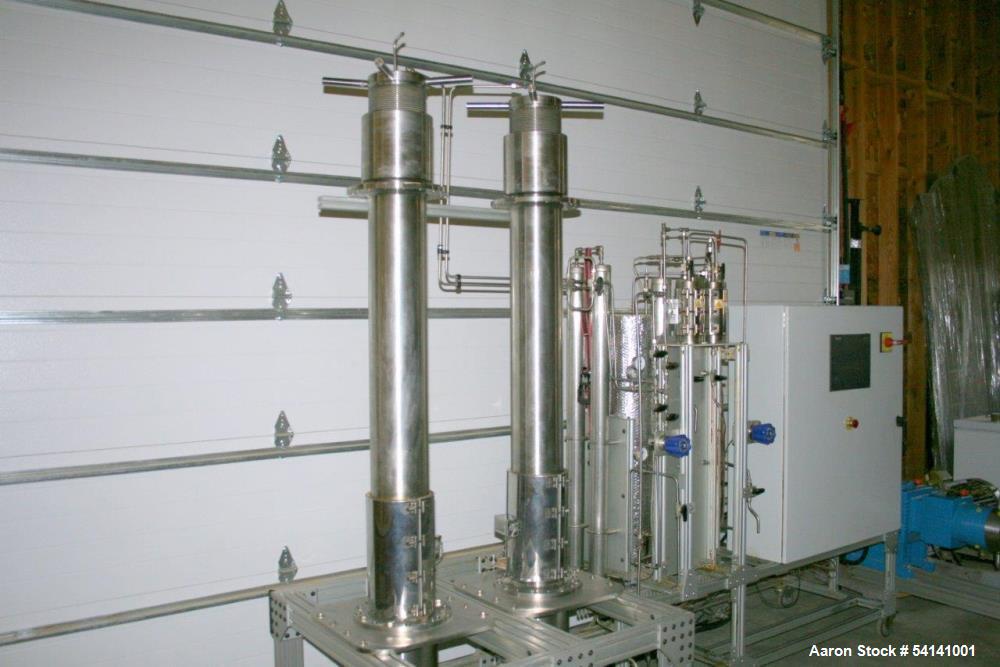

The system features a dual 25-liter extraction vessel design, enabling continuous operation by allowing one vessel to extract while the other is loaded or unloaded. This design also reduces CO2 consumption by approximately 50% compared to single-vessel systems when operated according to SOP (included).

The machine comes equipped with appropriately scaled tanks, electric band heaters, separator tanks, primary heat exchanger module, temperature-controlled transfer lines, supplementary pumps, and a PLC control system for precise operation.

A Lewa high-flow diaphragm pump (1.5 L/min) provides up to 4350 psi discharge pressure, powered by a 7.5 HP 3-phase motor with VFD control. Additional features include a 16L liquid CO2 storage tank and condenser heat exchanger.

Specifications

• Model: AE 2 x 25L

• Extraction Capacity: ~250 lbs/day (material & process dependent)

• Extraction Vessels: (2) x 25L – dual tank design for continuous processing

• CO2 Storage Tank: 16L liquid storage tank

• CO2 Consumption: ~50% less than single-vessel designs

• Heat Exchanger: Primary condenser heat exchanger

• Heating System: Electric band heaters, temperature-controlled transfer lines

• Pump: 1.5 L/min Lewa high-flow diaphragm pump

• Max Discharge Pressure: 4350 psi

• Motor: 7.5 HP, 3-phase, 230V with VFD control

• Power Requirements: 230–240V, 3-phase, 60 Hz, 50A

• Year Built: 2019

• Controls: PLC control system with SOP included

Applications

What might this be used for?

• Botanical extraction (essential oils, flavors, aromas)

• Hemp & cannabis CO2 extraction (CBD, THC concentrates)

• Food-grade extraction (spices, hops, coffee, tea)

• Nutraceuticals (herbal extracts, supplements)

• Pharmaceutical research compounds

• Fragrances and cosmetic oils

• Specialty chemical extractions

• Terpene recovery and refinement

• Solvent-free extraction processes

• Continuous R&D or production scale operations

Example Products Processed with this Machine

• Hemp-derived CBD oils and isolates

• Cannabis extracts (shatter, wax, concentrates)

• Essential oils (lavender, peppermint, citrus)

• Coffee and tea extracts

• Hops and botanical flavor extracts

• Nutritional supplement plant extracts

• Fragrance oils for cosmetics and perfumery

• Spices and herbal extracts

• Terpene-rich fractions for product formulation

• Food-safe extracts for natural flavorings
