Manufacturer Information

Manufacturer: Silverson Machines
Model: FMX25 Flashmix
Equipment Type: High Shear Powder/Liquid Mixer
Mixer Type: Flashmix In-Line Mixing System
Construction: 304 Stainless Steel Chassis with 316L Stainless Steel Wetted Surfaces
Condition: Used

Description

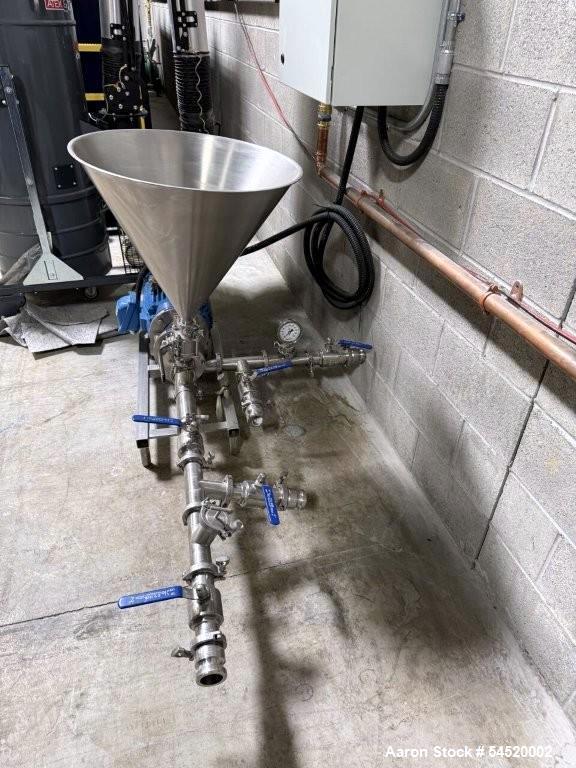

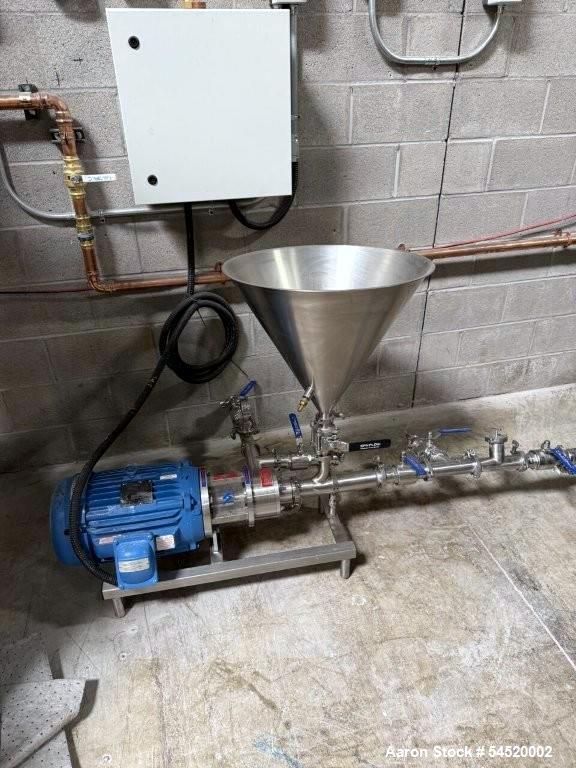

Available for sale is a used Silverson Model FMX25 Flashmix High Shear Mixer, designed for rapid incorporation of powders into liquid streams while eliminating agglomerates and reducing mixing times. The Flashmix system combines high-speed powder induction with high shear rotor/stator mixing technology, providing fast, efficient, and repeatable production of emulsions, suspensions, solutions, and hydrated products.

The FMX25 features a 304 stainless steel chassis with 316L stainless steel wetted product contact surfaces, making it suitable for sanitary processing environments in food, beverage, dairy, pharmaceutical, cosmetic, chemical, and personal care manufacturing facilities.

The system is capable of processing liquid flow rates up to 120 gallons per minute while introducing powders at rates up to 40 pounds per minute. Equipped with a 1.4 cubic foot powder hopper and driven by a 7.5 HP motor, the Flashmix provides efficient powder incorporation with minimal operator intervention.

Silverson Flashmix systems are widely recognized for reducing batch times, improving product consistency, minimizing dust generation, and enhancing overall production efficiency.

Specifications

General Information

• Manufacturer: Silverson Machines
• Model: FMX25 Flashmix
• Equipment Type: High Shear Mixer
• Mixer Type: Powder/Liquid Flashmix System
• Condition: Used

Construction

Chassis

• 304 Stainless Steel

Wetted Surfaces

• 316L Stainless Steel

Sanitary Design

• Corrosion Resistant Construction
• Suitable for Hygienic Processing Applications

Flow Capacity

Liquid Flow Rate

• Up to 120 Gallons Per Minute

Powder Feed Rate

• Up to 40 Pounds Per Minute

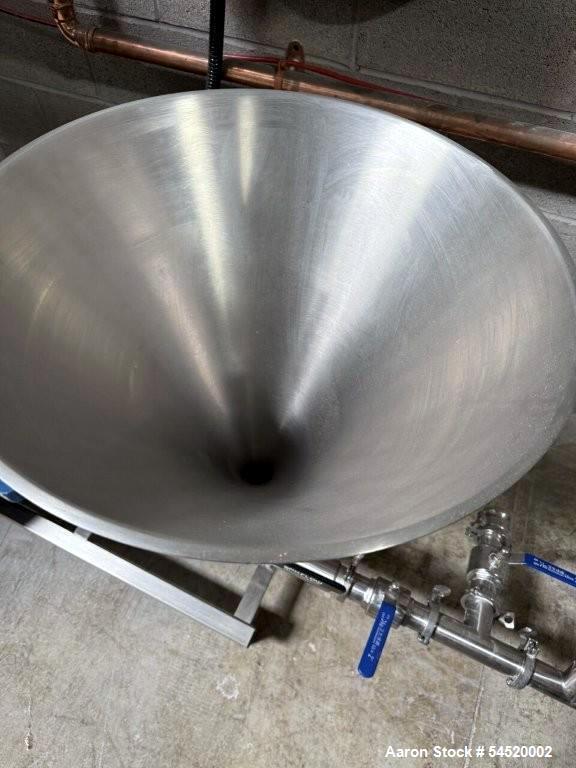

Hopper Specifications

Hopper Volume

• 1.4 Cubic Feet

Powder Handling

• Rapid Powder Induction
• Reduced Dusting
• Efficient Product Transfer

Process Connections

Inlet Connection

• 2.5 Inches

Outlet Connection

• 2 Inches

Pressure Rating

• Maximum Operating Pressure: 150 PSI

Drive System

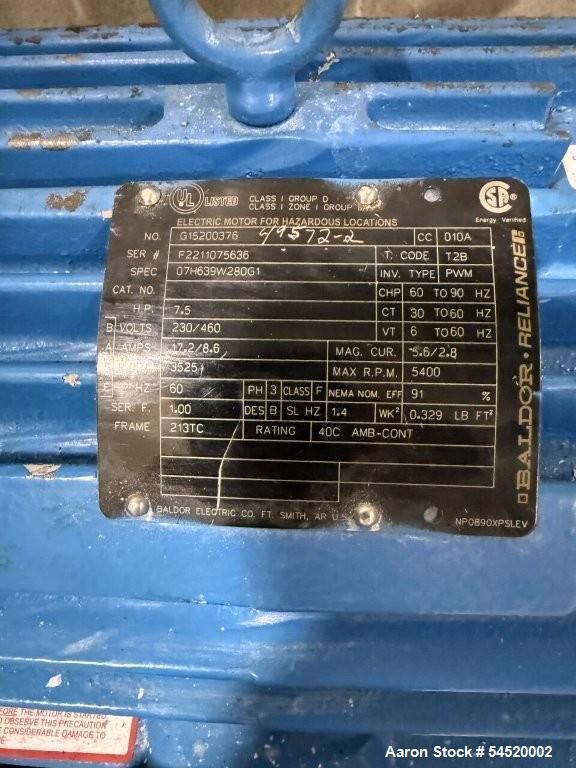

Motor

• 7.5 Horsepower

Electrical Requirements

• Voltage: 230/460 Volt
• Phase: 3 Phase
• Frequency: 60 Hertz

Applications

• Powder incorporation
• High shear mixing
• Emulsion production
• Suspension preparation
• Ingredient hydration
• Food processing
• Beverage production
• Pharmaceutical manufacturing
• Cosmetic production
• Chemical processing
• Personal care manufacturing
• Continuous mixing operations

Products This Equipment Would Be Used For

• Sauces
• Dressings
• Syrups
• Beverage concentrates
• Dairy products
• Protein powders
• Nutritional supplements
• Cosmetic creams
• Lotions
• Pharmaceutical solutions
• Chemical additives
• Personal care products

Frequently Asked Questions

• What is the Silverson FMX25 Flashmix designed to do?
  The FMX25 is designed to rapidly incorporate powders into liquid streams while providing high shear mixing and eliminating agglomerates.
• What are the maximum processing rates?
  The unit can process liquid flow rates up to 120 gallons per minute and powder feed rates up to 40 pounds per minute.
• What materials are used in construction?
  The chassis is constructed from 304 stainless steel, while all wetted surfaces are fabricated from 316L stainless steel.
• What size hopper is included?
  The Flashmix includes a 1.4 cubic foot powder hopper.
• What are the inlet and outlet connection sizes?
  The system features a 2.5-inch inlet and a 2-inch outlet connection.
• What is the maximum operating pressure?
  The mixer is rated for operation up to 150 PSI.
• What motor is installed?
  The unit is equipped with a 7.5 HP drive motor.
• What industries commonly use Flashmix systems?
  Food, beverage, dairy, pharmaceutical, cosmetic, chemical, and personal care manufacturers frequently use Flashmix technology.
• What are the advantages of high shear mixing?
  High shear mixing improves product consistency, accelerates ingredient hydration, reduces mixing times, and enhances overall product quality.
• Can the FMX25 handle difficult-to-disperse powders?
  Yes, Silverson Flashmix systems are specifically designed for efficient powder induction and dispersion of challenging ingredients.
