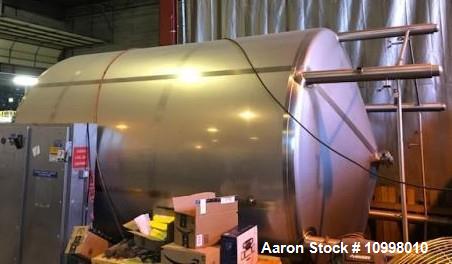

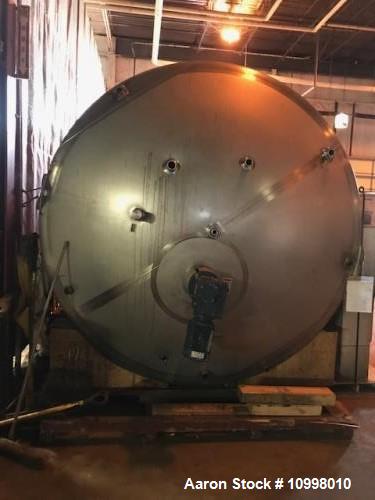

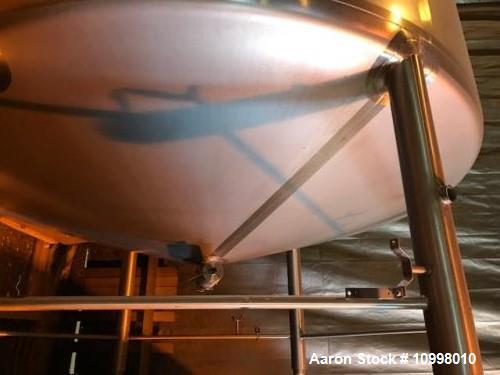

Used Walker, 6000 Gallon Vertical Tank. 304 stainless steel jacketed and insulated cooling tank rated for 55 gallons per minutes of glycol or cold water at 15psi Vessel dimensions. 108" diameter with 144" straight side. Dome top, dish bottom, 20" x 16" side manway with bolt down cover, thermowell, 3 Hp top mounted prop agitator and 3 1/2" OD / 3" ID tri-clamp style bottom discharge with pneumatic butterfly valve and 20" ground clearance. Top Ports:(1) 3 1/2"OD / 3"ID Tri-Clamp, (1) 2 1/2"OD / 2"ID Tri-Clamp, (1) 2"OD / 1 1/2"ID Tri-Clamp, (1) 2" NPT, (1) 2" Open Vent. Jacket Ports: (4) 1 1/2" NPT. OAD: 125" long x 115" wide x 220" high. 3/60/230/460, 3 hp, 8.6/4.3a, 1700 rpm
Used Walker, 6000 Gallon Vertical Tank. 304 stainless steel jacketed and insulated cooling tank rated for 55 gallons per minutes of glycol or cold water at 15psi Vessel dimensions. 108" diameter with 144" straight side. Dome top, dish bottom, 20" x 16" side manway with bolt down cover, thermowell, 3 Hp top mounted prop agitator and 3 1/2" OD / 3" ID tri-clamp style bottom discharge with pneumatic butterfly valve and 20" ground clearance. Top Ports:(1) 3 1/2"OD / 3"ID Tri-Clamp, (1) 2 1/2"OD / 2"ID Tri-Clamp, (1) 2"OD / 1 1/2"ID Tri-Clamp, (1) 2" NPT, (1) 2" Open Vent. Jacket Ports: (4) 1 1/2" NPT. OAD: 125" long x 115" wide x 220" high. 3/60/230/460, 3 hp, 8.6/4.3a, 1700 rpm
