Used Vendome 7,000-Gallon Stainless Steel Pressure Tank – 30 PSI Sanitary Process Vessel

Manufacturer Information

Vendome Copper & Brass Works

Vendome Copper & Brass Works is a U.S. manufacturer of custom process vessels, tanks, distillation equipment, and related systems. Vendome equipment is used across food, beverage, distilling, chemical, and other industrial processing applications.

This 7,000-gallon Vendome stainless steel tank is a pressure-rated process vessel previously used in sanitary food applications.

Description

Available for sale is a used Vendome 7,000-gallon stainless steel tank designed for sanitary product holding, storage, and compatible pressure-processing applications.

The vessel measures approximately 8' in diameter x 17'6" high, with an approximate overall height of 25'6".

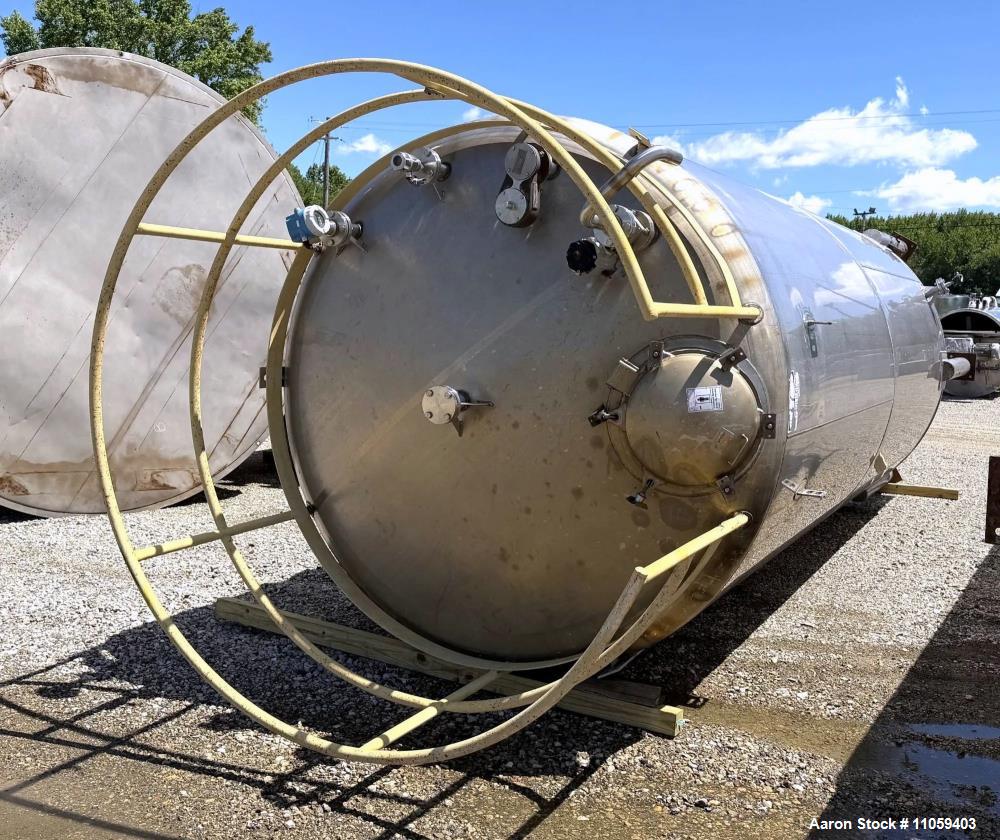

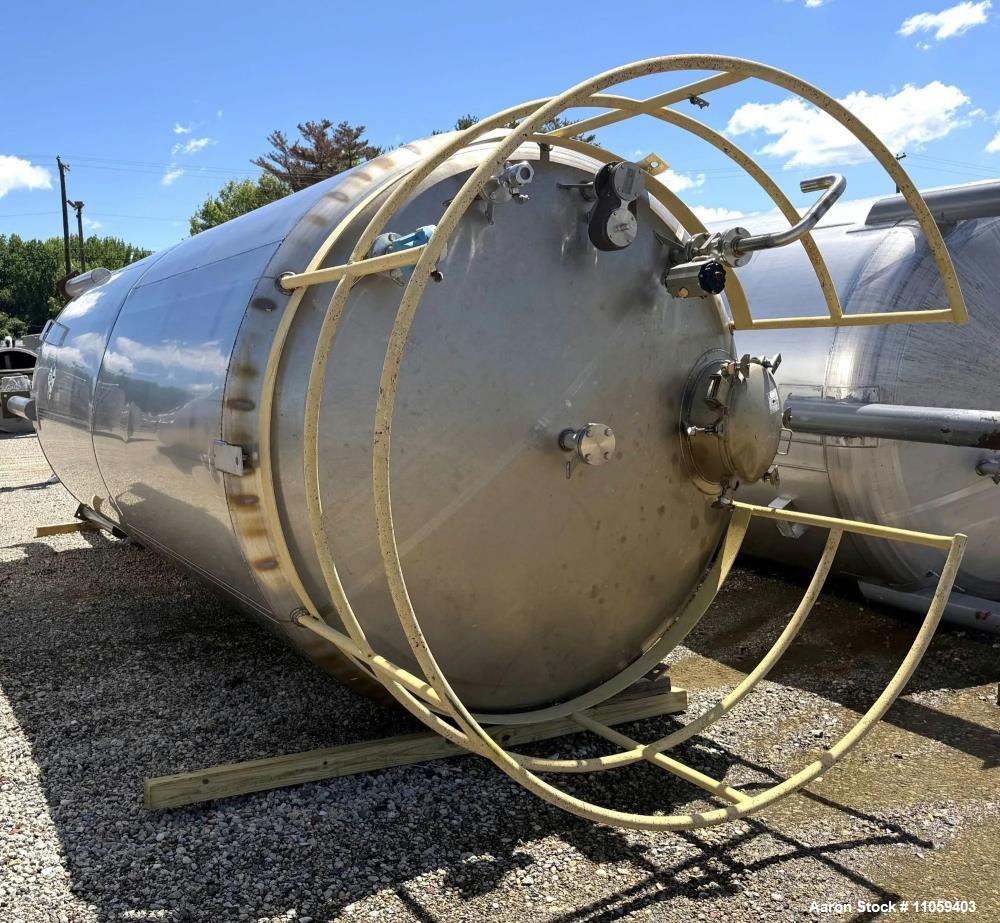

Featuring dished top and bottom heads, the vessel is rated for 30 PSI at temperatures ranging from -20°F to 210°F. A 2" center-bottom outlet provides a low-point connection for product discharge and drainage.

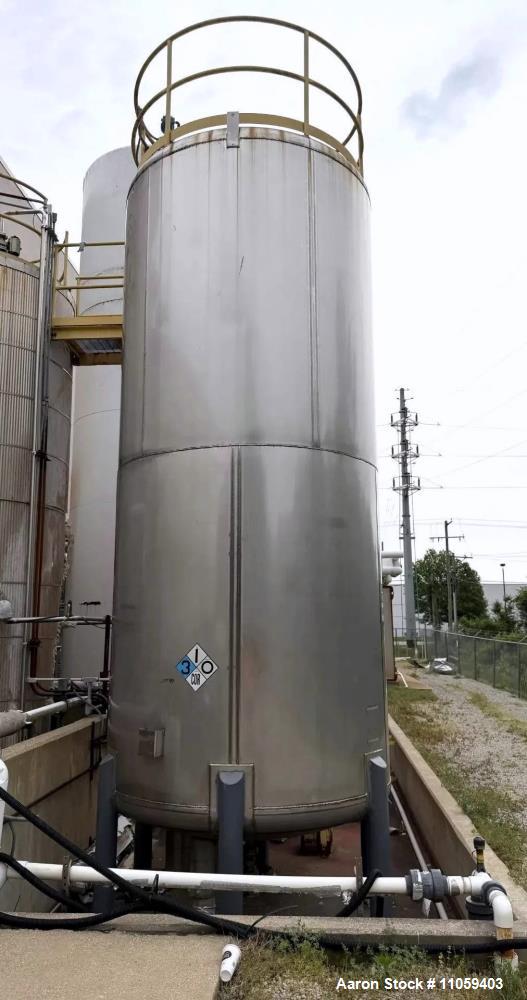

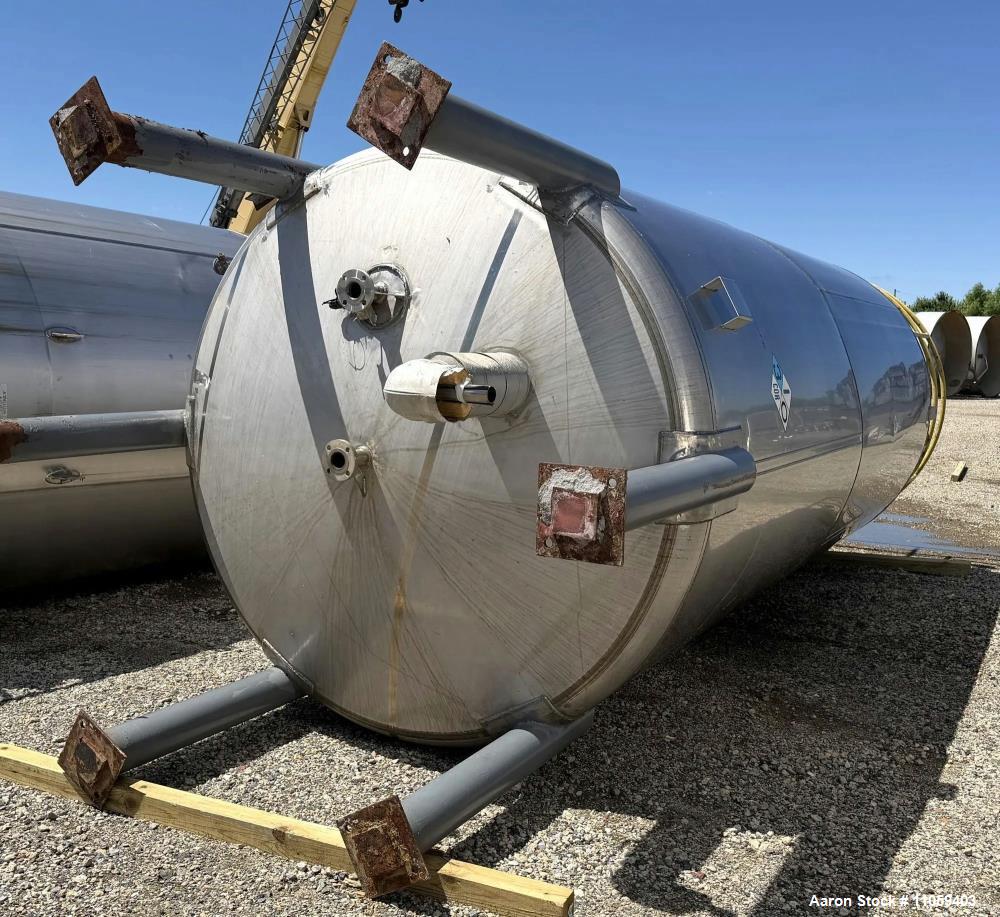

The vessel is supported by six legs, providing a freestanding vertical installation configuration.

Previously used in sanitary food applications, this Vendome tank may be suitable for food and beverage ingredients, sanitary process liquids, product holding, intermediate storage, and other compatible applications requiring a large stainless steel pressure-rated vessel.

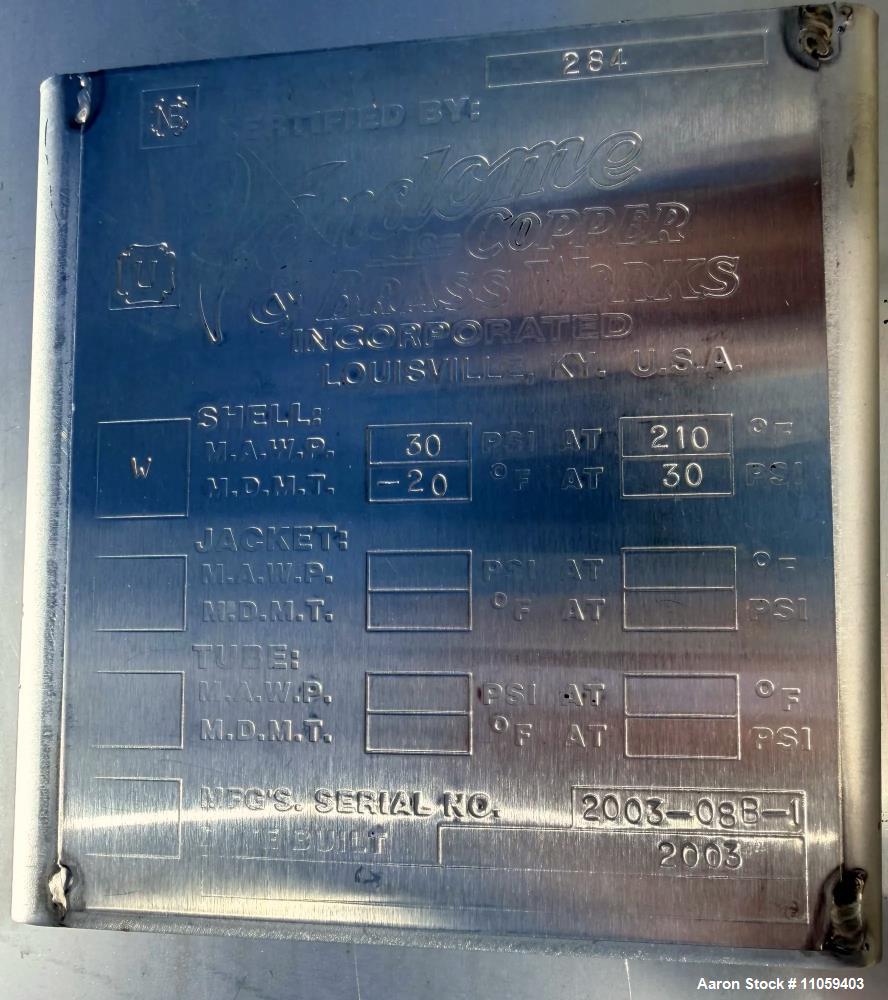

Serial Number: 2003-08B-1
National Board Number: 284

Specifications

Typical Applications

• Sanitary liquid storage
• Food ingredient holding
• Beverage processing
• Pressurized product holding
• Batch processing
• Intermediate product storage
• Process-liquid handling
• Sanitary food processing
• Bulk liquid storage
• Product surge capacity
• Liquid transfer operations
• General sanitary processing

Products This Tank Could Be Used For

• Liquid food ingredients
• Beverage ingredients
• Water-based products
• Syrups and concentrates
• Liquid sweeteners
• Sauces and compatible food liquids
• Process water
• Food ingredient solutions
• Edible liquid products
• Compatible sanitary process fluids
• Intermediate liquid products
• Other products compatible with the vessel's stainless steel construction

Actual product and process suitability depends on stainless steel grade, product chemistry, sanitary requirements, viscosity, operating pressure and temperature, vessel condition, and applicable codes and process standards.

Frequently Asked Questions

• What is the capacity of this Vendome tank? The vessel has an approximate 7,000-gallon capacity for large-volume storage, holding, and compatible processing applications.
• Is this a pressure-rated vessel? Yes. The vessel is rated for 30 PSI at temperatures ranging from -20°F to 210°F.
• What are the approximate dimensions? The tank measures approximately 8' diameter x 17'6" vessel height, with an overall height of approximately 25'6".
• How does product discharge from the vessel? The dished bottom incorporates a 2" center-bottom outlet, providing a low-point product discharge connection.
• What was this tank previously used for? The vessel was previously used in sanitary food applications. Buyers should confirm material grade, cleaning history, vessel condition, and suitability for their intended process.
• Can Aaron Equipment assist with shipping and logistics? Yes. Due to the vessel's approximately 25'6" overall height, transportation and loading should be carefully planned. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, and logistics planning.
