Used Mueller 8,300-Gallon Jacketed Fermentation Tank – 304 Stainless Steel with 3-Zone Cooling

Manufacturer Information

Mueller

Mueller manufactures stainless steel tanks and process vessels used in brewing, beverage, dairy, food, and other liquid-processing industries. Large jacketed fermentation tanks provide controlled cooling for fermentation, conditioning, storage, and other temperature-sensitive processing applications.

This 2010 Mueller 8,300-gallon fermentation tank features 304 stainless steel construction, a three-zone cooling jacket, 14.9 PSI internal vessel rating, cone-bottom design, and four-leg support mounting.

Description

Available for sale is a used Mueller 8,300-gallon 304 stainless steel jacketed fermentation tank, Serial Number 18101280301-09, built in 2010.

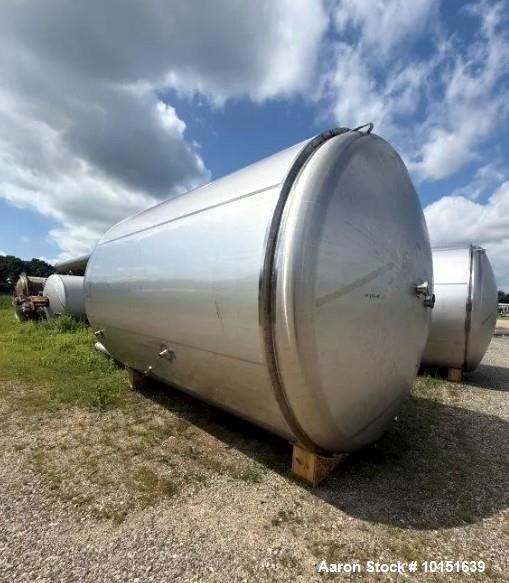

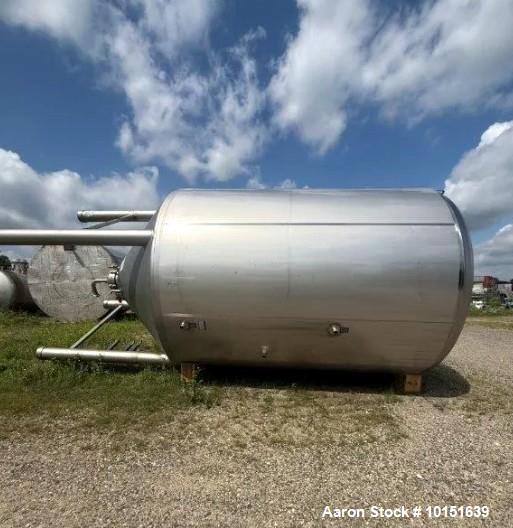

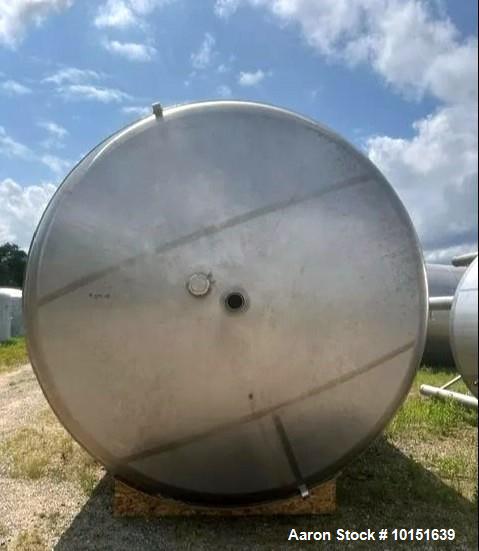

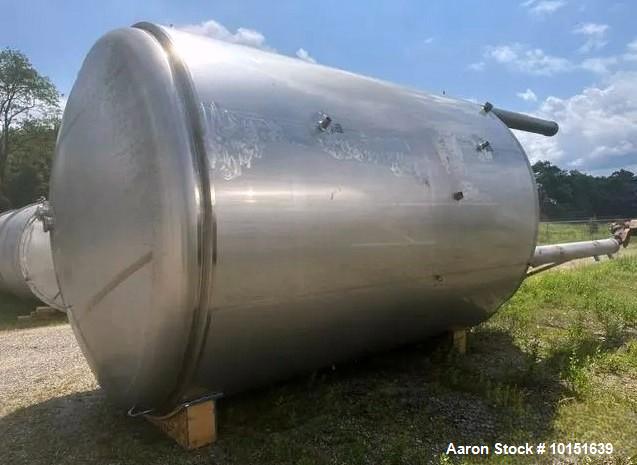

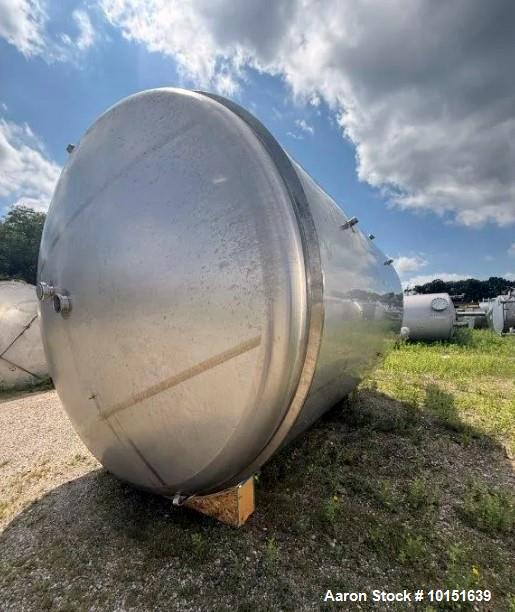

The vessel measures approximately 117" internal diameter x 143" straight side x 267" overall height and features a dome top with cone bottom.

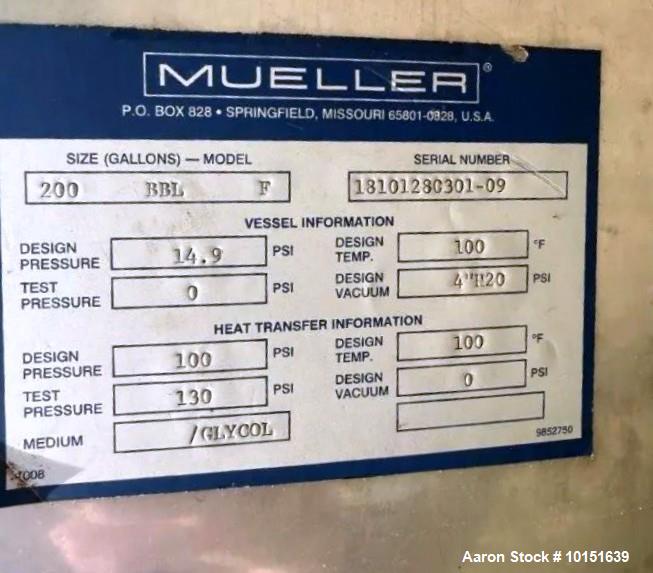

The internal vessel is rated for 14.9 PSI at 100°F. Temperature control is provided by a three-zone cooling jacket, with the jacket stated as rated for 100 PSI at 10°F. The multiple cooling zones provide the ability to manage cooling across different areas of the vessel during fermentation, conditioning, or temperature-controlled storage.

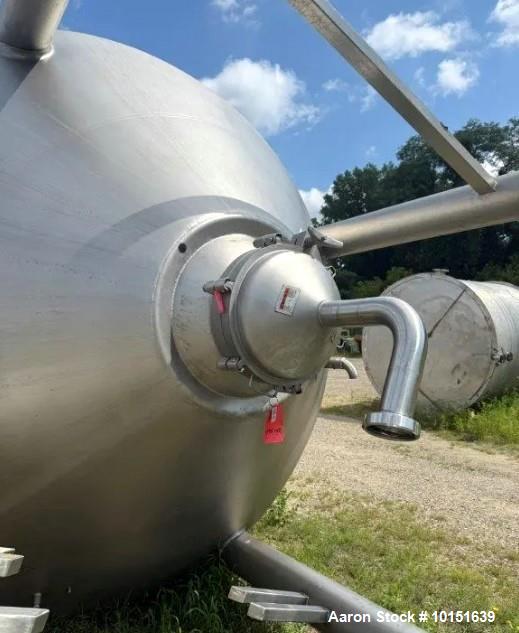

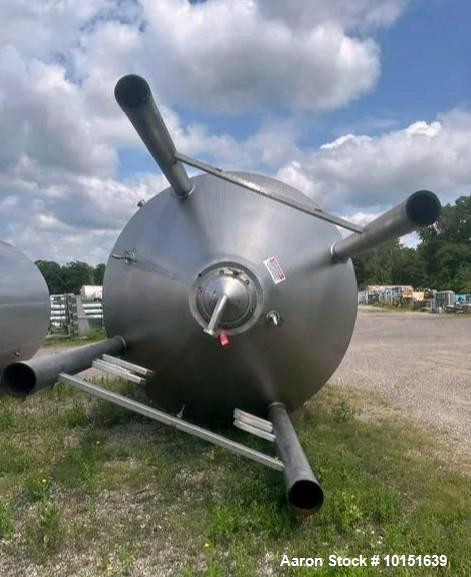

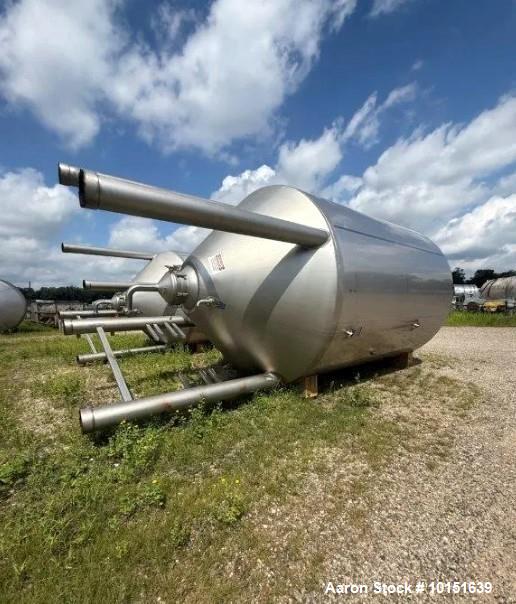

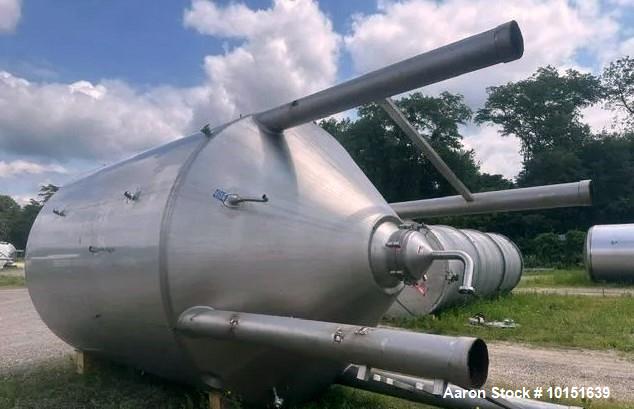

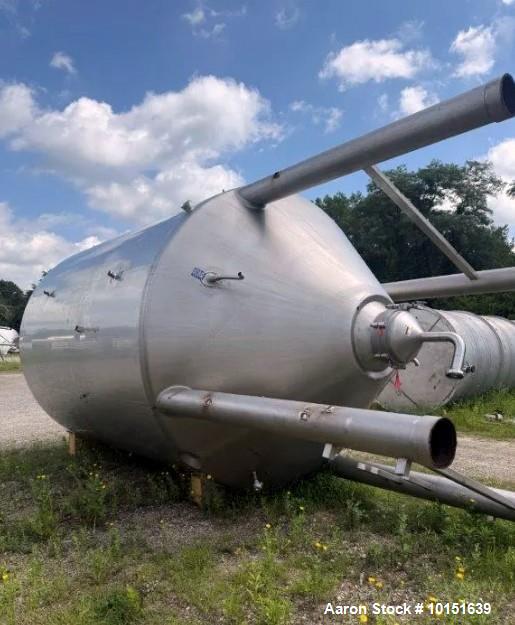

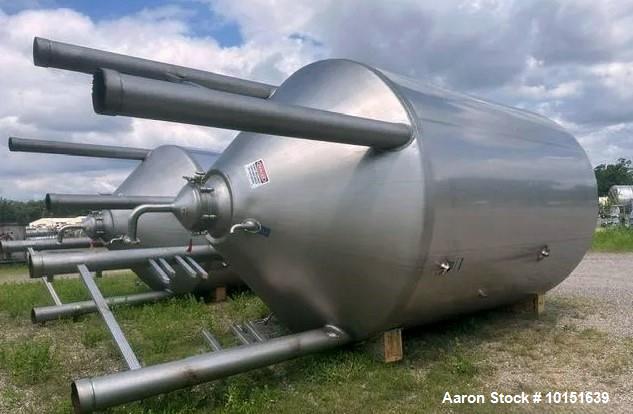

The cone bottom includes a 16" manway for vessel access and a 3" center-bottom outlet for product discharge. The vessel is supported on four legs.

At approximately 267" (22'3") overall height and 117" (9'9") internal diameter, this is a large industrial vessel that should be evaluated for facility clearances, foundation requirements, rigging access, and oversized transportation.

Specifications

Typical Applications

• Beer fermentation
• Commercial brewing
• Cider fermentation
• Wine processing
• Beverage fermentation
• Product conditioning
• Temperature-controlled storage
• Batch fermentation
• Food and beverage processing
• Fermented beverage production
• Large-volume liquid processing
• Temperature-controlled process holding

Products This Fermentation Tank Could Be Used For

• Beer
• Craft beer
• Cider
• Hard cider
• Wine
• Fermented beverages
• Kombucha
• Beverage bases
• Fermentation broths
• Liquid food ingredients
• Compatible process liquids
• Other temperature-controlled fermented products

Actual suitability depends on product chemistry, sanitary requirements, surface finish, operating temperature and pressure, fittings, cooling requirements, and applicable codes. Vessel and jacket ratings, documentation, and current condition should be verified before pressure service.

Frequently Asked Questions

• What is the capacity of this Mueller fermentation tank? The vessel has an approximate 8,300-gallon capacity, providing substantial volume for commercial fermentation and beverage-processing operations.
• What material is the tank constructed from? The vessel is specified as 304 stainless steel, commonly used for food, beverage, brewing, and general sanitary processing equipment.
• Does the tank have multiple cooling zones? Yes. It is equipped with a three-zone cooling jacket for temperature management across multiple areas of the vessel.
• What are the vessel and jacket pressure ratings? The internal vessel is rated for 14.9 PSI at 100°F, while the supplied jacket specification is 100 PSI at 10°F. Ratings should be confirmed against the vessel nameplate and documentation before operation.
• What are the dimensions of this tank? It measures approximately 117" internal diameter x 143" straight side x 267" overall height, making it approximately 22'3" tall overall.
• Can Aaron Equipment assist with shipping and logistics? Yes. Due to its approximately 9'9" diameter and 22'3" overall height, specialized rigging and oversized transportation may be required. Aaron Equipment can assist with loading and rigging coordination, oversized freight planning, domestic and international transportation, customs documentation, and logistics planning.
