Used 2010 Mueller 8,300-Gallon Fermentation Vessel – Cone Bottom & 100 PSI Cooling Jackets

Manufacturer Information

Mueller

Mueller manufactures stainless steel tanks and process vessels used throughout beverage, brewing, dairy, food, and other liquid-processing industries. Jacketed fermentation vessels provide large-capacity product containment with temperature-control capability for fermentation, conditioning, storage, and other temperature-sensitive processes.

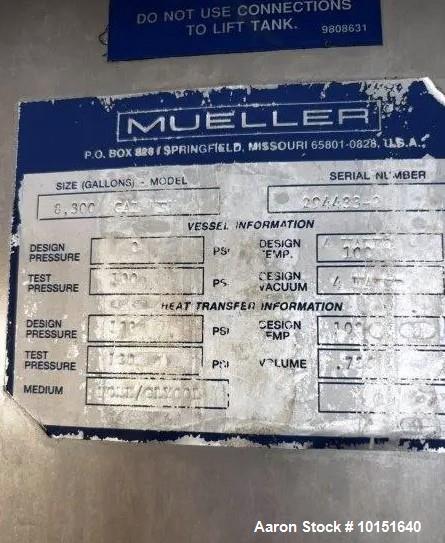

This 2010 Mueller 8,300-gallon fermentation vessel, Serial Number 294433-2, features a pressure-rated stainless steel vessel, cooling jacket, cone-bottom design, and four-leg support configuration.

Description

Available for sale is a used 2010 Mueller 8,300-gallon fermentation vessel, designed for large-volume fermentation and temperature-controlled liquid processing.

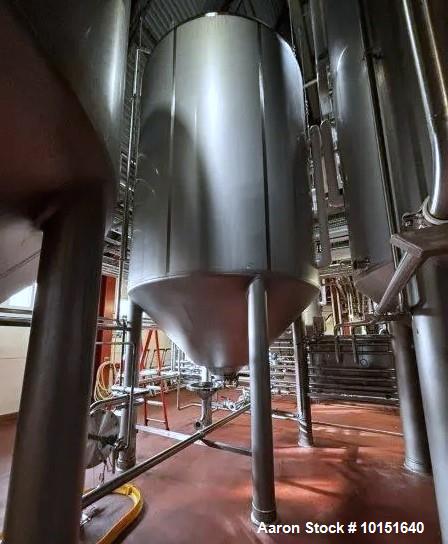

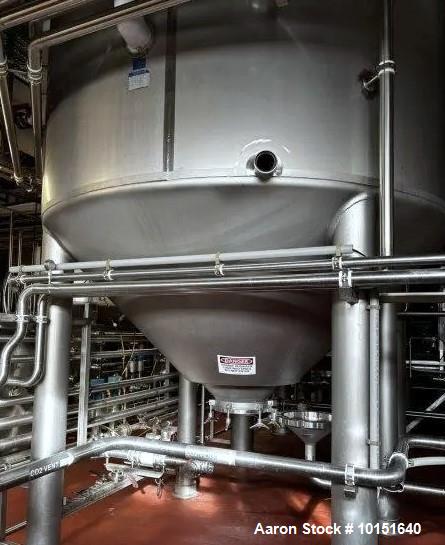

The vessel features a dome top and cone bottom and measures approximately 117" internal diameter x 143" straight side x 267" overall height.

The internal vessel is rated for 14.9 PSI at 100°F, while the cooling jacket is rated for 100 PSI at 100°F. The jacketed configuration allows compatible cooling media to be circulated around the vessel to help maintain desired product temperatures during fermentation, conditioning, or storage.

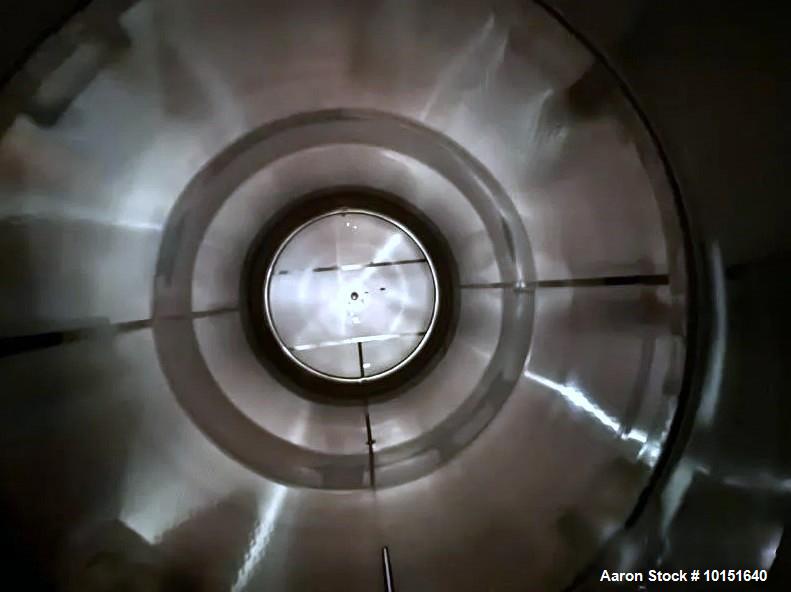

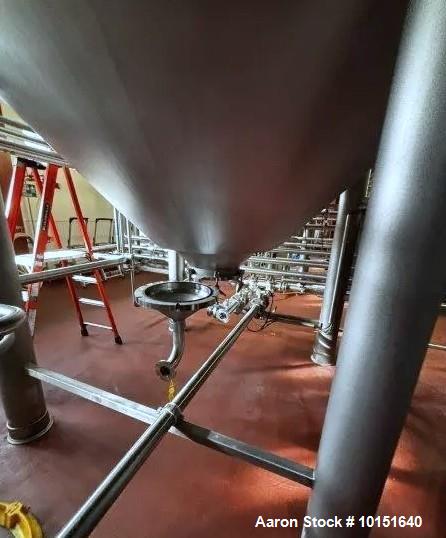

A 16" manway located in the bottom cone provides vessel access. Product discharge is through a 3" center-bottom outlet, while the cone-bottom geometry promotes drainage toward the discharge point.

The vessel is supported on four legs. At approximately 267" (22'3") overall height and 117" (9'9") internal diameter, installation should account for facility clearance, structural requirements, rigging access, and transportation.

This large-capacity Mueller vessel may be suitable for brewing, beer and cider fermentation, wine production, beverage processing, product conditioning, and other compatible temperature-controlled liquid applications.

Specifications

Typical Applications

• Beer fermentation
• Cider fermentation
• Wine processing
• Beverage fermentation
• Brewing operations
• Product conditioning
• Temperature-controlled storage
• Food and beverage processing
• Batch fermentation
• Large-volume liquid processing
• Fermented beverage production
• Temperature-controlled process holding

Products This Fermentation Vessel Could Be Used For

• Beer
• Craft beer
• Cider
• Hard cider
• Wine
• Fermented beverages
• Kombucha
• Beverage bases
• Liquid food ingredients
• Fermentation broths
• Compatible process liquids
• Other temperature-controlled liquid products

Actual suitability depends on product chemistry, required temperatures and pressures, sanitary requirements, surface finish, fittings, jacket configuration, and applicable codes. Vessel and jacket documentation and current condition should be verified before pressure service.

Frequently Asked Questions

• What is the capacity of this Mueller fermentation vessel? The vessel has an approximate capacity of 8,300 gallons, making it suitable for large-volume fermentation, conditioning, and liquid-processing operations.
• What are the vessel and jacket pressure ratings? The internal vessel is rated for 14.9 PSI at 100°F, and the cooling jacket is rated for 100 PSI at 100°F.
• Does this Mueller tank have a cone bottom? Yes. It features a cone bottom with a 16" manway and 3" center-bottom outlet, providing vessel access and centralized product discharge.
• How large is the vessel? It measures approximately 117" internal diameter x 143" straight side x 267" overall height, making it approximately 22'3" tall overall.
• What applications could use this fermentation vessel? Potential applications include beer, cider, wine and beverage fermentation, product conditioning, temperature-controlled storage, and other compatible liquid-processing operations.
• Can Aaron Equipment assist with shipping and logistics? Yes. Because of the vessel's approximately 22'3" overall height and 9'9" diameter, specialized rigging and oversized transportation may be required. Aaron Equipment can assist with loading and rigging coordination, oversized freight planning, domestic and international transportation, customs documentation, and logistics planning.
