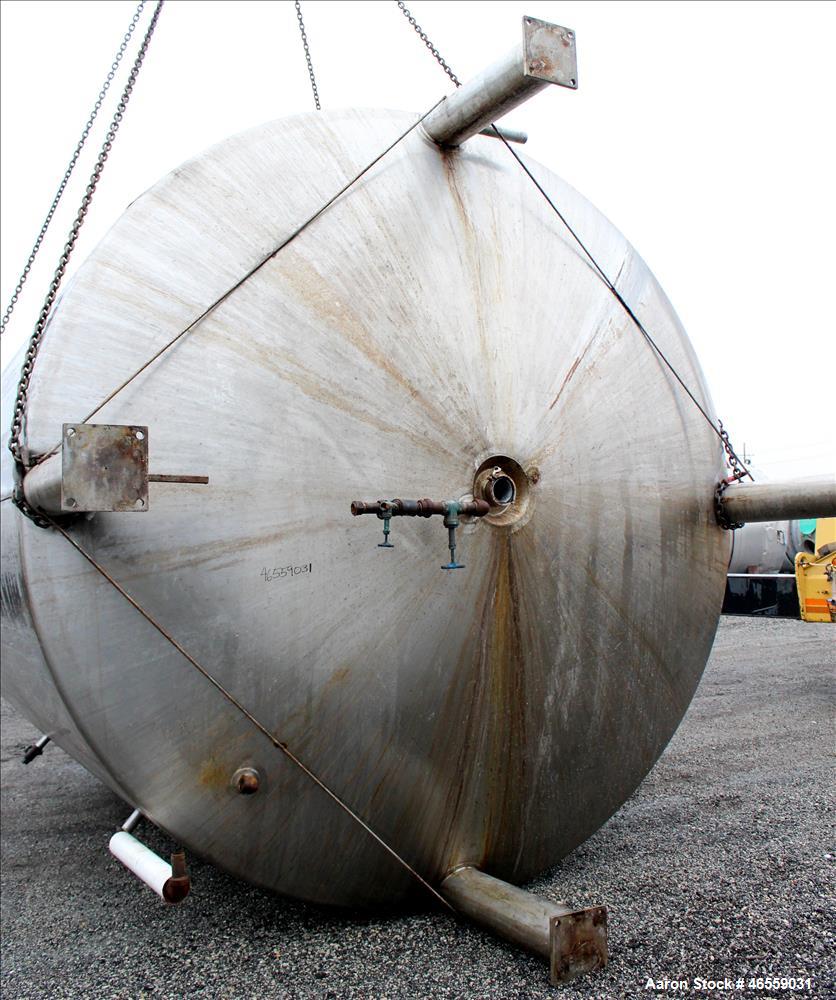

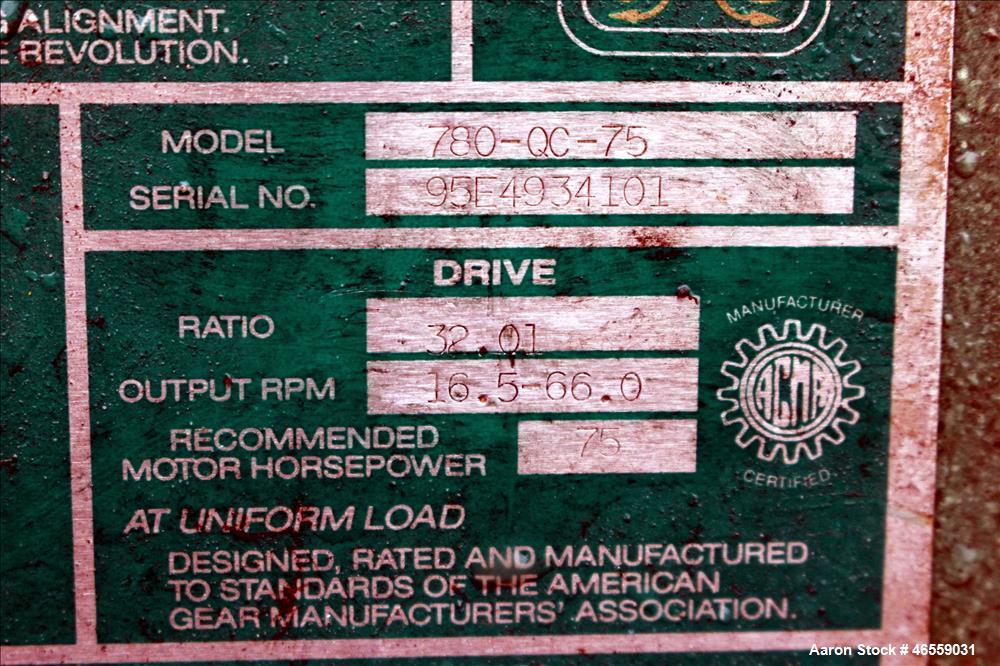

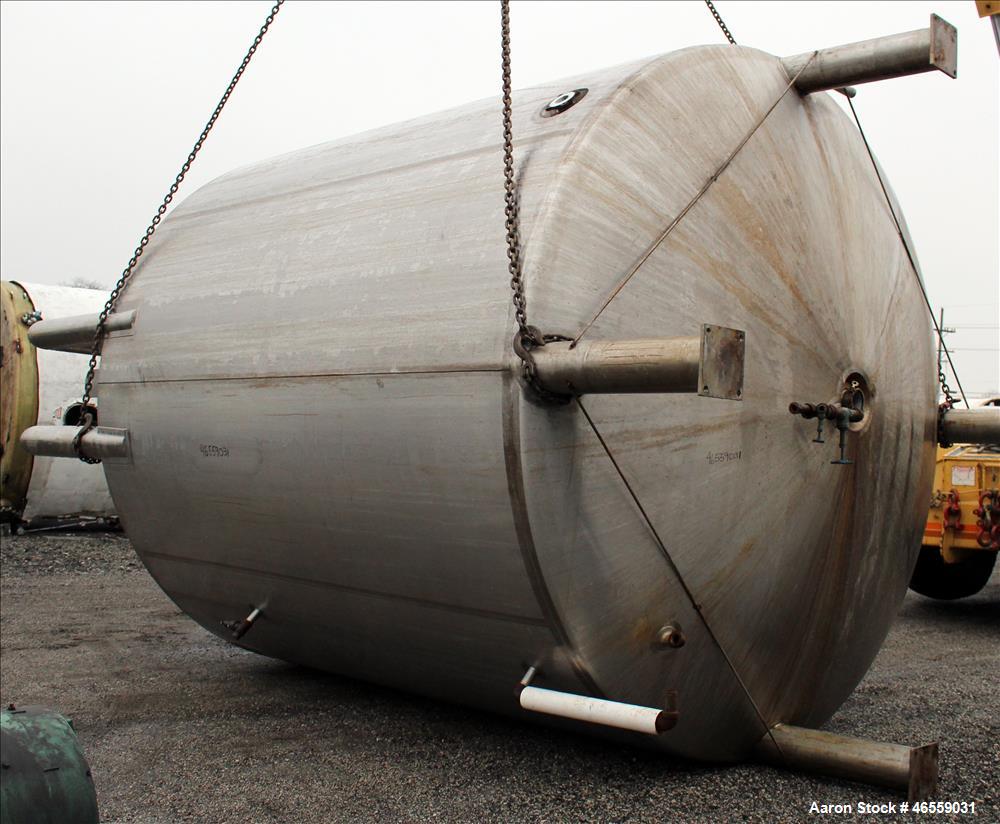

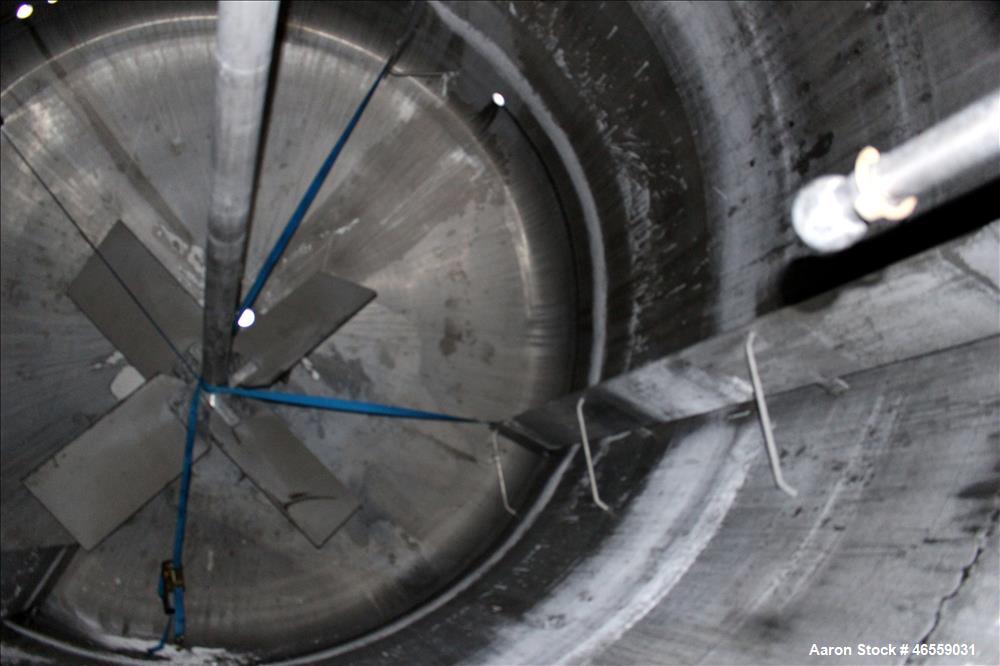

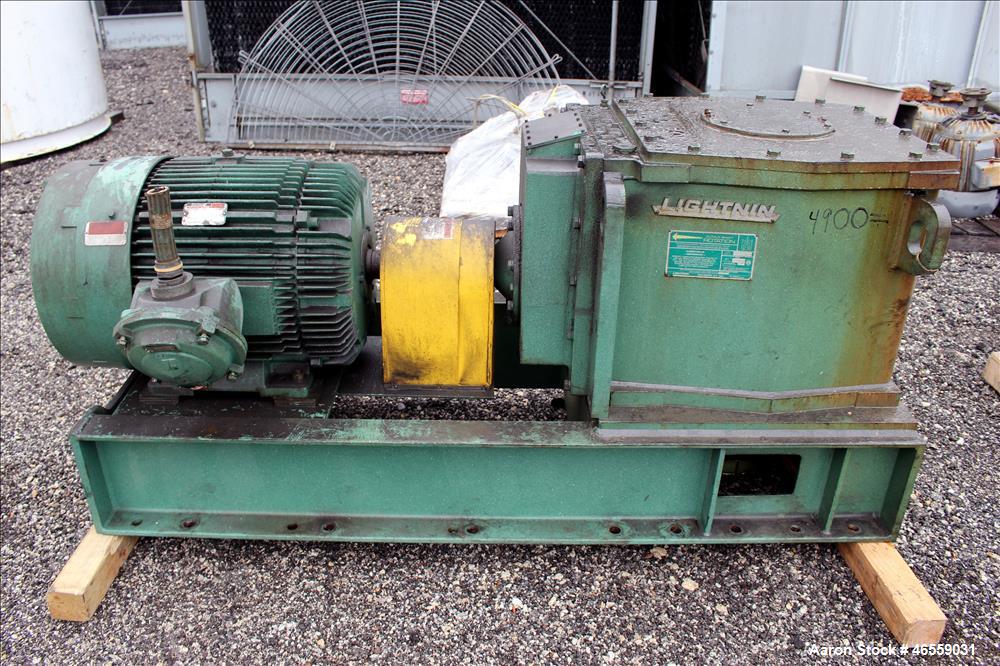

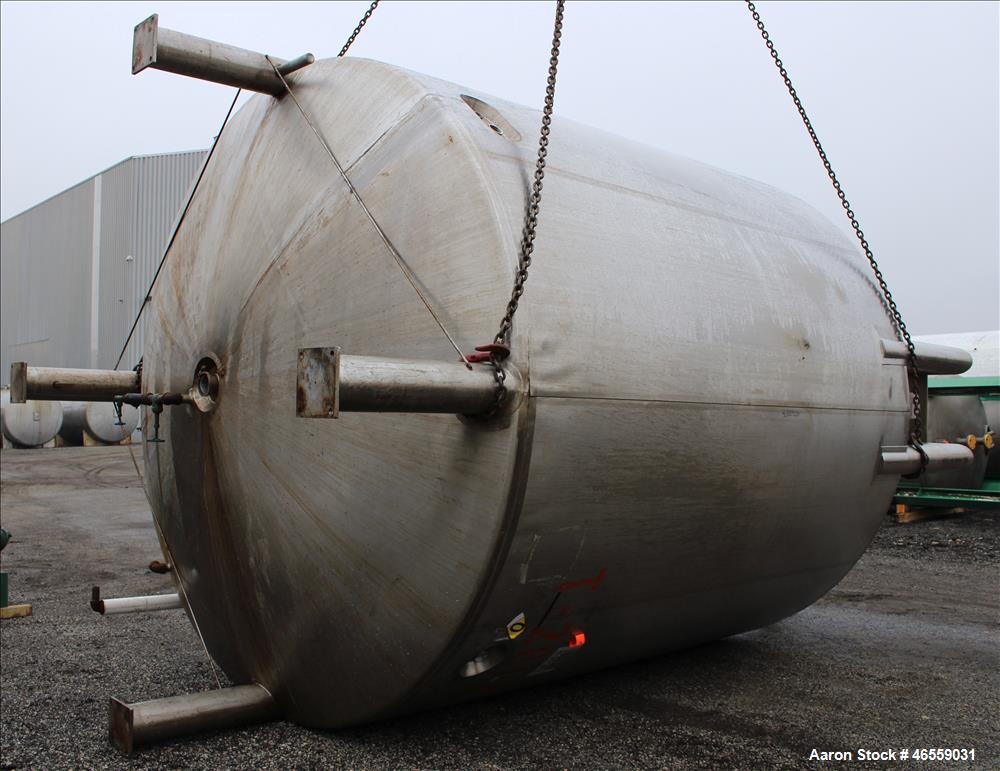

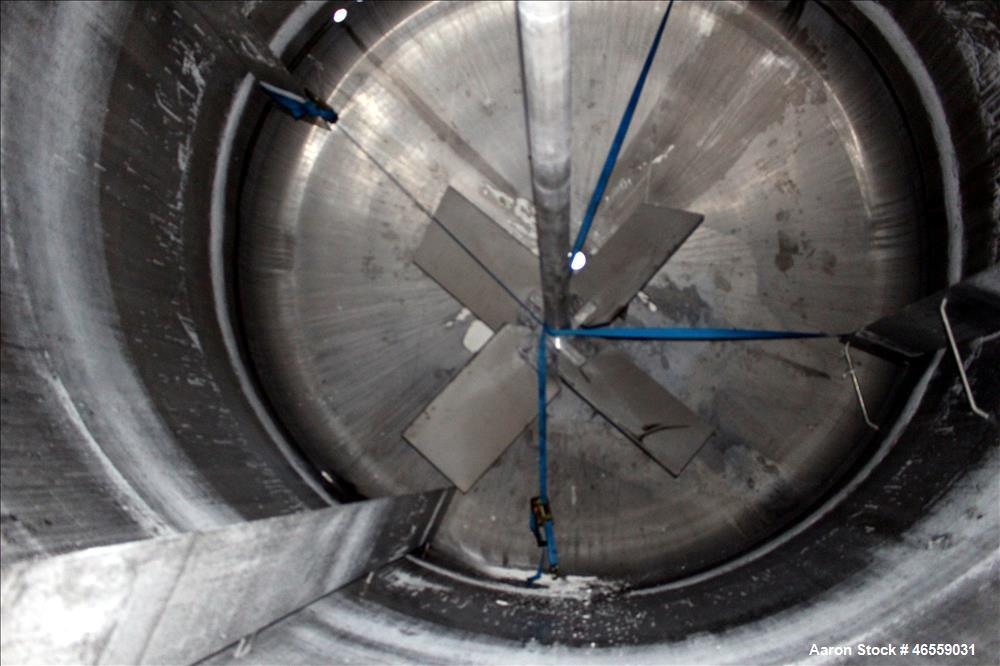

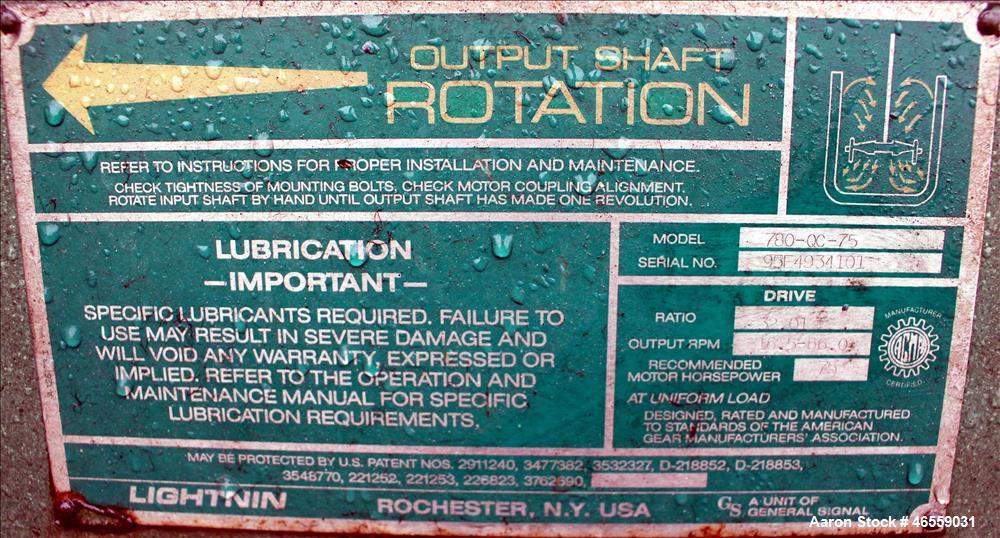

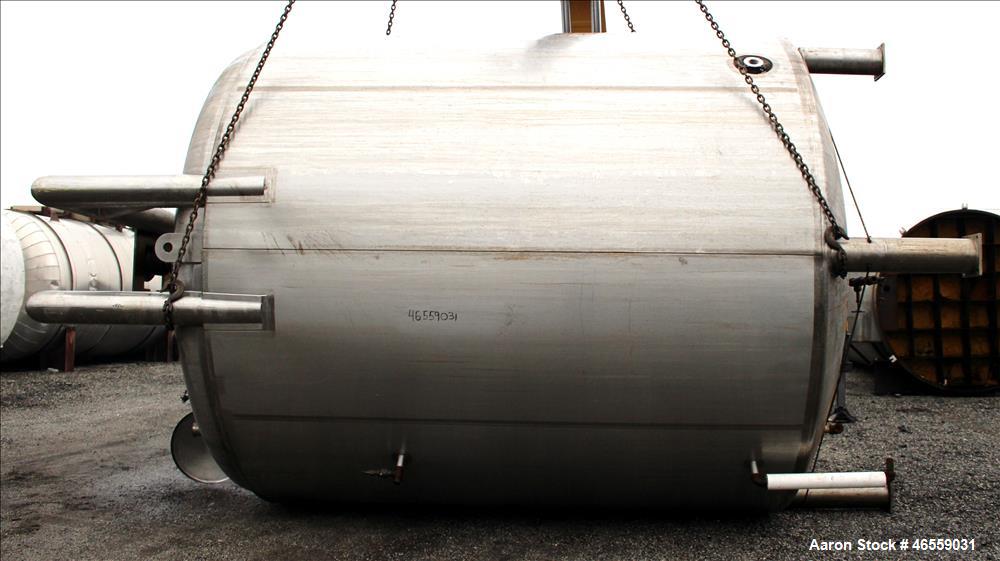

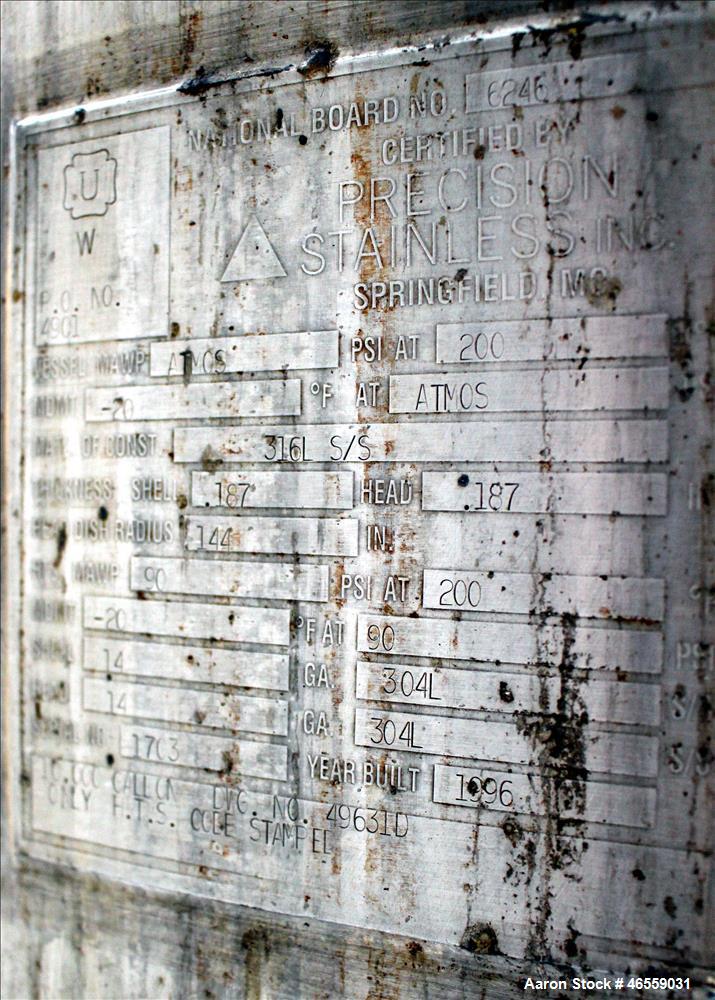

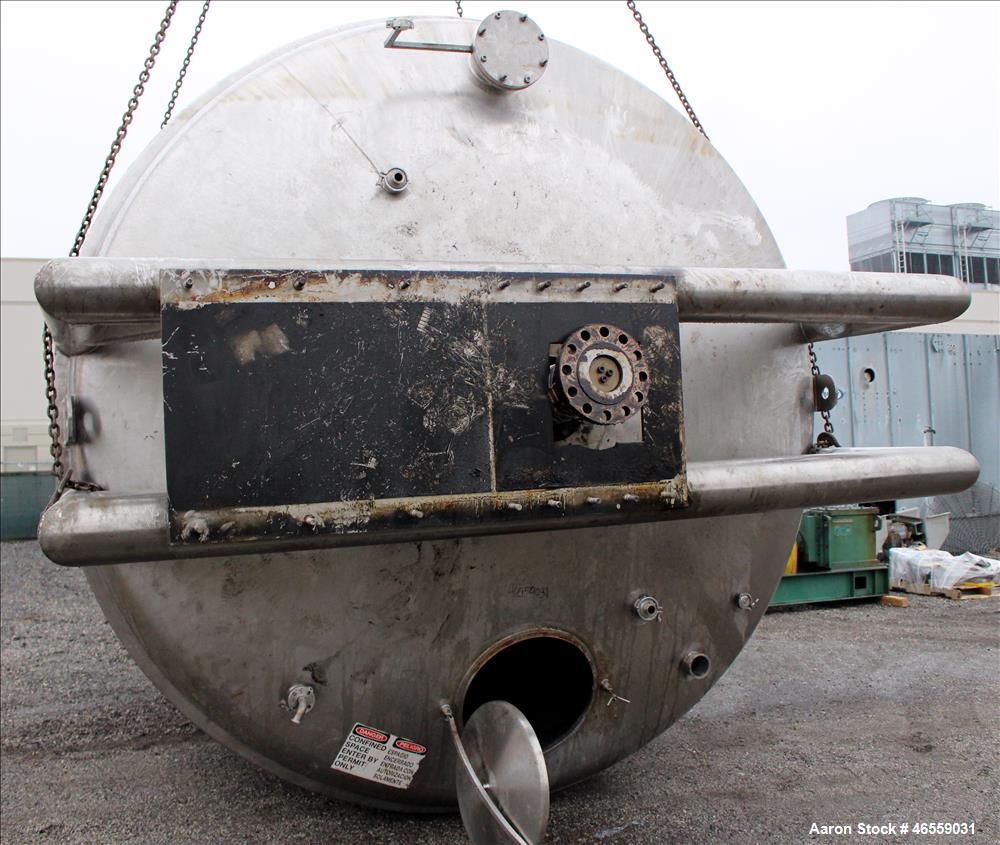

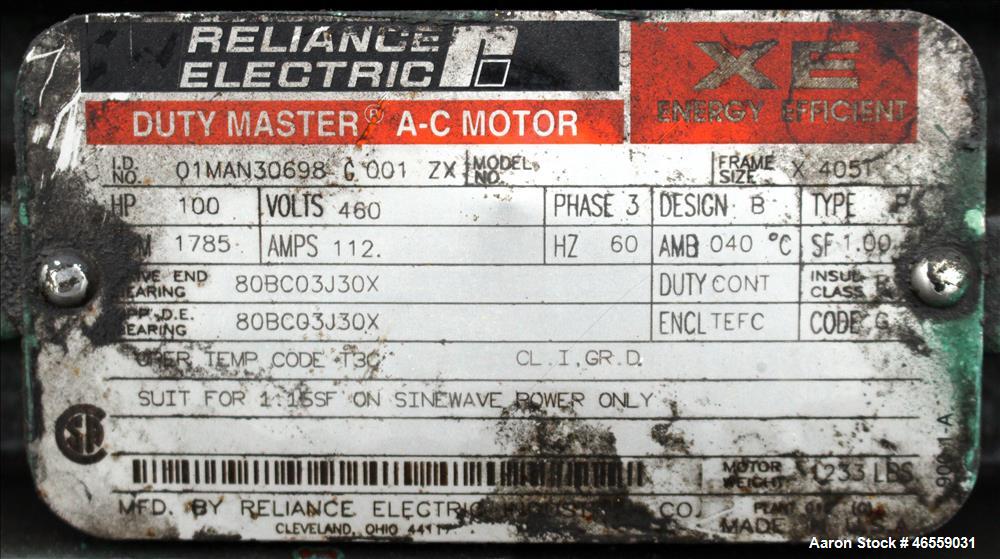

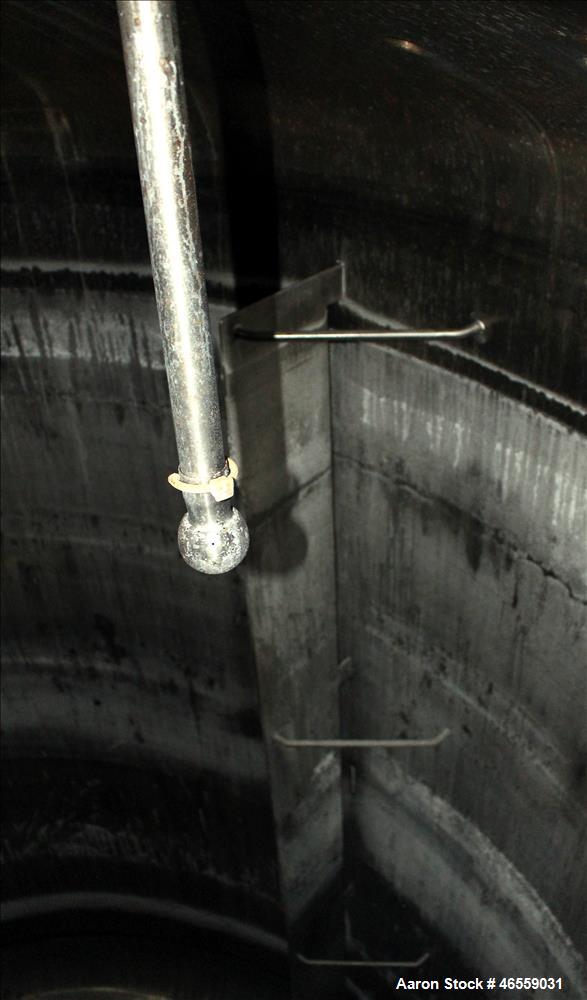

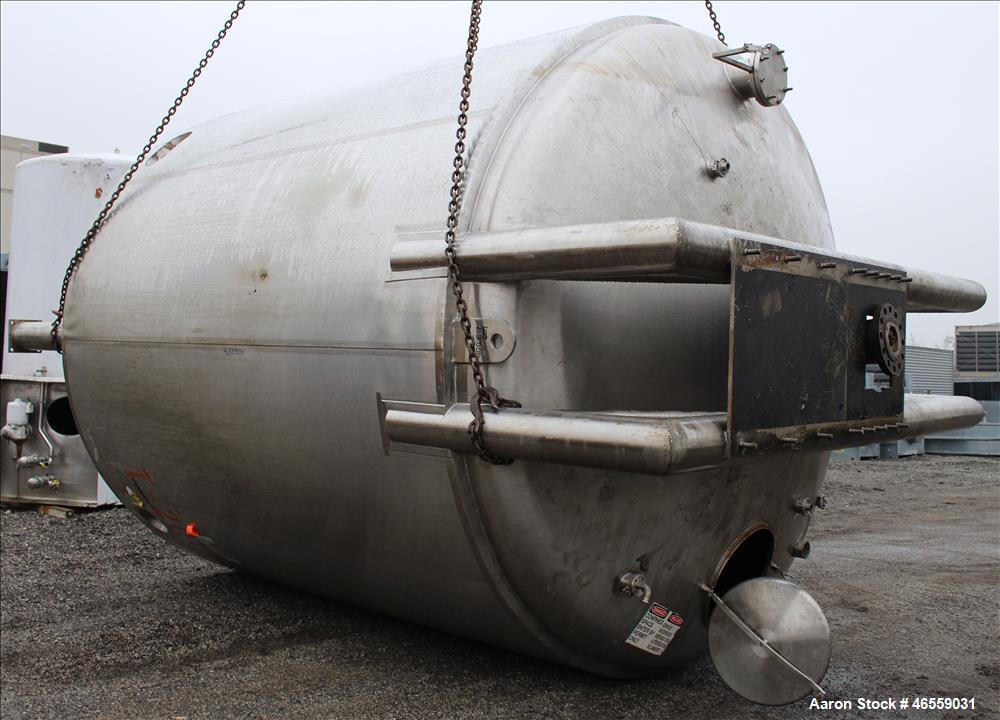

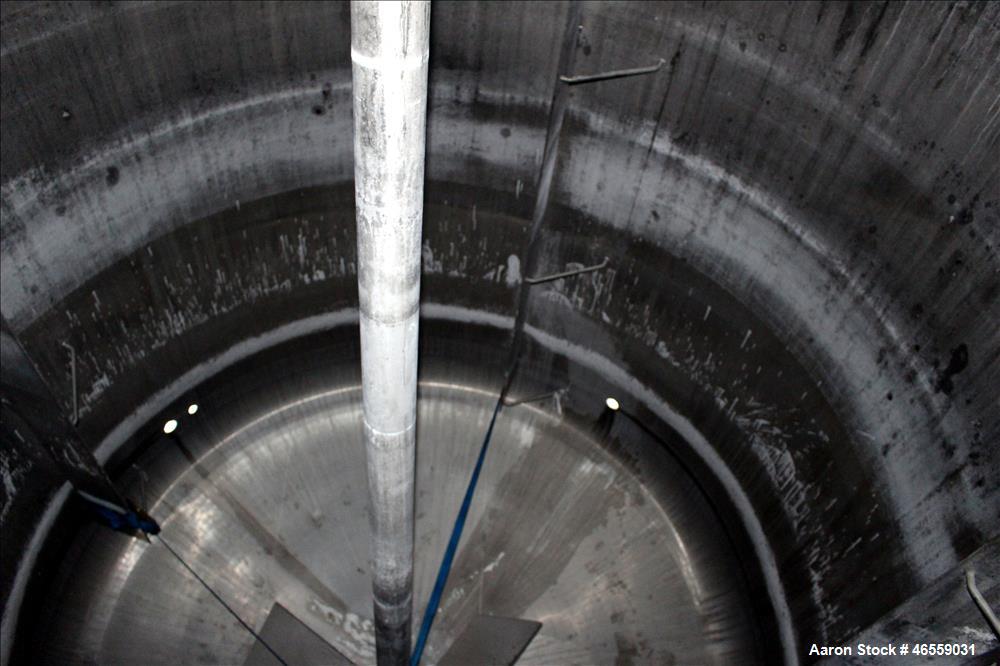

Used Precision Stainless Mixing Tank, 10,000 Gallon, 316L Stainless Steel, Vertical. Approximate 144" diameter x 142" straight side. Dished top and bottom heads. Insulated, 304 stainless steel dimple jacket rated 90 psi at -20 to 200 degrees F. Internal rated Atmos at -20 to 200 degrees F. Stainless steel agitator bridge with top entering Lightnin agiator, model 780-QC-75, approximate 5" diameter shaft with (2) 4-blade turbines. Driven by 100 hp, 3/60/460 volt, 1785 rpm gearmotor, 32.01 to 1 ratio. (4) Sidewall baffles, spray ball. Openings top: 24" manway with cover, (1) 8", (1) 4", (3) 3", (1) 2", side: (3) 3", (1) 1-1/2". 4" Center bottom outlet. Mounted on (4) stainless steel legs. Serial# 1703. National Board# 6246. Built 1996.
Used Precision Stainless Mixing Tank, 10,000 Gallon, 316L Stainless Steel, Vertical. Approximate 144" diameter x 142" straight side. Dished top and bottom heads. Insulated, 304 stainless steel dimple jacket rated 90 psi at -20 to 200 degrees F. Internal rated Atmos at -20 to 200 degrees F. Stainless steel agitator bridge with top entering Lightnin agiator, model 780-QC-75, approximate 5" diameter shaft with (2) 4-blade turbines. Driven by 100 hp, 3/60/460 volt, 1785 rpm gearmotor, 32.01 to 1 ratio. (4) Sidewall baffles, spray ball. Openings top: 24" manway with cover, (1) 8", (1) 4", (3) 3", (1) 2", side: (3) 3", (1) 1-1/2". 4" Center bottom outlet. Mounted on (4) stainless steel legs. Serial# 1703. National Board# 6246. Built 1996.
