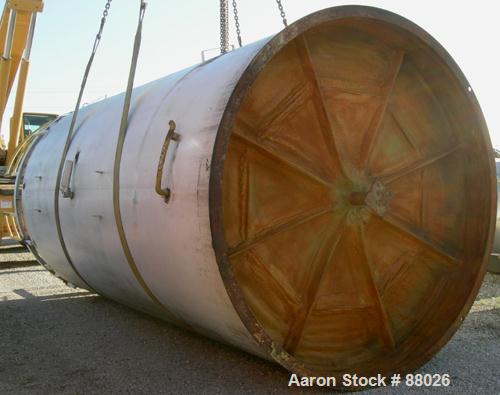

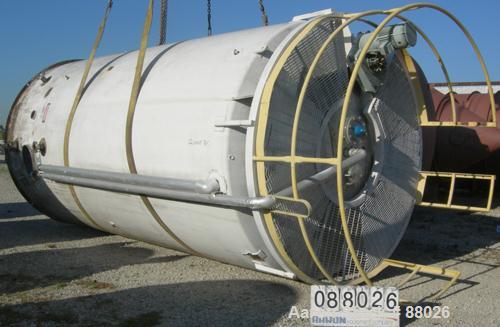

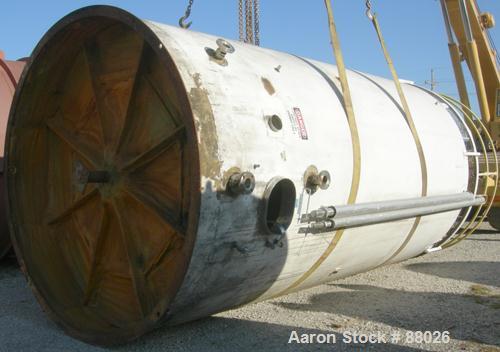

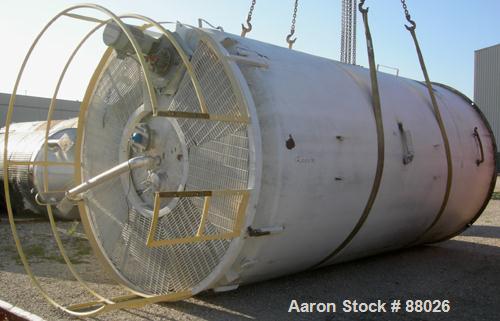

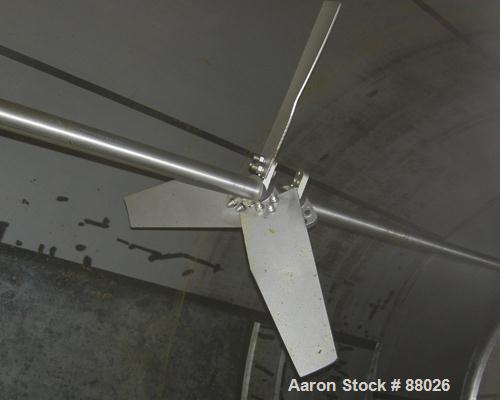

USED: Mueller jacketed silo tank, model SVW. 10,000 gallon, 304 stainless steel, vertical. 120" diameter x 216" straight side. Dished top, sloped bottom. Insulated carbon steel sheathing. Approximately 4' wide x 8' tall bottom side wall channel jacket, rated 150 psi at 300 degrees F. Off center top entering Lightnin agitator, model 10S5, ratio 14:1, output 69 rpm. 3" diameter bottom supported shaft, driven by a 5 hp, 3/60/230/460 volt, 1155 rpm motor. Openings: top 8", 8" tri clamp, 12" drive, side (2) 3", 16" x 20" oval manway, no cover, 3" side bottom outlet. Carbon steel bottom skirt base.
