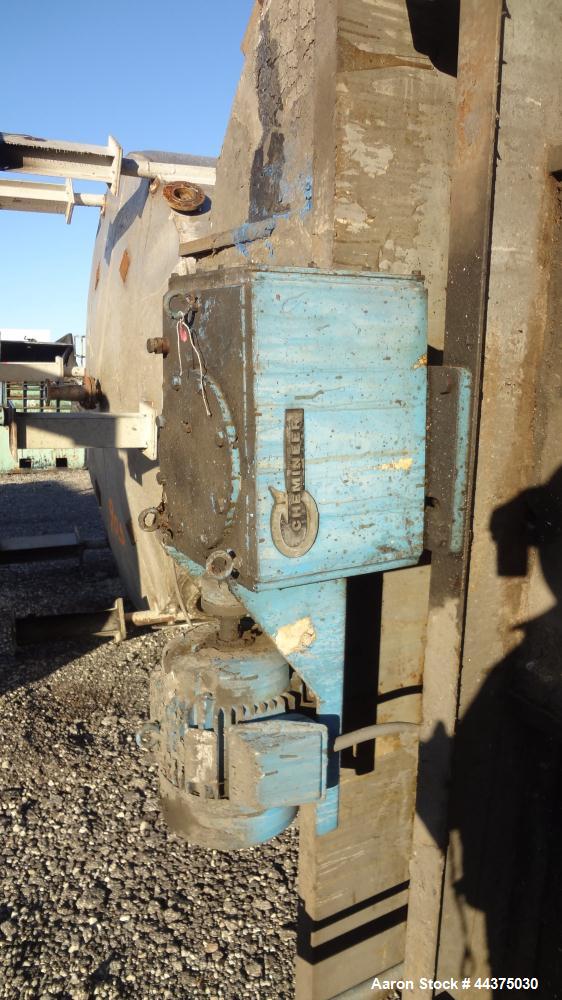

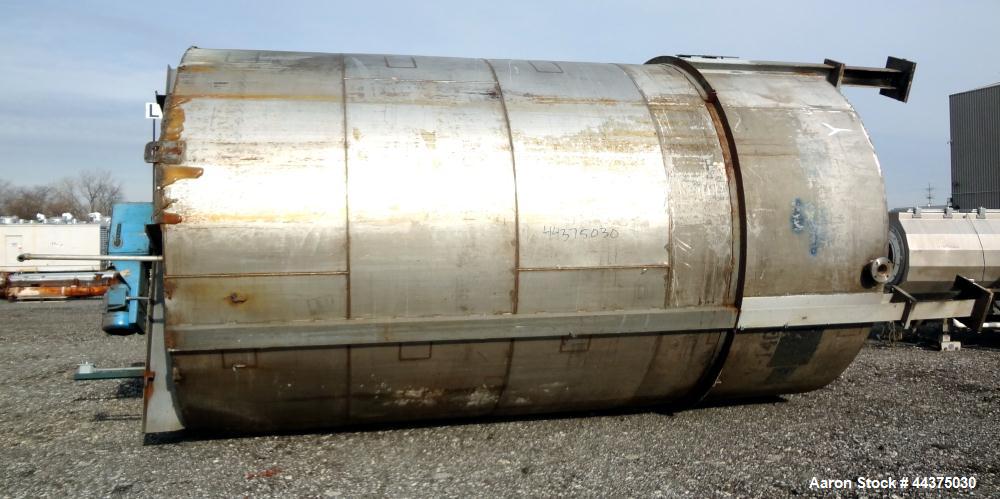

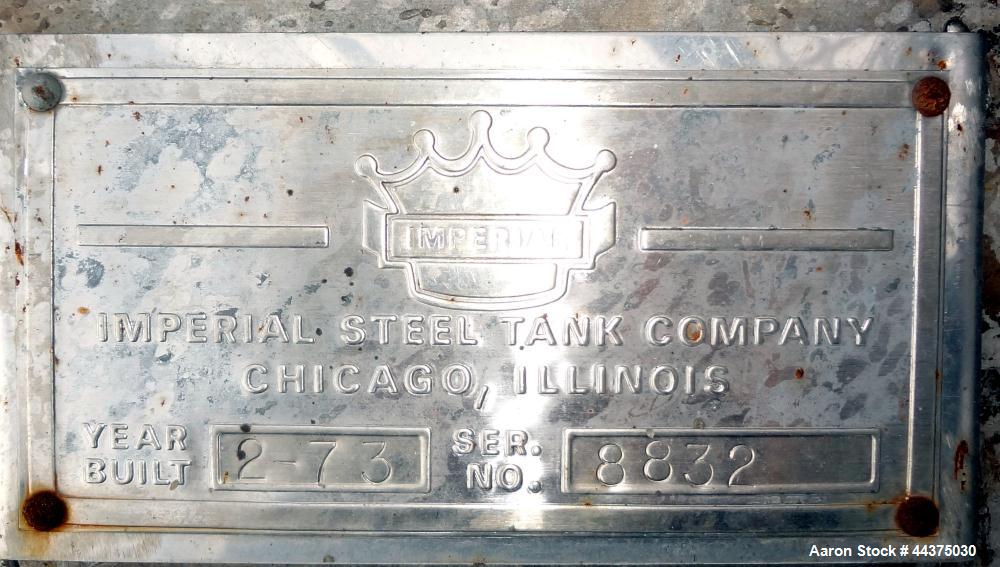

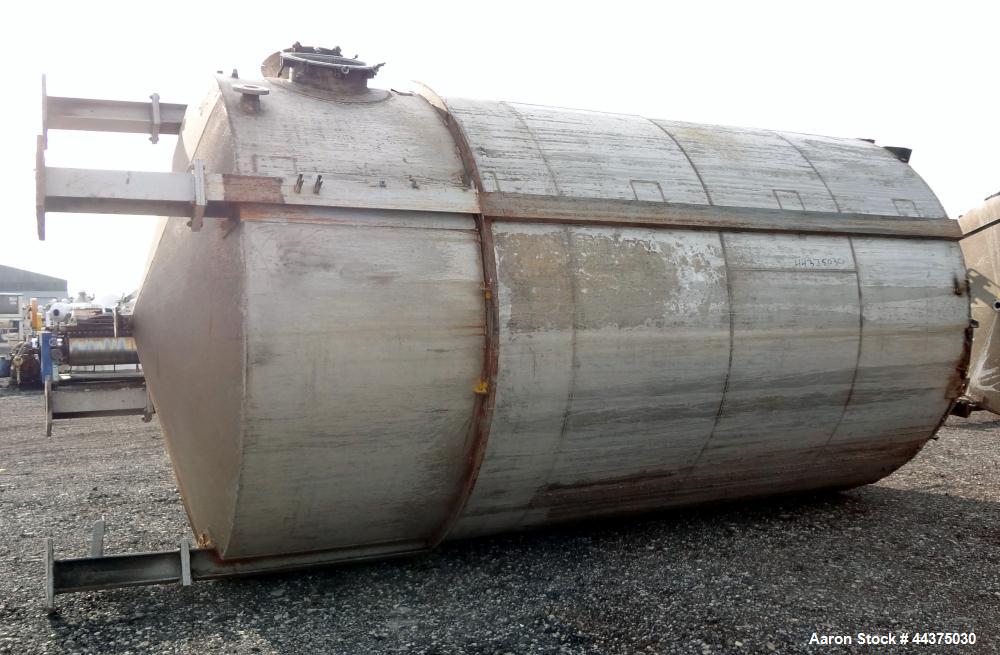

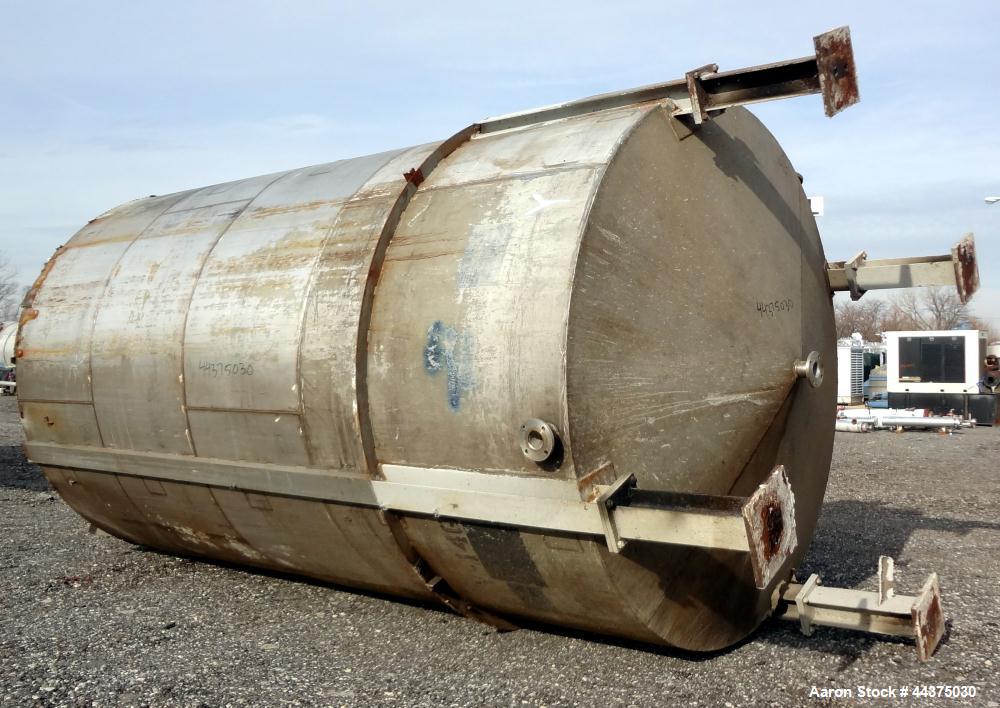

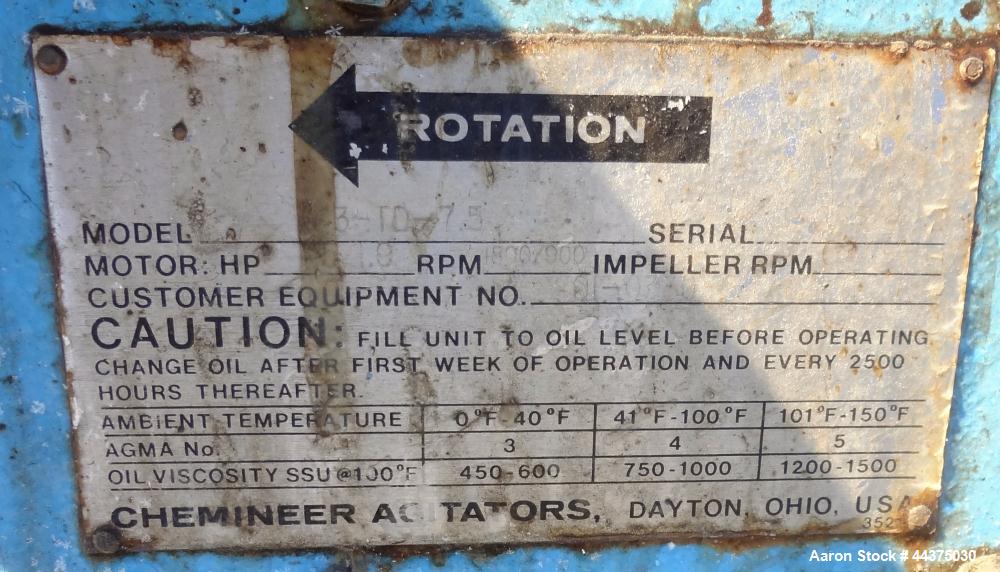

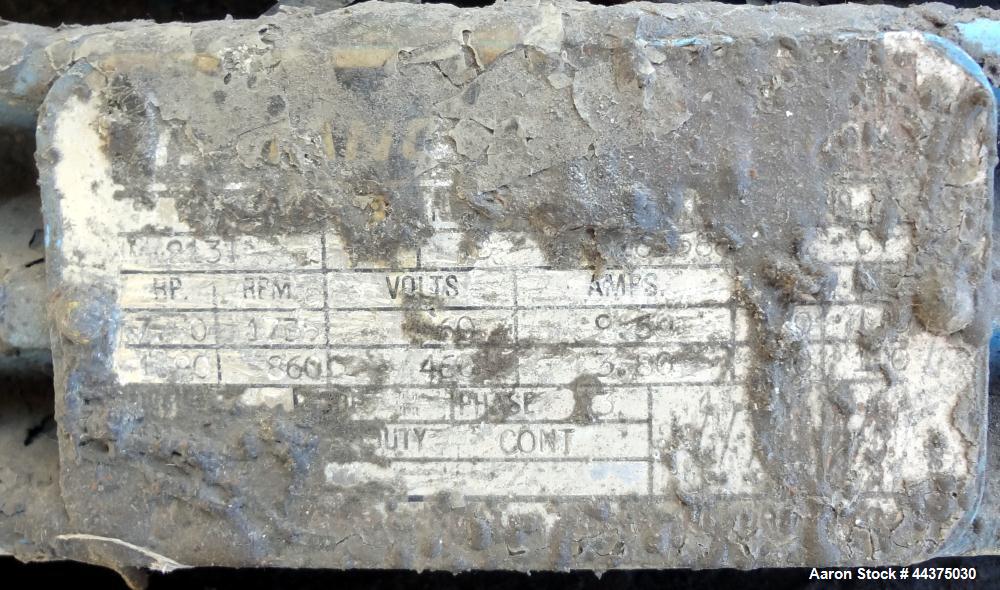

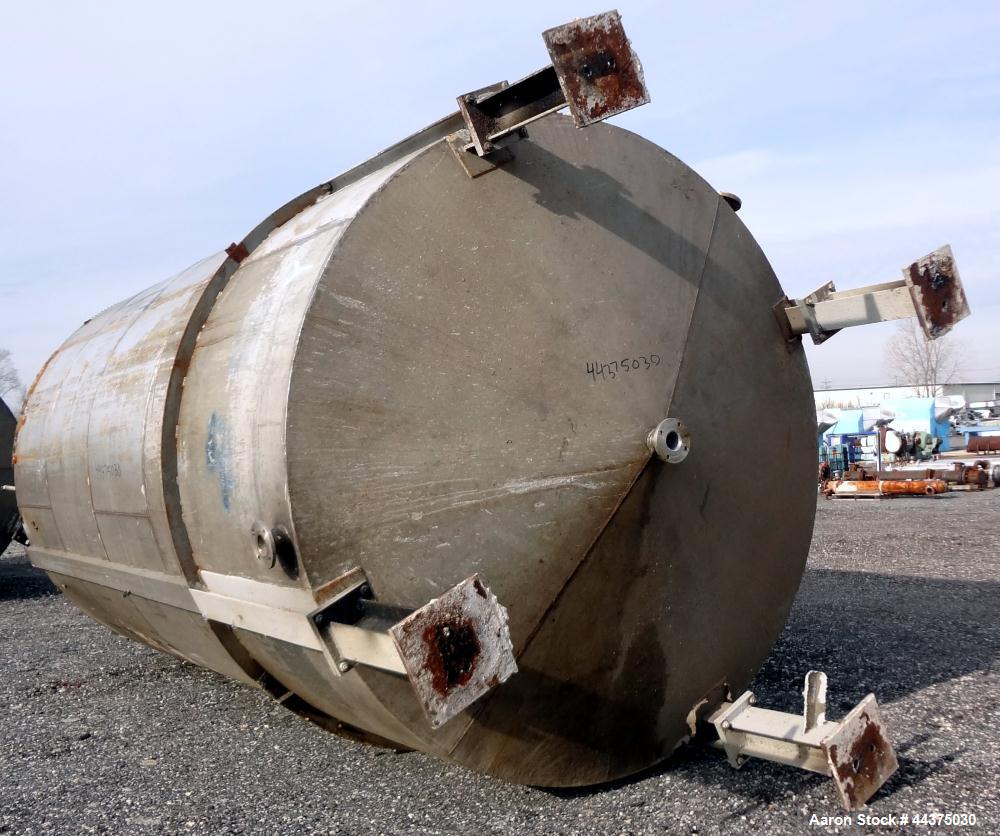

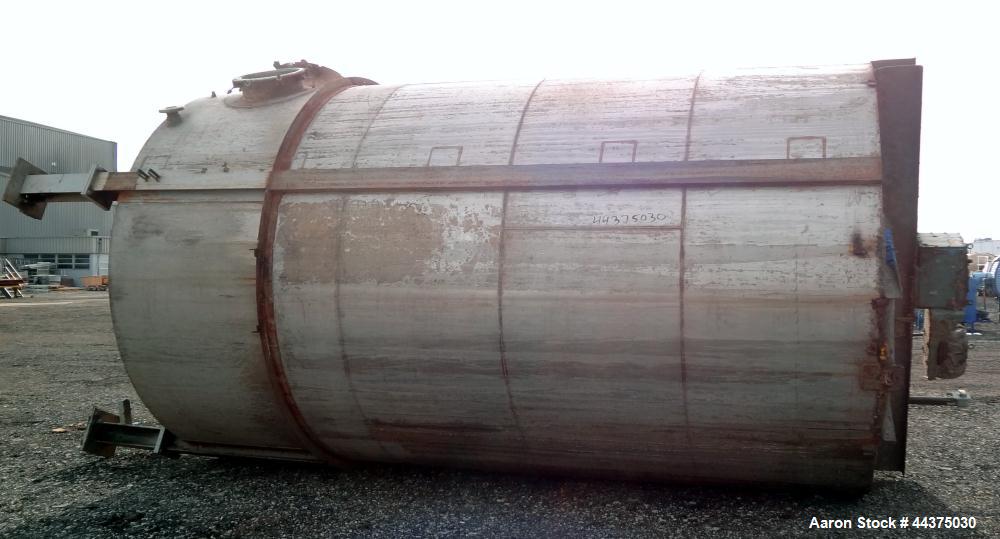

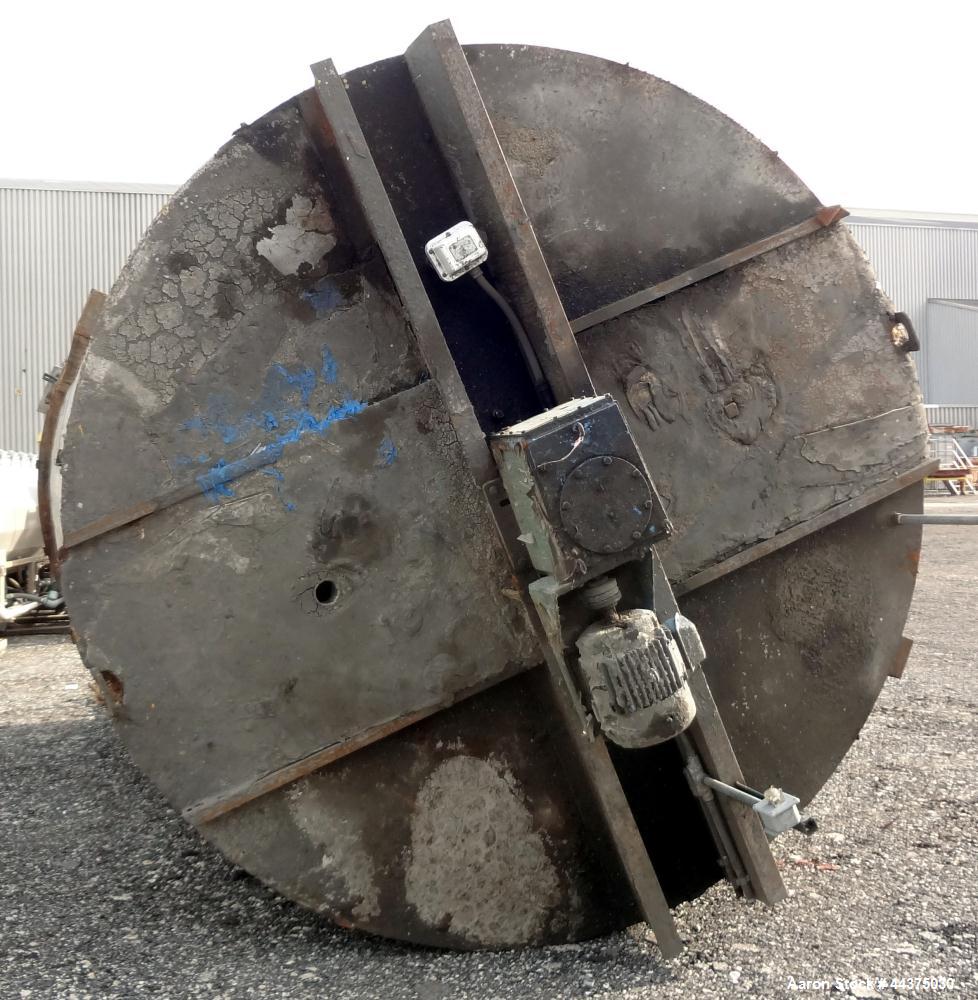

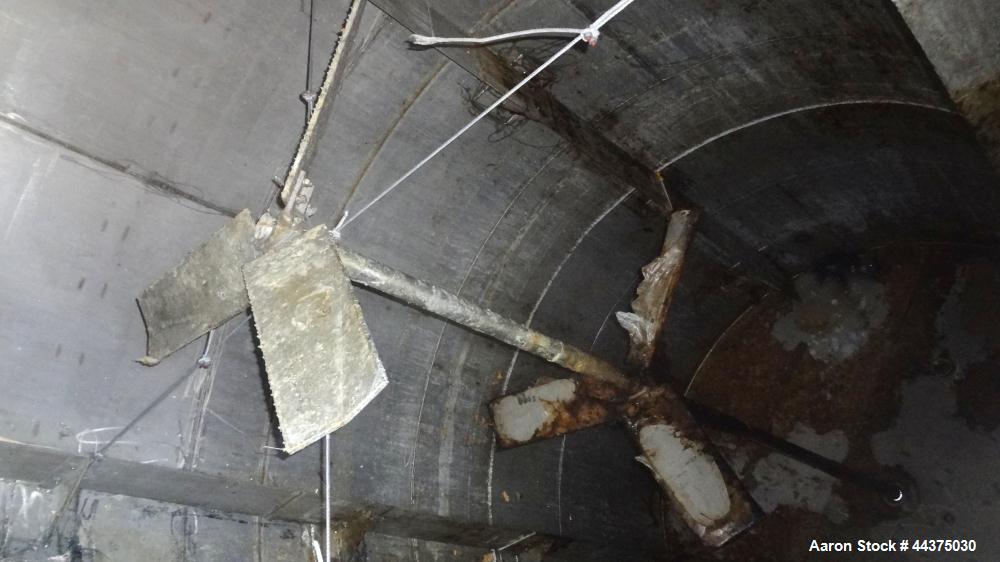

Used Imperial Steel Tank, 10,000 Gallon, 304 Stainless Steel, Vertical. Approximate 120" diameter x 204" straight side, flat welded top, coned bottom. Fixed carbon steel agitator bridge with a top entering Chemineer agitator, model 3HTD-7.5, serial# 1-25324-2, 68/34 output rpm. Approximate 2-1/2" diameter shaft with (2) 3 blade turbines, driven by a 7.5hp, 3/60/460 volt, 1735 rpm motor. (4) Sidewall baffles. Openings approximate 6" drive, side 3", 4", 8", 20" man way with cover. 3" Center bottom outlet. Mounted on (4) carbon steel I beam legs with approximate 28" extensions. Serial# 8832, built 1973.
Used Imperial Steel Tank, 10,000 Gallon, 304 Stainless Steel, Vertical. Approximate 120" diameter x 204" straight side, flat welded top, coned bottom. Fixed carbon steel agitator bridge with a top entering Chemineer agitator, model 3HTD-7.5, serial# 1-25324-2, 68/34 output rpm. Approximate 2-1/2" diameter shaft with (2) 3 blade turbines, driven by a 7.5hp, 3/60/460 volt, 1735 rpm motor. (4) Sidewall baffles. Openings approximate 6" drive, side 3", 4", 8", 20" man way with cover. 3" Center bottom outlet. Mounted on (4) carbon steel I beam legs with approximate 28" extensions. Serial# 8832, built 1973.
