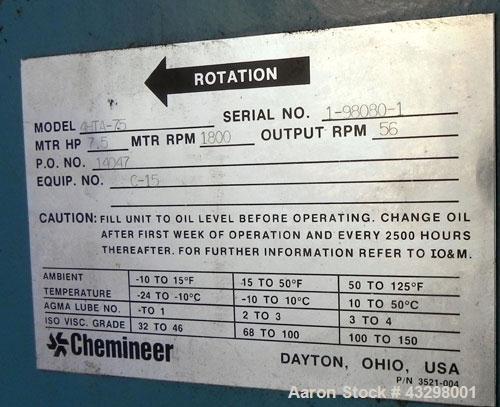

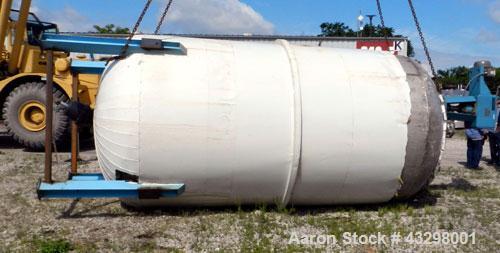

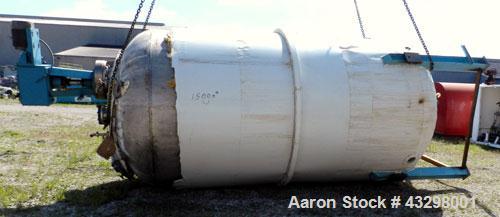

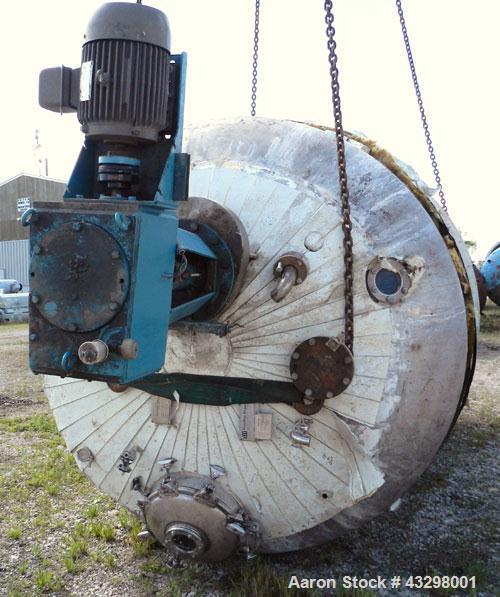

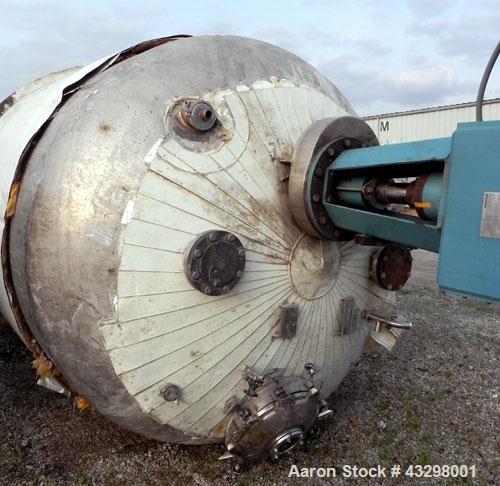

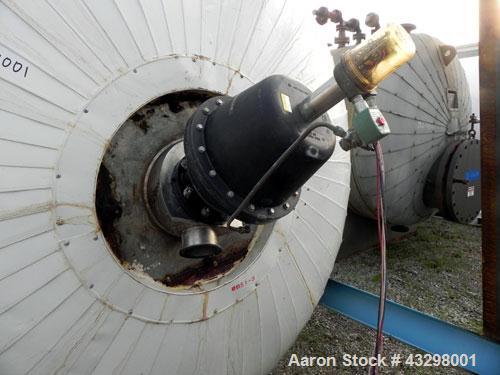

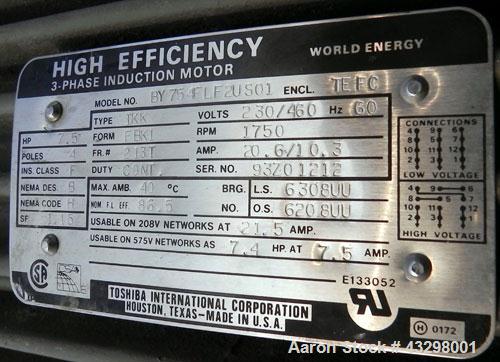

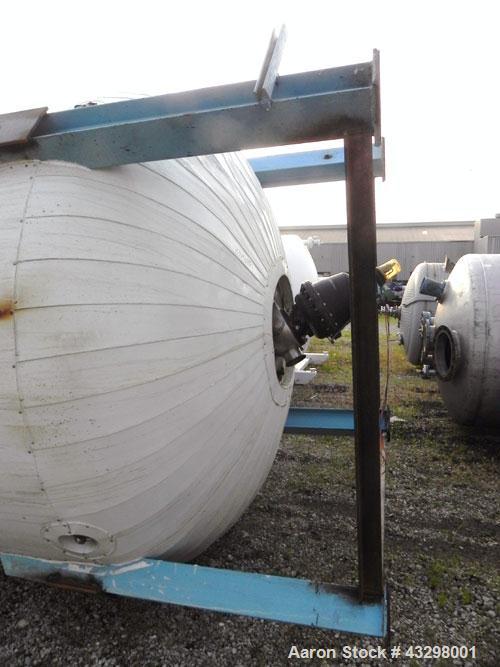

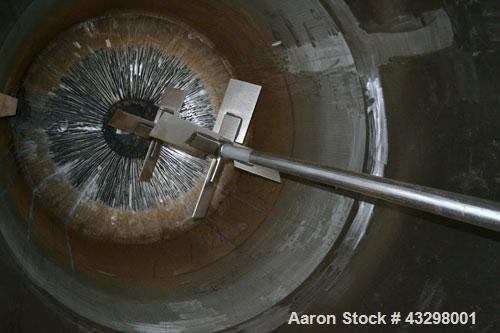

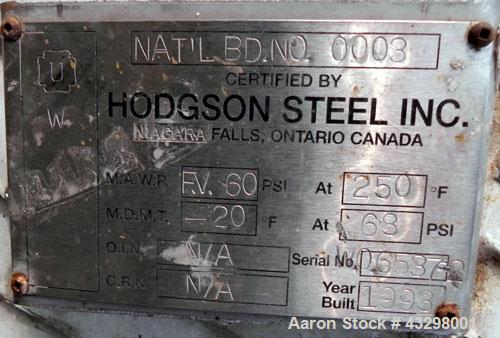

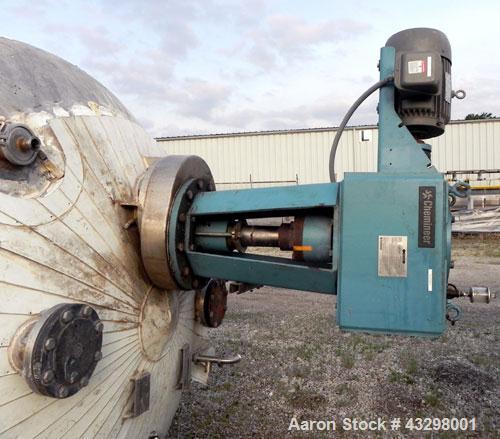

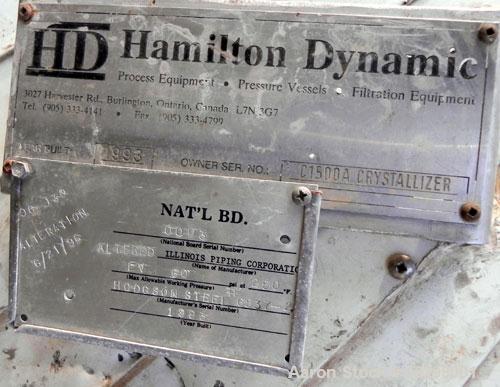

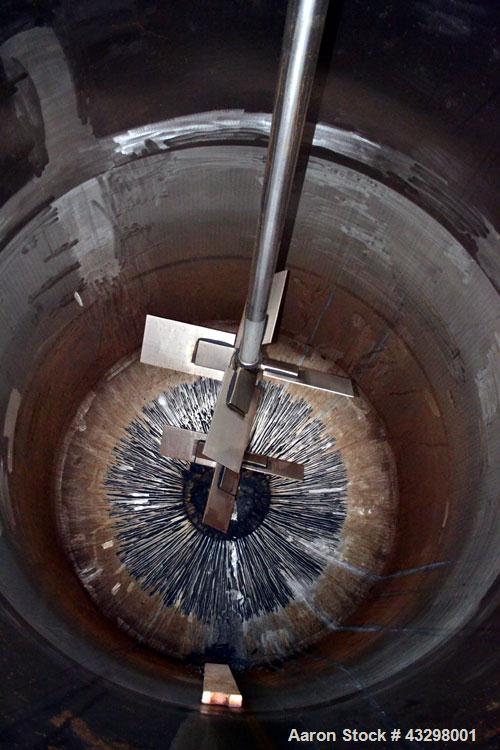

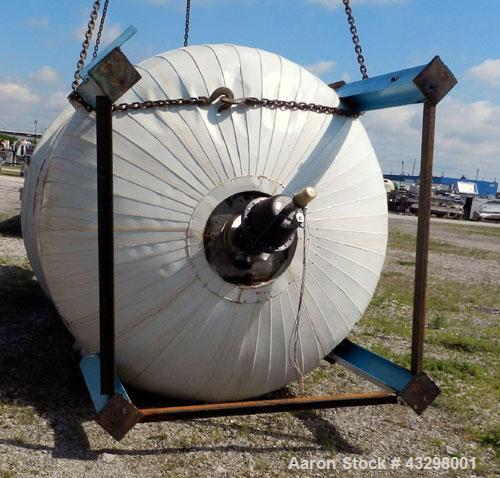

Used Hamilton Dynamic Crystallizer Pressure Tank, 5,300 Gallon, 304L Stainless Steel, Vertical. 96” Diameter x 156” straight side, 2:1 elliptical top and bottom. Internal rated Full Vacuum & 60 psi at -20 to 250 degrees F. Off center top entering Chemineer agitator, model 4HTA-7.5, output rpm 56. Approximate 3-1/2” diameter shaft with (2) 4 blade turbines, driven by a 7.5hp, 3/60/230/460 volt, 1750 rpm motor. Openings top 2”, (2) 6”, 4-1/2 sight glass, 1-1/2” tri-clamp, 2” tri-clamp, 4” tri-clamp, 12” drive, 20” man way with a 4-1/2” sight glass in the cover. Approximate 4” center bottom outlet. Mounted on (4) carbon steel legs.
Used Hamilton Dynamic Crystallizer Pressure Tank, 5,300 Gallon, 304L Stainless Steel, Vertical. 96” Diameter x 156” straight side, 2:1 elliptical top and bottom. Internal rated Full Vacuum & 60 psi at -20 to 250 degrees F. Off center top entering Chemineer agitator, model 4HTA-7.5, output rpm 56. Approximate 3-1/2” diameter shaft with (2) 4 blade turbines, driven by a 7.5hp, 3/60/230/460 volt, 1750 rpm motor. Openings top 2”, (2) 6”, 4-1/2 sight glass, 1-1/2” tri-clamp, 2” tri-clamp, 4” tri-clamp, 12” drive, 20” man way with a 4-1/2” sight glass in the cover. Approximate 4” center bottom outlet. Mounted on (4) carbon steel legs.
