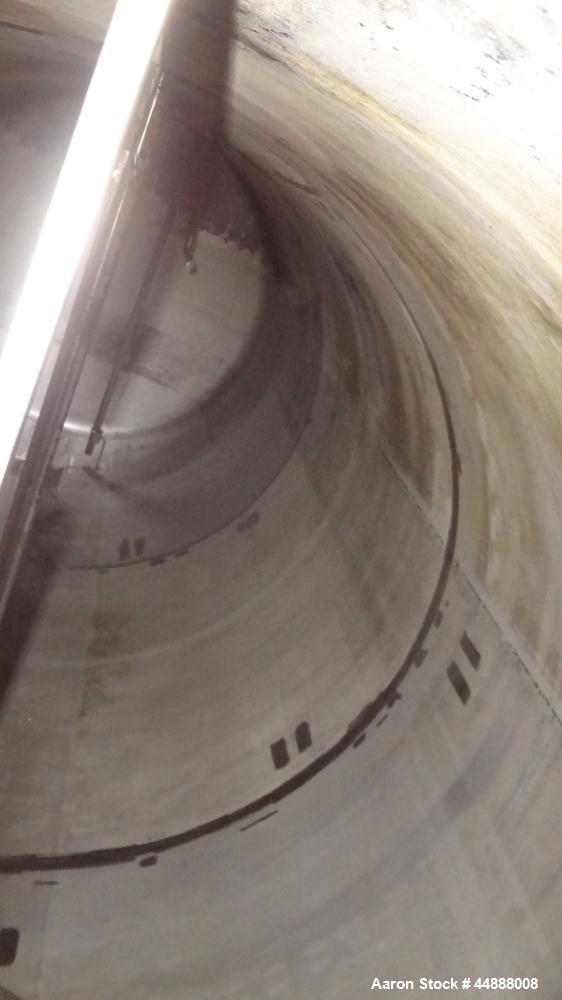

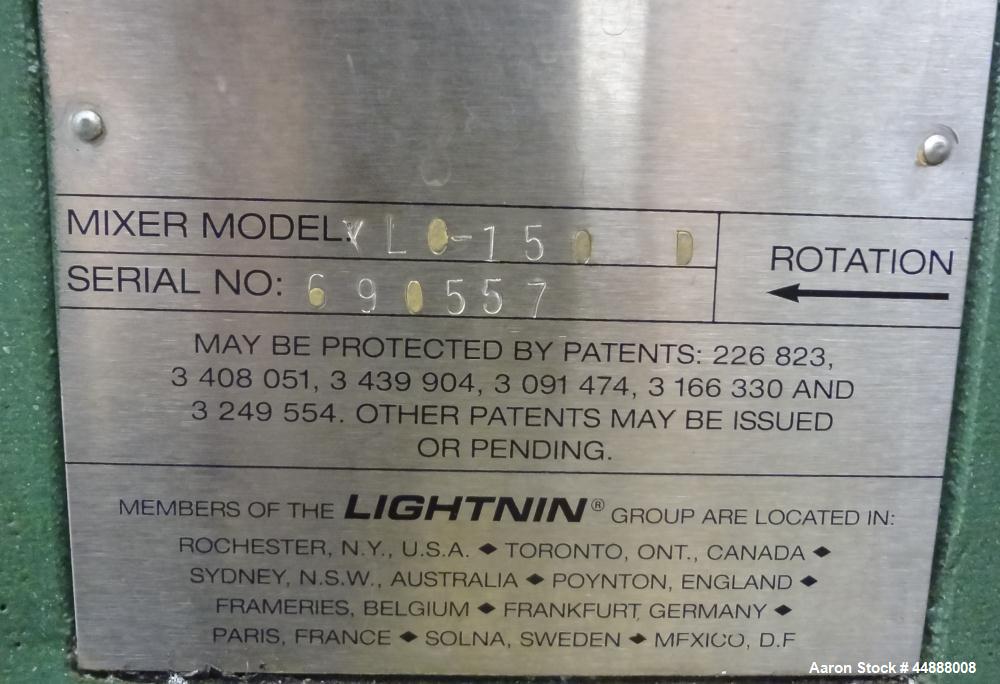

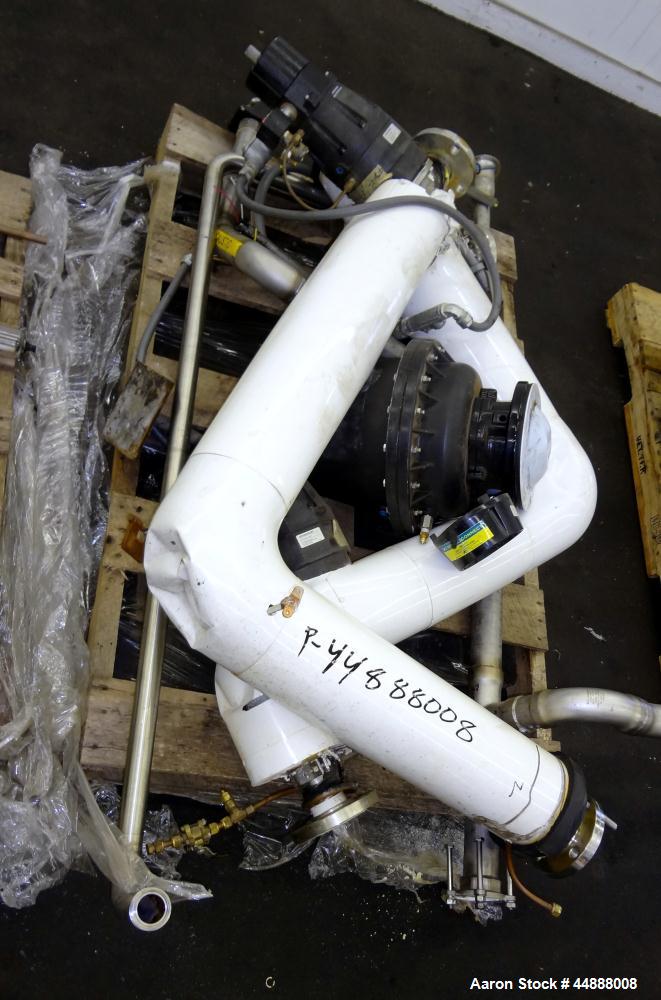

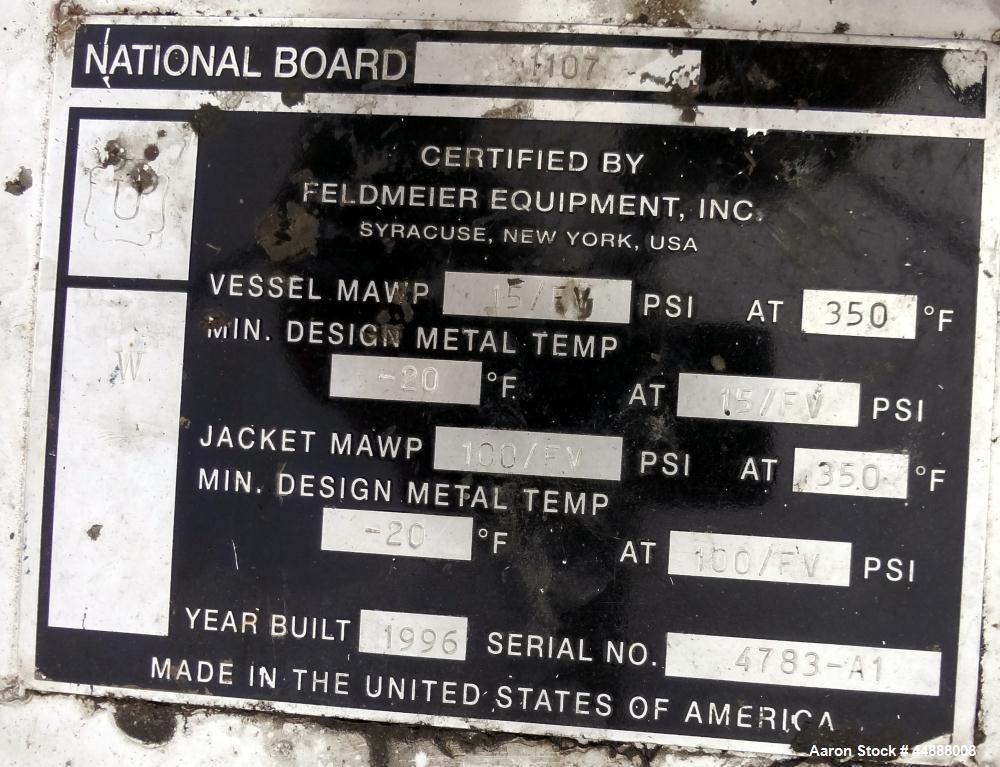

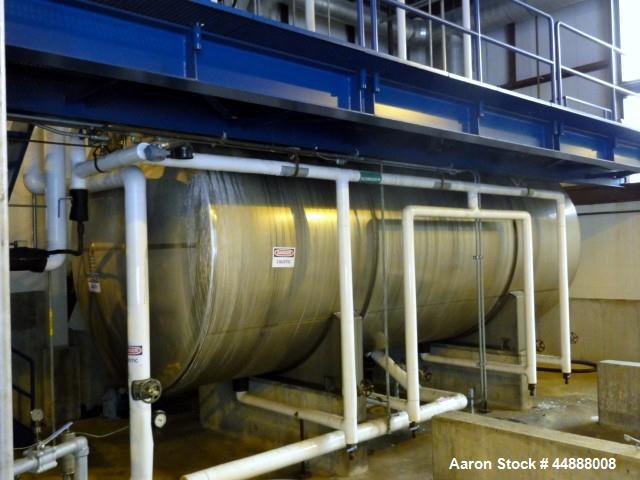

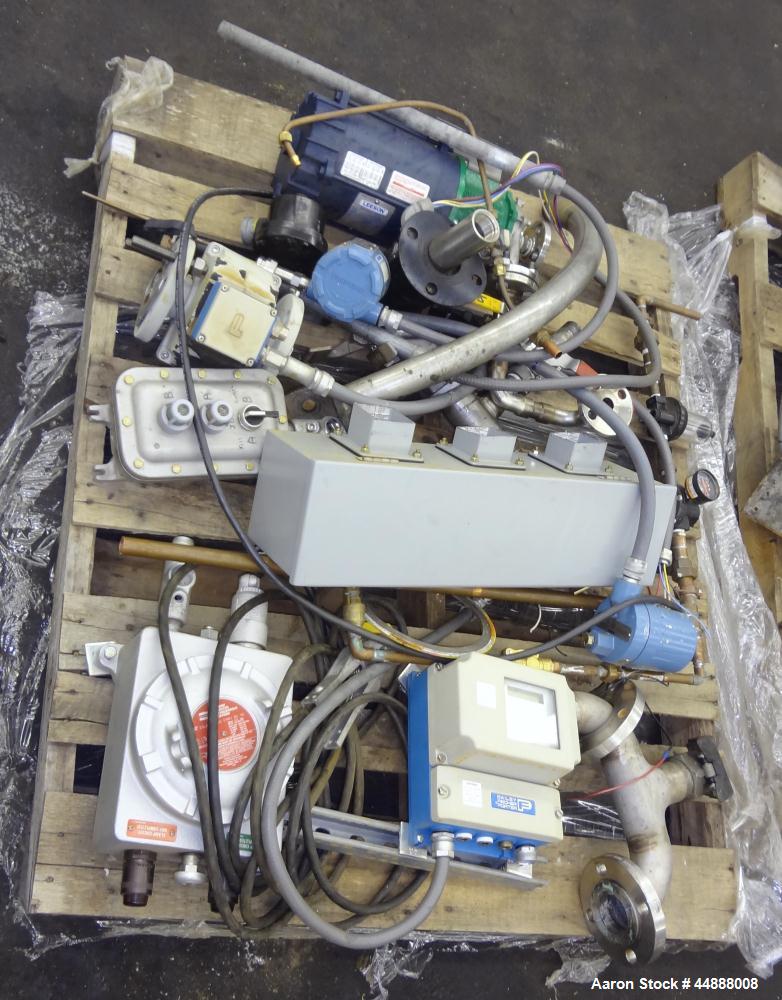

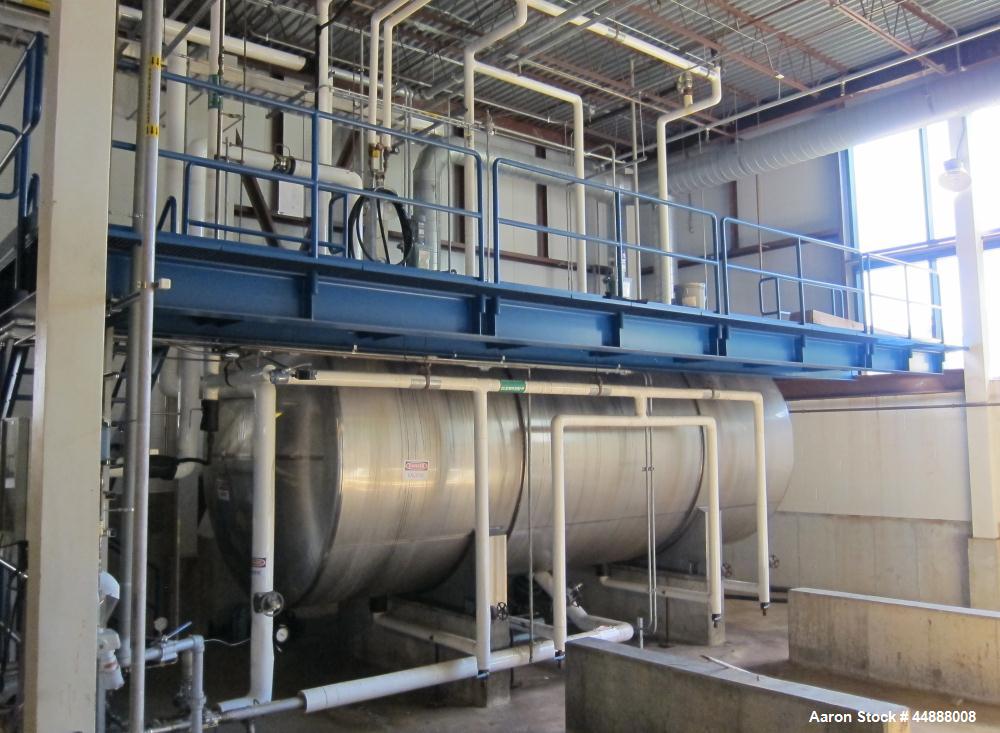

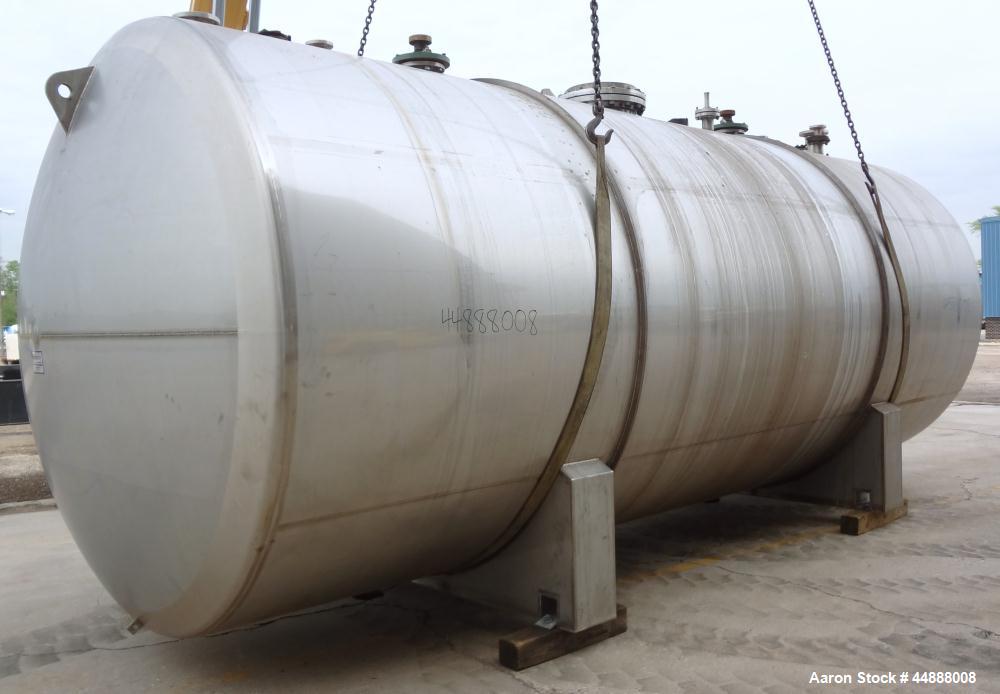

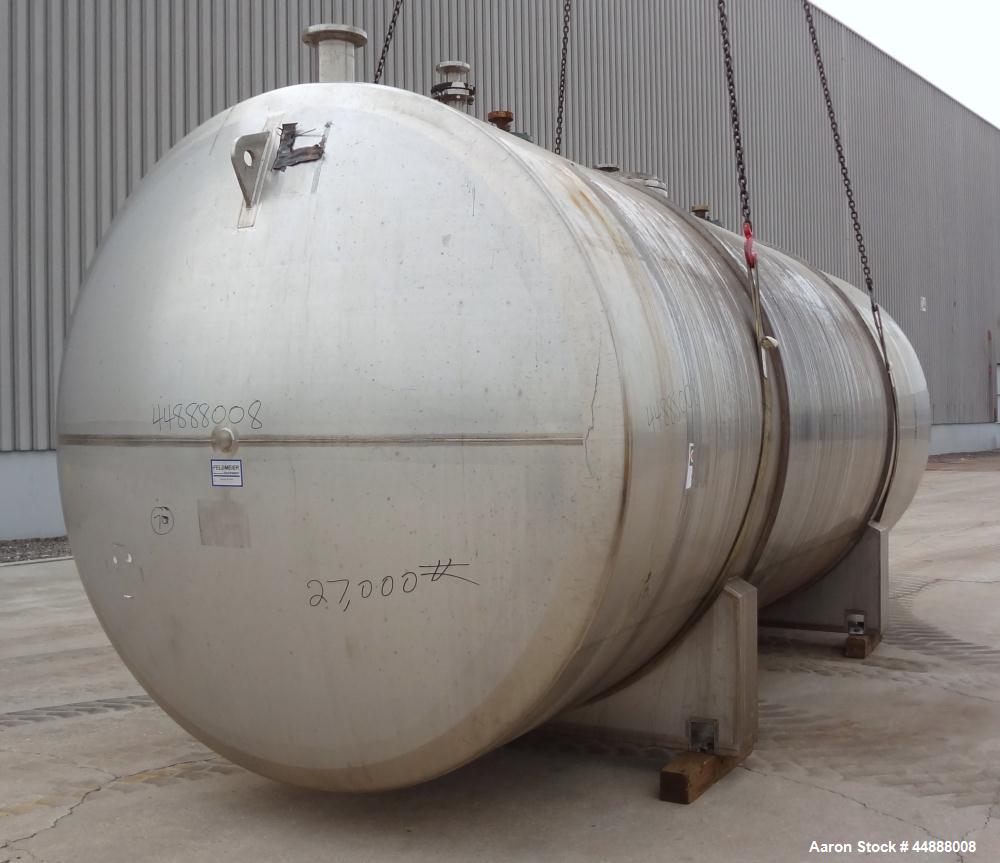

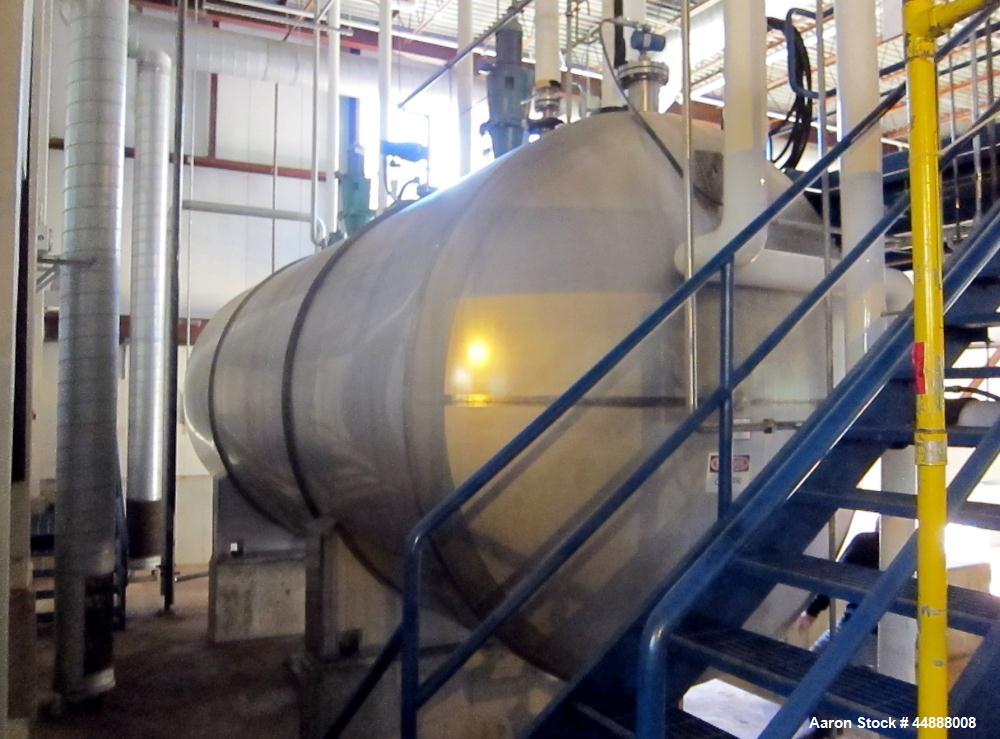

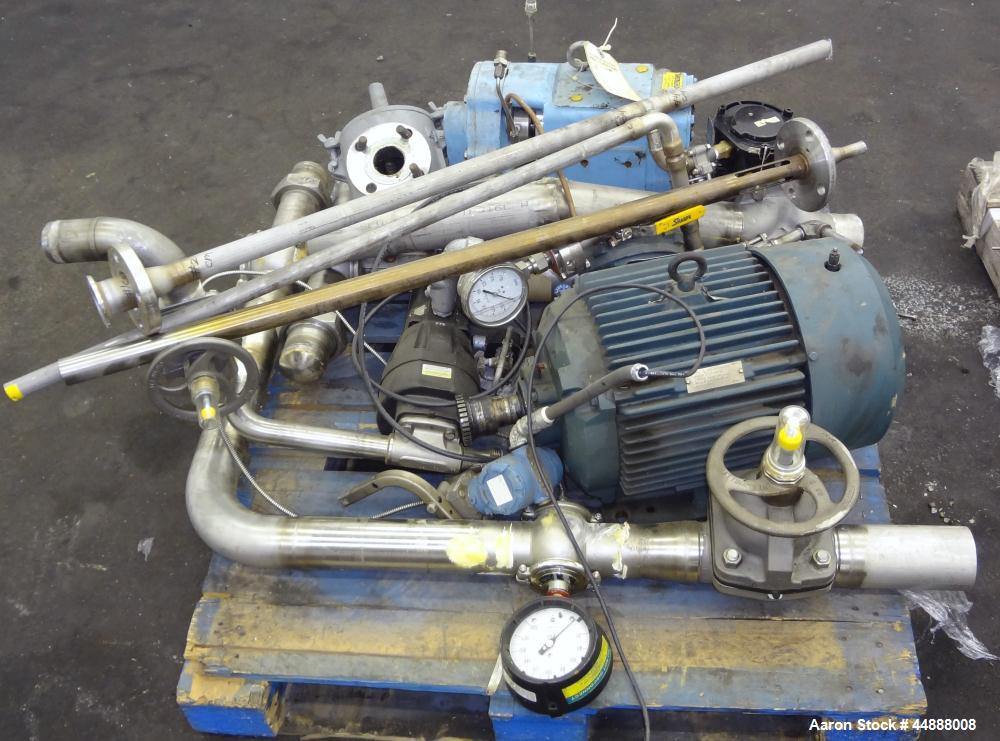

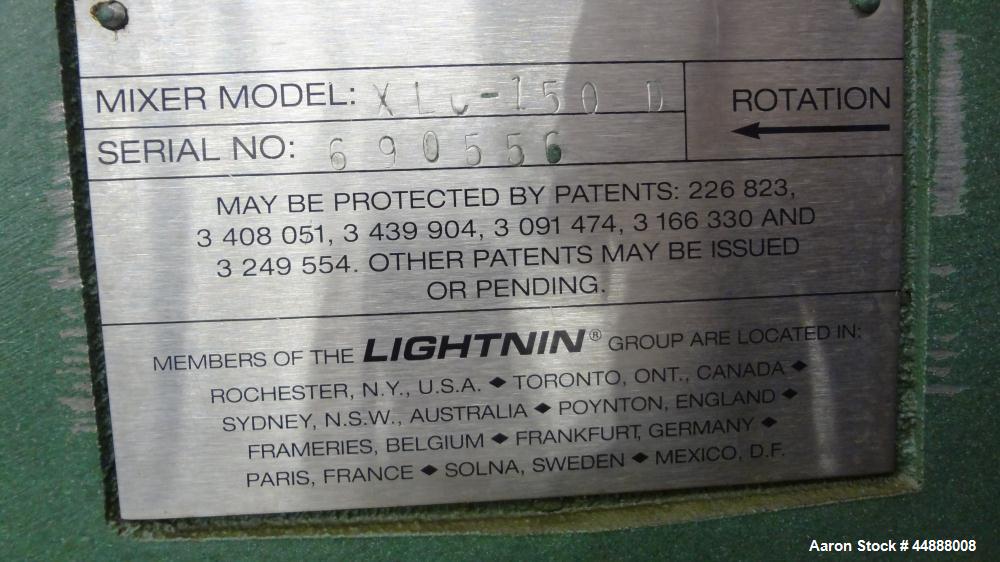

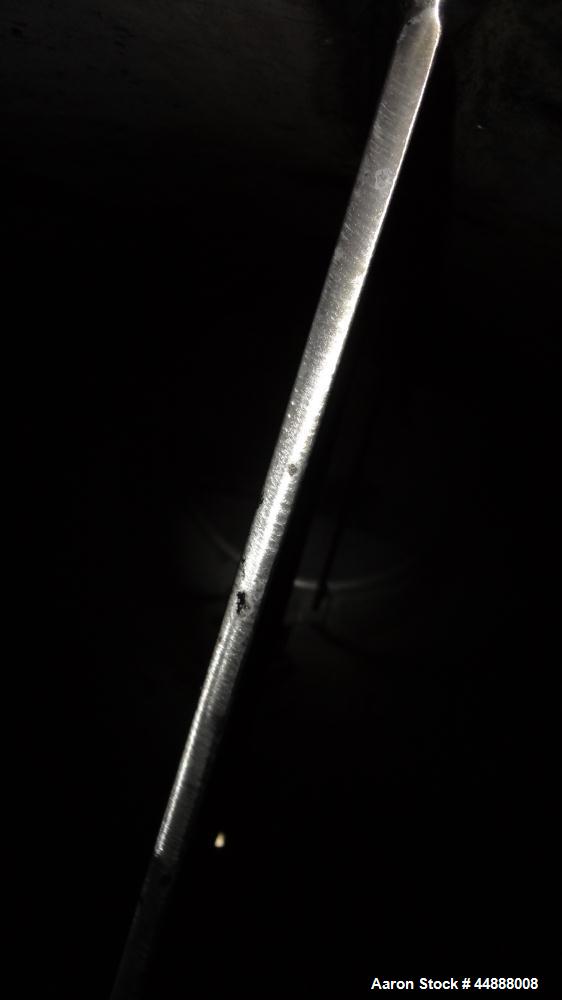

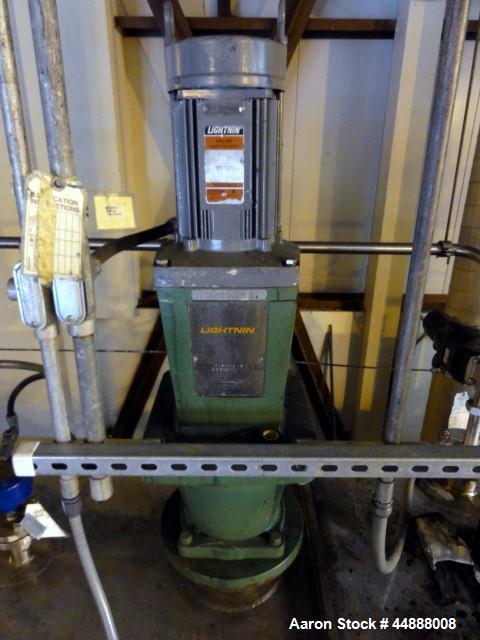

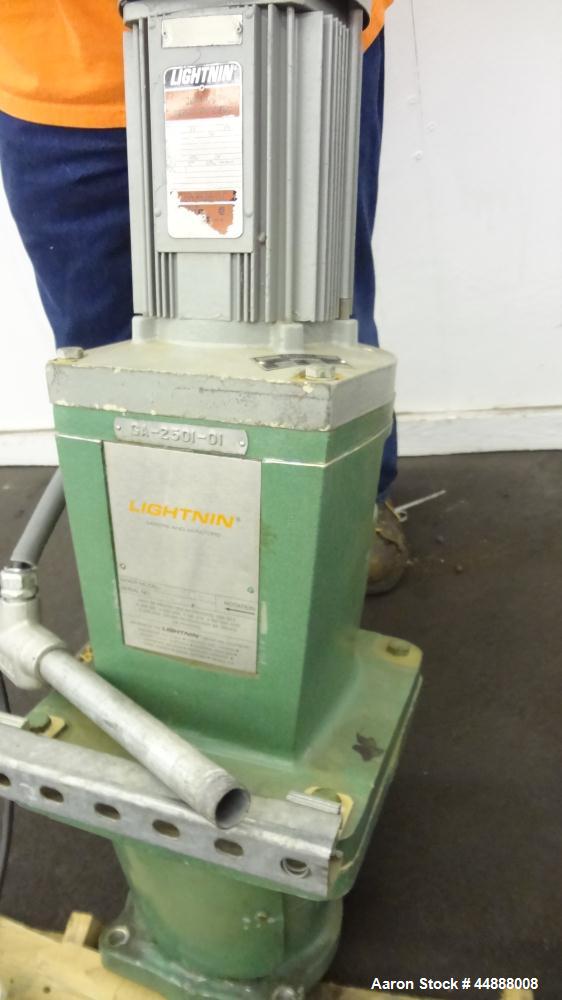

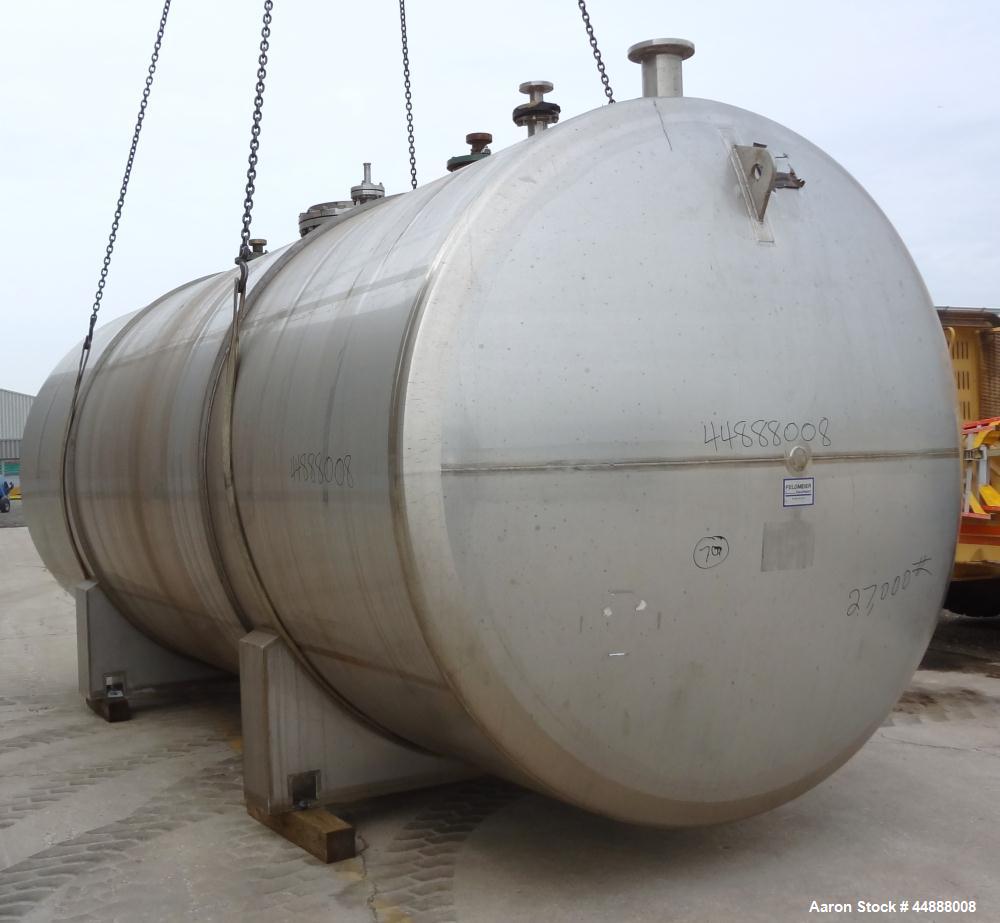

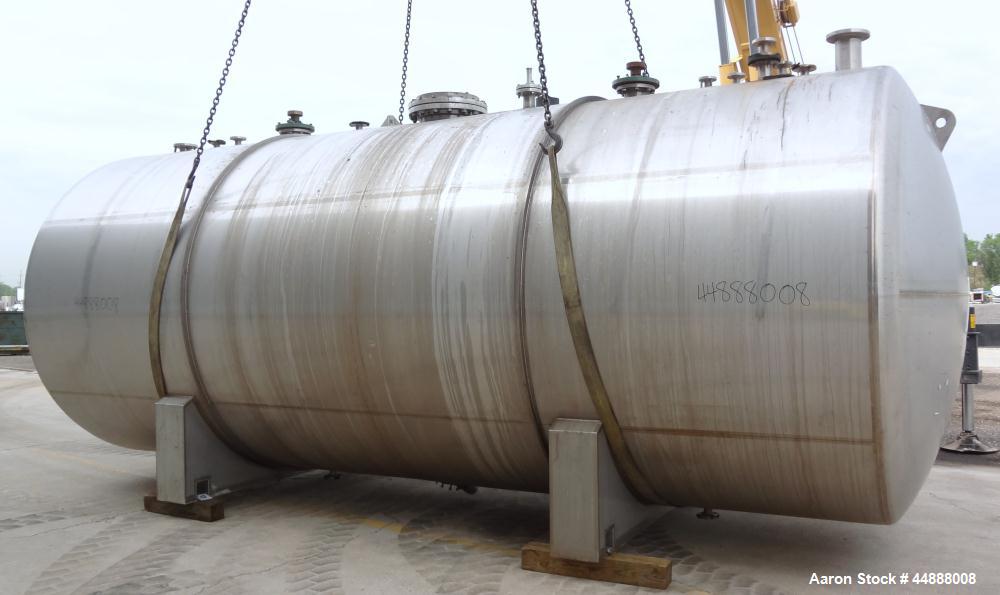

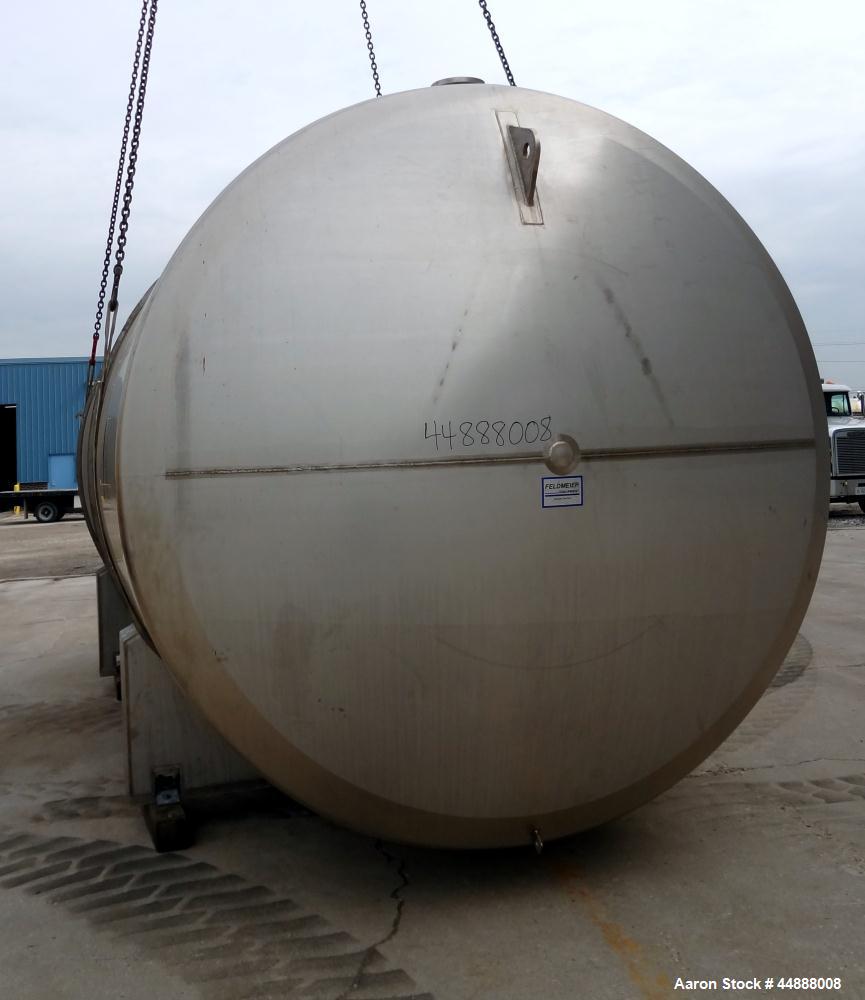

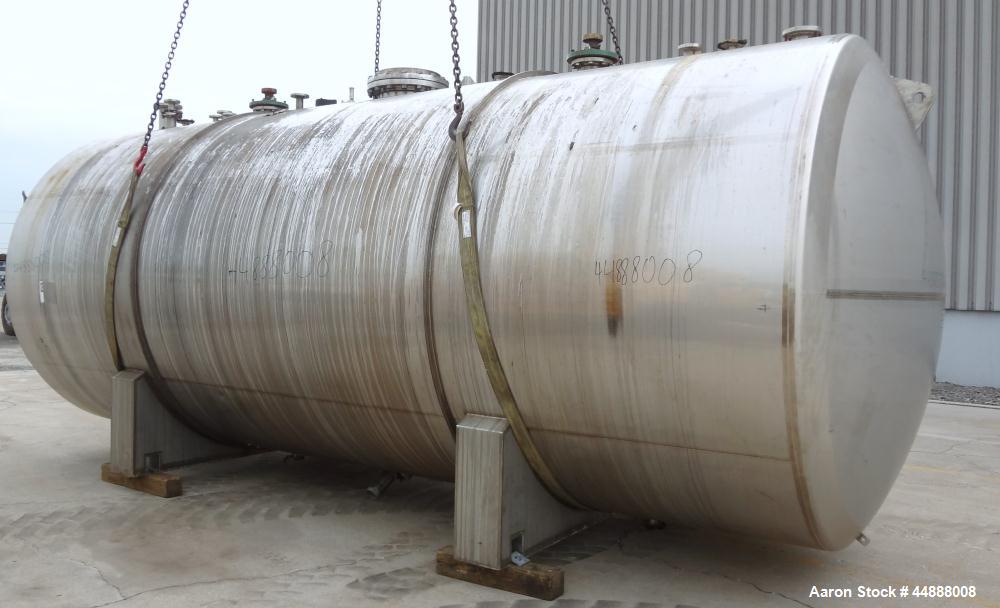

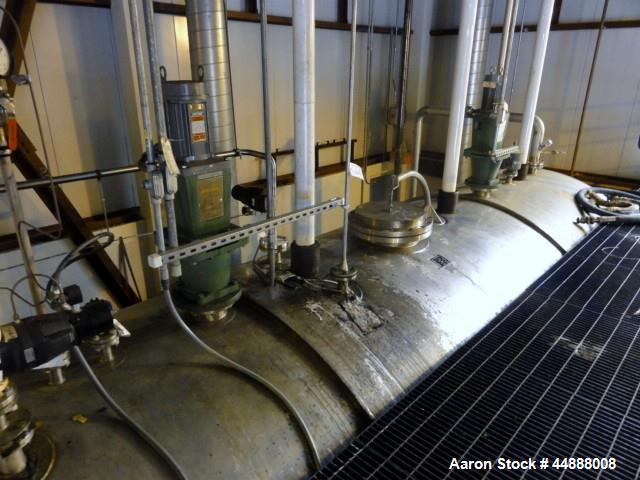

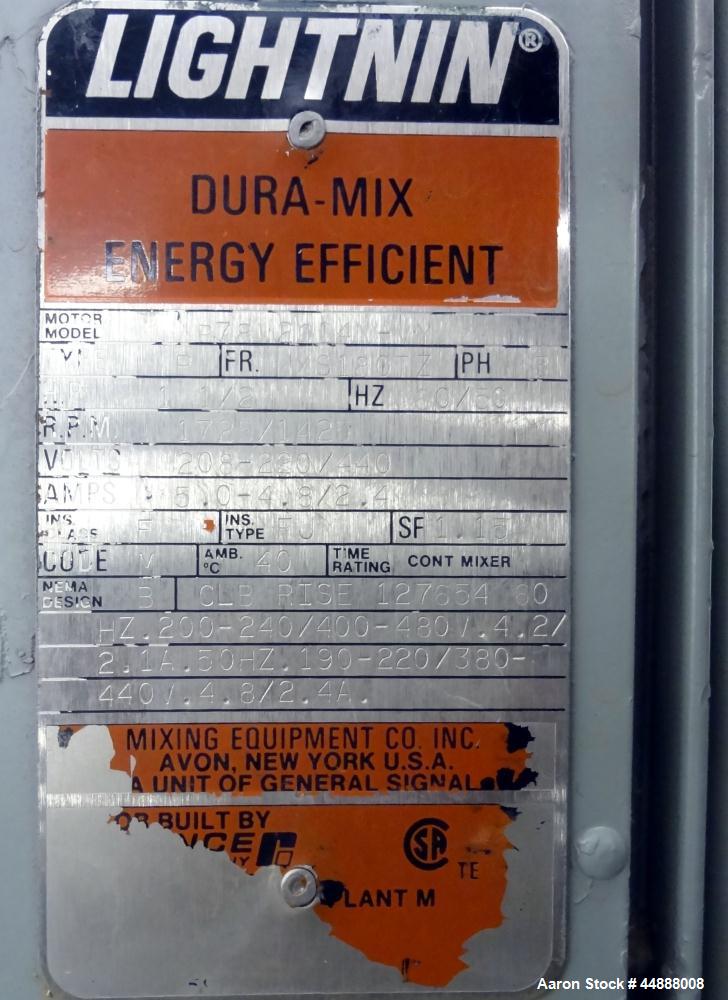

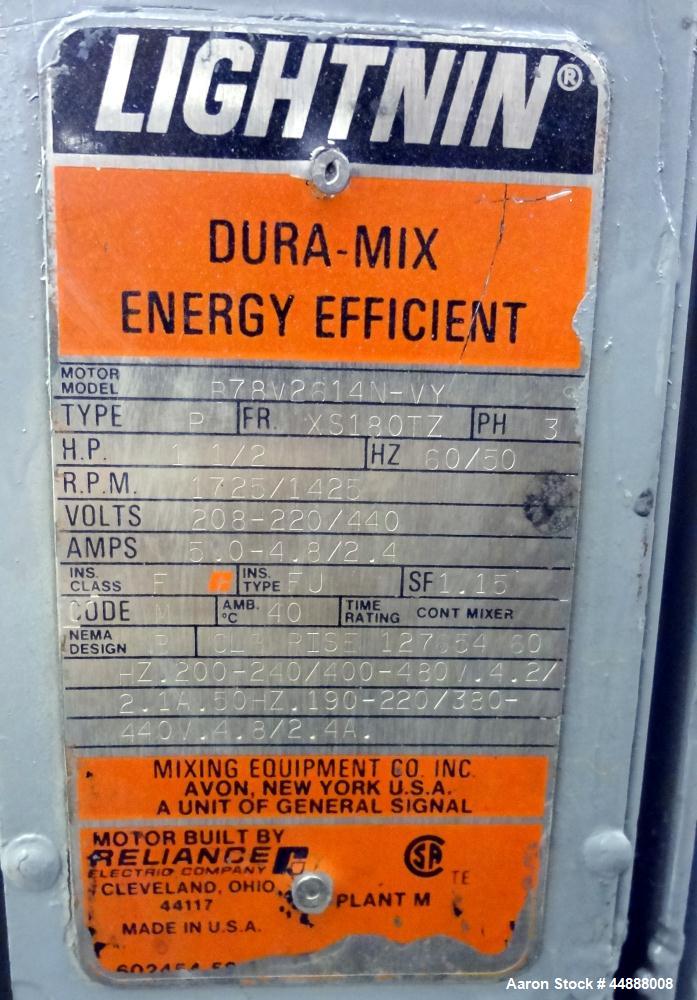

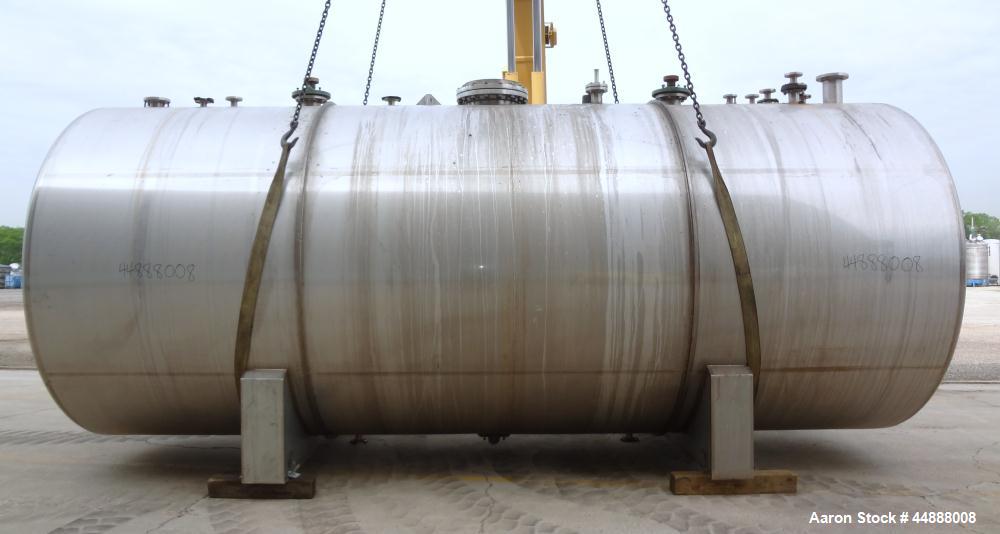

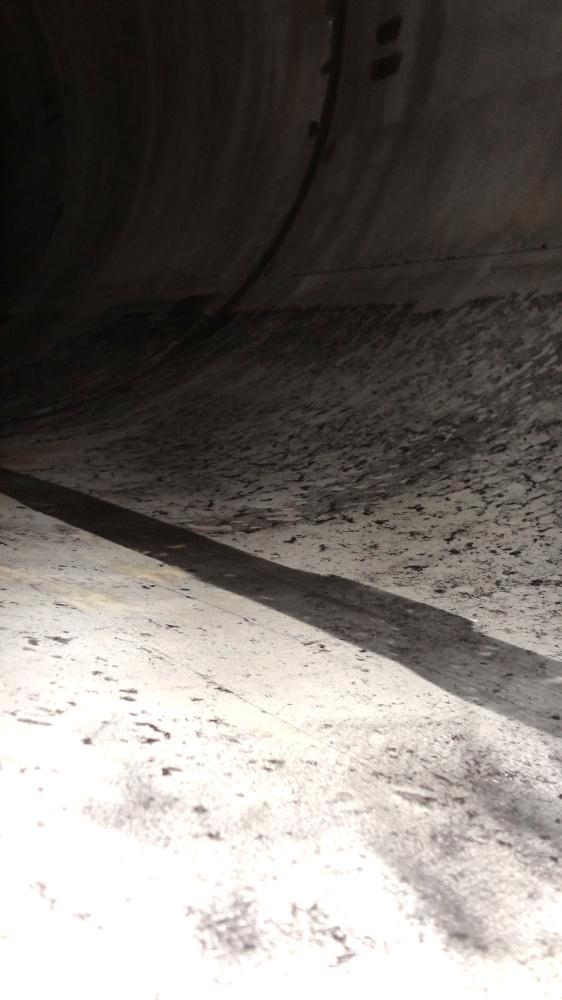

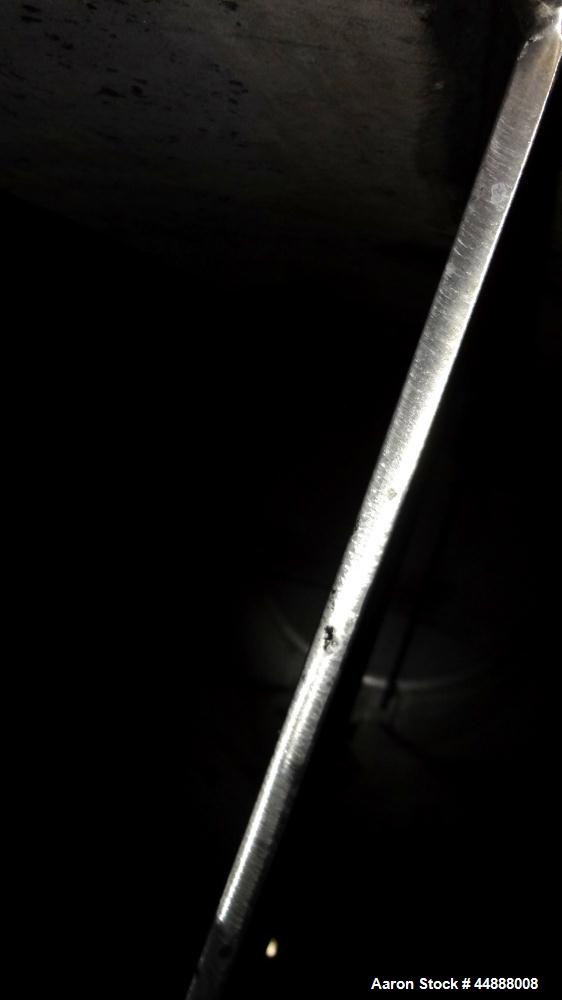

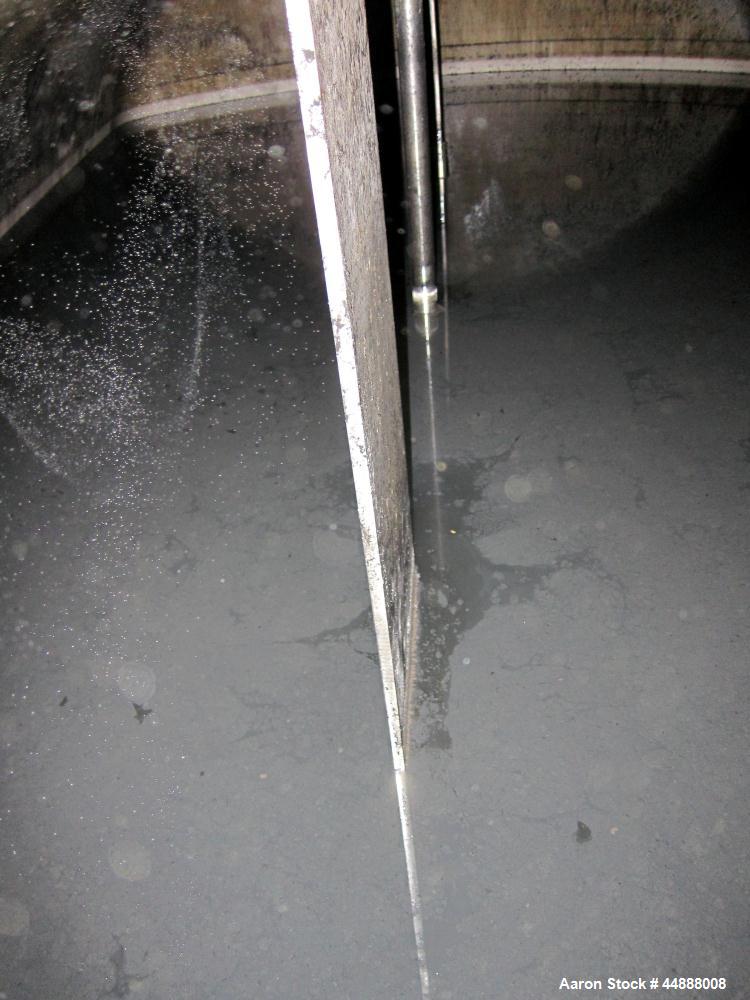

Used Feldmeier Reactor, 10,000 Gallon, 316L Stainless Steel, Horizontal. 108" Diameter x 255" straight side, dished heads. Internal rated 15/Full Vacuum psi at -20 to 350 degrees F, 304L stainless steel dimple jacket rated 100/Full Vacuum psi at -20 to 350 degrees F. Vessel is insulated with 2" foamglass and stainless steel sheathing. (2) Top entering Lightnin agitators, Model XLC-150D, Serial# 690556, 690557, approximately 1-1/2" diameter shafts, each driven by a 1.5 hp, 3/60/208-220/440 volt, 1725 rpm motors. Openings top (2) 1-1/2", (6) 2", (3) 3", 4", 6", (2) 6" drives, 18" man way with davit arm cover. 4" Center bottom outlet. Mounted on (2) carbon steel saddles with stainless steel sheathing. National Board #1107, Serial #4783-A1, built 1996. Includes a Waukesha positive displacement pump, centrifugal pump, and miscellaneous piping, and valves.
